70 Vehicle Care
FusesUsage
52 Right high-beam headlamp
53 Left low-beam headamp
54 Right low-beam headlamp
55 Wipers
56 Canister vent solenoid
58 Body control module 2
59 Body control module 1 61 Crankcase vent heater
62 O2 sensor 2/EV fan
63 –
64 Mass airflow sensor/ Canister vent/Humidity
sensor
65 Ignition coils/injectors - odd
66 Daytime running lamps 2
67 Daytime running lamps 1–uplevel
68 Auxiliary stoplamps Fuses
Usage
69 Trailer power extension 70 Upfitter stoplamps 71 Fuel heater/FlexFuel sensor
72 Body control module 6
73 Lighter/Data link connector
74 Front blower 75 Engine control module, powertrain signal 3
76 Soot sensor 77 O2 sensor 1/ECM powertrain signal 2
78 Engine control module/ Powertrain
79 Ignition coils/injectors - even
Relays Usage
15 Run/Crank
37 NOx sensors
38 Fuel pump Relays
Usage
39 Crank
40 Air conditioning 48 EV fan clutch
49 Powertrain 50 –
57 Cooling fan –low
60 Cooling fan control
Auxiliary Fuse Block
The vehicle may not be equipped with all of
the fuses, relays, and features shown.
Page 72 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Vehicle Care 71
FusesUsage
MR-1 Fuel filter heater
MR-2 Diesel exhaust fluid power
MR-3 Diesel exhaust fluid wake up
Relays Usage
MR Rel 1 Fuel filter heater
MR Rel 2 Diesel exhaust fluid power/Wake up
Mega Fuse Holder
To check the fuse release the yellow clamps
on both sides and pull off the cover.
Fuse Usage
1 Starter motor
Appearance Care
Exterior Care
See the owner’s manual for additional
exterior care information.
Caution
Water sprayed into or on the air intake
box in the engine compartment may
damage the air filter or electrical
components. Do not spray water into or
on the air intake box.
Page 73 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
72 Service and Maintenance
Service and Maintenance
General Information
General Information . . . . . . . . . . . . . . . . . . . . 72
Maintenance Schedule
Maintenance Schedule . . . . . . . . . . . . . . . . . . 73
Maintenance Schedule . . . . . . . . . . . . . . . . . . 77

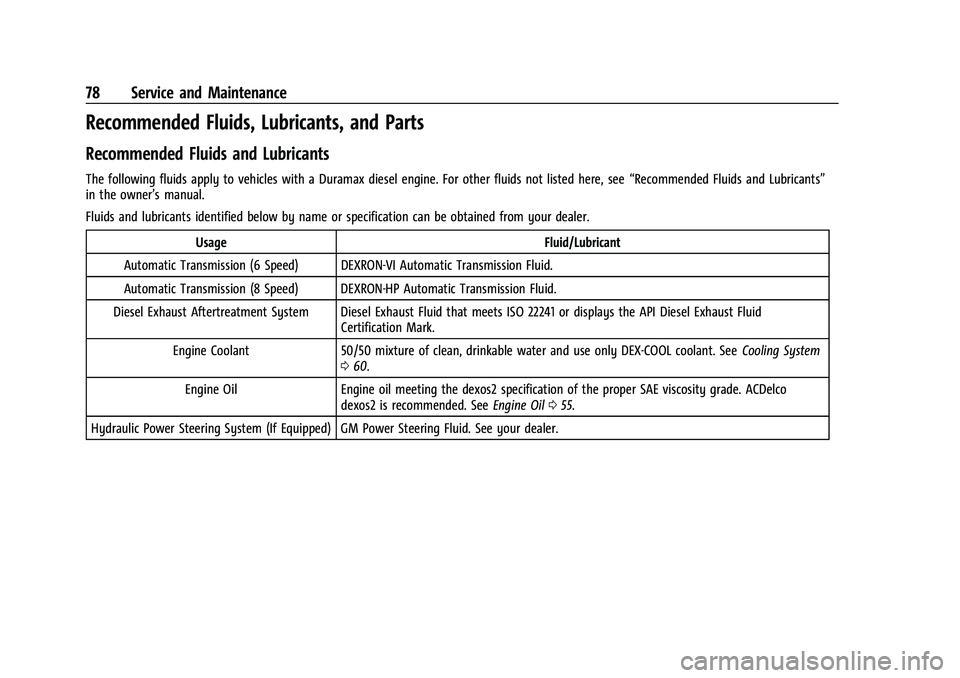

Recommended Fluids, Lubricants, and
Parts
Recommended Fluids and Lubricants . . . 78

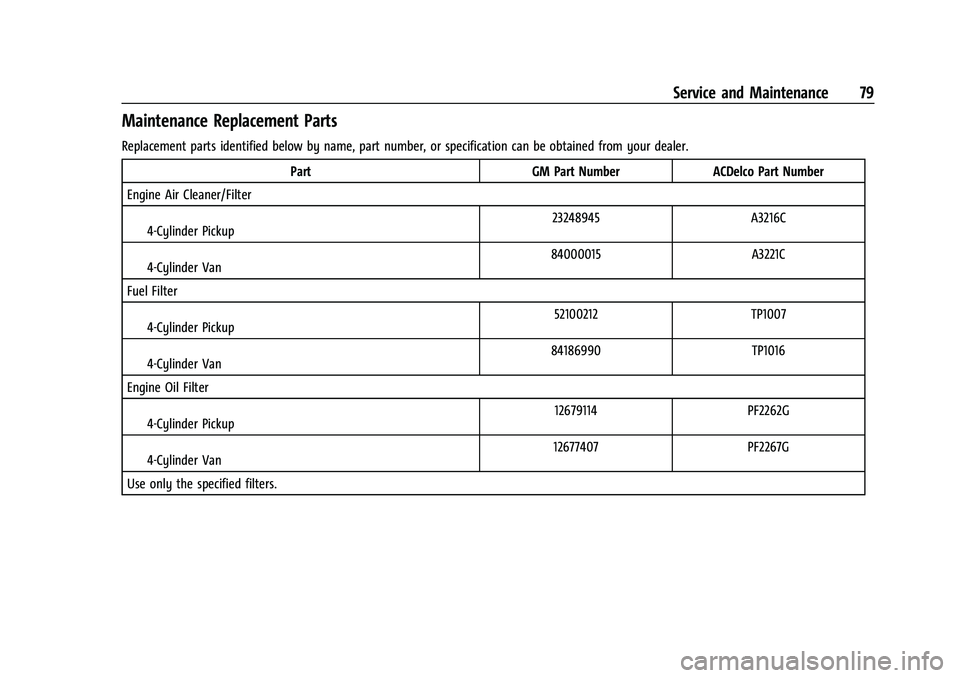

Maintenance Replacement Parts . . . . . . . . 79
Maintenance Records
Maintenance Records . . . . . . . . . . . . . . . . . . . 80
General Information
This maintenance section applies to vehicles
with a diesel engine. For gasoline engine
vehicles, see the maintenance schedule
section in the owner’s manual.
Your vehicle is an important investment.
This section describes the required
maintenance for the vehicle. Follow this
schedule to help protect against major repair
expenses resulting from neglect or
inadequate maintenance. It may also help to
maintain the value of the vehicle if it is
sold. It is the responsibility of the owner to
have all required maintenance performed.
Your dealer has trained technicians who can
perform required maintenance using genuine
replacement parts. They have up-to-date
tools and equipment for fast and accurate
diagnostics. Many dealers have extended
evening and Saturday hours, courtesy
transportation, and online scheduling to
assist with service needs.Your dealer recognizes the importance of
providing competitively priced maintenance
and repair services. With trained technicians,
your dealer is the place for routine
maintenance such as oil changes and tire
rotations and additional maintenance items
like tires, brakes, batteries, and wiper blades.
Caution
Damage caused by improper maintenance
can lead to costly repairs and may not be
covered by the vehicle warranty.
Maintenance intervals, checks,
inspections, recommended fluids, and
lubricants are important to keep the
vehicle in good working condition.
Do not have chemical flushes that are not
approved by GM performed on the
vehicle. The use of flushes, solvents,
cleaners, or lubricants that are not
approved by GM could damage the
vehicle, requiring expensive repairs that
are not covered by the vehicle warranty.
Page 74 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Service and Maintenance 73
The Tire Rotation and Required Services are
the responsibility of the vehicle owner. It is
recommended to have your dealer perform
these services every 12 000 km/7,500 mi.
Proper vehicle maintenance helps to keep
the vehicle in good working condition,
improves fuel economy, and reduces vehicle
emissions.
Because of the way people use vehicles,
maintenance needs vary. There may need to
be more frequent checks and services. The
Additional Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire and
Loading Information label. See“Vehicle
Load Limits” in the owner’s manual.
.Are driven on reasonable road surfaces
within legal driving limits.
.Use the recommended fuel. See Fuel for
Diesel Engines 025.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Normal chart. The Additional Required Services - Severe are
for vehicles that are:
.Mainly driven in heavy city traffic in hot
weather.
.Mainly driven in hilly or mountainous
terrain.
.Frequently towing a trailer.
.Used for high speed or competitive
driving.
.Used for taxi, police, or delivery service.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Severe chart.
{Warning
Performing maintenance work can be
dangerous and can cause serious injury.
Perform maintenance work only if the
required information, proper tools, and
equipment are available. If they are not,
see your dealer to have a trained
technician do the work. See “Doing Your
Own Service Work” in the owner’s
manual.
Maintenance Schedule
See the owner’s manual for other services
and intervals that may be required.
Owner Checks and Services
Check the engine oil level. See Engine Oil
0 55.
Engine Oil Change
When the CHANGE ENGINE OIL SOON
message displays, have the engine oil and
filter changed within the next 1 000 km/
600 mi. If driven under the best conditions,
the engine oil life system may not indicate
the need for vehicle service for up to a year.
The engine oil and filter must be changed at
least once a year and the oil life system
must be reset. Your trained dealer technician
can perform this work. If the engine oil life
system is reset accidentally, service the
vehicle within 5 000 km/3,000 mi since the
last service. Reset the oil life system when
the oil is changed. See Engine Oil Life
System 058.
Page 75 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
74 Service and Maintenance

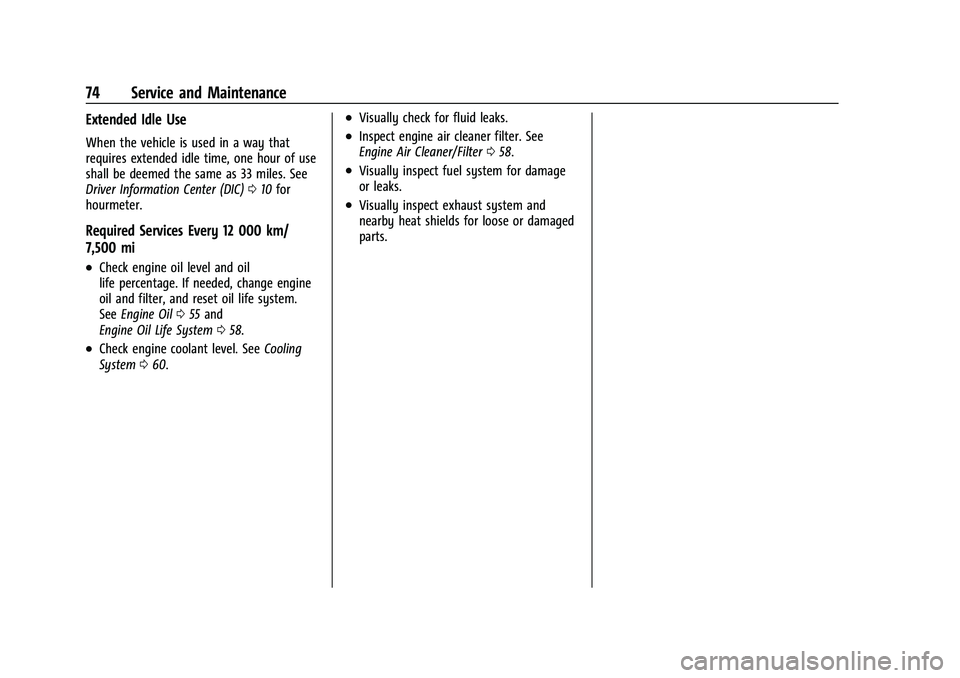

Extended Idle Use
When the vehicle is used in a way that
requires extended idle time, one hour of use
shall be deemed the same as 33 miles. See
Driver Information Center (DIC)010 for
hourmeter.
Required Services Every 12 000 km/
7,500 mi
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system.
See Engine Oil 055 and
Engine Oil Life System 058.
.Check engine coolant level. See Cooling
System 060.
.Visually check for fluid leaks.
.Inspect engine air cleaner filter. See
Engine Air Cleaner/Filter 058.
.Visually inspect fuel system for damage
or leaks.
.Visually inspect exhaust system and
nearby heat shields for loose or damaged
parts.
Page 76 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Service and Maintenance 75
Maintenance Schedule Additional
Required Services - Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi 60 000 km/37,500 mi
72 000 km/45,000 mi84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi 120 000 km/75,000 mi 132 000 km/82,500 mi
144 000 km/90,000 mi 156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi 204 000 km/127,500 mi 216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Perform Required Services. Check engine oil level and oil
life percentage. Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace engine air cleaner filter. (1)@ @@
Drain and fill engine cooling system. (2)@
Visually inspect accessory drive belts. (3)@
Replace timing belt.@
Replace fuel filter. (Pickup) (4)@@@@
Replace fuel filter. (Van) (4)@@@@@
Footnotes—Maintenance Schedule
Additional Required Services - Normal
(1) Or every four years, whichever comes
first. If driving in dusty conditions, inspect
the filter at each oil change or more often
as needed. See Engine Air Cleaner/Filter
0 58. (2)
Or every five years, whichever comes
first. See Cooling System 060.
(3) Or every 10 years, whichever comes first.
Inspect for fraying, excessive cracking,
or damage; replace, if needed. (4)
Or every two years, or when the
CHANGE FUEL FILTER message in the Driver
Information Center (DIC) comes on,
whichever comes first. The fuel filter may
need to be replaced more often based on
biodiesel usage, driving in climates with
severe dust, off-road driving, or towing a
trailer for extended periods.
Page 77 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
76 Service and Maintenance
Maintenance Schedule Additional
Required Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi 60 000 km/37,500 mi
72 000 km/45,000 mi84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi 120 000 km/75,000 mi 132 000 km/82,500 mi
144 000 km/90,000 mi 156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi 204 000 km/127,500 mi 216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Perform Required Services. Check engine oil level and oil
life percentage. Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace engine air cleaner filter. (1)@ @@
Change automatic transmission fluid and filter.@@@
Drain and fill engine cooling system. (2)@
Visually inspect accessory drive belts. (3)@
Replace timing belt.@
Replace fuel filter. (Pickup) (4)@@@@
Replace fuel filter. (Van) (4)@@@@@
Footnotes—Maintenance Schedule
Additional Required Services - Severe
(1) Or every four years, whichever comes
first. If driving in dusty conditions, inspect
the filter at each oil change or more often
as needed. See Engine Air Cleaner/Filter
0 58. (2)
Or every five years, whichever comes
first. See Cooling System 060.
(3) Or every 10 years, whichever comes first.
Inspect for fraying, excessive cracking,
or damage; replace, if needed. (4)
Or every two years, or when the
CHANGE FUEL FILTER message in the Driver
Information Center (DIC) comes on,
whichever comes first. The fuel filter may
need to be replaced more often based on
biodiesel usage, when driving in climates
with excessive dust, or when off-road driving
or towing a trailer for extended periods.
Page 78 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Service and Maintenance 77
Maintenance Schedule
Owner Checks and Services
The service plan for your vehicle is available
in the Warranty Policy and Maintenance
Program.
See the owner’s manual for other services
and intervals that may be required.
At Each Fuel Stop
.Check the engine oil level. SeeEngine Oil
0 55.
Engine Oil Change
When the CHANGE ENGINE OIL SOON
message displays, have the engine oil and
filter changed within the next 1 000 km/
600 mi. If driven under the best conditions,
the engine oil life system may not indicate
the need for vehicle service for up to a year.
The engine oil and filter must be changed at
least once a year and the oil life system
must be reset. Your trained dealer technician can perform this work. If the engine oil life
system is reset accidentally, service the
vehicle within 5 000 km/3,000 mi since the
last service. Reset the oil life system when
the oil is changed. See
Engine Oil Life
System 058.
Extended Idle Use
When the vehicle is used in a way that
requires extended idle time, one hour of use
shall be deemed the same as 33 miles. See
Driver Information Center (DIC) 010 for
hourmeter.
Required Services Every 12 000 km/
7,500 mi
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system.
See Engine Oil 055 and
Engine Oil Life System 058.
.Check engine coolant level. See Cooling
System 060.
.Visually check for fluid leaks.
.Inspect engine air cleaner filter. See
Engine Air Cleaner/Filter 058.
.Visually inspect fuel system for damage
or leaks.
.Visually inspect exhaust system and
nearby heat shields for loose or damaged
parts.
Page 79 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
78 Service and Maintenance
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
The following fluids apply to vehicles with a Duramax diesel engine. For other fluids not listed here, see“Recommended Fluids and Lubricants”
in the owner’s manual.
Fluids and lubricants identified below by name or specification can be obtained from your dealer.
Usage Fluid/Lubricant
Automatic Transmission (6 Speed) DEXRON-VI Automatic Transmission Fluid.
Automatic Transmission (8 Speed) DEXRON-HP Automatic Transmission Fluid.
Diesel Exhaust Aftertreatment System Diesel Exhaust Fluid that meets ISO 22241 or displays the API Diesel Exhaust Fluid Certification Mark.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL coolant. See Cooling System
0 60.
Engine Oil Engine oil meeting the dexos2 specification of the proper SAE viscosity grade. ACDelco dexos2 is recommended. SeeEngine Oil055.
Hydraulic Power Steering System (If Equipped) GM Power Steering Fluid. See your dealer.
Page 80 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Service and Maintenance 79
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
4-Cylinder Pickup 23248945 A3216C
4-Cylinder Van 84000015 A3221C
Fuel Filter 4-Cylinder Pickup 52100212 TP1007
4-Cylinder Van 84186990 TP1016
Engine Oil Filter 4-Cylinder Pickup 12679114 PF2262G
4-Cylinder Van 12677407 PF2267G
Use only the specified filters.
