CHEVROLET LOW CAB FORWARD 2017 Owner's Manual

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
150 Driving and Operating
SymptomCauseCorrective Action Reference
Engine does not
start Starter does not
turn over, or weak Discharged batteries Recharge or replace See
Battery0281
Battery terminals
detached, loose,
or corroded After repairing corroded
section, connect the
terminals firmly
-
Starter ground wire
terminal detached,
loose, or corroded After repairing corroded
section, connect the
terminals firmly
-
Engine oil viscosity
too high Change to an oil with
proper viscositySee
Engine Oil
(Gasoline) 0257 or
Engine Oil (Diesel)
0 251
Starter or electrical
system is faulty
4-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 151
SymptomCauseCorrective Action Reference
Engine does not
start Starter turns over
(Diesel) No fuel
Make sure there are no
fuel leaks, and then
add fuel-
Air in the fuel system Bleed fuel system See
Running Out
of Fuel (Diesel)
0 238
Fuel filter clogged
4-
Fuel is frozen Warm fuel pipe with hot
water or wait until it gets
warmer-
Common rail system is
faulty
4-
Preheating system is
faulty
4-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
152 Driving and Operating
SymptomCauseCorrective Action Reference
Engine does not
start Starter turns over
(Gasoline) No fuel
Make sure there are no
fuel leaks, and then
add fuel-
Fuel pump clogged
4-
Pressure regulator is
faulty
4-
Ignition system is faulty
4-
Engine control (electrical
system) is faulty
4-
Engine starts, but immediately stops Idling speed too low
4-
Fuel filter is clogged
(Diesel)
4-
Air cleaner is clogged
4-
Common rail system is
faulty
4-
Fuel pump is clogged
(Gasoline)
4-
Fuel system is faulty
4-
Engine control (electrical
system) is faulty
(Gasoline)
4-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 153
SymptomCauseCorrective Action Reference
Unsteady engine speed (Diesel) There is water or air in
the fuel system
Drain water from fuel
filter or bleed the systemSee
Running Out
of Fuel (Diesel)
0 238 orWater in
Fuel (Diesel) 0236
Fuel system is faulty
4-
Unsteady engine speed (Gasoline) Fuel system is faulty
4-
Ignition system is faulty
4-
Engine control (electrical
system) is faulty
4-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
154 Driving and Operating
SymptomCauseCorrective Action Reference
White exhaust smoke (Diesel) Engine not sufficiently
warming up
Allow the engine to
warm up
-
Too much engine oil Correct the oil level See
Engine Oil
(Gasoline) 0257 or
Engine Oil (Diesel)
0 251
Engine Control system
faulty
4-
Fuel system faulty
4-
Exhaust injector
4-
Continuous idling for a
long period (more than
two hours) With the vehicle
stationary in a place
where it will not obstruct
traffic, hold down the
accelerator pedal and
check that white smoke
is not emitted
-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 155
SymptomCauseCorrective Action Reference
Black exhaust smoke (Diesel) Engine Control system
faulty
4-
The air cleaner clogged
4-
Fuel system faulty
4-
Exhaust system clogged
4-
Exhaust injector
4-
Diesel particulate filter
(DPF) faulty
4-
Engine is overheating No engine coolant Add engine coolant
See
Engine
Coolant 0263
Front of radiator is
clogged with dirt Wash clean with tap
waterSee
Exterior Care
0 334
Radiator cap not
sufficiently tightened Make sure it is firmly
tightened or replace the
radiator cap
-
Fan belt loose Adjust the tension or
replace the beltSee
Engine Drive
Belt Routing 0396
Engine coolant dirty
4-
Fan clutch is faulty
4-
Radiator cap dirty or
faulty Clean or replace -

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
156 Driving and Operating
SymptomCauseCorrective Action Reference
Oil pressure is low Improper engine oil
viscosity
Change to an oil with
proper viscositySee
Engine Oil
(Gasoline) 0257 or
Engine Oil (Diesel)
0 251
Engine oil level too low Add engine oil See
Engine Oil
(Gasoline) 0257 or
Engine Oil (Diesel)
0 251
Engine inner
components are faulty
4-
Meter, indicator/warning
lights or switches faulty
4-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 157

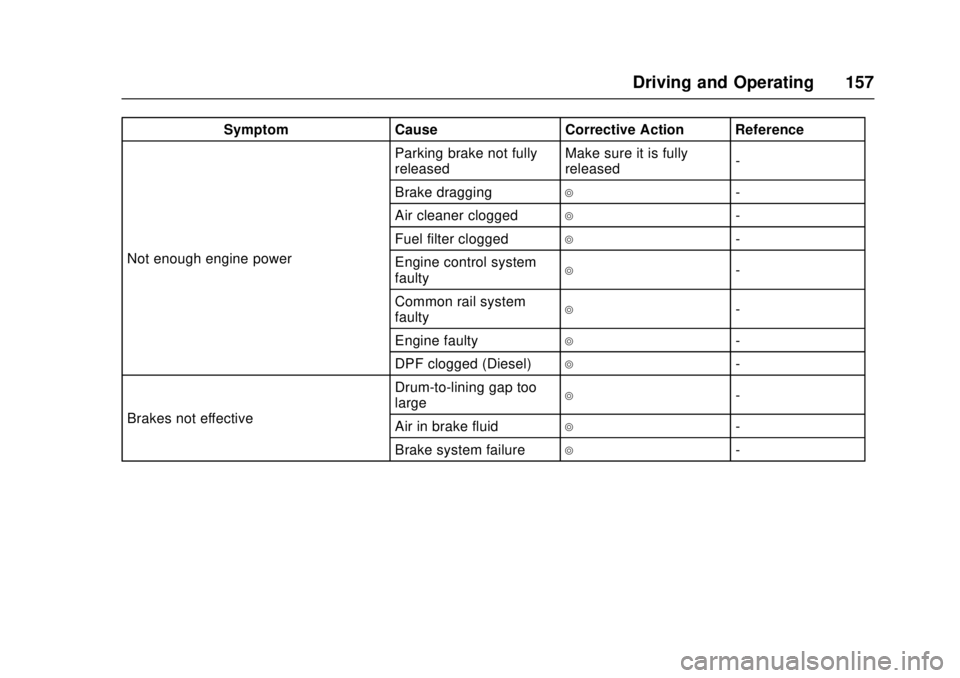

SymptomCauseCorrective Action Reference
Not enough engine power Parking brake not fully
released
Make sure it is fully
released
-
Brake dragging
4-
Air cleaner clogged
4-
Fuel filter clogged
4-
Engine control system
faulty
4-
Common rail system
faulty
4-
Engine faulty
4-
DPF clogged (Diesel)
4-
Brakes not effective Drum-to-lining gap too
large
4-
Air in brake fluid
4-
Brake system failure
4-

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
158 Driving and Operating
SymptomCauseCorrective Action Reference
Uneven braking Unbalanced air pressure
in tires
Adjust to proper air
pressureSee
Wheels and
Tires 0308
Tire unevenly worn Replace tire See
Wheels and
Tires 0308
Drum brake out of
adjustment
4-
Poor wheel alignment
4-
Exhaust brake not working (Diesel) The electrical system is
faulty
4-
Steering wheel hard to turn Loaded too far forward Load properly -
Power steering fluid level
too low
Add fluidSee
Power
Steering Fluid
0 273
Insufficient air in front
tires Adjust to proper inflation
pressureSee
Wheels and
Tires 0308

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 159
SymptomCauseCorrective Action Reference
Excessive play in the steering wheel Wheel studs and nuts
loose
Tighten to the specified
torqueSee
Wheels and
Tires 0308
Unbalanced inflation
pressure in the tires Adjust to proper inflation
pressureSee
Wheels and
Tires 0308
Unbalanced tires
4-
Excessive steering
wheel free play
4-
Poor steering wheel return Poor lubrication in the
steering mechanisms
Lubricate the
mechanism
-
Poor wheel alignment
4-
