Page 501 of 2438

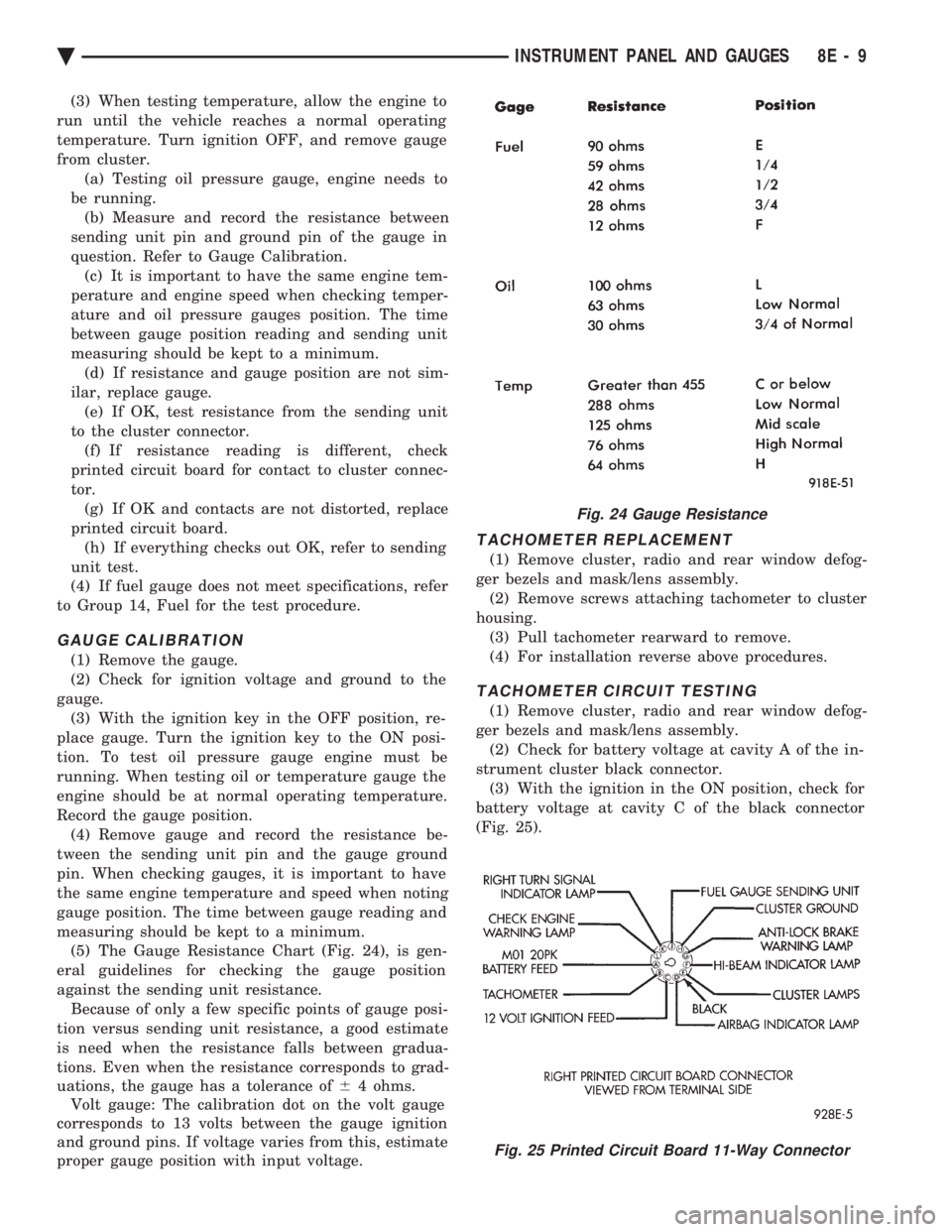

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) When testing temperature, allow the engine to
run until the vehicle reaches a normal operating
temperature. Turn ignition OFF, and remove gauge
from cluster. (a) Testing oil pressure gauge, engin

Page 502 of 2438

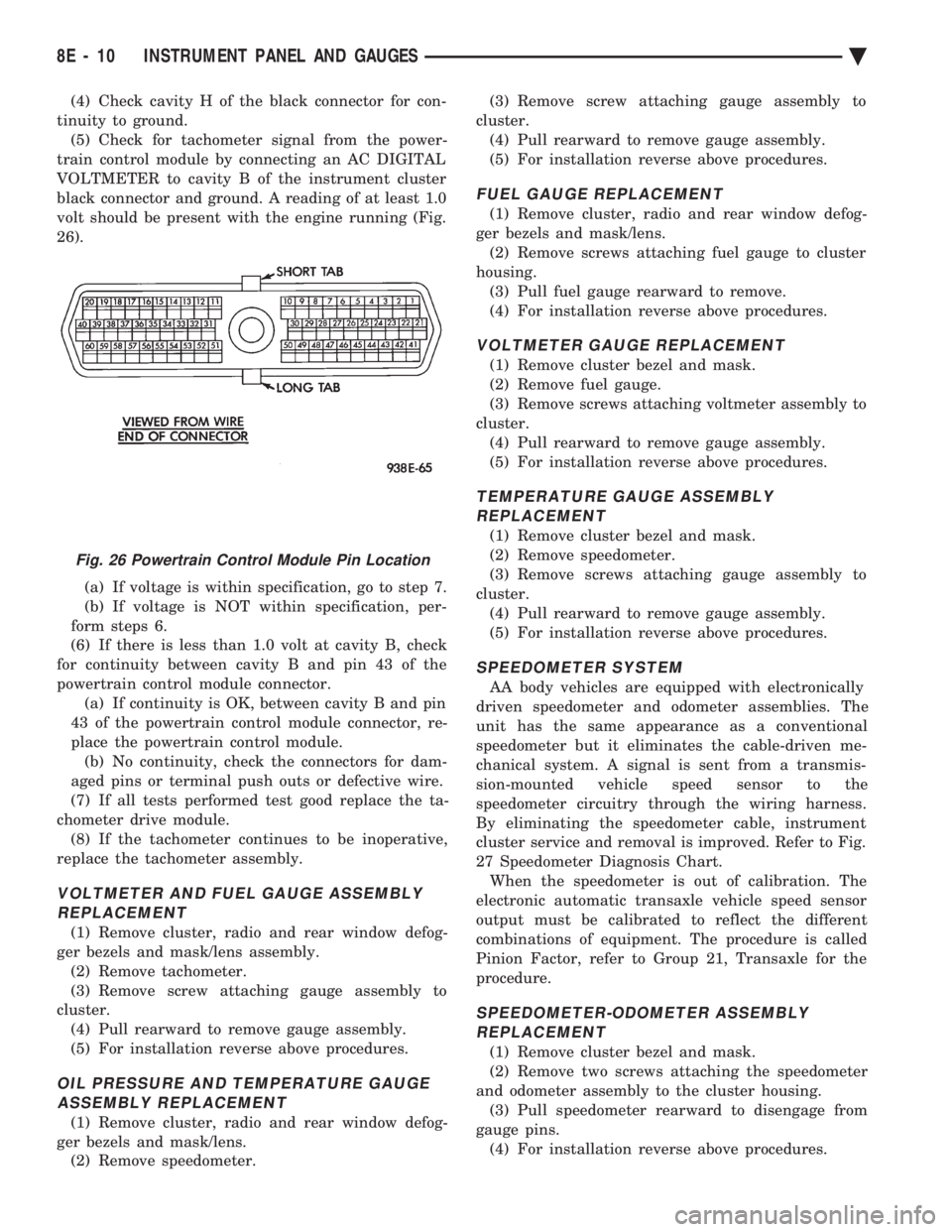

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (4) Check cavity H of the black connector for con-
tinuity to ground. (5) Check for tachometer signal from the power-
train control module by connecting an AC DIGITAL
VOLTMETER to cavity B of the ins

Page 503 of 2438

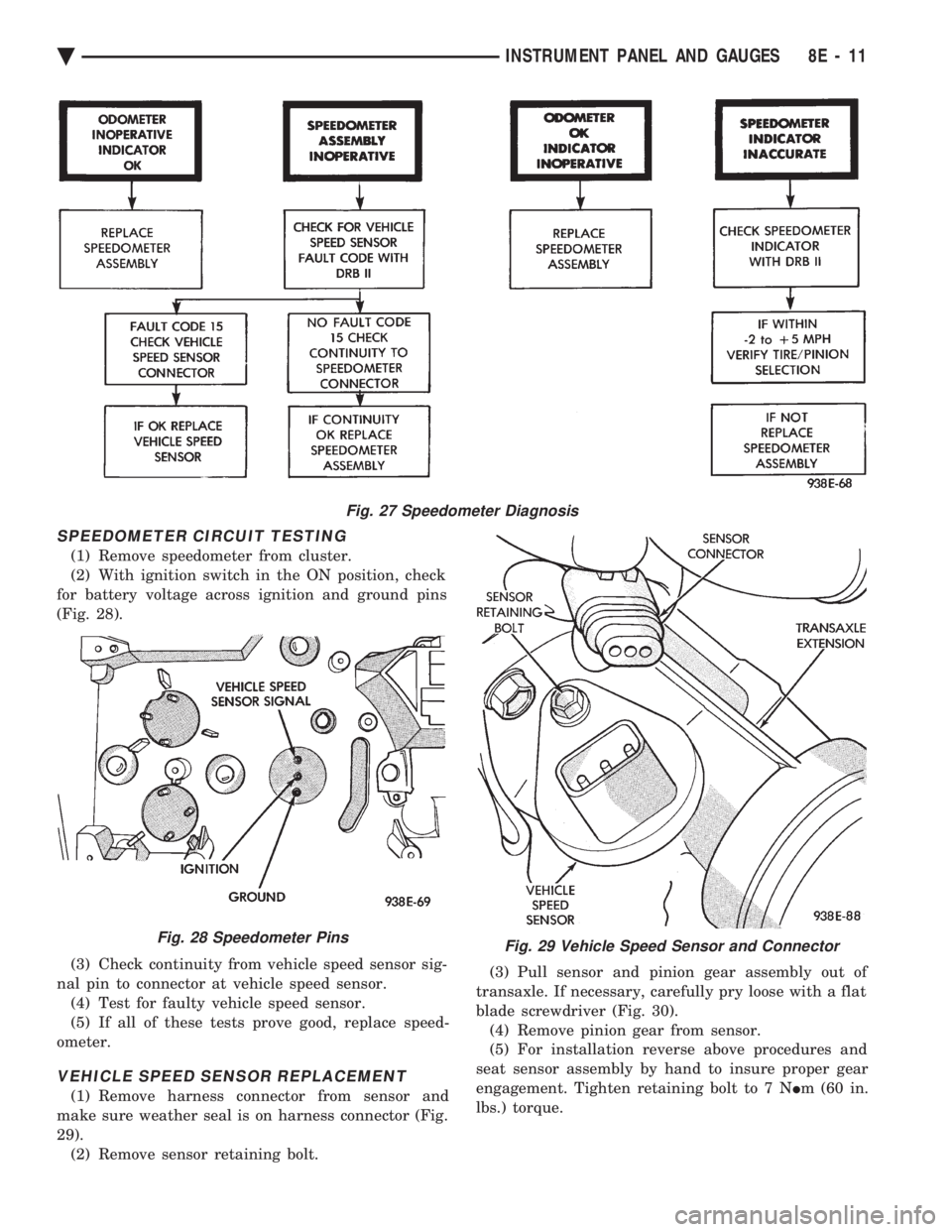

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual SPEEDOMETER CIRCUIT TESTING
(1) Remove speedometer from cluster.
(2) With ignition switch in the ON position, check
for battery voltage across ignition and ground pins
(Fig. 28).
(3) Check continuit

Page 504 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual ELECTRONIC AUTOMATIC TRANSAXLE VEHICLE SPEED SENSOR REPLACEMENT
The output vehicle speed sensor is located to the
left of the manual shift lever. (1) Raise and support vehicle on safety stands.
(2) Re

Page 505 of 2438

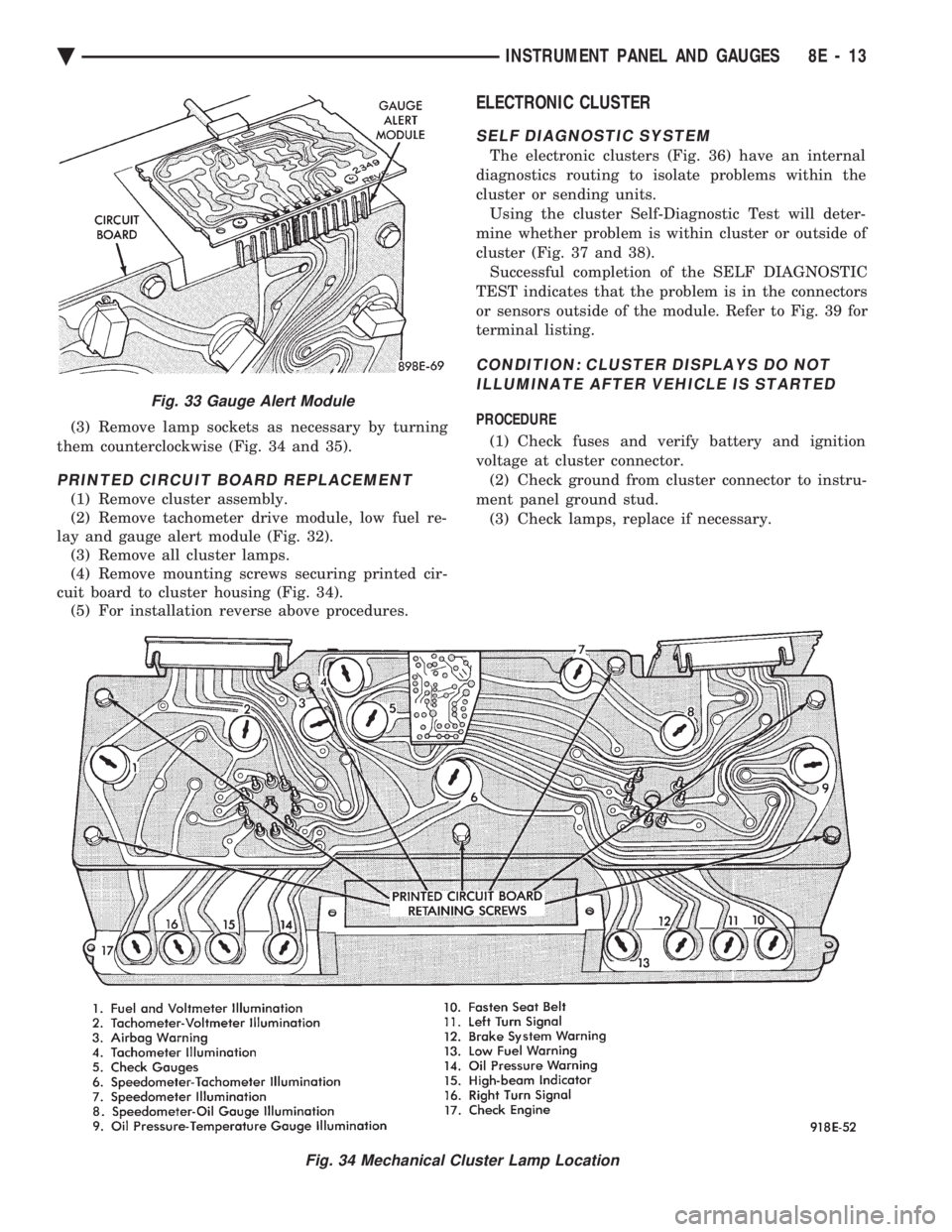

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) Remove lamp sockets as necessary by turning
them counterclockwise (Fig. 34 and 35).
PRINTED CIRCUIT BOARD REPLACEMENT
(1) Remove cluster assembly.
(2) Remove tachometer drive module, low fuel re

Page 506 of 2438

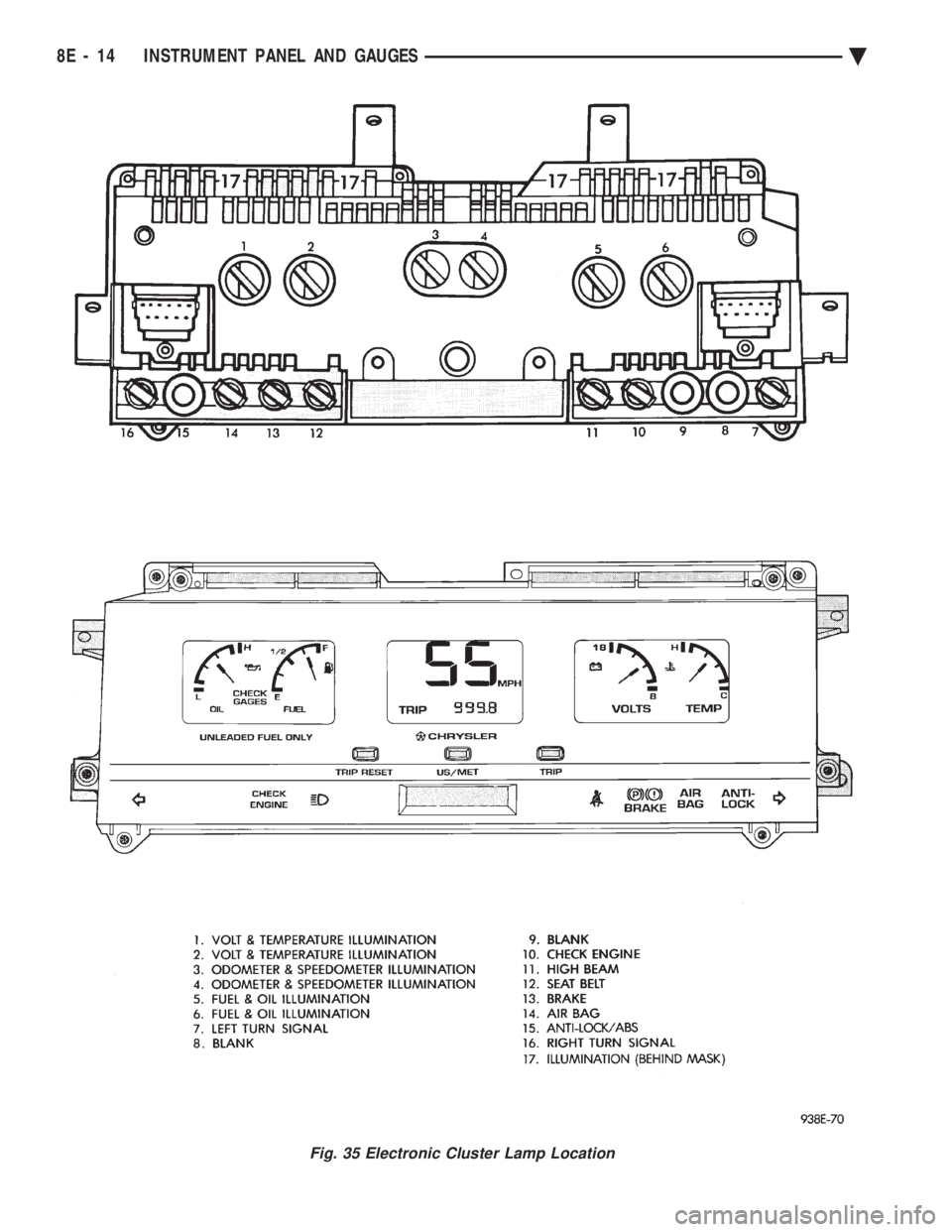

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 35 Electronic Cluster Lamp Location
8E - 14 INSTRUMENT PANEL AND GAUGES Ä

Page 507 of 2438

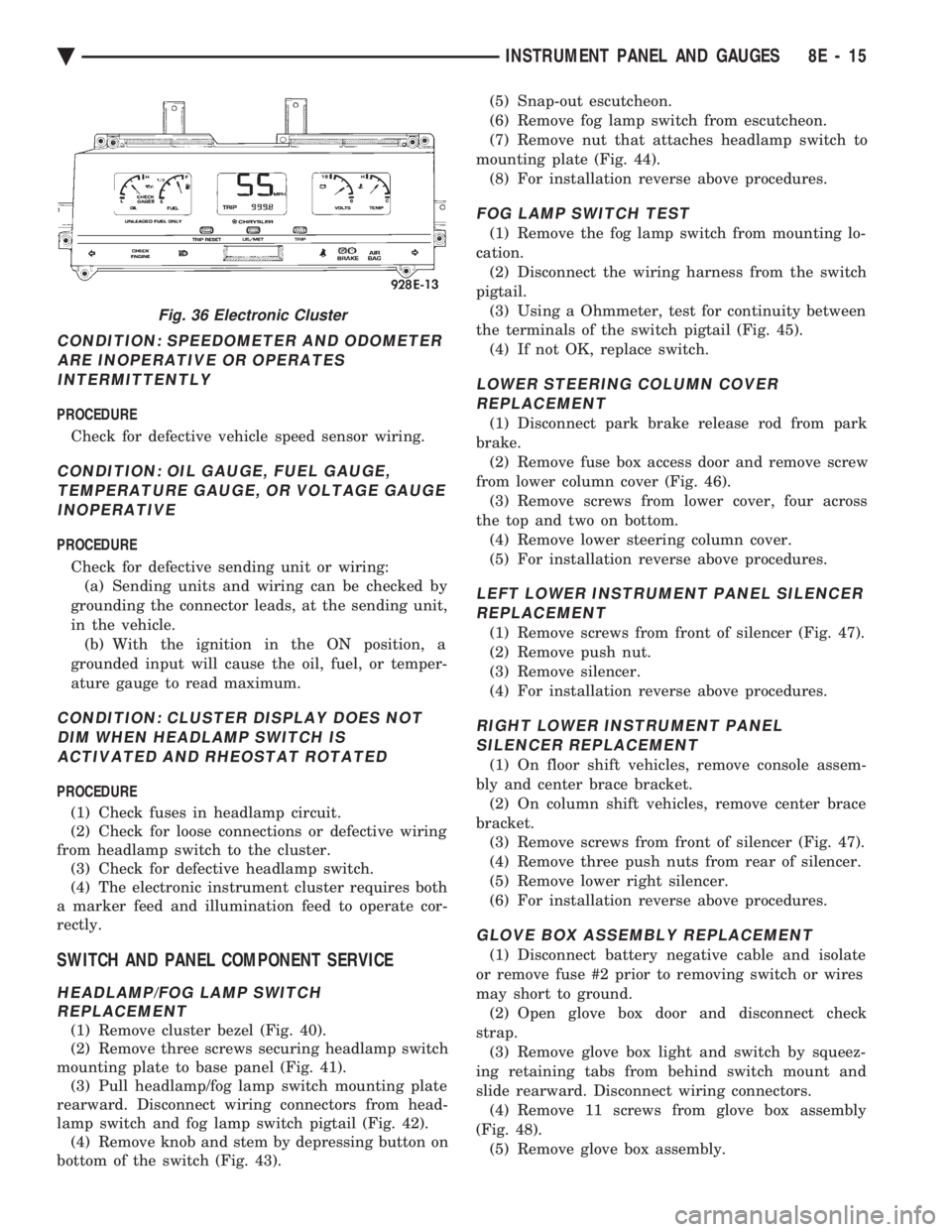

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CONDITION: SPEEDOMETER AND ODOMETER ARE INOPERATIVE OR OPERATESINTERMITTENTLY
PROCEDURE
Check for defective vehicle speed sensor wiring.
CONDITION: OIL GAUGE, FUEL GAUGE, TEMPERATURE GAUGE, OR VOLTAG

Page 508 of 2438

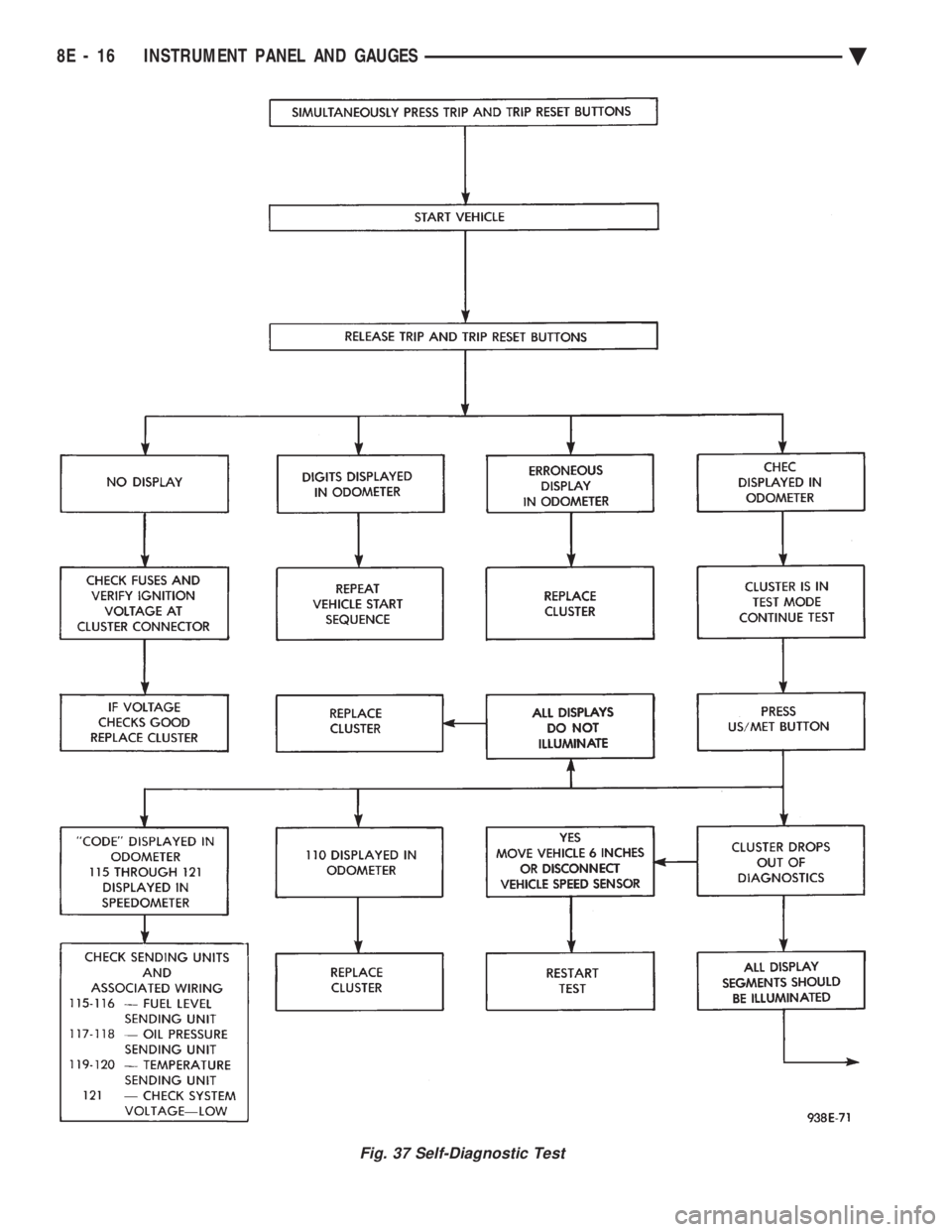

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 37 Self-Diagnostic Test
8E - 16 INSTRUMENT PANEL AND GAUGES Ä

Page 509 of 2438

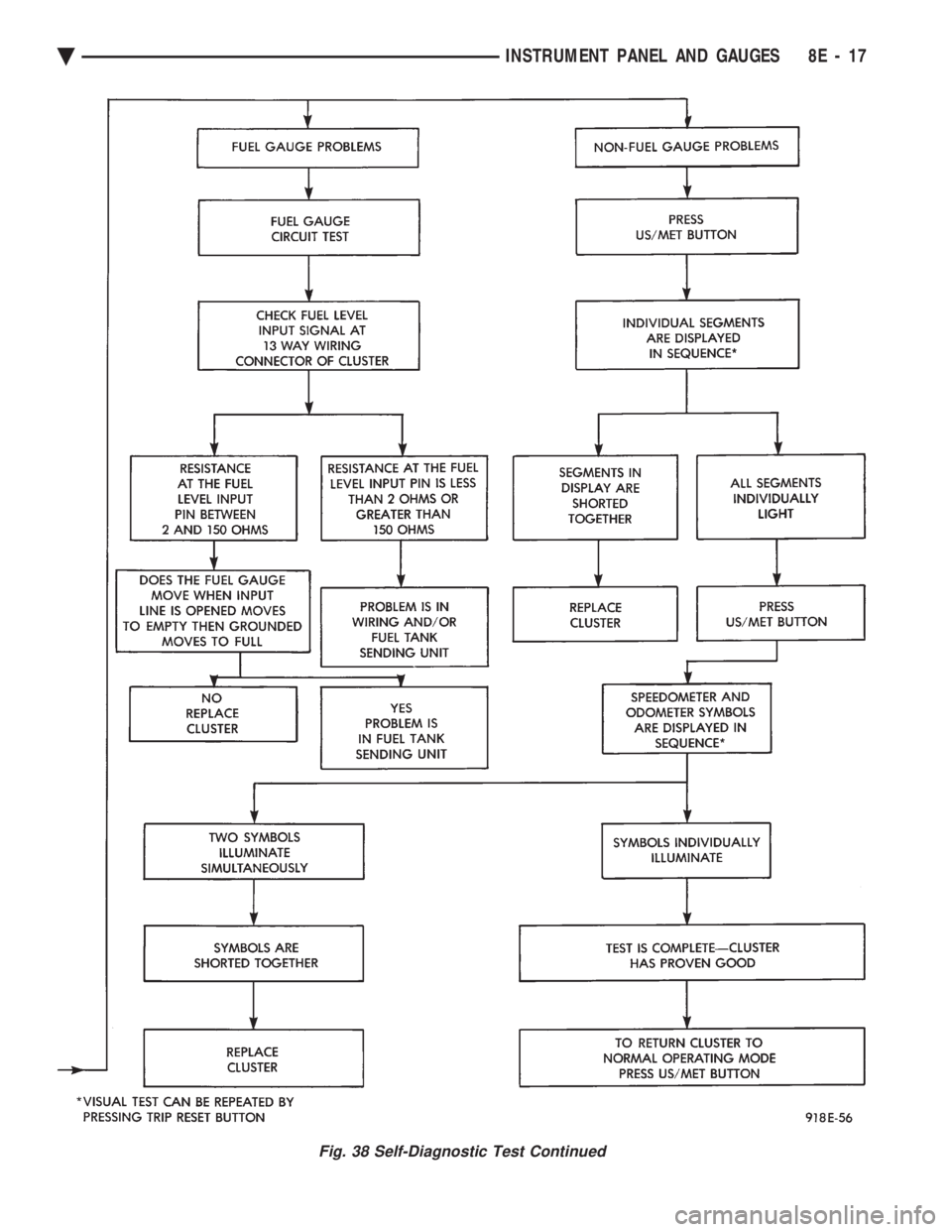

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 38 Self-Diagnostic Test Continued
Ä INSTRUMENT PANEL AND GAUGES 8E - 17

Page 510 of 2438

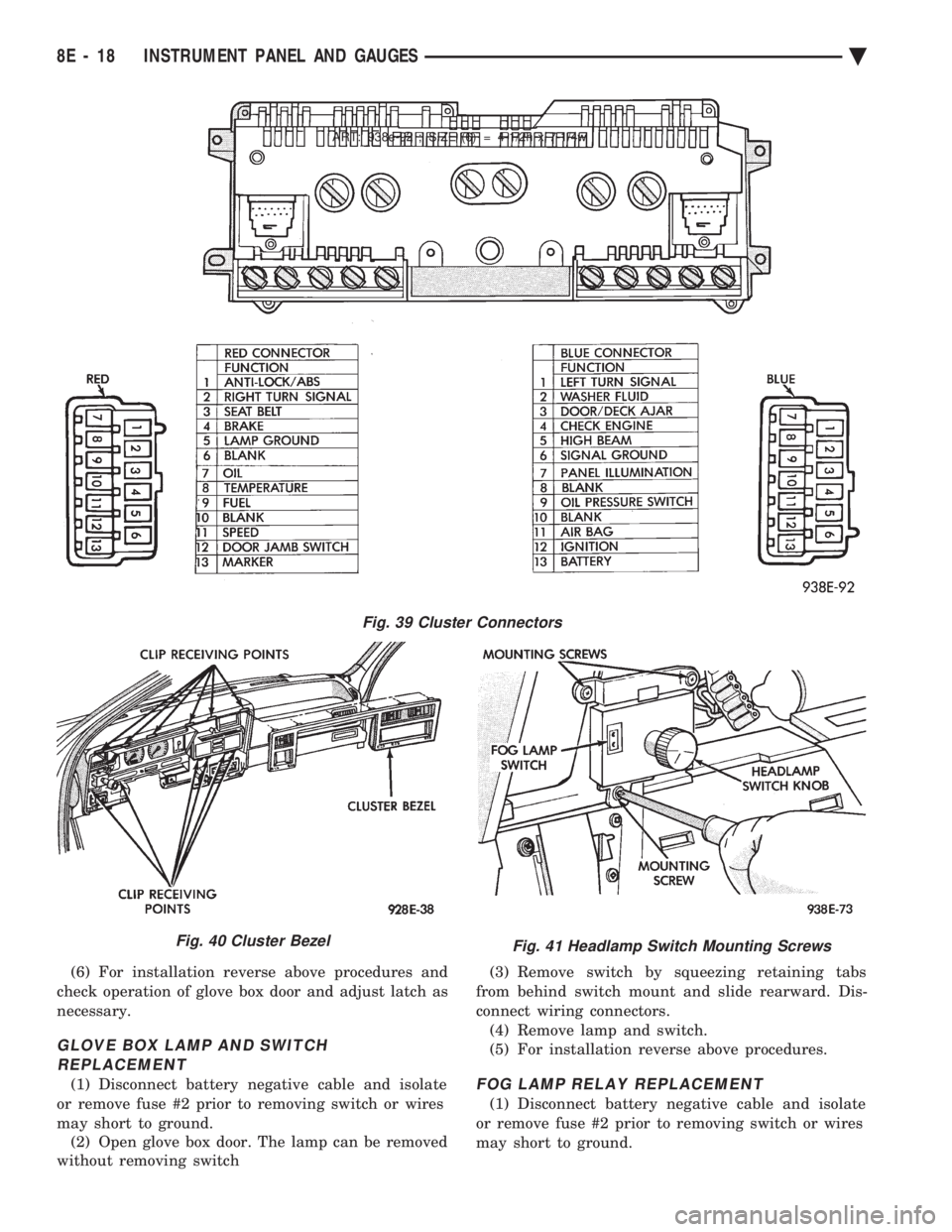

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (6) For installation reverse above procedures and
check operation of glove box door and adjust latch as
necessary.
GLOVE BOX LAMP AND SWITCH REPLACEMENT
(1) Disconnect battery negative cable and isol
