Page 521 of 2438

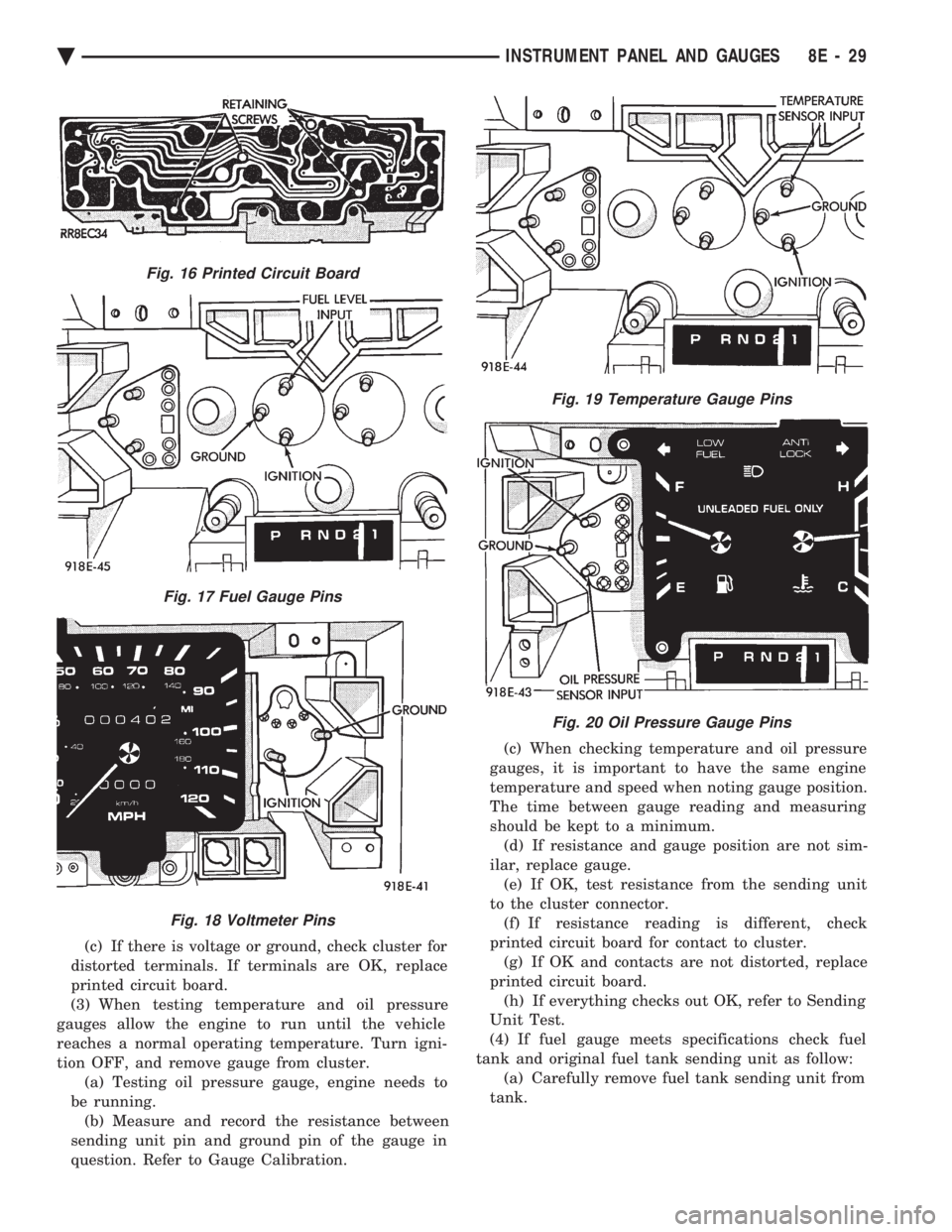

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (c) If there is voltage or ground, check cluster for
distorted terminals. If terminals are OK, replace
printed circuit board.
(3) When testing temperature and oil pressure
gauges allow the engine to

Page 522 of 2438

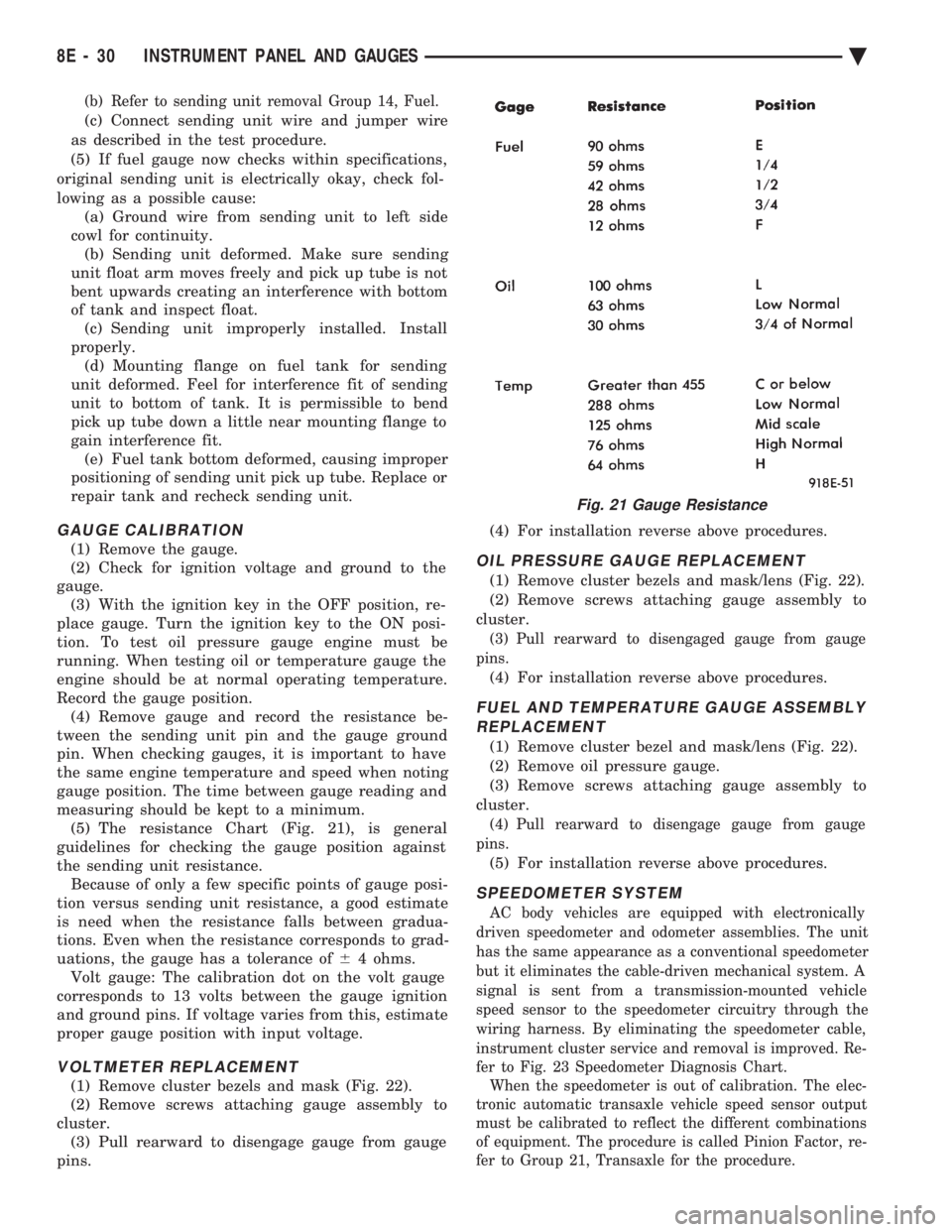

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (b) Refer to sending unit removal Group 14, Fuel.
(c) Connect sending unit wire and jumper wire
as described in the test procedure.
(5) If fuel gauge now checks within specifications,
original sendin

Page 523 of 2438

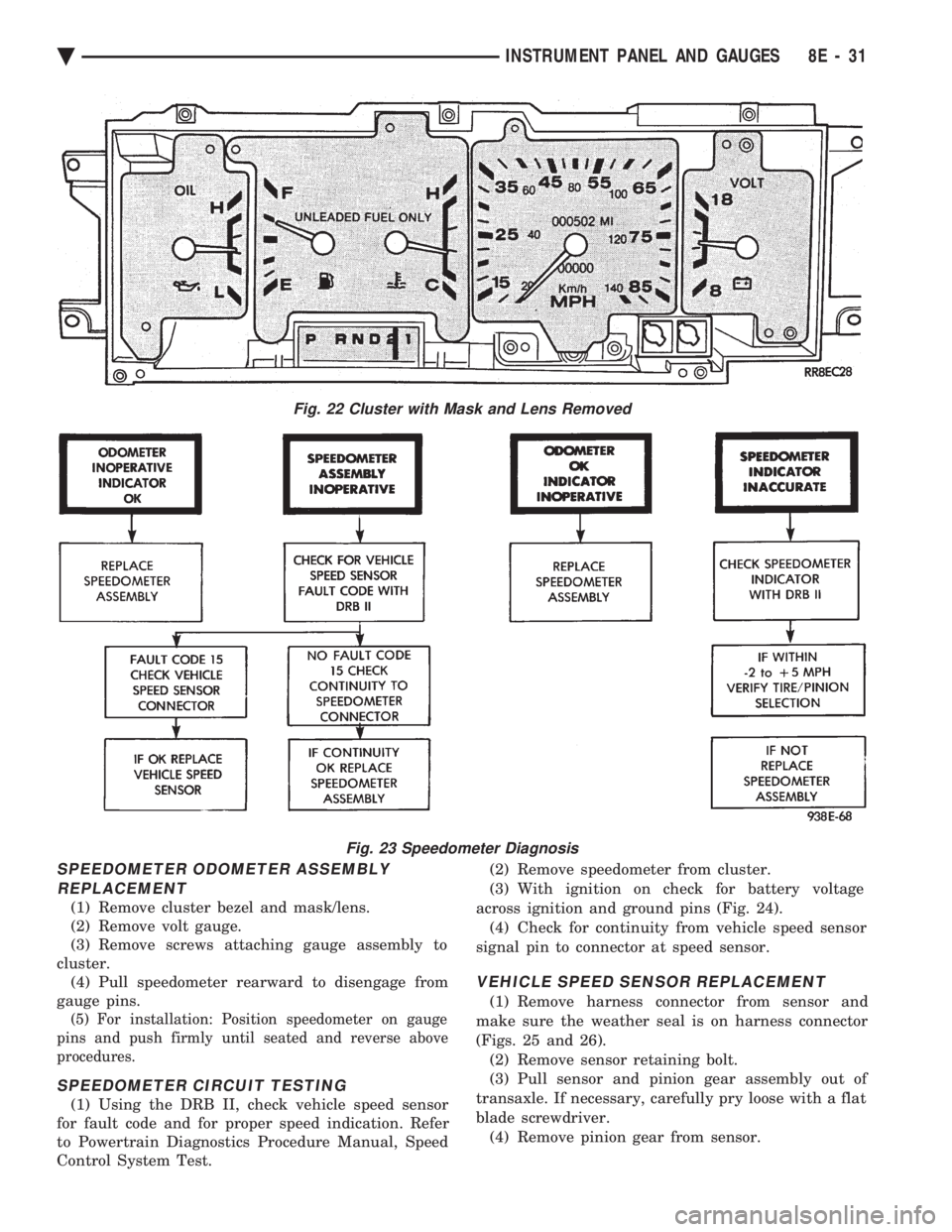

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual SPEEDOMETER ODOMETER ASSEMBLY REPLACEMENT
(1) Remove cluster bezel and mask/lens.
(2) Remove volt gauge.
(3) Remove screws attaching gauge assembly to
cluster. (4) Pull speedometer rearward to diseng

Page 524 of 2438

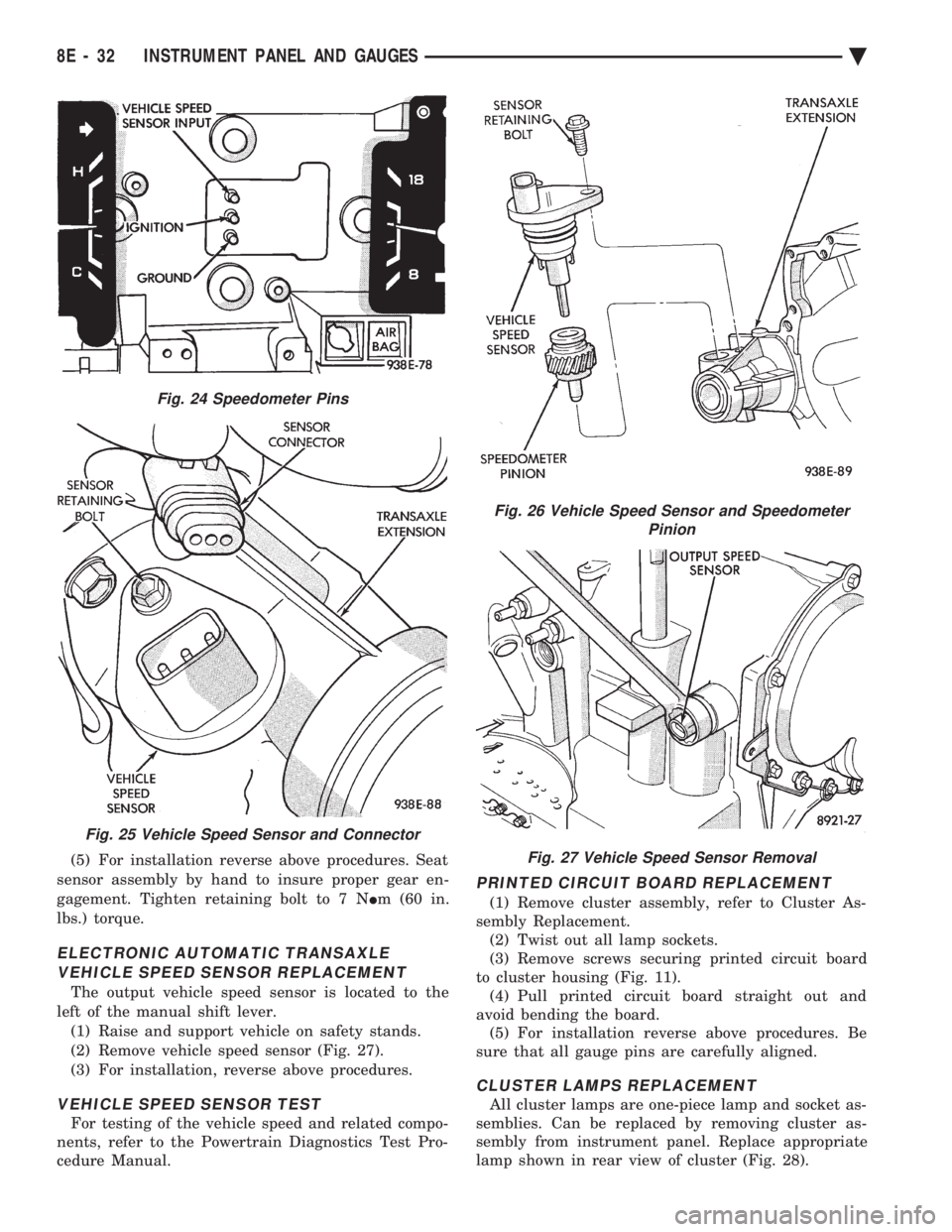

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (5) For installation reverse above procedures. Seat
sensor assembly by hand to insure proper gear en-
gagement. Tighten retaining bolt to 7 N  Im (60 in.
lbs.) torque.
ELECTRONIC AUTOMATIC TRANSAXLE

Page 525 of 2438

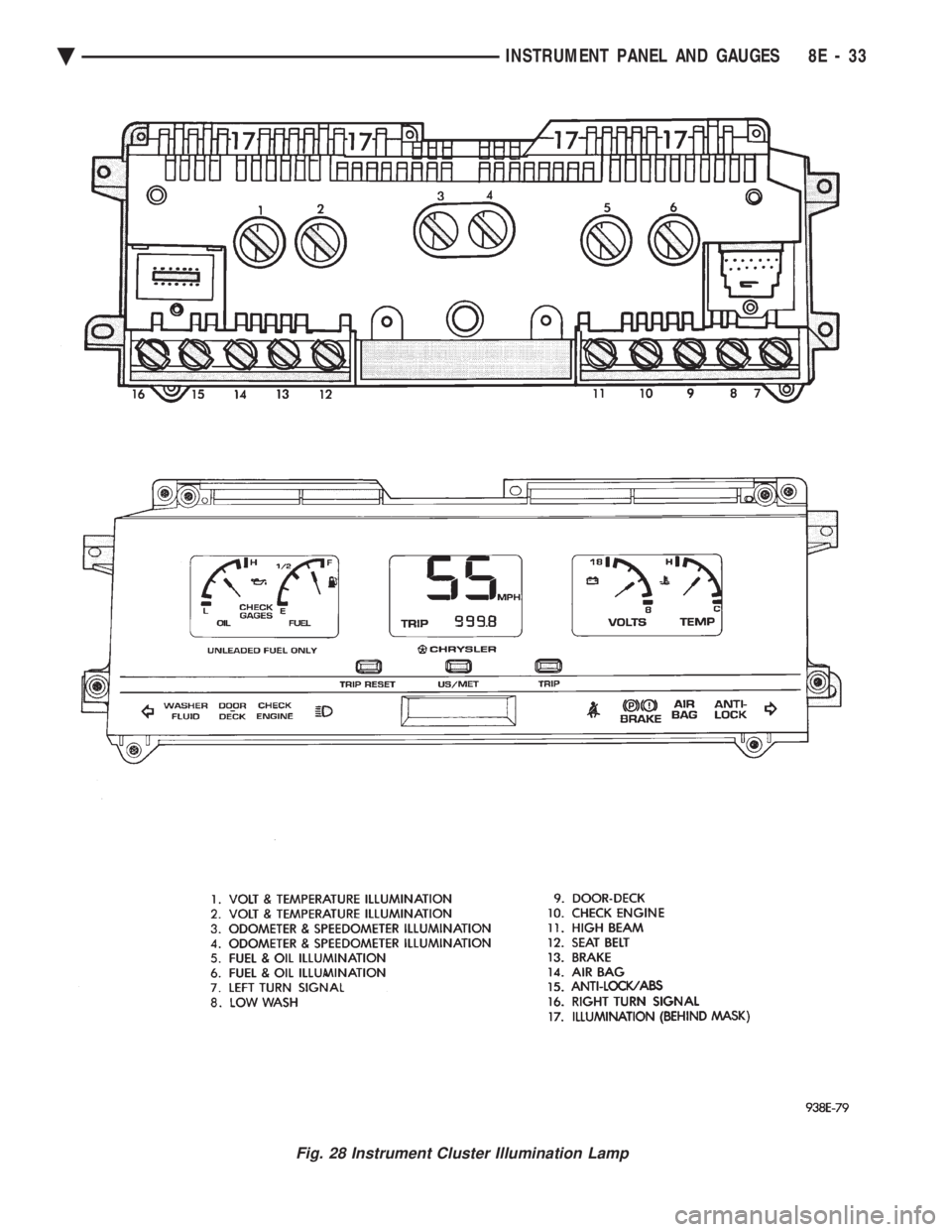

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 28 Instrument Cluster Illumination Lamp
Ä INSTRUMENT PANEL AND GAUGES 8E - 33

Page 526 of 2438

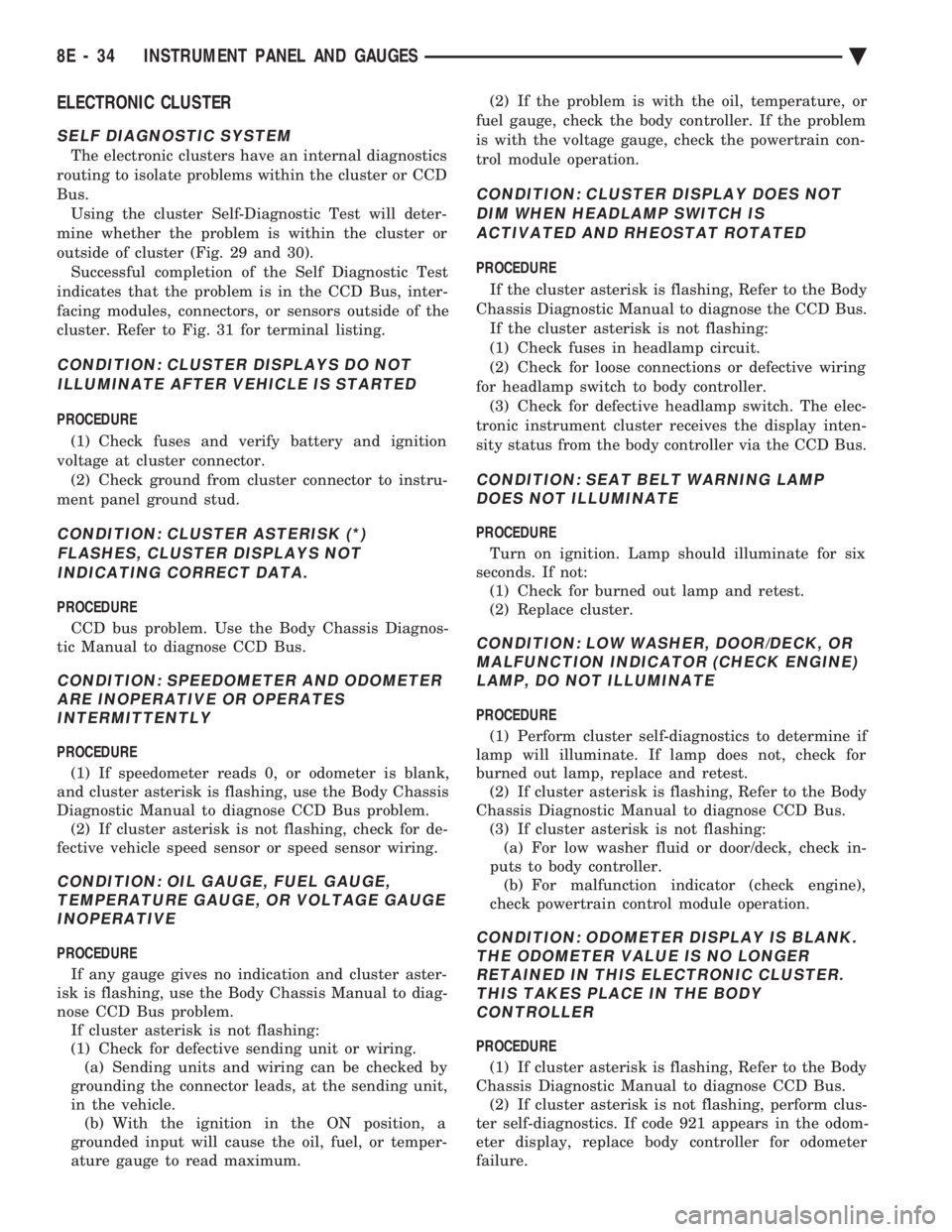

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual ELECTRONIC CLUSTER
SELF DIAGNOSTIC SYSTEM
The electronic clusters have an internal diagnostics
routing to isolate problems within the cluster or CCD
Bus. Using the cluster Self-Diagnostic Test will d

Page 527 of 2438

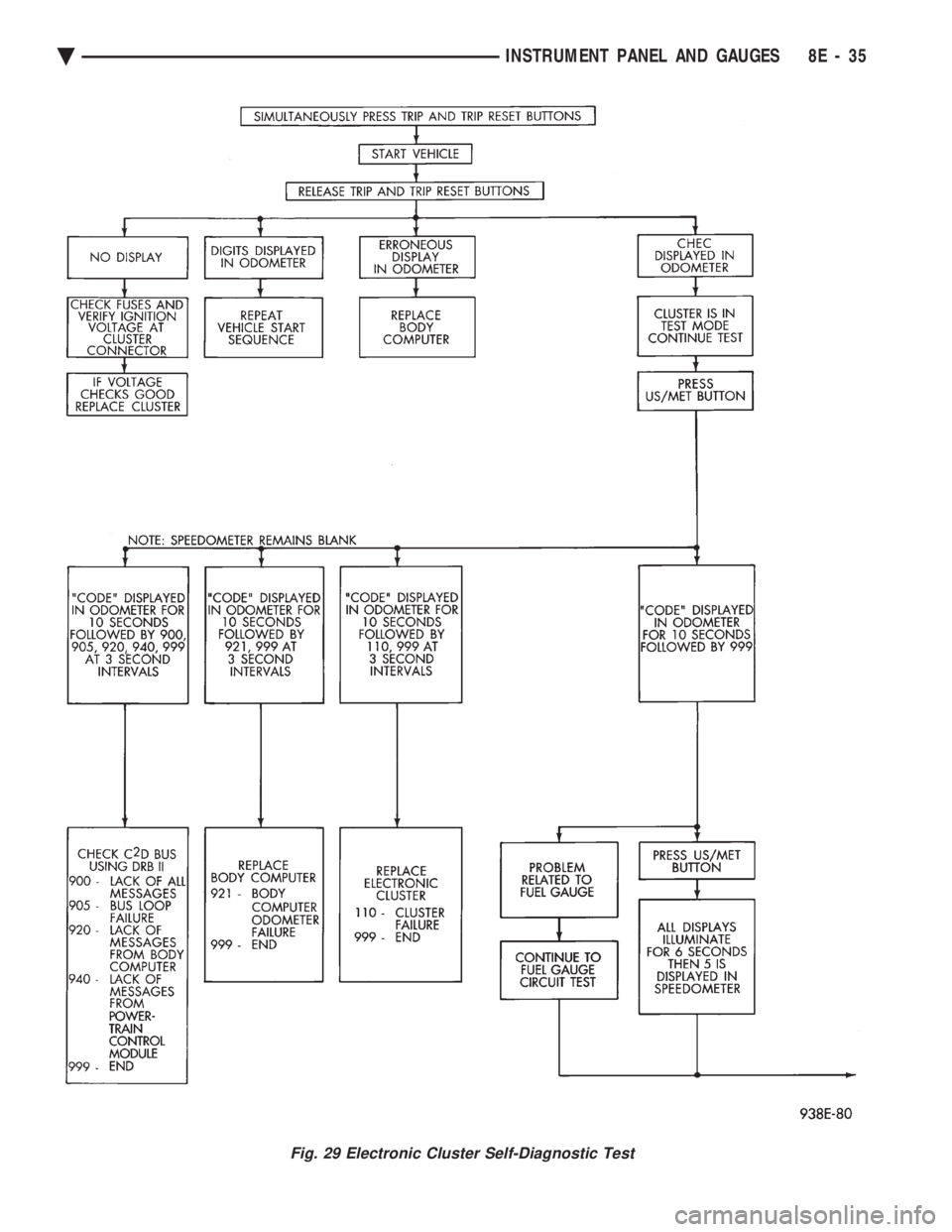

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 29 Electronic Cluster Self-Diagnostic Test
Ä INSTRUMENT PANEL AND GAUGES 8E - 35

Page 528 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 30 Electronic Cluster Self-Diagnostic Test Continued
8E - 36 INSTRUMENT PANEL AND GAUGES Ä

Page 529 of 2438

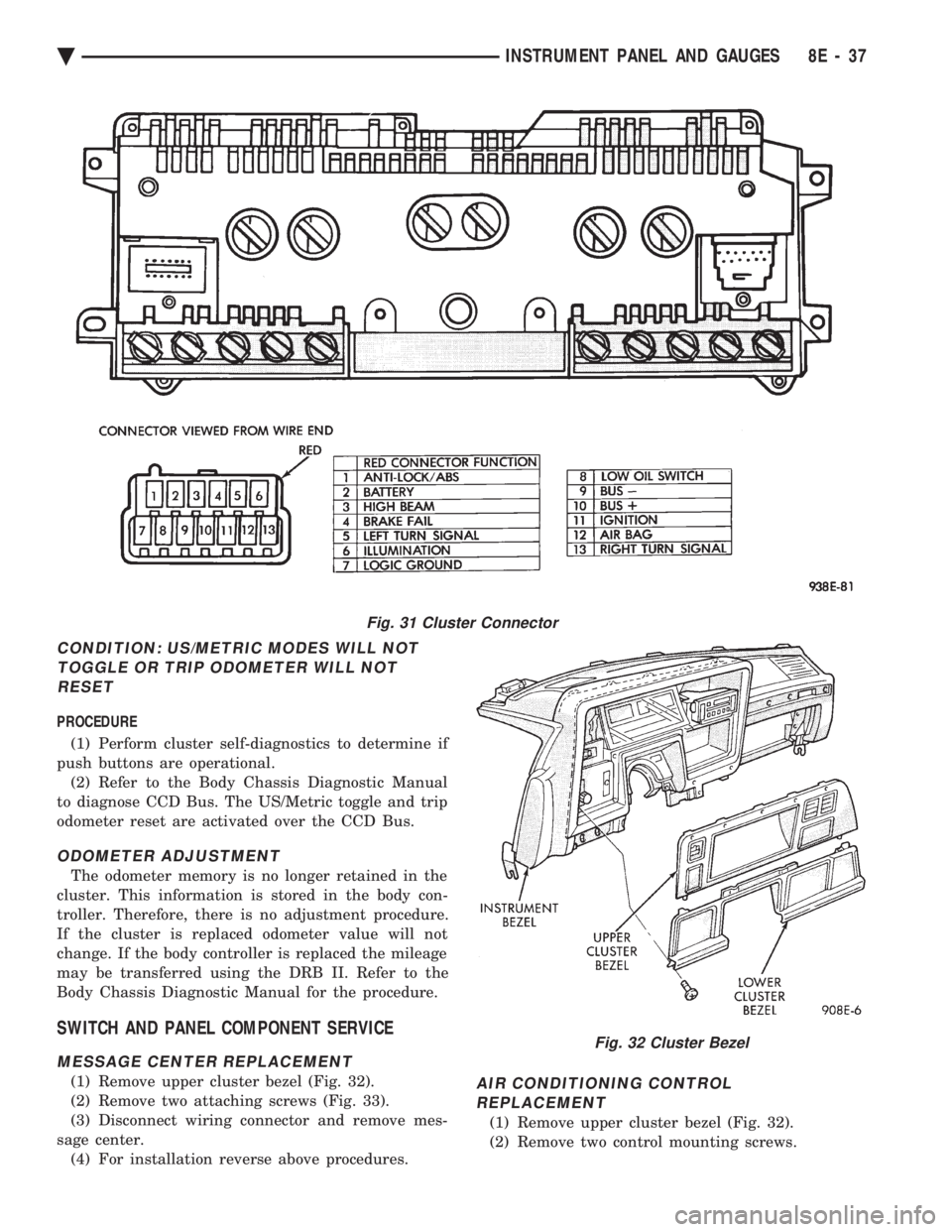

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CONDITION: US/METRIC MODES WILL NOT TOGGLE OR TRIP ODOMETER WILL NOTRESET
PROCEDURE
(1) Perform cluster self-diagnostics to determine if
push buttons are operational. (2) Refer to the Body Chassis D

Page 530 of 2438

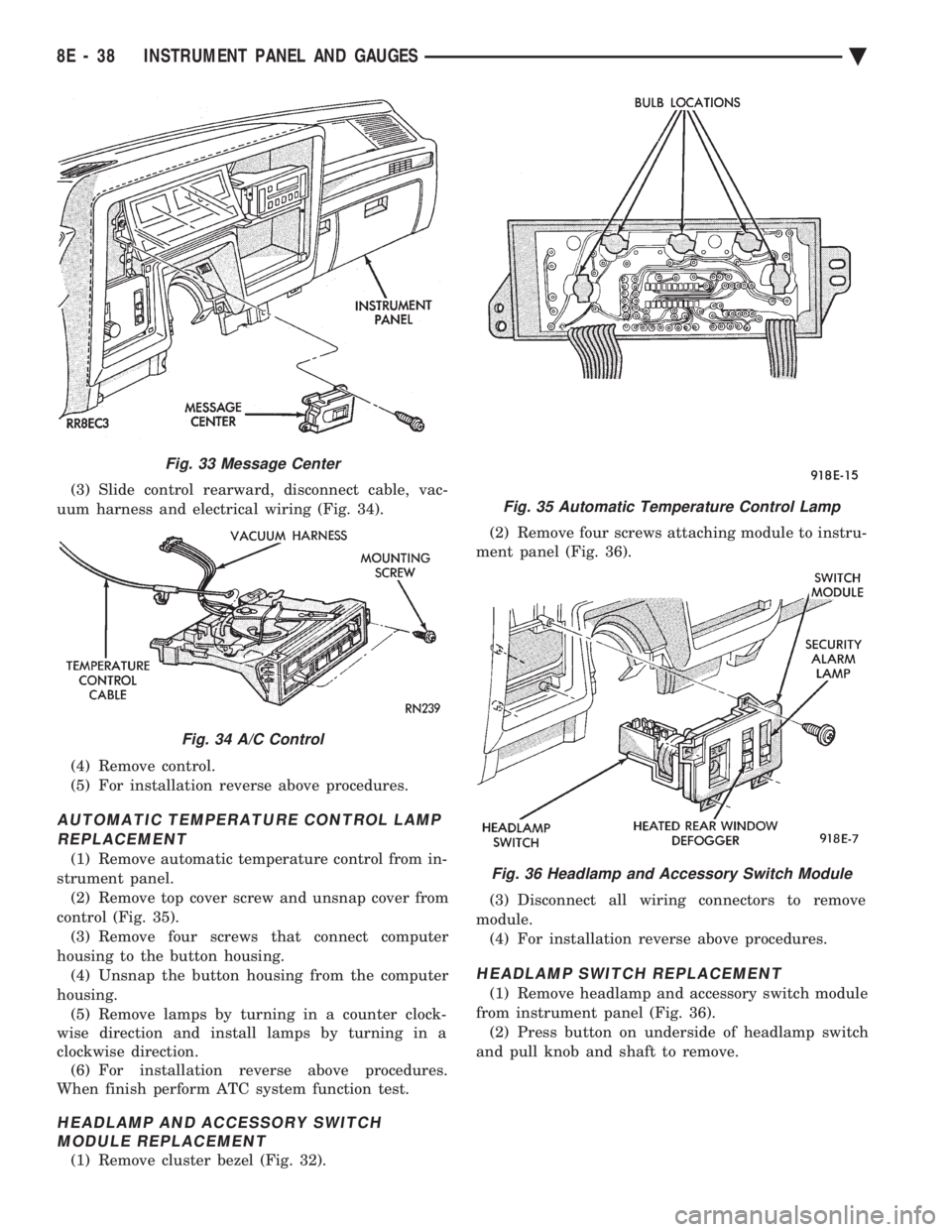

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) Slide control rearward, disconnect cable, vac-
uum harness and electrical wiring (Fig. 34).
(4) Remove control.
(5) For installation reverse above procedures.
AUTOMATIC TEMPERATURE CONTROL LAMP
