Page 491 of 2438

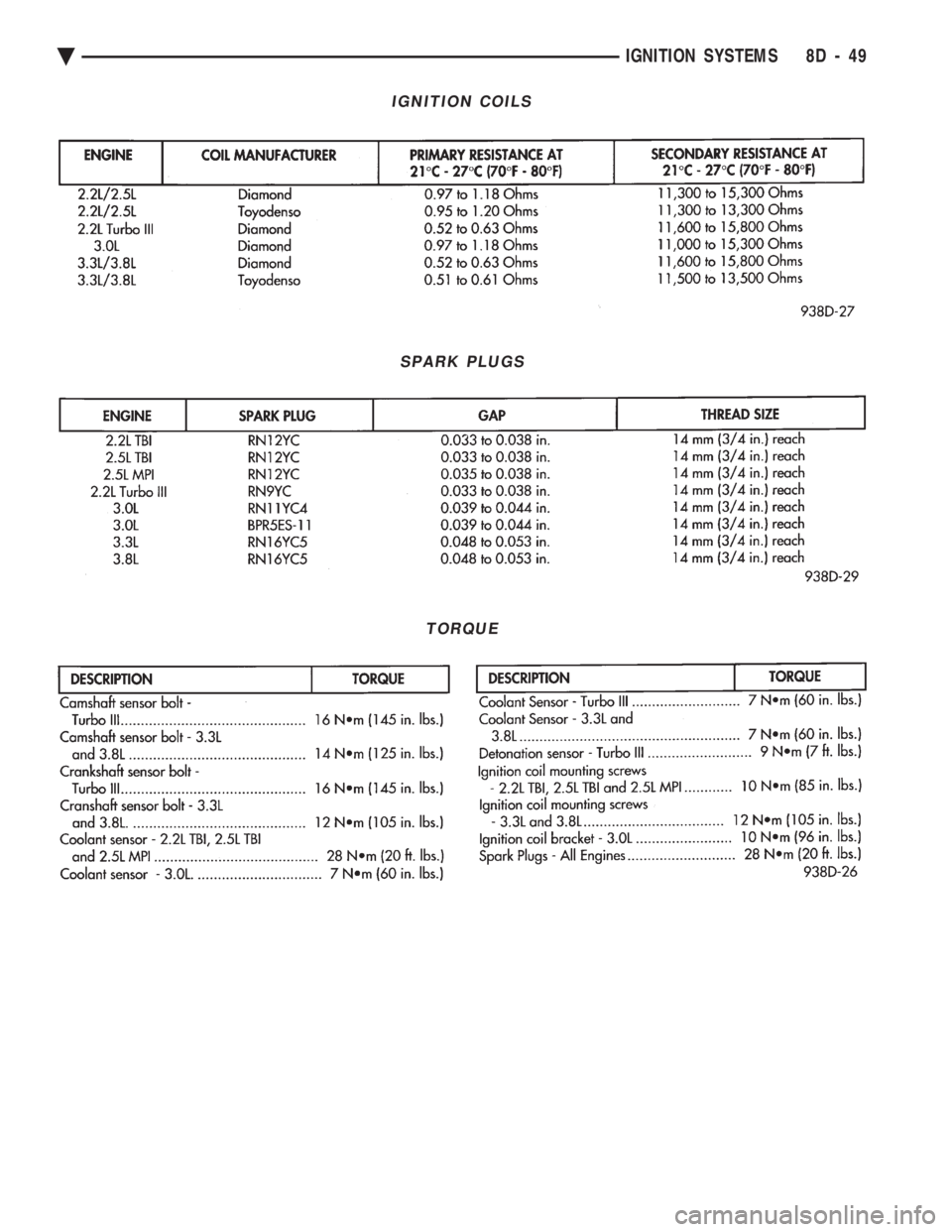

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual IGNITION COILS
SPARK PLUGS
TORQUE
Ä IGNITION SYSTEMS 8D - 49

Page 492 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual

Page 493 of 2438

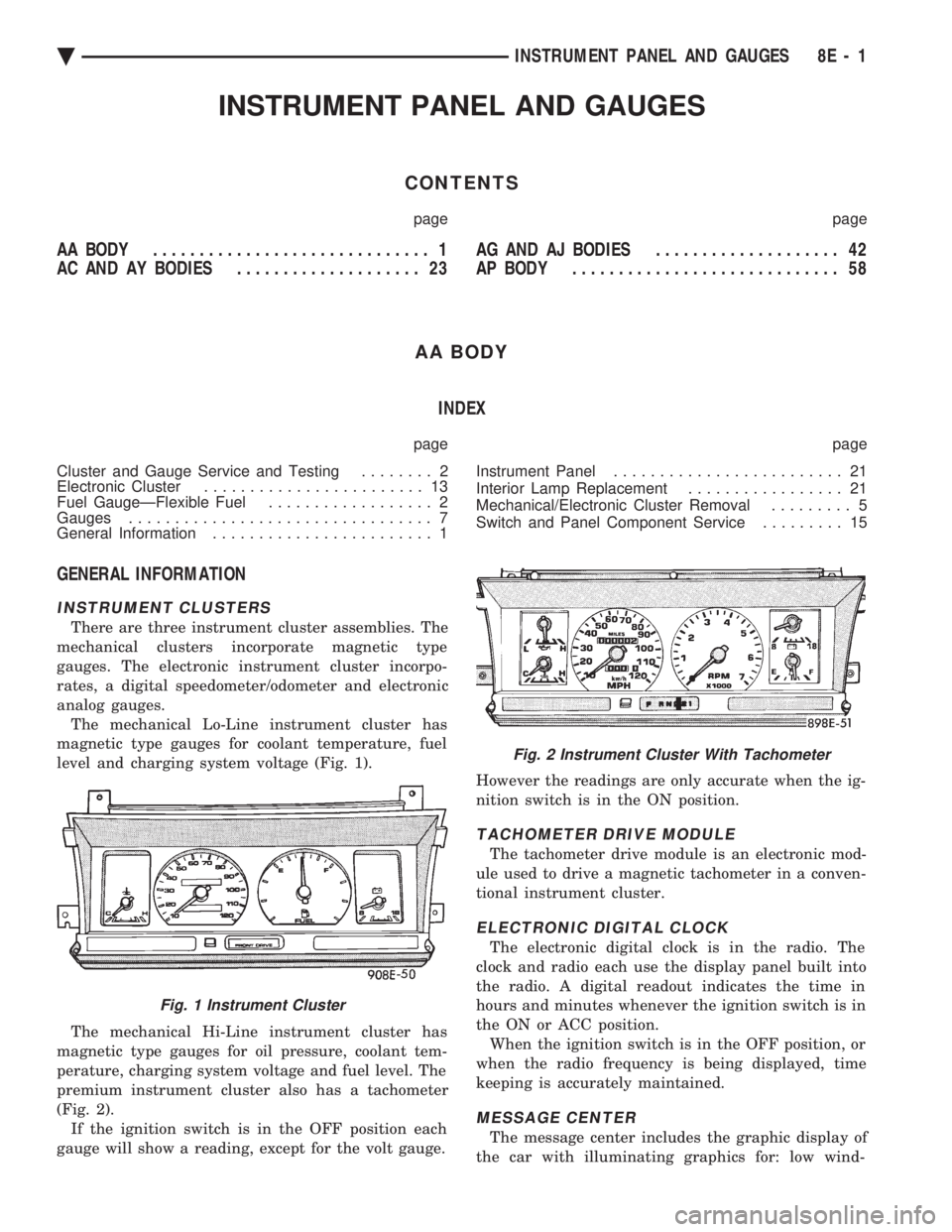

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSTRUMENT PANEL AND GAUGES
CONTENTS
page page
AA BODY .............................. 1
AC AND AY BODIES  .................... 23  AG AND AJ BODIES
.................... 42
AP BODY  ................

Page 494 of 2438

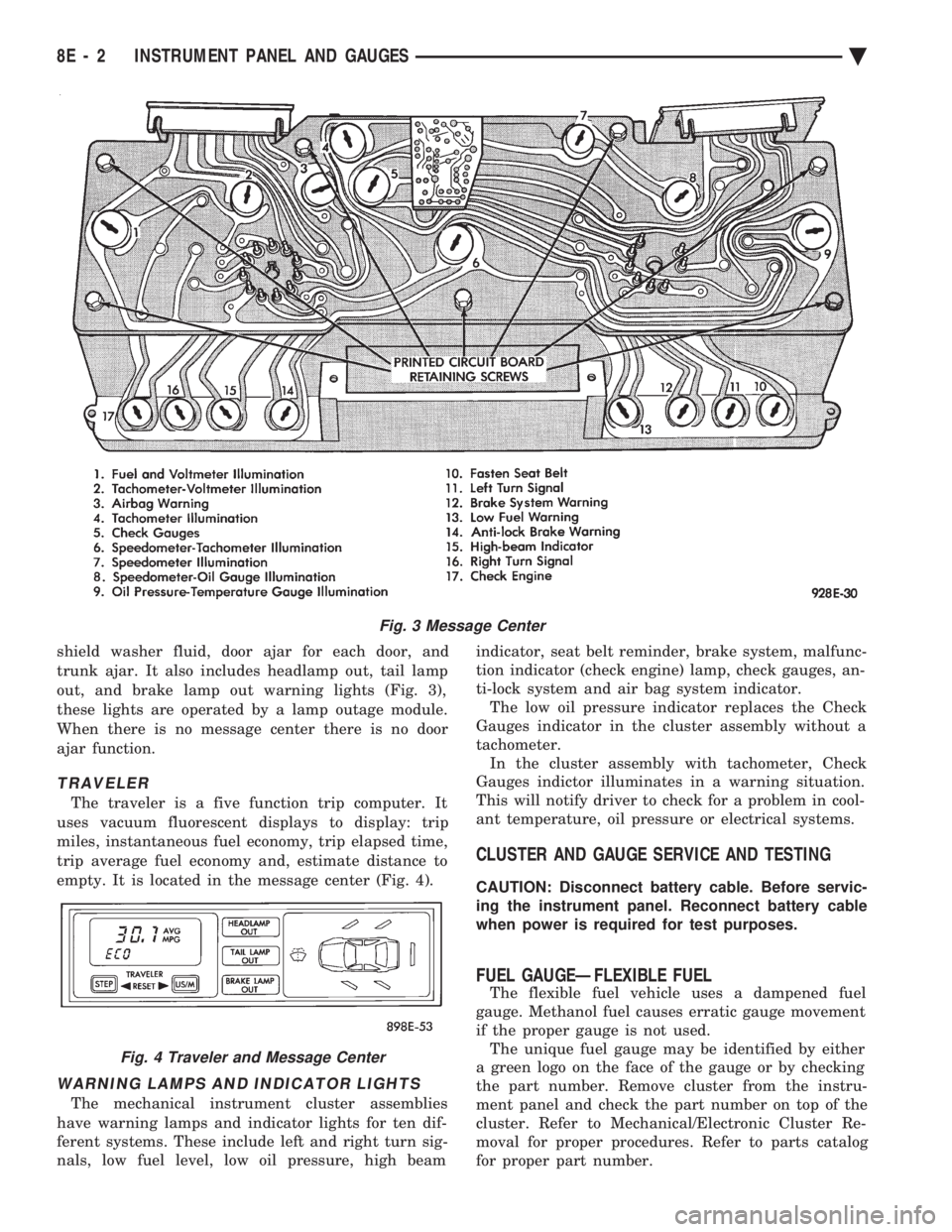

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual shield washer fluid, door ajar for each door, and
trunk ajar. It also includes headlamp out, tail lamp
out, and brake lamp out warning lights (Fig. 3),
these lights are operated by a lamp outage modu

Page 495 of 2438

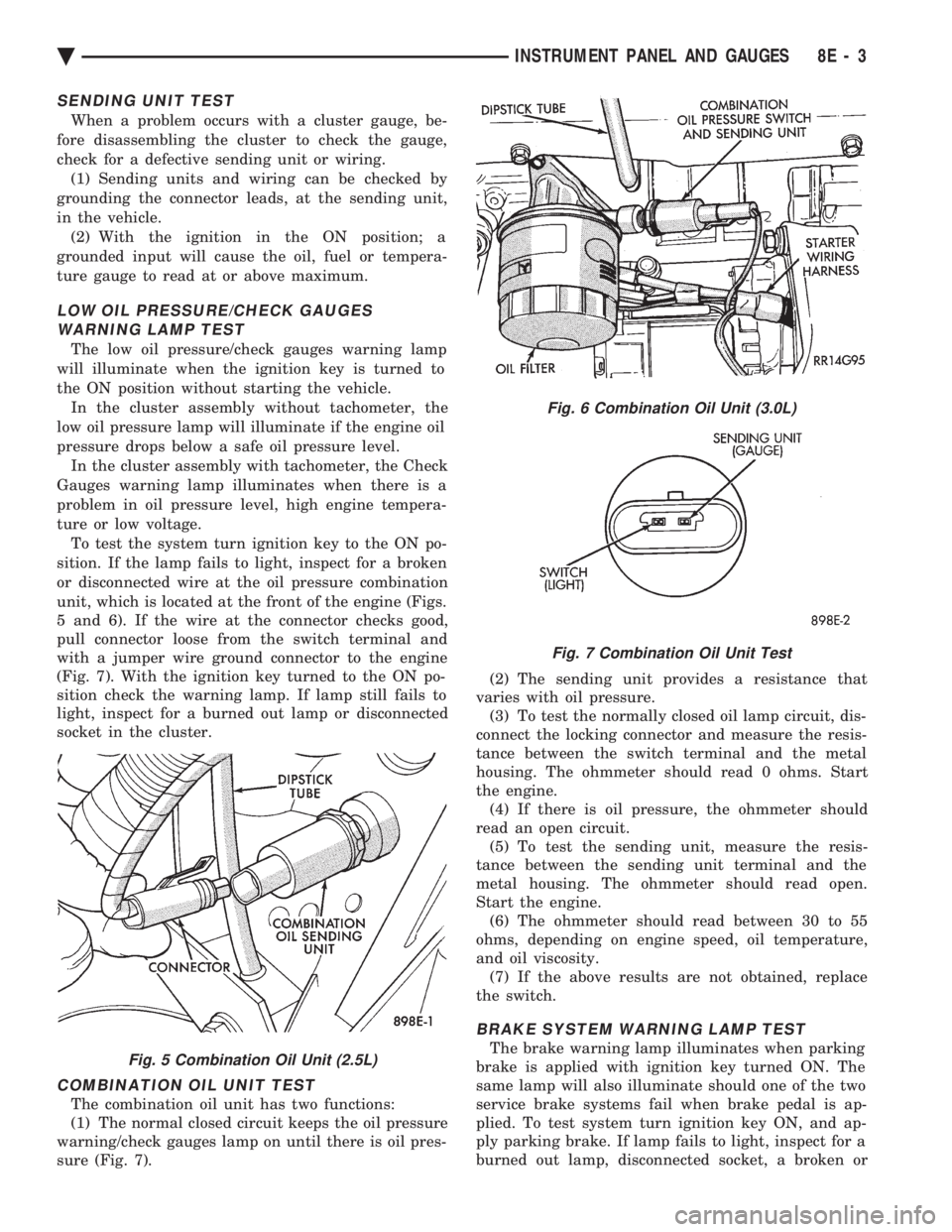

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual SENDING UNIT TEST
When a problem occurs with a cluster gauge, be-
fore disassembling the cluster to check the gauge,
check for a defective sending unit or wiring. (1) Sending units and wiring can be

Page 496 of 2438

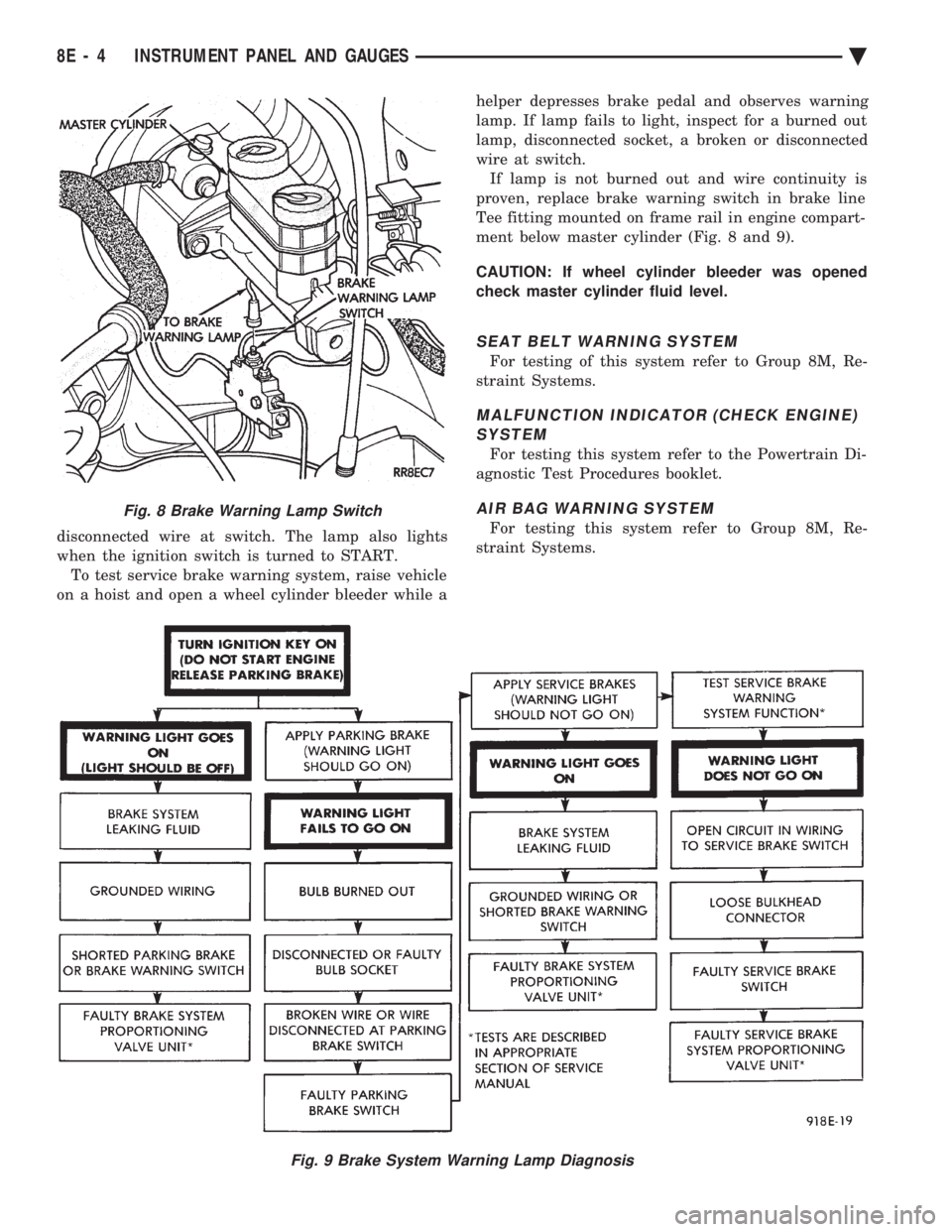

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual disconnected wire at switch. The lamp also lights
when the ignition switch is turned to START.To test service brake warning system, raise vehicle
on a hoist and open a wheel cylinder bleeder while a

Page 497 of 2438

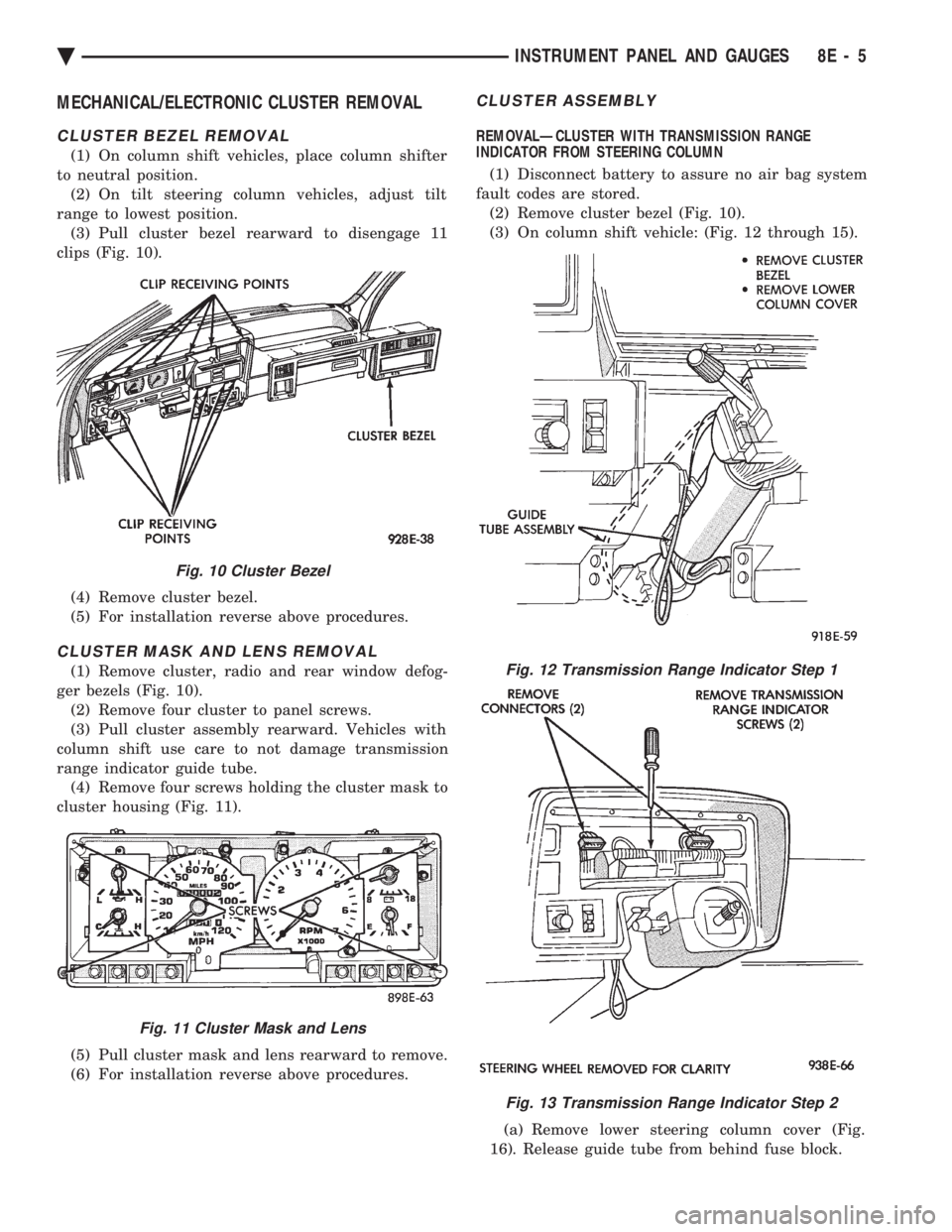

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual MECHANICAL/ELECTRONIC CLUSTER REMOVAL
CLUSTER BEZEL REMOVAL
(1) On column shift vehicles, place column shifter
to neutral position. (2) On tilt steering column vehicles, adjust tilt
range to lowest p

Page 498 of 2438

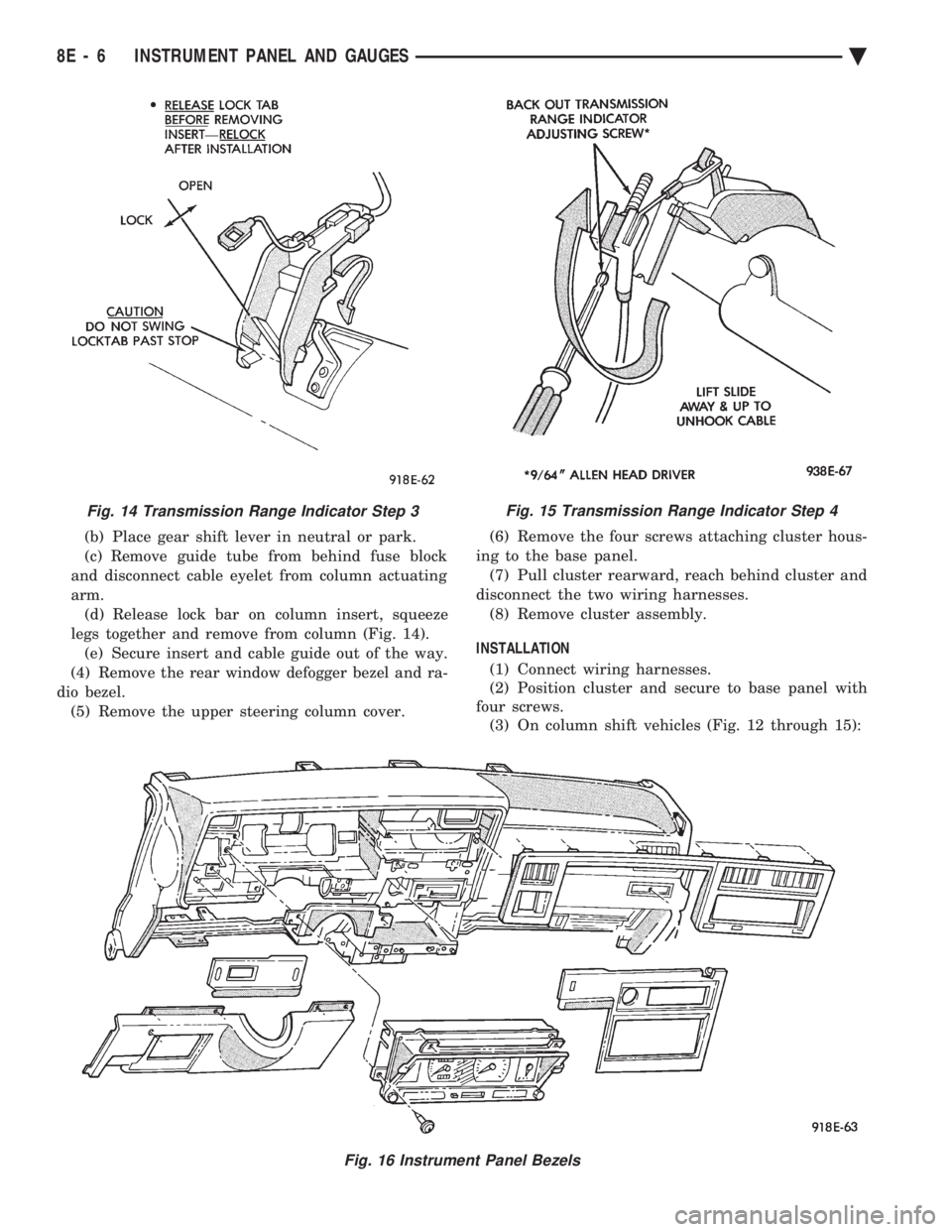

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (b) Place gear shift lever in neutral or park.
(c) Remove guide tube from behind fuse block
and disconnect cable eyelet from column actuating
arm. (d) Release lock bar on column insert, squeeze
legs

Page 499 of 2438

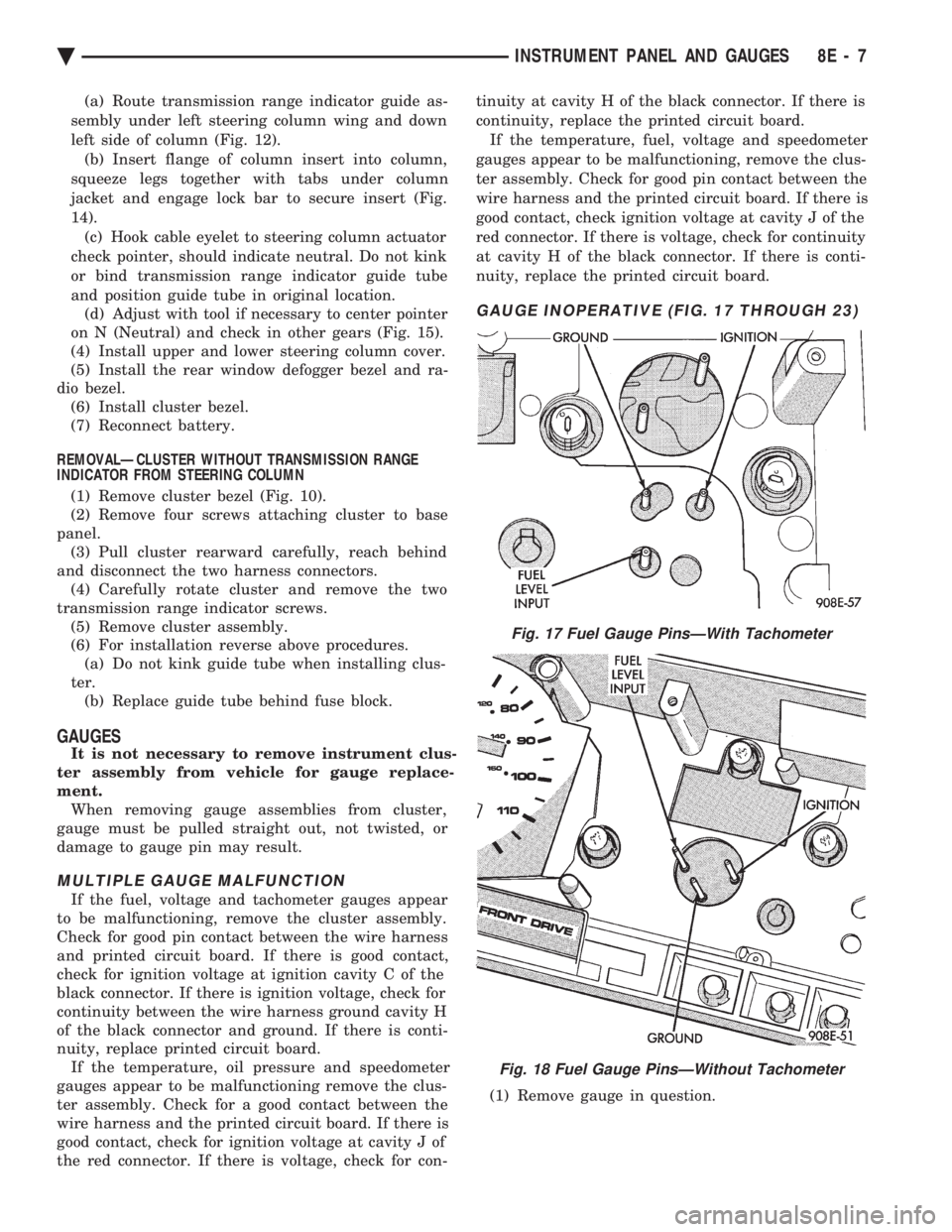

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (a) Route transmission range indicator guide as-
sembly under left steering column wing and down
left side of column (Fig. 12). (b) Insert flange of column insert into column,
squeeze legs together w

Page 500 of 2438

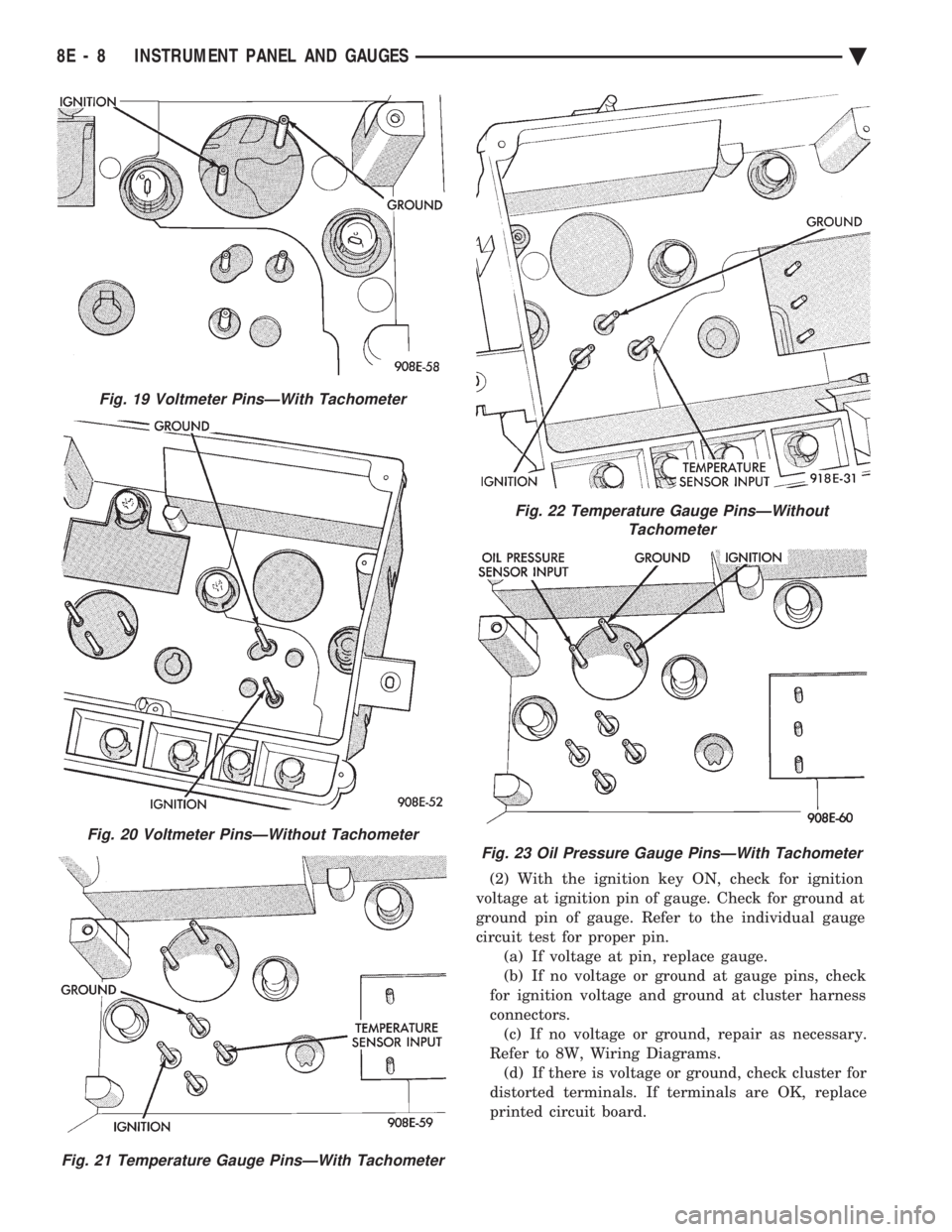

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) With the ignition key ON, check for ignition
voltage at ignition pin of gauge. Check for ground at
ground pin of gauge. Refer to the individual gauge
circuit test for proper pin. (a) If voltage a
