Page 61 of 358

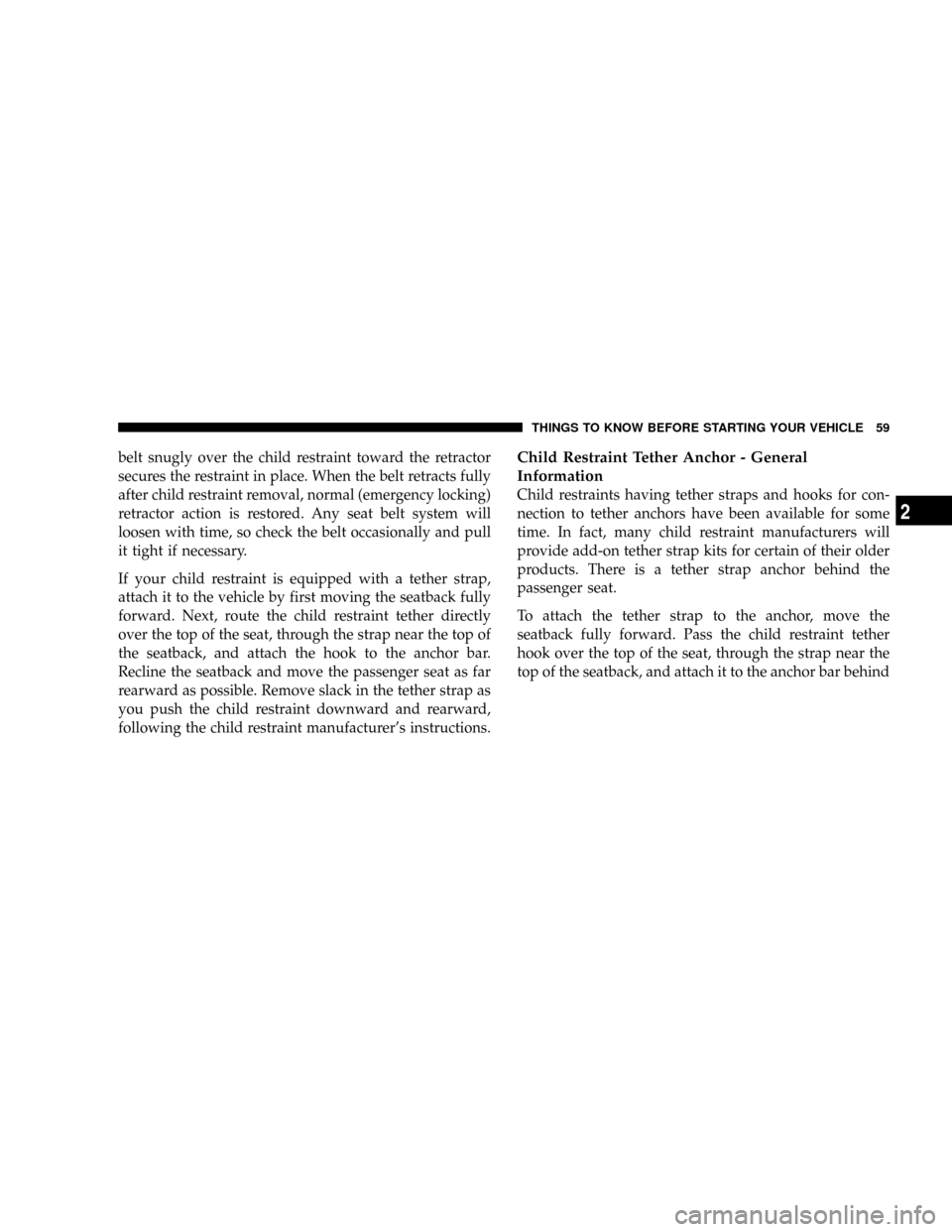

belt snugly over the child restraint toward the retractor
secures the restraint in place. When the belt retracts fully
after child restraint removal, normal (emergency locking)
retractor action is restored. Any seat belt system will
loosen with time, so check the belt occasionally and pull
it tight if necessary.
If your child restraint is equipped with a tether strap,
attach it to the vehicle by first moving the seatback fully
forward. Next, route the child restraint tether directly
over the top of the seat, through the strap near the top of
the seatback, and attach the hook to the anchor bar.
Recline the seatback and move the passenger seat as far
rearward as possible. Remove slack in the tether strap as
you push the child restraint downward and rearward,
following the child restraint manufacturer's instructions.Child Restraint Tether Anchor - General
Information
Child restraints having tether straps and hooks for con-
nection to tether anchors have been available for some
time. In fact, many child restraint manufacturers will
provide add-on tether strap kits for certain of their older
products. There is a tether strap anchor behind the
passenger seat.
To attach the tether strap to the anchor, move the
seatback fully forward. Pass the child restraint tether
hook over the top of the seat, through the strap near the
top of the seatback, and attach it to the anchor bar behind
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
2
Page 62 of 358

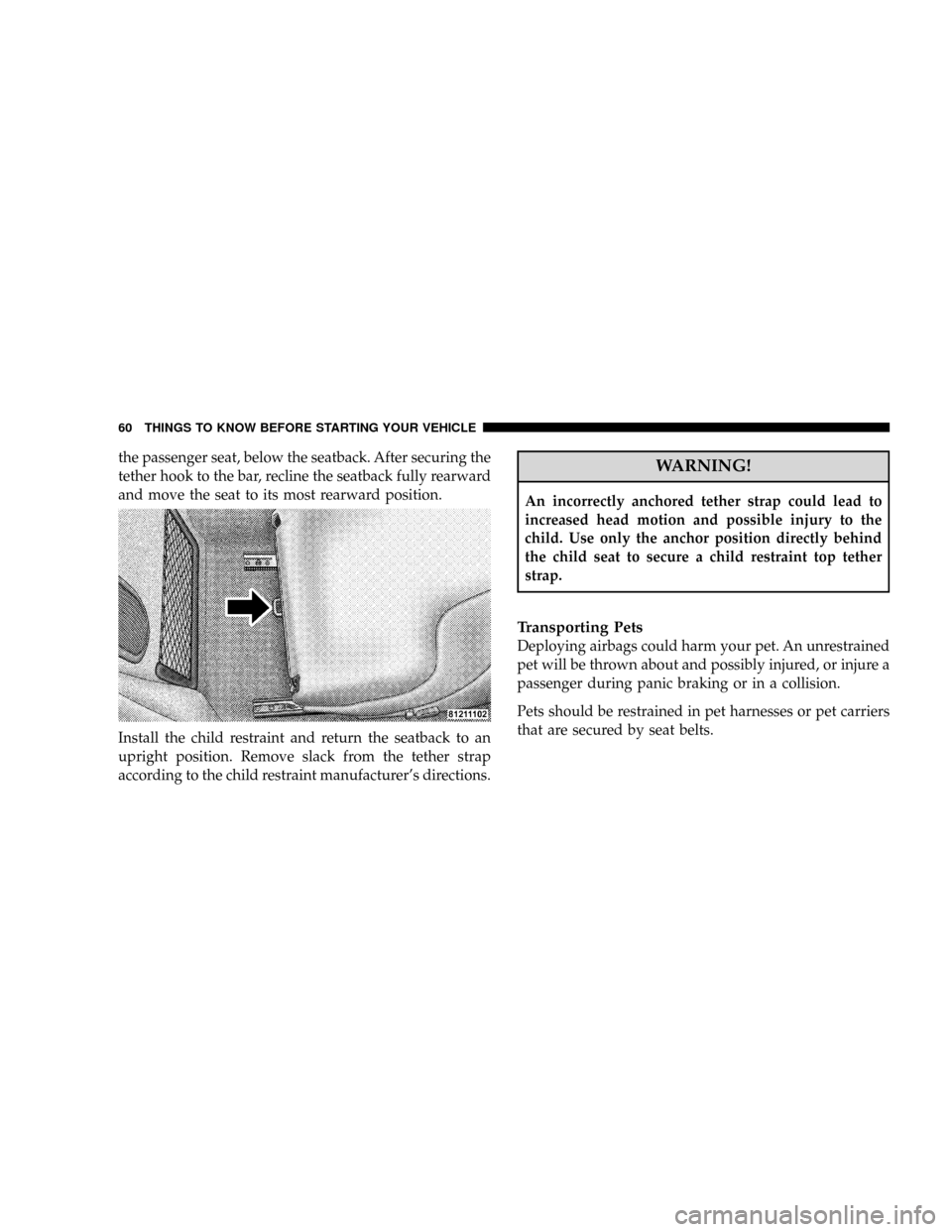

the passenger seat, below the seatback. After securing the
tether hook to the bar, recline the seatback fully rearward
and move the seat to its most rearward position.
Install the child restraint and return the seatback to an
upright position. Remove slack from the tether strap
according to the child restraint manufacturer's directions.WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor position directly behind
the child seat to secure a child restraint top tether
strap.
Transporting Pets
Deploying airbags could harm your pet. An unrestrained
pet will be thrown about and possibly injured, or injure a
passenger during panic braking or in a collision.
Pets should be restrained in pet harnesses or pet carriers
that are secured by seat belts.
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 63 of 358
ENGINE BREAK-IN RECOMMENDATIONS
The engine in your new vehicle does not require a long
break-in period. Following these few simple guidelines is
all that is necessary for a good break-in.
²Drive your vehicle at moderate vehicle and engine
speeds during the first 1,000 mi (1 600 km).
²Do not make any full throttle starts and avoid full
throttle acceleration.
²Use the proper transmission gear for your speed
range.
²Avoid excessive idling.
²Check the engine oil level at every fuel fill.
NOTE:A new engine may consume some oil during the
first few thousand miles of operation. This should be
considered as a normal part of the break-in and not an
indication of a problem.
SAFETY TIPS
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing CO follow
the safety tips below.
²Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in
or out of the area.
²If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the blower
at high speed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
2
Page 64 of 358
²To avoid drawing exhaust gases into the vehicle, close
the rear liftgate/decklid while driving. However, if for
some reason it must remain open, close all windows.
Adjust the heating or cooling system to force outside
air into the vehicle. Set the blower at high speed.
Safety Checks You Should Make Inside the
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing,
etc.). If there is any question regarding seat belt or
retractor condition, see your authorized dealer.
Airbag Light
The light should come on and remain on for
four seconds as a bulb check when the ignition
switch is first turned ON. If the bulb is not lit
during starting, have it replaced. If the light
stays on or comes on while driving, have the system
checked by an authorized dealer.
Defrosters
Check operation by pressing the A/C control button,
selecting the defrost mode and placing the blower control
on high speed. You should be able to feel the air directed
against the windshield. See your authorized dealer for
service if your defroster is inoperable.
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 65 of 358

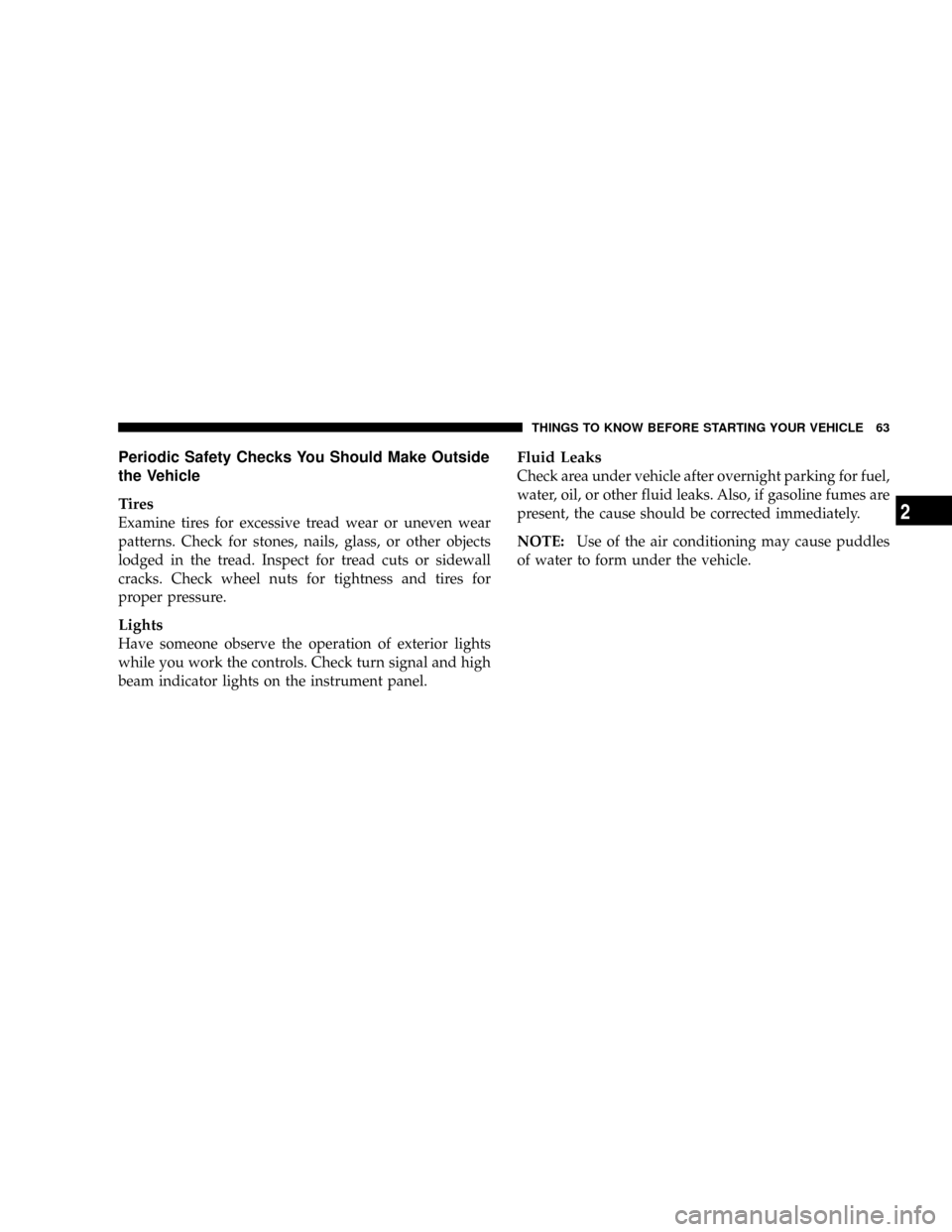

Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness and tires for
proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
water, oil, or other fluid leaks. Also, if gasoline fumes are
present, the cause should be corrected immediately.
NOTE:Use of the air conditioning may cause puddles
of water to form under the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63
2
Page 66 of 358
Page 67 of 358
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
mConvertible Top Operation.................68
NTo Lower The Top......................70
NTo Raise The Top......................75
NConvertible Top Lamp And Audible Signal
Chart...............................79
mConsole Features........................80
NStorage Compartments (If Equipped)........80
NAshtray.............................82
NCoin Holder..........................83NPower Outlet/Cigar Lighter...............83
NGlove Compartment....................84
mCupholder (If Equipped)..................84
mMirrors...............................85
NInside Day/Night Mirror.................85
NExterior Mirrors Folding Feature...........86
N
Heated Remote Control Mirrors (If Equipped)...86
NOutside Mirrors.......................86
NPower Remote Control Outside Mirrors......86
3
Page 68 of 358

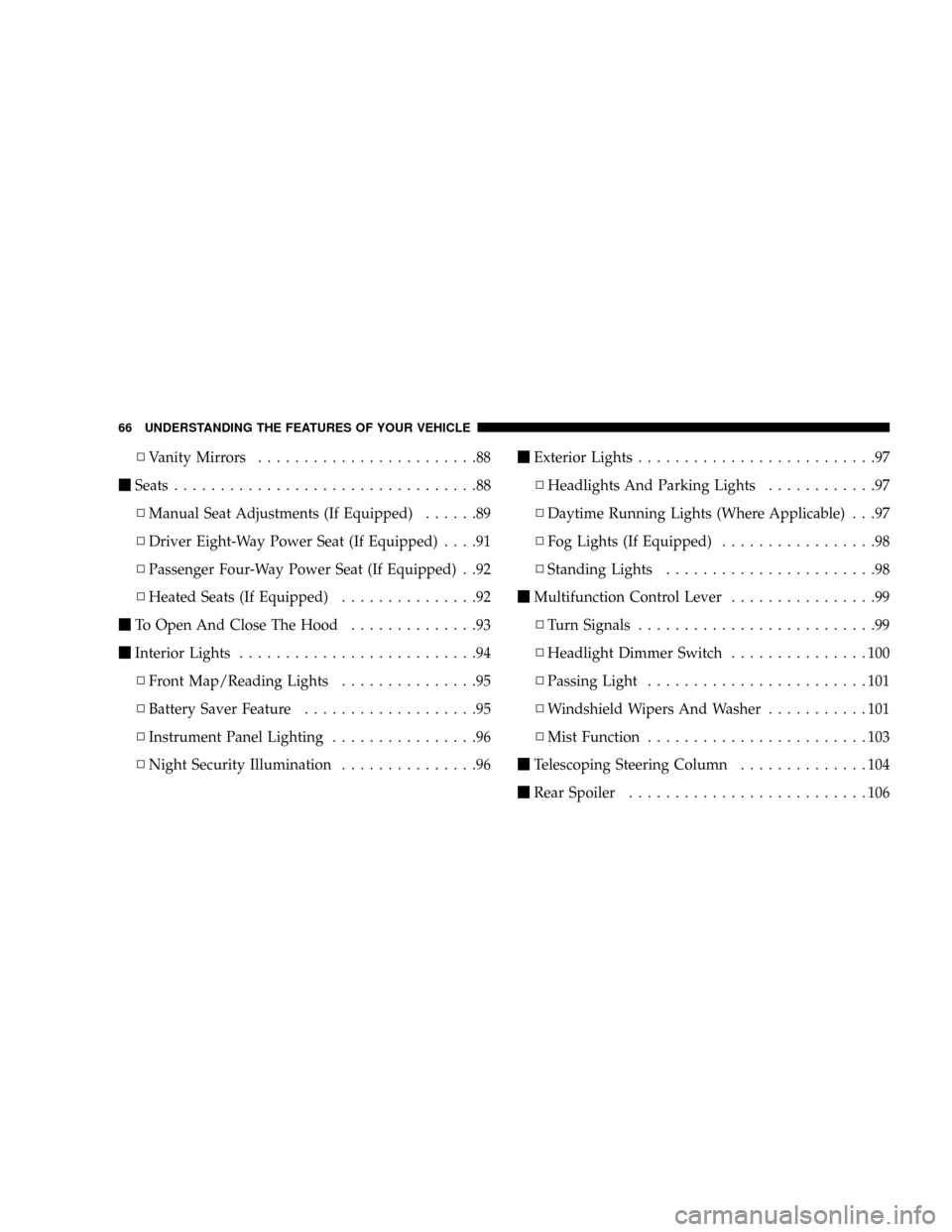

NVanity Mirrors........................88
mSeats.................................88
NManual Seat Adjustments (If Equipped)......89
NDriver Eight-Way Power Seat (If Equipped)....91
NPassenger Four-Way Power Seat (If Equipped) . .92
NHeated Seats (If Equipped)...............92
mTo Open And Close The Hood..............93
mInterior Lights..........................94
NFront Map/Reading Lights...............95
NBattery Saver Feature...................95
NInstrument Panel Lighting................96
NNight Security Illumination...............96mExterior Lights..........................97
NHeadlights And Parking Lights............97
NDaytime Running Lights (Where Applicable) . . .97
NFog Lights (If Equipped).................98
NStanding Lights.......................98
mMultifunction Control Lever................99
NTurn Signals..........................99
NHeadlight Dimmer Switch...............100
NPassing Light........................101
NWindshield Wipers And Washer...........101
NMist Function........................103
mTelescoping Steering Column..............104
mRear Spoiler..........................106
66 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 69 of 358

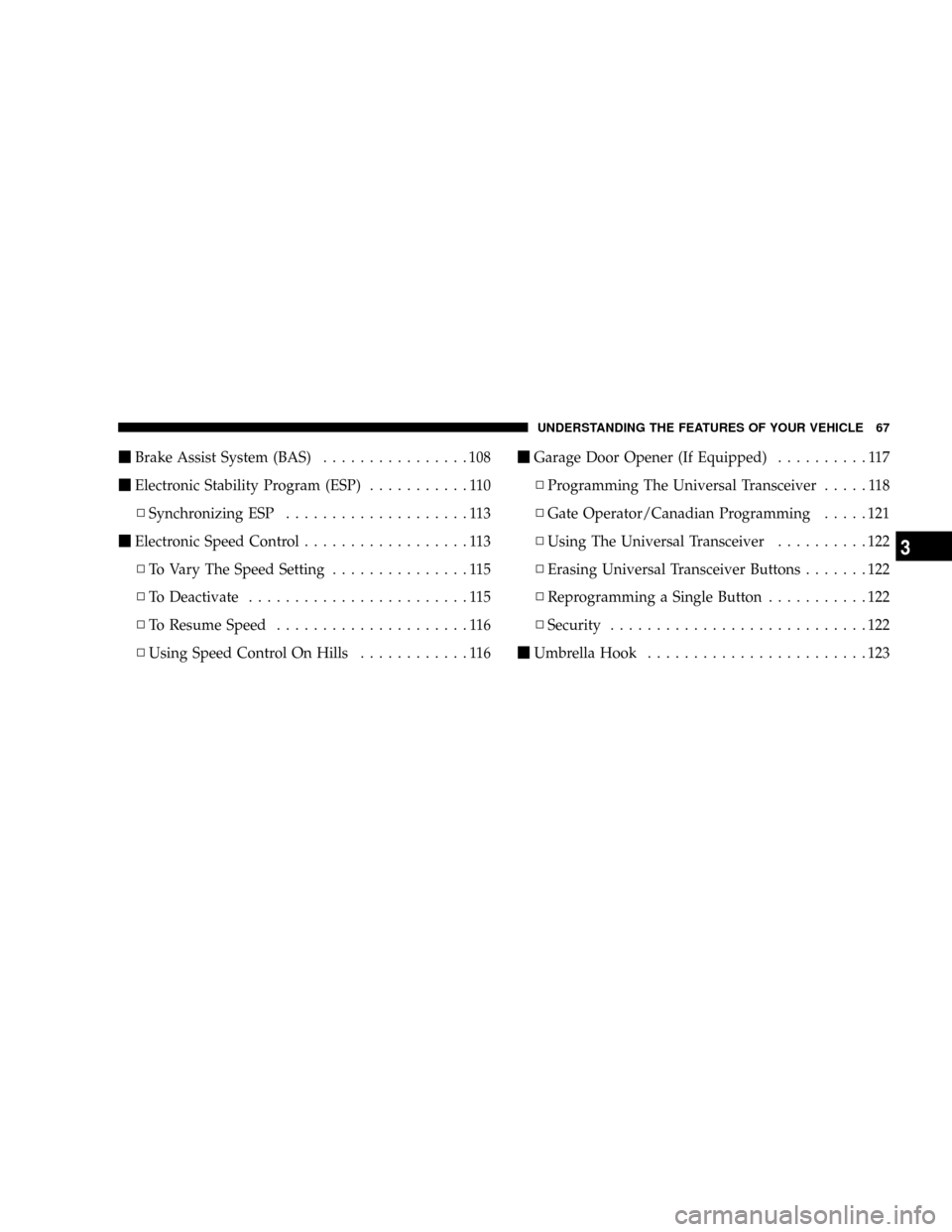

mBrake Assist System (BAS)................108
mElectronic Stability Program (ESP)...........110
NSynchronizing ESP....................113
mElectronic Speed Control..................113
NTo Vary The Speed Setting...............115
NTo Deactivate........................115
NTo Resume Speed.....................116
NUsing Speed Control On Hills............116mGarage Door Opener (If Equipped)..........117
NProgramming The Universal Transceiver.....118
NGate Operator/Canadian Programming.....121
NUsing The Universal Transceiver..........122
NErasing Universal Transceiver Buttons.......122
NReprogramming a Single Button...........122
NSecurity............................122
mUmbrella Hook........................123
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67
3
Page 70 of 358

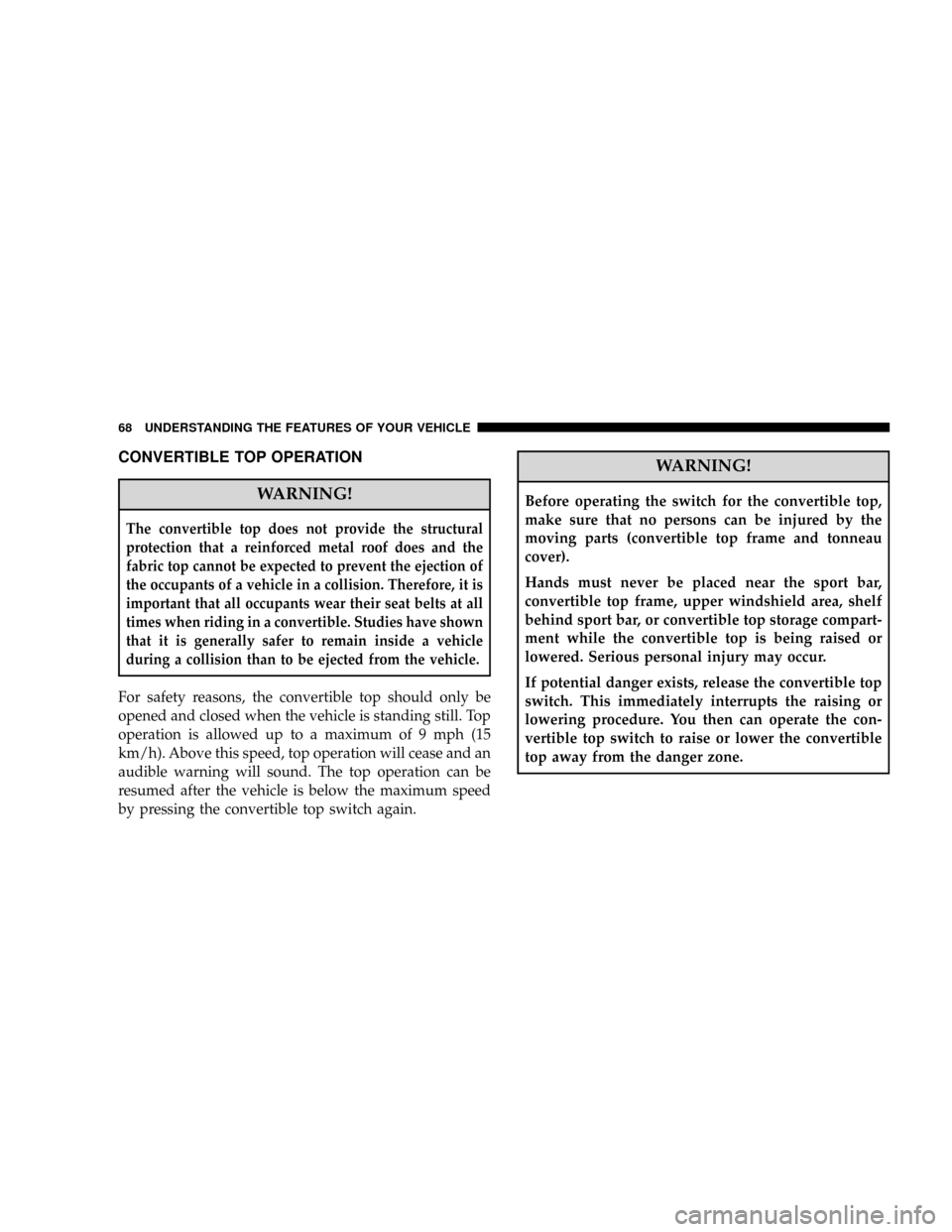

CONVERTIBLE TOP OPERATION
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection of
the occupants of a vehicle in a collision. Therefore, it is
important that all occupants wear their seat belts at all
times when riding in a convertible. Studies have shown
that it is generally safer to remain inside a vehicle
during a collision than to be ejected from the vehicle.
For safety reasons, the convertible top should only be
opened and closed when the vehicle is standing still. Top
operation is allowed up to a maximum of 9 mph (15
km/h). Above this speed, top operation will cease and an
audible warning will sound. The top operation can be
resumed after the vehicle is below the maximum speed
by pressing the convertible top switch again.
WARNING!
Before operating the switch for the convertible top,
make sure that no persons can be injured by the
moving parts (convertible top frame and tonneau
cover).
Hands must never be placed near the sport bar,
convertible top frame, upper windshield area, shelf
behind sport bar, or convertible top storage compart-
ment while the convertible top is being raised or
lowered. Serious personal injury may occur.
If potential danger exists, release the convertible top
switch. This immediately interrupts the raising or
lowering procedure. You then can operate the con-
vertible top switch to raise or lower the convertible
top away from the danger zone.
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
