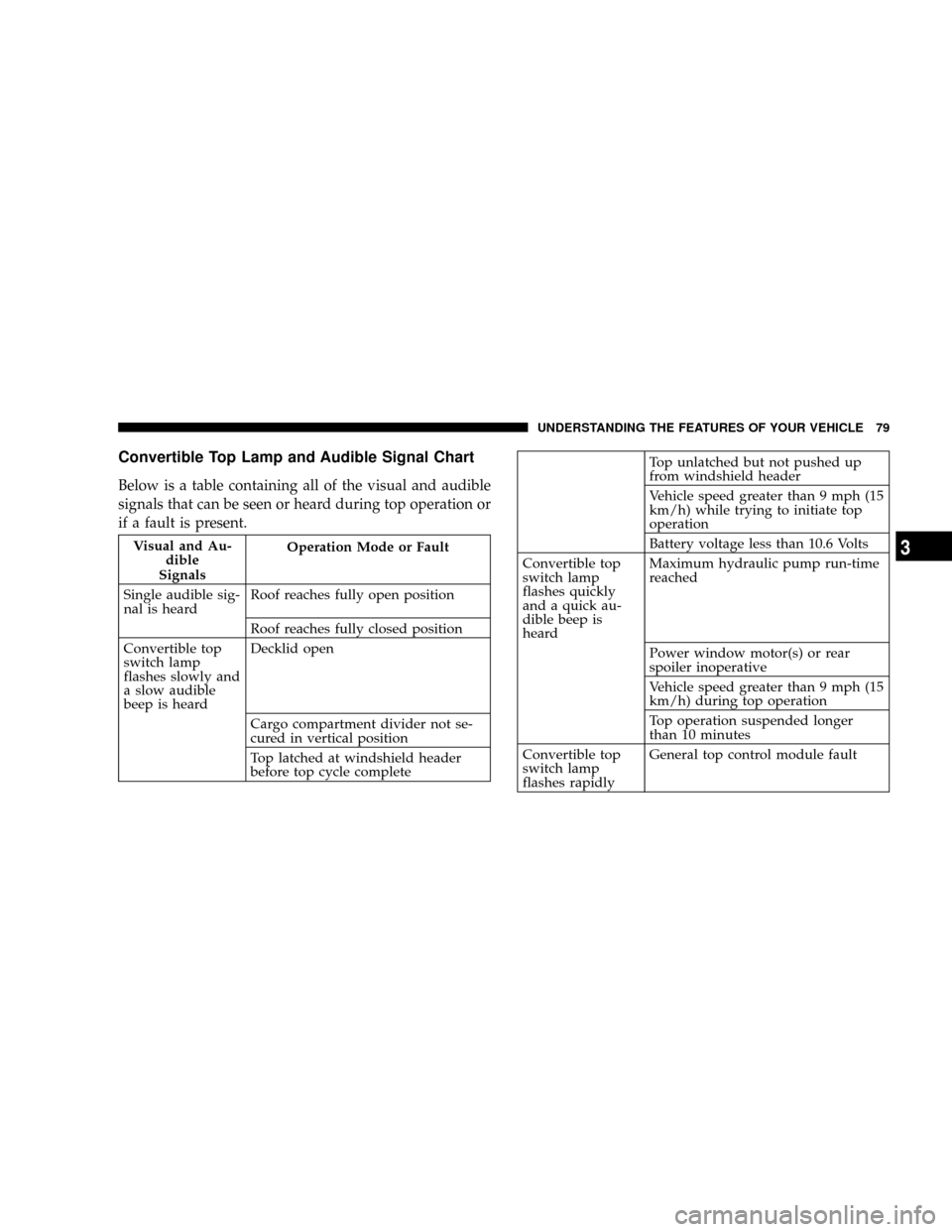

Convertible Top Lamp and Audible Signal Chart
Below is a table containing all of the visual and audible
signals that can be seen or heard during top operation or
if a fault is present.
Visual and Au-
dible
SignalsOperation Mode or Fault
Single audible sig-
nal is heardRoof reaches fully open position
Roof reaches fully closed position
Convertible top
switch lamp
flashes slowly and
a slow audible
beep is heardDecklid open
Cargo compartment divider not se-
cured in vertical position
Top latched at windshield header
before top cycle complete
Top unlatched but not pushed up
from windshield header
Vehicle speed greater than 9 mph (15
km/h) while trying to initiate top
operation
Battery voltage less than 10.6 Volts
Convertible top
switch lamp
flashes quickly
and a quick au-
dible beep is
heardMaximum hydraulic pump run-time
reached
Power window motor(s) or rear
spoiler inoperative
Vehicle speed greater than 9 mph (15
km/h) during top operation
Top operation suspended longer
than 10 minutes
Convertible top
switch lamp
flashes rapidlyGeneral top control module fault
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3
Page 82 of 358
CONSOLE FEATURES
The console has a power outlet/cigar lighter, an ash tray
with a coin holder, a cupholder (if equipped), and the
passenger airbag light. In addition, there are switches to
control the heated seats (if equipped), rear spoiler, elec-
tronic stability program (ESP), hazard flashers, central
locking, rear defroster and towing alarm.
Operating controls for the heating and air conditioning
systems, power windows, power mirrors, convertible top
switch (if equipped), and the automatic transmission
program mode selector switch (if equipped) are also
located in the console.
Storage Compartments (If Equipped)
There is a storage compartment in the console. To open
the storage compartment, lift the lid with the finger
depressions on either side. To close, lower the lid until
the lock engages.
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 83 of 358

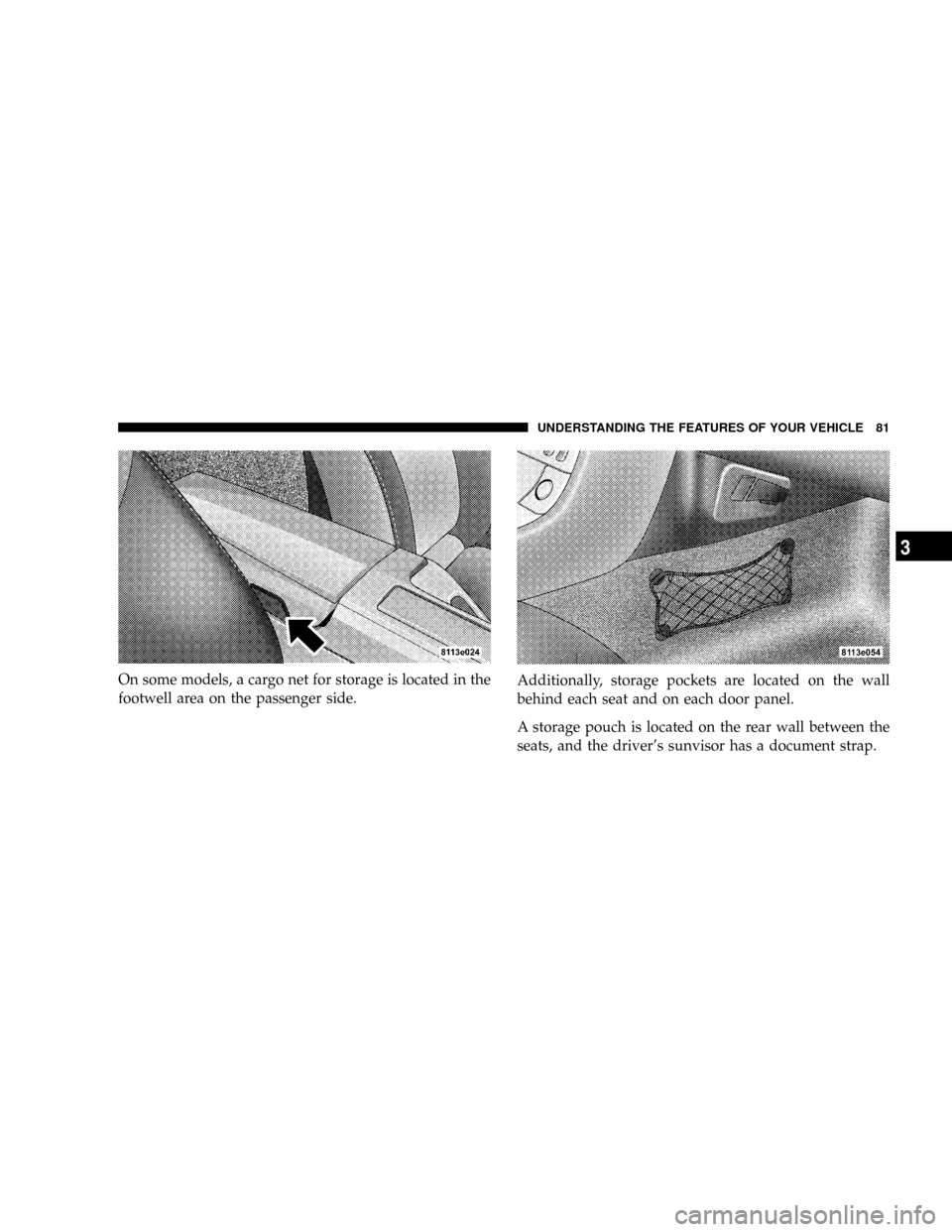

On some models, a cargo net for storage is located in the
footwell area on the passenger side.Additionally, storage pockets are located on the wall
behind each seat and on each door panel.
A storage pouch is located on the rear wall between the
seats, and the driver's sunvisor has a document strap.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3
Page 84 of 358

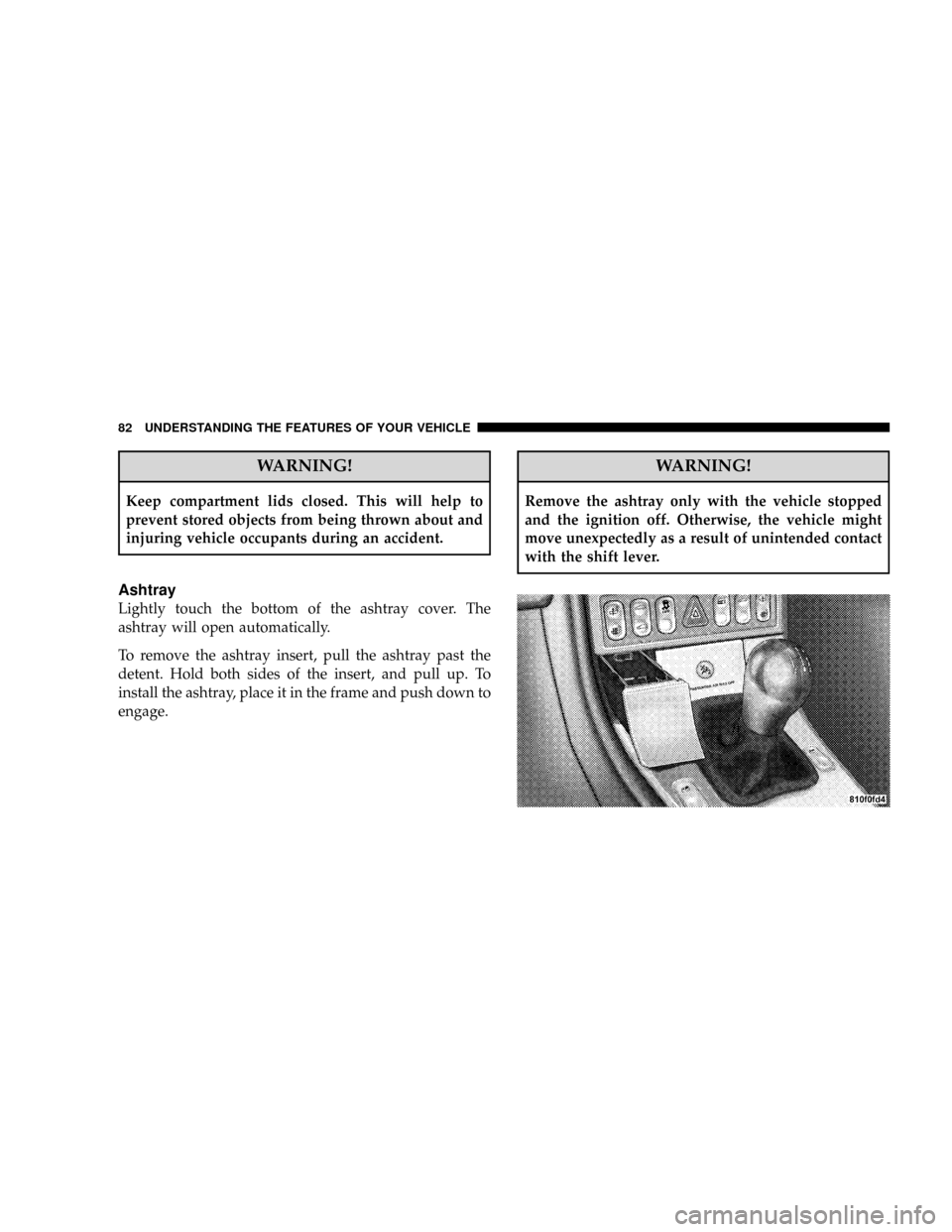

WARNING!
Keep compartment lids closed. This will help to
prevent stored objects from being thrown about and
injuring vehicle occupants during an accident.
Ashtray
Lightly touch the bottom of the ashtray cover. The
ashtray will open automatically.
To remove the ashtray insert, pull the ashtray past the
detent. Hold both sides of the insert, and pull up. To
install the ashtray, place it in the frame and push down to
engage.
WARNING!
Remove the ashtray only with the vehicle stopped
and the ignition off. Otherwise, the vehicle might
move unexpectedly as a result of unintended contact
with the shift lever.
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 85 of 358

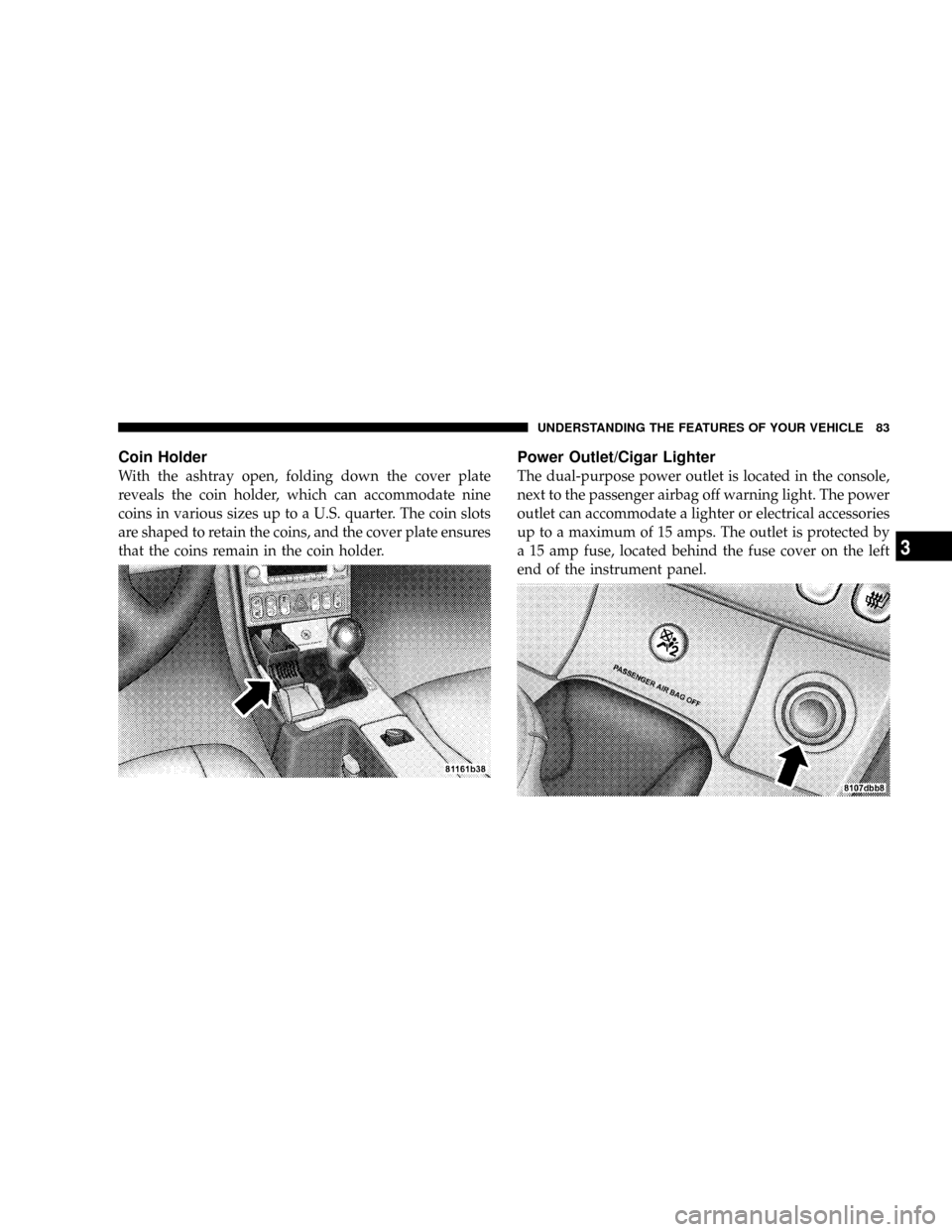

Coin Holder
With the ashtray open, folding down the cover plate
reveals the coin holder, which can accommodate nine
coins in various sizes up to a U.S. quarter. The coin slots
are shaped to retain the coins, and the cover plate ensures
that the coins remain in the coin holder.
Power Outlet/Cigar Lighter
The dual-purpose power outlet is located in the console,
next to the passenger airbag off warning light. The power
outlet can accommodate a lighter or electrical accessories
up to a maximum of 15 amps. The outlet is protected by
a 15 amp fuse, located behind the fuse cover on the left
end of the instrument panel.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3
Page 86 of 358
The lighter will operate only when the ignition switch is
in the ON/ACC position. It heats up when pushed in and
pops out automatically when ready for use. To preserve
the heating element, do not hold the lighter in the heating
position.
Glove Compartment
To lock the glove compartment, turn the key to the right
and remove. To unlock, turn the key to the left and
remove.
Pull on the handle to open the glove compartment.
CUPHOLDER (If Equipped)
The cupholder is located in the console. To open the
cupholder, gently press downward on the front edge of
the top panel, and then release. The cupholder will open
automatically.When the cupholder is no longer needed, push forward
on the top edge of the door and rotate it down into the
console until it engages.
The cupholder is designed to hold beverage containers
up to 20 oz. (1 L).
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 87 of 358

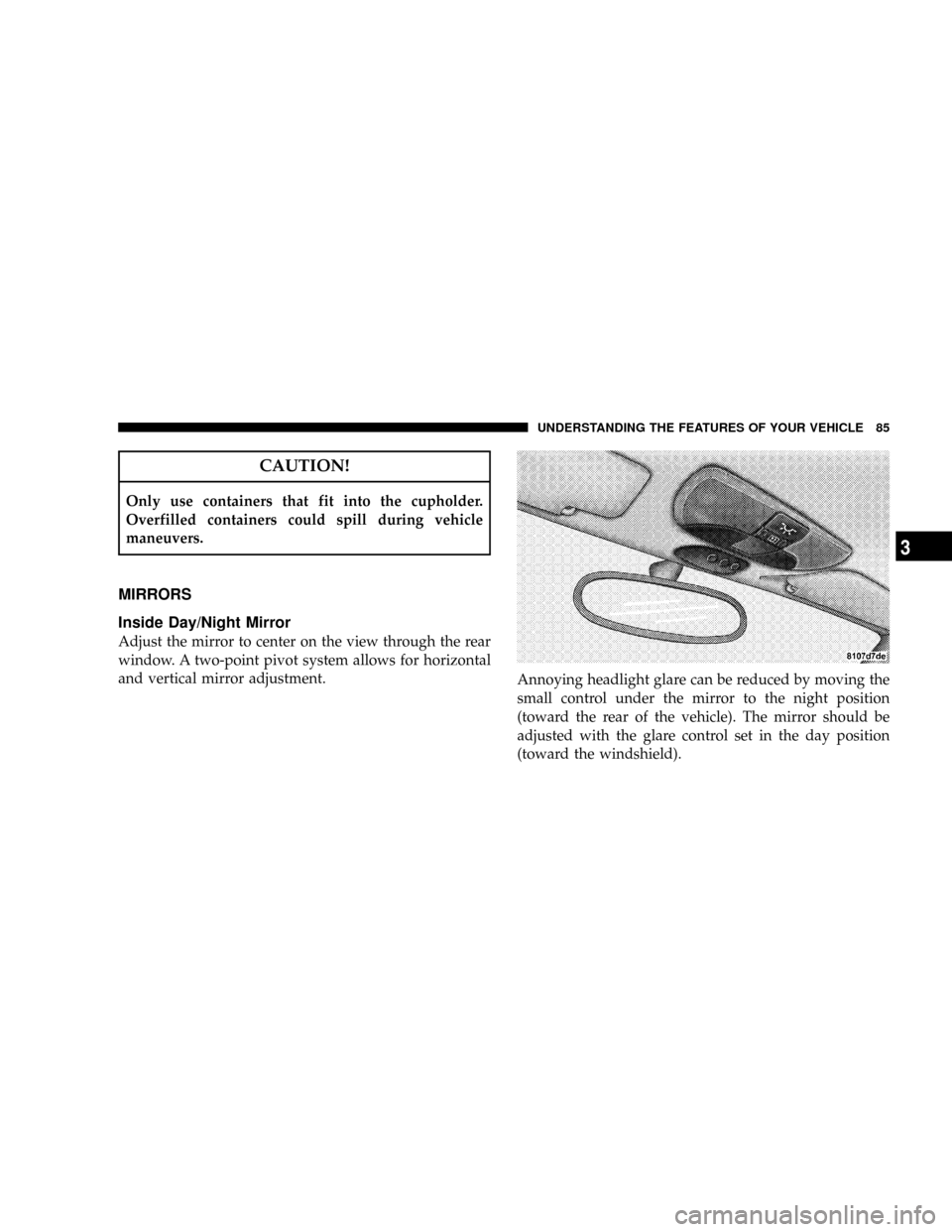

CAUTION!
Only use containers that fit into the cupholder.
Overfilled containers could spill during vehicle
maneuvers.
MIRRORS
Inside Day/Night Mirror
Adjust the mirror to center on the view through the rear
window. A two-point pivot system allows for horizontal
and vertical mirror adjustment.
Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward the rear of the vehicle). The mirror should be
adjusted with the glare control set in the day position
(toward the windshield).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3
Page 88 of 358

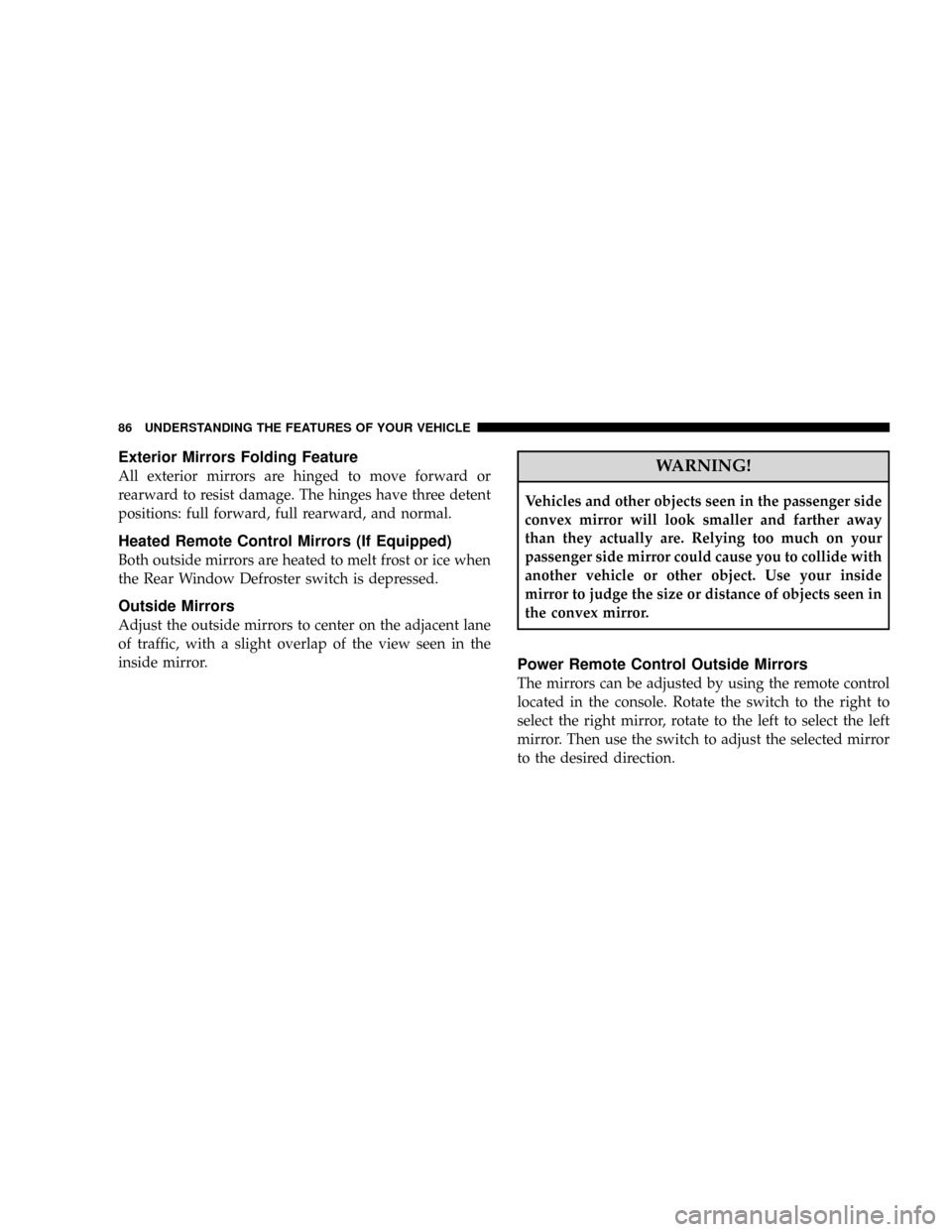

Exterior Mirrors Folding Feature
All exterior mirrors are hinged to move forward or
rearward to resist damage. The hinges have three detent
positions: full forward, full rearward, and normal.
Heated Remote Control Mirrors (If Equipped)
Both outside mirrors are heated to melt frost or ice when
the Rear Window Defroster switch is depressed.
Outside Mirrors
Adjust the outside mirrors to center on the adjacent lane
of traffic, with a slight overlap of the view seen in the
inside mirror.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they actually are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror to judge the size or distance of objects seen in
the convex mirror.
Power Remote Control Outside Mirrors
The mirrors can be adjusted by using the remote control
located in the console. Rotate the switch to the right to
select the right mirror, rotate to the left to select the left
mirror. Then use the switch to adjust the selected mirror
to the desired direction.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 89 of 358

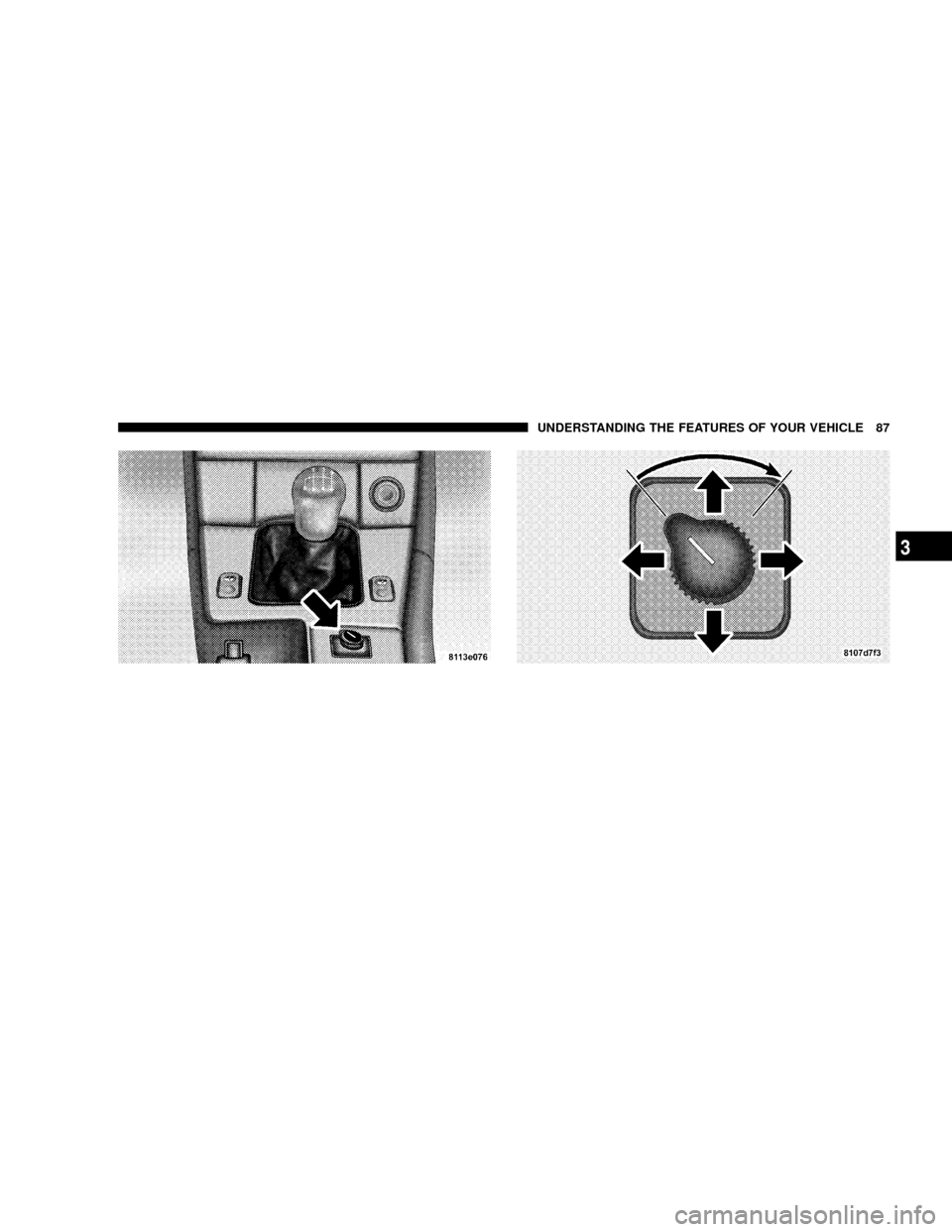

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3
Page 90 of 358
Vanity Mirrors
A vanity mirror is located on each sun visor. To use the
mirror, rotate the sun visor down and slide open the
mirror cover.
SEATS
Your vehicle's seats can be adjusted either manually or
electrically, depending on how your vehicle is equipped.
WARNING!
²Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
²Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
