CHRYSLER VOYAGER 1996 Service Manual

WINDSHIELD WIPERS AND WASHERS
CONTENTS
page page
REAR WIPER AND WASHER................ 9WINDSHIELD WIPERS AND WASHER......... 1
WINDSHIELD WIPERS AND WASHER
INDEX
page page
GENERAL INFORMATION
INTRODUCTION......................... 1
DIAGNOSIS AND TESTING
DIAGNOSTIC PROCEDURES................ 1
FAILED PARK SWITCH.................... 2
MULTI-FUNCTION SWITCH................. 4
REMOVAL AND INSTALLATION
MULTI-FUNCTION SWITCH................. 4
WINDSHIELD WASHER BOTTLE............. 4
WINDSHIELD WIPER BLADE ELEMENT....... 6WINDSHIELD WIPER BLADE................ 5
WINDSHIELD WIPER MOTOR............... 6
WIPER ARM............................. 7
WIPER LINKAGE......................... 7
WIPER UNIT............................ 7
CLEANING AND INSPECTION
WIPER BLADES.......................... 8
ADJUSTMENTS
WIPER ARM ALIGNMENT.................. 8
GENERAL INFORMATION
INTRODUCTION
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAG, SEE GROUP 8M, RESTRAINT SYSTEMS FOR
SAFETY PRECAUTIONS. DISCONNECT THE NEGA-
TIVE CABLE FROM THE BATTERY BEFORE SER-
VICING COMPONENTS INVOLVING THE AIRBAG
SYSTEM. ACCIDENTAL DEPLOYMENT OF AIRBAG
AND PERSONAL INJURY CAN RESULT.
The windshield wipers can be operated with the
windshield wiper switch when the ignition switch is
in the RUN or ACCESSORY positions. The wind-
shield wiper system is protected by a 40 amp fuse (9)
located in the Power Distribution Center (PDC) in
the engine compartment. The windshield washer cir-
cuit is protected by a 6 amp fuse (9) located in the
Junction Block. The wiper motor has permanent
magnetic fields. The speeds are determined by cur-
rent flow to the appropriate set of brushes inside the
motor. The current flow is controlled by the multi-
function switch stalk mounted wiper switch, high
speed/low speed relays located in the PDC. The speed
sensitive intermittent wiper is controlled by the BodyControl Module (BCM). The intermittent mode, with
the vehicle traveling greater than 10.4 mph, has a
range of 0.5 to 18 seconds. With the vehicle traveling
less than 10.4 mph, and the time delay is not
adjusted, time delay doubles to a range of 1 to 36
seconds. The wiper arms will park at the base of the
windshield just above the cowl cover after the wiper
switch is turned OFF.
The windshield wiper motor and linkage is located
in an integral wiper unit at the rear of the engine
compartment. The wiper unit must be removed to
gain access to the wiper motor.
DIAGNOSIS AND TESTING
DIAGNOSTIC PROCEDURES
The windshield wiper system operates in several
modes:
²Low and high speed normal wipe
²Speed sensitive intermittent wipe
²Wipe after wash
²Pulse wipe
²Park (switch OFF)
The windshield wiper circuits are continuously
monitored and controlled by the Body Control Mod-
NSWINDSHIELD WIPERS AND WASHERS 8K - 1

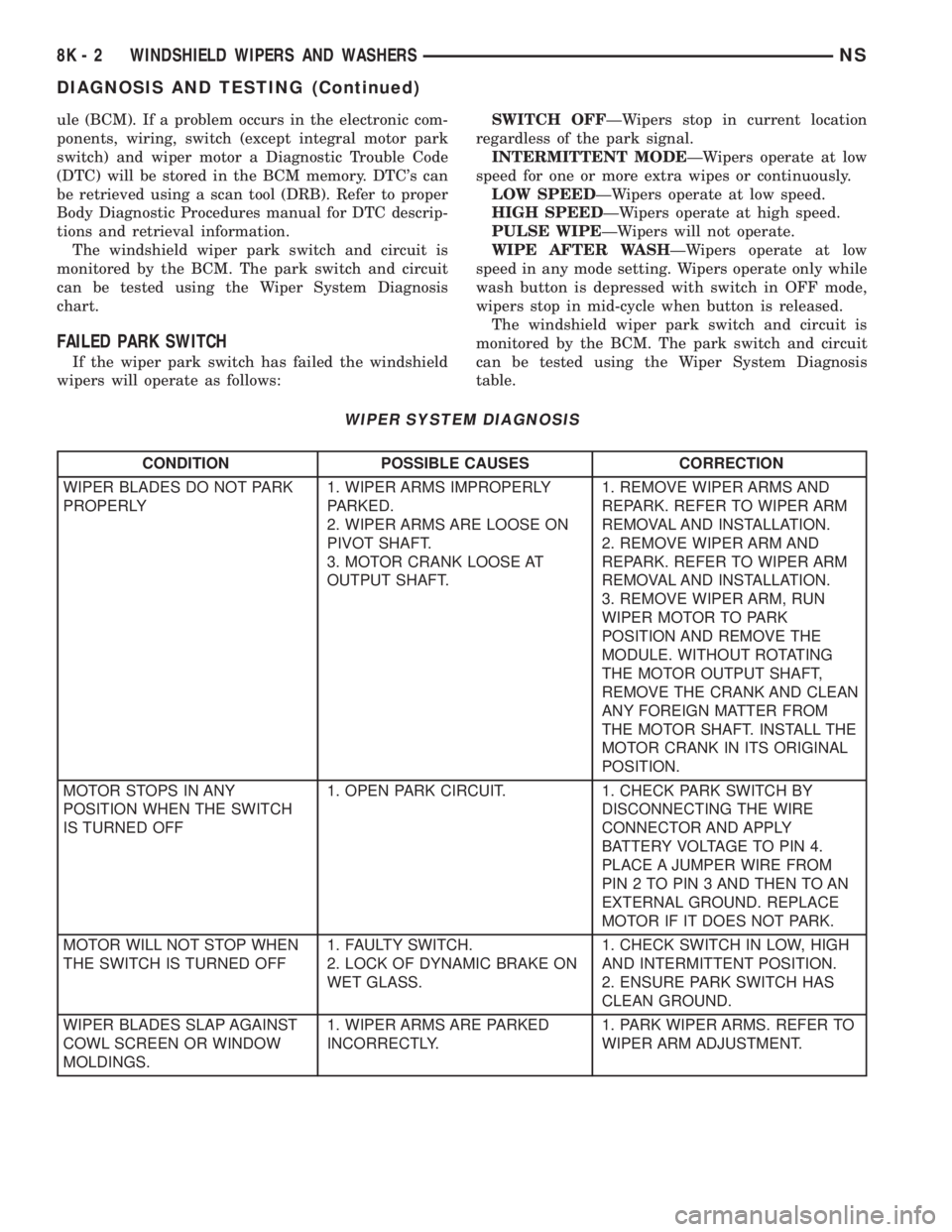

ule (BCM). If a problem occurs in the electronic com-
ponents, wiring, switch (except integral motor park
switch) and wiper motor a Diagnostic Trouble Code
(DTC) will be stored in the BCM memory. DTC's can
be retrieved using a scan tool (DRB). Refer to proper
Body Diagnostic Procedures manual for DTC descrip-
tions and retrieval information.
The windshield wiper park switch and circuit is
monitored by the BCM. The park switch and circuit
can be tested using the Wiper System Diagnosis
chart.
FAILED PARK SWITCH
If the wiper park switch has failed the windshield
wipers will operate as follows:SWITCH OFFÐWipers stop in current location
regardless of the park signal.
INTERMITTENT MODEÐWipers operate at low
speed for one or more extra wipes or continuously.
LOW SPEEDÐWipers operate at low speed.
HIGH SPEEDÐWipers operate at high speed.
PULSE WIPEÐWipers will not operate.
WIPE AFTER WASHÐWipers operate at low
speed in any mode setting. Wipers operate only while
wash button is depressed with switch in OFF mode,
wipers stop in mid-cycle when button is released.
The windshield wiper park switch and circuit is
monitored by the BCM. The park switch and circuit
can be tested using the Wiper System Diagnosis
table.
WIPER SYSTEM DIAGNOSIS
CONDITION POSSIBLE CAUSES CORRECTION
WIPER BLADES DO NOT PARK
PROPERLY1. WIPER ARMS IMPROPERLY
PARKED.
2. WIPER ARMS ARE LOOSE ON
PIVOT SHAFT.
3. MOTOR CRANK LOOSE AT
OUTPUT SHAFT.1. REMOVE WIPER ARMS AND
REPARK. REFER TO WIPER ARM
REMOVAL AND INSTALLATION.
2. REMOVE WIPER ARM AND
REPARK. REFER TO WIPER ARM
REMOVAL AND INSTALLATION.
3. REMOVE WIPER ARM, RUN
WIPER MOTOR TO PARK
POSITION AND REMOVE THE
MODULE. WITHOUT ROTATING
THE MOTOR OUTPUT SHAFT,
REMOVE THE CRANK AND CLEAN
ANY FOREIGN MATTER FROM
THE MOTOR SHAFT. INSTALL THE
MOTOR CRANK IN ITS ORIGINAL
POSITION.
MOTOR STOPS IN ANY
POSITION WHEN THE SWITCH
IS TURNED OFF1. OPEN PARK CIRCUIT. 1. CHECK PARK SWITCH BY
DISCONNECTING THE WIRE
CONNECTOR AND APPLY
BATTERY VOLTAGE TO PIN 4.
PLACE A JUMPER WIRE FROM
PIN 2 TO PIN 3 AND THEN TO AN
EXTERNAL GROUND. REPLACE
MOTOR IF IT DOES NOT PARK.
MOTOR WILL NOT STOP WHEN
THE SWITCH IS TURNED OFF1. FAULTY SWITCH.
2. LOCK OF DYNAMIC BRAKE ON
WET GLASS.1. CHECK SWITCH IN LOW, HIGH
AND INTERMITTENT POSITION.
2. ENSURE PARK SWITCH HAS
CLEAN GROUND.
WIPER BLADES SLAP AGAINST
COWL SCREEN OR WINDOW
MOLDINGS.1. WIPER ARMS ARE PARKED
INCORRECTLY.1. PARK WIPER ARMS. REFER TO
WIPER ARM ADJUSTMENT.
8K - 2 WINDSHIELD WIPERS AND WASHERSNS
DIAGNOSIS AND TESTING (Continued)

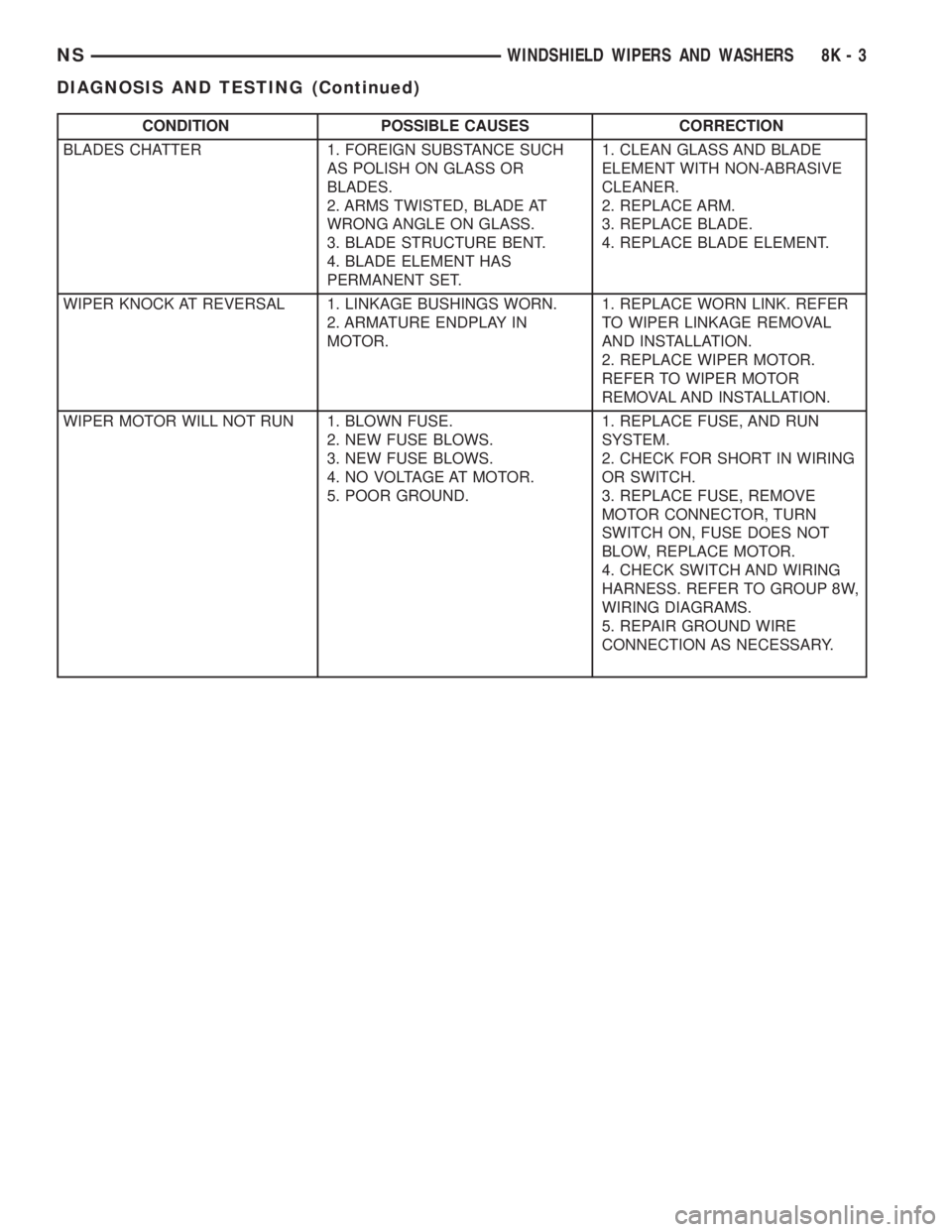

CONDITION POSSIBLE CAUSES CORRECTION
BLADES CHATTER 1. FOREIGN SUBSTANCE SUCH
AS POLISH ON GLASS OR
BLADES.
2. ARMS TWISTED, BLADE AT
WRONG ANGLE ON GLASS.
3. BLADE STRUCTURE BENT.
4. BLADE ELEMENT HAS
PERMANENT SET.1. CLEAN GLASS AND BLADE
ELEMENT WITH NON-ABRASIVE
CLEANER.
2. REPLACE ARM.
3. REPLACE BLADE.
4. REPLACE BLADE ELEMENT.
WIPER KNOCK AT REVERSAL 1. LINKAGE BUSHINGS WORN.
2. ARMATURE ENDPLAY IN
MOTOR.1. REPLACE WORN LINK. REFER
TO WIPER LINKAGE REMOVAL
AND INSTALLATION.
2. REPLACE WIPER MOTOR.
REFER TO WIPER MOTOR
REMOVAL AND INSTALLATION.
WIPER MOTOR WILL NOT RUN 1. BLOWN FUSE.
2. NEW FUSE BLOWS.
3. NEW FUSE BLOWS.
4. NO VOLTAGE AT MOTOR.
5. POOR GROUND.1. REPLACE FUSE, AND RUN
SYSTEM.
2. CHECK FOR SHORT IN WIRING
OR SWITCH.
3. REPLACE FUSE, REMOVE
MOTOR CONNECTOR, TURN
SWITCH ON, FUSE DOES NOT
BLOW, REPLACE MOTOR.
4. CHECK SWITCH AND WIRING
HARNESS. REFER TO GROUP 8W,
WIRING DIAGRAMS.
5. REPAIR GROUND WIRE
CONNECTION AS NECESSARY.
NSWINDSHIELD WIPERS AND WASHERS 8K - 3
DIAGNOSIS AND TESTING (Continued)

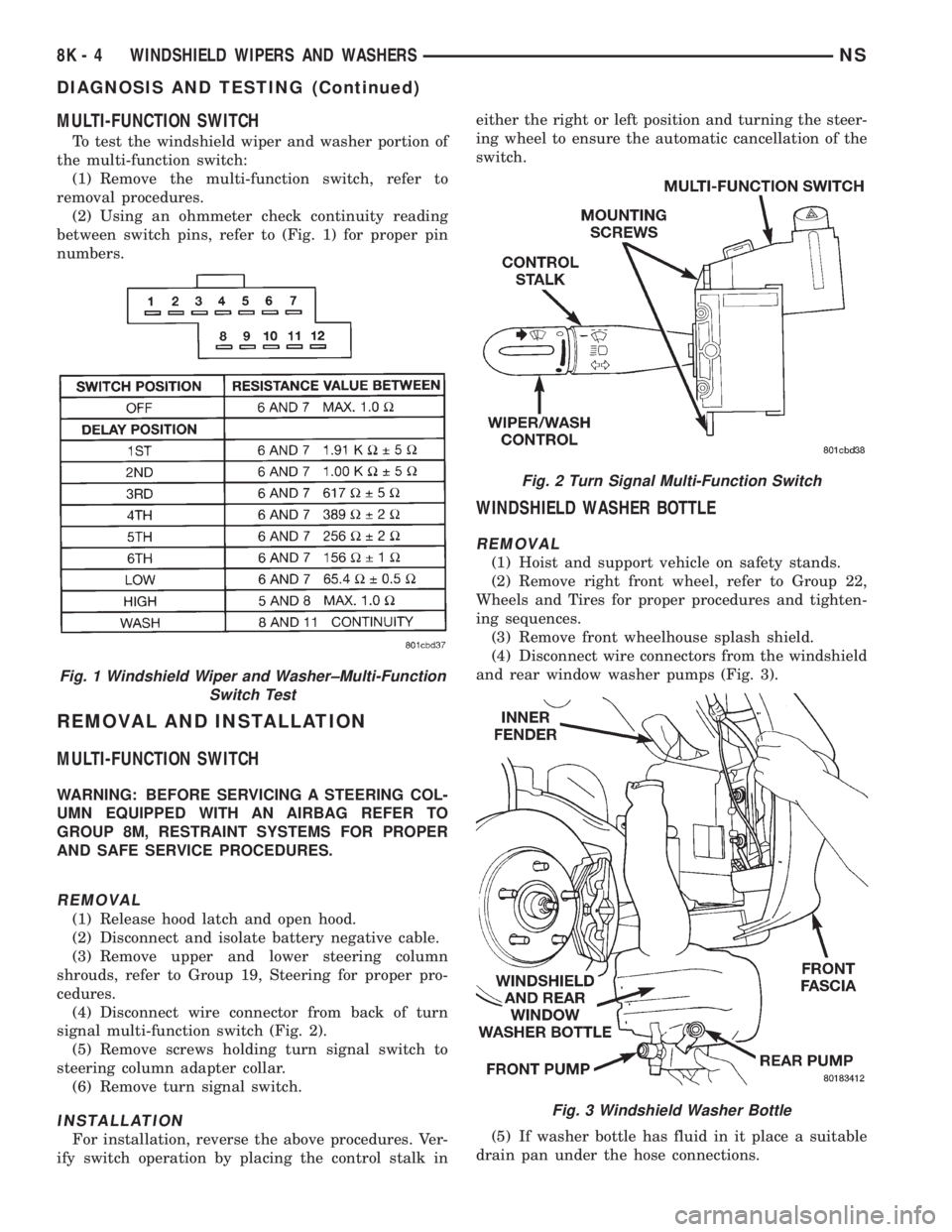

MULTI-FUNCTION SWITCH
To test the windshield wiper and washer portion of
the multi-function switch:
(1) Remove the multi-function switch, refer to
removal procedures.
(2) Using an ohmmeter check continuity reading
between switch pins, refer to (Fig. 1) for proper pin
numbers.
REMOVAL AND INSTALLATION
MULTI-FUNCTION SWITCH
WARNING: BEFORE SERVICING A STEERING COL-
UMN EQUIPPED WITH AN AIRBAG REFER TO
GROUP 8M, RESTRAINT SYSTEMS FOR PROPER
AND SAFE SERVICE PROCEDURES.
REMOVAL
(1) Release hood latch and open hood.
(2) Disconnect and isolate battery negative cable.
(3) Remove upper and lower steering column
shrouds, refer to Group 19, Steering for proper pro-
cedures.
(4) Disconnect wire connector from back of turn
signal multi-function switch (Fig. 2).
(5) Remove screws holding turn signal switch to
steering column adapter collar.
(6) Remove turn signal switch.
INSTALLATION
For installation, reverse the above procedures. Ver-
ify switch operation by placing the control stalk ineither the right or left position and turning the steer-
ing wheel to ensure the automatic cancellation of the
switch.
WINDSHIELD WASHER BOTTLE
REMOVAL
(1) Hoist and support vehicle on safety stands.
(2) Remove right front wheel, refer to Group 22,
Wheels and Tires for proper procedures and tighten-
ing sequences.
(3) Remove front wheelhouse splash shield.
(4) Disconnect wire connectors from the windshield
and rear window washer pumps (Fig. 3).
(5) If washer bottle has fluid in it place a suitable
drain pan under the hose connections.
Fig. 1 Windshield Wiper and Washer±Multi-Function
Switch Test
Fig. 2 Turn Signal Multi-Function Switch
Fig. 3 Windshield Washer Bottle
8K - 4 WINDSHIELD WIPERS AND WASHERSNS
DIAGNOSIS AND TESTING (Continued)

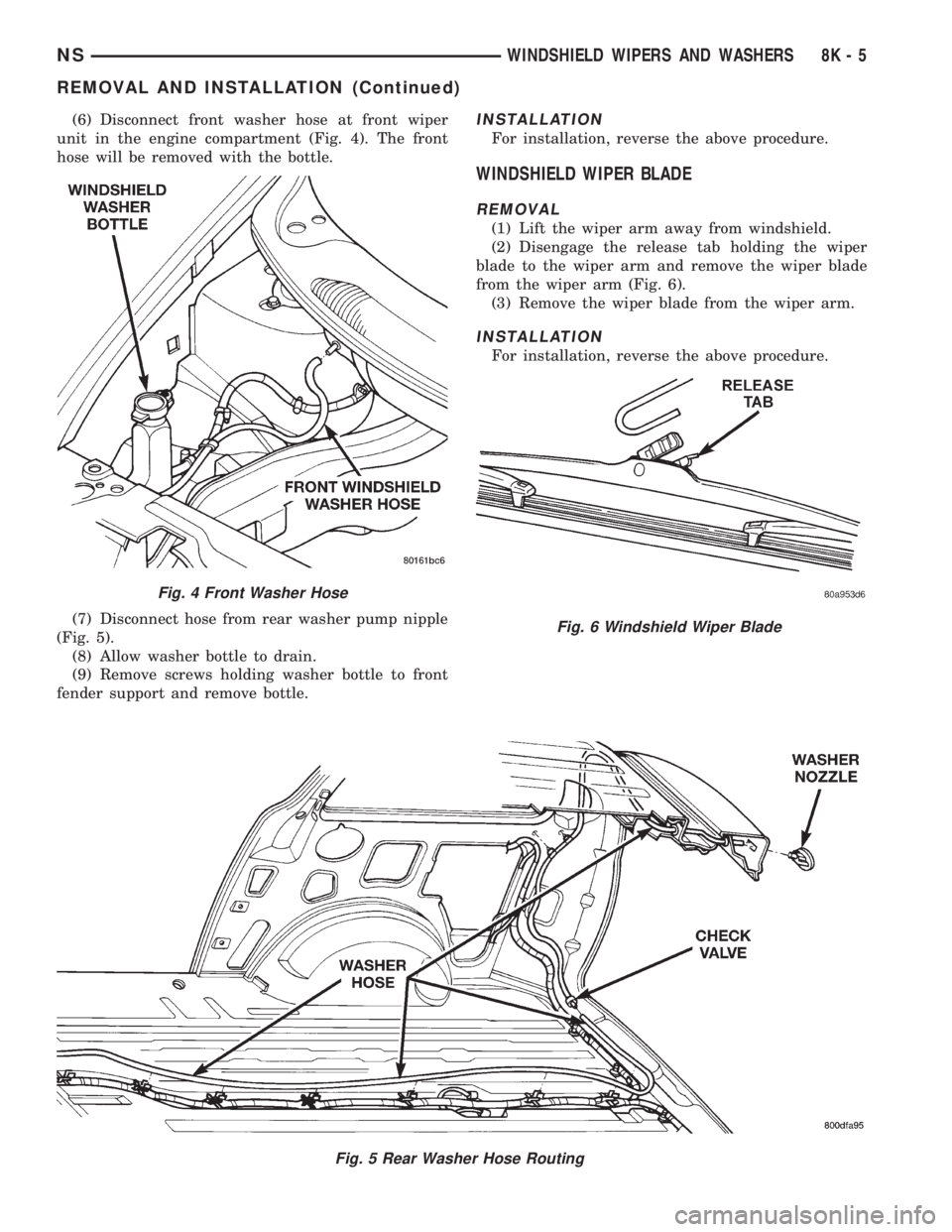

(6) Disconnect front washer hose at front wiper
unit in the engine compartment (Fig. 4). The front
hose will be removed with the bottle.
(7) Disconnect hose from rear washer pump nipple
(Fig. 5).
(8) Allow washer bottle to drain.
(9) Remove screws holding washer bottle to front
fender support and remove bottle.INSTALLATION
For installation, reverse the above procedure.
WINDSHIELD WIPER BLADE
REMOVAL
(1) Lift the wiper arm away from windshield.
(2) Disengage the release tab holding the wiper
blade to the wiper arm and remove the wiper blade
from the wiper arm (Fig. 6).
(3) Remove the wiper blade from the wiper arm.
INSTALLATION
For installation, reverse the above procedure.
Fig. 5 Rear Washer Hose Routing
Fig. 4 Front Washer Hose
Fig. 6 Windshield Wiper Blade
NSWINDSHIELD WIPERS AND WASHERS 8K - 5
REMOVAL AND INSTALLATION (Continued)

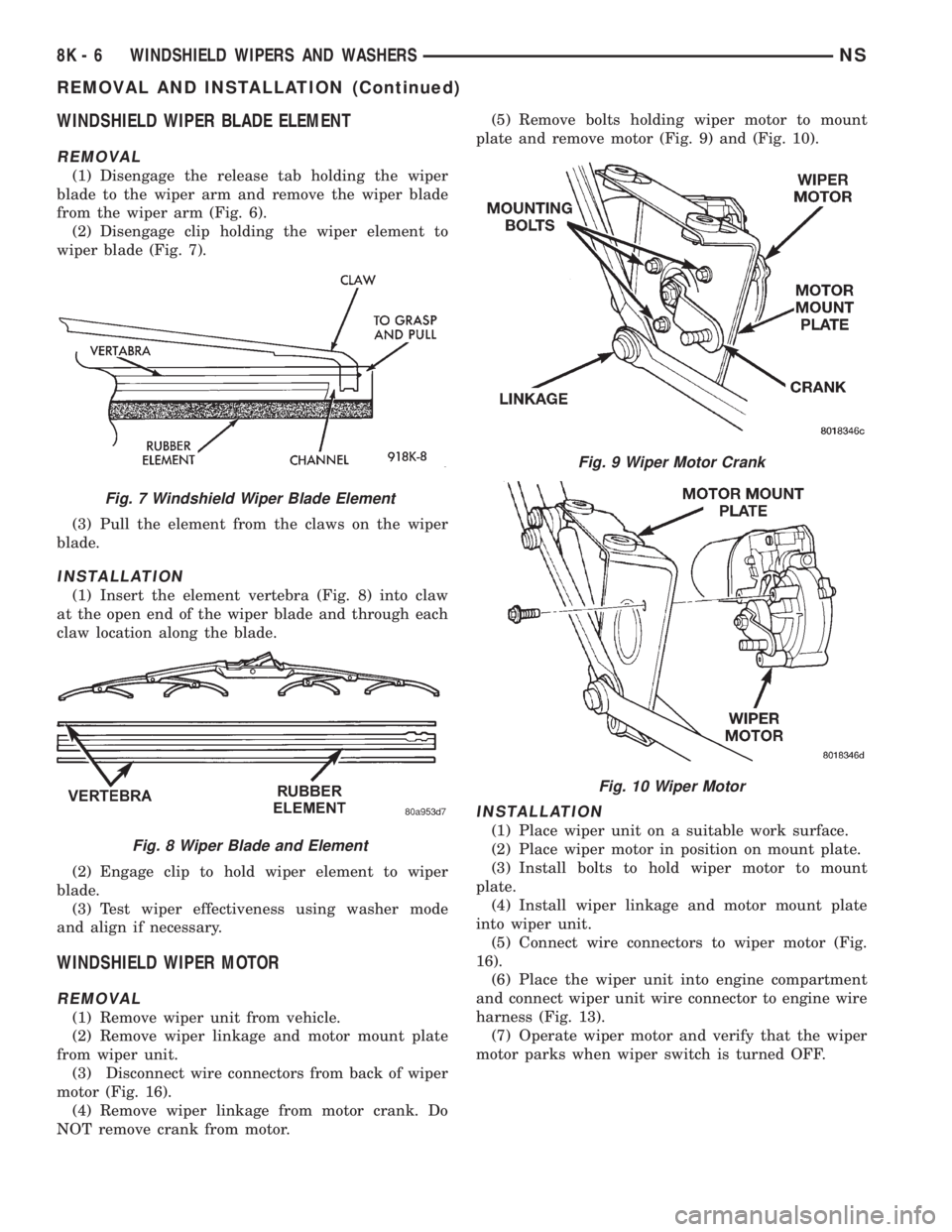

WINDSHIELD WIPER BLADE ELEMENT
REMOVAL
(1) Disengage the release tab holding the wiper
blade to the wiper arm and remove the wiper blade
from the wiper arm (Fig. 6).
(2) Disengage clip holding the wiper element to
wiper blade (Fig. 7).
(3) Pull the element from the claws on the wiper
blade.
INSTALLATION
(1) Insert the element vertebra (Fig. 8) into claw
at the open end of the wiper blade and through each
claw location along the blade.
(2) Engage clip to hold wiper element to wiper
blade.
(3) Test wiper effectiveness using washer mode
and align if necessary.
WINDSHIELD WIPER MOTOR
REMOVAL
(1) Remove wiper unit from vehicle.
(2) Remove wiper linkage and motor mount plate
from wiper unit.
(3) Disconnect wire connectors from back of wiper
motor (Fig. 16).
(4) Remove wiper linkage from motor crank. Do
NOT remove crank from motor.(5) Remove bolts holding wiper motor to mount
plate and remove motor (Fig. 9) and (Fig. 10).
INSTALLATION
(1) Place wiper unit on a suitable work surface.
(2) Place wiper motor in position on mount plate.
(3) Install bolts to hold wiper motor to mount
plate.
(4) Install wiper linkage and motor mount plate
into wiper unit.
(5) Connect wire connectors to wiper motor (Fig.
16).
(6) Place the wiper unit into engine compartment
and connect wiper unit wire connector to engine wire
harness (Fig. 13).
(7) Operate wiper motor and verify that the wiper
motor parks when wiper switch is turned OFF.
Fig. 7 Windshield Wiper Blade Element
Fig. 8 Wiper Blade and Element
Fig. 9 Wiper Motor Crank
Fig. 10 Wiper Motor
8K - 6 WINDSHIELD WIPERS AND WASHERSNS
REMOVAL AND INSTALLATION (Continued)

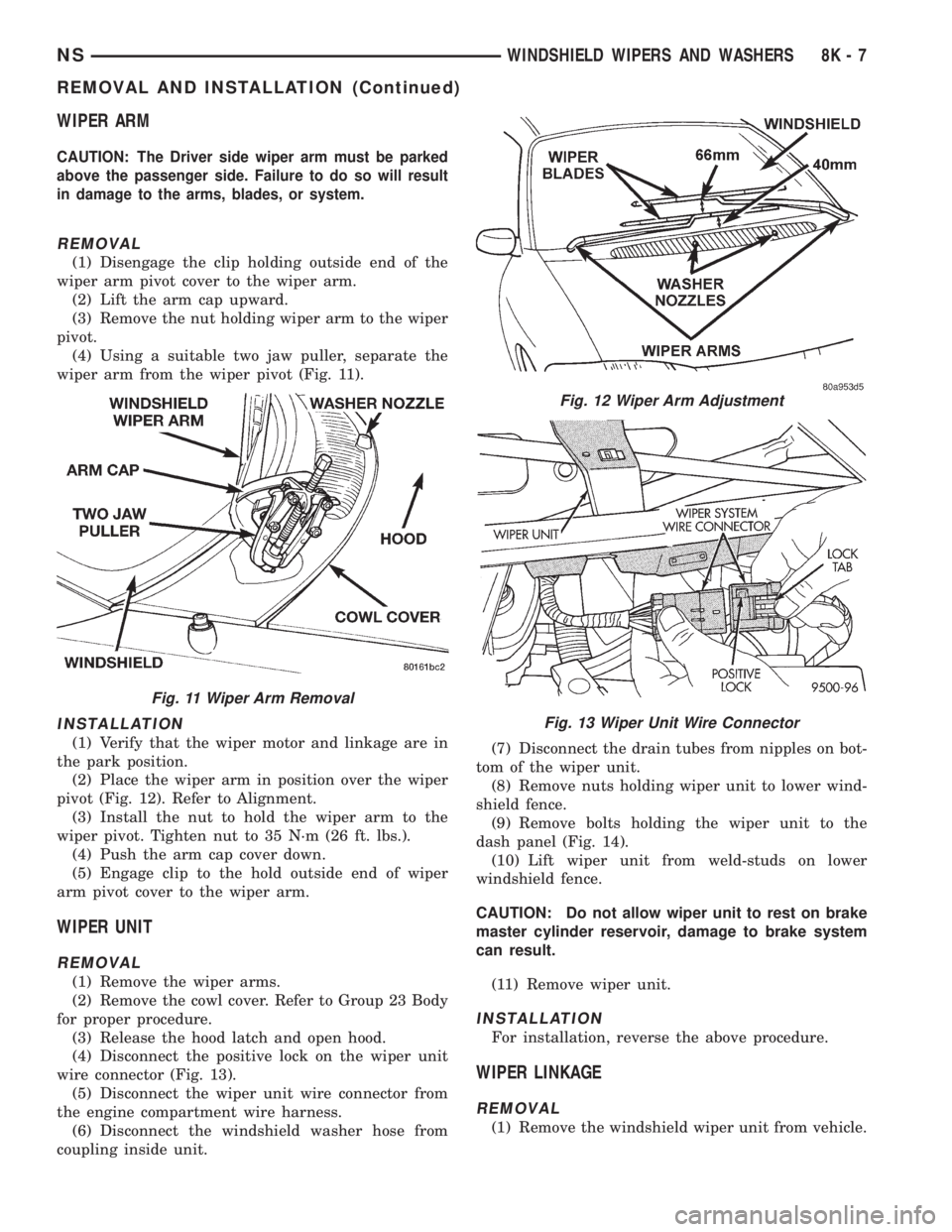

WIPER ARM
CAUTION: The Driver side wiper arm must be parked
above the passenger side. Failure to do so will result
in damage to the arms, blades, or system.
REMOVAL
(1) Disengage the clip holding outside end of the
wiper arm pivot cover to the wiper arm.
(2) Lift the arm cap upward.
(3) Remove the nut holding wiper arm to the wiper
pivot.
(4) Using a suitable two jaw puller, separate the
wiper arm from the wiper pivot (Fig. 11).
INSTALLATION
(1) Verify that the wiper motor and linkage are in
the park position.
(2) Place the wiper arm in position over the wiper
pivot (Fig. 12). Refer to Alignment.
(3) Install the nut to hold the wiper arm to the
wiper pivot. Tighten nut to 35 N´m (26 ft. lbs.).
(4) Push the arm cap cover down.
(5) Engage clip to the hold outside end of wiper
arm pivot cover to the wiper arm.
WIPER UNIT
REMOVAL
(1) Remove the wiper arms.
(2) Remove the cowl cover. Refer to Group 23 Body
for proper procedure.
(3) Release the hood latch and open hood.
(4) Disconnect the positive lock on the wiper unit
wire connector (Fig. 13).
(5) Disconnect the wiper unit wire connector from
the engine compartment wire harness.
(6) Disconnect the windshield washer hose from
coupling inside unit.(7) Disconnect the drain tubes from nipples on bot-
tom of the wiper unit.
(8) Remove nuts holding wiper unit to lower wind-
shield fence.
(9) Remove bolts holding the wiper unit to the
dash panel (Fig. 14).
(10) Lift wiper unit from weld-studs on lower
windshield fence.
CAUTION: Do not allow wiper unit to rest on brake
master cylinder reservoir, damage to brake system
can result.
(11) Remove wiper unit.
INSTALLATION
For installation, reverse the above procedure.
WIPER LINKAGE
REMOVAL
(1) Remove the windshield wiper unit from vehicle.
Fig. 11 Wiper Arm Removal
Fig. 12 Wiper Arm Adjustment
Fig. 13 Wiper Unit Wire Connector
NSWINDSHIELD WIPERS AND WASHERS 8K - 7
REMOVAL AND INSTALLATION (Continued)

(2) Place the wiper unit on a suitable work sur-
face.
(3) Remove nuts holding the cowl cover brackets to
the wiper unit.
(4) Remove cowl cover brackets from the wiper
unit.
(5) Remove nuts holding linkage and motor mount
plate to the wiper unit (Fig. 15).
(6) Remove the wiper linkage from the wiper unit.
(7) Disconnect the wire connectors from back of
the wiper motor (Fig. 16).
INSTALLATION
For installation, reverse the above procedure.
CLEANING AND INSPECTION
WIPER BLADES
Wiper blades exposed to the weather for a long
period of time tend to lose their wiping effectiveness.Periodic cleaning of the wiper blade is recommended
to remove the accumulation of salt and road grime.
The wiper blades, arms and windshield should be
cleaned with a sponge or cloth and a mild detergent
or nonabrasive cleaner. If the wiper blades continue
to streak or smear, they should be replaced. The
wiper blade should run smoothly across the wind-
shield in both directions. The wiper blade should
slightly roll over center when the blade reverses
direction. A wiper blade insert that has lost flexibility
or a wiper arm that has lost spring tension, will
cause the blade to skip or chatter across the wind-
shield. If the wiper blades are new and the wiper
arm spring tension is OK and a chattering sound is
emitted from the wiper(s), the wiper blade is not roll-
ing over center. If this condition exists, refer to the
Wiper Arm Alignment paragraph of this group.
ADJUSTMENTS
WIPER ARM ALIGNMENT
(1)Verify wiper blade element condition and wiper
arm spring tension. Run wipers in low speed mode
while applying water to the windshield. Observe the
wiper blade that is chattering or skipping across the
windshield. If the wiper element is not rolling over
when the wiper direction reverses, align the wiper arm.
The extension bar portion of the wiper arm must be
twisted in the proper direction to allow the wiper ele-
ment to roll over when the direction reverses.
(2) Place two small adjustable wrenches placed 50
mm (2 in.) apart on the wiper arm extension rod.
(3) Twist the extension rod slightly in the opposite
direction that the element is laying on the wind-
shield while holding the wrench closest to the pivot
stationary.
(4) Repeat step Step 1, and align as necessary
until wiper stops chattering and wipes the wind-
shield clear.
Fig. 14 Wiper Unit
Fig. 15 Wiper Linkage
Fig. 16 Wiper Motor Connector
8K - 8 WINDSHIELD WIPERS AND WASHERSNS
REMOVAL AND INSTALLATION (Continued)

REAR WIPER AND WASHER
INDEX
page page
DESCRIPTION AND OPERATION
INTRODUCTION......................... 9
REAR WINDOW WIPER/WASHER SWITCHES . . . 9
DIAGNOSIS AND TESTING
DIAGNOSTIC PROCEDURES................ 9
REMOVAL AND INSTALLATION
REAR GLASS RUBBER GROMMET........... 9REAR WINDOW WIPER MOTOR............ 10
REAR WIPER ARM...................... 10
REAR WIPER BLADE ELEMENT............ 10
REAR WIPER BLADE..................... 10
DESCRIPTION AND OPERATION
INTRODUCTION
When continuous rear wiper operation is required,
the Body Control Module (BCM) will provide ignition
ON voltage to the rear wiper motor. When the wiper
switch is turned OFF, the BCM provides circuit
ground to operate the motor until the wipe cycle is
complete and the wiper arm returns to the base of
the rear window.
When intermittent rear wiper mode is selected, the
wiper motor will cycle every 7 seconds. The intermit-
tent delay time is also adjusted based upon vehicle
speed. With the vehicle traveling greater at 50 mph,
the cycle changes to every 5 seconds.
REAR WINDOW WIPER/WASHER SWITCHES
The rear window wiper/washer switches are incor-
porated into the HVAC switch panel. Refer to Group
8E, Instrument Panel for proper service procedures.
DIAGNOSIS AND TESTING
DIAGNOSTIC PROCEDURES
The rear window wiper system operates in several
modes:
²Continuous wipe
²Intermittent wipe
²Wash
²Wipe after wash
The windshield wiper circuits are continuously
monitored and controlled by the Body Control Mod-
ule (BCM). If a problem occurs in the electronic com-
ponents, wiring, switch (except integral motor park
switch) and wiper motor a Diagnostic Trouble Code
(DTC) will be stored in the BCM memory. The
DTC(s) can be retrieved using a scan tool (DRB).
Refer to proper Body Diagnostic Procedures manual
for DTC descriptions and retrieval information.
REMOVAL AND INSTALLATION
REAR GLASS RUBBER GROMMET
REMOVAL
(1) Remove rear window wiper motor.
(2) Peel wiper pivot seal grommet from rear glass.
(3) Remove grommets from vehicle (Fig. 1).
INSTALLATION
For installation, reverse the above procedure.
Fig. 1 Rear Glass Rubber Grommet
Fig. 2 Rear Glass Rubber Grommets
NSWINDSHIELD WIPERS AND WASHERS 8K - 9

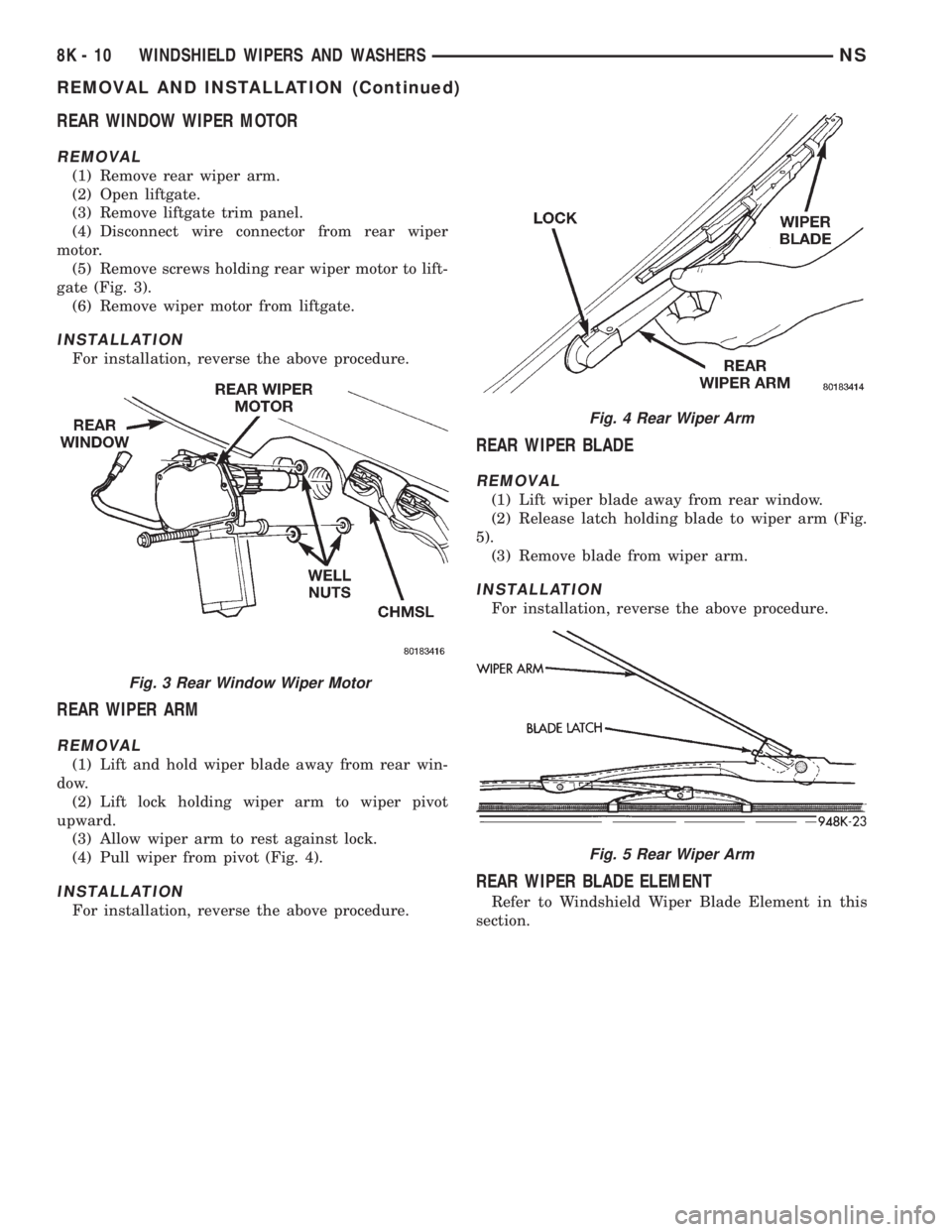

REAR WINDOW WIPER MOTOR
REMOVAL
(1) Remove rear wiper arm.
(2) Open liftgate.
(3) Remove liftgate trim panel.
(4) Disconnect wire connector from rear wiper
motor.
(5) Remove screws holding rear wiper motor to lift-
gate (Fig. 3).
(6) Remove wiper motor from liftgate.
INSTALLATION
For installation, reverse the above procedure.
REAR WIPER ARM
REMOVAL
(1) Lift and hold wiper blade away from rear win-
dow.
(2) Lift lock holding wiper arm to wiper pivot
upward.
(3) Allow wiper arm to rest against lock.
(4) Pull wiper from pivot (Fig. 4).
INSTALLATION
For installation, reverse the above procedure.
REAR WIPER BLADE
REMOVAL
(1) Lift wiper blade away from rear window.
(2) Release latch holding blade to wiper arm (Fig.
5).
(3) Remove blade from wiper arm.
INSTALLATION
For installation, reverse the above procedure.
REAR WIPER BLADE ELEMENT
Refer to Windshield Wiper Blade Element in this
section.
Fig. 3 Rear Window Wiper Motor
Fig. 4 Rear Wiper Arm
Fig. 5 Rear Wiper Arm
8K - 10 WINDSHIELD WIPERS AND WASHERSNS
REMOVAL AND INSTALLATION (Continued)
