CHRYSLER VOYAGER 2001 Service Manual

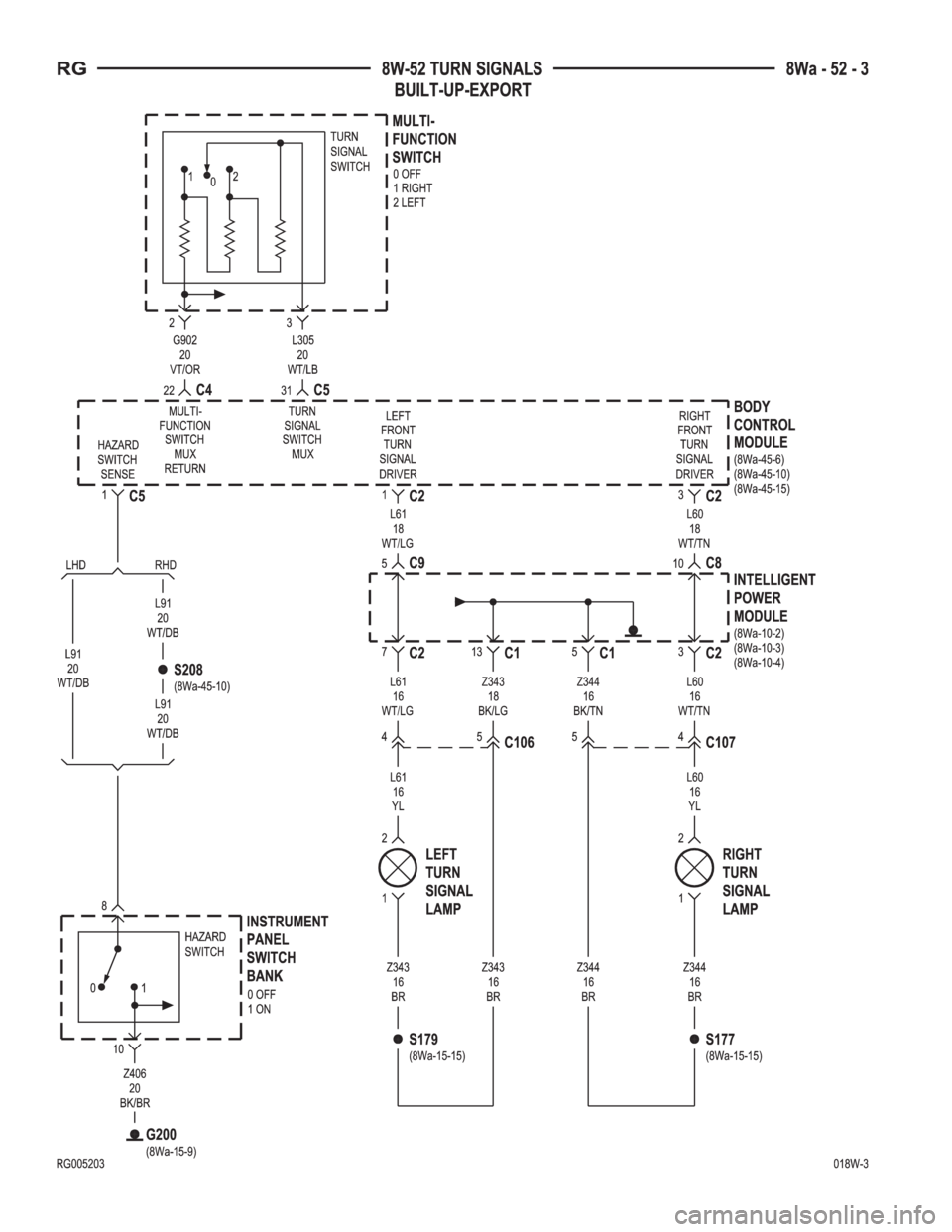

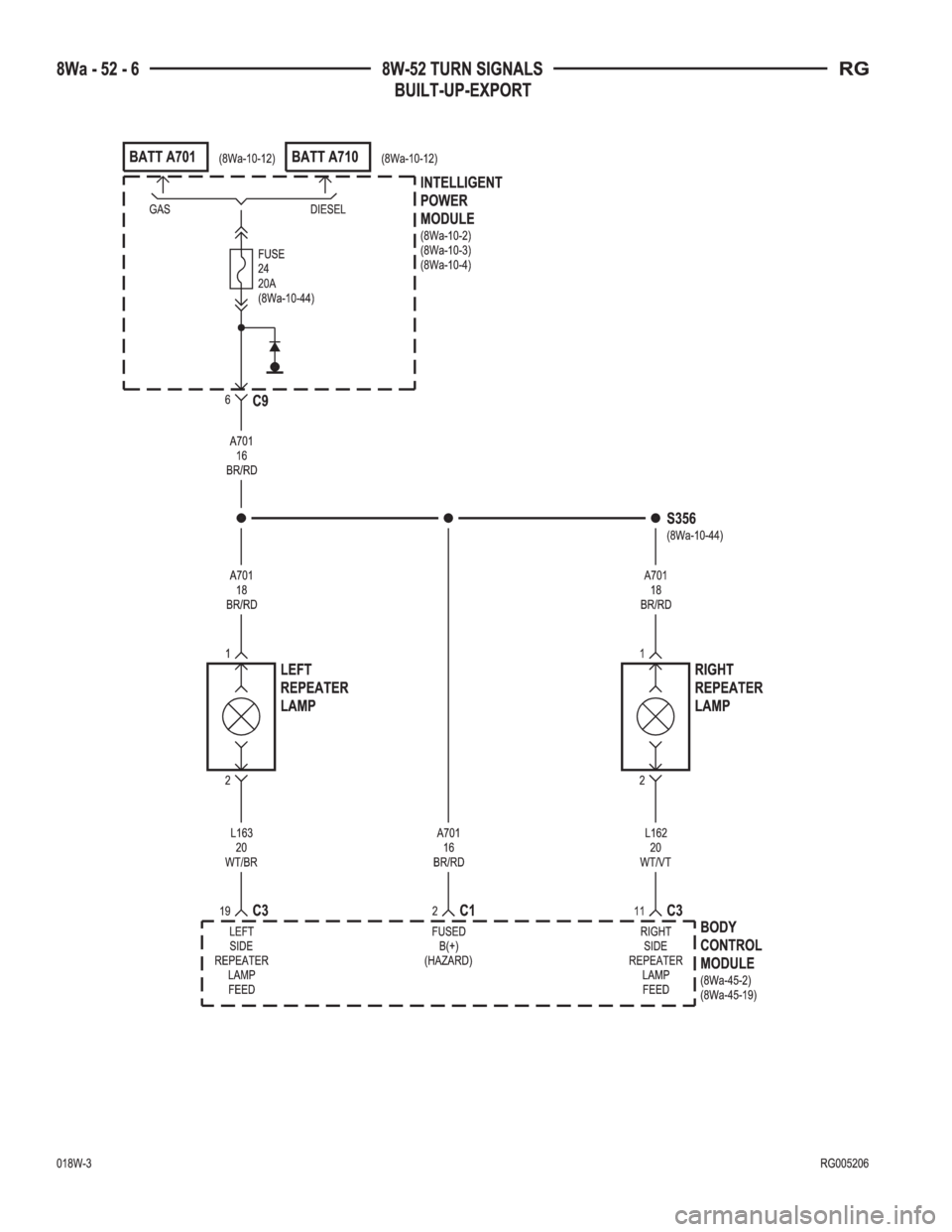

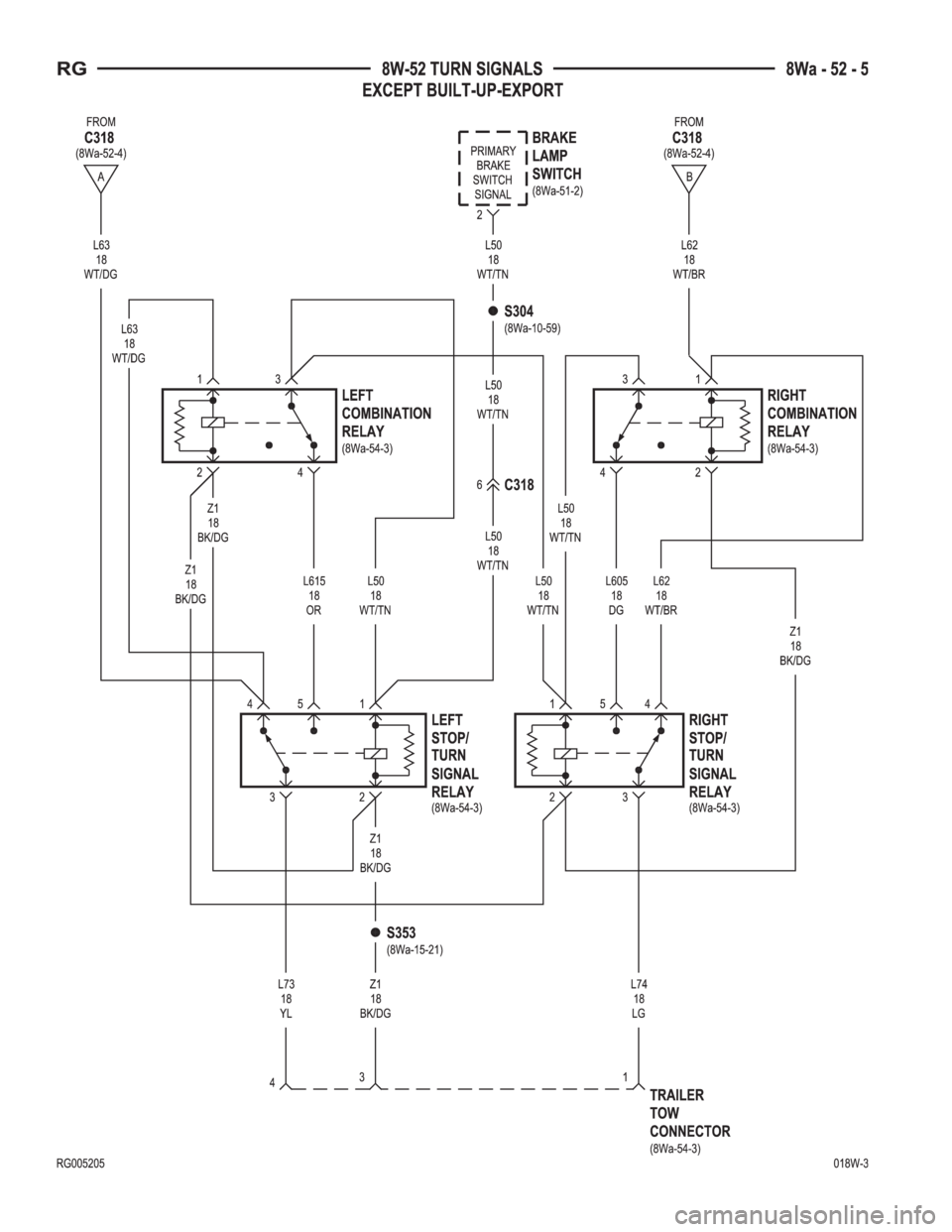

8W-52 TURN SIGNALS
Component Page
Body Control Module........... 8Wa-52-2, 3, 4, 6
Brake Lamp Switch................. 8Wa-52-5
Fuse 24 (IPM)...................... 8Wa-52-6
G102............................. 8Wa-52-2
G200........................... 8Wa-52-2, 3
G302............................. 8Wa-52-4
Instrument Panel Switch Bank....... 8Wa-52-2, 3
Intelligent Power Module......... 8Wa-52-2, 3, 6
Left Combination Relay.............. 8Wa-52-5
Left Front Park/Turn Signal Lamp...... 8Wa-52-2
Left Rear Lamp Assembly............. 8Wa-52-4
Left Repeater Lamp................. 8Wa-52-6
Left Stop/Turn Signal Relay......... 8Wa-52-4, 5
Left Turn Signal Lamp............... 8Wa-52-3
Multi- Function Switch............. 8Wa-52-2, 3
Right Combination Relay........... 8Wa-52-4, 5
Right Front Park/Turn Signal Lamp..... 8Wa-52-2
Right Rear Lamp Assembly............ 8Wa-52-4
Right Repeater Lamp................ 8Wa-52-6
Right Stop/Turn Signal Relay.......... 8Wa-52-5
Right Turn Signal Lamp.............. 8Wa-52-3
Trailer Tow Connector................ 8Wa-52-5
RG8W-52 TURN SIGNALS8Wa-52-1
