CITROEN 2CV 1975 Workshop Manual

Stamped identification:On the front part (RH side) or the inner
platform.
Engine plate: On the engine housing, RH side.
Fig. 49
Manufacturer's plate
Information
On manufacturer's plate: Type of vehicle
Series
Number in series of the type
Gross Vehicle Weight: (PTC) (in kg)
Gross Train Weight: (with trailer)
(PTR) (in kg)
Stamped on body: Type of vehicle
Series
Number in series of the type
Engine plate: Make
Engine type
Production numberFig. 50
Engine plate
In France, the type of car and the number in the series of the type
are also indicated on the registration card (grey card) for the French\

market.
[
Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

TRAVELLING ABROAD
For English, click HERE

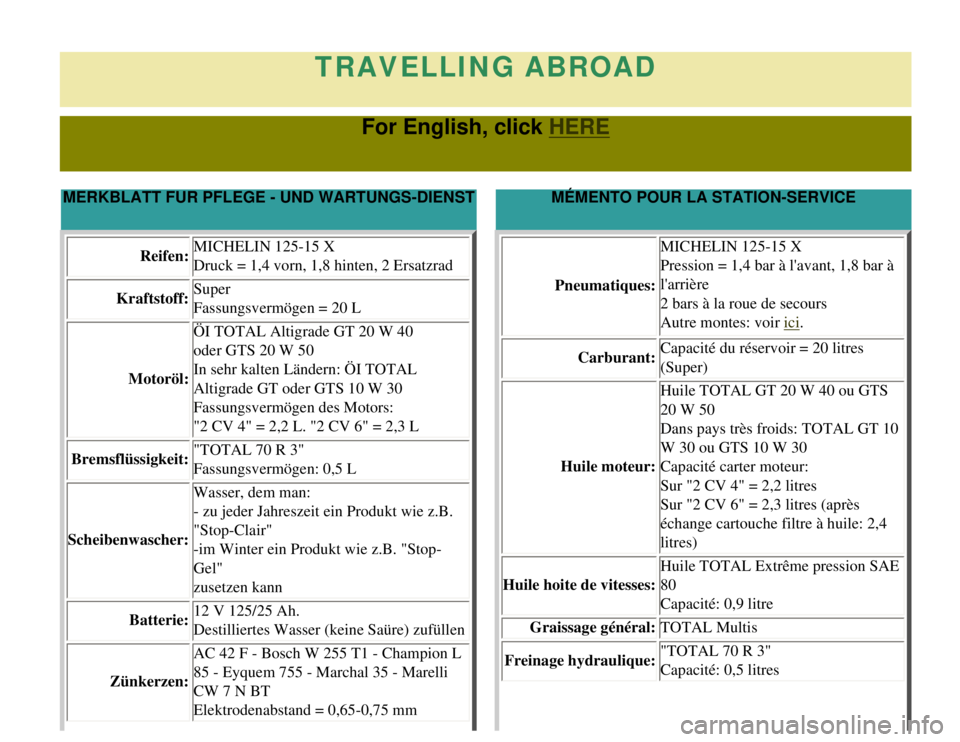

MERKBLATT FUR PFLEGE - UND WARTUNGS-DIENSTMÉMENTO POUR LA STATION-SERVICE
Reifen: MICHELIN 125-15 X
Druck = 1,4 vorn, 1,8 hinten, 2 Ersatzrad
Kraftstoff: Super
Fassungsvermögen = 20 L
Motoröl: ÖI TOTAL Altigrade GT 20 W 40
oder GTS 20 W 50
In sehr kalten Ländern: ÖI TOTAL
Altigrade GT oder GTS 10 W 30
Fassungsvermögen des Motors:
"2 CV 4" = 2,2 L. "2 CV 6" = 2,3 L
Bremsflüssigkeit: "TOTAL 70 R 3"
Fassungsvermögen: 0,5 L
Scheibenwascher: Wasser, dem man:
- zu jeder Jahreszeit ein Produkt wie z.B.
"Stop-Clair"
-im Winter ein Produkt wie z.B. "Stop-
Gel"
zusetzen kann
Batterie: 12 V 125/25 Ah.
Destilliertes Wasser (keine Saüre) zufüllen
Zünkerzen: AC 42 F - Bosch W 255 T1 - Champion L
85 - Eyquem 755 - Marchal 35 - Marelli
CW 7 N BT
Elektrodenabstand = 0,65-0,75 mm
Pneumatiques: MICHELIN 125-15 X
Pression = 1,4 bar à l'avant, 1,8 bar à
l'arrière
2 bars à la roue de secours
Autre montes: voir
ici.
Carburant: Capacité du réservoir = 20 litres
(Super)
Huile moteur: Huile TOTAL GT 20 W 40 ou GTS
20 W 50
Dans pays très froids: TOTAL GT 10
W 30 ou GTS 10 W 30
Capacité carter moteur:
Sur "2 CV 4" = 2,2 litres
Sur "2 CV 6" = 2,3 litres (après
échange cartouche filtre à huile: 2,4
litres)
Huile hoite de vitesses: Huile TOTAL Extrême pression SAE
80
Capacité: 0,9 litre
Graissage général: TOTAL Multis
Freinage hydraulique: "TOTAL 70 R 3"
Capacité: 0,5 litres

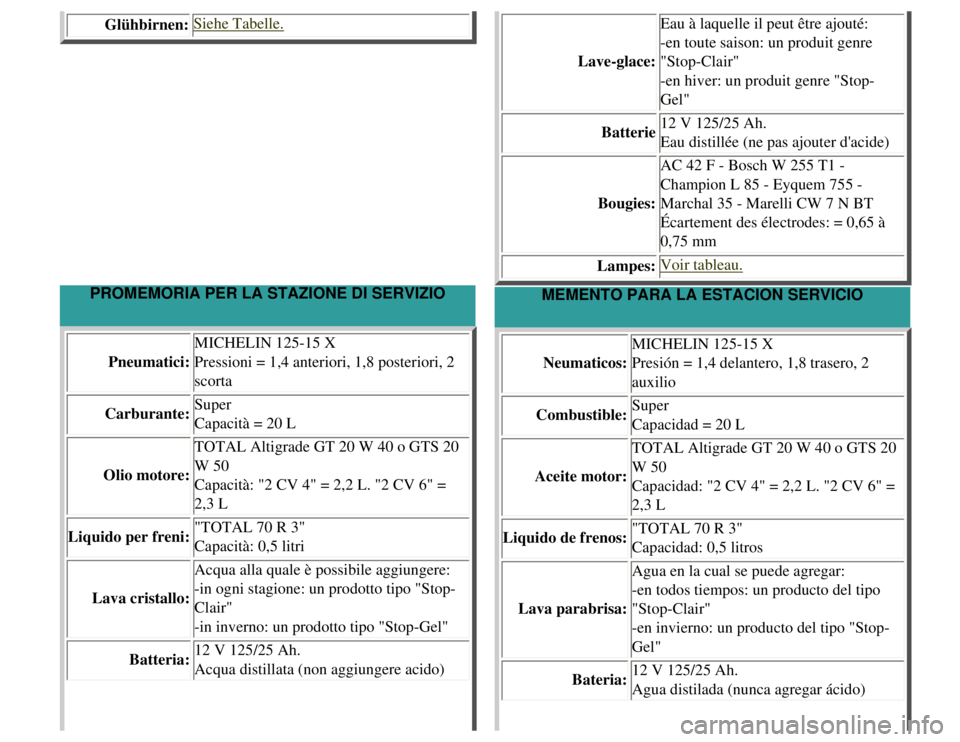

Glühbirnen:Siehe Tabelle.
Lave-glace:Eau à laquelle il peut être ajouté:
-en toute saison: un produit genre
"Stop-Clair"
-en hiver: un produit genre "Stop-
Gel"
Batterie 12 V 125/25 Ah.
Eau distillée (ne pas ajouter d'acide)
Bougies: AC 42 F - Bosch W 255 T1 -
Champion L 85 - Eyquem 755 -
Marchal 35 - Marelli CW 7 N BT
Écartement des électrodes: = 0,65 à
0,75 mm
Lampes:
Voir tableau.
PROMEMORIA PER LA STAZIONE DI SERVIZIO MEMENTO PARA LA ESTACION SERVICIO
Pneumatici: MICHELIN 125-15 X
Pressioni = 1,4 anteriori, 1,8 posteriori, 2
scorta
Carburante: Super
Capacità = 20 L
Olio motore: TOTAL Altigrade GT 20 W 40 o GTS 20
W 50
Capacità: "2 CV 4" = 2,2 L. "2 CV 6" =
2,3 L
Liquido per freni: "TOTAL 70 R 3"
Capacità: 0,5 litri
Lava cristallo: Acqua alla quale è possibile aggiungere:
-in ogni stagione: un prodotto tipo "Stop-
Clair"
-in inverno: un prodotto tipo "Stop-Gel"
Batteria: 12 V 125/25 Ah.
Acqua distillata (non aggiungere acido)
Neumaticos: MICHELIN 125-15 X
Presión = 1,4 delantero, 1,8 trasero, 2
auxilio
Combustible: Super
Capacidad = 20 L
Aceite motor: TOTAL Altigrade GT 20 W 40 o GTS 20
W 50
Capacidad: "2 CV 4" = 2,2 L. "2 CV 6" =
2,3 L
Liquido de frenos: "TOTAL 70 R 3"
Capacidad: 0,5 litros
Lava parabrisa: Agua en la cual se puede agregar:
-en todos tiempos: un producto del tipo
"Stop-Clair"
-en invierno: un producto del tipo "Stop-
Gel"
Bateria: 12 V 125/25 Ah.
Agua distilada (nunca agregar ácido)

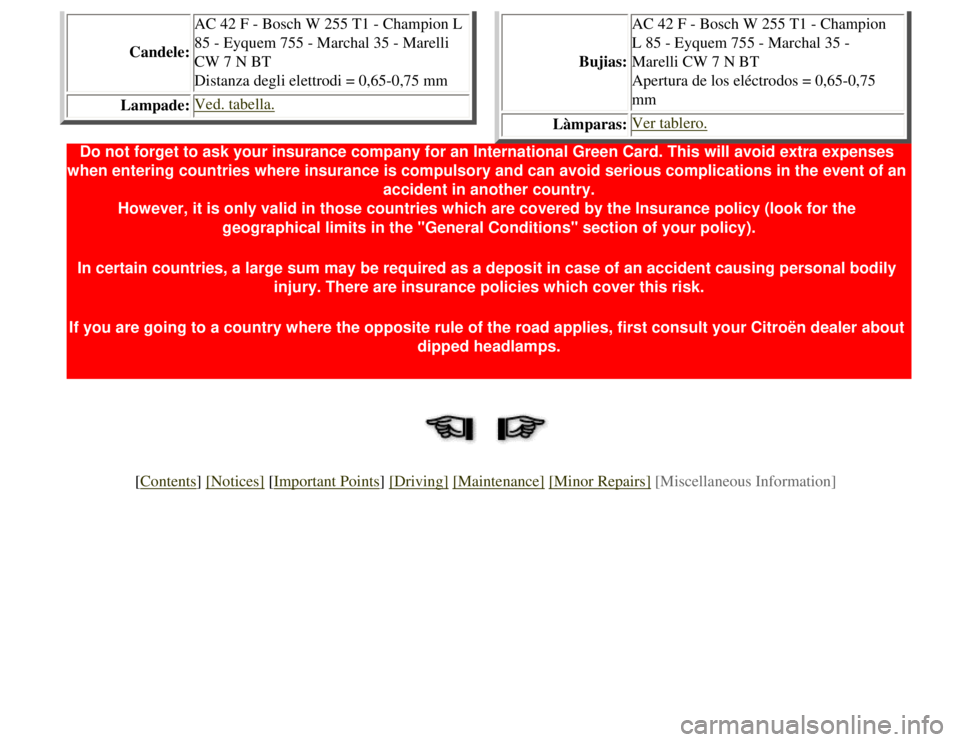

Candele:AC 42 F - Bosch W 255 T1 - Champion L
85 - Eyquem 755 - Marchal 35 - Marelli
CW 7 N BT
Distanza degli elettrodi = 0,65-0,75 mm
Lampade:
Ved. tabella.
Bujias: AC 42 F - Bosch W 255 T1 - Champion
L 85 - Eyquem 755 - Marchal 35 -
Marelli CW 7 N BT
Apertura de los eléctrodos = 0,65-0,75
mm
Làmparas:
Ver tablero.
Do not forget to ask your insurance company for an International Green C\
ard. This will avoid extra expenses
when entering countries where insurance is compulsory and can avoid seri\
ous complications in the event of an accident in another country.
However, it is only valid in those countries which are covered by the In\
surance policy (look for the geographical limits in the "General Conditions" section of your policy)\
.
In certain countries, a large sum may be required as a deposit in case o\
f an accident causing personal bodily injury. There are insurance policies which cover this risk.
If you are going to a country where the opposite rule of the road applie\
s, first consult your Citroën dealer about dipped headlamps.
[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

REMINDER FOR SERVICE-STATION
For German, French, Italian, or Spanish, click HERE.

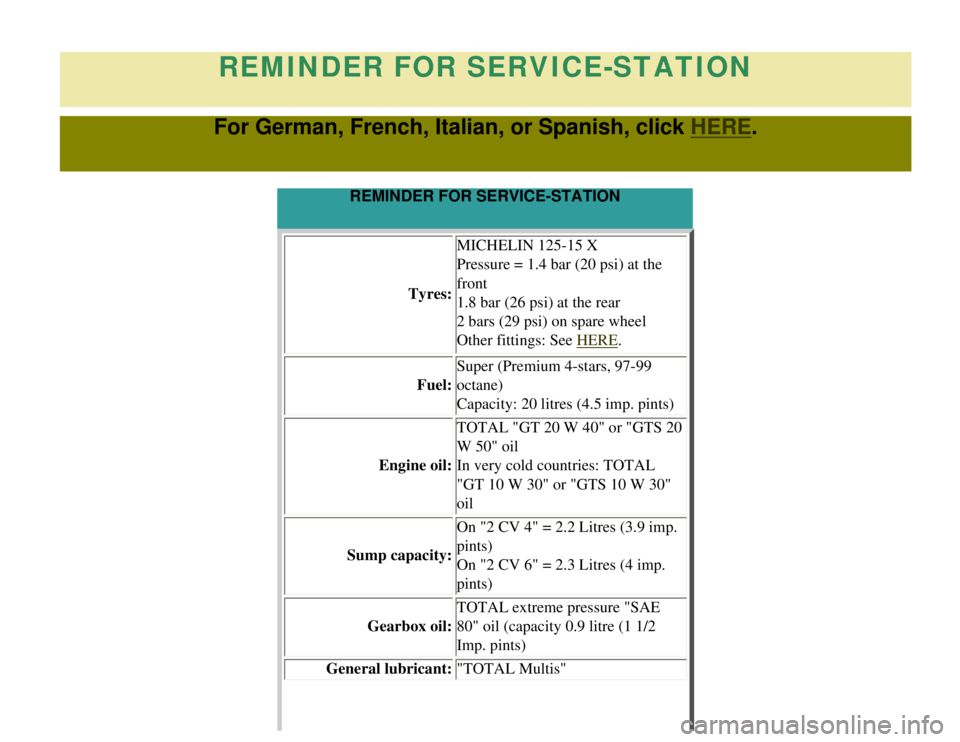

REMINDER FOR SERVICE-STATIONTyres:MICHELIN 125-15 X
Pressure = 1.4 bar (20 psi) at the
front
1.8 bar (26 psi) at the rear
2 bars (29 psi) on spare wheel
Other fittings: See
HERE.
Fuel: Super (Premium 4-stars, 97-99
octane)
Capacity: 20 litres (4.5 imp. pints)
Engine oil: TOTAL "GT 20 W 40" or "GTS 20
W 50" oil
In very cold countries: TOTAL
"GT 10 W 30" or "GTS 10 W 30"
oil
Sump capacity: On "2 CV 4" = 2.2 Litres (3.9 imp.
pints)
On "2 CV 6" = 2.3 Litres (4 imp.
pints)
Gearbox oil: TOTAL extreme pressure "SAE
80" oil (capacity 0.9 litre (1 1/2
Imp. pints)
General lubricant: "TOTAL Multis"

Hydraulic brake system:TOTAL FLUID "70 R3" - If this
product is not available, use
NFR12640 "S" or "V" or SAE J
1703a (capacity 0.5 Litres - 7/8
imp. pint)
Windscreen washer: Water, to which may be added:
- in any season: a product like
"Stop-Clair", "Clearalex", "Screen-
Clear". etc.
-in Winter: a product like "Stop-
Gel"
Battery: 12 V - 125/25 Ah. CEI (or 150/30
Ah. CEI)
Distilled water (do not add acid)
Sparking Plugs: AC 42 F - Bosch W 255 T1 -
Champion L 85 - Eyquem 755 -
Marchal 35 - Marelli CW 7 N BT
Electrode gap = 0.65-0.75 mm
Bulbs:
See table.
PRE-START CHECKLIST
Levels Petrol
Engine oil
Brake fluid Battery
Windscreen washer
Operation
Engine Oil warning Lamp (2 CV 6) Horn
Exterior lighting
Direction indicators Brake lamps

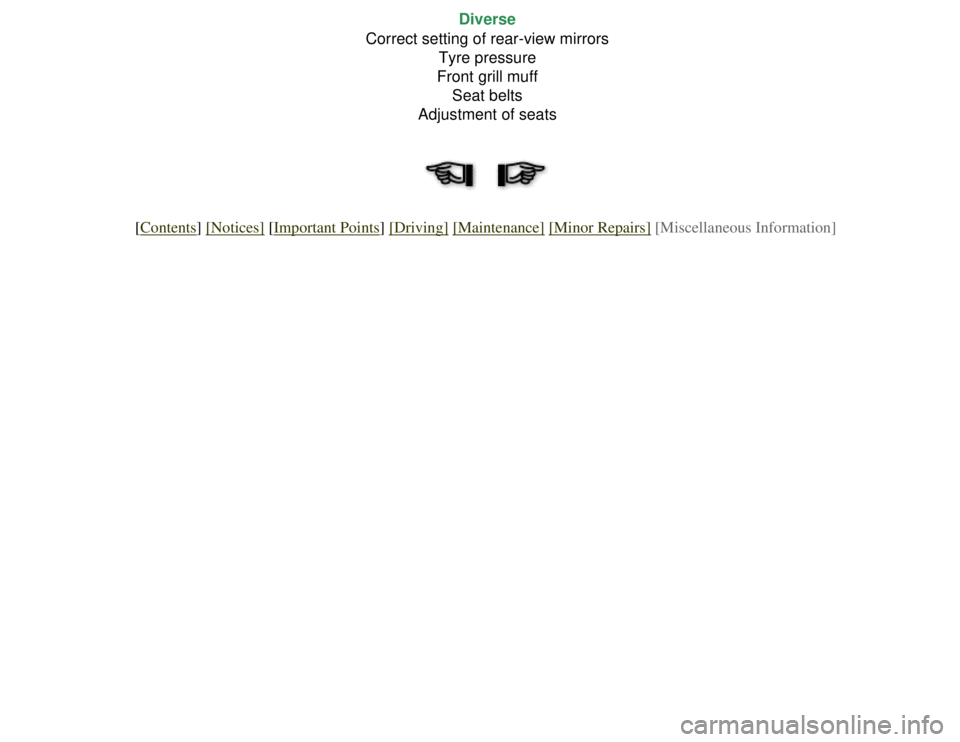

Diverse
Correct setting of rear-view mirrors Tyre pressure
Front grill muff Seat belts
Adjustment of seats
[Contents] [Notices] [Important Points] [Driving] [Maintenance] [Minor Repairs] [Miscellaneous Information]

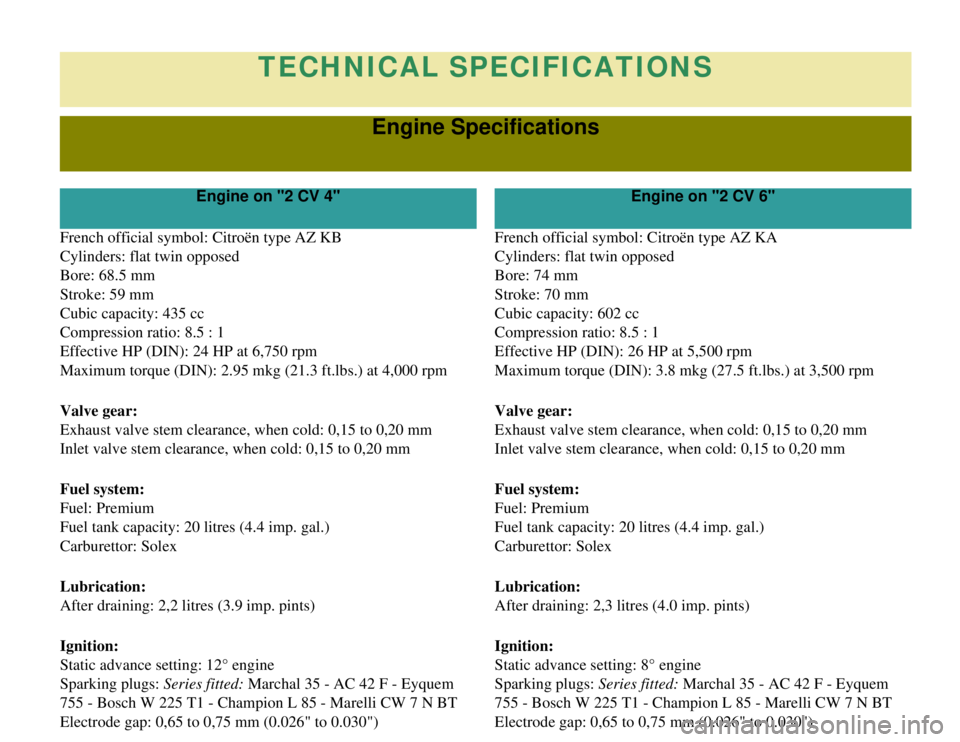

TECHNICAL SPECIFICATIONS
Engine Specifications
Engine on "2 CV 4"Engine on "2 CV 6"
French official symbol: Citroën type AZ KB
Cylinders: flat twin opposed
Bore: 68.5 mm
Stroke: 59 mm
Cubic capacity: 435 cc
Compression ratio: 8.5 : 1
Effective HP (DIN): 24 HP at 6,750 rpm
Maximum torque (DIN): 2.95 mkg (21.3 ft.lbs.) at 4,000 rpm
Valve gear:
Exhaust valve stem clearance, when cold: 0,15 to 0,20 mm
Inlet valve stem clearance, when cold: 0,15 to 0,20 mm
Fuel system:
Fuel: Premium
Fuel tank capacity: 20 litres (4.4 imp. gal.)
Carburettor: Solex
Lubrication:
After draining: 2,2 litres (3.9 imp. pints)
Ignition:
Static advance setting: 12° engine
Sparking plugs: Series fitted: Marchal 35 - AC 42 F - Eyquem
755 - Bosch W 225 T1 - Champion L 85 - Marelli CW 7 N BT
Electrode gap: 0,65 to 0,75 mm (0.026" to 0.030") French official symbol: Citroën type AZ KA
Cylinders: flat twin opposed
Bore: 74 mm
Stroke: 70 mm
Cubic capacity: 602 cc
Compression ratio: 8.5 : 1
Effective HP (DIN): 26 HP at 5,500 rpm
Maximum torque (DIN): 3.8 mkg (27.5 ft.lbs.) at 3,500 rpm
Valve gear:
Exhaust valve stem clearance, when cold: 0,15 to 0,20 mm
Inlet valve stem clearance, when cold: 0,15 to 0,20 mm
Fuel system:
Fuel: Premium
Fuel tank capacity: 20 litres (4.4 imp. gal.)
Carburettor: Solex
Lubrication:
After draining: 2,3 litres (4.0 imp. pints)
Ignition:
Static advance setting: 8° engine
Sparking plugs: Series fitted: Marchal 35 - AC 42 F - Eyquem
755 - Bosch W 225 T1 - Champion L 85 - Marelli CW 7 N BT
Electrode gap: 0,65 to 0,75 mm (0.026" to 0.030")

Gear Ratio
ELECTRICAL SYSTEM
Voltage: 12 V
Alternator: Maximum power: 390 W; Minimum charging speed:
780 rpm
Battery: Capacity: 125/25 Ah. CEI or 150/30 Ah. CEI On:
"2 CV 4" "2 CV 6"
1st gear 0.034829:10.0465 21.5:1
2nd gear 0.068115:10.0912 10.96:1
3rd gear 0.11368.1:10.1357 7.37:1
4th gear 0.16446:10.1842 5.43:1
Reverse 0.034829:10.0465 21.5:1
Crownwheel and pinion 8/33
8/33
Bulb table
12 V 45/40 W type
"European Dip" Dip/Main beam headlamps
12 V 4 W - BA 9 S type T
8/4 Front sidelamps
12 V 5 W type R 19/5 Rear sidelamps and number plate
lighting
12 V 21 W type P 25/1 Front and rear direction
indicators - brake lamps
12 V 7 W type BA 15 S Interior lamp
12 V 2 W - BA 9 S type T
8/2 Speedometer lighting
Fig. 52

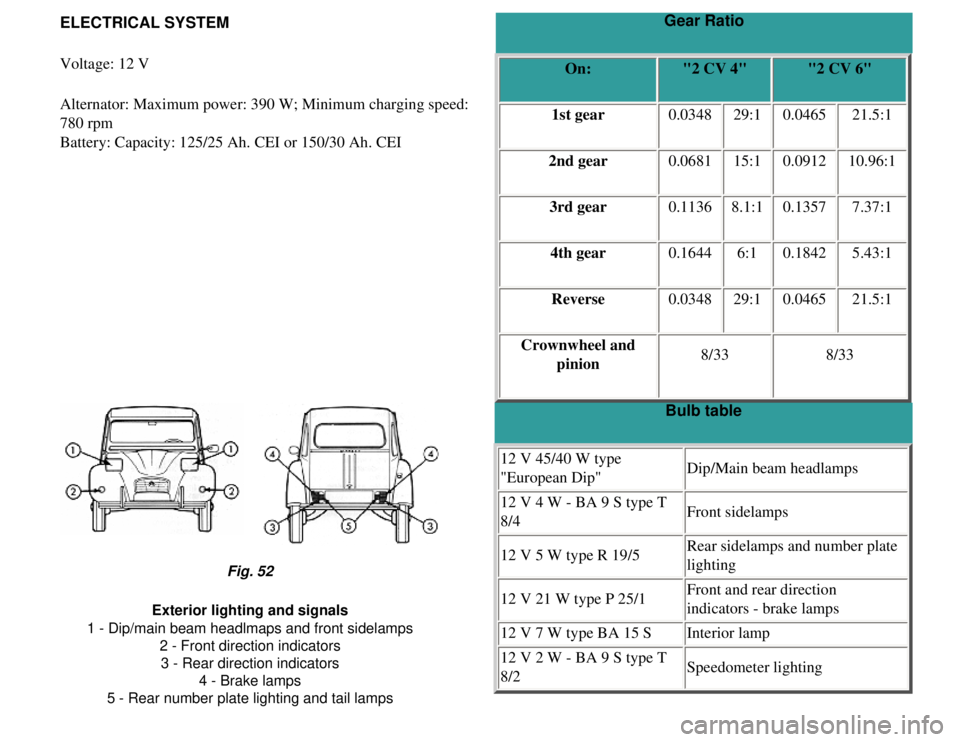

Exterior lighting and signals
1 - Dip/main beam headlmaps and front sidelamps 2 - Front direction indicators3 - Rear direction indicators 4 - Brake lamps
5 - Rear number plate lighting and tail lamps

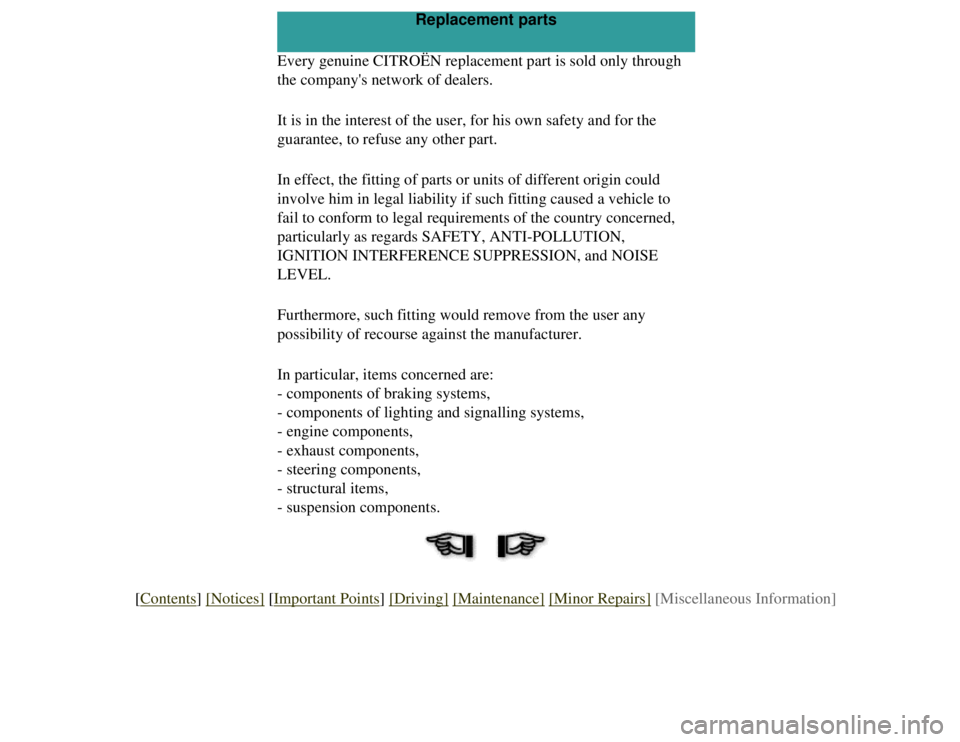

Replacement parts
Every genuine CITROËN replacement part is sold only through
the company's network of dealers.
It is in the interest of the user, for his own safety and for the
guarantee, to refuse any other part.
In effect, the fitting of parts or units of different origin could
involve him in legal liability if such fitting caused a vehicle to
fail to conform to legal requirements of the country concerned,
particularly as regards SAFETY, ANTI-POLLUTION,
IGNITION INTERFERENCE SUPPRESSION, and NOISE
LEVEL.
Furthermore, such fitting would remove from the user any
possibility of recourse against the manufacturer.
In particular, items concerned are:
- components of braking systems,
- components of lighting and signalling systems,
- engine components,
- exhaust components,
- steering components,
- structural items,
- suspension components.
