CITROEN BERLINGO VAN 2019 Handbook (in English)

69
2-position luggage cover
parcel shelf (removable)
M
M
It can be installed in two different positions:
high and low.
It consists of two sections which can be folded
back on each other. Never use the ISOFIX ring which is for
fixing the strap of a child seat with Top
Tether.
The maximum authorised weight on the
luggage cover parcel shelf is 25 kg.
F

T
o fold it from the boot, take hold of it then
fold it back on itself up to the rear seats. From the low position, you can store it by
sliding it towards the backrests of the rear
seats.
F
T
o unfold it from the boot, take hold of it
then unfold it up to the boot pillars.
Luggage cover roller
When sharp deceleration occurs, objects
placed on the luggage cover may turn into
projectiles. XL
XL
In 5 -seat configuration, it is installed behind
the second row seats, with the third row seats
stored folded away.
In 7-seat configuration, it is stored behind the
third row seats.
Installation
F Position the left and right ends of the roller in the cut-outs A .
F

P
ull out the roller until it reaches the boot
pillars.
F

I
nsert the guides of the roller into the rails in
pillars B .
F

D
epending on version, you can access
the boot by opening the rear screen in the
tailgate and attaching the guides of the
roller into the rails of pillars C .
3
Ease of use and comfort

70

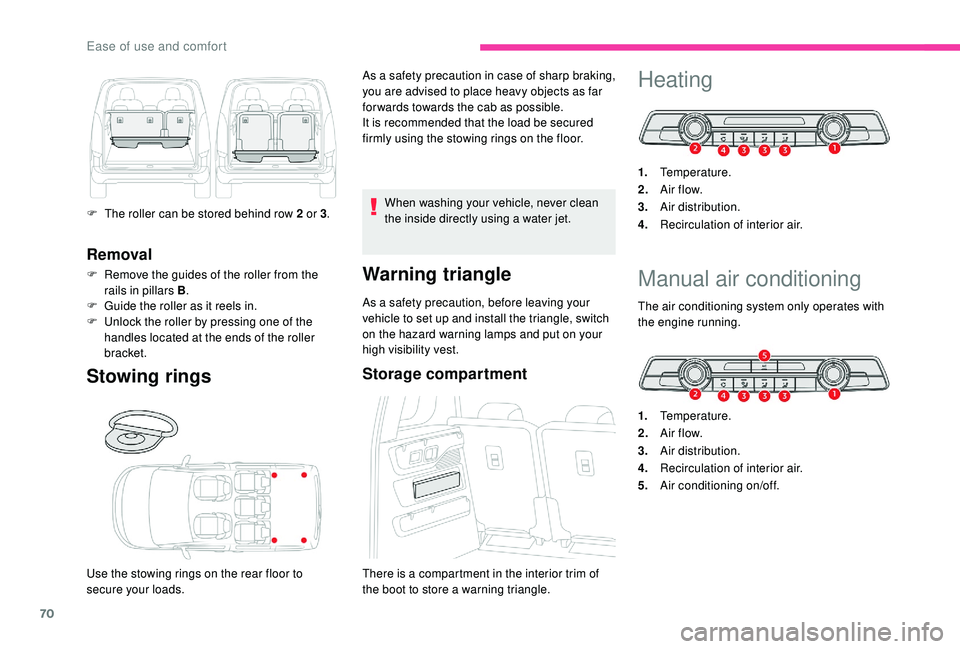

Removal
F Remove the guides of the roller from the rails in pillars B .
F

G
uide the roller as it reels in.
F

U
nlock the roller by pressing one of the
handles located at the ends of the roller
bracket.
Stowing rings
As a safety precaution in case of sharp braking,
you are advised to place heavy objects as far
for wards towards the cab as possible.
It is recommended that the load be secured
firmly using the stowing rings on the floor.
When washing your vehicle, never clean
the inside directly using a water jet.
Warning triangle
As a safety precaution, before leaving your
vehicle to set up and install the triangle, switch
on the hazard warning lamps and put on your
high visibility vest.
Storage compartment
There is a compartment in the interior trim of
the boot to store a warning triangle.
Use the stowing rings on the rear floor to
secure your loads.
Heating
1.
Temperature.
2. A ir f low.
3. Air distribution.
4. Recirculation of interior air.
Manual air conditioning
The air conditioning system only operates with
the engine running.
1.Temperature.
2. A ir f low.
3. Air distribution.
4. Recirculation of interior air.
5. Air conditioning on/off.
F

T

he roller can be stored behind row 2 or 3
.
Ease of use and comfort

71

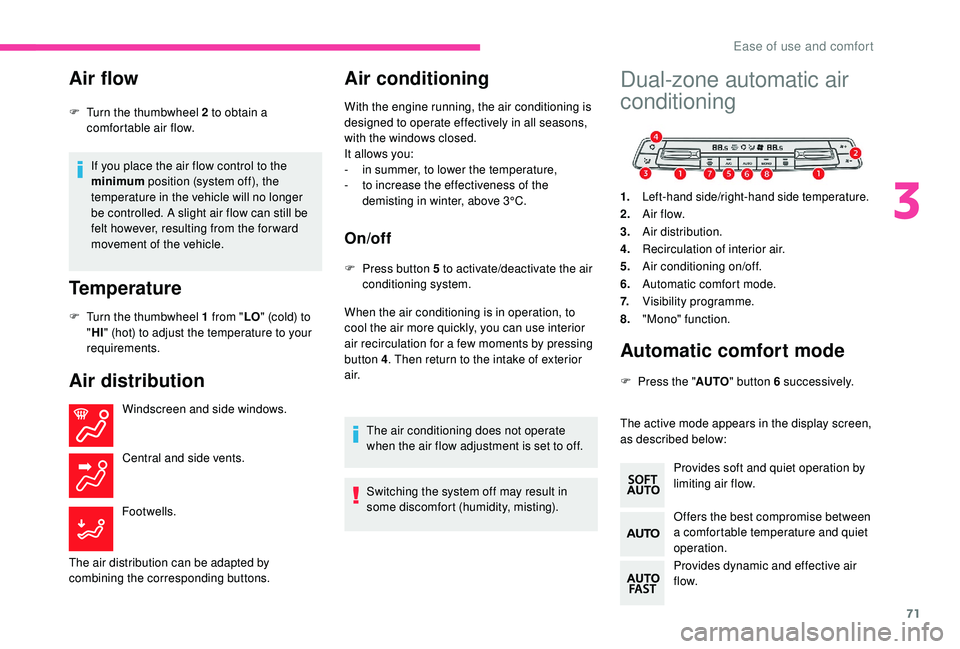

Air flow
If you place the air flow control to the
minimum position (system off), the
temperature in the vehicle will no longer
be controlled. A slight air flow can still be
felt however, resulting from the for ward
movement of the vehicle.
Temperature
Air distribution
Windscreen and side windows.
Central and side vents.
F

T

urn the thumbwheel 1 from "
LO" (cold) to
" HI " (hot) to adjust the temperature to your
requirements.
Footwells.
The air distribution can be adapted by
combining the corresponding buttons. F

T

urn the thumbwheel 2 to obtain a
comfortable air flow.
Air conditioning
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
It allows you:
-

i
n summer, to lower the temperature,
-

t
o increase the effectiveness of the
demisting in winter, above 3°C.
On/of f
F Press button 5 to activate/deactivate the air conditioning system.
When the air conditioning is in operation, to
cool the air more quickly, you can use interior
air recirculation for a few moments by pressing
button 4 . Then return to the intake of exterior
a i r.
The air conditioning does not operate
when the air flow adjustment is set to off.
Switching the system off may result in
some discomfort (humidity, misting).
Dual-zone automatic air
conditioning
1.Left-hand side/right-hand side temperature.
2.A ir f low.
3. Air distribution.
4. Recirculation of interior air.
5. Air conditioning on/off.
6. Automatic comfort mode.
7. Visibility programme.
8. "Mono" function.
Automatic comfort mode
F Press the " AUTO" button 6 su c c e s s i ve l y.
The active mode appears in the display screen,
as described below: Provides soft and quiet operation by
limiting air flow.
Offers the best compromise between
a comfortable temperature and quiet
operation.
Provides dynamic and effective air
f low.
3
Ease of use and comfort

72

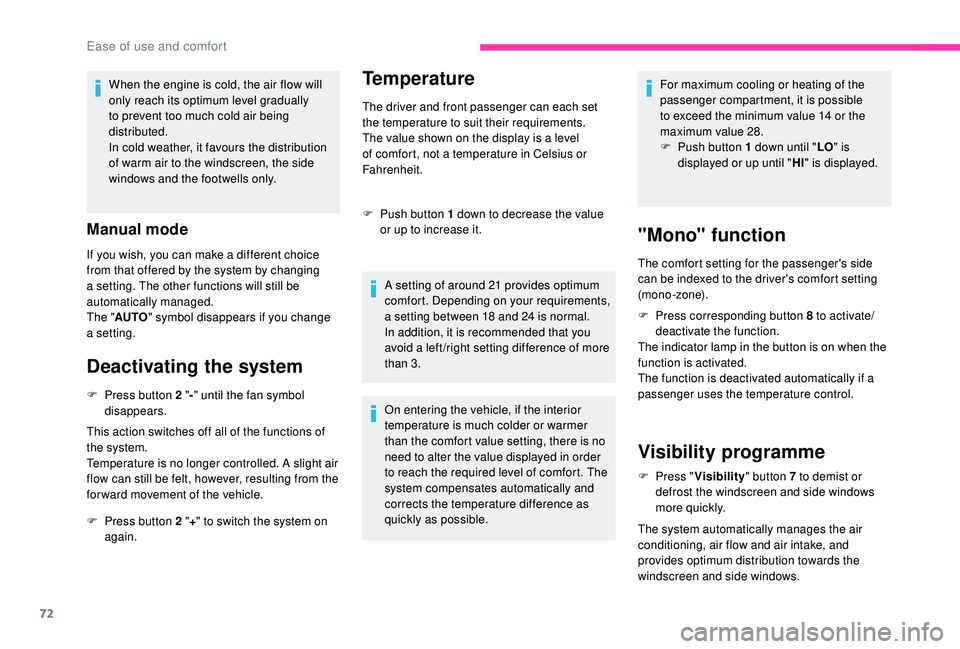

When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too much cold air being
distributed.
In cold weather, it favours the distribution
of warm air to the windscreen, the side
windows and the footwells only.
Manual mode
If you wish, you can make a different choice
from that offered by the system by changing
a setting. The other functions will still be
automatically managed.
The "AUTO " symbol disappears if you change
a setting.
Deactivating the system
F Press button 2 " -" until the fan symbol
disappears.
This action switches off all of the functions of
the system.
Temperature is no longer controlled. A slight air
flow can still be felt, however, resulting from the
for ward movement of the vehicle.
Temperature
The driver and front passenger can each set
the temperature to suit their requirements.
The value shown on the display is a level
of comfort, not a temperature in Celsius or
Fahrenheit.
F

P
ush button 1 down to decrease the value
or up to increase it.
A setting of around 21 provides optimum
comfort. Depending on your requirements,
a setting between 18 and 24 is normal.
In addition, it is recommended that you
avoid a left /right setting difference of more
than 3.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value setting, there is no
need to alter the value displayed in order
to reach the required level of comfort. The
system compensates automatically and
corrects the temperature difference as
quickly as possible.
F

P

ress button 2 " +" to switch the system on
again. For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
F

P
ush button 1 down until "LO" is
displayed or up until " HI" is displayed.
F

P
ress corresponding button 8 to activate/
deactivate the function.
The indicator lamp in the button is on when the
function is activated.
The function is deactivated automatically if a
passenger uses the temperature control.
Visibility programme
F Press " Visibility" button 7 to demist or
defrost the windscreen and side windows
more quickly.
"Mono" function
The comfort setting for the passenger's side
can be indexed to the driver's comfort setting
(mono-zone).
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
Ease of use and comfort

73

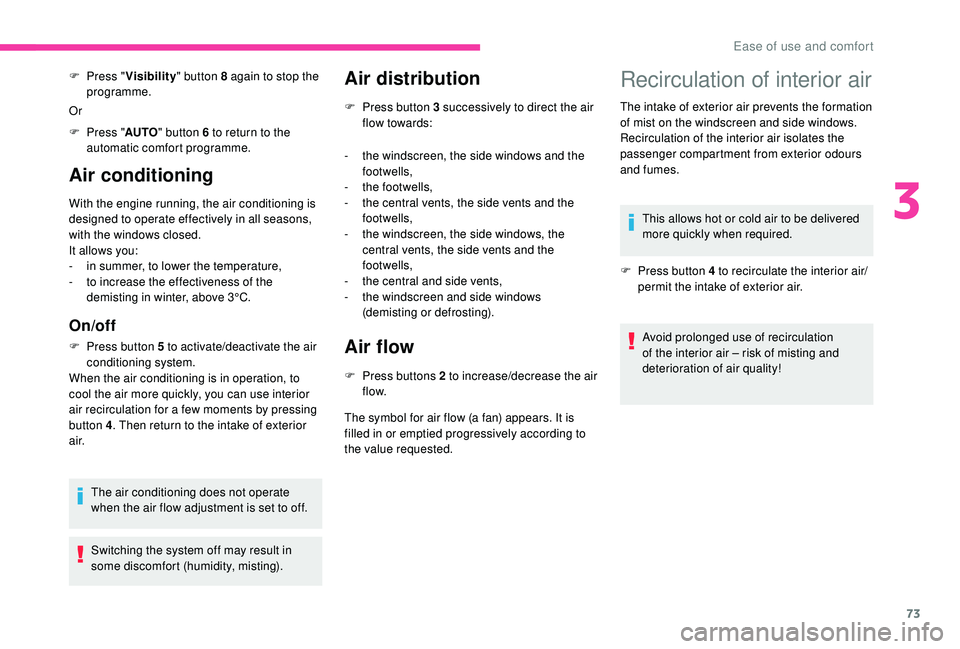

Air conditioning
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
It allows you:
-
i
n summer, to lower the temperature,
-

t
o increase the effectiveness of the
demisting in winter, above 3°C.
Air distribution
F Press button 3 successively to direct the air flow towards:
Air flow
F Press buttons 2 to increase/decrease the air f low.
The symbol for air flow (a fan) appears. It is
filled in or emptied progressively according to
the value requested.
F

P

ress "
Visibility " button 8 again to stop the
programme.
Or
F

P

ress "
AUTO " button 6 to return to the
automatic comfort programme.
On/of f
F Press button 5 to activate/deactivate the air conditioning system.
When the air conditioning is in operation, to
cool the air more quickly, you can use interior
air recirculation for a few moments by pressing
button 4 . Then return to the intake of exterior
a i r.
The air conditioning does not operate
when the air flow adjustment is set to off.
Switching the system off may result in
some discomfort (humidity, misting). -

t
he windscreen, the side windows and the
footwells,
-
t
he footwells,
-
t
he central vents, the side vents and the
footwells,
-
t
he windscreen, the side windows, the
central vents, the side vents and the
footwells,
-
t
he central and side vents,
-
t
he windscreen and side windows
(demisting or defrosting).
Recirculation of interior air
The intake of exterior air prevents the formation
of mist on the windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This allows hot or cold air to be delivered
more quickly when required.
F

P
ress button 4 to recirculate the interior air/
permit the intake of exterior air.
Avoid prolonged use of recirculation
of the interior air – risk of misting and
deterioration of air quality!
3
Ease of use and comfort

74

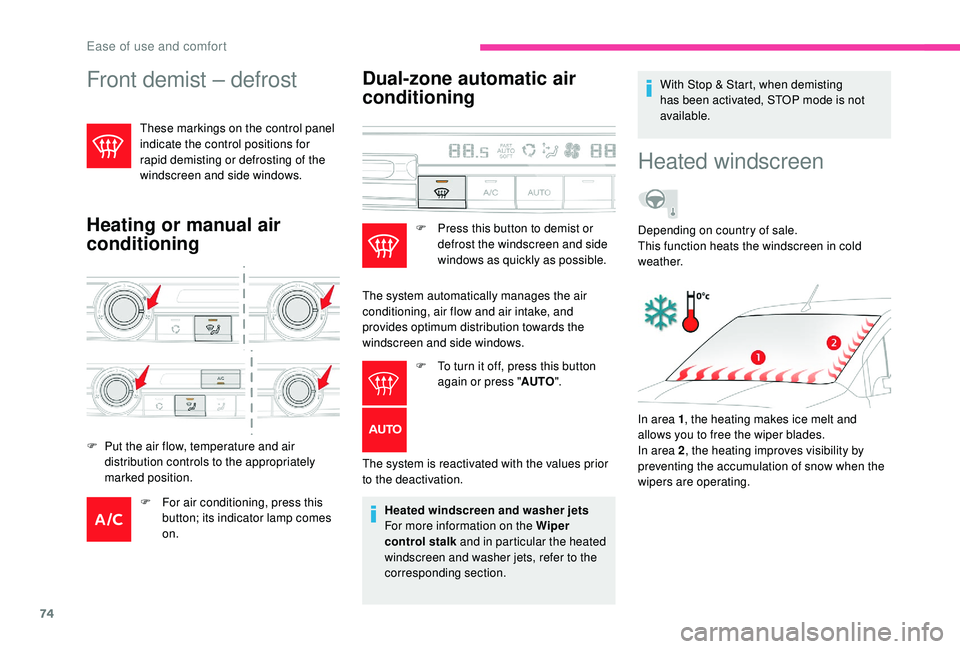

Front demist – defrost
These markings on the control panel
indicate the control positions for
rapid demisting or defrosting of the
windscreen and side windows.
Heating or manual air
conditioning
F For air conditioning, press this button; its indicator lamp comes
on.
Dual-zone automatic air
conditioning
F Press this button to demist or defrost the windscreen and side
windows as quickly as possible.
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F

P

ut the air flow, temperature and air
distribution controls to the appropriately
marked position. F

T
o turn it off, press this button
again or press " AUTO".
The system is reactivated with the values prior
to the deactivation. With Stop & Start, when demisting
has been activated, STOP mode is not
available.
Heated windscreen
In area 1
, the heating makes ice melt and
allows you to free the wiper blades.
In area 2 , the heating improves visibility by
preventing the accumulation of snow when the
wipers are operating.
Heated windscreen and washer jets
For more information on the Wiper
control stalk and in particular the heated
windscreen and washer jets, refer to the
corresponding section. Depending on country of sale.
This function heats the windscreen in cold
weather.
Ease of use and comfort

75

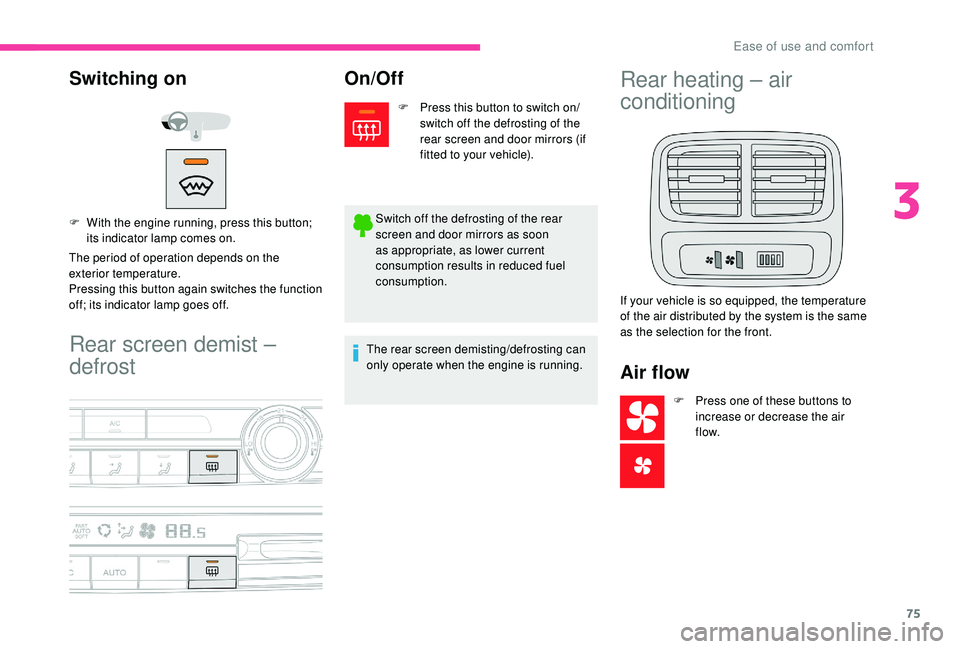

Rear screen demist –
defrost
Switching on
The period of operation depends on the
exterior temperature.
Pressing this button again switches the function
off; its indicator lamp goes off. F
W
ith the engine running, press this button;
its indicator lamp comes on.
The rear screen demisting/defrosting can
only operate when the engine is running.
On/Off
F Press this button to switch on/switch off the defrosting of the
rear screen and door mirrors (if
fitted to your vehicle).
Switch off the defrosting of the rear
screen and door mirrors as soon
as appropriate, as lower current
consumption results in reduced fuel
consumption.
Rear heating – air
conditioning
If your vehicle is so equipped, the temperature
of the air distributed by the system is the same
as the selection for the front.
Air flow
F Press one of these buttons to increase or decrease the air
f low.
3
Ease of use and comfort

76
12:13
23 °C

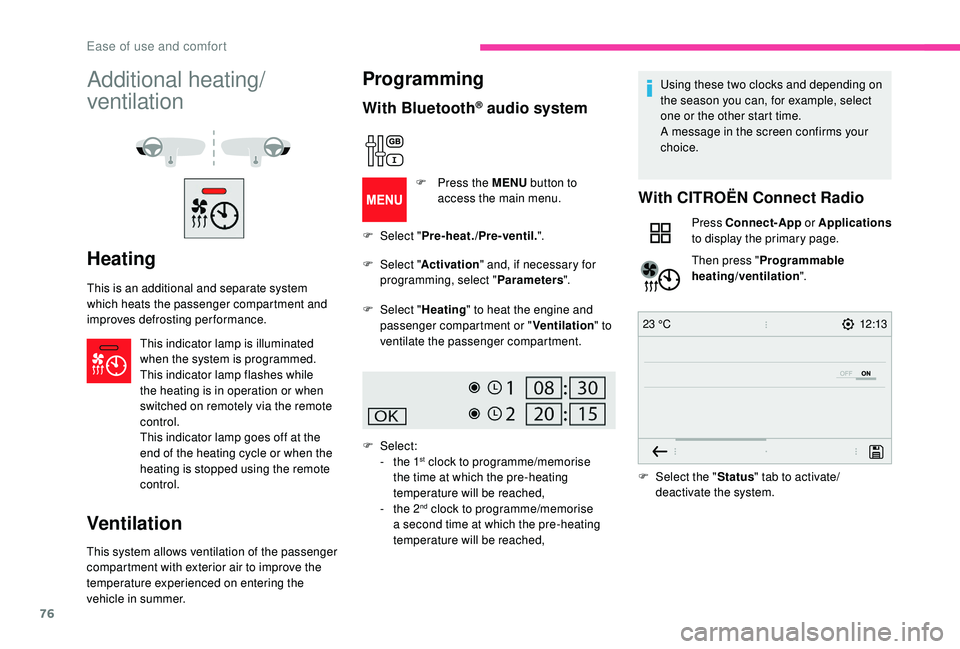

Additional heating/
ventilation
Heating
This is an additional and separate system
which heats the passenger compartment and
improves defrosting performance.
This indicator lamp is illuminated
when the system is programmed.
This indicator lamp flashes while
the heating is in operation or when
switched on remotely via the remote
control.
This indicator lamp goes off at the
end of the heating cycle or when the
heating is stopped using the remote
control.
Ventilation
This system allows ventilation of the passenger
compartment with exterior air to improve the
temperature experienced on entering the
vehicle in summer.
Programming
With Bluetooth® audio system
F Select " Pre-heat./Pre-ventil. ".
F
Sel
ect "Activation " and, if necessary for
programming, select " Parameters".
F

P
ress the MENU
button to
access the main menu.
F
Sel
ect "Heating " to heat the engine and
passenger compartment or " Ventilation" to
ventilate the passenger compartment.
F
Select:
-

t
he 1
st clock to programme/memorise
the time at which the pre-heating
temperature will be reached,
-

t

he 2
nd clock to programme/memorise
a second time at which the pre-heating
temperature will be reached, Using these two clocks and depending on
the season you can, for example, select
one or the other start time.
A message in the screen confirms your
choice.
With CITROËN Connect Radio
Press
Connect-App or Applications
to display the primary page.
Then press " Programmable
heating/ventilation ".
F

Sel

ect the " Status" tab to activate/
deactivate the system.
Ease of use and comfort

77
12:13
1 12:00 AM12:00 AM
2
23 °C
OFF
OK
OK
00 00
00 00
F Select the "
Other settings " tab to choose
" Heating " to heat the engine and passenger
compartment or " Ventilation" to ventilate
the passenger compartment.
F

T
hen programme/memorise the time at
which the pre-heating temperature will be
reached for each selection.
Press this button to save.
With CITROËN Connect Nav
F Press the " Applications" menu.
F

P

ress the " Vehicle Apps " tab.
F

P
ress " Programmable heating/
ventilation ". F

P
ress the "
Status" tab to activate/deactivate
the system.
F
T
hen programme/memorise the time at
which the pre-heating temperature will be
reached for each selection.
F

F
inally, press "OK" to confirm.F Select the " Heating" mode to heat the engine
and passenger compartment or " Ventilation"
to ventilate the passenger compartment.
Switching off
F Press and hold this button to stop the heating immediately.
The indicator lamp in the remote control comes
on in red for about 2
seconds to confirm that
the signal has been received by the vehicle.
Long range remote control
(Depending on version.)
This enables you to remotely switch the
passenger compartment heating on or off.
The range of the remote control is about
0.6
miles (1 km) in open country.
Switching on
F Press and hold this button to start the heating immediately.
The indicator lamp in the remote control comes
on in green for about 2
seconds to confirm that
the signal has been received by the vehicle.
3
Ease of use and comfort

78
The indicator lamp in the remote control
flashes for about 2 seconds if the vehicle
has not received the signal.
You should then move to a different
location and repeat the command.
Changing the battery
If the indicator lamp in the remote control becomes
orange, the state of charge of the battery is low.
If the indicator lamp is not on, the battery is
discharged.
F Use a coin to unscrew the cap and replace the battery.
The maximum heating period is about
45
minutes depending on the climatic
conditions. The additional heating system is powered
by the fuel in the vehicle's fuel tank.
Before use, ensure that there is enough
fuel in the tank.
If the tank level is on reser ve, the system
cannot be used.
The ventilation is activated provided that
the battery is sufficiently charged.
The heating is activated provided that:
-

t
he battery is sufficiently charged,
-
t
he fuel level is adequate,
-
t
he engine has been started since the
previous heating cycle. To avoid the risks of poisoning or
asphyxia, the programmable heating must
not be used, even for short periods, in a
closed environment such as a garage or
workshop which is not equipped with an
exhaust gas extraction system.
Do not park the vehicle on a flammable
sur face (dry grass, dead leaves, paper,
etc.) – risk of fire!
Do not throw remote control batteries
away as they contain metals which are
harmful to the environment. Take them
to an approved collection point.
Always switch off the additional heating
while refuelling – risk of fire or explosion! Glazed sur faces such as the rear screen
or windscreen can become very hot in
places.
Never put objects on these sur faces;
never touch these sur faces – risk of burns!
Ease of use and comfort
