157

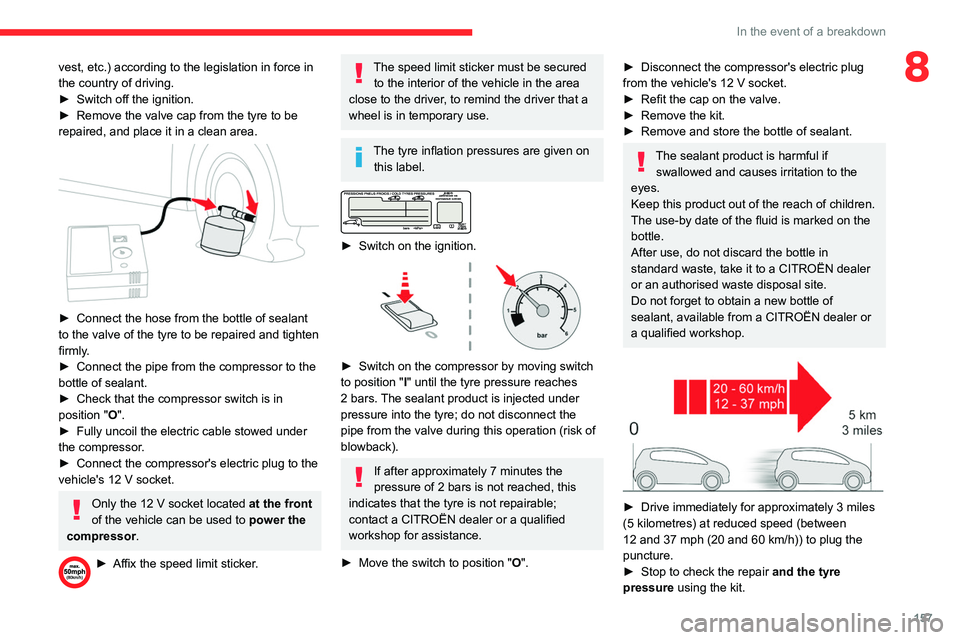

In the event of a breakdown
8vest, etc.) according to the legislation in force in
the country of driving.
►
Switch off the ignition.
►


Remove the valve cap from the tyre to be
repaired, and place it in a clean area.


► Connect the hose from the bottle of sealant
to the valve of the tyre to be repaired and tighten
firmly
.
►

Connect the pipe from the compressor to the
bottle of sealant.
►


Check that the compressor switch is in
position

"O".
►

Fully uncoil the electric cable stowed under
the compressor

.
►

Connect the compressor's electric plug to the
vehicle's 12

V socket.
Only the 12 V socket located at the front
of the vehicle can be used to power the
compressor .
► Affix the speed limit sticker .
The speed limit sticker must be secured
to the interior of the vehicle in the area
close to the driver, to remind the driver that a
wheel is in temporary use.
The tyre inflation pressures are given on this label.


► Switch on the ignition.

► Switch on the compressor by moving switch
to position " I" until the tyre pressure reaches
2 bars. The sealant product is injected under
pressure into the tyre; do not disconnect the
pipe from the valve during this operation (risk of
blowback).
If after approximately 7 minutes the
pressure of 2 bars is not reached, this
indicates that the tyre is not repairable;
contact a CITROËN dealer or a qualified
workshop for assistance.
►

Move the switch to position " O

".
► Disconnect the compressor's electric plug
from the vehicle's 12 V socket.
►

Refit the cap on the valve.
►


Remove the kit.
►


Remove and store the bottle of sealant.
The sealant product is harmful if swallowed and causes irritation to the
eyes.
Keep this product out of the reach of children.
The use-by date of the fluid is marked on the
bottle.
After use, do not discard the bottle in
standard waste, take it to a CITROËN dealer
or an authorised waste disposal site.
Do not forget to obtain a new bottle of
sealant, available from a CITROËN dealer or
a qualified workshop.


► Drive immediately for approximately 3 miles
(5 kilometres) at reduced speed (between
12 and 37 mph (20 and 60
km/h)) to plug the
puncture.
►

Stop to check the repair
and the tyre
pressure using the kit.

158
In the event of a breakdown
With a tyre repaired using this type of kit,
do not exceed a speed of 50 mph
(80

km/h) and do not drive more than
125

miles (200 km).
Contact a CITROËN dealer or a qualified
workshop to have the tyre changed.
Checking / adjusting tyre
pressures
The compressor can be used, without injecting
sealant, to check and, if necessary, adjust the
tyre pressures.
►

Remove the valve cap from the tyre and keep
it in a clean place.
►


Uncoil
the pipe stowed under the compressor.
►

Screw the pipe onto the valve and tighten
firmly

.
►

Check that the compressor switch is in
position " O

".
►

Fully uncoil the electric cable stowed under
the compressor

.
►

Connect the compressor's electric plug to the
vehicle's 12

V socket.
►

Switch on the ignition.
Only the 12 V socket located at the front
of the vehicle can be used to power the
compressor .
The tyre inflation pressures are given on
this label.


► Start the compressor by placing the switch at
position " I
" and adjust the pressure to the value
shown on the vehicle's tyre pressure label. To
deflate: press the black button located on the
compressor pipe, near the valve connection.
If after 7 minutes the pressure of 2 bars
is not reached, this indicates that the tyre
is damaged; contact a CITROËN dealer or a
qualified workshop for assistance.
►

Once the correct pressure is reached, put the
switch in position " O

".
►

Remove the kit and stow it.
Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise
the under-inflation detection system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Spare wheel
Scan the QR code on page 3 to view
explanatory videos.
Procedure for changing a damaged wheel with
the spare wheel using the tools provided with the
vehicle.
For more information on the Tool kit,
refer to the corresponding section.
►

Park the vehicle, taking care to avoid
obstructing traffic, and apply the parking brake.
►


Follow the safety instructions (hazard
warning lamps, warning triangle, wearing high
visibility vest, etc.) according to the legislation in
force in the country where you are driving.
►


Switch off the ignition.
Access to the spare wheel
► Access to the spare wheel is from the rear .

► If your vehicle is fitted with a towbar, raise
the rear of the vehicle using the jack (must be
at jacking point B) to allow sufficient space to
remove the spare wheel.
Removing the spare wheel from the
carrier
► Depending on version, open the tailgate or
side-hinged doors.

168
In the event of a breakdown
Fuse No. Rating (A) Functions
F34 5Mirror control.
F36 5 USB port.
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fuses

► Release the two latches A.
► Remove the cover.
► Change the fuse.
► When you have finished, close the cover
carefully then engage the two latches A, to
ensure correct sealing of the fusebox.

malfunction of your vehicle. Contact a
CITROËN dealer or a qualified workshop.


Good
Failed

Tweezers
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before installing other electrical equipment
or accessories on your vehicle, contact a
CITROËN dealer or a qualified workshop.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting
from the installation of accessories not
supplied and not recommended by CITROËN
and not installed in accordance with its
instructions, in particular when the combined
consumption of all of the additional equipment
connected exceeds 10 milliamperes.
For more information on installing a
towbar or TAXI type equipment, contact a
CITROËN dealer.
Dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
► Unclip the cover by pulling at the top left, then
right.
The fuses described below vary according to the equipment in your vehicle.


Fuse No. Rating (A) Functions
F1 10Wireless
smartphone
charger, interior
electrochrome
rear view mirror.
Fuse No. Rating (A) Functions
F415Horn.
F6 20Screenwash
pump.
F7 1012 V socket
(rear).
F10 30 Electric locks
module.
F13 10 Telematics and
radio controls.
F14 5 Alarm,
advanced
telematic unit.
F19 3 Trailer interface
unit.
F23 5 Generic trailer
interface unit.
F27 5 Additional
heating.
F29 20 Audio system,
touch screen.
F31 15 Audio system
(as an
accessory).
F32 15 12 V socket
(front).

172
In the event of a breakdown
– towing with only two wheels on the ground;
– four-wheel drive vehicle;
– no approved towbar available.
Towing constraints
Type of vehicle
(engine / gearbox)gearbox Font wheels on the
groundRear wheels on the
groundFlatbed
4 wheels on the ground
with towbar
Internal combustion /
Manual


Internal combustion /
Automatic

In case of battery or electric parking brake failure, it is essential to call a p
rofessional using flatbed recovery vehicles (excluding manual gearbox).
Access to the eye
For more information on the Tool kit,
refer to the corresponding section.
With a manual gearbox, move the gear
lever into neutral.
With an automatic gearbox, place the gear
selector into position N.
Failure to adhere to this instruction may lead
to damage to braking system components
and the lack of braking assistance on
restarting the engine.

► Raise the lever A fully.
► Replace the open clamp B
on the (+)
terminal.
►

Push the clamp
B fully down.
►

Lower the lever A

to lock the clamp B.
Do not force the lever as it will not be
possible to lock the clamp if it is not
positioned correctly; start the procedure
again.
Following reconnection
After reconnecting the battery, turn on the
ignition and wait 1 minute before starting the
engine, to enable the electronic systems to
initialise.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you must
reset certain systems yourself, such as:
– the remote control key or the electronic key
(depending on version),
–

the electric windows,
–


the electric doors,
–


the date and time,
–


the radio preset stations.
The Stop & Start system may not be operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous period of
immobilisation of the vehicle, a period which
depends on the exterior temperature and the
state of charge of the battery (up to about 8
hours).
Towing
Procedure for having your vehicle towed or for towing another vehicle us\
ing the towing eye.
General recommendations
Observe the legislation in force in the country where you are driving.
Ensure that the weight of the towing vehicle is higher than that of the \
towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a\
valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an \
approved towbar; ropes and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine off, there is no longer braking and steering assistance.
A professional recovery service must be called if:
– broken down on a motorway or main road;
–

not possible to put the gearbox into neutral, unlock the steering, or re\
lease the parking brake;
–


not possible to tow a vehicle with an automatic gearbox, with the engine\
running;

173
In the event of a breakdown
8– towing with only two wheels on the ground;
– four-wheel drive vehicle;
–

no approved towbar available.
Towing constraints
Type of vehicle
(engine / gearbox)gearbox Font wheels on the
groundRear wheels on the
groundFlatbed
4 wheels on the ground
with towbar
Internal combustion /
Manual


Internal combustion /
Automatic

In case of battery or electric parking brake failure, it is essential to call a p
rofessional using flatbed recovery vehicles (excluding manual gearbox).
Access to the eye
For more information on the Tool kit,
refer to the corresponding section.
With a manual gearbox, move the gear
lever into neutral.
With an automatic gearbox, place the gear
selector into position N.
Failure to adhere to this instruction may lead
to damage to braking system components
and the lack of braking assistance on
restarting the engine.
Towing your vehicle

► In the front bumper , slide a finger from the
centre of the cover plate to the upper corner (as
shown above) to unclip it.
►

Screw the towing eye in fully
.
►

Install the towbar
.
►

Switch on the hazard warning lamps on the
towed vehicle.
►


Move off gently
, drive slowly and for a short
distance.

174
In the event of a breakdown
Towing another vehicle

► In the rear bumper, place the key in the notch
located under the flap.
►

T
urn the key and then open the flap.
►

Screw the towing eye in fully
.
►

Install the towbar
.
►

Switch on the hazard warning lamps on the
towed vehicle.
►


Move off gently
, drive slowly and for a short
distance.

237
Alphabetical index
Priming the fuel system 155
Profiles
204, 228
Programmable cruise control

11 5
Protecting children

80, 82–85
Puncture

156, 158
R
Radar (warnings) 109
Radio
184–185, 197, 200, 222
Radio, digital (Digital Audio Broadcasting -
DAB)

185, 199–200, 223
Range, AdBlue

149
RDS

198, 223
Rear screen, demisting

56
Recharging the battery

170–171
Recirculation, air

53–54
Recovery

172
Reduction of electrical load

145
Regeneration of the particle filter

150
Reinitialisation of the under-inflation
detection system

107
Reinitialising the remote control

29
Reminder, key in ignition

96
Reminder, lighting on

61–62
Remote control

23–27, 93
Removing a wheel

159, 161
Removing the mat

45
Replacing bulbs

161–162
Replacing fuses

167–169
Replacing the air filter

150
Replacing the oil filter 150
Replacing the passenger compartment
filter

149
Reservoir, screenwash

149
Reversing camera

109, 132–133
Reversing lamps

166
Roof

46
Roof bars

145
Running out of fuel (Diesel)

155
S
Safety, children 80, 82–85
Saturation of the particle filter (Diesel)
150
Screen menu map

201
Screen, multifunction (with audio system)

183
Screenwash, front

66
Screenwash, rear

66
SCR (Selective Catalytic Reduction)

151
Seat belts

77–78, 85
Seat, rear bench

41, 43
Seats, front

37–39
Seats, heated

39
Seats, rear

37, 41–44, 83
Sensors (warnings)

109
Serial number, vehicle

181
Service indicator

16
Servicing

16, 149
Settings, system

204, 228
Sidelamps

61, 63, 163–164
Side parking sensors

131
Side repeater 163
Sliding side door, electric
26, 32
Snow chains

106, 142
Snow chains, link

142
Socket, 12 V accessory

45, 47
Socket, 220 V

47
Socket, auxiliary

187, 200, 224
Socket, Jack

187, 224
Speed limiter

112–115, 121
Speed limit recognition

11 0 – 111
Speedometer

11 0
Stability control (ESC)

73–76
Starting a Diesel engine

140
Starting the engine

93
Starting the vehicle

94, 96, 101–103
Starting using another battery

170
Station, radio

184, 197, 222–223
Stay, bonnet

146
Steering mounted controls,
audio

183–184, 195, 209
Steering wheel, adjustment

40
Stickers, customising ~ Stickers,
expressive

154
Stopping the vehicle

96, 101–103
Stop & Start

22, 53, 56, 104–106,
140, 146, 149, 169, 172
Storage

46
Storage boxes

49
Stowing rings

51
Sunshine sensor

52
Switching off the engine

93, 95
Synchronising the remote control

29

238
Alphabetical index
T
Tables of fuses 167–169
Tank, fuel
140–141
Technical data

176–180
Telephone

48, 189–191, 202–203, 225–227
Telephone, Bluetooth with voice
recognition

191
Temperature, coolant

16
Three flashes (direction indicators)

62
Time (setting)

205, 229
TMC (Traffic info)

216
Tools

155
Topping-up AdBlue®

152
Top Rear Vision

132
Towbar

74, 142–143
Towed loads

176–180
Towing another vehicle

172–174
Towing device

143
Towing eye

173
Traction control (ASR)

73, 75
Traffic information (TA)

184
Traffic information (TMC)

216
Trailer

74, 142
Trailer stability assist (TSA)

74
Trajectory control systems

73–74
Triangle, warning

52
Trip computer

21–22
Type of bulbs

162
Tyres

150, 181
Tyre under-inflation detection

106, 158
U
Under-inflation (detection) 106
Unlocking
23, 25–26
Unlocking from the inside

30
Updating the date

205, 229
Updating the time

205, 229
USB

186, 200, 219, 224
V
Ventilation 52–53, 57–58
Video
224
Voice commands

211–213
W
Warning and indicator lamps 11
Warning lamp, driver''s seat belt
not fastened

78
Warning lamps

11
Warning lamp, seat belts

78
Warnings and indicators

11
Washer jets, heated

56
Washing

11 0
Washing (advice)

153–154
Weights

176–180
Welcome lighting

24
Wheel, spare

106, 150, 155–156, 158–159, 161
Windows, rear doors

36
Windscreen, heated

56
Windscreen wipers 65
Wiper blades (changing)
66–67
Wiper, rear

66
Wipers

65, 67–68
Wipers, automatic rain sensitive

65, 67–68
