glove box CITROEN C-ELYSÉE 2016 Handbook (in English)

14
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.Warning / indicator lamp StateCause Action / Observations
Passenger's
airbag system fixed.
The control, located in the glove box,
is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the operation of the airbags (Airbag
warning lamp on). Set the control to the ON
position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear ward
facing position.
ESP/ASR fixed. The button, located at the bottom
left of the dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-slip regulation. Press the button to activate the ESP/ASR. Its indicator
lamp goes off.
The ESP/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
Monitoring

55
Interior fittings
1. Sun visor
2. Glove box
(

see details on a following page)
3.
D

oor pockets
4.
O

pen storage compar tment
5.
As

htray / Cup holder
6.
U

SB por t / Jack socket
Ci

garette lighter / 12 V accessor y
socket
(

see details on a following page)
7.
C

entral armrest with storage


or
A

shtray holder / Cup holder / Bottle
holder
4
Fittings

56
Glove box
Sun visor
Provides protection against sunlight from the
front or the side.
The passenger's sun visor is fitted with a vanity
mirror with concealing flap and a ticket holder. It can b e used to hold a water bottle, the
vehicle's handbook pack...
Depending on version, it may have a lid. In this
case:
F

T
o open the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A.
Fittings

93
C-Elysee_en_Chap07_securite_ed01-2014

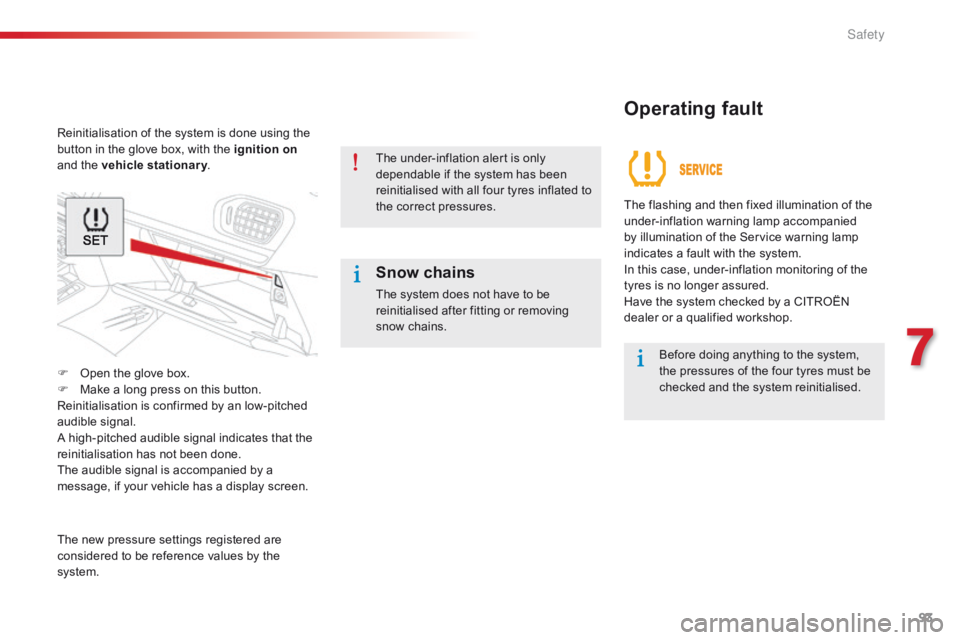

Reinitialisation of the system is done using the
button in the glove box, with the ignition on
and the vehicle stationary .
F

O
pen the glove box.
F

M
ake a long press on this button.
Reinitialisation is confirmed by an low-pitched
audible signal.
A high-pitched audible signal indicates that the
reinitialisation has not been done.
The audible signal is accompanied by a
message, if your vehicle has a display screen.
The new pressure settings registered are
considered to be reference values by the
system.
Operating fault
The under-inflation alert is only
dependable if the system has been
reinitialised with all four tyres inflated to
the correct pressures.
Snow chains
The system does not have to be
reinitialised after fitting or removing
snow chains.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.
7
Safety

99
C-Elysee_en_Chap07_securite_ed01-2014
Airbags
System designed to contribute towards the
safety of the occupants in the event of violent
collisions. The airbags supplement the action
of the force-limiting seat belts.
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
-
i
n the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle; immediately after the impact,
the airbags deflate rapidly so that they
do not hinder visibility or the exit of the
occupants,
-

i
n the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt alone
contributes towards providing your
protection in these situations.
The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again. The deployment of an airbag is
accompanied by a slight emission
of smoke and a noise, due to the
detonation of the pyrotechnic charge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The detonation noise associated with
the deployment of an airbag may result
in a slight loss of hearing for a short
time.
Impact detection zones
A. Front impact zone.
B. S
ide impact zone.
Front airbags
Deployment
The airbags are deployed, except the passenger's
front airbag if it has been deactivated, in the event
of a serious front impact to all or part of the front
impact zone A, in the longitudinal centreline of the
vehicle on a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, and the dashboard,
passenger's side to cushion their for ward
movement. System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
7
Safety

157
accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.
"Comfort":
door deflectors, side blinds and rear screen
blind, smoker kit, portable scented air
freshener, boot dividers, coat hanger, armrest,
insulated module, reading lamp, cruise control,
boot storage, front and rear parking sensors,
glove box lid...
"Transport solutions":
towbars, towbar harnesses, canoe carrier, roof
bars, bicycle carrier on towbar, bicycle carrier
on roof bars, ski carrier, roof boxes, aluminium
roof rack....
"Security and safety":
wheel security bolts, child seats, breathalyzer,
first aid kit, warning triangle, high visibility vest,
snow chains, non-slip covers, foglamp kit, fire
extinguisher...
Tow bar, which mst be fitted by
CITROËN dealer or a qualified
workshop.
Advice on care and maintenance
Recommendations on the care and
maintenance your vehicle are given in the
maintenance and warranty guide.
"Styling":
gear lever knob, spoiler, parking brake lever
grip, spoiler, alloy wheels, foglamp trims,
chromed mirror shells, aluminium footrest,
chrome exhaust tailpipes, door sill finishers,
wheel trims...
9
Practical information

12
Safety
C-Elysee-add_en_Chap07_securite_ed01-2014
Reinitialisation of the system must be done with the ignition on and the vehicle stationary : - in the vehicle configuration menu for vehicles fitted with a display screen, - using the button in the glove box for vehicles without display screen.
 Press the MENU button for access to the main menu.
 Press the "  " or "  " button to select the " Personalisation-configuration ", menu then confirm by pressing the central button.  Press the "  " or "  " button to select the " Define vehicle parameters ", menu, then confirm by pressing the central button.
 Press the "  " or "  " button to select the " Driving assistance ", category, then confirm by pressing the central button.  Press the "  " or "  ", button to select " Ty r e pressures" , then " Reinitialisation ", then confirming by pressing the central button. A message confirms the reinitialisation.
Monochrome screen C Vehicles without display screen
 Open the glove box.  Make a long press on this button. Reinitialisation is confirmed by an low-pitched audible signal. A high-pitched audible signal indicates that the reinitialisation has not been done.
The new pressure settings registered are considered to be reference values by the
system.

12
Safety
C-Elysee-add_en_Chap07_securite_ed01-2014
Reinitialisation of the system must be done with the ignition on and the vehicle stationary : - in the vehicle configuration menu for vehicles fitted with a display screen, - using the button in the glove box for vehicles without display screen.
 Press the MENU button for access to the main menu.
 Press the "  " or "  " button to select the " Personalisation-configuration ", menu then confirm by pressing the central button.  Press the "  " or "  " button to select the " Define vehicle parameters ", menu, then confirm by pressing the central button.
 Press the "  " or "  " button to select the " Driving assistance ", category, then confirm by pressing the central button.  Press the "  " or "  ", button to select " Ty r e pressures" , then " Reinitialisation ", then confirming by pressing the central button. A message confirms the reinitialisation.
Monochrome screen C Vehicles without display screen
 Open the glove box.  Make a long press on this button. Reinitialisation is confirmed by an low-pitched audible signal. A high-pitched audible signal indicates that the reinitialisation has not been done.
The new pressure settings registered are considered to be reference values by the
system.
