Citroen C1 RHD 2016 1.G Owner's Guide

19
Stop & Star t
(VTi 68 S&S
engine)flashing.
The   Stop   &   Start   system   has   a   fault. Have   the   system   checked   by   a   CITROËN   dealer   or   a  q
ualified w orkshop.
Speed limiter fixed. The
  speed   limiter   has   a   fault.Have
  it   checked   by   a   CITROËN   dealer   or   a   qualified
w

orkshop.
Door(s) open
/
Boot open fixed,
  accompanied   by
a

n   audible   signal.A
  door   or   the   boot   is   still   open. Close   the   door   or   boot.
Warning


/ indicator lamp
State Cause Action

/ Observations
Under-inflation fixed. The   pressure   in   one   or   more   wheels
i

s   too   low.
Check   the   tyre   pressures   as   soon   as   possible.
This   check   should   preferably   be   carried   out   when   the
t

yres   are   cold.
You   must   reinitialise   the   system   after   the   adjustment
o

f   one   or   more   tyre   pressures   and   after   changing   one
o

r   more   wheels.
For   more   information,   refer   to   the   "Under-inflation
d

etection"
 s
ection.
1
Instruments

20
Warning / indicator lamp State Cause Action / Observations
Keyless Entr y
and Starting
system flashing
 qu

ickly.The
  steering   column   has   not   been
u

nlocked.Change
  to   "OFF "
  mode,   then   "ON "
  mode   and   turn   the
w

heel   slightly   to   unlock   the   steering   column.
flashing,
 a

ccompanied
 b

y   an   audible   signal.The
  battery   in   the   electronic   key   is
d

ischarged.Replace
  the   battery.
Refer
  to   the   corresponding   section.
You
  are   leaving   the   vehicle   without
a

ctivating   "OFF "
  mode.With
  the   electronic   key   on   your   person,   press   the
S

TART/STOP   button   to   change   to   "OFF "
  mode.
The
  electronic   key   has   not   been
d

etected.Check
  that   you   have   the   electronic   key   with   you.
The
  Keyless   Entry   and   Starting
s

ystem   has   a   fault.Have
  the   system   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Lane departure
warning system flashing
 (

orange),
 a

ccompanied   by   an
a

udible
 s
ignal.A
  lane   marking   is   being   crossed,   on
t

he   right.Turn
  the   wheel   in   the   other   direction   to   return   to   the
c

orrect
 t
rajectory.
For
  more   information,   refer   to   the   corresponding
s

ection.
A
  lane   marking   is   being   crossed,   on
t

he   left.
fixed. The
  lane   departure   warning   system
h

as   a   fault.Have
  the   system   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Active City
Brake flashing,
 a

ccompanied
 b

y   an   audible   signal.The
  Active   City   Brake   system   is   in
a

ction.The
  system   optimises   braking   to   avoid   a   collision.
For
  more   information,   refer   to   the   corresponding
s

ection.
flashing. The
  Active   City   Brake   system   has   a
f

ault.Have
  the   system   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Instruments

21
Operation indicator lamps
Left-hand
direction indicatorflashing with buzzer.The   lighting   stalk   is   pushed   down.
Right-hand
direction indicatorflashing with buzzer.The   lighting   stalk   is   pushed   up.
Sidelamps or
dipped beam
headlamps fixed.
The
  sidelamps   or   dipped   beam
h

eadlamps   are   on.
Main beam
headlamps fixed.
The
  lighting   stalk   is   pulled   towards   you.Pull
  the   stalk   to   return   to   dipped   beam   headlamps.
Warning


/ indicator lamp
State Cause Action

/ Observations
Illumination

of

one

of

the

following   indicator   lamps   confirms   that   the   corresponding   system   has   been   switched   on.
It

may

be

accompanied

by

an

audible   signal.
Rear foglamp fixed. The
  rear   foglamp   has   been   switched
o

n   using   the   ring   on   the   lighting
c

ontrol   stalk. Turn
  the   ring   on   the   lighting   control   stalk   to   the   rear   to
s

witch   off   the   rear   foglamp.
1
Instruments

22
Parking brakefixed,   accompanied   by  a
n   audible   signal.The
  parking   brake   is   applied   or   not  p
roperly r eleased.Release
  the   parking   brake   to   switch   off   the   warning  l
amp,   keeping   your   foot   on   the   brake   pedal.
Observe
  the   safety   recommendations.
For
  more   information   on   the   parking   brake,   refer   to   the
c

orresponding
 s
ection.
Warning


/ indicator lamp
State Cause Action

/ Observations
Passenger's
front airbag fixed
  in   the   seat   belt
a

nd   passenger's   front
a

irbag
 w
arning
 lam
ps
 d

isplay. The
  control   switch,   located   in   the
g

love   box,   has   been   placed   in
t

he "ON"
 p
osition.The
  passenger's   front   airbag   is   activated.
In
  this   case,   do   not   install   a   rear ward   facing   child   seat.
Stop & Star t
(VTi 68 S&S
engine) fixed.
When
  the   vehicle   stops   (red   lights,
 t

raffic   jams...)   the   Stop   &   Start   system
 h

as   put   the   engine   into   STOP   mode.The
  indicator   lamp   goes   off   and   the   engine   restarts
a

utomatically   in   START   mode,   as   soon   as   you   want   to
m

ove   off.
Keyless Entr y
and Starting
system fixed.
The
  conditions   for   starting   are   met. For   more   information,   refer   to   the   "Starting   -   switching
o

ff   the   engine   with   the   Keyless   Entry   and   Starting
s

ystem"   section.
flashing
 s

lowly.The
  vehicle   is   in   "ACC"   mode.
The
  accessories   (audio   system,
1

2V socket...)   can   be   used.
Instruments

23
Warning / indicator lamp State Cause Action / Observations
Gear efficiency
indicator fixed.
You
  can   change   up.For
  more   information,   refer   to   the   corresponding
s

ection.
You
  can   change   down   (only   for   the
V

Ti   68   engine).
Speed limiter
(VTi 68 engine) fixed.
The
  speed   limiter   is   active.
Lane departure
warning system fixed.
The
  button   has   been   pressed. The   lane   departure   warning   system   has   been
a

ctivated.
For
  more   information,   refer   to   the   corresponding
s

ection.
fixed. The
  system   is   operational:   it   has   detected   road
m

arkings   to   the   left   and/or   right.
For
  more   information,   refer   to   the   corresponding
s

ection.
Active City
Brake fixed.
The
  button   has   been   pressed.
The
  configuration   of   the   system   has
be

en
 mo
difiied.The
  Active   City   Brake   system   has   been   activated.
For
  more   information,   refer   to   the   corresponding
s

ection.
1
Instruments

24
Passenger's
front airbagfixed,
  in   the   seat   belt  a
nd   front   passenger's
a

irbag
 w
arning
 lam
ps
 d

isplay. The
  control   switch,   located   in   the  g
love   box,   is   set   to   the   OFF p osition.The
  passenger's   front   airbag   is   deactivated.
You   can   install   a   rear ward   facing   child   seat   on   the
f

ront   seat   unless   there   is   a   fault   with   the   airbags
(

Airbag   warning   lamp   on).
Traction control
(TRC) fixed.
A
  brief   press   has   been   made   on   the
b

utton.
The
  traction   control   (TRC)   system   is
d

eactivated.Press
  the   button   to   activate   the   system.
The
  TRC   system   is   activated   automatically   when   the
v

ehicle   is   started.
If
  deactivated,   the   system   is   reactivated   automatically
f

rom   around   30   mph   (50   km/h).
For
  more   information,   refer   to   the   corresponding
s

ection.
Dynamic
stability control
(DSC) fixed.
Vehicle stationary, the button
has
  been   pressed   for   more   than
3 s

econds.
The
  traction   control   (TRC)   and
d

ynamic   stability   control   (DSC)
s

ystems   are   deactivated.Press
  this   button   to   activate   the   systems.
The
  DSC   system   is   activated   automatically   when   the
v

ehicle   is   started.
For
  more   information,   refer   to   the   corresponding
s

ection.
Warning


/ indicator lamp
State Cause Action

/ Observations
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
T his   may   be   accompanied   by   an   audible   signal.

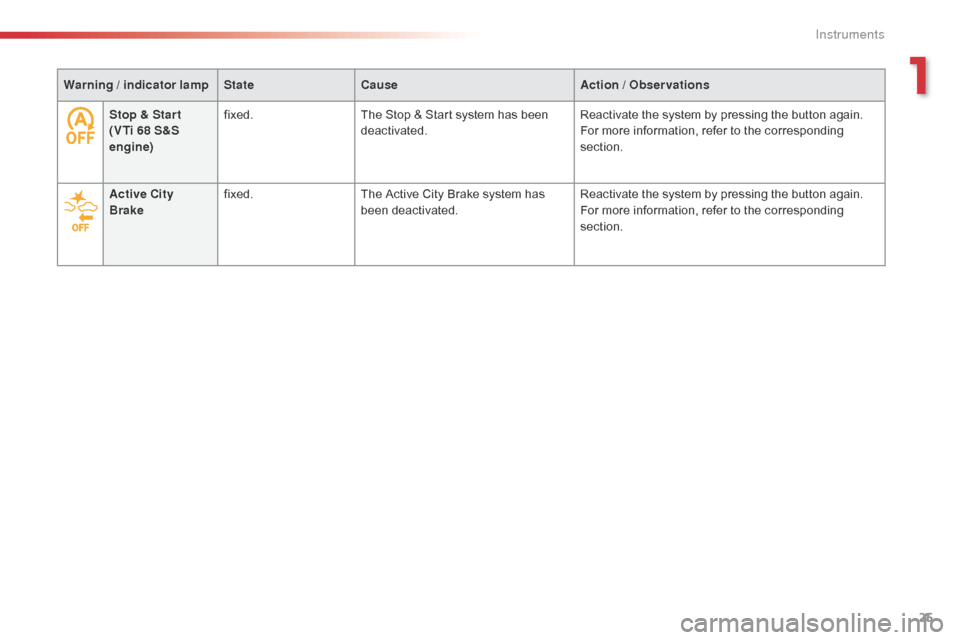

Instruments

25
Warning / indicator lamp State Cause Action / Observations
Stop & Star t
( VTi 68 S&S
engine) fixed.
The
  Stop   &   Start system   has   been
d

eactivated.Reactivate
  the   system   by   pressing   the   button   again.
For
  more   information,   refer   to   the   corresponding
s

ection.
Active City
Brake fixed.
The
  Active   City   Brake   system   has
b

een
 d
eactivated.Reactivate
  the   system   by   pressing   the   button   again.
For
  more   information,   refer   to   the   corresponding
s

ection.
1
Instruments

26
Indicators
Total/trip distance recorder
Press one of the buttons 1 to alternate the
distance display:
-

t
otal   with   "ODO"

(odometer)   displayed,
-

t
rip   with   "TRIP"

displayed.
To
  reset   the   trip   recorder   to   zero,   when
i

t   is   displayed,   press   and   hold   one   of   the
t

wo buttons 1 .
When

the

ignition

is

switched

on,

the

distance
 r
ecorder

selected

when

the

engine

was

s

witched

off

is

displayed. This
  indicates   the   quantity   of   fuel   available:
-  1/ 1  and   six   bars,   the   fuel   tank   is   full.
-

R
  and   one   bar,   the   fuel   tank   is   on   the
r

eserve.
Low fuel level
Fuel gauge
At least 5 litres must be added after running   out   of   fuel.
You have approximately 5 litres remaining.
When  the   low   level   in   the   fuel   tank   is
r

eached,   this   warning   lamp   comes   on
i

n   the   instrument   panel,   accompanied
b

y   an   audible   signal.
Instruments

27
Trip computer
System that gives you information on the journey in progress (range, fuel consumption…).
Information display
F Press  one   of   theses   buttons   to   display   the  v
arious   trip   computer   tabs   in   turn:
-

T
he   total   distance.
-

T
he   trip   "A".
-

T
he   trip   "B".
-

T
he   Stop   &   Start   partial   time   counter*.
-

T
he   Stop   &   Start   global   time   counter*.
-

T
he   ambient   temperature*.
-

T
he   current   fuel   consumption.
-

T
he   average   fuel   consumption.
-

T
he   remaining   range.
-

T
he   average   speed.
-

T
he   lighting   dimmer.
Trip reset
F When  the   trip   required   is   displayed,   press  o
ne of the two " DISP"
  buttons   for   more
t

han   two   seconds.
Tr i p s "A"


and   "B"

are   independent   but   their
u

se   is   identical.
For
  example,   trip   "A"

can   be   used   for   daily
f

igures,   and   trip   "B"

for   monthly   figures.
* Depending
  on   version.
Ambient temperature
In certain situations, the ambient temperature may   only   be   displayed   after   a   delay   or   not   at   all,
in par

ticular:
-

w
hen   stationary   or   at   low   speed   (less   than
a

bout   16   mph   (25   km/h),
-

where  there  is  too  much  variation  in  temperature (
entering   or   leaving   a   garage,   a   tunnel...),
- during  very   short   journeys   (less   than   about  2
  minutes).
Lighting dimmer
When driving at night, this function allows certain   displays   in   the   instrument   panel   to   be
s

witched   off   to   reduce   visual   fatigue   for   the
d

river.
It
  operates   only   when   the   sidelamps   are   on.
F

W
hen   the   "Lighting   dimmer"   menu
i

s   displayed,   press   and   hold   one   of
t

he "DISP " buttons for access to the
adjustment.
F

T
hen   make   repeated   presses   on   one   of   the
t

wo "DISP "
  buttons   to   increase   or   reduce
t

he   brightness.
 T

he   display   flashes   to   show   you   the
b

rightness   chosen.
1
Instruments

28
With the touch screen tablet
From the Menu page   in   the   touch   screen   tablet:
F Sel ect the " Vehicle information "
  tab.
The " Trip information "
  window   is   displayed
w

ith   the   following   information:
-

"A

verage speed ",
-

" E

lapsed time ",
-

" R

ange",
-

t
he   current   fuel   consumption,   presented   in
g

raphical
 fo
rm.
The " Erase "
  button   resets   the   fuel   consumption
d

ata   in   the   touch   screen   tablet   and   the
in

strument
 pan
el.
If your vehicle has a touch screen tablet, you
can
  view   information   on   the   current   journey.
Trip computer, a few definitions
Range
(miles or km)
T he   distance   which   can   still   be   travelled   with
t

he   fuel   remaining   in   the   tank   (related   to   the
a

verage   fuel   consumption   over   the   last   few
m

iles
 (
kilometres)
 t
ravelled).
This
  value   may   vary   following   a   change
i

n   the   style   of   driving   or   the   relief,
r

esulting   in   a   significant   change   in   the
c

urrent   fuel   consumption.
When
  the   fuel   level   is   low,   the   message
"

Lo FUEL"   is   displayed.
If
  only   a   small   amount   of   fuel   is   added,   the
r

ange   may   not   be   recalculated.
Current fuel consumption
(mpg or l/100 km or km/l)
C alculated   over   the   last   few   seconds.
Stop & Start time counter
(minutes / seconds or hours / minutes)
I f   your   vehicle   is   fitted   with   Stop   &   Start,   a   time
c

ounter   calculates   the   time   spent   in   STOP
m

ode   during   a   journey.
It
  resets   to   zero   every   time   the   ignition   is
s

witched   on.
Average fuel consumption
(mpg or l/100 km or km/l)
C alculated   since   the   last   trip   computer   reset.
Average speed
(mph or km/h)
C alculated   since   the   last   trip   computer   reset.
Instruments
