Page 171 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) 11
Informations pratiques
169

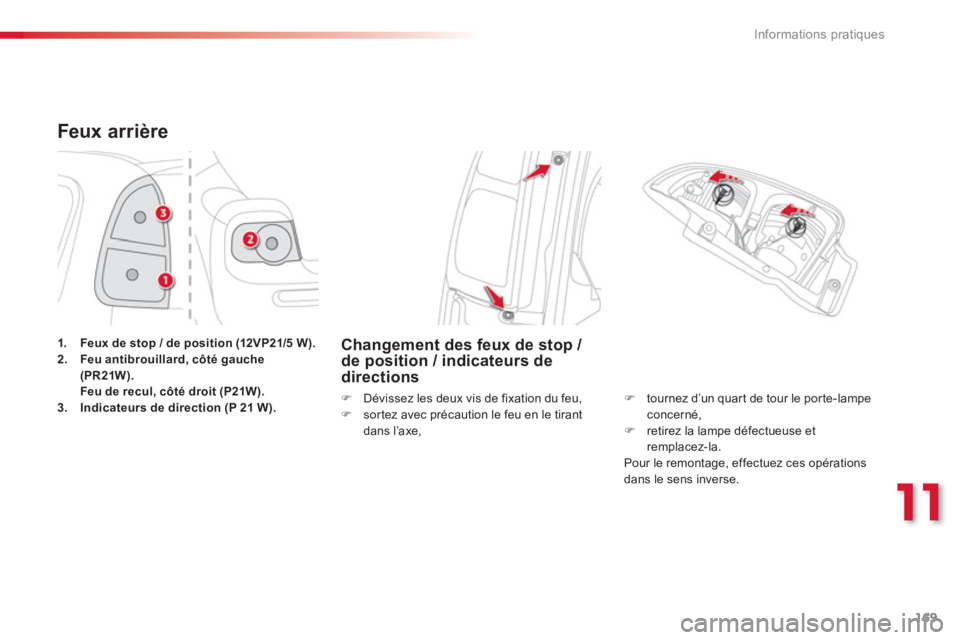

Feux arrière
1.Feux de stop / de position (12VP21/5 W).2.Feu antibrouillard, côté gauche(PR21W).Feu de recul, côté droit (P21W).3.Indicateurs de direction (P 21 W).

Page 172 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) Informations pratiques
170

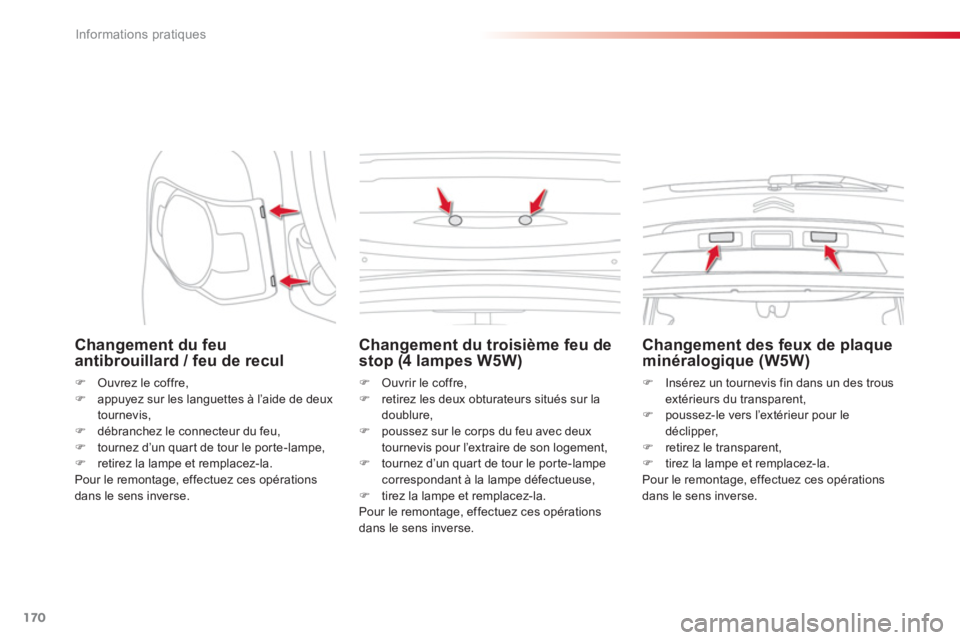

Changement du feuantibrouillard / feu de recul
�)
  Ouvrez le coffre,�)
 appuyez sur les languettes à l’aide de deux
tournevis,
�)    débranchez le connecteur du f

Page 173 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) 11
Informations pratiques
171

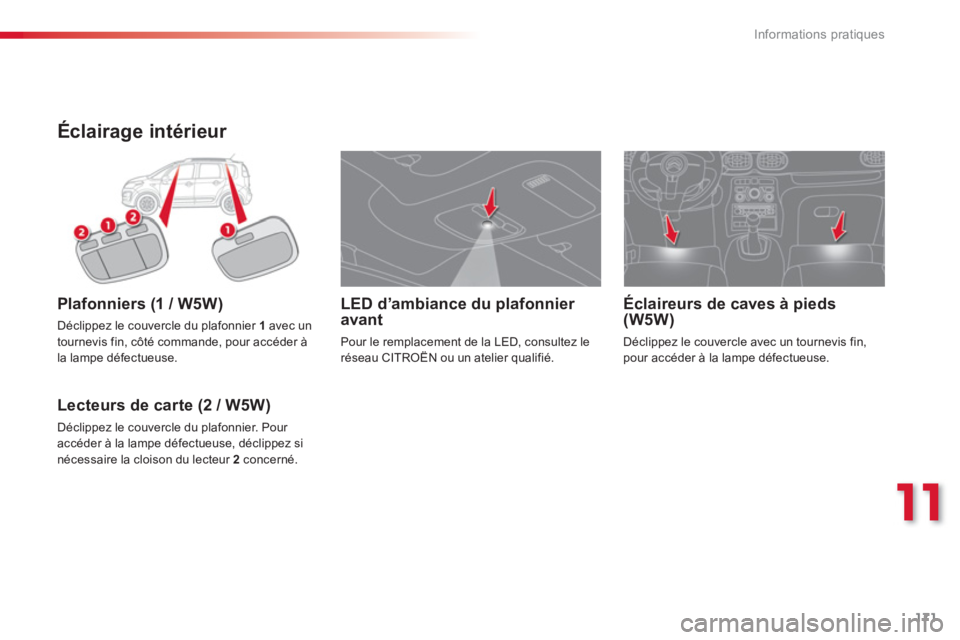

Éclairage intérieur

Plafonniers (1 / W5W)

Déclippez le couvercle du plafonnier 1avec un
tournevis fin, côté commande, pour accéder à
la lampe défectueuse

Page 174 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) Informations pratiques
172

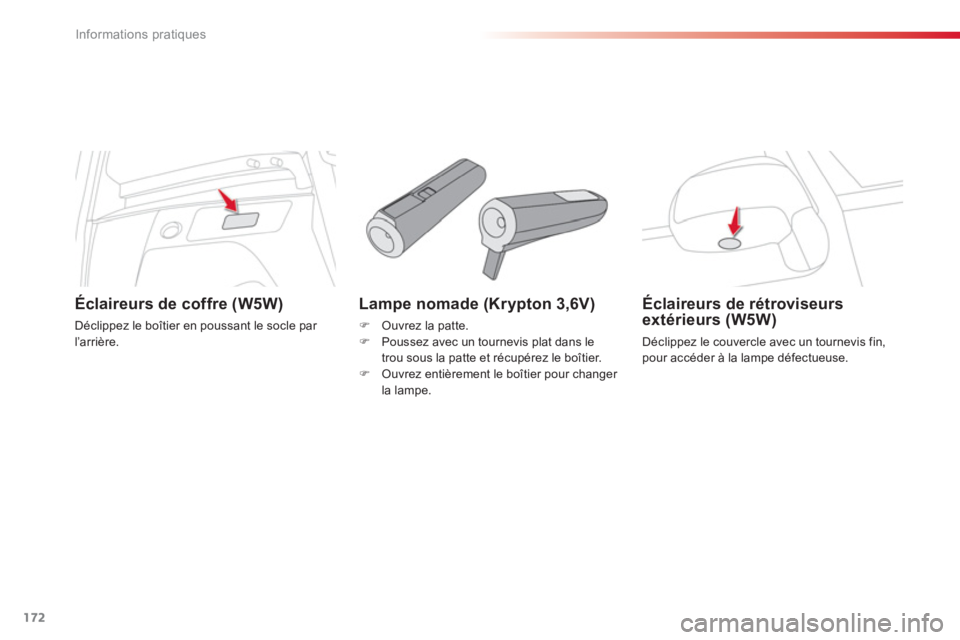

Lampe nomade (Krypton 3,6V)
�)Ouvrez la patte.�)Poussez avec un tournevis plat dans le
trou sous la patte et récupérez le boîtier. �)Ouvrez entièrement le boîtier pour

Page 175 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) 11
Informations pratiques
173

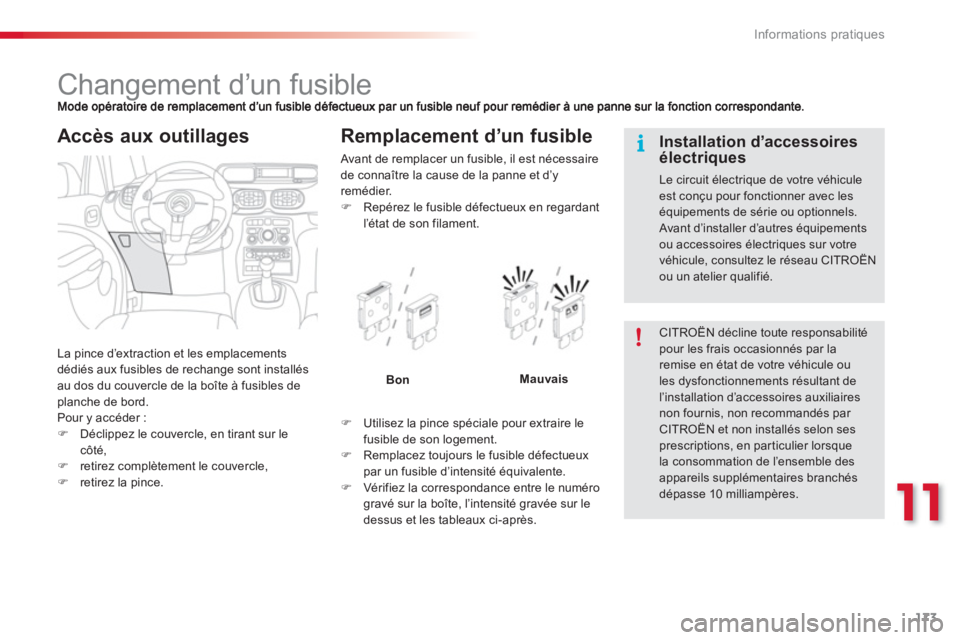

Changement d’un fusible

La pince d’extraction et les emplacements
dédiés aux fusibles de rechange sont installés au do

Page 176 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) Informations pratiques
174

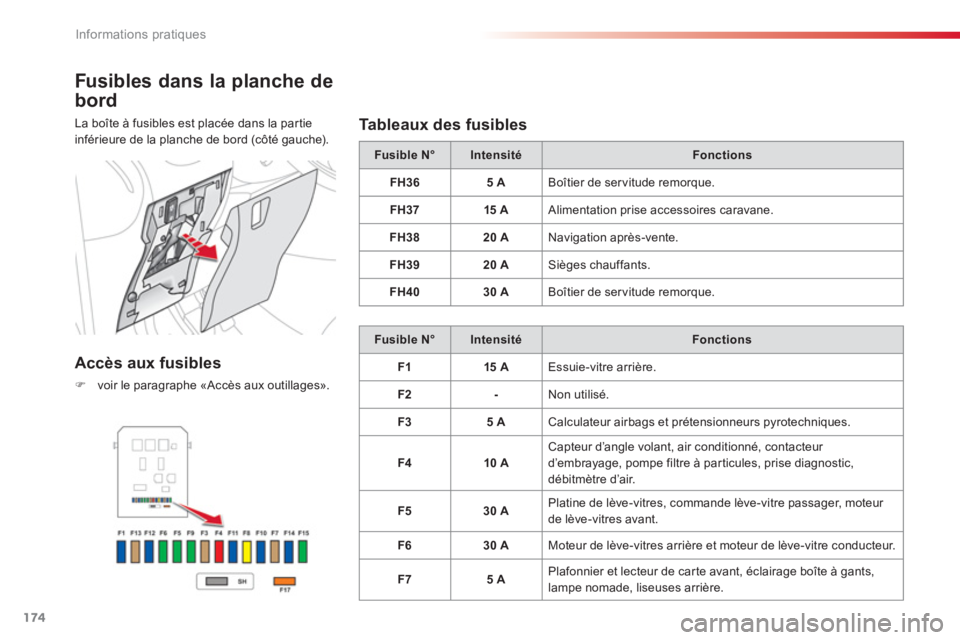

Fusibles dans la planche de
bord

La boîte à fusibles est placée dans la partie
inférieure de la planche de bord (côté gauche).

Accès aux fusibles
�)

Page 177 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) 11
Informations pratiques
175

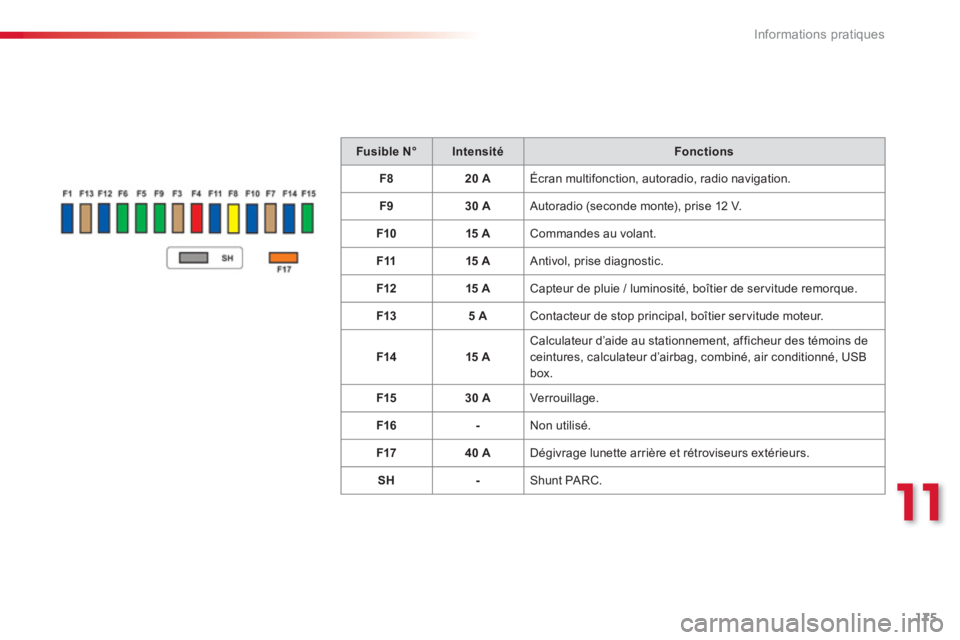

Fusible N°IntensitéFonctions
F
820 A  Écran multifonction, autoradio, radio navigation.
F
930 A  Autoradio (seconde monte), prise 12 V.
F1
015 A Commandes au volant.

Page 178 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) Informations pratiques
176

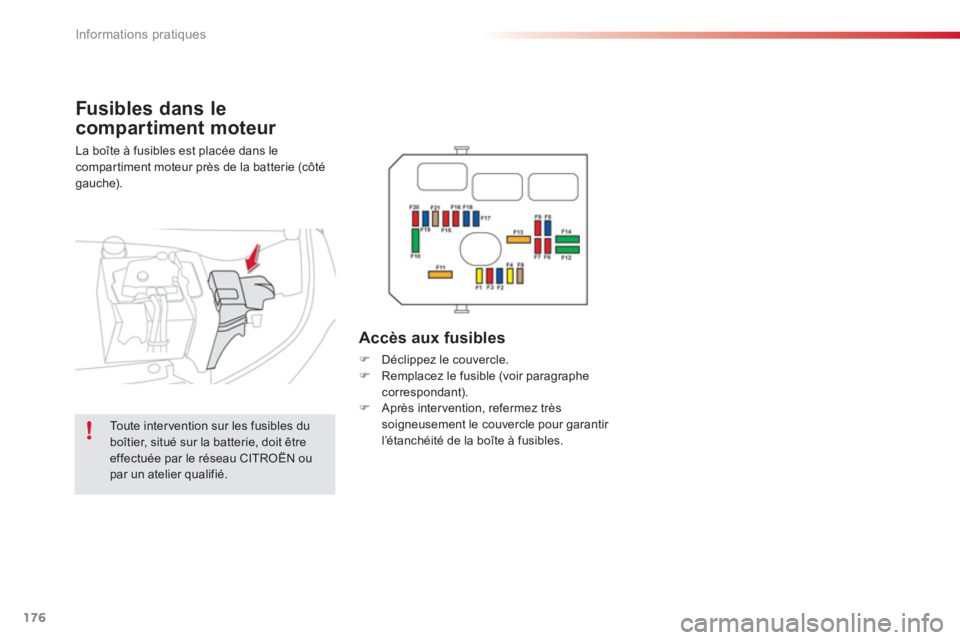

Fusibles dans le
compartiment moteur
La boîte à fusibles est placée dans lecompartiment moteur près de la batterie (côté gauche).

Accès aux fusibles
�)
  Décl

Page 179 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) 11
Informations pratiques
177

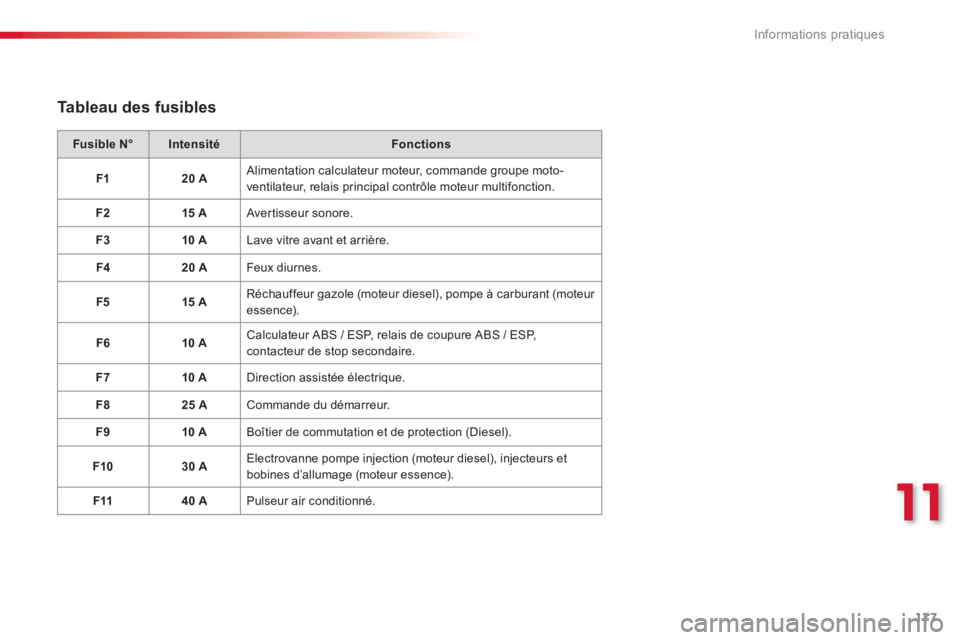

Tableau des fusibles
Fusible N°IntensitéFonctions
F
120 A Alimentation calculateur moteur, commande groupe moto-
ventilateur, relais principal contrôle moteur mult

Page 180 of 290

CITROEN C3 PICASSO 2014  Notices Demploi (in French) Informations pratiques
178

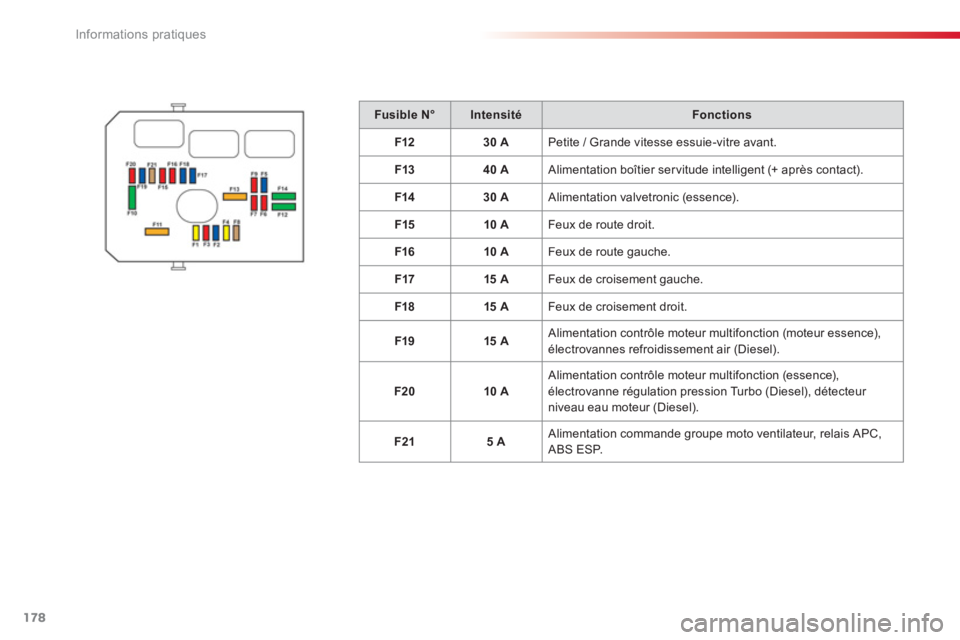

Fusible N°IntensitéFonctions
F1230 A  Petite / Grande vitesse essuie-vitre avant.
F13
40 A  Alimentation boîtier ser vitude intelligent (+ après contact).
F14
30 A  Ali
