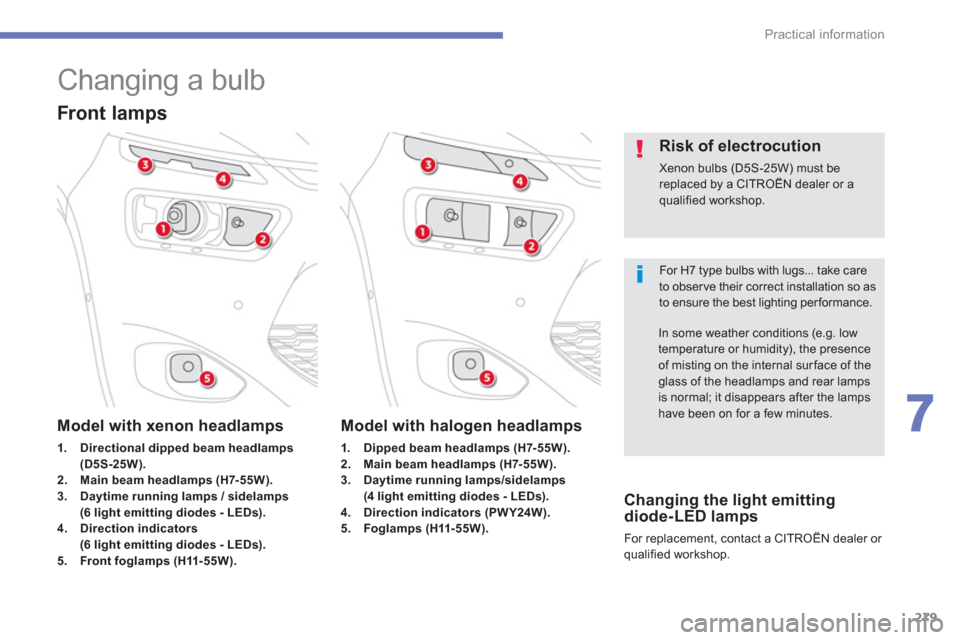

Citroen C4 PICASSO RHD 2013 1.G Owner's Manual

279
7
Practical information











Changing a bulb

For H7 type bulbs with lugs... take care to observe their correct installation so asto ensure the best lighting performance.


Risk of electrocution

Xenon bulbs (D5S-25W) must be replaced by a CITROËN dealer or aqualified workshop.



Front lamps
Model with xenon headlamps
1.Directional dipped beam headlamps(D5S-25W).2.Main beam headlamps(H7-55W).3.Daytime running lamps / sidelamps (6 light emitting diodes - LEDs).4.Direction indicators(6 light emitting diodes - LEDs).5.Front foglamps(H11- 55W).
Model with halogen headlamps
1.Dipped beam headlamps (H7-55W).2.Main beam headlamps (H7-55W).3.Daytime running lamps/sidelamps(4 light emitting diodes - LEDs).4.
Direction indicators (PWY24W).5.Foglamps(H11- 55W).

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal surface of the glass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.



Changing the light emitting diode-LED lamps

For replacement, contact a CITROËN dealer or qualified workshop.

280
Practical information
Directional dipped beam
headlamps (xenon model)





Main beam headlamps (xenon model)
)Remove the protective plastic cover bypulling the tab.)Push the connector. )Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

D5S xenon bulbs must be changed by a CITRO

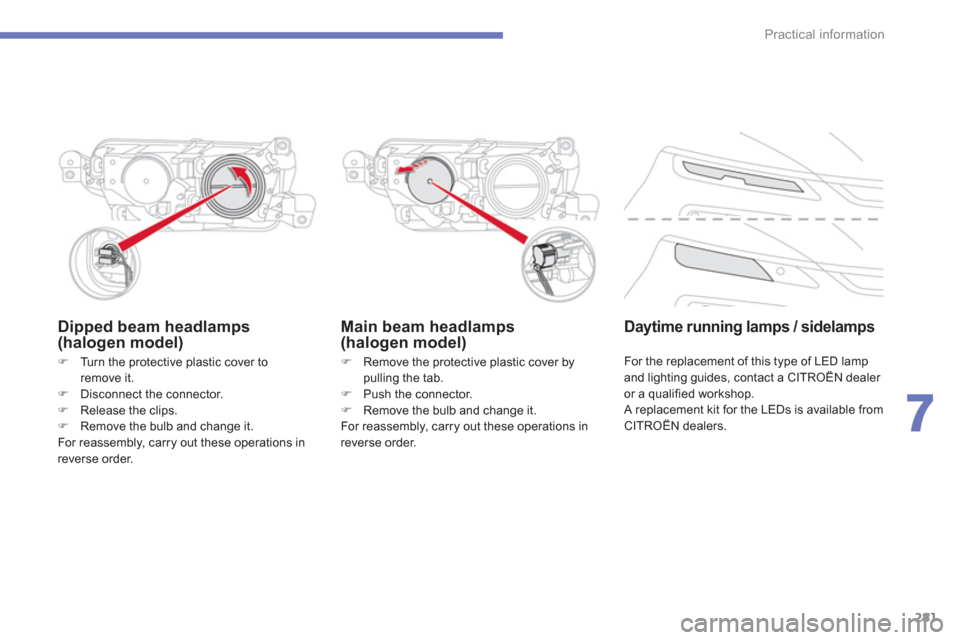

281
7
Practical information
Dipped beam headlamps (halogen model)
)
Remove the protective plastic cover by
pulling the tab.
) Push the connector. )
Remove the bulb and change it.
For reassembly, carry out these operations in reverse order.
Main beam headlamps(halogen model)
) Turn the protective plastic cover to
remove it. ) Disconnect the connector. )
Release the clips. )
Remove the bulb and change it.
For reassembly, carry out these operations in reverse order.
Daytime running lamps / sidelamps

For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer or a qualified workshop.
A replacement kit for the LEDs is available fromCITROËN dealers.

282
Practical information
The direction indicator bulb is located below thefront lamp. )Turn the bulb holder a quar ter turn anti-clockwise. )Remove the bulb holder. )Change the failed bulb.For reassembly, carry out these operations in reverse order.

Direction indicators Front foglamps
)Unclip the finisher by pulling at the top.)Remove the two screws to remove the unit. )Turn the bulb holder a quar ter turn. )Remove the bulb holder. )Change the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.


Faster flashing of a direction indicator warning lamp (left or right) indicates afailed bulb on that side.
Direction indicators (lightemitting diodes - LED)

For the replacement of this type of lamp, contact a CITROËN dealer or a qualified
workshop.

283
7
Practical information
You should contact a CITROËN dealer or a qualified workshop for the replacement of the
light emitting diode - LED.
Door mirror spotlamps
Integrated direction indicator
side repeaters
You should contact a CITROËN dealer or a qualified workshop for the replacement of these bulbs.
1. Direction indicator
(PY21W amber).2. Sidelamp / foglamp (P21/5W).
Rear lamps


Changing the light emitting diode-LED lamps

For replacement, contact a CITROËNdealer or qualified workshop.
3. Brake lamp / sidelamp (light emittingdiodes-LED).4. Reversing lamp (W16W).5. Direction indicator (PY21W).
Model with LED lamps
3. Brake lamp / sidelamp (P21/5W).4. Reversing lamp (W16W).5. Direction indicator (PY21W).

Model with conventional bulb lamps

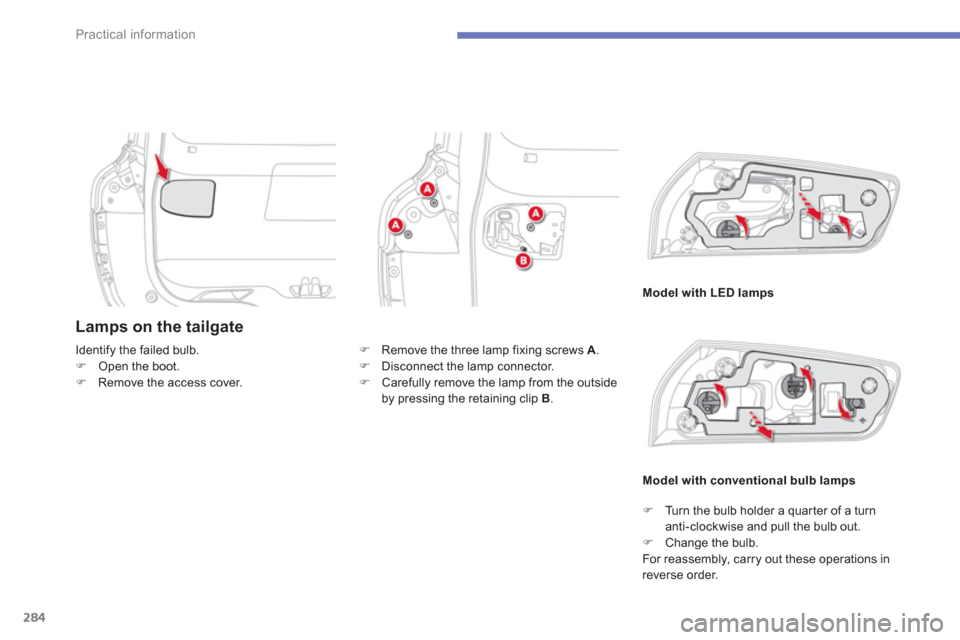

284
Practical information
Lamps on the tailgate
Model with LED lamps
Identi
fy the failed bulb.)Open the boot.)Remove the access cover.
Model with conventional bulb lamp
s
) Remove the three lamp fixing screws A . )
Disconnect the lamp connector. )
Carefully remove the lamp from the outsideby pressing the retaining clip B.
)Turn the bulb holder a quarter of a turnanti-clockwise and pull the bulb out.)Change the bulb.
For reassembly, carry out these operations in
reverse order.

285
7
Practical information
1. Direction indicator (PY21W amber).2. Sidelamp / foglamp (P21/5W).
Rear lamps
3. Sidelamp (light emitting diodes-LED).4. Brake lamp (light emitting diodes-LED).5. Direction indicator (PY21W).6. Reversing lamp (light emitting
diodes-LED).
Model with LED lamps
3. Sidelamp (P21/5W).4. Brake lamp / sidelamp (P21/5W).5. Direction indicator (PY21W).6. Reversing lamp (P21W).
Model with conventional bulb lamps

286
Practical information
















Lamps on the tailgateModel with LED lamps
Model with conventional bulb lam
ps
Identify the failed bulb.)Open the boot.)Remove the access cover.
) Remove the three lamp fixing screws A.)
Disconnect the lamp connector. )
Carefully remove the lamp from its housing. )
Turn the bulb holder a quar ter of a turn
anti-clockwise and pull the bulb out.
) Change the bulb.
For reassembly, carry out these operations in reverse order.

287
7
Practical information
Direction indicator, sidelamp andfoglamp
Access is by passing a hand under the bumper. )Turn the bulb holder a quar ter of a turn andpull it out.)Change the bulb.
For reassembly carry out these operations in
reverse order.
You can also contact a CITRO

288
Practical information
Before changing a fuse: )
the cause of the failure must be identified
and rectified,)
all electrical consumers must b switched off,)
the vehicle must be immobilised with the
ignition off, ) identify the failed fuse using the tables and layout drawings in the following pages.


Changing a fuse
GoodFailed

The replacement of a fuse not shown inthe tables below may cause a seriousmalfunction of your vehicle. Contact a CITROËN dealer or a qualifiedworkshop.
Tweezer





















Changing a fuse
The extraction tweezer is located in the
dashboard fusebox compartment.
F
or access to it: )unclip the cover by pulling at the top right,
then left, )disengage the cover completely, bycarefully pulling in the direction indicated
by the arrow,
)remove the tweezer.

Access to the tools

To replace a fuse, you must:)
use the special tweezer to extract the fuse from its housing and check the condition of
its filament. ) always replace the failed fuse with a fuse of the same rating (same colour); using a
di
fferent rating could cause faults (risk of fire).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITRO
