Page 251 of 308

CITROEN RELAY 2016  Handbook (in English)  249
PrESEntAtIO n
The crew cab is available on van versions and comprises a bench seat, se\
at belts, a storage
space and side windows.
It is separated from the load space and a high-strength partit

Page 252 of 308

CITROEN RELAY 2016  Handbook (in English)  250

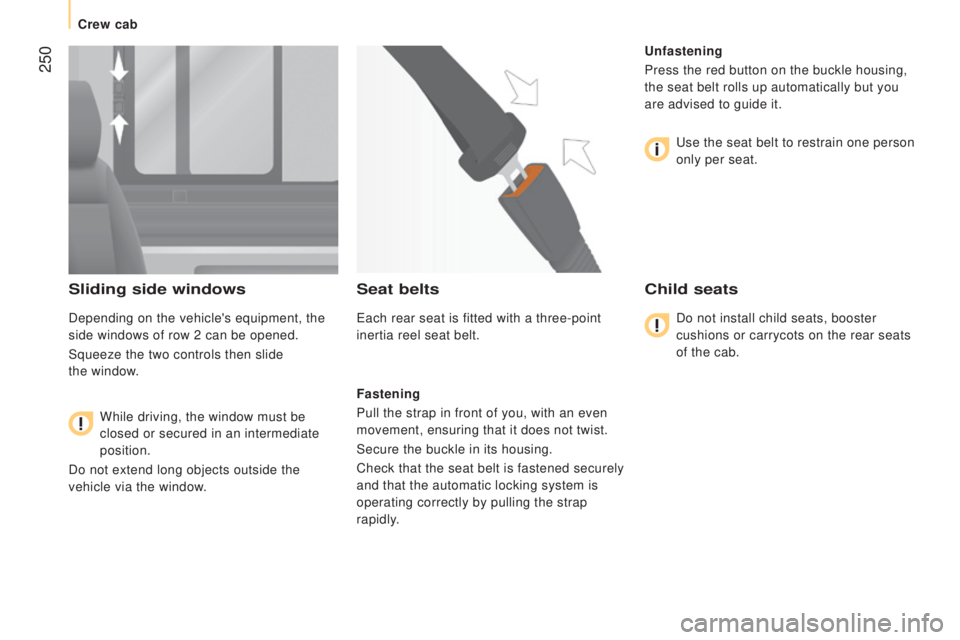

Sliding side windows
Depending on the vehicle's equipment, the
side windows of row 2 can be opened.
Squeeze the two controls then slide
the  window.
 While driving, the window must be


cl

Page 253 of 308

CITROEN RELAY 2016  Handbook (in English)  251
PrESEntAtIO n
Chassis cab and floor cab versions have a cab, a fixed floor and two spe\
cific rear lamp
clusters.
These versions are also available with:
-

a crew cab,
-


a tipper body
 .
ch

Page 254 of 308

CITROEN RELAY 2016  Handbook (in English)  252
dIMEnSIOnS
The dimensions are given in millimetres.
cHASSIS cAB
FLOO r   c AB
L1 L2L2S L3L4
L Overall length 4

908 5

358 5
  708 5
  9436
  208
A Wheelbase 3

000 3

450 3
  800 4
  0354

Page 255 of 308

CITROEN RELAY 2016  Handbook (in English)  253

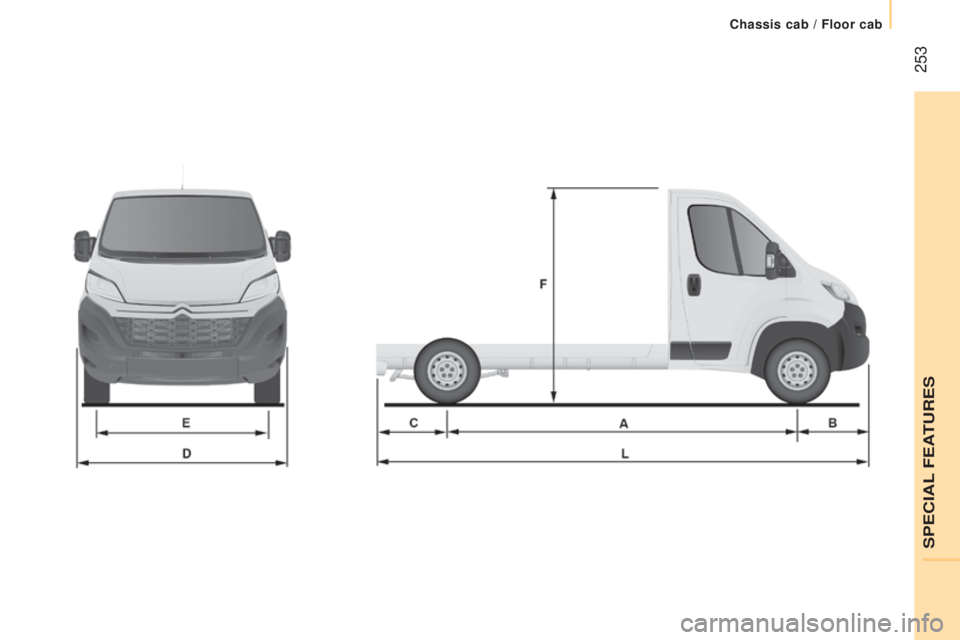

SPECIAL FEATURES
Chassis cab / Floor cab

Page 256 of 308

CITROEN RELAY 2016  Handbook (in English)  254
PrESEntAtIO n

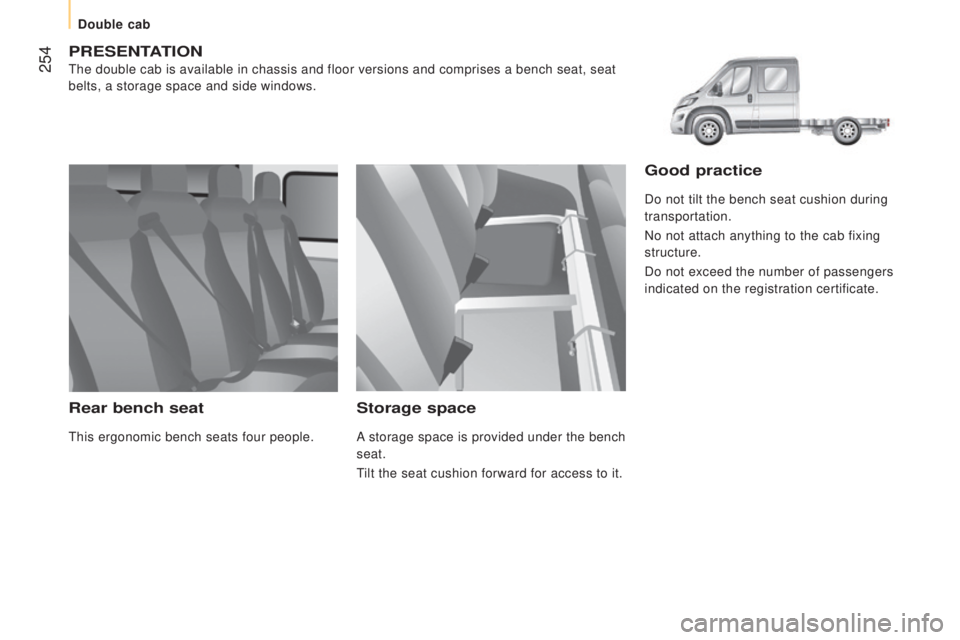

The double cab is available in chassis and floor versions and comprises \
a bench seat, seat
belts, a storage space and side windows.
rear bench seat
This ergonomic bench seats fou

Page 257 of 308

CITROEN RELAY 2016  Handbook (in English)  255

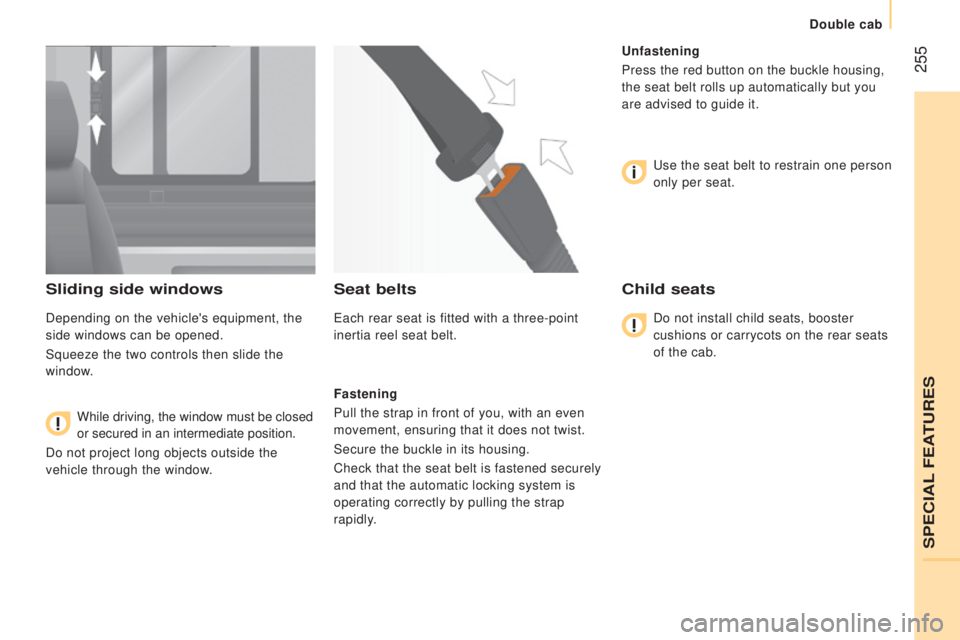

Sliding side windows
Depending on the vehicle's equipment, the
side windows can be opened.
Squeeze the two controls then slide the
window.
 While driving, the window must be closed
or secu

Page 258 of 308

CITROEN RELAY 2016  Handbook (in English)  256
dIMEnSIOnS
The dimensions are given in millimetres.
c
HASSIS  d O u BLE  c AB
FLOO
r   d O u BLE  c AB
L2 L3L4
L Overall length 5 7986 2286 678
A Wheelbase 3 4504 0354 035
B Front overhang 948948

Page 259 of 308

CITROEN RELAY 2016  Handbook (in English)  257

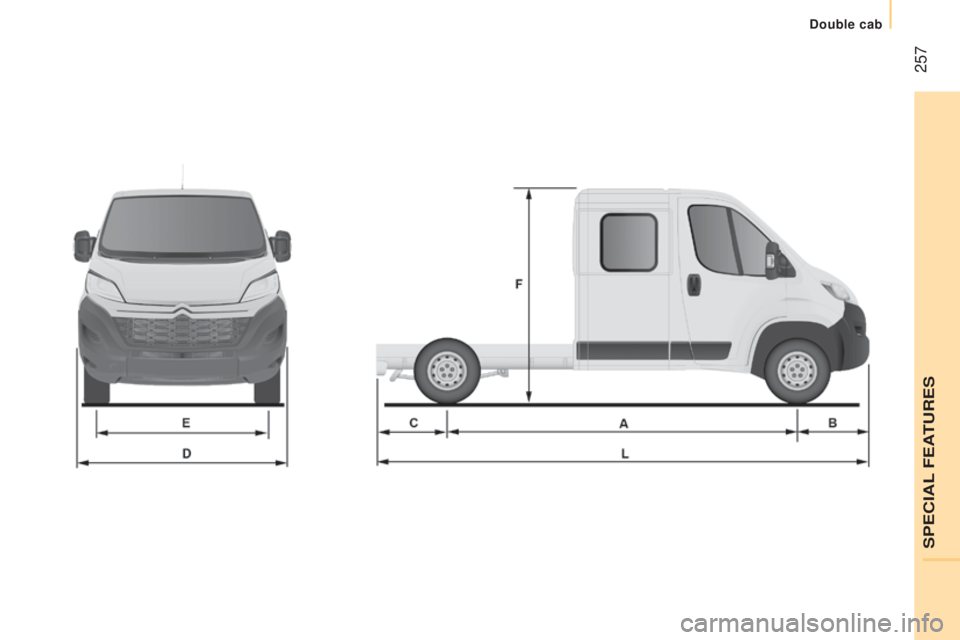

SPECIAL FEATURES
Double cab

Page 260 of 308

CITROEN RELAY 2016  Handbook (in English)  258PrESEntAtIO n
The tipper body is raised by a electro-hydraulic unit powered by the
vehicle's battery.
Raising and lowering the the tipper body done is by pressing and
holding the correspondi
