SERVICING AND MAINTENANCE301
Loading
The vehicle maximum load on the tire must not
exceed the load carrying capacity of the tire on your
vehicle. You will not exceed the tire's load carrying
capacity if you adhere to the loading conditions,
tire size, and cold tire inflation pressures specified
on the Tire and Loading Information placard
Úpage 141.
NOTE:Under a maximum loaded vehicle condition, Gross
Axle Weight Ratings (GAWRs) for the front and rear
axles must not be exceeded.
For further information on GAWRs, vehicle loading,
and trailer towing Ú page 141.
To determine the maximum loading conditions of
your vehicle, locate the statement “The combined
weight of occupants and cargo should never
exceed XXX kg or XXX lbs” on the Tire and Loading
Information placard. The combined weight of
occupants, cargo/luggage and trailer tongue
weight (if applicable) should never exceed the
weight referenced here.
Steps For Determining Correct Load
Limit—
(1) Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs.” on your
vehicle's placard.
(2) Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
(3) Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
(4) The resulting figure equals the
available amount of cargo and luggage
load capacity. For example, if “XXX”
amount equals 1400 lbs. and there will
be five 150 lb passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5x150) = 650 lbs.)
(5) Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4. (6) If your vehicle will be towing a trailer,
load from your trailer will be transferred
to your vehicle. Consult this manual to
determine how this reduces the
available cargo and luggage load
capacity of your vehicle.
Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and
there will be five 68 kg passengers in your vehicle,
the amount of available cargo and luggage load
capacity is 295 kg (635-340 (5x68) = 295 kg) as
shown in step 4.
NOTE:
If your vehicle will be towing a trailer, load from
your trailer will be transferred to your vehicle.
The following table shows examples on how to
calculate total load, cargo/luggage, and towing
capacities of your vehicle with varying seating
configurations and number and size of occu
-
pants. This table is for illustration purposes only
and may not be accurate for the seating and
load carry capacity of your vehicle.
For the following example, the combined weight
of occupants and cargo should never exceed
865 lbs (392 kg).
8

21_WD_OM_EN_USC_t.book Page 301

SERVICING AND MAINTENANCE305
tire condition, please replace the TPMS sensor as
it is not designed to be reused when driven under
a Run Flat mode 14 psi (96 kPa) condition.
NOTE:TPMS Sensor must be replaced after driving the
vehicle on a flat tire condition.
It is not recommended driving a vehicle loaded at
full capacity or to tow a trailer while a tire is in the
Run Flat mode.
For more information Ú page 201.
Tire Spinning
When stuck in mud, sand, snow, or ice conditions,
do not spin your vehicle's wheels above 30 mph
(48 km/h) or for longer than 30 seconds
continuously without stopping.
Tread Wear Indicators
Tread wear indicators are in the original equipment
tires to help you in determining when your tires
should be replaced.

Tire Tread

These indicators are molded into the bottom of the
tread grooves. They will appear as bands when the
tread depth becomes a 1/16 of an inch (1.6 mm).
When the tread is worn to the tread wear
indicators, the tire should be replaced.
Life Of Tire
The service life of a tire is dependent upon varying
factors including, but not limited to:
Driving style
Tire pressure - Improper cold tire inflation pres -
sures can cause uneven wear patterns to
develop across the tire tread. These abnormal
wear patterns will reduce tread life, resulting in
the need for earlier tire replacement.
Distance driven
Performance tires, tires with a speed rating of V
or higher, and Summer tires typically have a
reduced tread life. Rotation of these tires per
the vehicle scheduled maintenance is highly
recommended.
NOTE:Wheel valve stem must be replaced as well when
installing new tires due to wear and tear in existing
tires.
WARNING!
Fast spinning tires can be dangerous. Forces
generated by excessive wheel speeds may
cause tire damage or failure. A tire could
explode and injure someone. Do not spin your
vehicle's wheels faster than 30 mph (48 km/h)
for more than 30 seconds continuously when
you are stuck, and do not let anyone near a
spinning wheel, no matter what the speed.
1 — Worn Tire
2 — New TireWARNING!
Tires and the spare tire should be replaced after
six years, regardless of the remaining tread.
Failure to follow this warning can result in
sudden tire failure. You could lose control and
have a collision resulting in serious injury or
death.
8

21_WD_OM_EN_USC_t.book Page 305

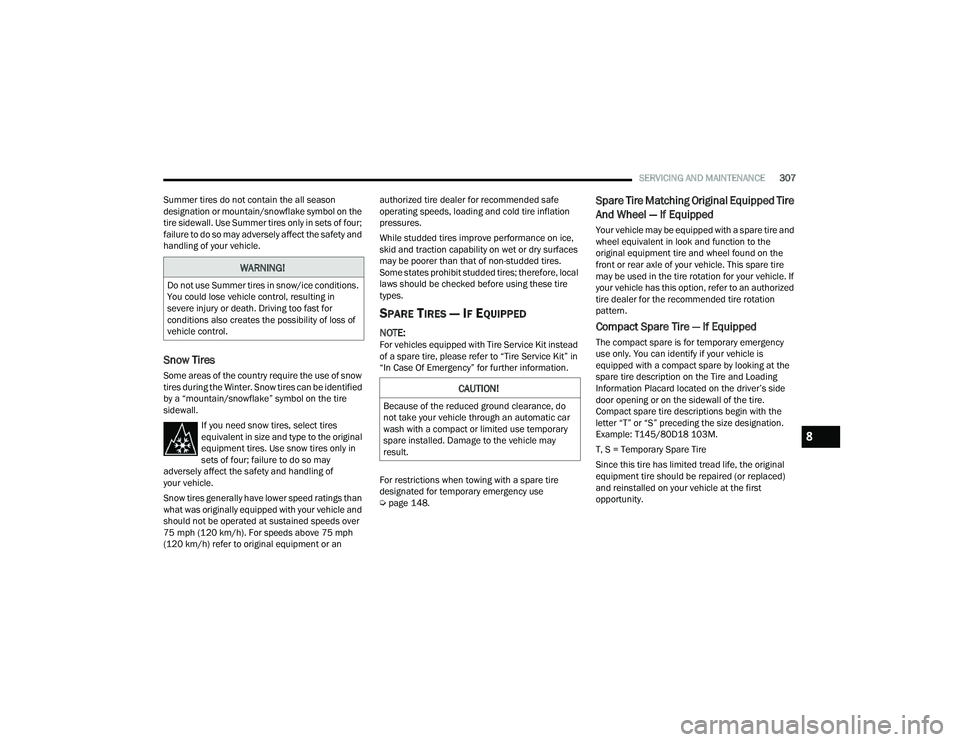

SERVICING AND MAINTENANCE307
Summer tires do not contain the all season
designation or mountain/snowflake symbol on the
tire sidewall. Use Summer tires only in sets of four;
failure to do so may adversely affect the safety and
handling of your vehicle.
Snow Tires
Some areas of the country require the use of snow
tires during the Winter. Snow tires can be identified
by a “mountain/snowflake” symbol on the tire
sidewall. If you need snow tires, select tires
equivalent in size and type to the original
equipment tires. Use snow tires only in
sets of four; failure to do so may
adversely affect the safety and handling of
your vehicle.
Snow tires generally have lower speed ratings than
what was originally equipped with your vehicle and
should not be operated at sustained speeds over
75 mph (120 km/h). For speeds above 75 mph
(120 km/h) refer to original equipment or an authorized tire dealer for recommended safe
operating speeds, loading and cold tire inflation
pressures.
While studded tires improve performance on ice,
skid and traction capability on wet or dry surfaces
may be poorer than that of non-studded tires.
Some states prohibit studded tires; therefore, local
laws should be checked before using these tire
types.
SPARE TIRES — IF EQUIPPED
NOTE:For vehicles equipped with Tire Service Kit instead
of a spare tire, please refer to “Tire Service Kit” in
“In Case Of Emergency” for further information.
For restrictions when towing with a spare tire
designated for temporary emergency use
Ú
page 148.
Spare Tire Matching Original Equipped Tire
And Wheel — If Equipped
Your vehicle may be equipped with a spare tire and
wheel equivalent in look and function to the
original equipment tire and wheel found on the
front or rear axle of your vehicle. This spare tire
may be used in the tire rotation for your vehicle. If
your vehicle has this option, refer to an authorized
tire dealer for the recommended tire rotation
pattern.
Compact Spare Tire — If Equipped
The compact spare is for temporary emergency
use only. You can identify if your vehicle is
equipped with a compact spare by looking at the
spare tire description on the Tire and Loading
Information Placard located on the driver’s side
door opening or on the sidewall of the tire.
Compact spare tire descriptions begin with the
letter “T” or “S” preceding the size designation.
Example: T145/80D18 103M.
T, S = Temporary Spare Tire
Since this tire has limited tread life, the original
equipment tire should be repaired (or replaced)
and reinstalled on your vehicle at the first
opportunity.
WARNING!
Do not use Summer tires in snow/ice conditions.
You could lose vehicle control, resulting in
severe injury or death. Driving too fast for
conditions also creates the possibility of loss of
vehicle control.
CAUTION!
Because of the reduced ground clearance, do
not take your vehicle through an automatic car
wash with a compact or limited use temporary
spare installed. Damage to the vehicle may
result.
8

21_WD_OM_EN_USC_t.book Page 307

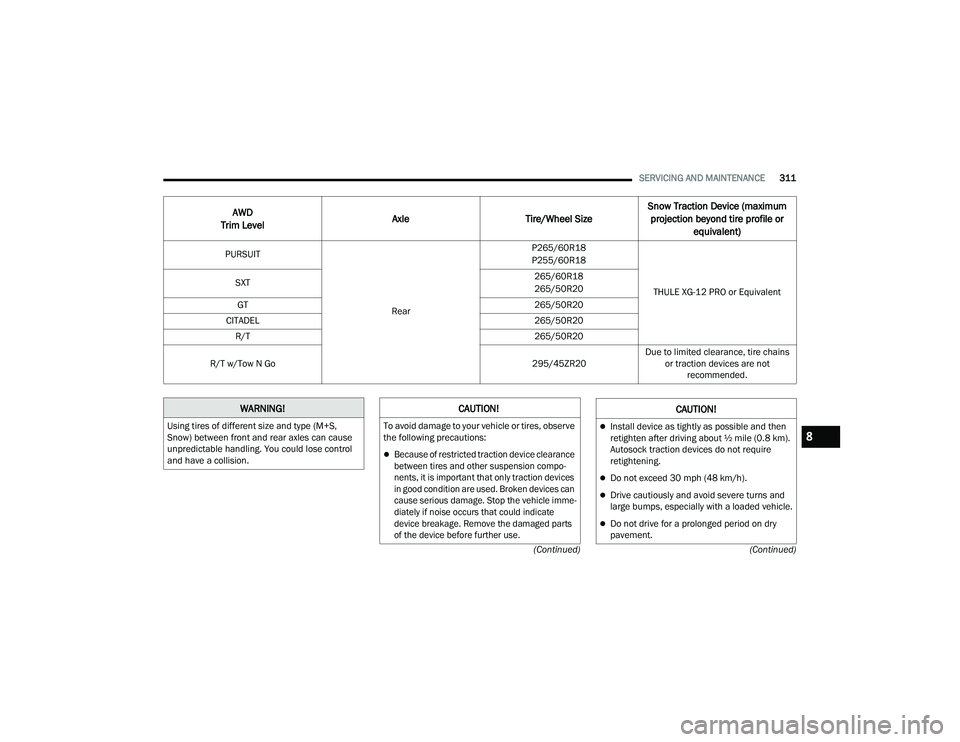

SERVICING AND MAINTENANCE311
(Continued)
(Continued)
AWD
Trim Level Axle
Tire/Wheel SizeSnow Traction Device (maximum
projection beyond tire profile or equivalent)
PURSUIT
RearP265/60R18
P255/60R18
THULE XG-12 PRO or Equivalent
SXT
265/60R18
265/50R20
GT 265/50R20
CITADEL 265/50R20
R/T 265/50R20
R/T w/Tow N Go 295/45ZR20Due to limited clearance, tire chains
or traction devices are not recommended.
WARNING!
Using tires of different size and type (M+S,
Snow) between front and rear axles can cause
unpredictable handling. You could lose control
and have a collision.
CAUTION!
To avoid damage to your vehicle or tires, observe
the following precautions:

Because of restricted traction device clearance
between tires and other suspension compo -
nents, it is important that only traction devices
in good condition are used. Broken devices can
cause serious damage. Stop the vehicle imme -
diately if noise occurs that could indicate
device breakage. Remove the damaged parts
of the device before further use.

Install device as tightly as possible and then
retighten after driving about ½ mile (0.8 km).
Autosock traction devices do not require
retightening.
Do not exceed 30 mph (48 km/h).
Drive cautiously and avoid severe turns and
large bumps, especially with a loaded vehicle.
Do not drive for a prolonged period on dry
pavement.
CAUTION!
8

21_WD_OM_EN_USC_t.book Page 311

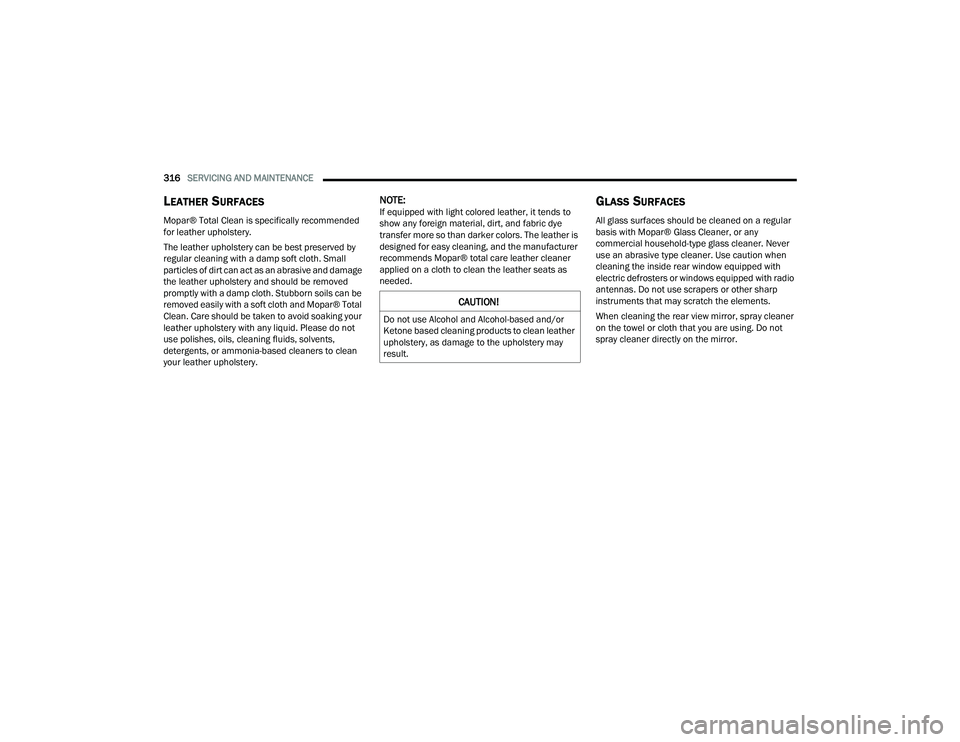

316SERVICING AND MAINTENANCE
LEATHER SURFACES
Mopar® Total Clean is specifically recommended
for leather upholstery.
The leather upholstery can be best preserved by
regular cleaning with a damp soft cloth. Small
particles of dirt can act as an abrasive and damage
the leather upholstery and should be removed
promptly with a damp cloth. Stubborn soils can be
removed easily with a soft cloth and Mopar® Total
Clean. Care should be taken to avoid soaking your
leather upholstery with any liquid. Please do not
use polishes, oils, cleaning fluids, solvents,
detergents, or ammonia-based cleaners to clean
your leather upholstery.
NOTE:If equipped with light colored leather, it tends to
show any foreign material, dirt, and fabric dye
transfer more so than darker colors. The leather is
designed for easy cleaning, and the manufacturer
recommends Mopar® total care leather cleaner
applied on a cloth to clean the leather seats as
needed.GLASS SURFACES
All glass surfaces should be cleaned on a regular
basis with Mopar® Glass Cleaner, or any
commercial household-type glass cleaner. Never
use an abrasive type cleaner. Use caution when
cleaning the inside rear window equipped with
electric defrosters or windows equipped with radio
antennas. Do not use scrapers or other sharp
instruments that may scratch the elements.
When cleaning the rear view mirror, spray cleaner
on the towel or cloth that you are using. Do not
spray cleaner directly on the mirror.
CAUTION!
Do not use Alcohol and Alcohol-based and/or
Ketone based cleaning products to clean leather
upholstery, as damage to the upholstery may
result.

21_WD_OM_EN_USC_t.book Page 316

TECHNICAL SPECIFICATIONS321
FLUID CAPACITIES
US Metric
Fuel (Approximate)
3.6L and 5.7L Engines 24.6 Gallons93.0 Liters
Engine Oil With Filter
3.6L Engine 6 Quarts5.6 Liters
5.7L Engine 7 Quarts6.6 Liters
Cooling System *
3.6L Engine – Without Trailer Tow Package 10.4 Quarts9.9 Liters
3.6L Engine – With Trailer Tow Package 11 Quarts10.4 Liters
5.7L Engine – Without Trailer Tow Package 15.4 Quarts14.6 Liters
5.7L Engine – With Trailer Tow Package 16 Quarts15.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
9

21_WD_OM_EN_USC_t.book Page 321

329
B
Battery
.................................................... 92, 270Charging System Light................................. 92Keyless Key Fob Replacement.................... 15Battery Saver Feature...................................... 52Belts, Seat..................................................... 239Blind Spot Monitoring.................................... 195Body Mechanism Lubrication........................ 276B-Pillar Location............................................. 300Brake Assist System...................................... 190Brake Control System, Electronic.................. 190Brake Fluid.......................................... 283, 323Brake System...................................... 283, 317Anti-Lock (ABS).......................................... 317Fluid Check............................................... 283Master Cylinder......................................... 283Parking...................................................... 105Warning Light.............................................. 91Brake/Transmission Interlock....................... 107Bulb Replacement............................... 293, 294Bulbs, Light.................................................... 241
C
Camera, Rear................................................ 139Capacities, Fluid............................................ 321Caps, Filler Oil (Engine)................................................ 268Radiator (Coolant Pressure)...................... 282Car Washes................................................... 314
Carbon Monoxide Warning................... 241, 242Cargo Area Cover............................................. 76Cargo Compartment........................................ 76Light............................................................ 76Luggage Carrier........................................... 77Cargo Light....................................................... 76Cargo Tie-Downs.............................................. 77Cellular Phone.............................................. 188Center High Mounted Stop Light................... 295Certification Label......................................... 141Chains, Tire................................................... 310Chart, Tire Sizing........................................... 296Check Engine Light
(Malfunction Indicator Light)......................... 100Checking Your Vehicle For Safety................. 239Checks, Safety.............................................. 239Child Restraint.............................................. 223Child RestraintsBooster Seats........................................... 225Child Seat Installation.............................. 236How To Stow An unused ALR Seat Belt.............................................. 233Infant And Child Restraints....................... 224Locating The LATCH Anchorages.............. 229Lower Anchors And Tethers For Children................................................ 226Older Children And Child Restraints......... 225Seating Positions...................................... 226
Child Safety Locks............................................26Clean Air Gasoline......................................... 319CleaningWheels...................................................... 309Climate Control................................................55Automatic....................................................55Cold Weather Operation................................ 104Compact Spare Tire...................................... 307Contract, Service........................................... 325Cooling Pressure Cap (Radiator Cap)............ 282Cooling System............................................. 280Adding Coolant (Antifreeze)...................... 281Cooling Capacity....................................... 321Disposal Of Used Coolant......................... 282Drain, Flush, And Refill............................. 281Inspection................................................. 281Points To Remember................................ 283Pressure Cap............................................ 282Radiator Cap............................................. 282Selection Of Coolant (Antifreeze)......................... 281, 321, 322Corrosion Protection..................................... 313Cruise Control (Speed Control)............. 119, 121Cruise Light............................................... 97, 98Customer Assistance.................................... 324Cybersecurity................................................ 158
11

21_WD_OM_EN_USC_t.book Page 329

330 D
Daytime Running Lights
................................... 49Defroster, Windshield.................................... 240De-Icer, Remote Start...................................... 21Diagnostic System, Onboard........................... 99Dipsticks Oil (Engine)................................................ 270Disabled Vehicle Towing................................ 261DisposalAntifreeze (Engine Coolant)....................... 282Door Ajar................................................... 92, 93Door Ajar Light.......................................... 92, 93Door Locks............................................... 22, 26Child-Protection Door Lock —Rear Doors.............................................. 26Doors............................................................... 22Driver’s Seat Back Tilt.............................. 29, 30Driving........................................................... 156DVD Player (Video Entertainment System).... 178
E
Economy (Fuel) Mode.................................... 107Electric Brake Control System....................... 190Anti-Lock Brake System............................. 189Electronic Roll Mitigation................. 191, 194Electric Remote Mirrors................................... 44Electrical Outlet, Auxiliary (Power Outlet)......... 68Electronic Speed Control (Cruise Control)...... 120Electronic Stability Control (ESC)...................191Electronic Throttle Control Warning Light........ 92
Electronically Shifted Transfer Case............. 112Emergency Gas Can Refueling...................... 257Emergency, In Case OfFreeing Vehicle When Stuck..................... 260Hazard Warning Flasher........................... 243Jacking..................................................... 247Jump Starting........................................... 255Emission Control System Maintenance........ 100Engine........................................................... 268Air Cleaner................................................ 272Block Heater............................................. 104Break-In Recommendations..................... 104Checking Oil Level.................................... 270Compartment.................................. 268, 269Compartment Identification............. 268, 269Cooling..................................................... 280Exhaust Gas Caution....................... 241, 242Fails To Start............................................ 103Flooded, Starting...................................... 103Fuel Requirements.......................... 318, 321Jump Starting........................................... 255Oil.................................................... 271, 321Oil Filler Cap............................................. 268Oil Filter.................................................... 272Oil Selection........................... 271, 321, 322Oil Synthetic............................................. 272Overheating.............................................. 258Starting..................................................... 101Enhanced Accident Response
Feature................................................ 221, 263
Ethanol.......................................................... 319Exhaust Gas Cautions.......................... 241, 242Exhaust System................................... 241, 279Exterior Lights............................... 48, 241, 293
F
FiltersAir Cleaner
................................................ 272Air Conditioning........................ 63, 273, 274Engine Oil................................................. 272Engine Oil Disposal................................... 272Flashers........................................................ 243Hazard Warning........................................ 243Turn Signals.............................. 98, 241, 294Flash-To-Pass...................................................50Flooded Engine Starting................................ 103Fluid Capacities............................................ 321Fluid Leaks.................................................... 241Fluid Level ChecksBrake........................................................ 283Engine Oil................................................. 270Fluids And Lubricants.................................... 323Fog Lights..................................................... 294Fog Lights, Service........................................ 294Fold-Flat Seats.................................................29Folding Rear Seats...........................................31Forward Collision Warning............................ 199Four-Way Hazard Flasher.............................. 243Freeing A Stuck Vehicle................................. 260Front Axle (Differential)................................. 285

21_WD_OM_EN_USC_t.book Page 330

331
Fuel
............................................................... 318Additives................................................... 319Clean Air.................................................... 319Economy Mode.......................................... 107Ethanol...................................................... 319Gasoline.................................................... 318Materials Added........................................ 319Methanol................................................... 319Octane Rating........................................... 318Requirements................................. 318, 321Specifications............................................ 322Tank Capacity............................................ 321Fueling........................................................... 140Fuses............................................................. 286
G
Garage Door Opener (HomeLink).................... 45Gasoline, (Fuel)............................................. 318Gasoline, Clean Air........................................ 319Gasoline, Reformulated................................. 319Gear Ranges.................................................. 108Getting to Know Your Instrument Cluster........ 82Glass Cleaning............................................... 316Gross Axle Weight Rating............................... 143Gross Vehicle Weight Rating.......................... 142GVWR............................................................ 141
H
Hazard Warning Flashers.............................. 243Head Restraints............................................... 39Headlights Automatic.................................................... 50Cleaning................................................... 314High Beam/Low Beam Select Switch.......... 49Lights On Reminder..................................... 51On With Wipers............................................ 50Passing........................................................ 50Heated Mirrors................................................. 44Heated Seats................................................... 37Heated Steering Wheel.................................... 27Heater, Engine Block.................................... 104Hill Start Assist.............................................. 193HitchesTrailer Towing........................................... 145HomeLink (Garage Door Opener)..................... 45Hood Prop........................................................ 74Hood Release.................................................. 74
I
Ignition............................................................. 17Key Fob Battery Low Or Dead...................... 17Key Fob Not Detected................................. 17Keyless Ignition........................................... 17Keyless Push Button................................... 17Push Button Ignition.................................... 17Switch.......................................................... 17
Immobilizer (Sentry Key)..................................16Indicator lightBlue.............................................................98Green...........................................................97White...........................................................98Yellow..........................................................97Inside Rearview Mirror.................... 42, 43, 243Instrument Cluster....................................82, 83Display.................................................. 83, 86Menu Items.................................................87Instrument Cluster DisplayAudio...........................................................88Driver Assist.................................................88Fuel Economy..............................................88Messages....................................................88Screen Setup...............................................89Speedometer...............................................87Stop Start....................................................88Trailer Tow...................................................88Trip..............................................................88Vehicle Info..................................................87Instrument Panel Lens Cleaning................... 315Integrated Trailer Brake Control.................... 149Interior And Instrument Lights.........................52Interior Appearance Care.............................. 315Interior Lights...................................................52Intermittent Wipers (Delay Wipers)..................53InverterPower...........................................................70iPod/USB/MP3 Control....................................67
11

21_WD_OM_EN_USC_t.book Page 331

332 J
Jack Location
................................................. 248Jack Operation............................................... 251Jacking And Tire Changing Instructions......... 247Jacking Instructions....................................... 251Jump Starting................................................ 255
K
Key Fob........................................................... 14Arm The System.......................................... 21Disarm The System..................................... 21Programming Additional Key Fobs.............. 16Key Fob Battery Service
(Remote Keyless Entry)................................... 15Key Fob Programming
(Remote Keyless Entry)................................... 16Keyless Enter 'n Go™ Passive Entry............................................... 23Passive Entry Programming......................... 23Keys................................................................. 14Replacement............................................... 16Sentry (Immobilizer).................................... 16
L
Lane Change Assist......................................... 51LaneSense.................................................... 136Lap/Shoulder Belts....................................... 206Latches.......................................................... 241Hood........................................................... 74Lead Free Gasoline........................................ 318
Leaks, Fluid.................................................. 241Life Of Tires................................................... 305Liftgate............................................................ 75Liftgate Window Wiper/Washer....................... 55Light Bulbs.................................................... 241Lights............................................................ 241Adaptive Cruise Control............................... 97Air Bag...................................... 91, 211, 240All Wheel Drive............................................ 97Automatic Headlights.................................. 50Brake Assist Warning............................... 193Brake Warning............................................. 91Bulb Replacement........................... 293, 294Cargo........................................................... 76Center Mounted Stop............................... 295Cruise................................................... 97, 98Daytime Running......................................... 49Dimmer Switch, Headlight........................... 48Electric Power Steering Fault....................... 92Electronic Stability Control........................... 94Electronic Stability Program(ESP)Indicator.................................................. 93Exterior...............................................48, 241Fog.....................................................97, 294Forward Collision Warning........................... 97Hazard Warning Flasher........................... 243Headlights On With Wipers.......................... 50High Beam................................................... 98High Beam/Low Beam Select...................... 49Hood Open.................................................. 93
Interior.........................................................52LaneSense............................................ 97, 98Lights On Reminder.....................................51Low Fuel......................................................96Low Washer Fluid........................................95Malfunction Indicator (Check Engine)..........94NEUTRAL.....................................................97Oil Temperature...........................................93Park......................................................50, 97Passing........................................................50Reading.......................................................52Rear Servicing.......................................... 294Rear Tail Lamps........................................ 294Seat Belt Reminder.....................................91Security Alarm.............................................94Service............................................. 293, 294Service Adaptive Cruise Control...................96Service AWD................................................96Service Forward Collision Warning...............96Service Stop Start System...........................96Side Marker.............................................. 294Snow Mode..................................................97Sport Mode..................................................98Stop Start Active..........................................98Tow Mode....................................................98Traction Control........................................ 193Trailer Brake Disconnected.........................93Transmission Temperature..........................93Turn Signals....................... 48, 98, 241, 294Vanity Mirror................................................43

21_WD_OM_EN_USC_t.book Page 332
