Page 1091 of 1200

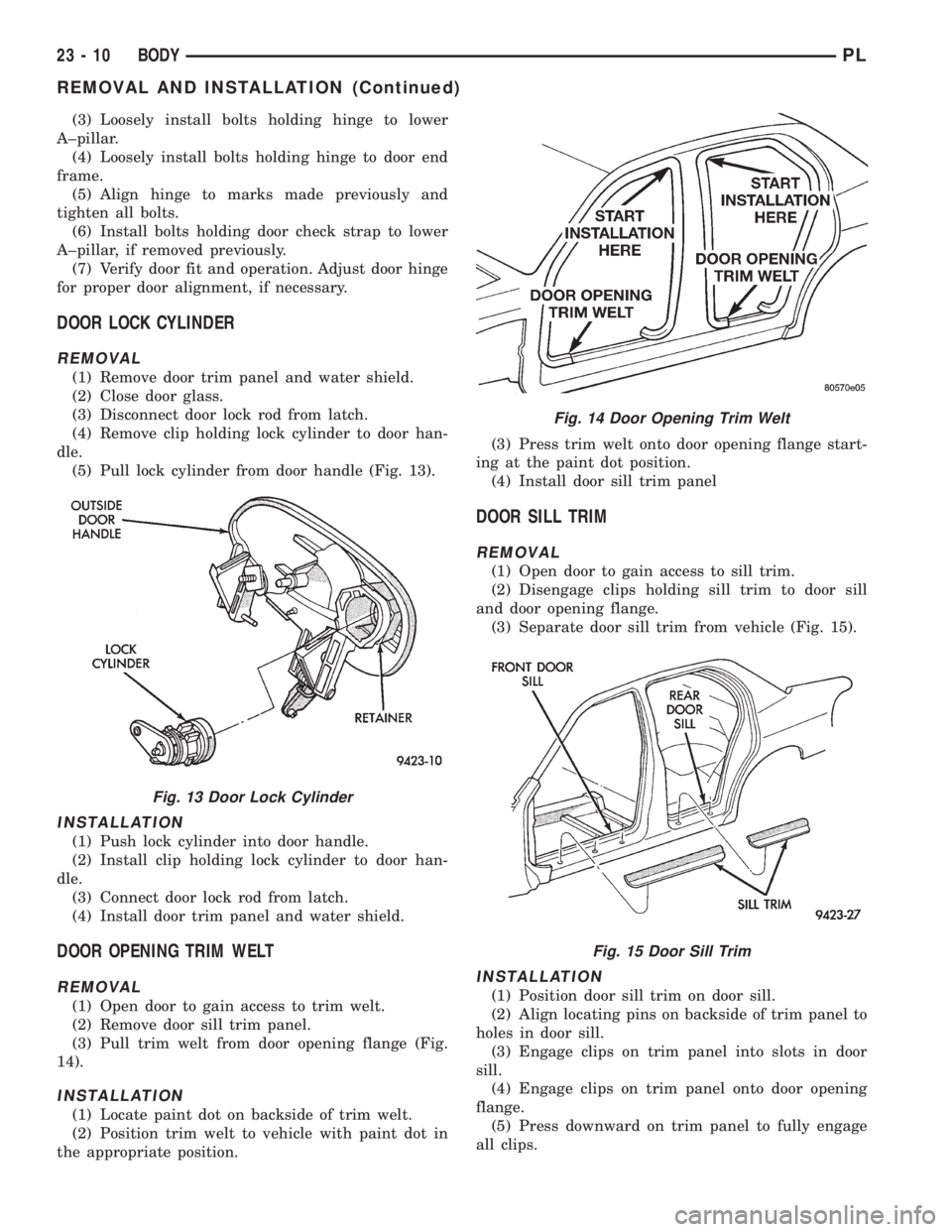

DODGE NEON 1999  Service Repair Manual (3) Loosely install bolts holding hinge to lower
A±pillar.
(4) Loosely install bolts holding hinge to door end
frame.
(5) Align hinge to marks made previously and
tighten all bolts.
(6) Install bolts

Page 1092 of 1200

DODGE NEON 1999  Service Repair Manual FLOOR CONSOLE
REMOVAL
(1) Fully apply parking brake.
(2) Remove screw cover plugs over screws just
rearward of cupholders.
(3) Remove screws holding console to floor bracket
just rearward of cupholder

Page 1093 of 1200

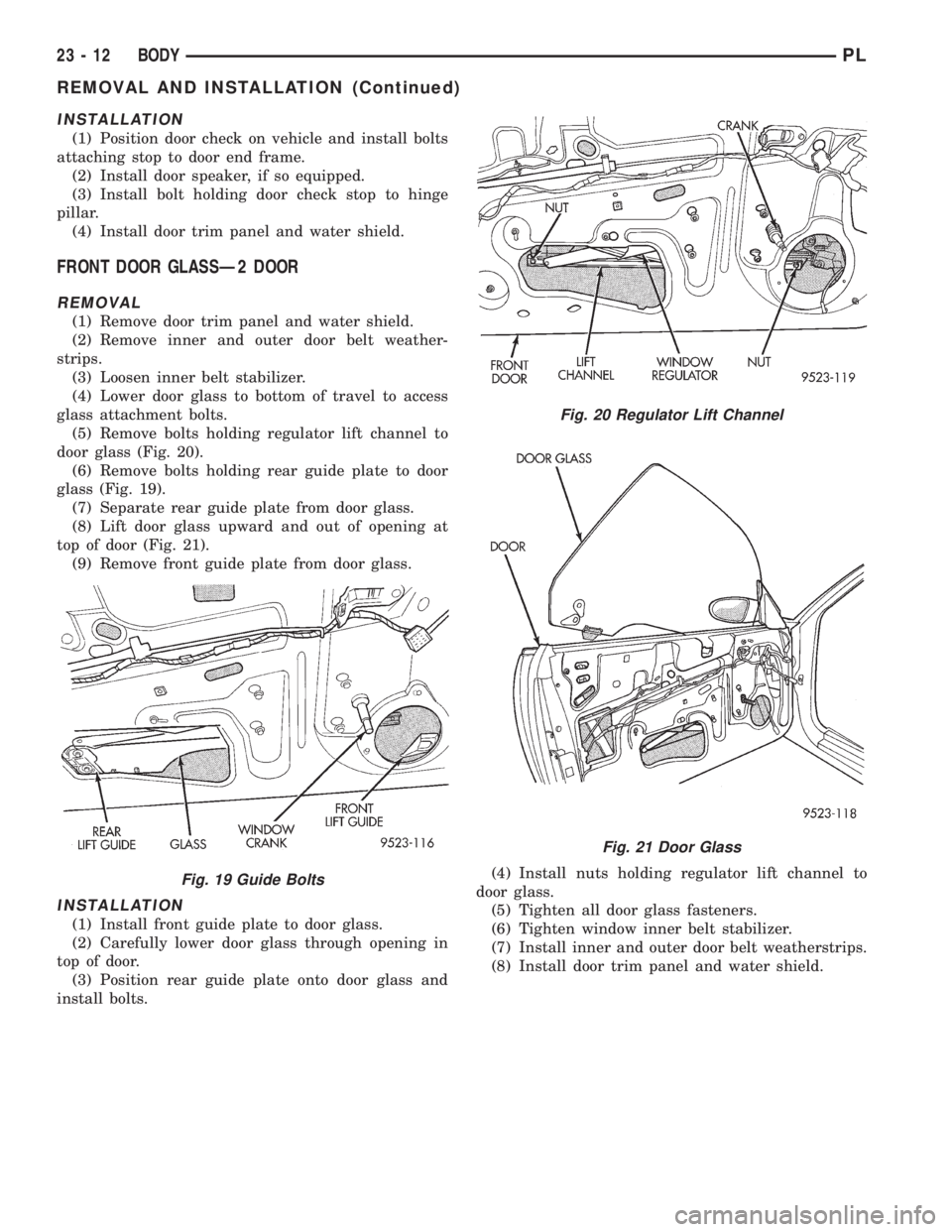

DODGE NEON 1999  Service Repair Manual INSTALLATION
(1) Position door check on vehicle and install bolts
attaching stop to door end frame.
(2) Install door speaker, if so equipped.
(3) Install bolt holding door check stop to hinge
pillar.

Page 1094 of 1200

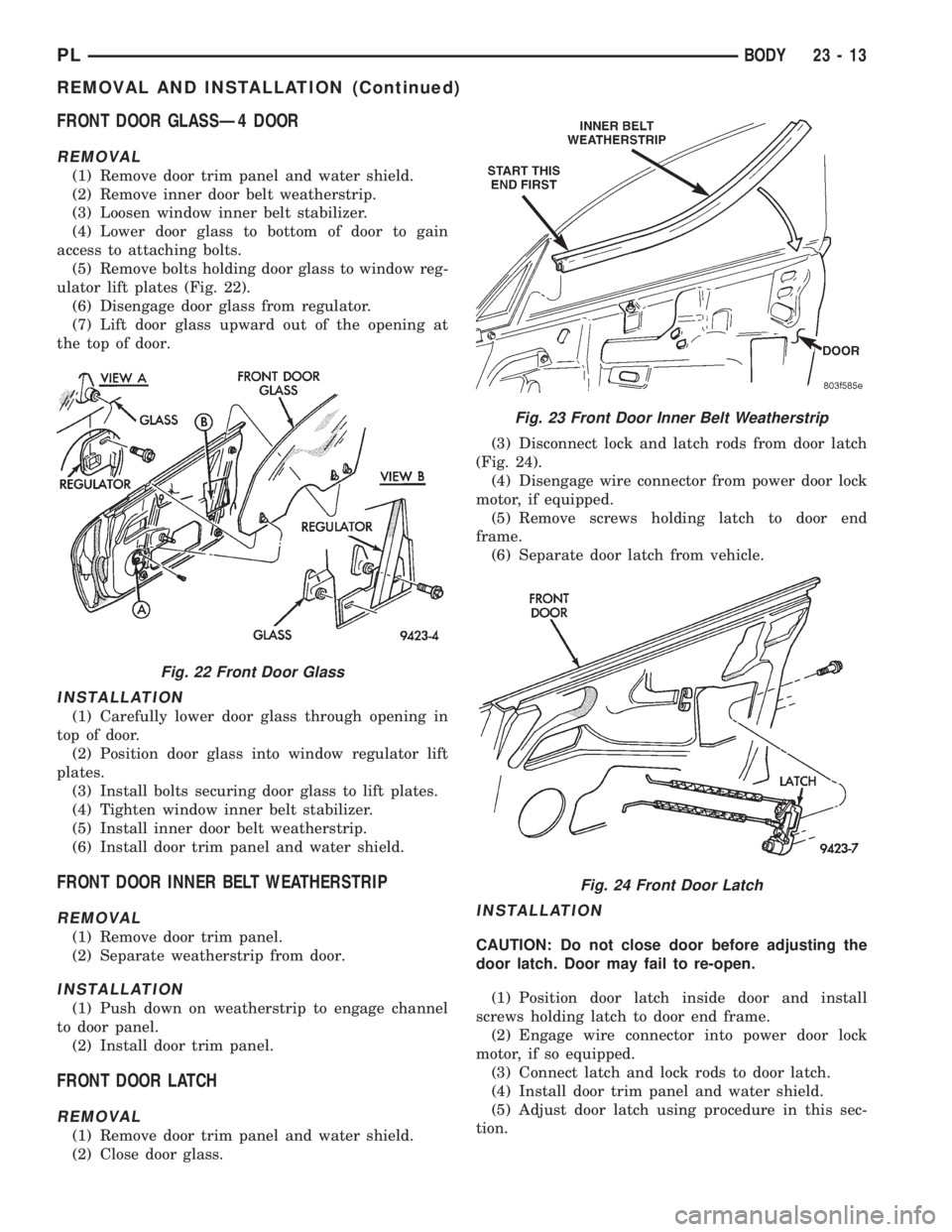

DODGE NEON 1999  Service Repair Manual FRONT DOOR GLASSÐ4 DOOR
REMOVAL
(1) Remove door trim panel and water shield.
(2) Remove inner door belt weatherstrip.
(3) Loosen window inner belt stabilizer.
(4) Lower door glass to bottom of door t

Page 1095 of 1200

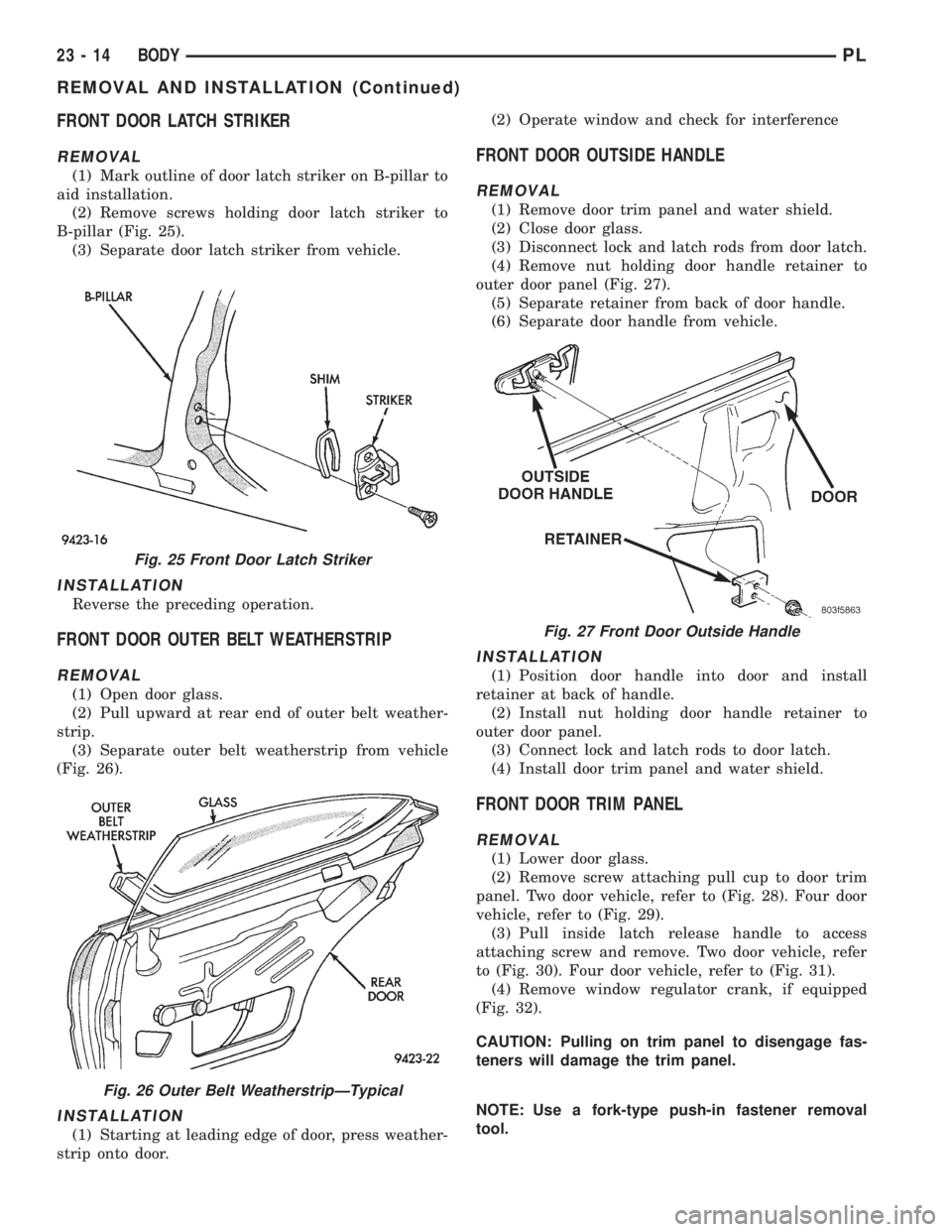

DODGE NEON 1999  Service Repair Manual FRONT DOOR LATCH STRIKER
REMOVAL
(1) Mark outline of door latch striker on B-pillar to
aid installation.
(2) Remove screws holding door latch striker to
B-pillar (Fig. 25).
(3) Separate door latch str

Page 1096 of 1200

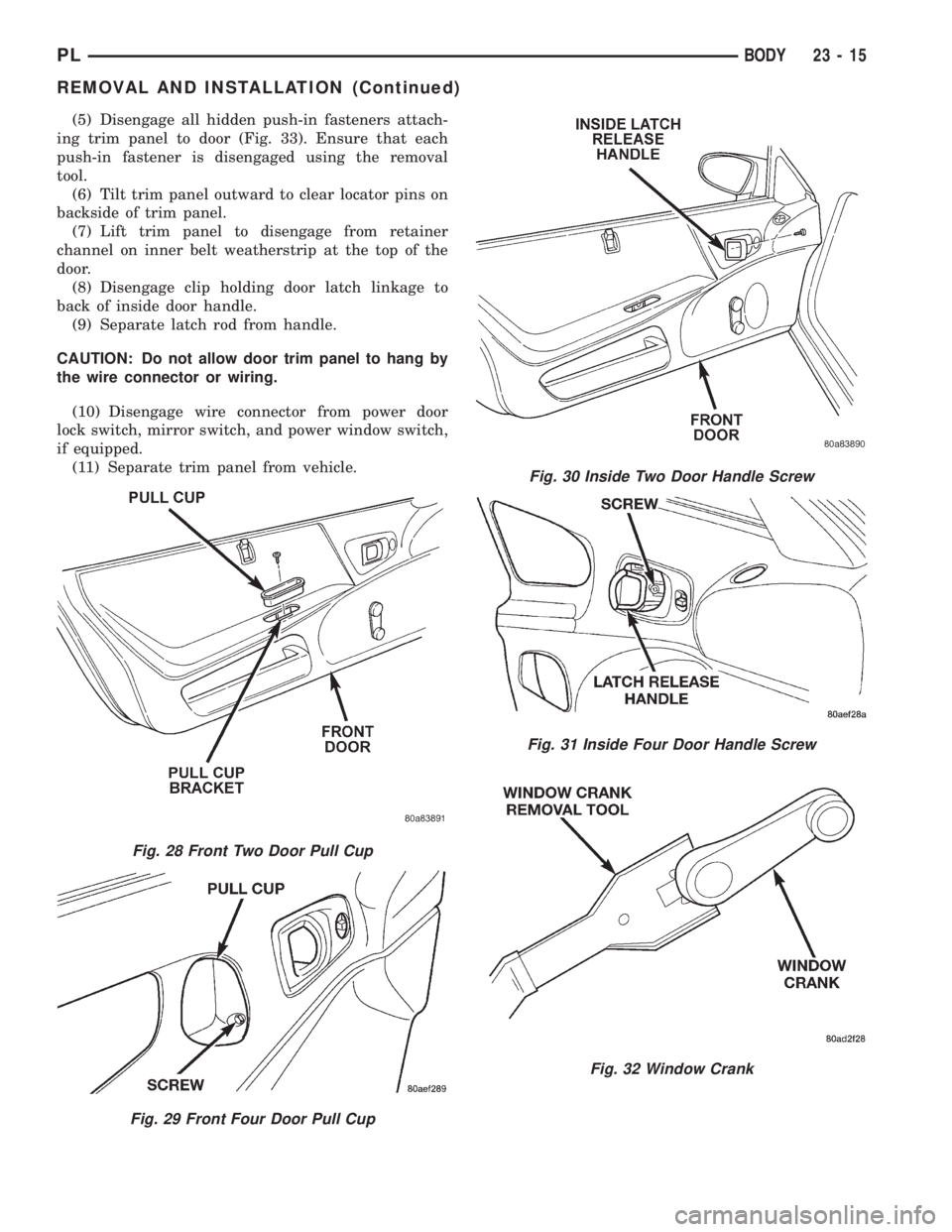

DODGE NEON 1999  Service Repair Manual (5) Disengage all hidden push-in fasteners attach-
ing trim panel to door (Fig. 33). Ensure that each
push-in fastener is disengaged using the removal
tool.
(6) Tilt trim panel outward to clear locato

Page 1097 of 1200

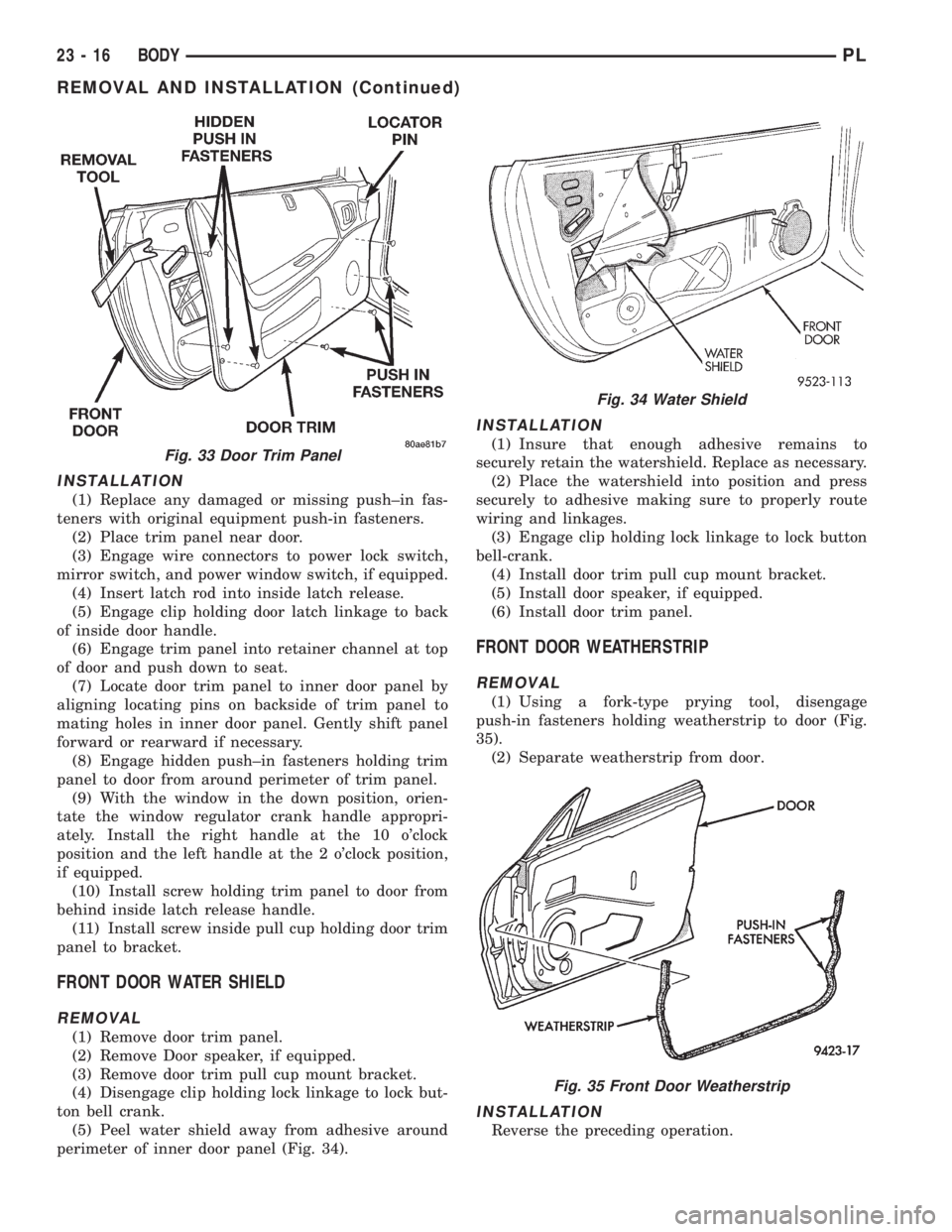

DODGE NEON 1999  Service Repair Manual INSTALLATION
(1) Replace any damaged or missing push±in fas-
teners with original equipment push-in fasteners.
(2) Place trim panel near door.
(3) Engage wire connectors to power lock switch,
mirror

Page 1098 of 1200

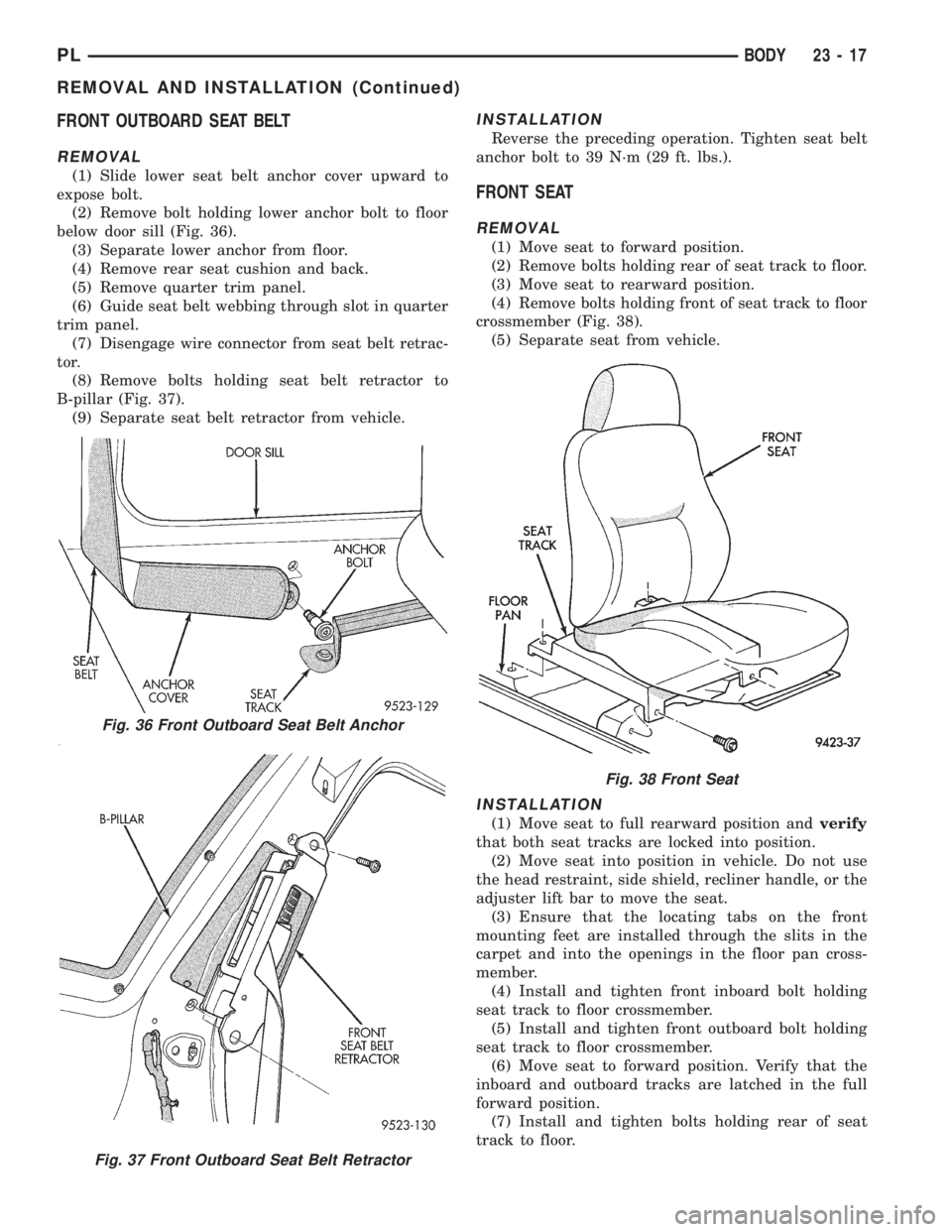

DODGE NEON 1999  Service Repair Manual FRONT OUTBOARD SEAT BELT
REMOVAL
(1) Slide lower seat belt anchor cover upward to
expose bolt.
(2) Remove bolt holding lower anchor bolt to floor
below door sill (Fig. 36).
(3) Separate lower anchor f

Page 1099 of 1200

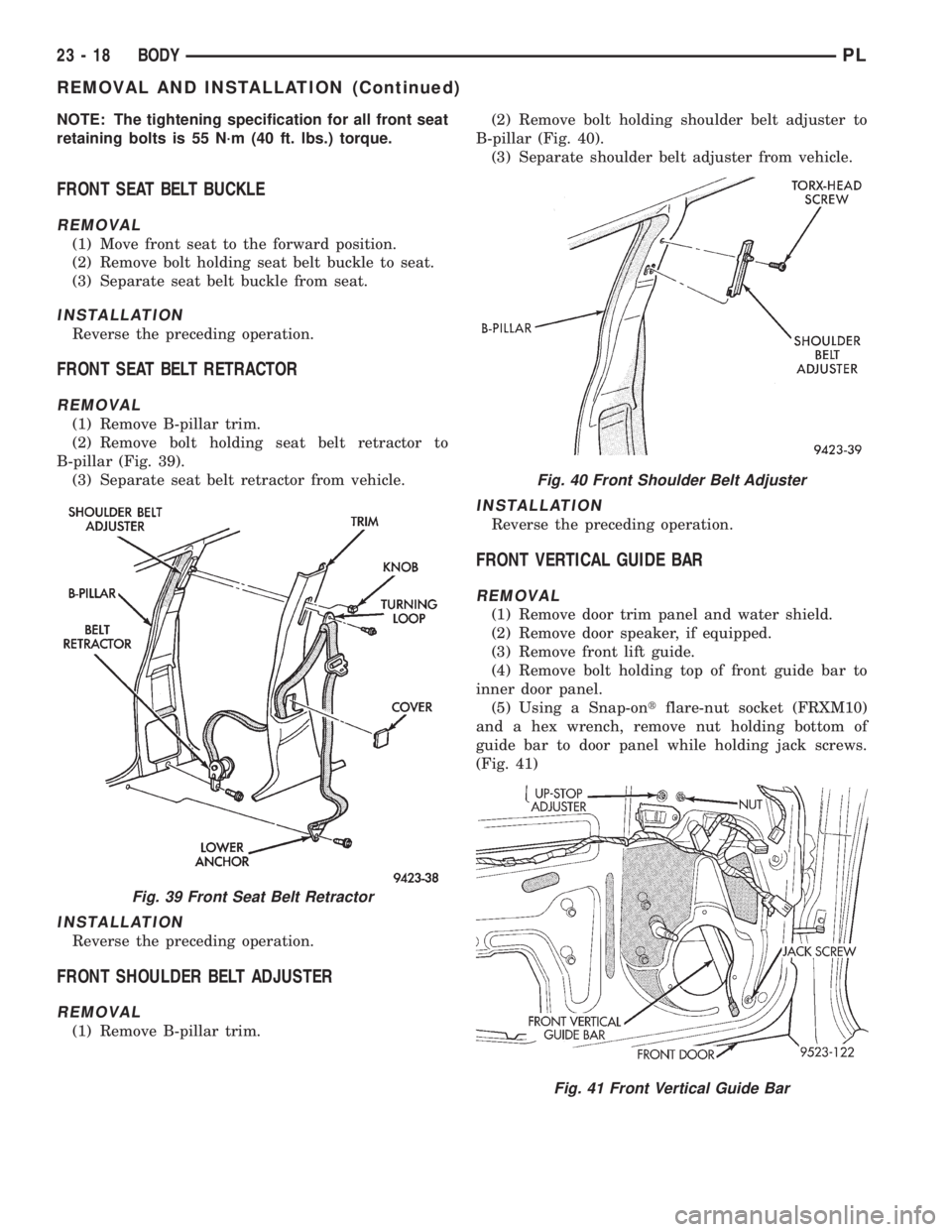

DODGE NEON 1999  Service Repair Manual NOTE: The tightening specification for all front seat
retaining bolts is 55 N´m (40 ft. lbs.) torque.
FRONT SEAT BELT BUCKLE
REMOVAL
(1) Move front seat to the forward position.
(2) Remove bolt holdi

Page 1100 of 1200

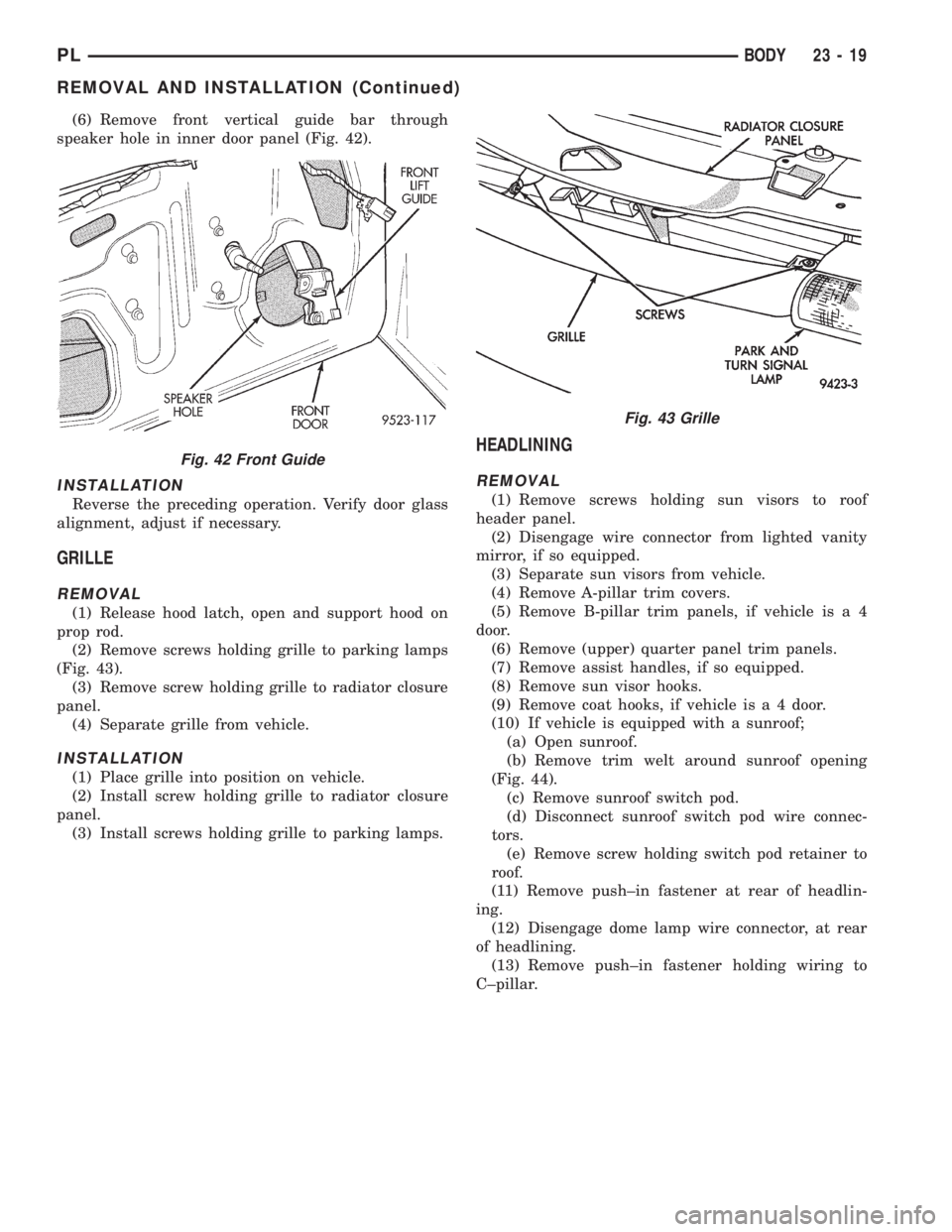

DODGE NEON 1999  Service Repair Manual (6) Remove front vertical guide bar through
speaker hole in inner door panel (Fig. 42).
INSTALLATION
Reverse the preceding operation. Verify door glass
alignment, adjust if necessary.
GRILLE
REMOVAL
(
