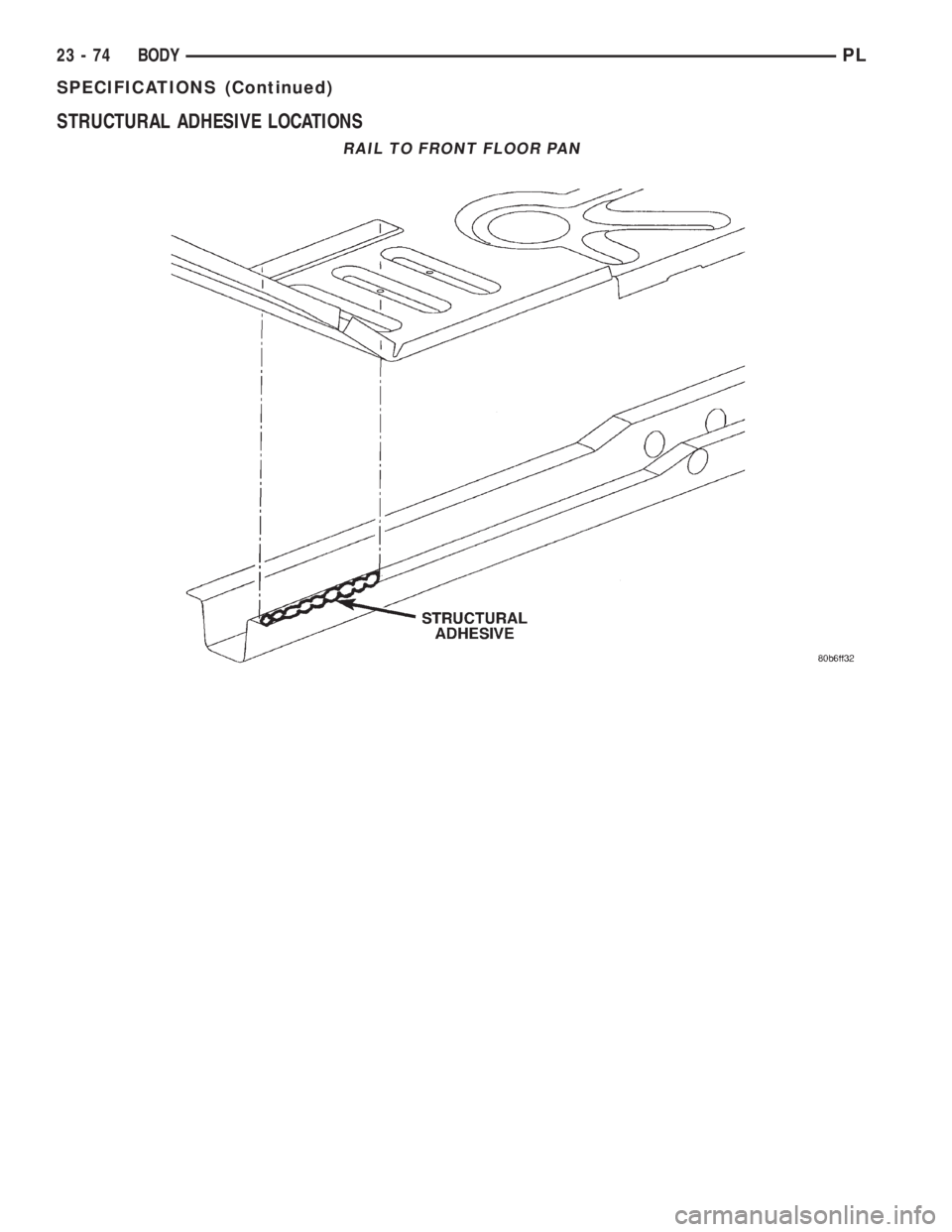

STRUCTURAL ADHESIVE LOCATIONS
RAIL TO FRONT FLOOR PAN
23 - 74 BODYPL
SPECIFICATIONS (Continued)

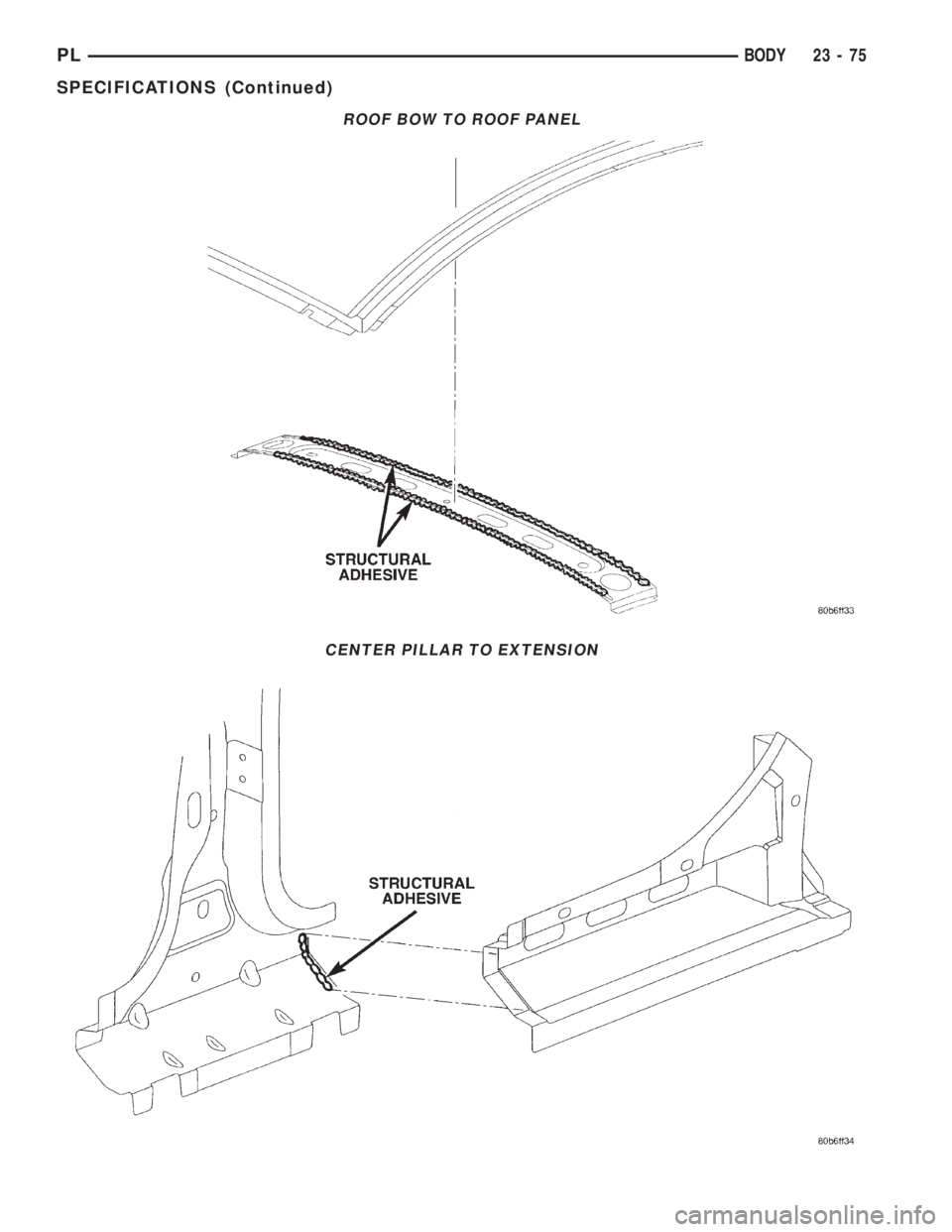

ROOF BOW TO ROOF PANEL
CENTER PILLAR TO EXTENSION
PLBODY 23 - 75
SPECIFICATIONS (Continued)

TORQUE SPECIFICATIONS
BODY COMPONENTS
DESCRIPTION TORQUE
All seat belt anchor bolts..... 40N´m(30ft.lbs.)
All seat belt anchor nuts...... 40N´m(30ft.lbs.)
All seat belt retractor bolts.... 40N´m(30ft.lbs.)
Decklid latch striker......... 22N´m(16ft.lbs.)
Front seat track to floor pan bolts . . 55 N´m (40 ft.
lbs.)
Front seat inboard pivot bolt . . . 40 N´m (30 ft. lbs.)
Front seat recliner to seat cushion frame . . 12 N´m
(9 ft. lbs.)
Front seat track to cushion frame bolt . . 12 N´m (9
ft. lbs.)
Front seat back............. 40N´m(30ft.lbs.)DESCRIPTION TORQUE
Front seat back recliner to seat back . 12 N´m (9 ft.
lbs.)
Front door hinge to hinge pillar bolt . 28 N´m (21 ft.
lbs.)
Front door hinge to door nuts and bolt . 28 N´m (21
ft. lbs.)
Front door latch striker....... 28N´m(20ft.lbs.)
Hood latch striker.........13.5 N´m (10 ft. lbs.)
Rear door glass to regulator bolt . . 11 N´m (105 in.
lbs.)
Rear door hinge to B-pillar bolt . 28 N´m (20 ft. lbs.)
Rear door hinge to door bolt . . . 28 N´m (20 ft. lbs.)
Rear door latch striker....... 28N´m(20ft.lbs.)
Rear seat back and seat belt buckle anchor nut . 57
N´m (42 ft. lbs.)

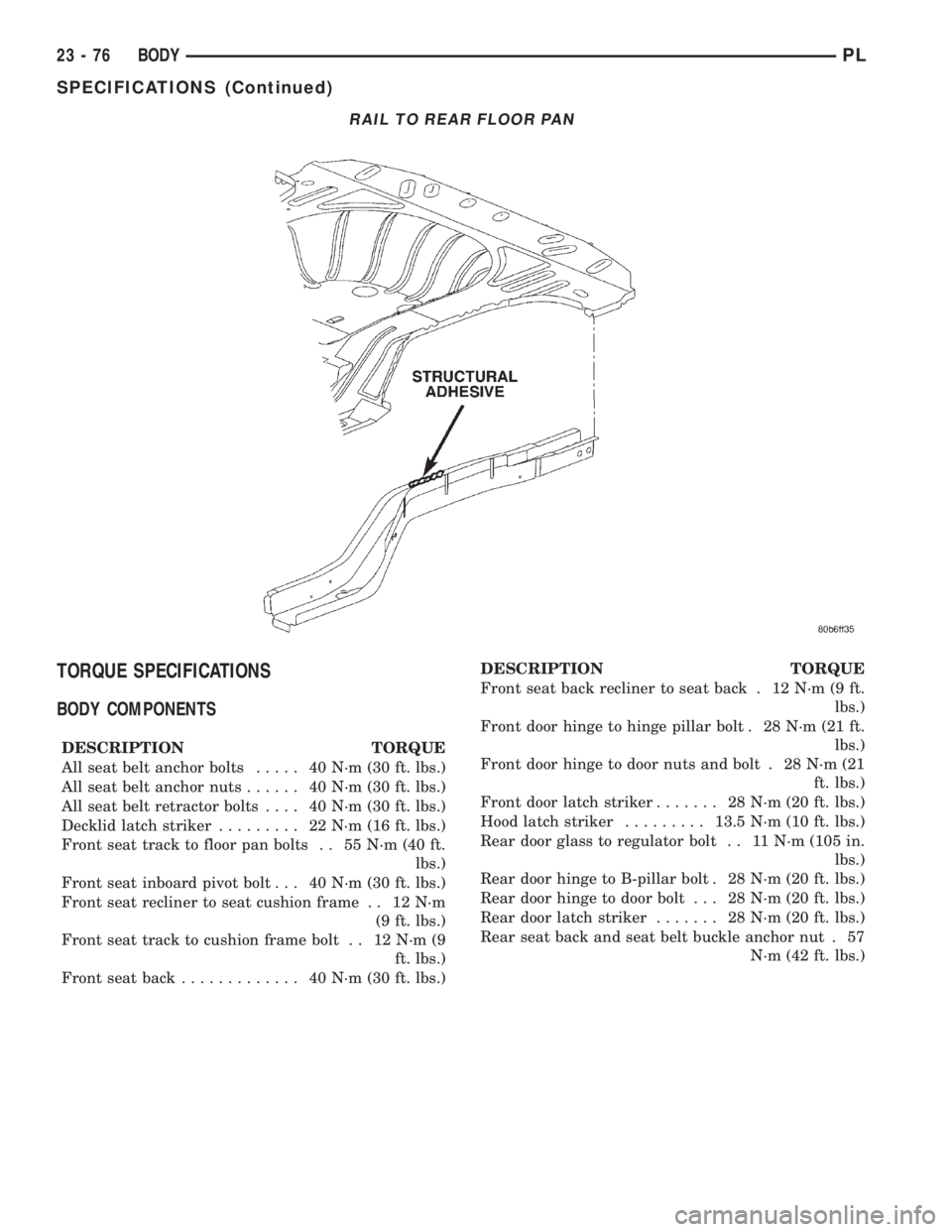

RAIL TO REAR FLOOR PAN
23 - 76 BODYPL
SPECIFICATIONS (Continued)

WELD LOCATIONS
FRONT SUSPENSION STRUT TOWER TO SIDE COWL AND DASH PANEL
PLBODY 23 - 77
SPECIFICATIONS (Continued)

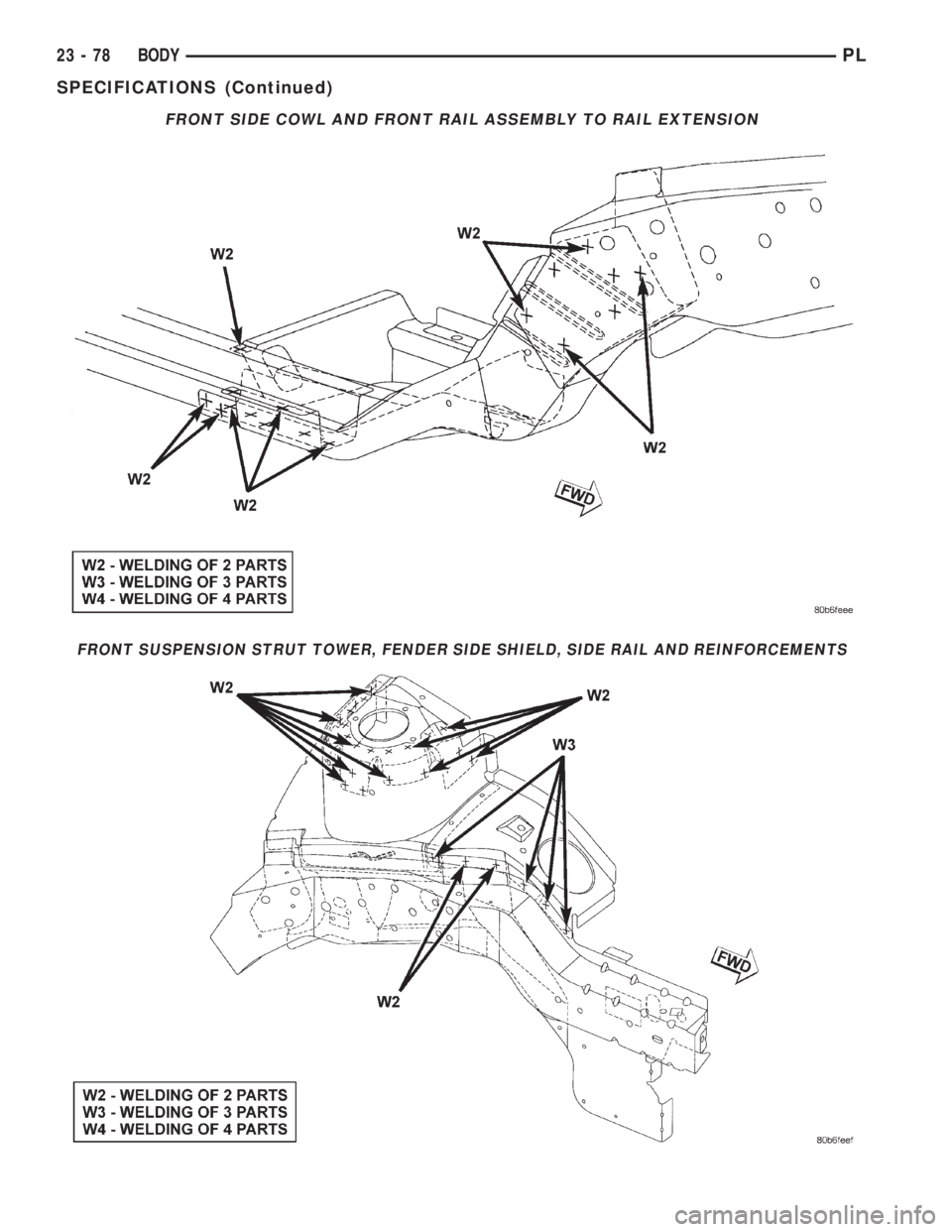

FRONT SIDE COWL AND FRONT RAIL ASSEMBLY TO RAIL EXTENSION
FRONT SUSPENSION STRUT TOWER, FENDER SIDE SHIELD, SIDE RAIL AND REINFORCEMENTS
23 - 78 BODYPL
SPECIFICATIONS (Continued)

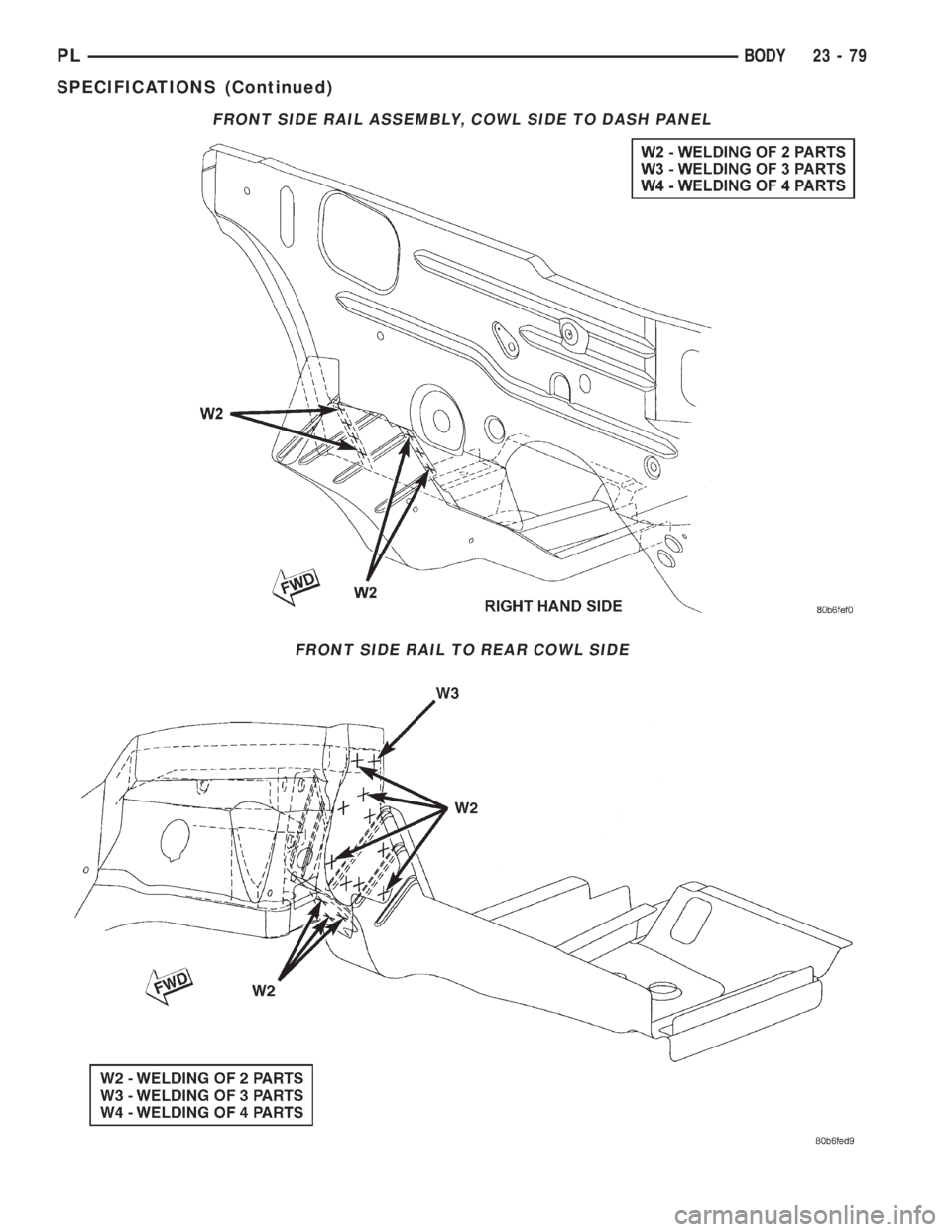

FRONT SIDE RAIL ASSEMBLY, COWL SIDE TO DASH PANEL
FRONT SIDE RAIL TO REAR COWL SIDE
PLBODY 23 - 79
SPECIFICATIONS (Continued)

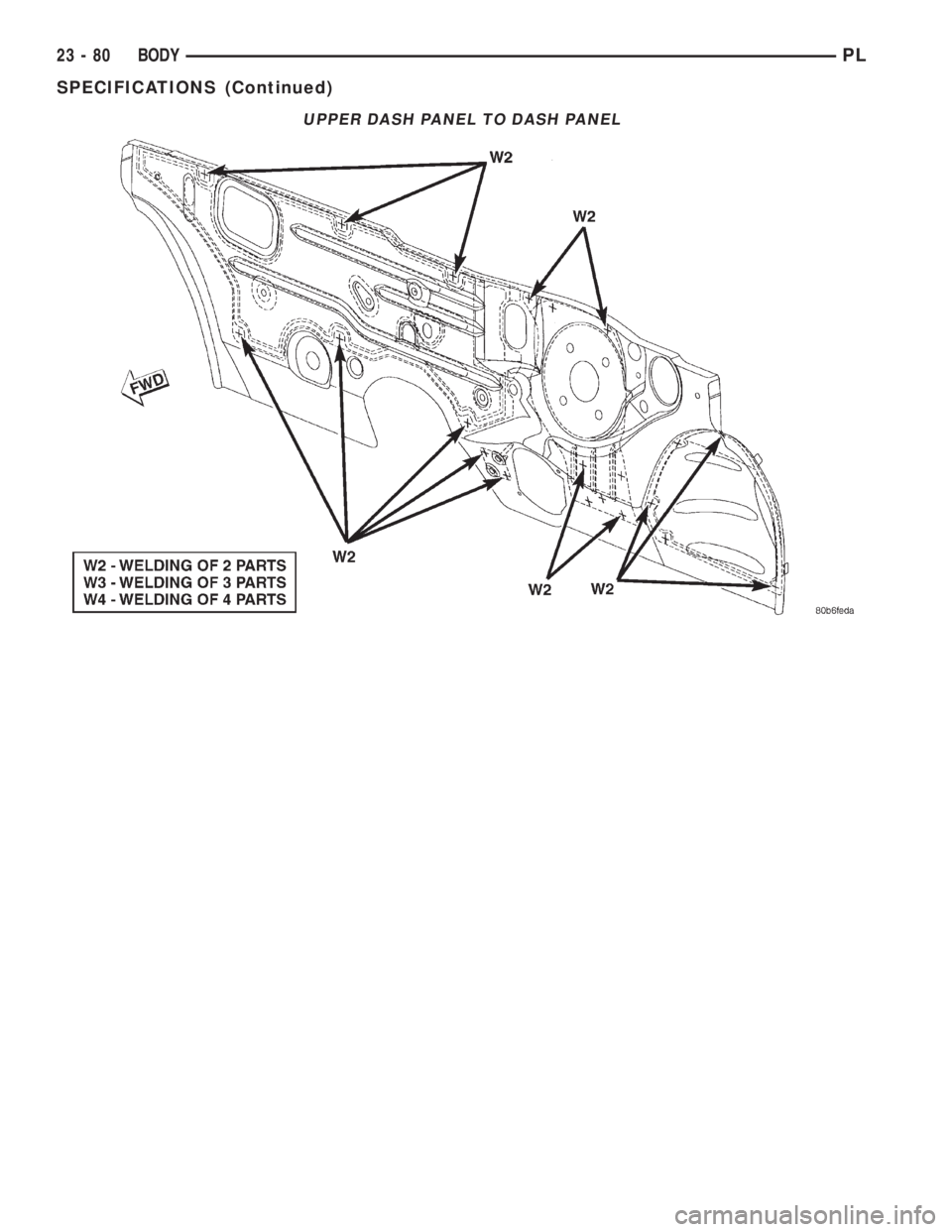

UPPER DASH PANEL TO DASH PANEL
23 - 80 BODYPL
SPECIFICATIONS (Continued)

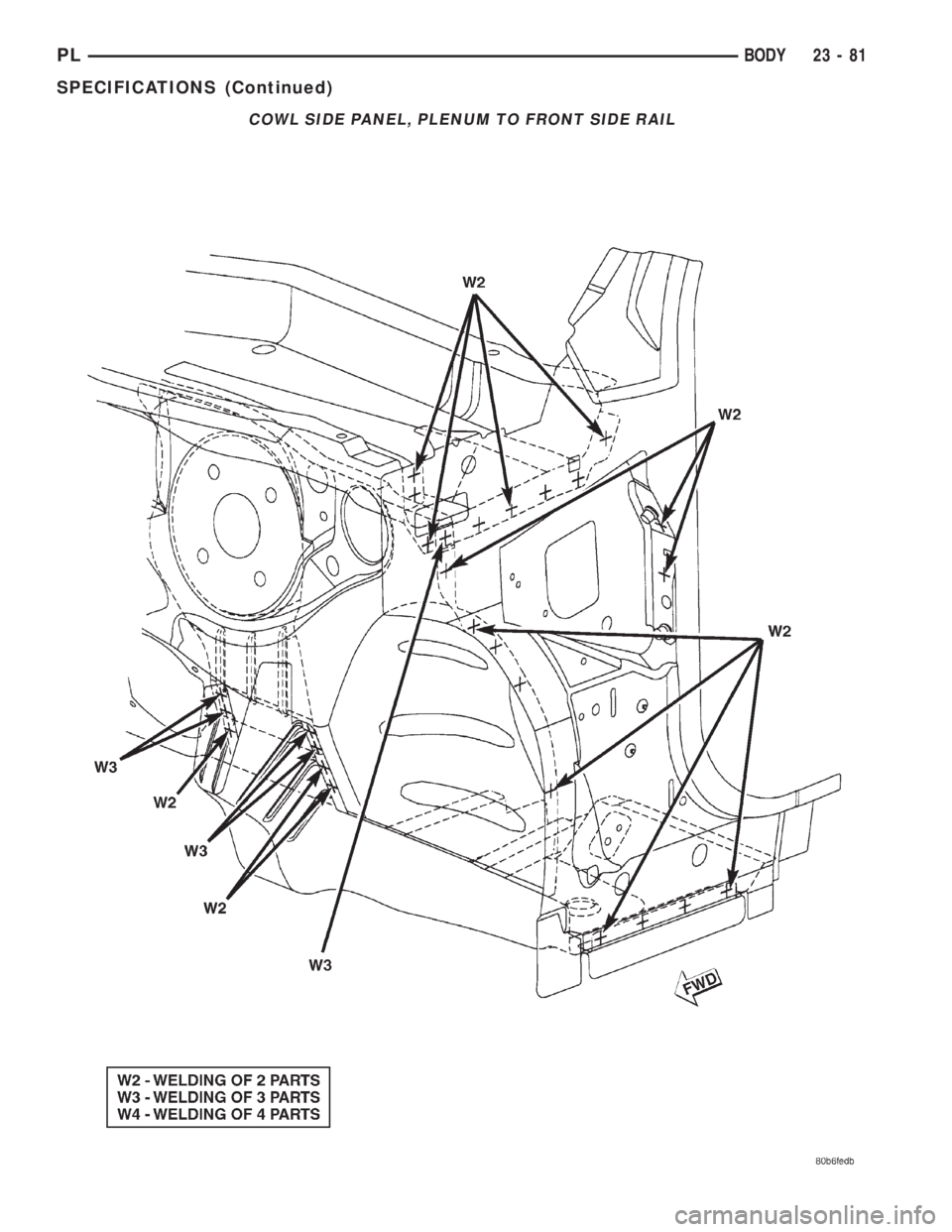

COWL SIDE PANEL, PLENUM TO FRONT SIDE RAIL
PLBODY 23 - 81
SPECIFICATIONS (Continued)

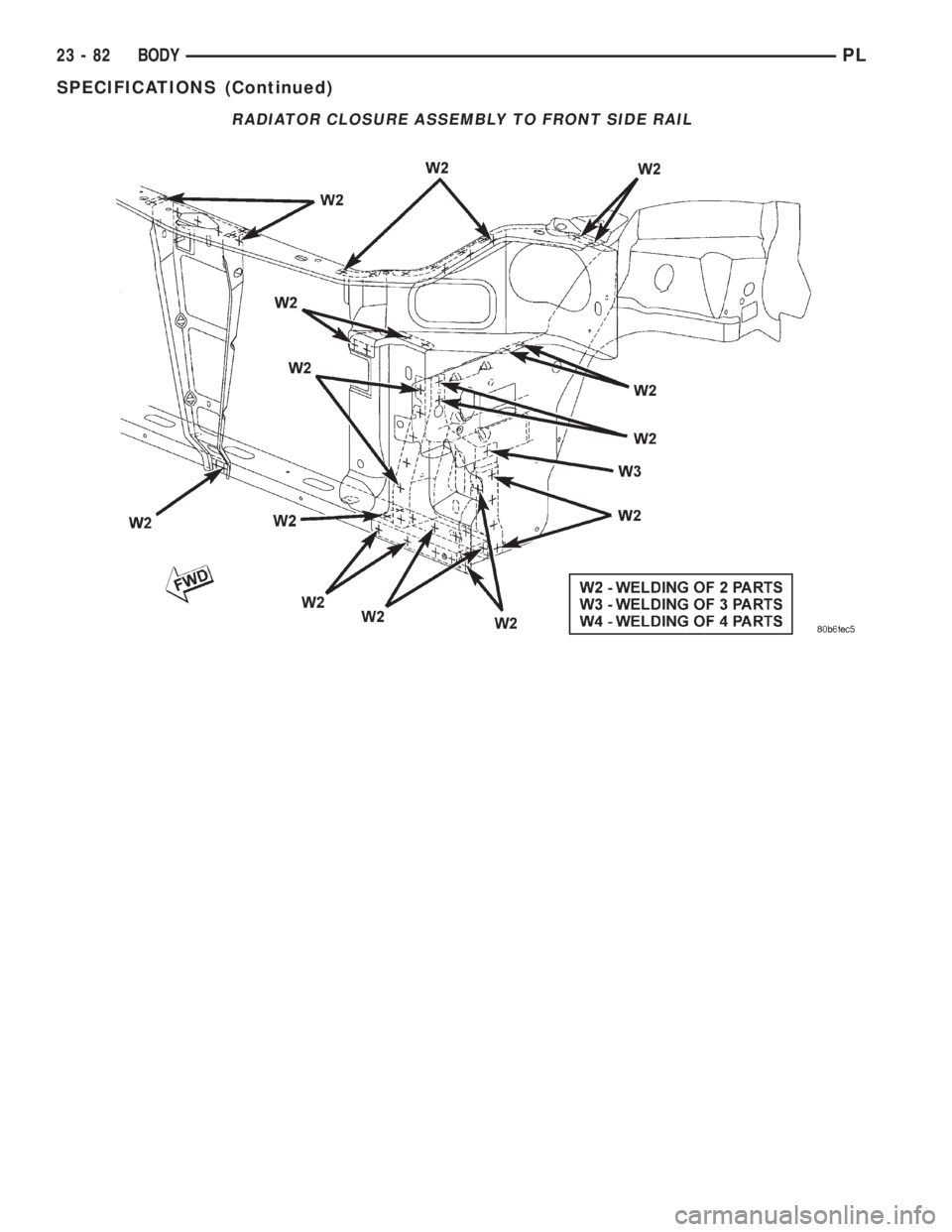

RADIATOR CLOSURE ASSEMBLY TO FRONT SIDE RAIL
23 - 82 BODYPL
SPECIFICATIONS (Continued)

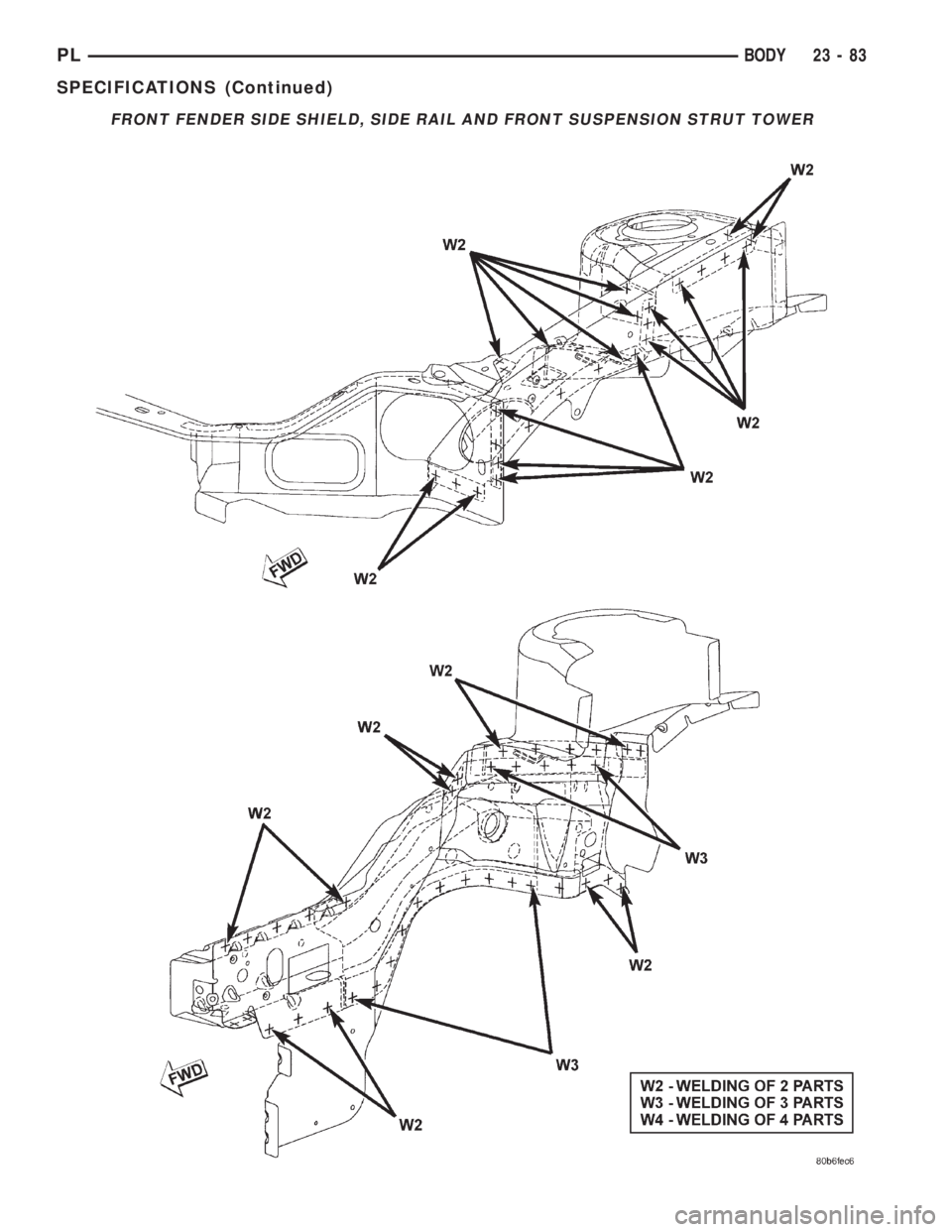

FRONT FENDER SIDE SHIELD, SIDE RAIL AND FRONT SUSPENSION STRUT TOWER
PLBODY 23 - 83
SPECIFICATIONS (Continued)
