4X4 TRANSFER CASE
(1) Shift the transfer case through all ranges to
make sure shifting is smooth and all gear positions
respond accordingly (Fig. 39).
INSPECTION - ENGINE PERFORMANCE
Check the engine for proper performance. It
should:²Start promptly
²Be free from stalling
²Idle smoothly and at proper speed
²Be free from stumbling or hesitation
²Produce sufficient power
²Be free from unusual noises
²Operate within the proper temperature range
²Stop when the ignition key is shut off

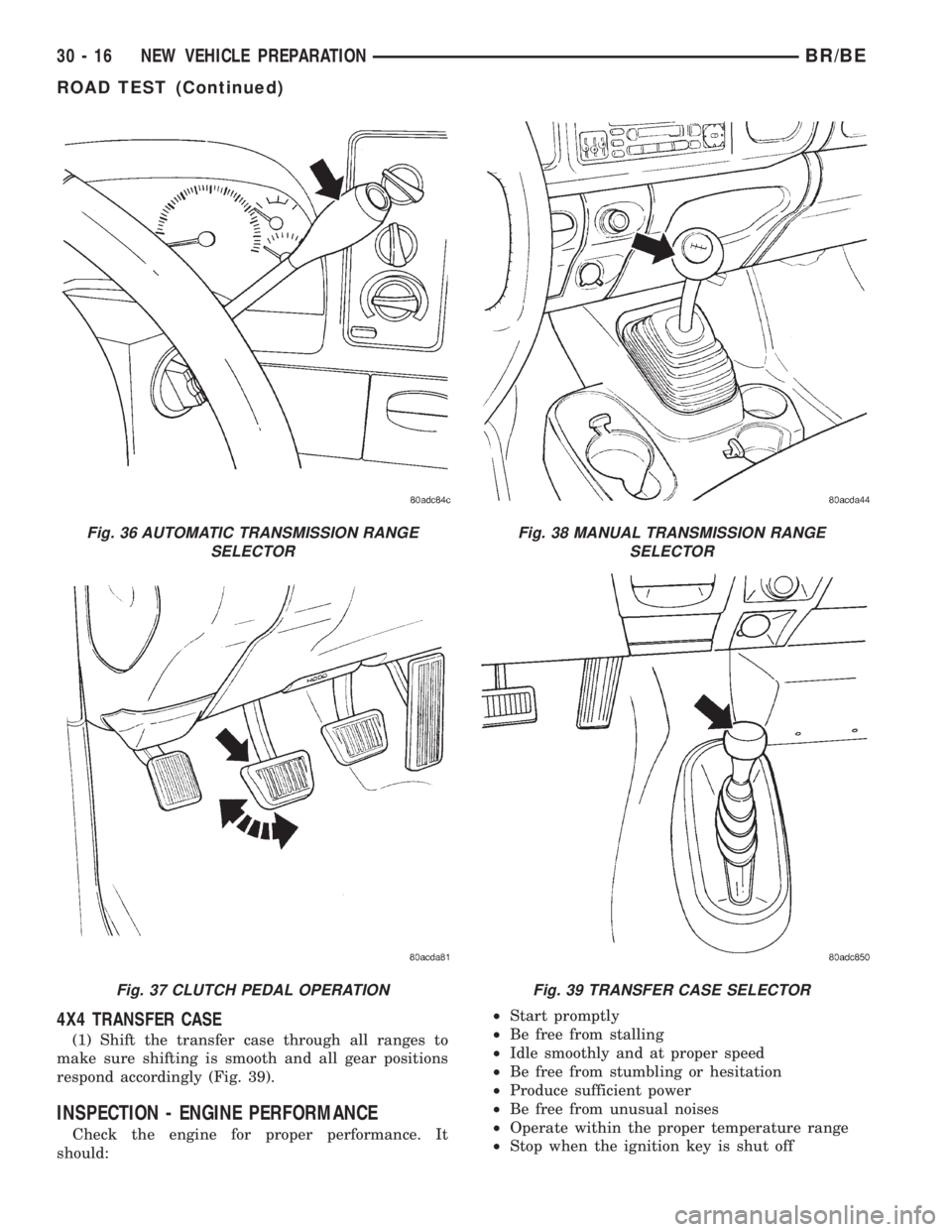

Fig. 36 AUTOMATIC TRANSMISSION RANGE
SELECTOR
Fig. 37 CLUTCH PEDAL OPERATION
Fig. 38 MANUAL TRANSMISSION RANGE
SELECTOR
Fig. 39 TRANSFER CASE SELECTOR
30 - 16 NEW VEHICLE PREPARATIONBR/BE
ROAD TEST (Continued)

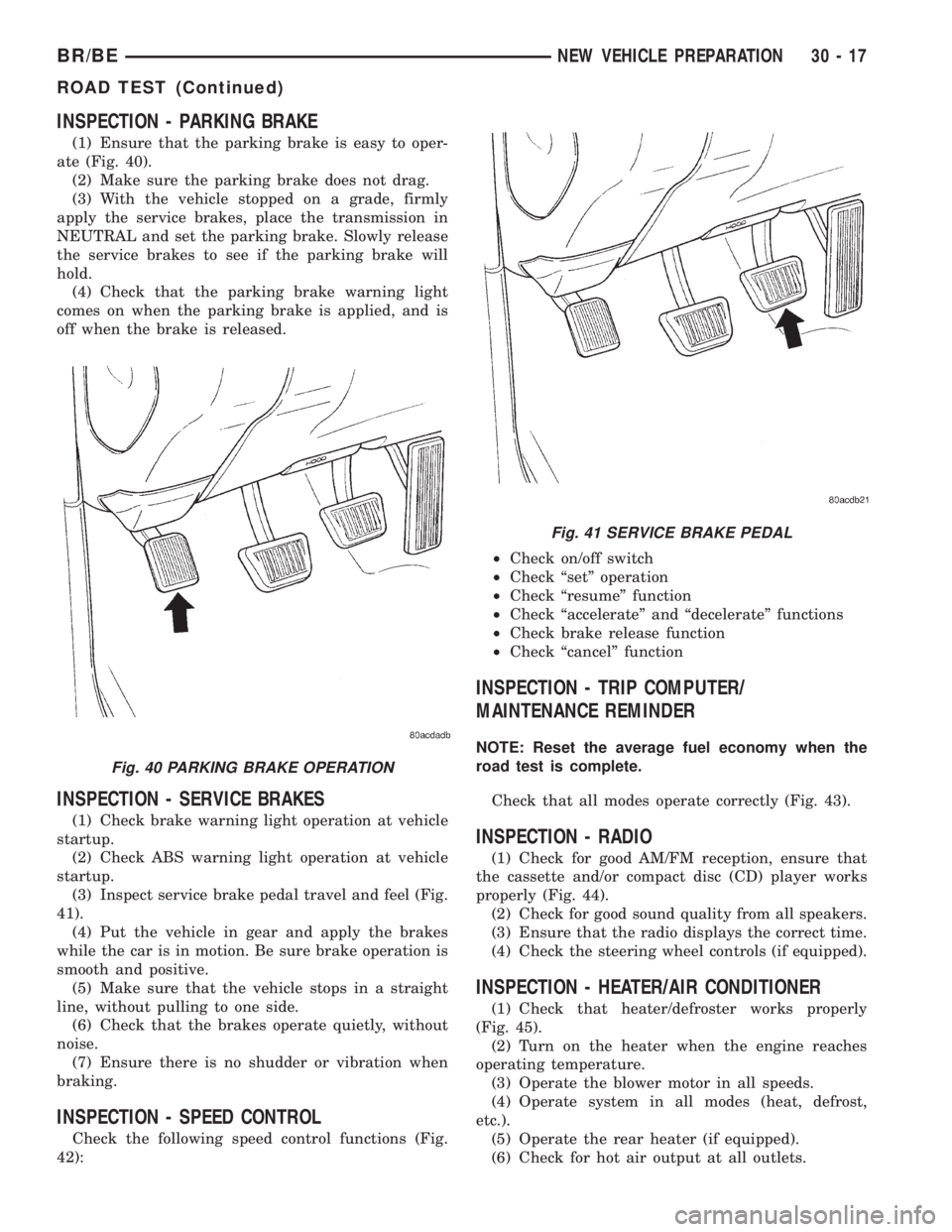

INSPECTION - PARKING BRAKE
(1) Ensure that the parking brake is easy to oper-
ate (Fig. 40).
(2) Make sure the parking brake does not drag.
(3) With the vehicle stopped on a grade, firmly
apply the service brakes, place the transmission in
NEUTRAL and set the parking brake. Slowly release
the service brakes to see if the parking brake will
hold.
(4) Check that the parking brake warning light
comes on when the parking brake is applied, and is
off when the brake is released.
INSPECTION - SERVICE BRAKES
(1) Check brake warning light operation at vehicle
startup.
(2) Check ABS warning light operation at vehicle
startup.
(3) Inspect service brake pedal travel and feel (Fig.
41).
(4) Put the vehicle in gear and apply the brakes
while the car is in motion. Be sure brake operation is
smooth and positive.
(5) Make sure that the vehicle stops in a straight
line, without pulling to one side.
(6) Check that the brakes operate quietly, without
noise.
(7) Ensure there is no shudder or vibration when
braking.
INSPECTION - SPEED CONTROL
Check the following speed control functions (Fig.
42):²Check on/off switch
²Check ªsetº operation
²Check ªresumeº function
²Check ªaccelerateº and ªdecelerateº functions
²Check brake release function
²Check ªcancelº function
INSPECTION - TRIP COMPUTER/
MAINTENANCE REMINDER
NOTE: Reset the average fuel economy when the
road test is complete.
Check that all modes operate correctly (Fig. 43).
INSPECTION - RADIO
(1) Check for good AM/FM reception, ensure that
the cassette and/or compact disc (CD) player works
properly (Fig. 44).
(2) Check for good sound quality from all speakers.
(3) Ensure that the radio displays the correct time.
(4) Check the steering wheel controls (if equipped).
INSPECTION - HEATER/AIR CONDITIONER
(1) Check that heater/defroster works properly
(Fig. 45).
(2) Turn on the heater when the engine reaches
operating temperature.
(3) Operate the blower motor in all speeds.
(4) Operate system in all modes (heat, defrost,
etc.).
(5) Operate the rear heater (if equipped).
(6) Check for hot air output at all outlets.
Fig. 40 PARKING BRAKE OPERATION
Fig. 41 SERVICE BRAKE PEDAL
BR/BENEW VEHICLE PREPARATION 30 - 17
ROAD TEST (Continued)

(7) Operate temperature levers.
(8) Ensure that rear defroster works.(9) Turn on rear defroster during drive, then feel
window for warmth after drive.
(10) Check that the air conditioner cools properly.
(11) Turn on air conditioning system.
(12) Activate the A/C in all modes. (Make sure all
modes work properly including rear unit if
equipped.).
(13) Operate blower motor switch at all speeds.
(14) Check for cold output at outlets.
(15) Check that fan operation is quiet.
INSPECTION WINDSHIELD WIPERS/WASHERS
(1) Check washer spray pattern for proper opera-
tion and aim.
(2) Check intermittent wipe feature for proper
operation.
(3) Inspect wiper blades, check for proper wiping
pattern-no streaking or missed areas.

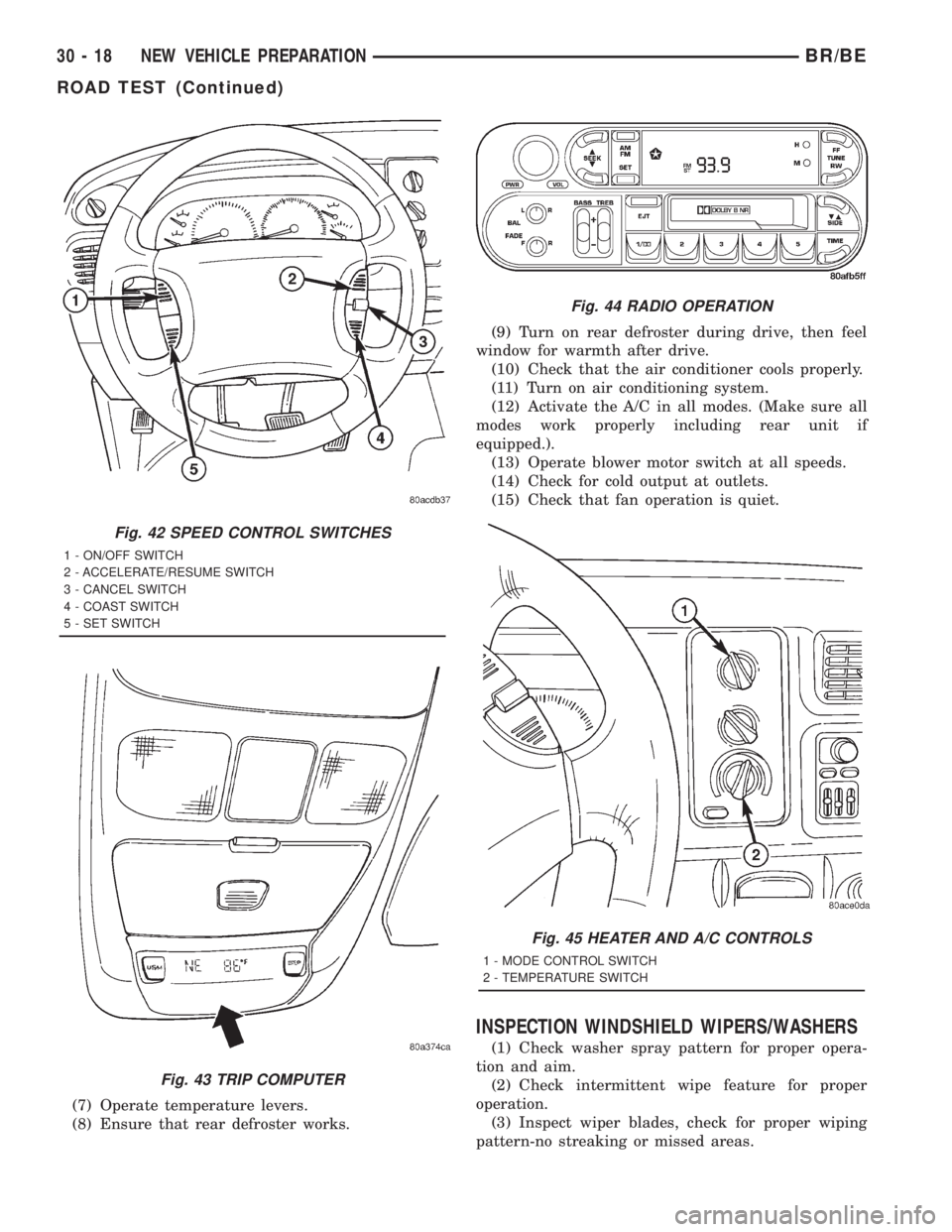

Fig. 42 SPEED CONTROL SWITCHES
1 - ON/OFF SWITCH
2 - ACCELERATE/RESUME SWITCH
3 - CANCEL SWITCH
4 - COAST SWITCH
5 - SET SWITCH
Fig. 43 TRIP COMPUTER
Fig. 44 RADIO OPERATION
Fig. 45 HEATER AND A/C CONTROLS
1 - MODE CONTROL SWITCH
2 - TEMPERATURE SWITCH
30 - 18 NEW VEHICLE PREPARATIONBR/BE
ROAD TEST (Continued)

INSPECTION - MIRROR
(1) Check operation of rearview mirror's day/night
function (if equipped).
(2) Check ease of adjustment for all mirrors (power
or manual) (Fig. 46) and (Fig. 47).
INSPECTION - TURN AND EMERGENCY
SIGNALS
(1) Ensure that the turn signals work properly
(including canceling after completing a turn).
(2) Ensure that the emergency flashers work prop-
erly.
INSPECTION - HORN
Ensure that the horn works properly.
INSPECTION - GAUGES/WARNING LIGHTS
(1) Ensure that all gauges, instrument indicator
lights, warning lights and instrument panel lights
are functioning properly.
(2) Inspect operation of message center (if
equipped).
INSPECTION - SHIFT/CLUTCH INTERLOCK
SYSTEM
(1) On vehicles with a manual transmission or
transaxle, be sure engine starts only when clutch is
depressed.
(2) Some vehicles equipped with an automatic
transmission also have a brake interlock system. On
these vehicles, be sure that you cannot shift out of
PARK without pressing the brake pedal.
INSPECTION - NEUTRAL SAFETY SWITCH
(1) On vehicles with an automatic transmission or
transaxle, check shift indicator alignment in all
ranges.
(2) Be sure the engine starts in both PARK and
NEUTRAL.
(3) Verify that the engine does not start in any
REVERSE/DRIVE positions.
PRE DELIVERY STORAGE
DESCRIPTION
Pre Delivery Storage information is provided to
recommend practices to use when storing new vehi-
cles prior to delivery to the customer.
If you have prepared a vehicle that will not be
immediately delivered to the customer, store the
vehicle according to guidelines outlined in (Refer to
30 - NEW VEHICLE PREP/PREDELIVERY STOR-
AGE - STANDARD PROCEDURE) to prevent unnec-
essary wear and tear on the vehicles electrical
systems, paint and finish and damage due to pilfer-
age and vandalism.
Fig. 46 INSIDE REAR VIEW MIRROR
Fig. 47 OUTSIDE REAR VIEW MIRROR
BR/BENEW VEHICLE PREPARATION 30 - 19
ROAD TEST (Continued)

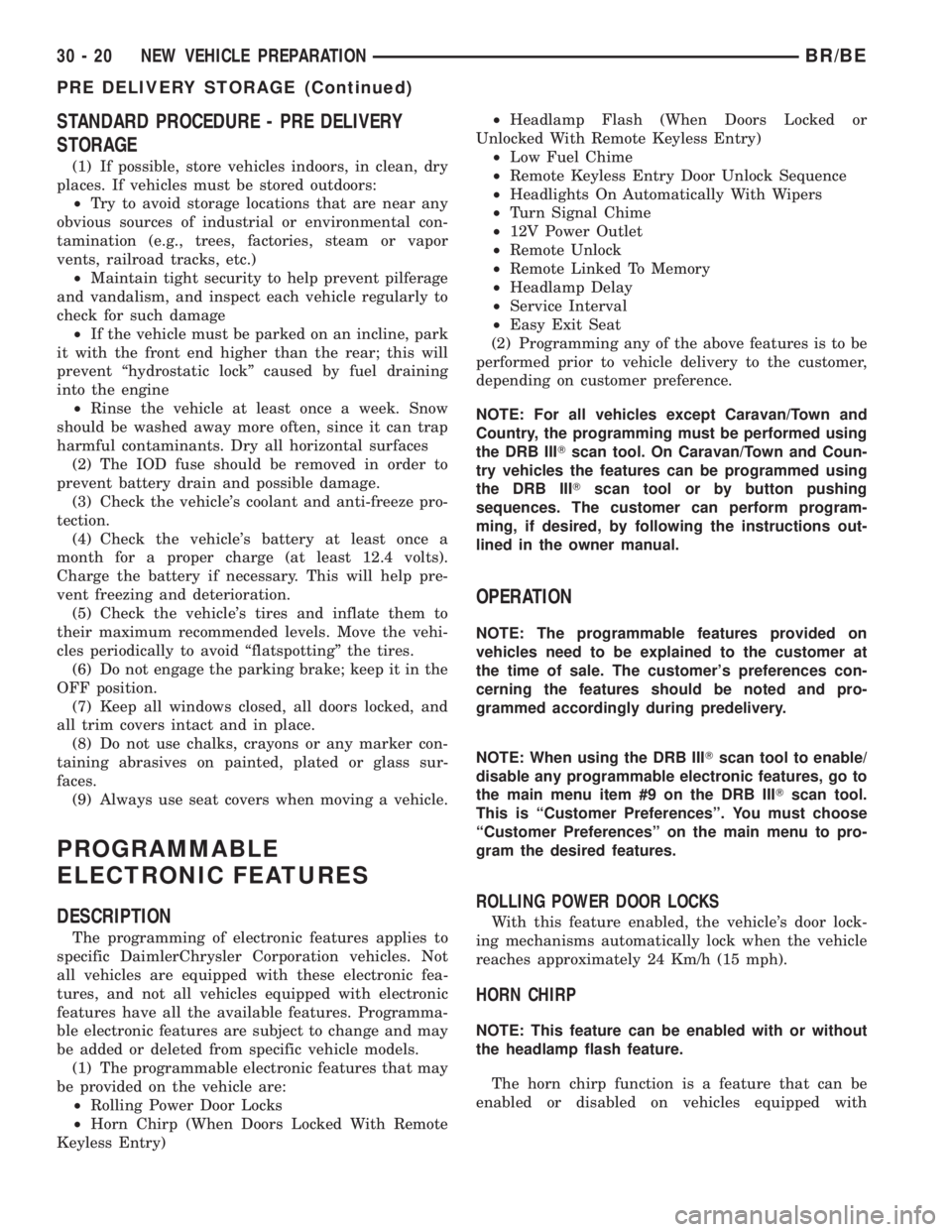

STANDARD PROCEDURE - PRE DELIVERY
STORAGE
(1) If possible, store vehicles indoors, in clean, dry
places. If vehicles must be stored outdoors:
²Try to avoid storage locations that are near any
obvious sources of industrial or environmental con-
tamination (e.g., trees, factories, steam or vapor
vents, railroad tracks, etc.)
²Maintain tight security to help prevent pilferage
and vandalism, and inspect each vehicle regularly to
check for such damage
²If the vehicle must be parked on an incline, park
it with the front end higher than the rear; this will
prevent ªhydrostatic lockº caused by fuel draining
into the engine
²Rinse the vehicle at least once a week. Snow
should be washed away more often, since it can trap
harmful contaminants. Dry all horizontal surfaces
(2) The IOD fuse should be removed in order to
prevent battery drain and possible damage.
(3) Check the vehicle's coolant and anti-freeze pro-
tection.
(4) Check the vehicle's battery at least once a
month for a proper charge (at least 12.4 volts).
Charge the battery if necessary. This will help pre-
vent freezing and deterioration.
(5) Check the vehicle's tires and inflate them to
their maximum recommended levels. Move the vehi-
cles periodically to avoid ªflatspottingº the tires.
(6) Do not engage the parking brake; keep it in the
OFF position.
(7) Keep all windows closed, all doors locked, and
all trim covers intact and in place.
(8) Do not use chalks, crayons or any marker con-
taining abrasives on painted, plated or glass sur-
faces.
(9) Always use seat covers when moving a vehicle.
PROGRAMMABLE
ELECTRONIC FEATURES
DESCRIPTION
The programming of electronic features applies to
specific DaimlerChrysler Corporation vehicles. Not
all vehicles are equipped with these electronic fea-
tures, and not all vehicles equipped with electronic
features have all the available features. Programma-
ble electronic features are subject to change and may
be added or deleted from specific vehicle models.
(1) The programmable electronic features that may
be provided on the vehicle are:
²Rolling Power Door Locks
²Horn Chirp (When Doors Locked With Remote
Keyless Entry)²Headlamp Flash (When Doors Locked or
Unlocked With Remote Keyless Entry)
²Low Fuel Chime
²Remote Keyless Entry Door Unlock Sequence
²Headlights On Automatically With Wipers
²Turn Signal Chime
²12V Power Outlet
²Remote Unlock
²Remote Linked To Memory
²Headlamp Delay
²Service Interval
²Easy Exit Seat
(2) Programming any of the above features is to be
performed prior to vehicle delivery to the customer,
depending on customer preference.
NOTE: For all vehicles except Caravan/Town and
Country, the programming must be performed using
the DRB IIITscan tool. On Caravan/Town and Coun-
try vehicles the features can be programmed using
the DRB IIITscan tool or by button pushing
sequences. The customer can perform program-
ming, if desired, by following the instructions out-
lined in the owner manual.
OPERATION
NOTE: The programmable features provided on
vehicles need to be explained to the customer at
the time of sale. The customer's preferences con-
cerning the features should be noted and pro-
grammed accordingly during predelivery.
NOTE: When using the DRB IIITscan tool to enable/
disable any programmable electronic features, go to
the main menu item #9 on the DRB IIITscan tool.
This is ªCustomer Preferencesº. You must choose
ªCustomer Preferencesº on the main menu to pro-
gram the desired features.
ROLLING POWER DOOR LOCKS
With this feature enabled, the vehicle's door lock-
ing mechanisms automatically lock when the vehicle
reaches approximately 24 Km/h (15 mph).
HORN CHIRP
NOTE: This feature can be enabled with or without
the headlamp flash feature.
The horn chirp function is a feature that can be
enabled or disabled on vehicles equipped with
30 - 20 NEW VEHICLE PREPARATIONBR/BE
PRE DELIVERY STORAGE (Continued)

Remote Keyless Entry (RKE). The horn chirps when
the vehicle is locked with the RKE transmitter.

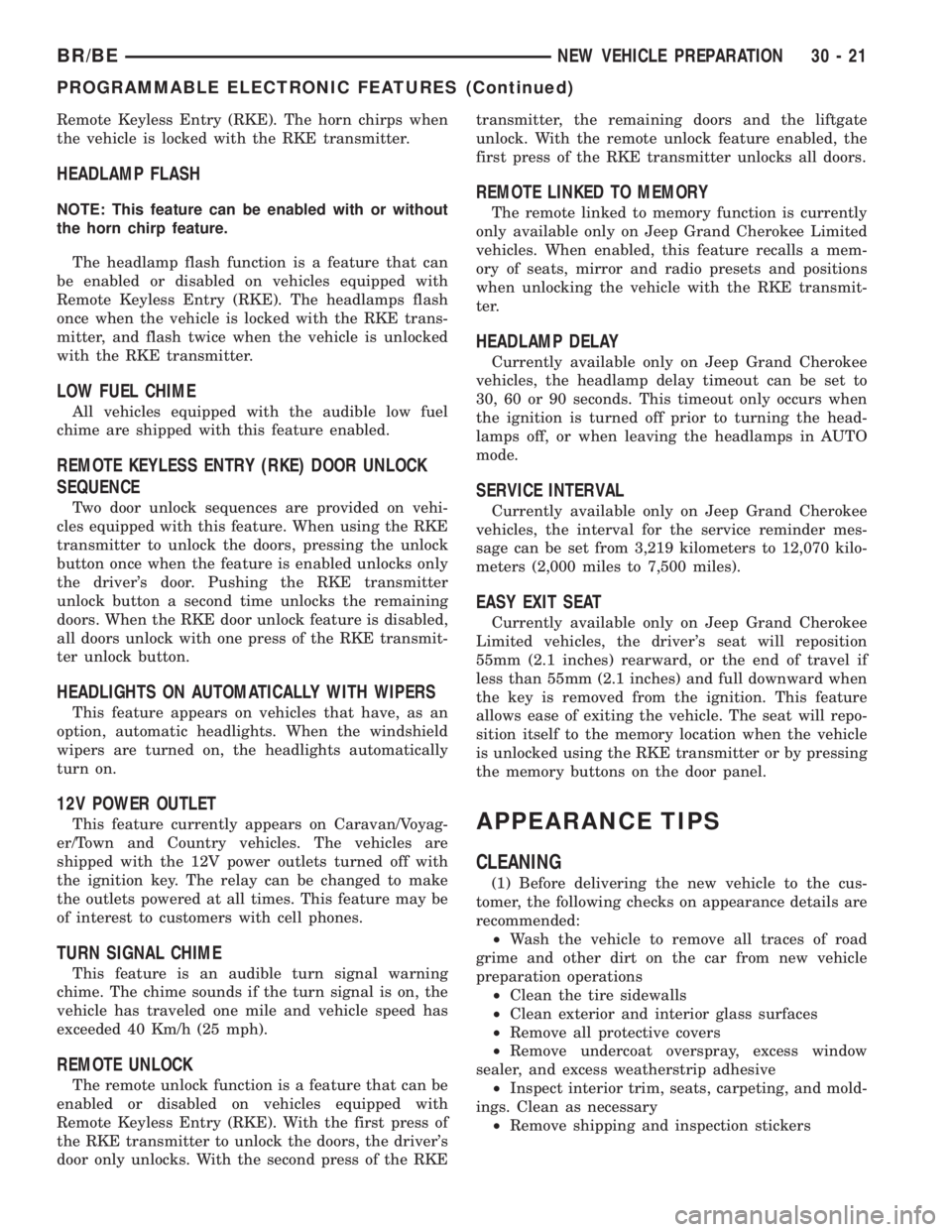

HEADLAMP FLASH
NOTE: This feature can be enabled with or without
the horn chirp feature.
The headlamp flash function is a feature that can
be enabled or disabled on vehicles equipped with
Remote Keyless Entry (RKE). The headlamps flash
once when the vehicle is locked with the RKE trans-
mitter, and flash twice when the vehicle is unlocked
with the RKE transmitter.
LOW FUEL CHIME
All vehicles equipped with the audible low fuel
chime are shipped with this feature enabled.
REMOTE KEYLESS ENTRY (RKE) DOOR UNLOCK
SEQUENCE
Two door unlock sequences are provided on vehi-
cles equipped with this feature. When using the RKE
transmitter to unlock the doors, pressing the unlock
button once when the feature is enabled unlocks only
the driver's door. Pushing the RKE transmitter
unlock button a second time unlocks the remaining
doors. When the RKE door unlock feature is disabled,
all doors unlock with one press of the RKE transmit-
ter unlock button.
HEADLIGHTS ON AUTOMATICALLY WITH WIPERS
This feature appears on vehicles that have, as an
option, automatic headlights. When the windshield
wipers are turned on, the headlights automatically
turn on.
12V POWER OUTLET
This feature currently appears on Caravan/Voyag-
er/Town and Country vehicles. The vehicles are
shipped with the 12V power outlets turned off with
the ignition key. The relay can be changed to make
the outlets powered at all times. This feature may be
of interest to customers with cell phones.
TURN SIGNAL CHIME
This feature is an audible turn signal warning
chime. The chime sounds if the turn signal is on, the
vehicle has traveled one mile and vehicle speed has
exceeded 40 Km/h (25 mph).
REMOTE UNLOCK
The remote unlock function is a feature that can be
enabled or disabled on vehicles equipped with
Remote Keyless Entry (RKE). With the first press of
the RKE transmitter to unlock the doors, the driver's
door only unlocks. With the second press of the RKEtransmitter, the remaining doors and the liftgate
unlock. With the remote unlock feature enabled, the
first press of the RKE transmitter unlocks all doors.
REMOTE LINKED TO MEMORY
The remote linked to memory function is currently
only available only on Jeep Grand Cherokee Limited
vehicles. When enabled, this feature recalls a mem-
ory of seats, mirror and radio presets and positions
when unlocking the vehicle with the RKE transmit-
ter.
HEADLAMP DELAY
Currently available only on Jeep Grand Cherokee
vehicles, the headlamp delay timeout can be set to
30, 60 or 90 seconds. This timeout only occurs when
the ignition is turned off prior to turning the head-
lamps off, or when leaving the headlamps in AUTO
mode.
SERVICE INTERVAL
Currently available only on Jeep Grand Cherokee
vehicles, the interval for the service reminder mes-
sage can be set from 3,219 kilometers to 12,070 kilo-
meters (2,000 miles to 7,500 miles).
EASY EXIT SEAT
Currently available only on Jeep Grand Cherokee
Limited vehicles, the driver's seat will reposition
55mm (2.1 inches) rearward, or the end of travel if
less than 55mm (2.1 inches) and full downward when
the key is removed from the ignition. This feature
allows ease of exiting the vehicle. The seat will repo-
sition itself to the memory location when the vehicle
is unlocked using the RKE transmitter or by pressing
the memory buttons on the door panel.
APPEARANCE TIPS
CLEANING
(1) Before delivering the new vehicle to the cus-
tomer, the following checks on appearance details are
recommended:
²Wash the vehicle to remove all traces of road
grime and other dirt on the car from new vehicle
preparation operations
²Clean the tire sidewalls
²Clean exterior and interior glass surfaces
²Remove all protective covers
²Remove undercoat overspray, excess window
sealer, and excess weatherstrip adhesive
²Inspect interior trim, seats, carpeting, and mold-
ings. Clean as necessary
²Remove shipping and inspection stickers
BR/BENEW VEHICLE PREPARATION 30 - 21
PROGRAMMABLE ELECTRONIC FEATURES (Continued)

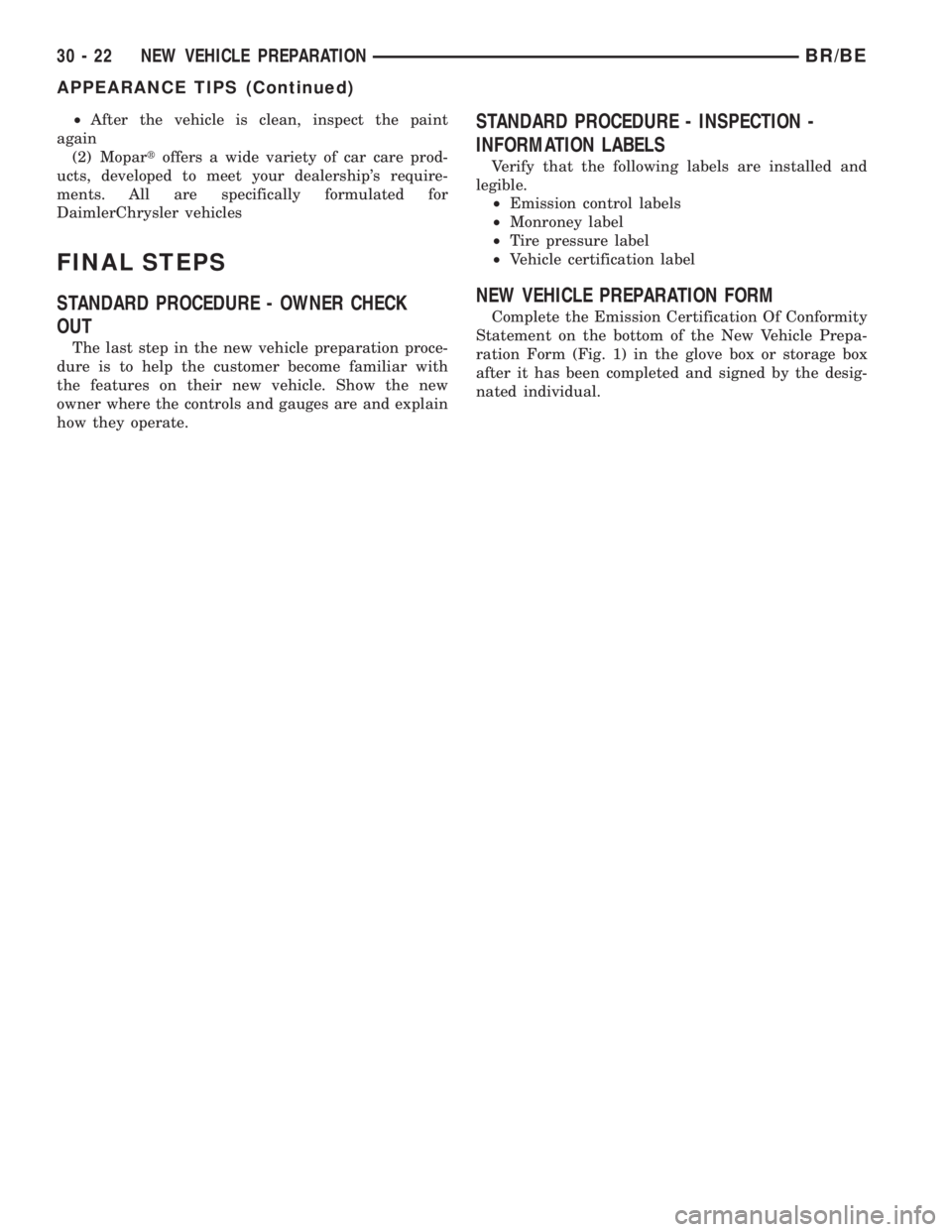

²After the vehicle is clean, inspect the paint
again
(2) Mopartoffers a wide variety of car care prod-
ucts, developed to meet your dealership's require-
ments. All are specifically formulated for
DaimlerChrysler vehicles
FINAL STEPS
STANDARD PROCEDURE - OWNER CHECK
OUT
The last step in the new vehicle preparation proce-
dure is to help the customer become familiar with
the features on their new vehicle. Show the new
owner where the controls and gauges are and explain
how they operate.
STANDARD PROCEDURE - INSPECTION -
INFORMATION LABELS
Verify that the following labels are installed and
legible.
²Emission control labels
²Monroney label
²Tire pressure label
²Vehicle certification label
NEW VEHICLE PREPARATION FORM
Complete the Emission Certification Of Conformity
Statement on the bottom of the New Vehicle Prepa-
ration Form (Fig. 1) in the glove box or storage box
after it has been completed and signed by the desig-
nated individual.
30 - 22 NEW VEHICLE PREPARATIONBR/BE
APPEARANCE TIPS (Continued)

ABS INDICATOR - DESCRIPTION.........8J-14
ABS INDICATOR - OPERATION..........8J-14
A/C APPLICATION TABLE,
SPECIFICATIONS......................24-8
A/C COMPRESSOR - DESCRIPTION......24-46
A/C COMPRESSOR - DIAGNOSIS AND
TESTING...........................24-46
A/C COMPRESSOR - INSTALLATION......24-47
A/C COMPRESSOR - OPERATION........24-46
A/C COMPRESSOR - REMOVAL.........24-47
A/C COMPRESSOR CLUTCH -
DESCRIPTION.......................24-13
A/C COMPRESSOR CLUTCH -
INSPECTION........................24-16
A/C COMPRESSOR CLUTCH -
INSTALLATION.......................24-16
A/C COMPRESSOR CLUTCH -
OPERATION.........................24-13
A/C COMPRESSOR CLUTCH - REMOVAL . . 24-14
A/C COMPRESSOR CLUTCH BREAK-IN -
STANDARD PROCEDURE...............24-13
A/C COMPRESSOR CLUTCH COIL -
DIAGNOSIS AND TESTING.............24-13
A/C COMPRESSOR CLUTCH RELAY -
DESCRIPTION.......................24-17
A/C COMPRESSOR CLUTCH RELAY -
DIAGNOSIS AND TESTING.............24-17
A/C COMPRESSOR CLUTCH RELAY -
INSTALLATION.......................24-18
A/C COMPRESSOR CLUTCH RELAY -
OPERATION.........................24-17
A/C COMPRESSOR CLUTCH RELAY -
REMOVAL..........................24-18
A/C CONDENSER - DESCRIPTION........24-48
A/C CONDENSER - INSTALLATION.......24-49
A/C CONDENSER - OPERATION..........24-48
A/C CONDENSER - REMOVAL...........24-49
A/C EVAPORATOR - DESCRIPTION.......24-52
A/C EVAPORATOR - INSTALLATION......24-53
A/C EVAPORATOR - OPERATION.........24-53
A/C EVAPORATOR - REMOVAL..........24-53
A/C HEATER CONTROL - DESCRIPTION . . . 24-18
A/C HEATER CONTROL - DIAGNOSIS
AND TESTING.......................24-19
A/C HEATER CONTROL - INSTALLATION . . . 24-20
A/C HEATER CONTROL - OPERATION.....24-18
A/C HEATER CONTROL - REMOVAL......24-19
A/C HIGH PRESSURE SWITCH -
DESCRIPTION.......................24-20
A/C HIGH PRESSURE SWITCH -
DIAGNOSIS AND TESTING.............24-20
A/C HIGH PRESSURE SWITCH -
INSTALLATION.......................24-21
A/C HIGH PRESSURE SWITCH -
OPERATION.........................24-20
A/C HIGH PRESSURE SWITCH -
REMOVAL..........................24-21
A/C LINE COUPLERS - DESCRIPTION.....24-40
A/C LINE COUPLERS - OPERATION......24-41
A/C LINE COUPLERS - STANDARD
PROCEDURE........................24-43
A/C LOW PRESSURE SWITCH -
DESCRIPTION.......................24-21
A/C LOW PRESSURE SWITCH -
DIAGNOSIS AND TESTING.............24-21
A/C LOW PRESSURE SWITCH -
INSTALLATION.......................24-22
A/C LOW PRESSURE SWITCH -
OPERATION.........................24-21
A/C LOW PRESSURE SWITCH -
REMOVAL..........................24-21
A/C ORIFICE TUBE - DESCRIPTION.......24-53
A/C ORIFICE TUBE - OPERATION........24-53
A/C ORIFICE TUBE - REMOVAL..........24-54
A/C PERFORMANCE - DIAGNOSIS AND
TESTING............................24-2
ACCELERATOR PEDAL - INSTALLATION . . . 14-37
ACCELERATOR PEDAL - REMOVAL.......14-37
ACCELERATOR PEDAL POSITION
SENSOR - DESCRIPTION
...............14-91
ACCELERATOR PEDAL POSITION
SENSOR - INSTALLATION
..............14-93
ACCELERATOR PEDAL POSITION
SENSOR - OPERATION
................14-91
ACCELERATOR PEDAL POSITION
SENSOR - REMOVAL
..................14-91
ACCESSORY DRIVE BELT - DIAGNOSIS
AND TESTING
................7-24,7-27,7-31ACCUMULATOR - DESCRIPTION.........24-54
ACCUMULATOR - DESCRIPTION . 21-191,21-362,
21-537,21-707
ACCUMULATOR - INSPECTION . . 21-192,21-363,
21-538,21-708
ACCUMULATOR - INSTALLATION........24-55
ACCUMULATOR - OPERATION..........24-54
ACCUMULATOR - OPERATION . . . 21-191,21-362,
21-537,21-708
ACCUMULATOR - REMOVAL............24-54
ACTUATION TEST MODE - DESCRIPTION,
CIRCUIT.............................25-1
ACTUATOR - INSTALLATION, BLEND
DOOR.............................24-26
ACTUATOR - INSTALLATION, HEAT/
DEFROST DOOR.....................24-27
ACTUATOR - INSTALLATION, INSIDE
HANDLE.......................23-71,23-80
ACTUATOR - INSTALLATION, PANEL/
DEFROST DOOR.....................24-27
ACTUATOR - INSTALLATION,
RECIRCULATION DOOR................24-28
ACTUATOR - REMOVAL, BLEND DOOR....24-25
ACTUATOR - REMOVAL, HEAT/DEFROST
DOOR.............................24-26
ACTUATOR - REMOVAL, INSIDE HANDLE . 23-71,
23-80
ACTUATOR - REMOVAL, PANEL/DEFROST
DOOR.............................24-27
ACTUATOR - REMOVAL, RECIRCULATION
DOOR.............................24-27
ADAPTER - INSTALLATION, DEFROSTER
AND DEMISTER DUCT.................24-35
ADAPTER - REMOVAL, DEFROSTER AND
DEMISTER DUCT.....................24-35
ADAPTER BRACKET - INSTALLATION,
CAB CHASSIS........................13-9
ADAPTER BRACKET - REMOVAL, CAB
CHASSIS............................13-9
ADAPTER HOUSING SEAL -
INSTALLATION.................21-132,21-87
ADAPTER HOUSING SEAL - REMOVAL . . 21-132,
21-87
ADDING ADDITIONAL COOLANT -
STANDARD PROCEDURE................7-16
ADDITIONAL COOLANT - STANDARD
PROCEDURE, ADDING..................7-16
ADHESIVE LOCATIONS, SPECIFICATIONS
- STRUCTURAL......................23-44
ADJUSTER - DIAGNOSIS & TESTING,
POWER LUMBAR....................8N-18
ADJUSTER - INSTALLATION, SEAT BELT
TURNING LOOP.....................8O-29
ADJUSTER - INSTALLATION, SEAT
TRACK............................23-143
ADJUSTER - REMOVAL, SEAT BELT
TURNING LOOP.....................8O-29
ADJUSTER - REMOVAL, SEAT TRACK....23-143
ADJUSTER ASSEMBLY - INSTALLATION,
ROCKER ARM........................9-85
ADJUSTER ASSEMBLY - REMOVAL,
ROCKER ARM........................9-85
ADJUSTER ASSY - CLEANING, ROCKER
ARM ..............................9-262
ADJUSTER ASSY - DESCRIPTION,
ROCKER ARM.......................9-261
ADJUSTER ASSY - INSPECTION,
ROCKER ARM.......................9-262
ADJUSTER ASSY - INSTALLATION,
ROCKER ARM.............9-142,9-200,9-263
ADJUSTER ASSY - REMOVAL, ROCKER
ARM ....................9-142,9-200,9-261
ADJUSTER KNOB - INSTALLATION,
TURNING LOOP HEIGHT...............8O-30
ADJUSTER KNOB - REMOVAL, TURNING
LOOP HEIGHT.......................8O-30
ADJUSTMENT - STANDARD
PROCEDURE, COMPASS VARIATION......8M-4
ADJUSTMENT AND VERIFICATION -
STANDARD PROCEDURE, VALVE LASH....9-256
ADJUSTMENT, BANDS . . . 21-193,21-364,21-539,
21-709
ADJUSTMENT, CABLE TENSIONER
........5-40
ADJUSTMENT, CARGO DOOR
...........23-78
ADJUSTMENT, CENTER BEARING -
CENTER BEARING
.....................3-10
ADJUSTMENT, FRONT DOOR FORE/AFT
. . . 23-68
ADJUSTMENT, FRONT DOOR IN/OUT
.....23-69ADJUSTMENT, FRONT DOOR LATCH......23-72
ADJUSTMENT, FRONT DOOR UP/DOWN . . . 23-69
ADJUSTMENT, FRONT FASCIA...........13-2
ADJUSTMENT, HOOD................23-100
ADJUSTMENT, LATCH................23-100
ADJUSTMENT, LATCH STRIKER........23-102
ADJUSTMENT, REAR BRAKE DRUM.......5-34
ADJUSTMENT, SHIFT LEVER....21-853,21-888,
21-925
ADJUSTMENT, SHIFT MECHANISM.....21-252,
21-423,21-596,21-769
ADJUSTMENTS, FOG LAMP UNIT........8L-12
ADJUSTMENTS, FRONT AXLE - 216FBI....3-17
ADJUSTMENTS, FRONT AXLE - 248FBI....3-50
ADJUSTMENTS, GEAR.................19-16
ADJUSTMENTS, HEADLAMP UNIT.......8L-21
ADJUSTMENTS, REAR AXLE - 248RBI....3-114
ADJUSTMENTS, REAR AXLE - 267RBI....3-145
ADJUSTMENTS, REAR AXLE - 286RBI....3-174
ADJUSTMENTS, REAR AXLE - 9 1/4 .......3-84
ADJUSTMENTS, TRANSMISSION
THROTTLE VALVE CABLE . 21-254,21-425,21-598,
21-771
ADJUSTMENTS, VALVE BODY . . . 21-304,21-476,
21-646,21-818
AFTER AN AIRBAG DEPLOYMENT -
STANDARD PROCEDURE, SERVICE.......8O-4
AIR BLEED - STANDARD PROCEDURE....14-57
AIR CHECKING TRANSMISSION CLUTCH
AND BAND OPERATION - DIAGNOSIS
AND TESTING................21-147,21-318
AIR CLEANER ELEMENT - INSTALLATION . . 9-245
AIR CLEANER ELEMENT - REMOVAL.....9-244
AIR CONDITIONER - DESCRIPTION,
HEATER .............................24-1
AIR CONDITIONER - OPERATION,
HEATER .............................24-1
AIR CONDITIONING - INSTALLATION,
WATER PUMP BYPASS HOSE WITH.......7-77
AIR CONDITIONING - INSTALLATION,
WATER PUMP BYPASS HOSE
WITHOUT............................7-78
AIR CONDITIONING - REMOVAL, WATER
PUMP BYPASS HOSE WITH.............7-74
AIR CONDITIONING - REMOVAL, WATER
PUMP BYPASS HOSE WITHOUT..........7-77
AIR CONTROL MOTOR - DESCRIPTION,
IDLE...............................14-41
AIR CONTROL MOTOR - OPERATION,
IDLE...............................14-41
AIR COOLER AND PLUMBING -
CLEANING, CHARGE..................11-18
AIR COOLER AND PLUMBING -
DESCRIPTION, CHARGE...............11-17
AIR COOLER AND PLUMBING -
INSPECTION, CHARGE.................11-18
AIR COOLER AND PLUMBING -
INSTALLATION, CHARGE...............11-18
AIR COOLER AND PLUMBING -
OPERATION, CHARGE.................11-17
AIR COOLER AND PLUMBING -
REMOVAL, CHARGE..................11-17
AIR DAM - INSTALLATION, FRONT........13-2
AIR DAM - REMOVAL, FRONT...........13-1
AIR EXHAUSTER - INSTALLATION.......23-77
AIR EXHAUSTER - REMOVAL...........23-77
AIR HEATER - DESCRIPTION, INTAKE....14-100
AIR HEATER - INSTALLATION, INTAKE . . . 14-101
AIR HEATER - OPERATION, INTAKE.....14-100
AIR HEATER - REMOVAL, INTAKE.......14-100
AIR HEATER RELAY - DESCRIPTION,
INTAKE............................14-101
AIR HEATER RELAY - INSTALLATION,
INTAKE............................14-102
AIR HEATER RELAY - OPERATION,
INTAKE............................14-102
AIR HEATER RELAY - REMOVAL, INTAKE . 14-102
AIR IN FUEL SYSTEM - DIAGNOSIS AND
TESTING...........................14-56
AIR INJECTION PUMP - DESCRIPTION....25-28
AIR INJECTION PUMP - DIAGNOSIS AND
TESTING...........................25-28
AIR INJECTION PUMP - INSTALLATION . . . 25-29
AIR INJECTION PUMP - OPERATION
.....25-28
AIR INJECTION PUMP - REMOVAL
.......25-29
AIR INJECTION SYSTEM - DESCRIPTION
. . 25-25
AIR INJECTION SYSTEM - OPERATION
....25-27
AIR INJECTION SYSTEM - TORQUE
......25-28
BR/BEINDEX 1
Description Group-Page Description Group-Page Description Group-Page

AIR PUMP FILTER - INSTALLATION......25-29
AIR PUMP FILTER - REMOVAL..........25-29
AIR TESTING TRANSMISSION CLUTCH
AND BAND OPERATION - DIAGNOSIS
AND TESTING................21-490,21-661
AIR TO OIL COOLER - INSTALLATION.....7-88
AIR TO OIL COOLER - REMOVAL.........7-87
AIRBAG - ASSEMBLY, DRIVER..........8O-17
AIRBAG - DESCRIPTION, DRIVER........8O-14
AIRBAG - DESCRIPTION, PASSENGER....8O-21
AIRBAG - DISASSEMBLY, DRIVER.......8O-15
AIRBAG - INSTALLATION, DRIVER.......8O-18
AIRBAG - INSTALLATION, PASSENGER . . . 8O-23
AIRBAG - OPERATION, DRIVER.........8O-14
AIRBAG - OPERATION, PASSENGER......8O-21
AIRBAG - REMOVAL, DRIVER...........8O-14
AIRBAG - REMOVAL, PASSENGER.......8O-21
AIRBAG CONTROL MODULE -
DESCRIPTION........................8O-6
AIRBAG CONTROL MODULE -
INSTALLATION.......................8O-8
AIRBAG CONTROL MODULE -
OPERATION..........................8O-6
AIRBAG CONTROL MODULE - REMOVAL . . . 8O-7
AIRBAG DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER AN........8O-4
AIRBAG INDICATOR - DESCRIPTION......8J-15
AIRBAG INDICATOR - OPERATION.......8J-15
AIRBAG ON/OFF SWITCH -
DESCRIPTION, PASSENGER............8O-23
AIRBAG ON/OFF SWITCH -
INSTALLATION, PASSENGER...........8O-25
AIRBAG ON/OFF SWITCH - OPERATION,
PASSENGER........................8O-24
AIRBAG ON/OFF SWITCH - REMOVAL,
PASSENGER........................8O-24
AIRBAG SYSTEM - DIAGNOSIS AND
TESTING............................8O-4
AIRBAG SYSTEM - SPECIAL TOOLS.......8O-6
AIRBAGS - STANDARD PROCEDURE,
HANDLING NON-DEPLOYED.............8O-4
AIRFLOW - DESCRIPTION, HVAC
SYSTEM............................24-31
AJAR SWITCH - DESCRIPTION, DOOR....8L-34
AJAR SWITCH - DIAGNOSIS AND
TESTING, DOOR.....................8L-34
AJAR SWITCH - INSTALLATION, DOOR . . . 8L-35
AJAR SWITCH - REMOVAL, DOOR.......8L-35
ALIGNMENT - DESCRIPTION, WHEEL.......2-1
ALIGNMENT - OPERATION, WHEEL........2-2
ALIGNMENT I.F.S. - STANDARD
PROCEDURES.........................2-2
ALIGNMENT LINK/COIL SUSPENSION -
STANDARD PROCEDURES...............2-5
ALIGNMENT, SPECIAL TOOLS -
HEADLAMP..........................8L-4
ALIGNMENT, SPECIFICATIONS............2-6
ALUMINUM THREAD REPAIR -
STANDARD
PROCEDURE.....21-159,21-330,21-502,21-673
AMBIENT TEMP SENSOR - DESCRIPTION . 8M-11
AMBIENT TEMP SENSOR -
INSTALLATION......................8M-13
AMBIENT TEMP SENSOR - OPERATION . . 8M-11
AMBIENT TEMP SENSOR - REMOVAL
....8M-12
AMBIENT TEMPERATURE SENSOR -
DIAGNOSIS & TESTING
...............8M-12
AMPERAGE TEST - DIAGNOSIS AND
TESTING, FUEL PUMP
.................14-10
AN AIRBAG DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER
...........8O-4
ANTENNA - DIAGNOSIS AND TESTING
.....8A-5
ANTENNA BODY & CABLE -
DESCRIPTION
........................8A-4
ANTENNA BODY & CABLE - OPERATION
. . . 8A-4
ANTENNA CABLE - INSTALLATION,
INSTRUMENT PANEL
.................8A-10
ANTENNA CABLE - REMOVAL,
INSTRUMENT PANEL
..................8A-9
ANTILOCK BRAKE - DESCRIPTION,
CONTROLLER
.......................8E-11
ANTILOCK BRAKE - INSTALLATION,
CONTROLLER
.......................8E-12
ANTILOCK BRAKE - OPERATION,
CONTROLLER
.......................8E-11
ANTILOCK BRAKE - REMOVAL,
CONTROLLER
.......................8E-12A-PILLAR GRAB HANDLE -
INSTALLATION......................23-119
A-PILLAR GRAB HANDLE - REMOVAL . . . 23-119
A-PILLAR TRIM - INSTALLATION.......23-119
A-PILLAR TRIM - REMOVAL...........23-119
A-PILLAR TWEETER SPEAKER -
INSTALLATION.......................8A-19
A-PILLAR TWEETER SPEAKER -
REMOVAL..........................8A-19
APPEARANCE TIPS - CLEANING.........30-21
APPLICATION TABLE, SPECIFICATIONS -
A/C ................................24-8
APPLIQUE - INSTALLATION........23-62,23-67
APPLIQUE - REMOVAL...........23-62,23-67
AREA LEAKS - DIAGNOSIS AND
TESTING, REAR SEAL..................9-10
ARM / ADJUSTER ASSEMBLY -
INSTALLATION, ROCKER................9-85
ARM / ADJUSTER ASSEMBLY -
REMOVAL, ROCKER...................9-85
ARM / ADJUSTER ASSY - CLEANING,
ROCKER............................9-262
ARM / ADJUSTER ASSY - DESCRIPTION,
ROCKER............................9-261
ARM / ADJUSTER ASSY - INSPECTION,
ROCKER............................9-262
ARM / ADJUSTER ASSY -
INSTALLATION, ROCKER.....9-142,9-200,9-263
ARM / ADJUSTER ASSY - REMOVAL,
ROCKER.................9-142,9-200,9-261
ARM - DESCRIPTION, WIPER...........8R-11
ARM - INSTALLATION, LOWER
CONTROL.......................2-10,2-20
ARM - INSTALLATION, UPPER
CONTROL.......................2-13,2-24
ARM - INSTALLATION, WIPER..........8R-12
ARM - OPERATION, WIPER............8R-12
ARM - REMOVAL, LOWER CONTROL . . 2-10,2-20
ARM - REMOVAL, UPPER CONTROL . . 2-13,2-23
ARM - REMOVAL, WIPER..............8R-12
ARMREST/CONSOLE - INSTALLATION,
CENTER SEAT......................23-132
ARMREST/CONSOLE - REMOVAL,
CENTER SEAT......................23-132
ARMREST/LATCH COVER -
INSTALLATION, CENTER SEAT.........23-132
ARMREST/LATCH COVER - REMOVAL,
CENTER SEAT......................23-132
ASD AND FUEL PUMP RELAYS -
DIAGNOSIS AND TESTING...............8I-3
ASD SENSE - PCM INPUT - OPERATION....8I-3
ASH RECEIVER - INSTALLATION........23-109
ASH RECEIVER - REMOVAL...........23-108
ASSEMBLE, OIL PUMP...........9-109,9-165
ASSEMBLY - INSTALLATION, ROCKER
ARM / ADJUSTER.....................9-85
ASSEMBLY - REMOVAL, ROCKER ARM /
ADJUSTER...........................9-85
ASSEMBLY, AUTOMATIC
TRANSMISSION - 42RE...............21-166
ASSEMBLY, AUTOMATIC
TRANSMISSION - 44RE...............21-337
ASSEMBLY, AUTOMATIC
TRANSMISSION - 46RE...............21-510
ASSEMBLY, AUTOMATIC
TRANSMISSION - 47RE...............21-681
ASSEMBLY, AXLE VACUUM MOTOR . . . 3-33,3-65
ASSEMBLY, DIFFERENTIAL . . . 3-128,3-159,3-188,
3-37,3-69,3-98
ASSEMBLY, DIFFERENTIAL - POWR-LOK . . 3-163
ASSEMBLY, DIFFERENTIAL - TRAC-LOK . . . 3-101,
3-132,3-190
ASSEMBLY, DISC BRAKE CALIPERS.......5-12
ASSEMBLY, DRIVER AIRBAG...........8O-17
ASSEMBLY, FLYWHEEL.................6-17
ASSEMBLY, FRONT CLUTCH.....21-206,21-376,
21-550,21-721
ASSEMBLY, FRONT SERVO......21-208,21-379,
21-553,21-723
ASSEMBLY, GLOVE BOX..............23-112
ASSEMBLY, HVAC HOUSING............24-36
ASSEMBLY, INSTRUMENT CLUSTER......8J-13
ASSEMBLY, MANUAL - NV3500
.........21-17
ASSEMBLY, MANUAL - NV4500
.........21-65
ASSEMBLY, MANUAL - NV5600
........21-110
ASSEMBLY, OIL PUMP
.................9-51
ASSEMBLY, OIL PUMP
. . . 21-212,21-382,21-558,
21-729ASSEMBLY, OVERDRIVE UNIT . . . 21-225,21-395,
21-569,21-742
ASSEMBLY, OVERHEAD CONSOLE -
OVERHEAD CONSOLE.................8M-7
ASSEMBLY, OVERRUNNING CLUTCH
CAM/OVERDRIVE PISTON
RETAINER.......21-236,21-406,21-581,21-752
ASSEMBLY, PLANETARY GEARTRAIN/
OUTPUT SHAFT . . . 21-241,21-412,21-588,21-760
ASSEMBLY, REAR CLUTCH......21-248,21-419,
21-593,21-766
ASSEMBLY, REAR SERVO.......21-251,21-422,
21-595,21-768
ASSEMBLY, TRANS COOLER -
3.9L/5.2L/5.9L........................7-82
ASSEMBLY, TRANSFER CASE - NV231HD . 21-834
ASSEMBLY, TRANSFER CASE - NV241HD . 21-904
ASSEMBLY, TRANSFER CASE - NV241LD . 21-869
ASSEMBLY, VALVE BODY . 21-294,21-466,21-638,
21-810
ASSEMBLY, WHEEL CYLINDERS..........5-31
ASSIST HANDLE - INSTALLATION.......23-124
ASSIST HANDLE - REMOVAL..........23-124
ASSY - CLEANING, ROCKER ARM /
ADJUSTER..........................9-262
ASSY - DESCRIPTION, ROCKER ARM /
ADJUSTER..........................9-261
ASSY - INSPECTION, ROCKER ARM /
ADJUSTER..........................9-262
ASSY - INSTALLATION, ROCKER ARM /
ADJUSTER................9-142,9-200,9-263
ASSY - REMOVAL, ROCKER ARM /
ADJUSTER................9-142,9-200,9-261
AUDIO - DESCRIPTION.................8A-1
AUDIO - DIAGNOSIS AND TESTING.......8A-2
AUDIO - OPERATION...................8A-2
AUDIO SYSTEMS, SPECIAL TOOLS.......8A-4
AUGAT - INSTALLATION, CONNECTOR . . 8W-01-8
AUGAT - REMOVAL, CONNECTOR.....8W-01-8
AUTO. TRANS. - INSTALLATION, DIESEL
WITH..........................8P-11,8P-4
AUTO. TRANS. - REMOVAL, DIESEL
WITH...........................8P-4,8P-8
AUTOMATIC DAY / NIGHT MIRROR -
DESCRIPTION.......................8N-10
AUTOMATIC DAY / NIGHT MIRROR -
INSTALLATION......................8N-12
AUTOMATIC DAY / NIGHT MIRROR -
OPERATION.........................8N-11
AUTOMATIC DAY / NIGHT MIRROR -
REMOVAL..........................8N-12
AUTOMATIC DAY/NIGHT MIRROR -
DIAGNOSIS AND TESTING.............8N-11
AUTOMATIC SHUT DOWN RELAY -
INSTALLATION........................8I-5
AUTOMATIC SHUT DOWN RELAY -
REMOVAL............................8I-4
AUTOMATIC TRANSMISSION - 42RE -
ASSEMBLY.........................21-166
AUTOMATIC TRANSMISSION - 42RE -
CLEANING.........................21-165
AUTOMATIC TRANSMISSION - 42RE -
DESCRIPTION
......................21-135
AUTOMATIC TRANSMISSION - 42RE -
DISASSEMBLY
......................21-160
AUTOMATIC TRANSMISSION - 42RE -
INSPECTION
.......................21-165
AUTOMATIC TRANSMISSION - 42RE -
INSTALLATION
......................21-173
AUTOMATIC TRANSMISSION - 42RE -
OPERATION
........................21-137
AUTOMATIC TRANSMISSION - 42RE -
REMOVAL
.........................21-159
AUTOMATIC TRANSMISSION - 44RE -
ASSEMBLY
.........................21-337
AUTOMATIC TRANSMISSION - 44RE -
CLEANING
.........................21-336
AUTOMATIC TRANSMISSION - 44RE -
DESCRIPTION
......................21-306
AUTOMATIC TRANSMISSION - 44RE -
DISASSEMBLY
......................21-331
AUTOMATIC TRANSMISSION - 44RE -
INSPECTION
.......................21-337
AUTOMATIC TRANSMISSION - 44RE -
INSTALLATION
......................21-344
AUTOMATIC TRANSMISSION - 44RE -
OPERATION
........................21-308
2 INDEXBR/BE
Description Group-Page Description Group-Page Description Group-Page

AUTOMATIC TRANSMISSION - 44RE -
REMOVAL.........................21-330
AUTOMATIC TRANSMISSION - 46RE -
ASSEMBLY.........................21-510
AUTOMATIC TRANSMISSION - 46RE -
CLEANING.........................21-509
AUTOMATIC TRANSMISSION - 46RE -
DESCRIPTION......................21-478
AUTOMATIC TRANSMISSION - 46RE -
DISASSEMBLY......................21-503
AUTOMATIC TRANSMISSION - 46RE -
INSPECTION.......................21-510
AUTOMATIC TRANSMISSION - 46RE -
INSTALLATION......................21-518
AUTOMATIC TRANSMISSION - 46RE -
OPERATION........................21-480
AUTOMATIC TRANSMISSION - 46RE -
REMOVAL.........................21-502
AUTOMATIC TRANSMISSION - 47RE -
ASSEMBLY.........................21-681
AUTOMATIC TRANSMISSION - 47RE -
CLEANING.........................21-680
AUTOMATIC TRANSMISSION - 47RE -
DESCRIPTION......................21-649
AUTOMATIC TRANSMISSION - 47RE -
DISASSEMBLY......................21-674
AUTOMATIC TRANSMISSION - 47RE -
INSPECTION.......................21-681
AUTOMATIC TRANSMISSION - 47RE -
INSTALLATION......................21-688
AUTOMATIC TRANSMISSION - 47RE -
OPERATION........................21-651
AUTOMATIC TRANSMISSION - 47RE -
REMOVAL...........................21-673
AUTOMATIC TRANSMISSION -
DIAGNOSIS AND TESTING......21-143,21-314,
21-486,21-657
AUTOMATIC TRANSMISSION FLUID -
DESCRIPTION.........................0-5
AUTOMATIC TRANSMISSION FLUID -
OPERATION...........................0-5
AXLE - 216FBI - ADJUSTMENTS, FRONT . . . 3-17
AXLE - 216FBI - DESCRIPTION, FRONT....3-12
AXLE - 216FBI - INSTALLATION, FRONT....3-17
AXLE - 216FBI - OPERATION, FRONT......3-12
AXLE - 216FBI - REMOVAL, FRONT.......3-16
AXLE - 248FBI - ADJUSTMENTS, FRONT . . . 3-50
AXLE - 248FBI - DESCRIPTION, FRONT....3-45
AXLE - 248FBI - INSTALLATION, FRONT....3-50
AXLE - 248FBI - OPERATION, FRONT......3-45
AXLE - 248FBI - REMOVAL, FRONT.......3-50
AXLE - 248RBI - ADJUSTMENTS, REAR . . . 3-114
AXLE - 248RBI - DESCRIPTION, REAR....3-109
AXLE - 248RBI - INSTALLATION, REAR . . . 3-114
AXLE - 248RBI - OPERATION, REAR......3-109
AXLE - 248RBI - REMOVAL, REAR.......3-113
AXLE - 267RBI - ADJUSTMENTS, REAR . . . 3-145
AXLE - 267RBI - DESCRIPTION, REAR....3-140
AXLE - 267RBI - INSTALLATION, REAR . . . 3-145
AXLE - 267RBI - OPERATION, REAR......3-140
AXLE - 267RBI - REMOVAL, REAR.......3-144
AXLE - 286RBI - ADJUSTMENTS, REAR . . . 3-174
AXLE - 286RBI - DESCRIPTION, REAR....3-169
AXLE - 286RBI - INSTALLATION, REAR . . . 3-174
AXLE - 286RBI - OPERATION, REAR......3-169
AXLE - 286RBI - REMOVAL, REAR.......3-173
AXLE - 9 1/4 - ADJUSTMENTS, REAR.....3-84
AXLE - 9 1/4 - DESCRIPTION, REAR......3-77
AXLE - 9 1/4 - INSTALLATION, REAR......3-84
AXLE - 9 1/4 - OPERATION, REAR........3-77
AXLE - 9 1/4 - REMOVAL, REAR..........3-83
AXLE - DIAGNOSIS AND TESTING . . . 3-111,3-13,
3-142,3-171,3-46,3-80
AXLE - INSTALLATION, INTERMEDIATE....3-61
AXLE - REMOVAL, INTERMEDIATE........3-60
AXLE, 216FBI - FRONT.................3-25
AXLE, 248FBI - FRONT.................3-58
AXLE, 248RBI - REAR.................3-122
AXLE, 267RBI - REAR.................3-153
AXLE, 286 RBI - REAR................3-182
AXLE, 286RBI - REAR
.................3-182
AXLE, 9 1/4 - REAR
...................3-90
AXLE BEARINGS - INSTALLATION
. . 3-125,3-156,
3-185,3-95
AXLE BEARINGS - REMOVAL
. 3-125,3-156,3-185,
3-94
AXLE SHAFT SEALS - INSTALLATION
. 3-29,3-61,
3-94AXLE SHAFT SEALS - REMOVAL . 3-29,3-61,3-94
AXLE SHAFTS - INSTALLATION....3-125,3-156,
3-185,3-28,3-60,3-93
AXLE SHAFTS - INTERMEDIATE -
INSTALLATION........................3-28
AXLE SHAFTS - INTERMEDIATE -
REMOVAL...........................3-28
AXLE SHAFTS - REMOVAL . . . 3-125,3-156,3-185,
3-28,3-60,3-93
AXLE, SPECIAL TOOLS - FRONT..........3-58
AXLE VACUUM MOTOR - ASSEMBLY . . 3-33,3-65
AXLE VACUUM MOTOR - DESCRIPTION . . . 3-29,
3-62
AXLE VACUUM MOTOR - DISASSEMBLY . . . 3-33,
3-65
AXLE VACUUM MOTOR - INSTALLATION . . . 3-33,
3-65
AXLE VACUUM MOTOR - OPERATION . 3-30,3-62
AXLE VACUUM MOTOR - REMOVAL . . . 3-33,3-65
AXLES, SPECIAL TOOLS - FRONT.........3-25
BACK - BENCH SEAT - INSTALLATION,
SEAT .............................23-135
BACK - BENCH SEAT - REMOVAL, SEAT . . 23-135
BACK - SPLIT BENCH - INSTALLATION,
SEAT .............................23-136
BACK - SPLIT BENCH - REMOVAL, SEAT . 23-135
BACK COVER - INSTALLATION, SEAT....23-137
BACK COVER - REMOVAL, SEAT........23-137
BACK COVER - SPLIT BENCH -
INSTALLATION, SEAT.................23-138
BACK COVER - SPLIT BENCH -
REMOVAL, SEAT....................23-137
BACK RECLINER - INSTALLATION, SEAT . 23-138
BACK RECLINER - REMOVAL, SEAT.....23-138
BACKLITE - INSTALLATION............23-145
BACKLITE - REMOVAL................23-145
BACKLITE LATCH AND KEEPER -
INSTALLATION......................23-146
BACKLITE LATCH AND KEEPER -
REMOVAL.........................23-146
BACKLITE VENT GLASS - INSTALLATION . 23-147
BACKLITE VENT GLASS - REMOVAL.....23-147
BAFFLE - INSTALLATION, HVAC
HOUSING INLET.....................24-37
BAFFLE - REMOVAL, HVAC HOUSING
INLET..............................24-36
BALANCE - STANDARD PROCEDURES,
TIRE AND WHEEL.....................22-4
BALL JOINT - DIAGNOSIS AND TESTING,
LOWER.............................2-10
BALL JOINT - DIAGNOSIS AND TESTING,
UPPER..............................2-12
BALL JOINT - INSTALLATION, LOWER.....2-25
BALL JOINT - INSTALLATION, UPPER.....2-25
BAND OPERATION - DIAGNOSIS AND
TESTING, AIR CHECKING
TRANSMISSION CLUTCH.......21-147,21-318
BAND OPERATION - DIAGNOSIS AND
TESTING, AIR TESTING
TRANSMISSION CLUTCH.......21-490,21-661
BANDS - ADJUSTMENT . . 21-193,21-364,21-539,
21-709
BANDS - DESCRIPTION . . 21-192,21-363,21-538,
21-709
BANDS - OPERATION....21-192,21-364,21-539,
21-709
BAR - DESCRIPTION, STABILIZER....2-12,2-22,
2-30
BAR - DESCRIPTION, TRACK............2-23
BAR - DIAGNOSIS AND TESTING, TRACK . . . 2-23
BAR - INSTALLATION, STABILIZER . . . 2-12,2-23,
2-30
BAR - INSTALLATION, TRACK............2-23
BAR - OPERATION, STABILIZER . . 2-12,2-22,2-30
BAR - OPERATION, TRACK..............2-23
BAR - REMOVAL, STABILIZER . . . 2-12,2-22,2-30
BAR - REMOVAL, TRACK...............2-23
BARRELS - INSTALLATION, PANEL
OUTLET............................24-32
BARRELS - REMOVAL, PANEL OUTLET . . . 24-32
BASE BRAKE, SPECIFICATIONS
............5-2
BASE BRAKE SYSTEM - DIAGNOSIS AND
TESTING
.............................5-5
BASE BRAKES, SPECIAL TOOLS
...........5-4
BASE COAT/CLEAR COAT FINISH -
DESCRIPTION
......................23-129
BASE COAT/CLEAR COAT FINISH -
OPERATION
........................23-129BATTERIES - STANDARD PROCEDURE,
RKE TRANSMITTER...................8N-8
BATTERY - DESCRIPTION...............8F-6
BATTERY - DIAGNOSIS AND TESTING.....8F-7
BATTERY - INSPECTION................30-7
BATTERY - INSTALLATION..............8F-17
BATTERY - OPERATION.................8F-7
BATTERY - REMOVAL.................8F-17
BATTERY CABLE - DESCRIPTION........8F-19
BATTERY CABLE - OPERATION..........8F-20
BATTERY CABLES - DIAGNOSIS &
TESTING...........................8F-20
BATTERY CHARGING - STANDARD
PROCEDURE.........................8F-9
BATTERY ELECTROLYTE LEVEL -
STANDARD PROCEDURE, CHECKING......8F-8
BATTERY HOLDDOWN - DESCRIPTION....8F-18
BATTERY HOLDDOWN - INSTALLATION . . . 8F-18
BATTERY HOLDDOWN - OPERATION.....8F-18
BATTERY HOLDDOWN - REMOVAL.......8F-18
BATTERY, SPECIFICATIONS..............8F-6
BATTERY SYSTEM - CLEANING...........8F-5
BATTERY SYSTEM - DESCRIPTION........8F-1
BATTERY SYSTEM - DIAGNOSIS AND
TESTING............................8F-2
BATTERY SYSTEM - INSPECTION.........8F-5
BATTERY SYSTEM - OPERATION.........8F-2
BATTERY TEMPERATURE SENSOR -
DESCRIPTION.......................8F-29
BATTERY TEMPERATURE SENSOR -
INSTALLATION.......................8F-29
BATTERY TEMPERATURE SENSOR -
OPERATION.........................8F-29
BATTERY TEMPERATURE SENSOR -
REMOVAL..........................8F-29
BATTERY TRAY - DESCRIPTION.........8F-24
BATTERY TRAY - INSTALLATION.........8F-25
BATTERY TRAY - OPERATION...........8F-25
BATTERY TRAY - REMOVAL............8F-25
BEAM INDICATOR - DESCRIPTION, HIGH . . 8J-21
BEAM INDICATOR - DIAGNOSIS AND
TESTING, HIGH......................8J-22
BEAM INDICATOR - OPERATION, HIGH....8J-22
BEARING - CENTER BEARING
ADJUSTMENT, CENTER.................3-10
BEARING - DESCRIPTION, CENTER.......3-10
BEARING - DESCRIPTION, CLUTCH
RELEASE............................6-14
BEARING - DESCRIPTION, PILOT.........6-17
BEARING - INSTALLATION, CENTER.......3-10
BEARING - INSTALLATION, CLUTCH
RELEASE............................6-15
BEARING - INSTALLATION, HUB
...........2-9
BEARING - INSTALLATION, OUTPUT
SHAFT FRONT
....21-213,21-384,21-560,21-730
BEARING - INSTALLATION, OUTPUT
SHAFT REAR
.....21-213,21-384,21-560,21-731
BEARING - INSTALLATION, PILOT
........6-18
BEARING - INSTALLATION, PITMAN
......19-21
BEARING - OPERATION, CENTER
.........3-10
BEARING - OPERATION, CLUTCH
RELEASE
............................6-14
BEARING - OPERATION, PILOT
...........6-18
BEARING - REMOVAL, CENTER
...........3-10
BEARING - REMOVAL, CLUTCH RELEASE
. . . 6-15
BEARING - REMOVAL, HUB
..............2-9
BEARING - REMOVAL, OUTPUT SHAFT
FRONT
..........21-213,21-384,21-559,21-730
BEARING - REMOVAL, OUTPUT SHAFT
REAR
...........21-213,21-384,21-560,21-731
BEARING - REMOVAL, PILOT
............6-18
BEARING - REMOVAL, PITMAN
..........19-20
BEARING ADJUSTMENT, CENTER
BEARING - CENTER
....................3-10
BEARING AND CRANKSHAFT JOURNAL
CLEARANCE - STANDARD
PROCEDURE, CONNECTING ROD
........9-274
BEARING CLEARANCE - STANDARD
PROCEDURE, MAIN
...................9-275
BEARING FITTING - STANDARD
PROCEDURE, CONNECTING ROD
. . . 9-144,9-202,
9-88
BEARING FITTING - STANDARD
PROCEDURE, CRANKSHAFT MAIN
. . . 9-146,9-90
BEARING FITTING - STANDARD
PROCEDURE, MAIN
...............9-203,9-33
BR/BEINDEX 3
Description Group-Page Description Group-Page Description Group-Page
