DODGE RAM SRT-10 2006 Service Repair Manual

HYDRAULIC FLOW IN FOURTH EMCC

HYDRAULIC FLOW IN FIFTH

HYDRAULIC FLOW IN FIFTH EMCC

HYDRAULIC FLOW IN MANUAL LOW OR AUTOSTICK 1ST

HYDRAULIC FLOW IN MANUAL SECOND

HYDRAULIC FLOW IN MANUAL SECOND (FAILSAFE)

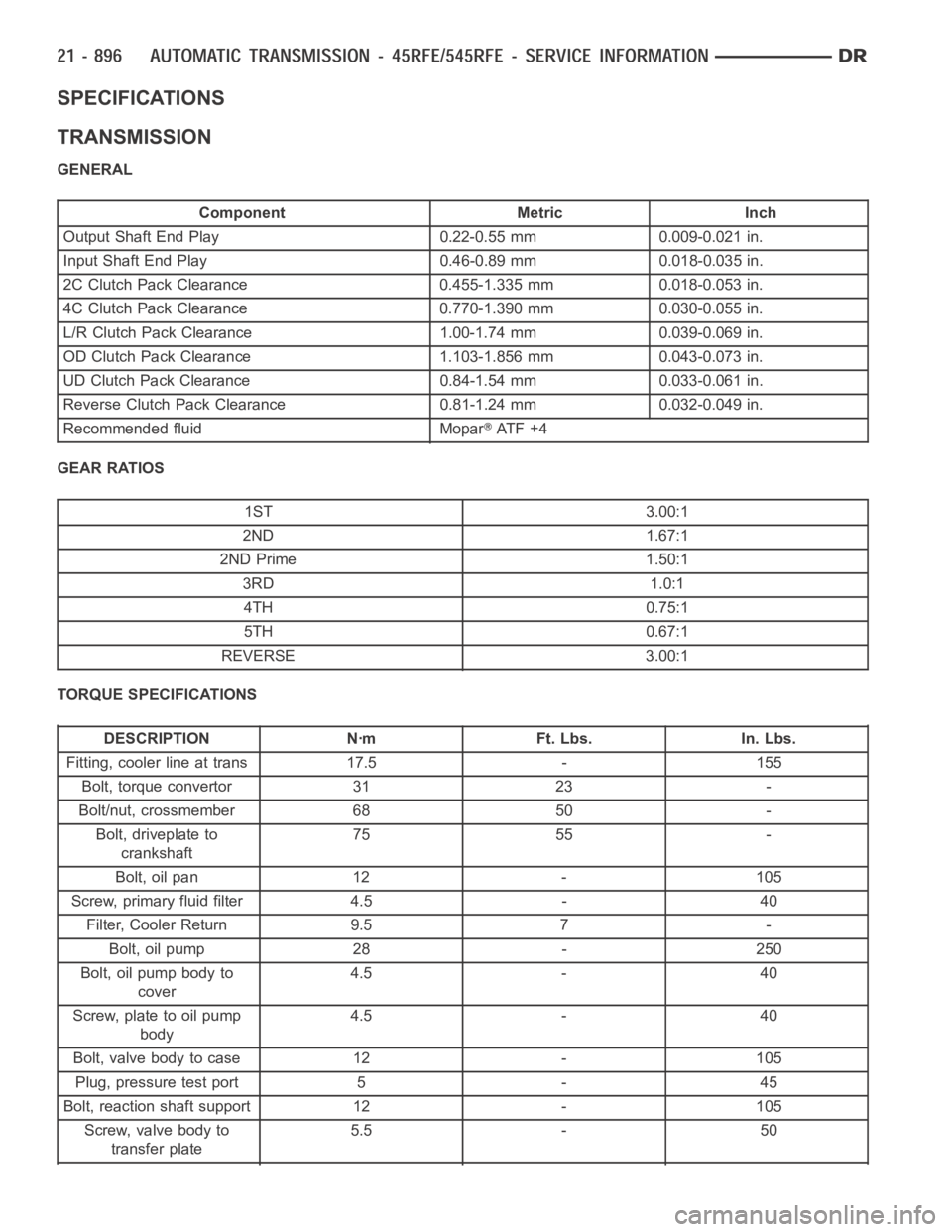

SPECIFICATIONS
TRANSMISSION
GENERAL
Component Metric Inch
Output Shaft End Play 0.22-0.55 mm 0.009-0.021 in.
Input Shaft End Play 0.46-0.89 mm 0.018-0.035 in.
2C Clutch Pack Clearance 0.455-1.335 mm 0.018-0.053 in.
4C Clutch Pack Clearance 0.770-1.390 mm 0.030-0.055 in.
L/R Clutch Pack Clearance 1.00-1.74 mm 0.039-0.069 in.
OD Clutch Pack Clearance 1.103-1.856 mm 0.043-0.073 in.
UD Clutch Pack Clearance 0.84-1.54 mm 0.033-0.061 in.
Reverse Clutch Pack Clearance 0.81-1.24 mm 0.032-0.049 in.
Recommended fluid Mopar
AT F + 4
GEAR RATIOS
1ST 3.00:1
2ND 1.67:1
2ND Prime 1.50:1
3RD 1.0:1
4TH 0.75:1
5TH 0.67:1
REVERSE 3.00:1
TORQUE SPECIFICATIONS
DESCRIPTION Nꞏm Ft. Lbs. In. Lbs.
Fitting, cooler line at trans 17.5 - 155
Bolt, torque convertor 31 23 -
Bolt/nut, crossmember 68 50 -
Bolt, driveplate to
crankshaft75 55 -
Bolt, oil pan 12 - 105
Screw, primary fluid filter 4.5 - 40
Filter, Cooler Return 9.5 7 -
Bolt, oil pump 28 - 250
Bolt, oil pump body to
cover4.5 - 40
Screw, plate to oil pump
body4.5 - 40
Bolt, valve body to case 12 - 105
Plug, pressure test port 5 - 45
Bolt, reaction shaft support 12 - 105
Screw, valve body to
transfer plate5.5 - 50

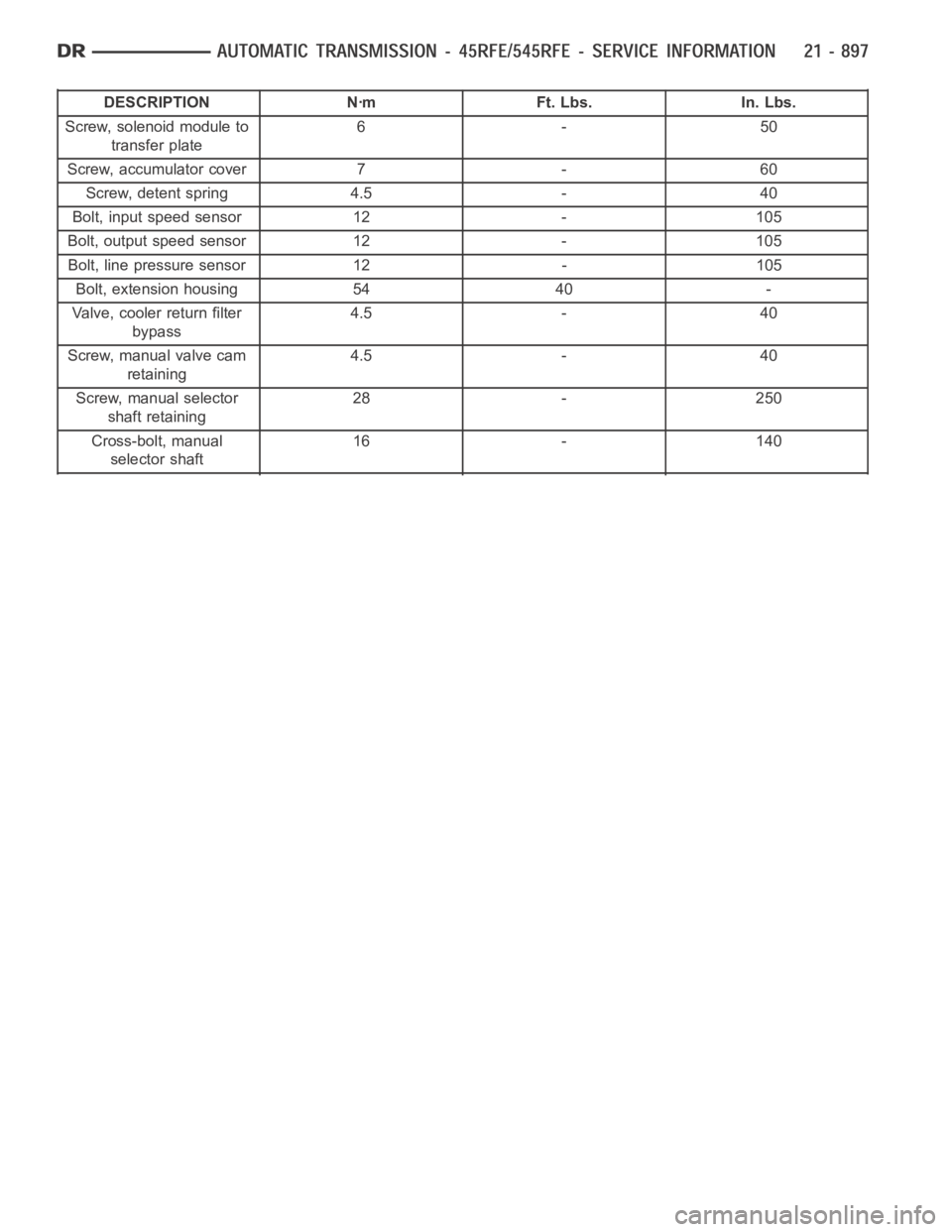

DESCRIPTION Nꞏm Ft. Lbs. In. Lbs.
Screw, solenoid module to
transfer plate6-50
Screw, accumulator cover 7 - 60
Screw, detent spring 4.5 - 40
Bolt, input speed sensor 12 - 105
Bolt, output speed sensor 12 - 105
Bolt, line pressure sensor 12 - 105
Bolt, extension housing 54 40 -
Valve, cooler return filter
bypass4.5 - 40
Screw, manual valve cam
retaining4.5 - 40
Screw, manual selector
shaft retaining28 - 250
Cross-bolt, manual
selector shaft16 - 140

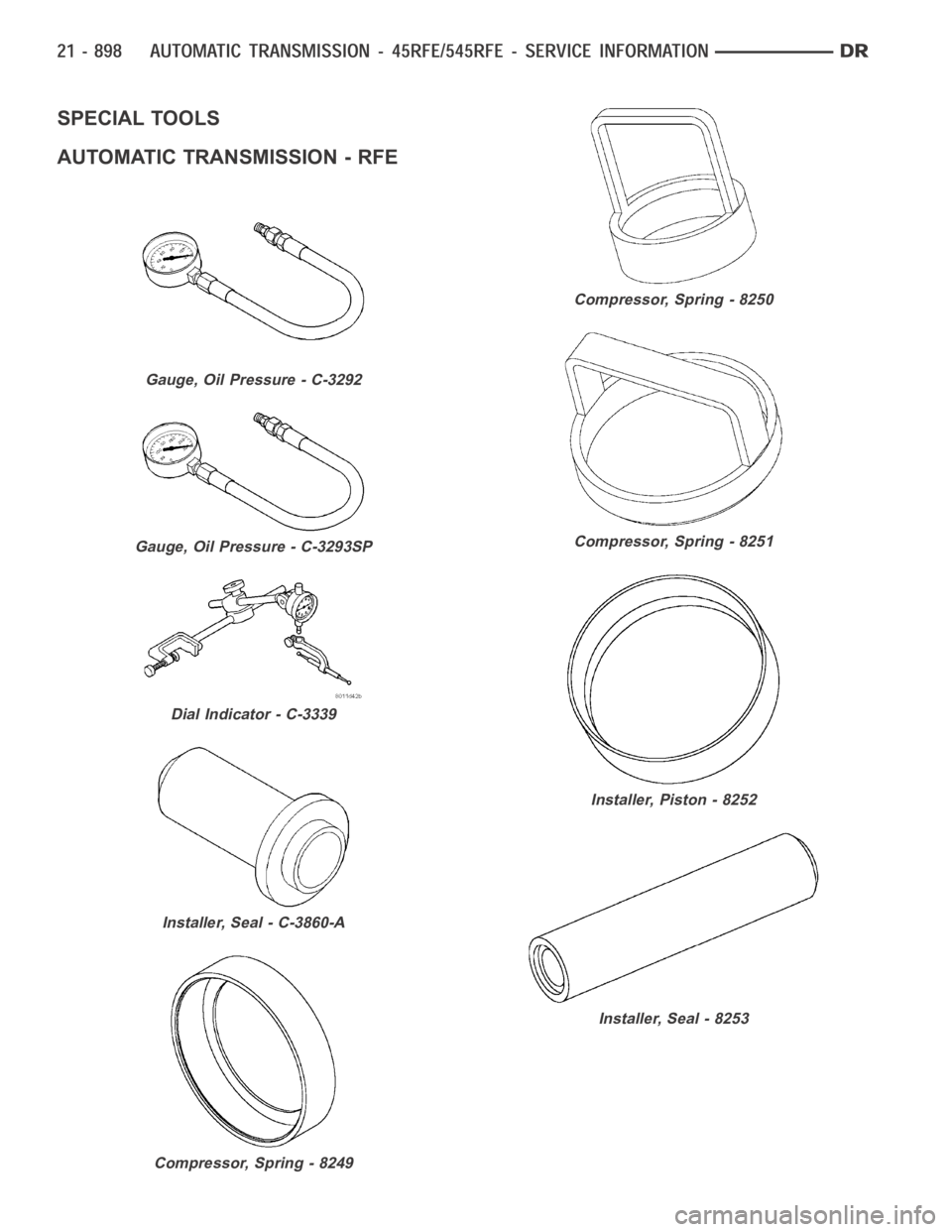

SPECIAL TOOLS
AUTOMATIC TRANSMISSION - RFE
Gauge, Oil Pressure - C-3292
Gauge, Oil Pressure - C-3293SP
Dial Indicator - C-3339
Installer, Seal - C-3860-A
Compressor, Spring - 8249
Compressor, Spring - 8250
Compressor, Spring - 8251
Installer, Piston - 8252
Installer, Seal - 8253

Installer, Seal - 8254
Installer, Snap-ring - 8255
Stand, Support - 8257
Adapter, Pressure Tap - 8258-A
Adapter, Line Pressure - 8259
Fixture, Input Clutch Pressure - 8260
Plate, Alignment - 8261
End Play Set - 8266
