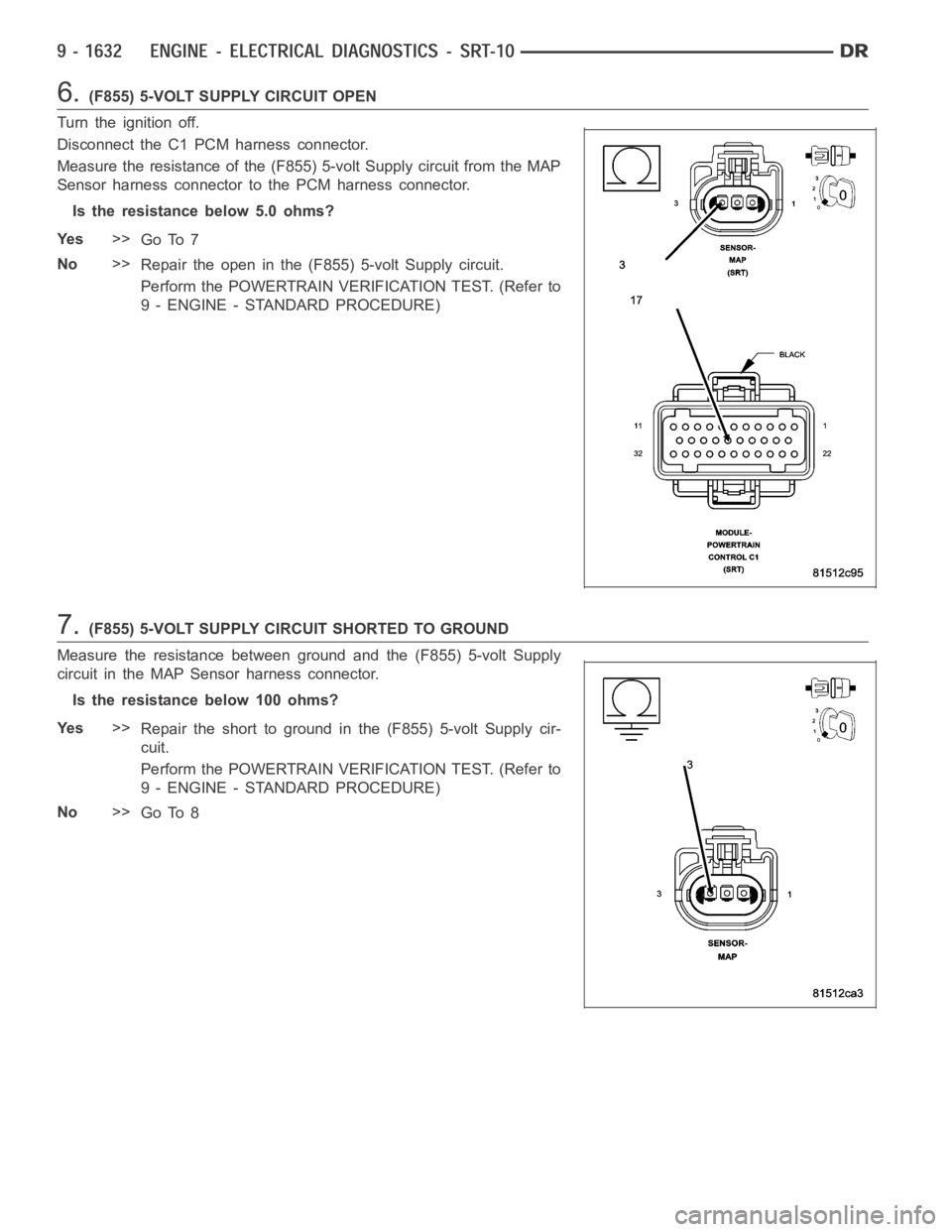

6.(F855) 5-VOLT SUPPLY CIRCUIT OPEN
Turn the ignition off.
Disconnect the C1 PCM harness connector.
Measure the resistance of the (F855) 5-volt Supply circuit from the MAP
Sensor harness connector to the PCM harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 7
No>>
Repair the open in the (F855) 5-volt Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
7.(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (F855) 5-volt Supply
circuit in the MAP Sensor harness connector.
Istheresistancebelow100ohms?
Ye s>>
Repair the short to ground in the (F855) 5-volt Supply cir-
cuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 8
Page 942 of 5267

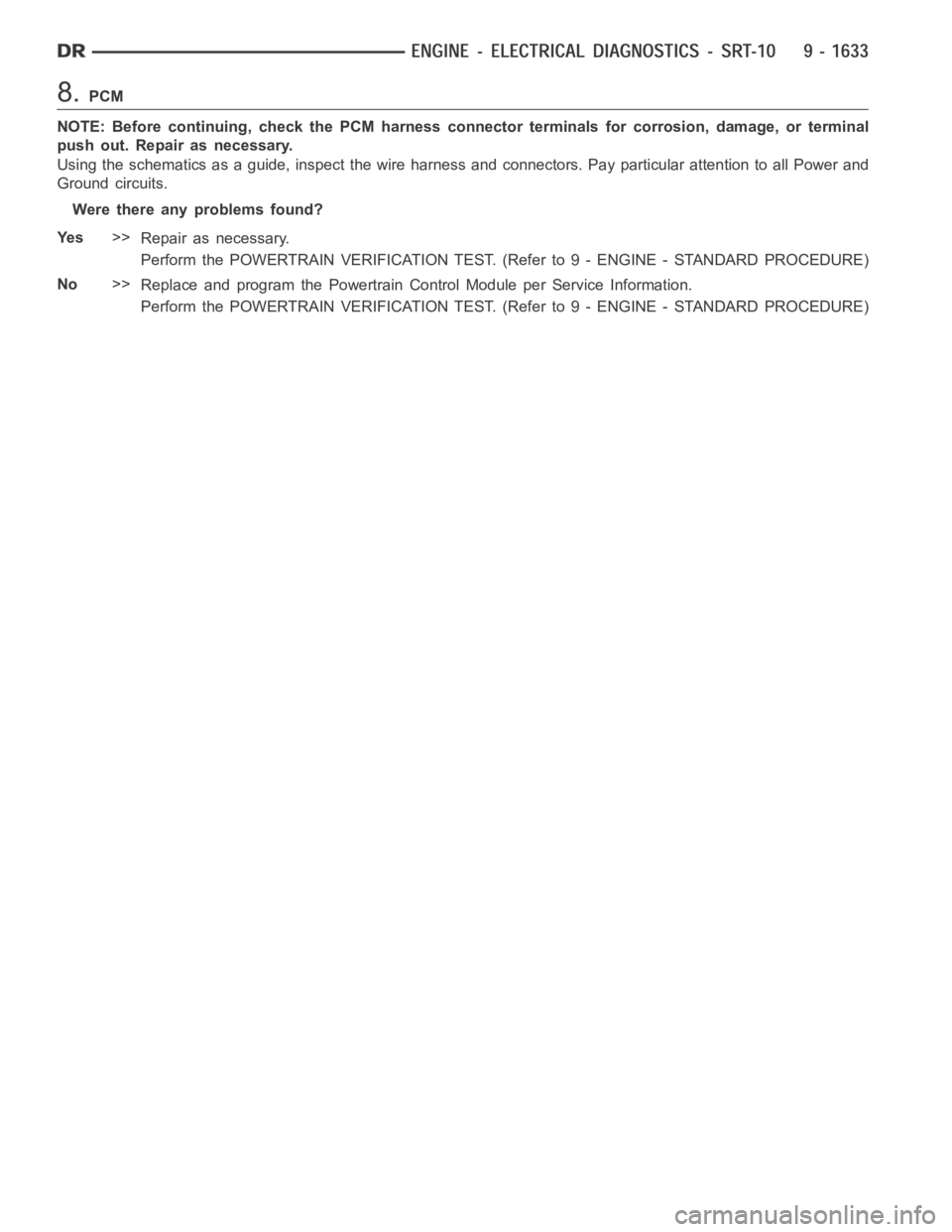

8.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Page 943 of 5267

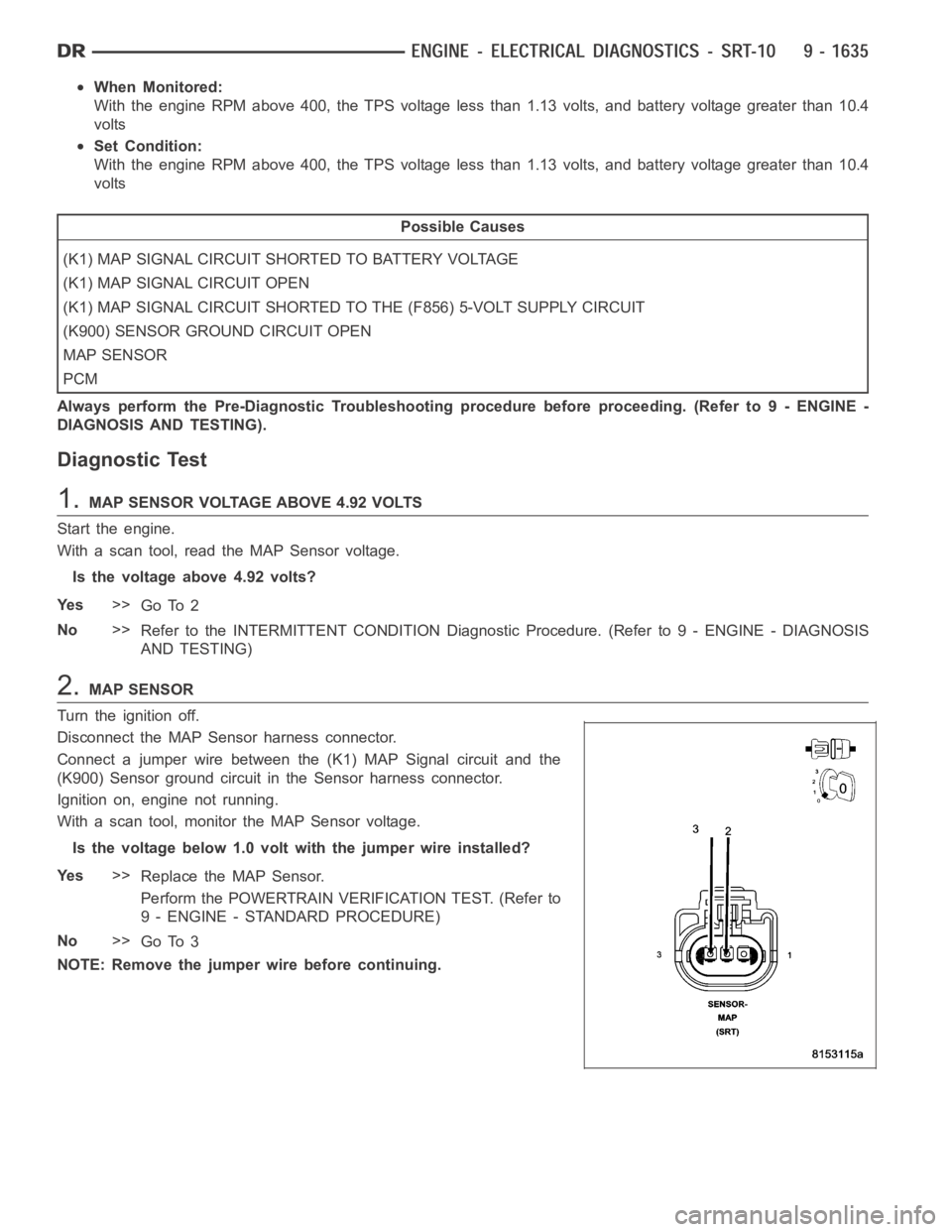

P0108–MAP SENSOR VOLTAGE TOO HIGH
For a complete wiring diagramRefer to Section 8W.
Page 944 of 5267
When Monitored:
With the engine RPM above 400, the TPS voltage less than 1.13 volts, and battery voltage greater than 10.4
volts
Set Condition:
With the engine RPM above 400, the TPS voltage less than 1.13 volts, and battery voltage greater than 10.4
volts
Possible Causes
(K1) MAP SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE
(K1) MAP SIGNAL CIRCUIT OPEN
(K1) MAP SIGNAL CIRCUIT SHORTED TO THE (F856) 5-VOLT SUPPLY CIRCUIT
(K900) SENSOR GROUND CIRCUIT OPEN
MAP SENSOR
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1.MAP SENSOR VOLTAGE ABOVE 4.92 VOLTS
Start the engine.
With a scan tool, read the MAP Sensor voltage.
Is the voltage above 4.92 volts?
Ye s>>
Go To 2
No>>
Refer to the INTERMITTENT CONDITION Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS
AND TESTING)
2.MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Connect a jumper wire between the (K1) MAP Signal circuit and the
(K900) Sensor ground circuit in the Sensor harness connector.
Ignition on, engine not running.
With a scan tool, monitor the MAP Sensor voltage.
Is the voltage below 1.0 volt with the jumper wire installed?
Ye s>>
Replace the MAP Sensor.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 3
NOTE: Remove the jumper wire before continuing.
Page 945 of 5267

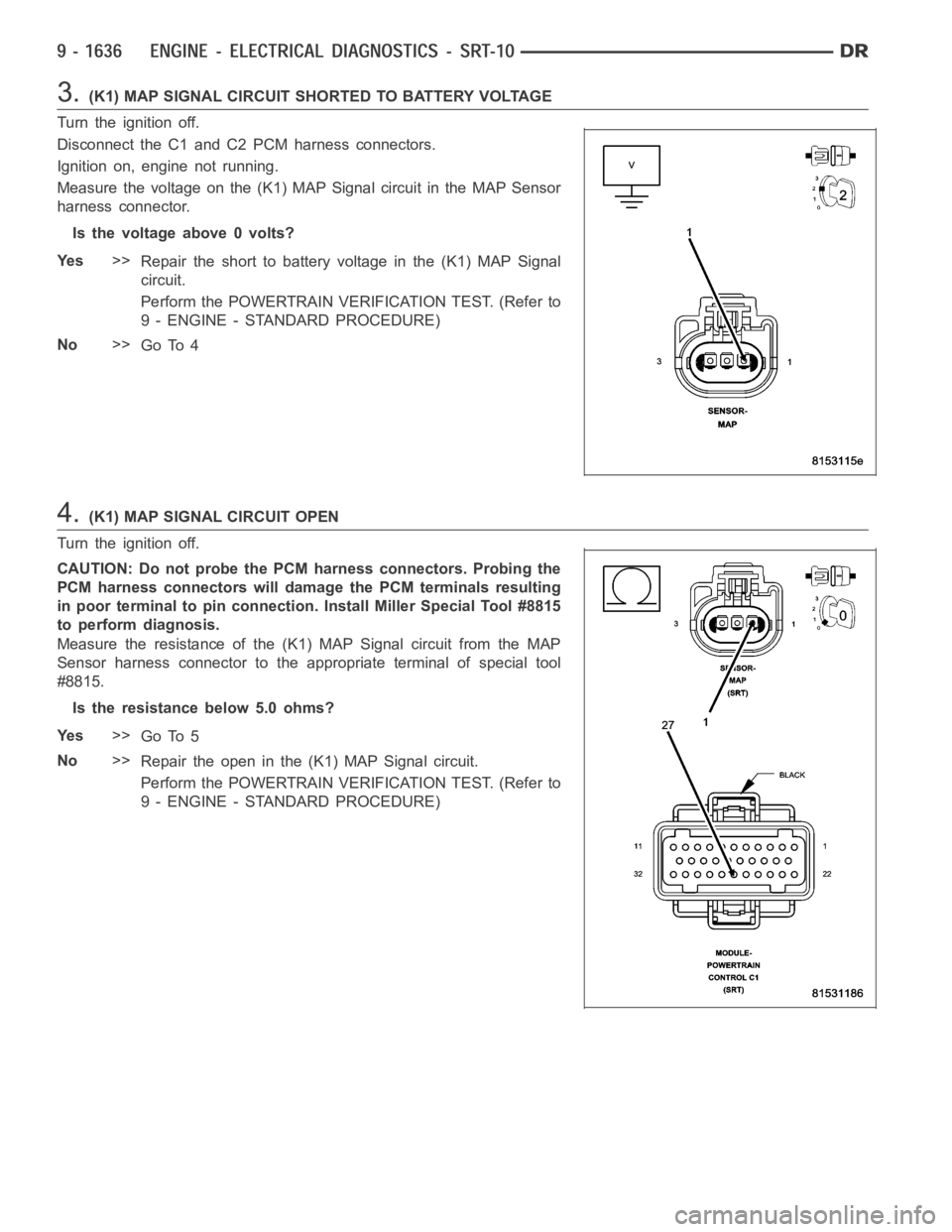

3.(K1) MAP SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE
Turn the ignition off.
Disconnect the C1 and C2 PCM harness connectors.
Ignition on, engine not running.
Measure the voltage on the (K1) MAP Signal circuit in the MAP Sensor
harness connector.
Is the voltage above 0 volts?
Ye s>>
Repair the short to battery voltage in the (K1) MAP Signal
circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 4
4.(K1) MAP SIGNAL CIRCUIT OPEN
Turn the ignition off.
CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.
Measure the resistance of the (K1) MAP Signal circuit from the MAP
Sensor harness connector to the appropriate terminal of special tool
#8815.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 5
No>>
Repair the open in the (K1) MAP Signal circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
Page 946 of 5267

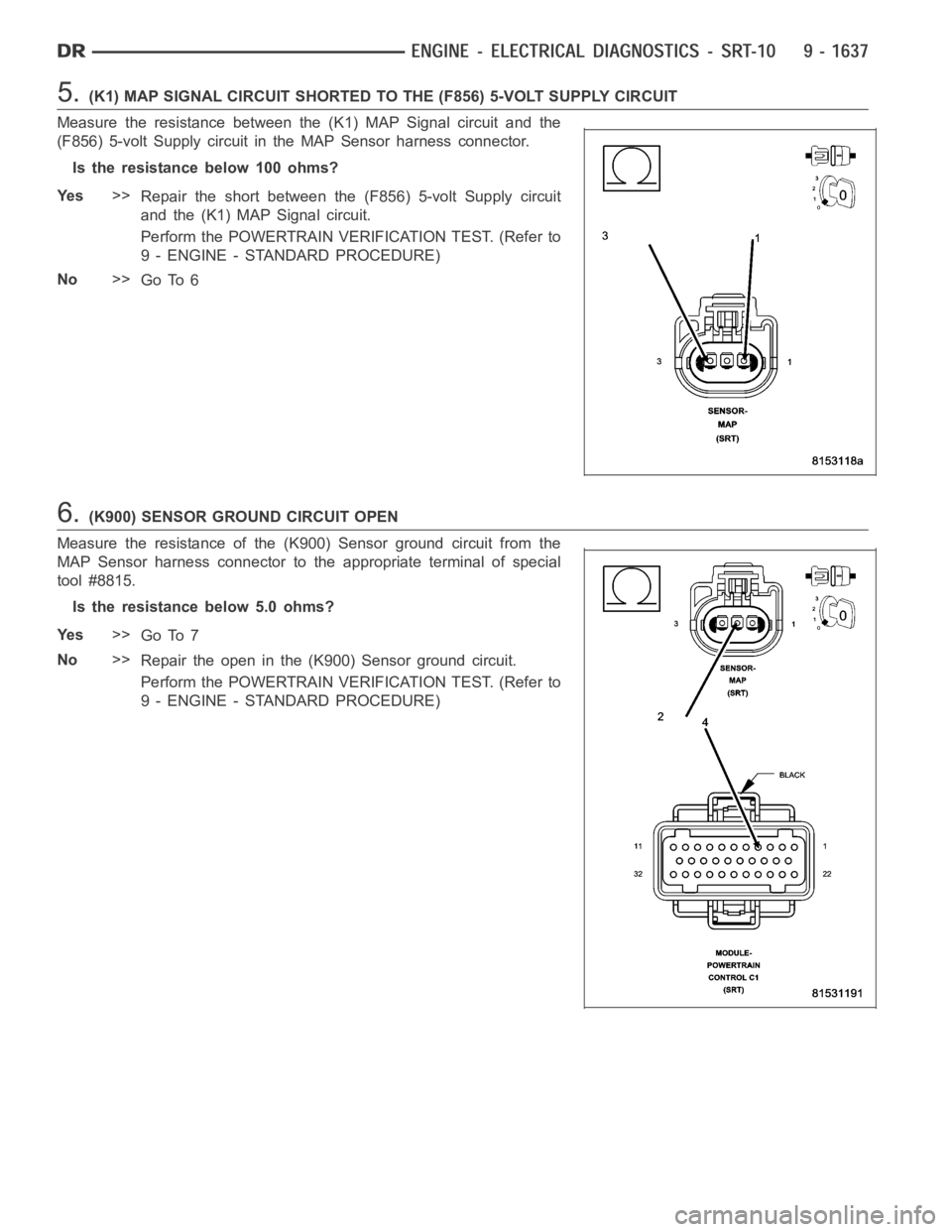

5.(K1) MAP SIGNAL CIRCUIT SHORTED TO THE (F856) 5-VOLT SUPPLY CIRCUIT
Measure the resistance between the (K1) MAP Signal circuit and the
(F856) 5-volt Supply circuit in the MAP Sensor harness connector.
Istheresistancebelow100ohms?
Ye s>>
Repair the short between the (F856) 5-volt Supply circuit
and the (K1) MAP Signal circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 6
6.(K900) SENSOR GROUND CIRCUIT OPEN
Measure the resistance of the (K900) Sensor ground circuit from the
MAP Sensor harness connector to the appropriate terminal of special
tool #8815.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 7
No>>
Repair the open in the (K900) Sensor ground circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
Page 947 of 5267

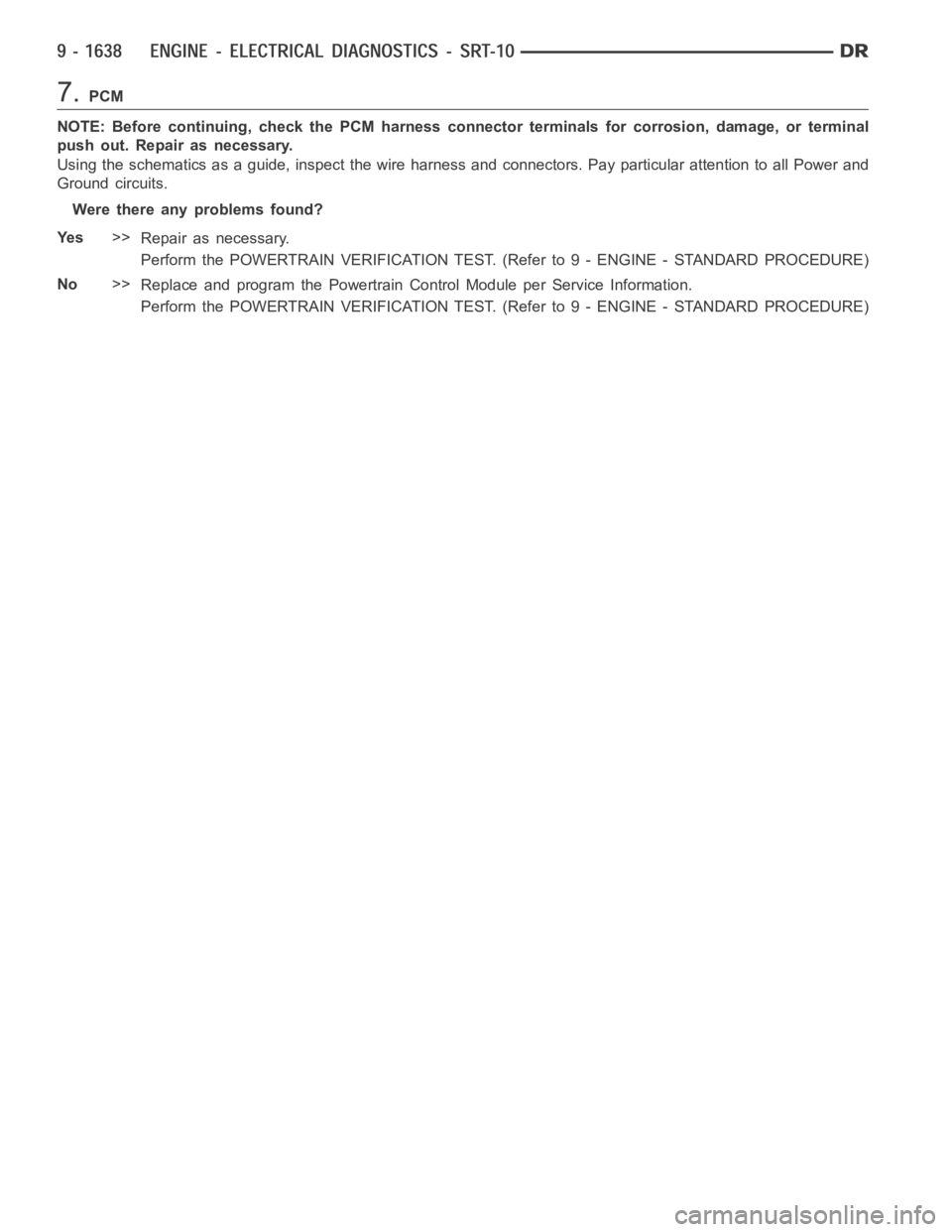

7.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Page 948 of 5267

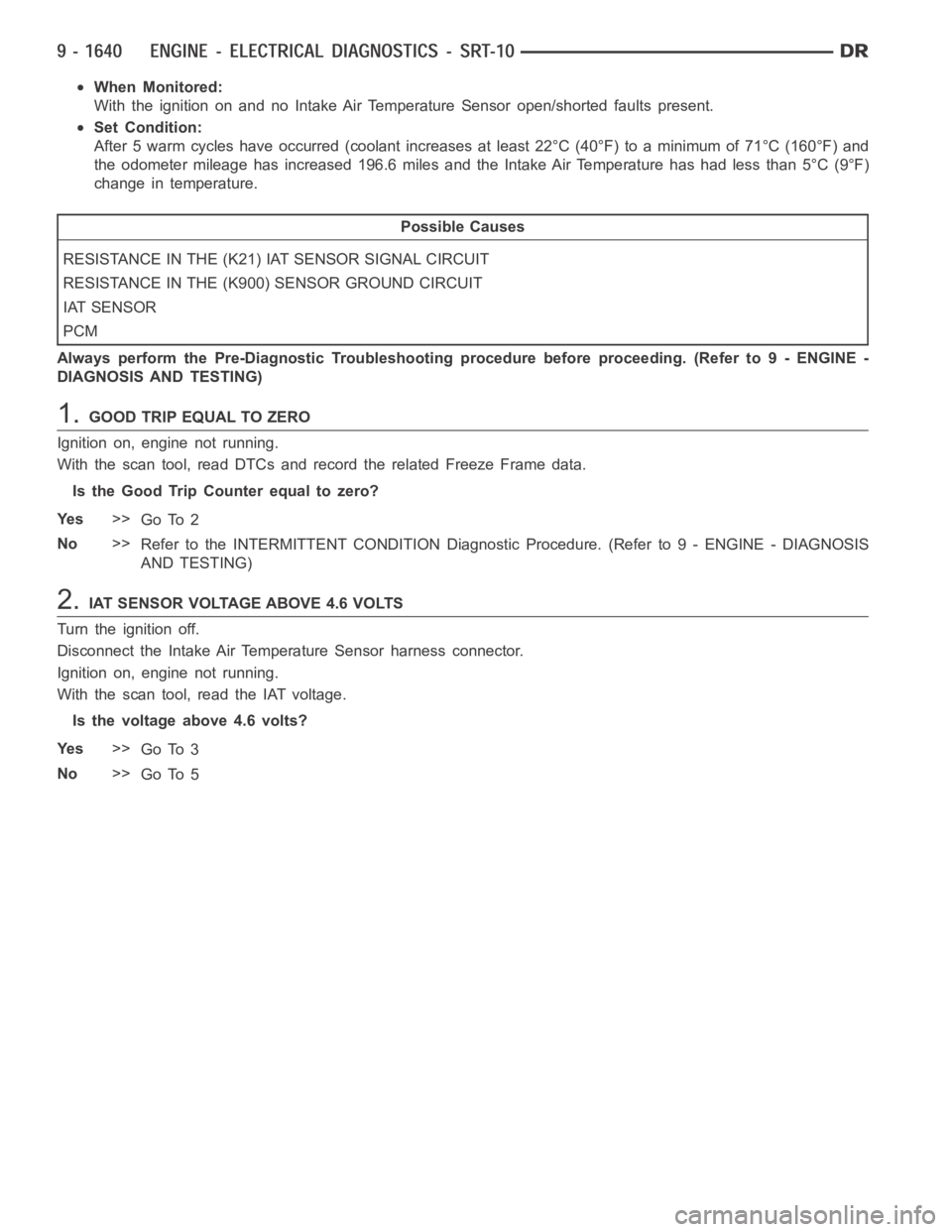

P0111-INTAKE AIR TEMP PERFORMANCE
For a complete wiring diagramRefer to Section 8W.
Page 949 of 5267
When Monitored:
With the ignition on and no Intake Air Temperature Sensor open/shorted faults present.
Set Condition:
After 5 warm cycles have occurred (coolant increases at least 22°C (40°F) to a minimum of 71°C (160°F) and
the odometer mileage has increased 196.6 miles and the Intake Air Temperature has had less than 5°C (9°F)
change in temperature.
Possible Causes
RESISTANCE IN THE (K21) IAT SENSOR SIGNAL CIRCUIT
RESISTANCE IN THE (K900) SENSOR GROUND CIRCUIT
IAT SENSOR
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
1.GOOD TRIP EQUAL TO ZERO
Ignition on, engine not running.
With the scan tool, read DTCs and record the related Freeze Frame data.
Is the Good Trip Counter equal to zero?
Ye s>>
Go To 2
No>>
Refer to the INTERMITTENT CONDITION Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS
AND TESTING)
2.IAT SENSOR VOLTAGE ABOVE 4.6 VOLTS
Turn the ignition off.
Disconnect the Intake Air Temperature Sensor harness connector.
Ignition on, engine not running.
With the scan tool, read the IAT voltage.
Is the voltage above 4.6 volts?
Ye s>>
Go To 3
No>>
Go To 5
Page 950 of 5267

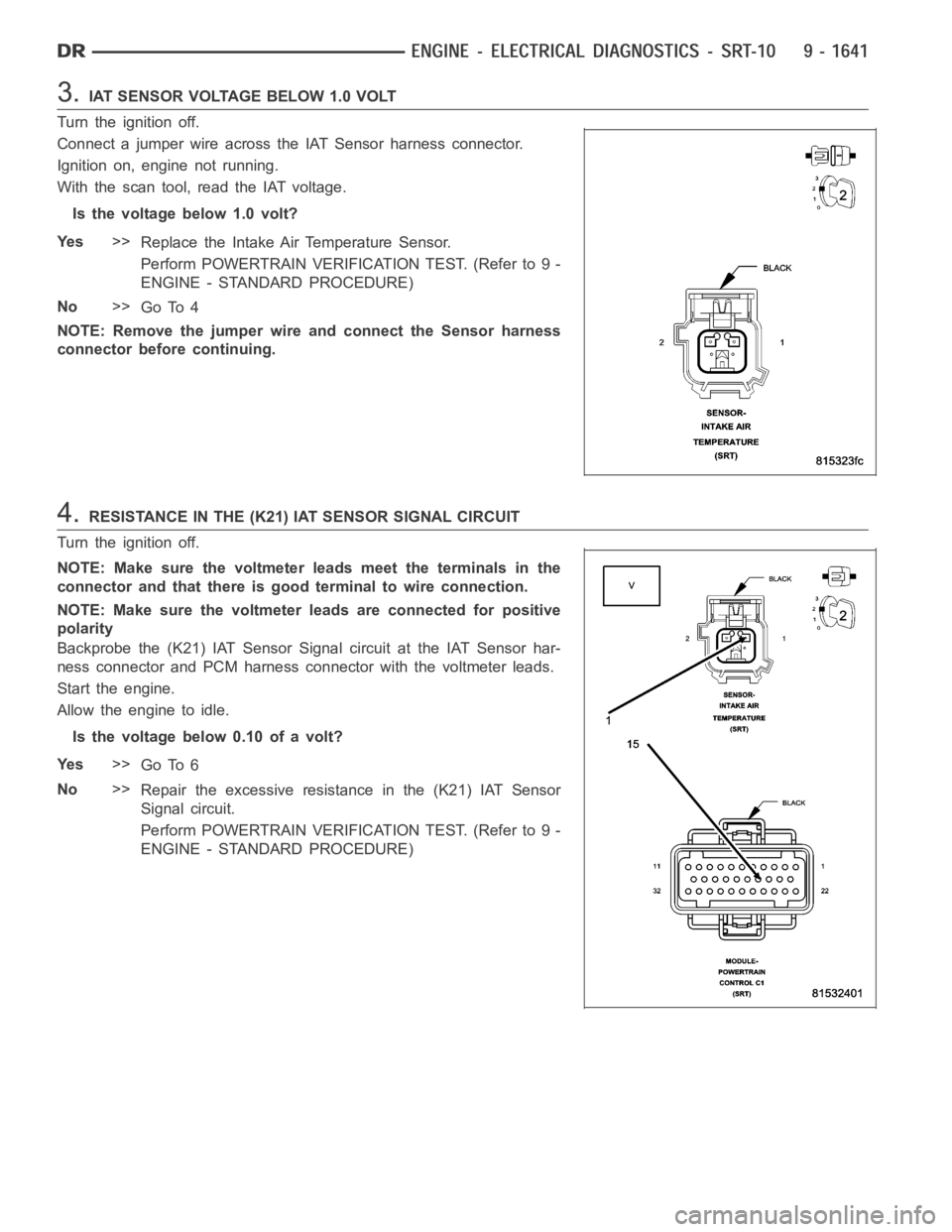

3.IAT SENSOR VOLTAGE BELOW 1.0 VOLT
Turn the ignition off.
Connect a jumper wire across the IAT Sensor harness connector.
Ignition on, engine not running.
With the scan tool, read the IAT voltage.
Is the voltage below 1.0 volt?
Ye s>>
Replace the Intake Air Temperature Sensor.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 -
ENGINE - STANDARD PROCEDURE)
No>>
Go To 4
NOTE: Remove the jumper wire and connect the Sensor harness
connector before continuing.
4.RESISTANCE IN THE (K21) IAT SENSOR SIGNAL CIRCUIT
Turn the ignition off.
NOTE: Make sure the voltmeter leads meet the terminals in the
connector and that there is good terminal to wire connection.
NOTE: Make sure the voltmeter leads are connected for positive
polarity
Backprobe the (K21) IAT Sensor Signal circuit at the IAT Sensor har-
ness connector and PCM harness connector with the voltmeter leads.
Start the engine.
Allow the engine to idle.
Is the voltage below 0.10 of a volt?
Ye s>>
Go To 6
No>>
Repair the excessive resistance in the (K21) IAT Sensor
Signal circuit.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 -
ENGINE - STANDARD PROCEDURE)
