UNDERSTANDING YOUR INSTRUMENT PANEL 111
4
Depending on the driving style, the mileage covered
and the operating conditions, the next service due is
displayed either as a remaining distance in "mi"
(in km) or as a remaining time in "days". The length of
time between services should not exceed 2 years.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
When a service has been performed, have the ASSYST
maintenance computer reset by an authorized Sprinter
Dealer.
Should your Sprinter for any reason not be serviced by
an authorized Sprinter Dealer, the ASSYST
maintenance computer can, in exceptional
circumstances, be reset as follows:
Turn the key to position 2 in the ignition lock and
immediately press the button ( ‘) twice.
Within 10 seconds, return the key to position 0 in the
ignition lock.
Press and hold the button ( ‘). Turn the key to
position 2 in the ignition lock. Keep the
button ( ‘) pressed. The maintenance indicator with the current remaining
time/distance is shown.
After about 10 seconds, an acoustic signal will sound
and the maintenance indicator is displayed with the
new remaining time/distance.
Release the button (
‘).
NOTE:
The ASSYST maintenance computer provides
information on the optimum maintenance requirements.
If maintenance intervals are not observed, resulting
damage will not be covered by Warranty.
The ASSYST maintenance computer is not an engine
oil gauge.
Engine oil level – for display in instrument cluster, see
next page.
If the engine oil level indicator lamp lights up, refer to
"Engine Oil Level Indicator Lamp".
If the battery is disconnected, the time is not recorded
by the ASSYST maintenance computer. Such periods
must be considered if maintenance intervals are
measured by time.

112 UNDERSTANDING YOUR INSTRUMENT PANELEngine Oil Level – Display in Instrument Cluster
(Vehicles with ASSYST Maintenance Computer only)If the : indicator lamp lights up briefly when the
engine is running, the engine oil level has dropped to
the minimum mark. Check the engine oil level without
delay and add oil to the upper mark on the dipstick. If no engine oil is added and the engine oil level drops
further, a warning buzzer will also sound and
will appear in the multi-function indicator. 2.0 quarts
(about 1.9 liters) of oil must be added.
NOTE:
Engine oil level display
– "qt" in USA only.
– "l" in Canada only.
CAUTION!
If the : indicator lamp lights up, the warning
symbol in the multi-function indicator appears
and the warning buzzer sounds, the operating
safety of the engine is endangered (possibility of
engine damage).
A sudden decrease or absence of oil pressure may
indicate a mechanical failure. Bring the vehicle to
a safe stop, and investigate the cause to prevent
further damage. Do not operate the engine until
the cause has been determined and corrected.
Symb
N00.00-2384-00
qt

UNDERSTANDING YOUR INSTRUMENT PANEL 113
4
If the warning
is displayed in the multi-function indicator while the
engine is running, the engine oil level is above
maximum.
Siphon or drain off engine oil until the engine oil level
is between the lower and up per marks on the dipstick.
Check the engine oil level again.
must be displayed.
NOTE: If the oil level is correct and a fault warning is
still given, have the fault traced and rectified by an
authorized Sprinter Dealer.
Displaying Engine Oil Level with Engine OffIf the engine has reached normal operating
temperature, the engine oil level can be displayed on
the multi-function indicator for about 5 minutes after
the engine has been switched off.
The vehicle must be standing on a level surface when
the engine oil is being checked.
Turn the key to position 2 in the ignition lock and wait
about 10 seconds until the multi-function indicator
shows the : symbol.
CAUTION!
Do not operate the engine if the oil level is above
maximum. There is a danger of damage to the
engine or catalytic converter.
Symb
N00.00-2150-00Symb
N00.00-2151-00

114 UNDERSTANDING YOUR INSTRUMENT PANELBriefly press button (1) twice within 1 second.
The following displays can then appear in the multi-
function indicator: It is not necessary to add
engine oil.
1 quart (about 1 liter) of
engine oil must be added.
1.5 quarts (about 1.4 liters)
of engine oil must be
added.
2 quarts (about 1.9 liters) of
engine oil must be added.
Excess engine oil must be
drained or siphoned off.
NOTE: Engine oil level display– "qt" in USA only.
– "l" in Canada only.
NOTE: If the engine oil level is correct and a warning
that the engine oil level is too high or too low is still
given, have the fault traced and rectified by an
authorized Sprinter Dealer.
If it is not possible to measure the engine oil level
correctly, the È symbol will flash in the multi-
function indicator – repeat the measurement after
waiting a short time.
If no engine oil level reading is shown again, the engine
oil level can still be checked with the dipstick.
Consult an authorized Sprinter Dealer to have the
system checked.
Symb
N00.00-2151-00
Symb
N00.00-2385-00
qt
Symb
N00.00-2386-00
qt
Symb
N00.00-2384-00
qt
CAUTION!
If the engine oil level is too high or too low the
engine can be damaged.
Add engine oil or siphon or drain off engine oil
until the engine oil level is between the lower and
upper marks on the dipstick. Only add engine oil
up to the upper mark-do not overfill.If the engine oil level is above maximum, there is a
danger of damage to the engine or catalytic converter.

UNDERSTANDING YOUR INSTRUMENT PANEL 115
4
ENGINE OIL LEVEL INDICATOR IN INSTRUMENT
CLUSTER
(VEHICLES WITHOUT ASSYST MAINTENANCE
COMPUTER)If the : indicator lamp lights up when the engine is
running, the engine oil level has dropped to the
minimum mark. Check the engine oil level without
delay and add engine oil up to the upper mark on the
dipstick.
If there is no engine oil in the oil sump, a warning
buzzer will sound if the key is turned to position 2 in
the ignition lock or if the vehicle is being driven, and
the warning
will appear in the multi-function indicator. About 2
quarts (1.9 liters) of oil must be added.
Check the engine oil level without delay and add
engine oil to the upper mark on the dipstick.
NOTE: Engine oil level display– "qt" in USA only.
– "l" in Canada only.
Symb
N00.00-2384-00
qt
CAUTION!
If the : indicator lamp lights up, the warning
symbol in the multi-function indicator appears
and the warning buzzer sounds, the operating
safety of the engine is endangered (possibility of
engine damage).
Safely pull off the road and turn off the engine (do
not restart the engine). Determine the cause of the
problem. If there are no obvious signs of leakage,
add engine oil. The engine oil level must be
between the lower and upper marks on the
dipstick. Only add engine oil up to the upper
mark – do not overfill.
If the engine oil level is above maximum, there is
a danger of damage to the engine or catalytic
converter.

116 UNDERSTANDING YOUR INSTRUMENT PANELHEATING, VENTILATIONTemperature control (1)
Airflow control (2)
Air distribution control (3) Z
Air to the windshield and from the air vents
X Air to the windshield and footwell and from
the air vents
Y Air to the footwell and from the air vents
h Air from the air vents
NOTE: If the vehicle interior has been heated up by
intense sunlight, ventilate the interior briefly before
driving the vehicle.
Only with automatic heater control (Optional):
The selected temperature is reached as quickly as
possible in heater mode and then held constant.
WARNING!
Follow the recommended settings for heating and
cooling given on the following pages. Otherwise
the windows could fog up, impairing visibility
and endangering you and others.

UNDERSTANDING YOUR INSTRUMENT PANEL 117
4

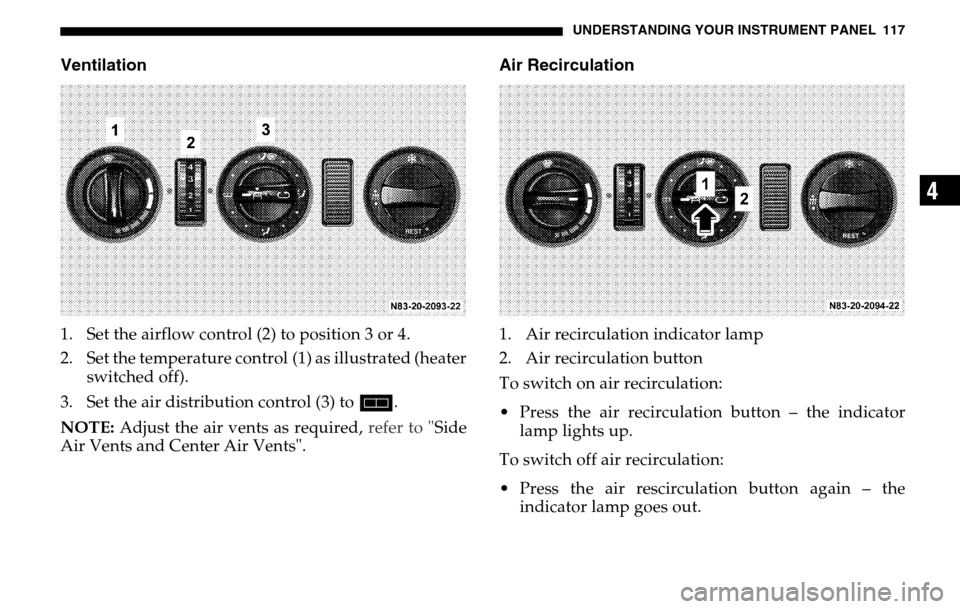

Ventilation1. Set the airflow control (2) to position 3 or 4.
2. Set the temperature control (1) as illustrated (heater switched off).
3. Set the air distribution control (3) to h.
NOTE: Adjust the air vents as required, refer to "Side
Air Vents and Center Air Vents".
Air Recirculation1. Air recirculation indicator lamp
2. Air recirculation button
To switch on air recirculation:
 Press the air recirculation button – the indicator lamp lights up.
To switch off air recirculation:
 Press the air rescirculation button again – the indicator lamp goes out.

118 UNDERSTANDING YOUR INSTRUMENT PANELSelect air recirculation if dust or unpleasant odors
enter the vehicle.
NOTE: Prolonged air recirculation can worsen the air
quality and lead to fogging up of the windows. Shut off
air recirculation as soon as possible.
Only with automatic heat regulation and regulated air
conditioning (Optional):
Air recirculation is automatically switched off after
about 15 minutes or when engine is shut off.
Heating1. Set the airflow control (2) as required.
2. Set the temperature control (1) as required.
3. Set the air distribution control (3) between Y
and X .
4. Switch off air recirculation, refer to "Air
Recirculation".
5. Adjust the air vents as required, refer to "Side Air
Vents and Center Air Vents" .

UNDERSTANDING YOUR INSTRUMENT PANEL 119
4

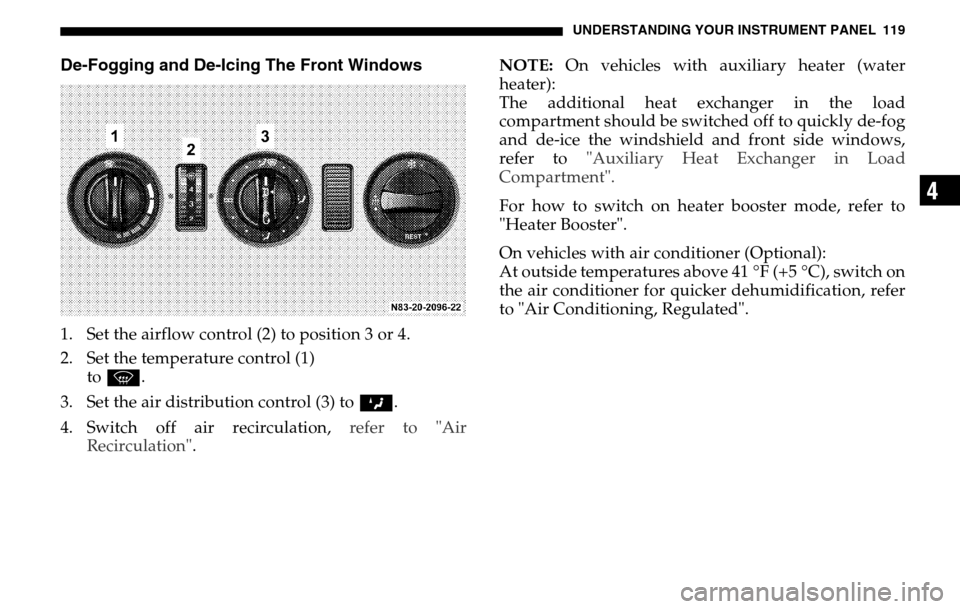

De-Fogging and De-Icing The Front Windows1. Set the airflow control (2) to position 3 or 4.
2. Set the temperature control (1) to P .
3. Set the air distribution control (3) to Z.
4. Switch off air recirculation, refer to "Air
Recirculation" . NOTE:
On vehicles with auxiliary heater (water
heater):
The additional heat exchanger in the load
compartment should be switched off to quickly de-fog
and de-ice the windshield and front side windows,
refer to "Auxiliary Heat Exchanger in Load
Compartment".
For how to switch on heater booster mode, refer to
"Heater Booster".
On vehicles with air conditioner (Optional):
At outside temperatures above 41 °F (+5 °C), switch on
the air conditioner for quicker dehumidification, refer
to "Air Conditioning, Regulated".

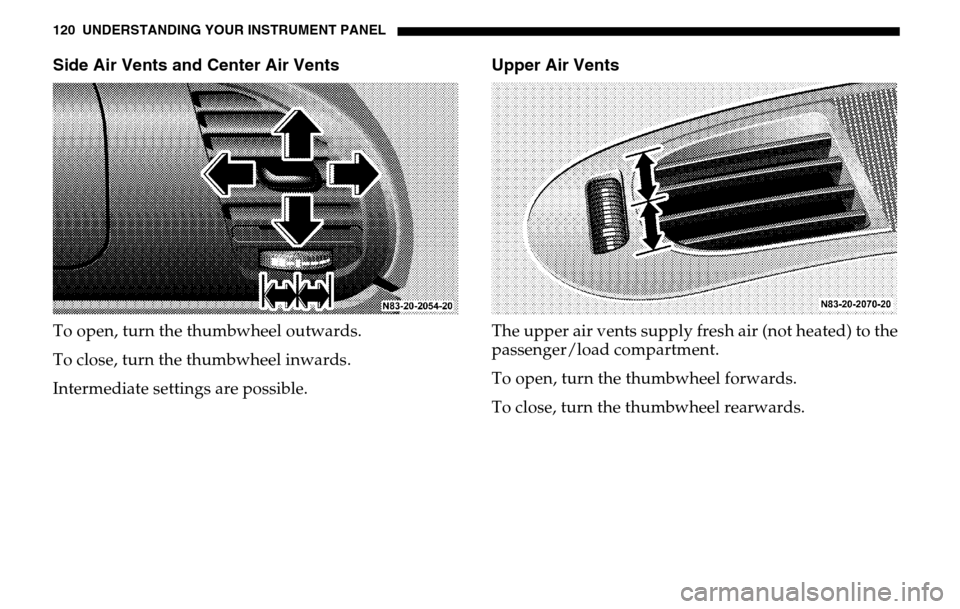

120 UNDERSTANDING YOUR INSTRUMENT PANELSide Air Vents and Center Air VentsTo open, turn the thumbwheel outwards.
To close, turn the thumbwheel inwards.
Intermediate settings are possible.
Upper Air VentsThe upper air vents supply fresh air (not heated) to the
passenger/load compartment.
To open, turn the th umbwheel forwards.
To close, turn the thumbwheel rearwards.
