370 *Technical dataTire inflation pressure
6
For example:
If the inside temperature is 68 °F (20 °C)
and the outside temperature is 32 °F
(0 °C) then the cold tire inflation pressure
should be increased by 3 psi (0.2 bar),
which equals 1.5 psi (0.1 bar) for every
18 °F (10 °C) for this outside temperature
condition.Check tire pressures more often if subject
to a wide range of outdoor temperatures,
as tire pressures vary with temperature
changes.
!
CAUTION
The pressure difference between the
tires on a single axle should not exceed
1.5psi (10kPa).
Tire
Permissible axle loads (see certification label)Front axle
Rear axle
3970 lbs
(1801 kg)
4080 lbs
(1851 kg)
4410 lbs
(2000 kg)*
5360 lbs
(2431 kg)
7060 lbs
(3202 kg)
7720 lbs
(3502 kg)
LT 215/85 R 16
115/112 N
—
55 psi (3.8 bar)
61 psi (4.2 bar)
—
55 psi (3.8 bar)
61 psi (4.2 bar)
LT 215/85 R 16
115/112 Q
—
55 psi (3.8 bar)
61 psi (4.2 bar)
—
55 psi (3.8 bar)
61 psi (4.2 bar=)
LT 245/75 R 16
120/116 L
47 psi (3.2 bar)
—
—
70 psi (4.8 bar)
—
—
LT 245/75 R 16
120/116 N
47 psi (3.2 bar)
—
—
70 psi (4.8 bar)
—
—

371 *Technical data
Lashing points and carrier systems
6
\3 Lashing points and carrier systemsYou will find further information on the
lashing eyes in the "Operation" section
(\2page 158).Lashing eyes
The maximum tensile load of the lashing
eyes is:
Load rails*
The maximum tensile load of the lashing
points in the load compartment is:The specified values only apply to loads on
the load compartment floor if:
\4the load is secured to 2 lashing points
on the rail and
\4the distance to the next lashing point
used on the same rail is about 3 ft
(1 m).Lashing points!
CAUTION
Observe the data on the maximum
load-bearing capacity of the individual
lashing points.
During full-braking applications, for ex-
ample, forces can be involved that are
much greater than the weight force of
the load.
Always use several lashing points in or-
der to distribute force absorption, and
make sure that the lashing points have
an equal load.
Lashing eyes
Permissible nom-
inal tensile force
Crewbus
3500 N
Panel van
5000 N
Lashing point
Permissible nom-
inal tensile force
Load rails in the
load compartment
floor
5000 N
Lower load rail on
the side wall
2500 N
Upper load rail on
the side wall
1500 N

372 *Technical dataLashing points and carrier systems
6
Maximum roof load and minimum number
of pairs of roof rack supports on vehicles
with:
The data is valid when the load is distribut-
ed evenly over the entire roof area.
When using a shorter roof rack, reduce the
load proportionately.
The maximum load is 110 lbs (50 kg) per
pair of roof rack supports.Roof carrier systems
Maxi-
mum roof
load
Minimum
number of
pairs of
supports
Standard roof
660 lbs
(300 kg)
6
Raised roof
330 lbs
(150 kg)
3
!
CAUTION
The weight of any load carried on the
roof, including the roof rack, must not
exceed the maximum permissible roof
load.
The roof rack supports must be ar-
ranged at equal distances.
The manufacturer recommends that
you have an anti-roll bar installed on
the front axle.
Warning
G
High roof loads may cause a significant de-
terioration in handling, steering and braking
characteristics even if the maximum permis-
sible gross vehicle weight or axle loads have
not been exceeded.
Always ensure that loads are distributed
correctly and adapt your driving style in ac-
cordance with the load.

373 *Technical data
Vehicle identification labels
6
\3 Vehicle identification labels
Base of the driver’s seat1Vehicle safety certification label
or
Incomplete vehicle safety certification
label
The Vehicle Identification Number (VIN)
can be found:
\4on the vehicle or incomplete vehicle
safety certification label
\4embossed on the engine compartment
rear bulk (\2page 379)
Example vehicle safety certification label
(U.S. vehicles)
Example incomplete vehicle safety certifi-
cation label (U.S. vehicles)2VIN
iFor certain vehicles, vehicle data cards
are delivered with the vehicle. These
vehicle data cards contain all the im-
portant details of your vehicle, e.g. ve-
hicle identification number, engine
number and subassembly numbers to-
gether with the model and optional
equipment codes.
This data is required when ordering
parts and for questions of a technical
nature.
For reasons of security, card 1 must
not be kept in the vehicle. It contains
the key number required for obtaining
replacement keys.
Handing cards 2 and 3 to an authorized
Sprinter Dealer will simplify order pro-
cessing.

374 *Technical dataVehicle identification labels
6
Example vehicle safety certification label
(Canada vehicles)
Example incomplete vehicle safety certifi-
cation label (Canada vehicles)2VIN
Example Engine Compartment3VIN (embossed on the engine compart-
ment rear bulk)
4Engine number (engraved on gasoline
engine)
5Engine number (engraved on diesel en-
gine)
6Emission control information label and
engine oil warning label
1
7Emission control information label
(gasoline engine) (\2page 380)1. Read and observe the diesel engine oil information
(\2 page 362).
Example emission control information label
for diesel engines (U.S. vehicles)
Example emission control information label
for diesel engines (Canada vehicles)

375 *Technical data
Vehicle identification labels
6
Example emission control information label
for gasoline engines
For vehicles with a gross weight capacity
less than 10,000 lbs (4500 kg) only.
The tire and loading information placard is
located on the driver’s door B-pillar.
1Tire and loading information placardFor tire and loading information, see
"Loading the vehicle" (\2page 205).
iThe data shown on the labels is for il-
lustrative purposes only. The data is
specific to each vehicle and may vary
from the data shown in the illustration.
Refer to the label on your vehicle for
data specific to your vehicle.
Tire and loading information placard
iThe data shown on the placard is for il-
lustrative purposes only. The load limit
data and seating data is specific to
each vehicle and may vary from the
data shown in the illustration.
Refer to the placard on your vehicle for
data specific to your vehicle.

377

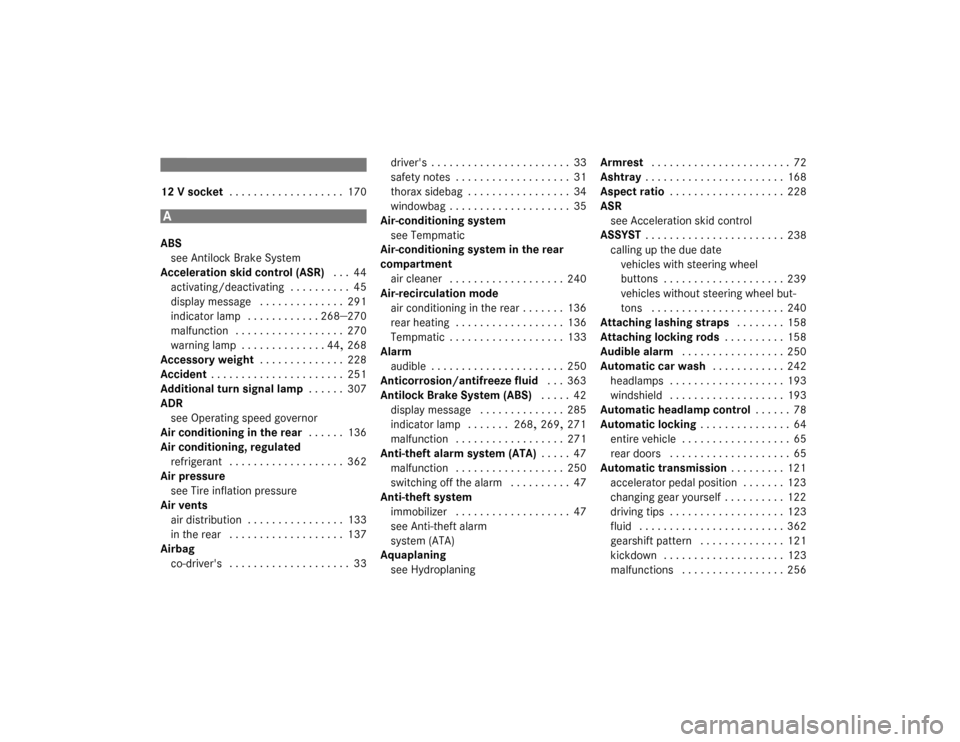

Numerics
12 V socket
. . . . . . . . . . . . . . . . . . . 170
A
ABS
see Antilock Brake System
Acceleration skid control (ASR)
. . . 44
activating/deactivating
. . . . . . . . . . 45
display message
. . . . . . . . . . . . . . 291
indicator lamp
. . . . . . . . . . . . 268
–270
malfunction
. . . . . . . . . . . . . . . . . . 270
warning lamp . . . . . . . . . . . . . . 44
, 268
Accessory weight
. . . . . . . . . . . . . . 228
Accident
. . . . . . . . . . . . . . . . . . . . . . 251
Additional turn signal lamp
. . . . . . 307
ADR
see Operating speed governor
Air conditioning in the rear . . . . . . 136
Air conditioning, regulated
refrigerant
. . . . . . . . . . . . . . . . . . . 362
Air pressure
see Tire inflation pressure
Air vents
air distribution
. . . . . . . . . . . . . . . . 133
in the rear
. . . . . . . . . . . . . . . . . . . 137
Airbag
co-driver's . . . . . . . . . . . . . . . . . . . . 33driver's
. . . . . . . . . . . . . . . . . . . . . . . 33
safety notes
. . . . . . . . . . . . . . . . . . . 31
thorax sidebag . . . . . . . . . . . . . . . . . 34
windowbag
. . . . . . . . . . . . . . . . . . . . 35
Air-conditioning system
see Tempmatic
Air-conditioning system in the rear
compartment
air cleaner . . . . . . . . . . . . . . . . . . . 240
Air-recirculation mode
air conditioning in the rear
. . . . . . . 136
rear heating
. . . . . . . . . . . . . . . . . . 136
Tempmatic . . . . . . . . . . . . . . . . . . . 133
Alarm
audible
. . . . . . . . . . . . . . . . . . . . . . 250
Anticorrosion/antifreeze fluid
. . . 363
Antilock Brake System (ABS)
. . . . . 42
display message
. . . . . . . . . . . . . . 285
indicator lamp
. . . . . . . 268
, 269
, 271
malfunction
. . . . . . . . . . . . . . . . . . 271
Anti-theft alarm system (ATA)
. . . . . 47
malfunction
. . . . . . . . . . . . . . . . . . 250
switching off the alarm
. . . . . . . . . . 47
Anti-theft system
immobilizer
. . . . . . . . . . . . . . . . . . . 47
see Anti-theft alarm
system (ATA)
Aquaplaning
see HydroplaningArmrest
. . . . . . . . . . . . . . . . . . . . . . . 72
Ashtray . . . . . . . . . . . . . . . . . . . . . . . 168
Aspect ratio
. . . . . . . . . . . . . . . . . . . 228
ASR
see Acceleration skid control
ASSYST
. . . . . . . . . . . . . . . . . . . . . . . 238
calling up the due date
vehicles with steering wheel
buttons
. . . . . . . . . . . . . . . . . . . . 239
vehicles without steering wheel but-
tons
. . . . . . . . . . . . . . . . . . . . . . 240
Attaching lashing straps
. . . . . . . . 158
Attaching locking rods
. . . . . . . . . . 158
Audible alarm
. . . . . . . . . . . . . . . . . 250
Automatic car wash
. . . . . . . . . . . . 242
headlamps
. . . . . . . . . . . . . . . . . . . 193
windshield . . . . . . . . . . . . . . . . . . . 193
Automatic headlamp control
. . . . . . 78
Automatic locking
. . . . . . . . . . . . . . . 64
entire vehicle
. . . . . . . . . . . . . . . . . . 65
rear doors
. . . . . . . . . . . . . . . . . . . . 65
Automatic transmission
. . . . . . . . . 121
accelerator pedal position . . . . . . . 123
changing gear yourself
. . . . . . . . . . 122
driving tips
. . . . . . . . . . . . . . . . . . . 123
fluid
. . . . . . . . . . . . . . . . . . . . . . . . 362
gearshift pattern
. . . . . . . . . . . . . . 121
kickdown
. . . . . . . . . . . . . . . . . . . . 123
malfunctions
. . . . . . . . . . . . . . . . . 256
Index
A

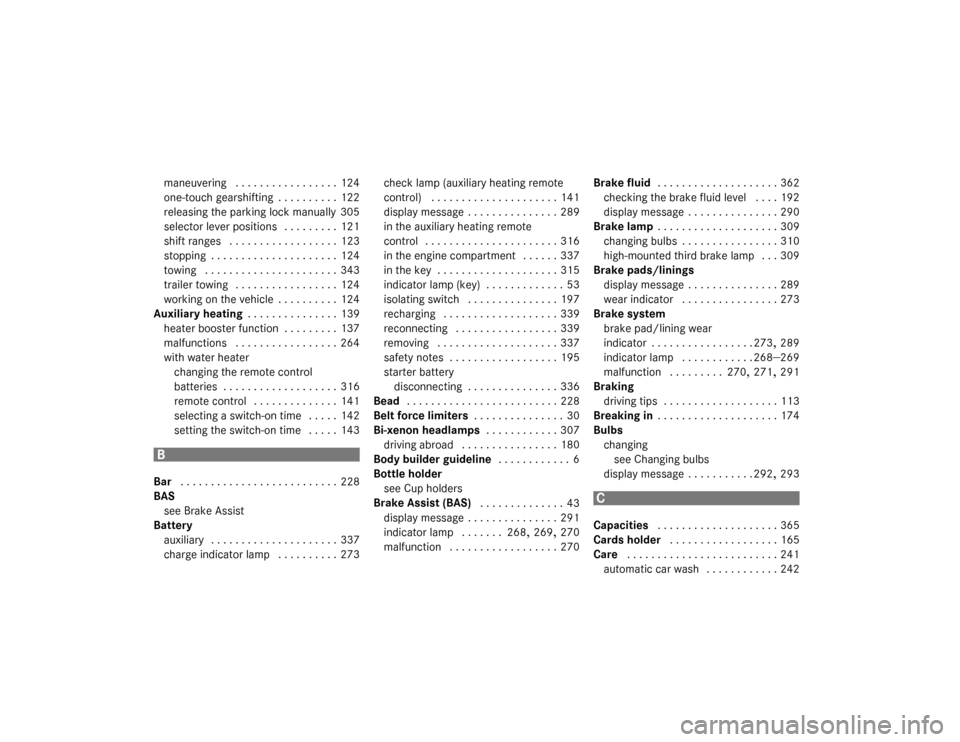

378 Indexmaneuvering
. . . . . . . . . . . . . . . . . 124
one-touch gearshifting
. . . . . . . . . . 122
releasing the parking lock manually
305
selector lever positions
. . . . . . . . . 121
shift ranges
. . . . . . . . . . . . . . . . . . 123
stopping
. . . . . . . . . . . . . . . . . . . . . 124
towing
. . . . . . . . . . . . . . . . . . . . . . 343
trailer towing
. . . . . . . . . . . . . . . . . 124
working on the vehicle
. . . . . . . . . . 124
Auxiliary heating
. . . . . . . . . . . . . . . 139
heater booster function
. . . . . . . . . 137
malfunctions
. . . . . . . . . . . . . . . . . 264
with water heater
changing the remote control
batteries
. . . . . . . . . . . . . . . . . . . 316
remote control
. . . . . . . . . . . . . . 141
selecting a switch-on time
. . . . . 142
setting the switch-on time . . . . . 143
B
Bar
. . . . . . . . . . . . . . . . . . . . . . . . . . 228
BAS
see Brake Assist
Battery
auxiliary
. . . . . . . . . . . . . . . . . . . . . 337
charge indicator lamp
. . . . . . . . . . 273check lamp (auxiliary heating remote
control)
. . . . . . . . . . . . . . . . . . . . . 141
display message
. . . . . . . . . . . . . . . 289
in the auxiliary heating remote
control
. . . . . . . . . . . . . . . . . . . . . . 316
in the engine compartment
. . . . . . 337
in the key
. . . . . . . . . . . . . . . . . . . . 315
indicator lamp (key)
. . . . . . . . . . . . . 53
isolating switch
. . . . . . . . . . . . . . . 197
recharging
. . . . . . . . . . . . . . . . . . . 339
reconnecting . . . . . . . . . . . . . . . . . 339
removing
. . . . . . . . . . . . . . . . . . . . 337
safety notes . . . . . . . . . . . . . . . . . . 195
starter battery
disconnecting
. . . . . . . . . . . . . . . 336
Bead
. . . . . . . . . . . . . . . . . . . . . . . . . 228
Belt force limiters
. . . . . . . . . . . . . . . 30
Bi-xenon headlamps . . . . . . . . . . . . 307
driving abroad
. . . . . . . . . . . . . . . . 180
Body builder guideline
. . . . . . . . . . . . 6
Bottle holder
see Cup holders
Brake Assist (BAS)
. . . . . . . . . . . . . . 43
display message
. . . . . . . . . . . . . . . 291
indicator lamp
. . . . . . . 268
, 269
, 270
malfunction
. . . . . . . . . . . . . . . . . . 270Brake fluid
. . . . . . . . . . . . . . . . . . . . 362
checking the brake fluid level
. . . . 192
display message
. . . . . . . . . . . . . . . 290
Brake lamp
. . . . . . . . . . . . . . . . . . . . 309
changing bulbs
. . . . . . . . . . . . . . . . 310
high-mounted third brake lamp
. . . 309
Brake pads/linings
display message
. . . . . . . . . . . . . . . 289
wear indicator
. . . . . . . . . . . . . . . . 273
Brake system
brake pad/lining wear
indicator
. . . . . . . . . . . . . . . . . 273
, 289
indicator lamp
. . . . . . . . . . . . 268
–269
malfunction
. . . . . . . . . 270
, 271
, 291
Braking
driving tips
. . . . . . . . . . . . . . . . . . . 113
Breaking in . . . . . . . . . . . . . . . . . . . . 174
Bulbs
changing
see Changing bulbs
display message
. . . . . . . . . . . 292
, 293
C
Capacities
. . . . . . . . . . . . . . . . . . . . 365
Cards holder . . . . . . . . . . . . . . . . . . 165
Care
. . . . . . . . . . . . . . . . . . . . . . . . . 241
automatic car wash
. . . . . . . . . . . . 242
B
C

379 Index
Care of batteries
. . . . . . . . . . . . . . . 196
Care of the vehicle . . . . . . . . . . . . . 241
after driving off-road or on
construction sites . . . . . . . . . . . . . 246
Carrier systems
. . . . . . . . . . . 162
, 372
Catalytic converter
. . . . . . . . . . . . . 181
CD player/CD changer
. . . . . . . . . . . 94
Cell phone
. . . . . . . . . . . . . . . . . . . . 171
Center console
. . . . . . . . . . . . . . . . . 18
switch unit
. . . . . . . . . . . . . . . . . . . . 20
Central locking
locking/unlocking
. . . . . . . . . . . . . . 52
(from the inside)
. . . . . . . . . . . . . . . 63
Central locking system
malfunctions
. . . . . . . . . . . . . . . . . 259
Certification label
. . . . . . . . . . . . . . 209
Changing bulbs
. . . . . . . . . . . . . . . . 306
clearance lamp . . . . . . . . . . . . . . . 312
headlamps
. . . . . . . . . . . . . . . . . . . 308
identification lamps
. . . . . . . . 311
, 313
interior lamp
. . . . . . . . . . . . . . . . . 314
license plate lamp
. . . . . . . . . . . . . 312
rear lamp units
chassis
. . . . . . . . . . . . . . . . . . . . 310
panel van/crewbus
. . . . . . . . . . 310
side marker lamps
. . . . . . . . . . . . . 312Checking tire pressure electronically
with the Advanced Tire Pressure
Monitoring System
(Advanced TPMS)
. . . . . . . . . . . . . . 217
Checking tire pressure electronically
with the Tire Pressure Monitoring
System (TPMS)
. . . . . . . . . . . . . . . . 214
Checks, regular . . . . . . . . . . . . . . . . 181
Children
in the vehicle
. . . . . . . . . . . . . . . . . . 36
ISOFIX seat securing system
. . . . . . 39
LATCH type child restraint system
. 39
restraint systems
. . . . . . . . . . . . . . . 37
Chock
. . . . . . . . . . . . . . . . . . . . . . . . 303
Cigarette lighter
. . . . . . . . . . . . . . . 169
Cleaning
. . . . . . . . . . . . . . . . . . . . . . 241
after driving off-road or
on construction sites
. . . . . . . . . . . 246
air cleaner element
. . . . . . . . . . . . 240
cockpit
. . . . . . . . . . . . . . . . . . . . . . 245
headlamps
. . . . . . . . . . . . . . . . . . . 244
padded boss of the steering wheel
245
rear view camera lens
. . . . . . . . . . 244
rear window
. . . . . . . . . . . . . . . . . . 244
side windows . . . . . . . . . . . . . . . . . 244
vehicle
. . . . . . . . . . . . . . . . . . . . . . 242
windshield . . . . . . . . . . . . . . . . . . . 243
windshield wipers
. . . . . . . . . . . . . 243Clearance lamp
changing bulbs
. . . . . . . . . . . . . . . . 312
see identification lamp
. . . . . . . . . . 311
Clock
setting
vehicles with steering wheel
buttons
. . . . . . . . . . . . . . . . . . . . 101
vehicles without steering wheel
buttons . . . . . . . . . . . . . . . . . . . . . 88
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . 12
Co-driver's seat
foldable . . . . . . . . . . . . . . . . . . . . . . 74
Cold tire inflation pressure
. . . . . . 228
COMAND
see the separate Operating Instructions
Comfort seat
. . . . . . . . . . . . . . . . . . . 69
Constant headlamp mode
. . . . . . . 102
Consumption statistics
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . 106
Coolant . . . . . . . . . . . . . . . . . . . . . . . 363
adding . . . . . . . . . . . . . . . . . . . . . . 191
anticorrosion/antifreeze fluid
. . . . 363
display message
. . . . . . . . . . . . . . 292
temperature
. . . . . . . . . . . . . . . . . . 120
temperature display
(vehicle with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . 93
