DODGE SPRINTER 2008 2.G Owners Manual

209 Controls in detail
Good visibility
3
Adjusting the exterior mirrors
electrically*The switch and button for adjusting the
exterior mirrors are located in the interi-
or trim of the driver’s door.
1Exterior mirror on the left-hand side
2Exterior mirror on the right-hand side
3Sets the mirror position\1
Switch on the ignition (
\2
page 111).
\1
Press left-hand side
1
of the switch
for the left-hand mirror or press
right-hand side
2
of the switch
for
the right-hand mirror.
\1
Press button
3
at the top or bot-
tom, right or left until you have ad-
justed the mirror to the correct
position.
nf_BA.book Page 209 Friday, January 25, 2008 3:53 PM

210 Controls in detailGood visibility
3
The combination switch is located on
the left of the steering wheel.1Single wipe
2To switch the windshield wipers on
Switching on the windshield wipers
\1
Turn key to position
1 in the ignition
lock (
\2
page 111).
\1
Turn the combination switch to the
required position in the direction of
arrow
2
depending on how heavy
the rain is:
0
Windshield wipers off
I
Intermittent wipe
II
Normal wipe
III
Rapid wipe
Windshield wipers
N54.25-2923-31
!
CAUTION
Vehicles with rain sensor*:
Switch off the windshield wipers in
dry weather conditions, otherwise
dirt on the surface of the rain sensor
or optical effects can cause inadvert-
ent wiper sweeps. This could dam-
age the wiper blades or scratch the
windshield.
iCanada only:
The speed of the windshield wipers is
automatically reduced if the vehicle
comes to a halt with the windshield
wipers switched on.
nf_BA.book Page 210 Friday, January 25, 2008 3:53 PM

211 Controls in detail
Good visibility
3
Single wipe
\1
Push the combination switch briefly
to the pressure point in the direction
of arrow
1
.
The windshield wipers wipe once
without washer fluid.
Wiping with washer fluid
\1
Press the combination switch be-
yond the pressure point in the direc-
tion of arrow
1
.
The windshield wiper will wipe with
windshield washer fluid.
Vehicles with headlamp cleaning
system*:
If the low-beam headlamps have
been switched on, a high-pressure
water jet also cleans the headlamps. For example, if you have selected
speed
II and stop the vehicle,the wip-
ers wipe at intermittent speed until
you pull away again. The wipe intervals
are longer in intermittent mode.
Vehicles with rain sensor*:
You can use speed
I as the universal
speed. The rain sensor adjusts the
wiping frequency according to how
heavy the rain is. If you stop the vehi-
cle, speeds
III and
II are automatical-
ly switched down to speed
I.
The original speed of the windshield
wipers is resumed when you drive
faster than 5 mph (8 km / h) again.
iWipe with windshield washer fluid even
when it is raining. By doing so you can
prevent smears on the windshield.
nf_BA.book Page 211 Friday, January 25, 2008 3:53 PM

212 Controls in detailGood visibility
3
Intermittent wipeOnly switch on intermittent wipe in
damp weather conditions or when it is
raining.
Vehicles with rain sensor*:
The a rain sensor is activated when you
switch on intermittent wipe. The appro-
priate wiping frequency is set automati-
cally according to the rain falling on the
sensor.The switch is in the combination switch
on the left of the steering wheel.
1Switch
2To wipe with windshield washer fluid
3Intermittent wipe
4To switch off the wiper
5To wipe with windshield washer fluid
\1
Turn key to position
1 in the ignition
lock (
\2
page 111).
Switching on intermittent wipe
\1
Turn switch
1
to
3
.
Switching off intermittent wipe
\1
Turn switch
1
to
4
.
Rear window wiper*
N54.25-2924-31
iThe rear window wiper switches on
automatically if you engage reverse
gear and the windshield wipers are
on.
nf_BA.book Page 212 Friday, January 25, 2008 3:53 PM

213 Controls in detail
Good visibility
3
Wiping with washer fluid
\1
Turn switch
1
to
5
or
2
and keep
it pressed until the window is clean.
The windshield heating is operational
while the engine is running.
The windshield heating consumes a lot
of energy. You should therefore switch
the heating off as soon as the windshield
is clear.
The heating switches off automatically
after approximately 5 minutes.The switch for the windshield heating is
on the center console.
1To switch on / off
Windshield heating*
Warning
G
Clear ice or snow from the windshield be-
fore commencing a journey. Iced-up win-
dows restrict your view. You could cause
an accident and endanger yourself and
others. Do not start the vehicle if the win-
dows are iced up, fogged up or covered in
snow.
N54.25-2920-31
nf_BA.book Page 213 Friday, January 25, 2008 3:53 PM

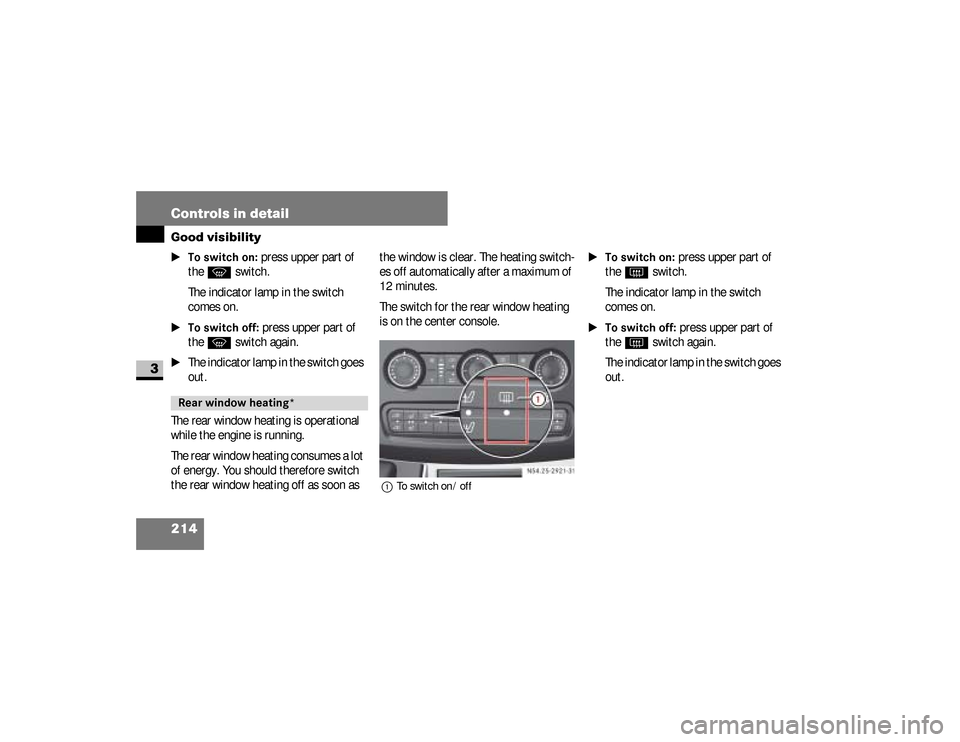

214 Controls in detailGood visibility
3
\1To switch on:
press upper part of
the
P
switch.
The indicator lamp in the switch
comes on.
\1To switch off:
press upper part of
the
P
switch again.
\1
The indicator lamp in the switch goes
out.
The rear window heating is operational
while the engine is running.
The rear window heating consumes a lot
of energy. You should therefore switch
the rear window heating off as soon as the window is clear. The heating switch-
es off automatically after a maximum of
12 minutes.
The switch for the rear window heating
is on the center console.
1To switch on / off
\1To switch on:
press upper part of
the
F
switch.
The indicator lamp in the switch
comes on.
\1To switch off:
press upper part of
the
F
switch again.
The indicator lamp in the switch goes
out.
Rear window heating*
N54.25-2921-31
nf_BA.book Page 214 Friday, January 25, 2008 3:53 PM

215 Controls in detail
Air conditioning
3
Air cond itioning
N83.00-2126-31
nf_BA.book Page 215 Friday, January 25, 2008 3:53 PM

216 Controls in detailAir conditioning
3
Your vehicle is equipped with either\4
an air-conditioning system and pos-
sibly additional air conditioning in
the rear*
or
\4
a heater* and possibly additional
rear heating* The air-conditioning system is only oper-
ational while the engine is running. You
can use the air-conditioning system to
regulate or control the temperature au-
tomatically. The vehicle is either heated
or cooled, depending on the tempera-
ture selected and the outside tempera-
ture.
The combination filter removes most
dust particles, pollen and unpleasant
odors from the outside air.
Function
Page
1
Side window defroster
vents
224
2
Thumbwheel for air vents
3
Side air vents
4
Thumbwheel for side air
vents and defroster vents
224
5
Swiveling center air vents
6
Thumbwheel for center
air vents
7
Control panel\4
Tempmatic
\4
Rear heating/rear
cooling*
218
225
8
Switch\4
Rear window heating*
\4
Windshield heating*
214
213
9
Auxiliary heating switch*
Heater booster switch*
238
234
Function
Page
Air-conditioning system
nf_BA.book Page 216 Friday, January 25, 2008 3:53 PM

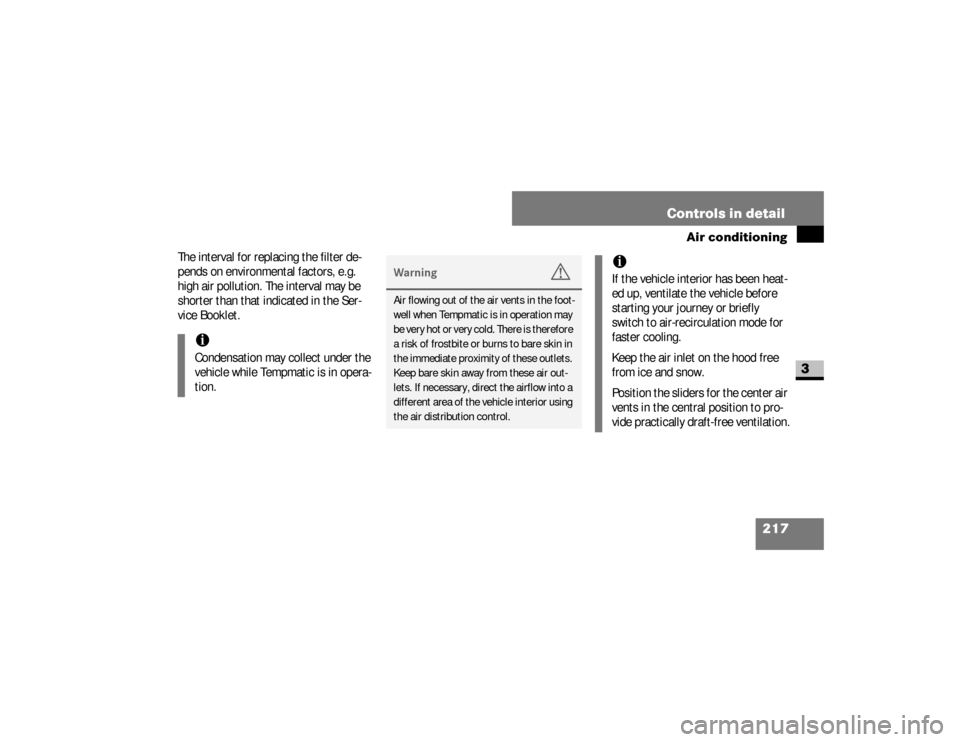

217 Controls in detail
Air conditioning
3
The interval for replacing the filter de-
pends on environmental factors, e.g.
high air pollution. The interval may be
shorter than that indicated in the Ser-
vice Booklet.
iCondensation may collect under the
vehicle while Tempmatic is in opera-
tion.
Warning
G
Air flowing out of the air vents in the foot-
well when Tempmatic is in operation may
be very hot or very cold. There is therefore
a risk of frostbite or burns to bare skin in
the immediate proximity of these outlets.
Keep bare skin away from these air out-
lets. If necessary, direct the airflow into a
different area of the vehicle interior using
the air distribution control.
iIf the vehicle interior has been heat-
ed up, ventilate the vehicle before
starting your journey or briefly
switch to air-recirculation mode for
faster cooling.
Keep the air inlet on the hood free
from ice and snow.
Position the sliders for the center air
vents in the central position to pro-
vide practically draft-free ventilation.
nf_BA.book Page 217 Friday, January 25, 2008 3:53 PM

218 Controls in detailAir conditioning
3
Control panel
for the air-conditioning
system
The air in the vehicle is neither cooled
nor dehumidified when the air condition-
ing system is switched off.\1To switch on:
press the
°
switch
for economy mode.
The indicator lamp in the switch
comes on. N83.25-2048-31
Function
Page
1
Temperature selector
control
220
2
Airflow control with
indicator
220
3
Switch for air-recircula-
tion mode
221
4
Switch for reheat function
(dehumidification)
223
5
Air distribution control
221
6
Switch for \4
Economy mode
\4
Residual heat mode
218
222
Switching the air conditioning sys-
tem on or offiOnly use this setting for a brief peri-
od. The windows could otherwise fog
up.
nf_BA.book Page 218 Friday, January 25, 2008 3:53 PM
