39

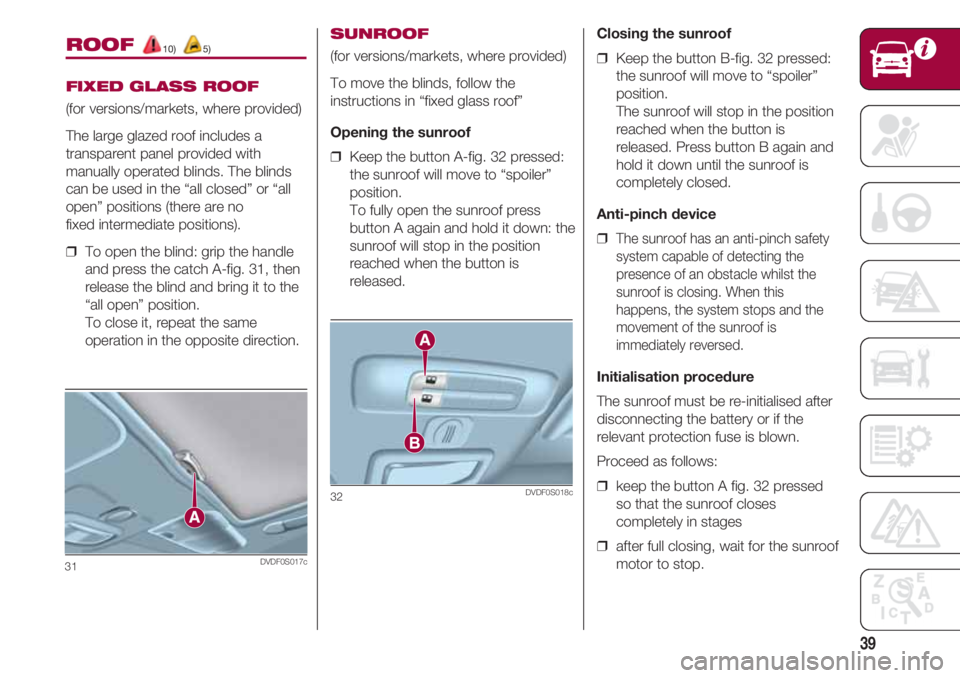

ROOF 10) 5)
FIXED GLASS ROOF
(for versions/markets, where provided)
The large glazed roof includes a
transparent panel provided with
manually operated blinds. The blinds
can be used in the “all closed” or “all
open” positions (there are no
fixed intermediate positions).
❒ To open the blind: grip the handle
and press the catch A-fig. 31, then
release the blind and bring it to the
“all open” position.
To close it, repeat the same
operation in the opposite direction.
SUNROOF
(for versions/markets, where provided)
To move the blinds, follow the
instructions in “fixed glass roof”
Opening the sunroof
❒ Keep the button A-fig. 32 pressed:
the sunroof will move to “spoiler”
position.
To fully open the sunroof press
button A again and hold it down: the
sunroof will stop in the position
reached when the button is
released.
32DVDF0S018c
Closing the sunroof
❒ Keep the button B-fig. 32 pressed:
the sunroof will move to “spoiler”
position.
The sunroof will stop in the position
reached when the button is
released. Press button B again and
hold it down until the sunroof is
completely closed.
Anti-pinch device
❒
The sunroof has an anti-pinch safety
system capable of detecting the
presence of an obstacle whilst the
sunroof is closing. When this
happens, the system stops and the
movement of the sunroof is
immediately reversed.
Initialisation procedure
The sunroof must be re-initialised after
disconnecting the battery or if the
relevant protection fuse is blown.
Proceed as follows:
❒ keep the button A fig. 32 pressed
so that the sunroof closes
completely in stages
❒ after full closing, wait for the sunroof
motor to stop.
31DVDF0S017c

KNOWING YOUR CAR
40
Emergency manoeuvre
If the control buttons fail to operate, the
sunroof can be moved manually,
proceeding as described below:
❒ remove the protective cap A-fig. 33
located on the internal covering,
behind the blinds;
❒ take the Allen key (provided as
standard) from the toolbox in the
boot;
❒ fit the Allen key in position B and
turn it:
– clockwise, to open the roof;
– anticlockwise, to close the roof.
33DVDF0S019c
SOFT TOP 10), 11) 6)
❒ The soft top can be opened/closed
through buttons A or B-fig. 34,
located near the ceiling light.
it is advisable to close the soft top
when the car is parked.
The closed top effectively protects the
car from rain and from theft.
IMPORTANT: the motor may overheat
if the soft top is repeatedly operated
within a short space of time, thus
causing the overheating protection to
inhibit system operation. Wait for a
minute and repeat.
Opening from initial position: all
closed soft top
❒ Pressing the one-touch button
A-fig. 34 once the soft top opens
automatically to the horizontal
opening position (spoiler position -
see fig. 35).
❒ If one of the two buttons is pressed
before reaching the stop position,
the top may stop in an intermediate
horizontal opening position.
35DVDF0S174c
34DVDF0S020c

41
Opening from initial position: soft
top in intermediate horizontal
position
❒ From the horizontal intermediate
position press the one-touch button
A-fig. 35 once to move the top
automatically to the horizontal
completely open position (spoiler
position - see fig. 35).
Top opening from spoiler position
to all open position
❒ From the spoiler position press the
one-touch button A-fig. 34 once to
bring the soft top automatically to
completely open position (vertical
opening - see fig. 36).
❒ If one of the two buttons is pressed
before reaching the final position,
the soft top will stop and movement
will be reversed to the initial position
(spoiler position).Closing from: all open soft top
condition
❒ Press the one-touch button
B-fig. 34 once to automatically
close the soft top to spoiler position
(vertical closing). If one of the two
buttons is pressed before the
spoiler position is reached, the soft
top will stop and movement will be
reversed, moving to the initial
position (all open).
Initial position: from spoiler
position to all closed soft top
position
❒ From the spoiler position, pressing
the one-touch button (B - Fig. 34)
the soft top goes automatically into
safety position (about 25 cm from
all closed position).
36DVDF0S175c
❒ If, before reaching the stop position,
either button is pressed, the soft
top can stop in any intermediate
position of the horizontal opening
section.
NOTE: the soft top does not
automatically close completely. Hold
down button B to completely close the
soft top. If the button is released
before completely closed position is
reached, the soft top will stop instantly.
Initial position: from intermediate
position to all closed
soft top position
❒ Press the one-touch button
B-fig. 34 in horizontal intermediate
position to bring the soft top
automatically to safety position
(approximately 25 cm from
horizontal completely closed
position).
❒ Keep the button B pressed to close
the soft top completely.
❒ The soft top will stop immediately if
the button is released before
reaching the all closed position.

KNOWING YOUR CAR
42

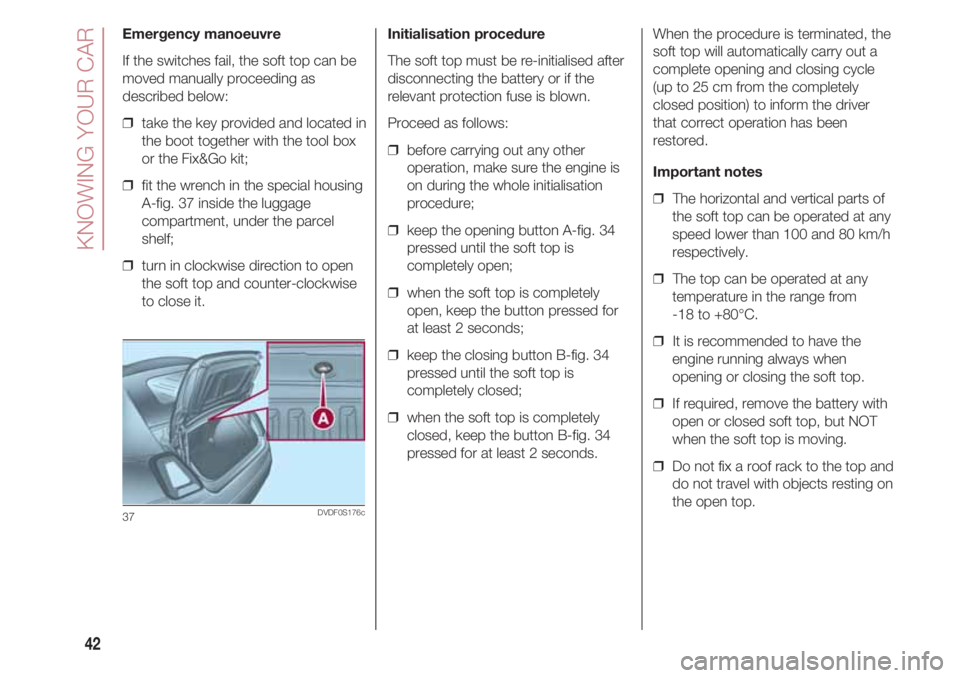

Emergency manoeuvre
If the switches fail, the soft top can be
moved manually proceeding as
described below:
❒ take the key provided and located in
the boot together with the tool box
or the Fix&Go kit;
❒ fit the wrench in the special housing
A-fig. 37 inside the luggage
compartment, under the parcel
shelf;
❒ turn in clockwise direction to open
the soft top and counter-clockwise
to close it.
37DVDF0S176c
Initialisation procedure
The soft top must be re-initialised after
disconnecting the battery or if the
relevant protection fuse is blown.
Proceed as follows:
❒ before carrying out any other
operation, make sure the engine is
on during the whole initialisation
procedure;
❒ keep the opening button A-fig. 34
pressed until the soft top is
completely open;
❒ when the soft top is completely
open, keep the button pressed for
at least 2 seconds;
❒ keep the closing button B-fig. 34
pressed until the soft top is
completely closed;
❒ when the soft top is completely
closed, keep the button B-fig. 34
pressed for at least 2 seconds.When the procedure is terminated, the
soft top will automatically carry out a
complete opening and closing cycle
(up to 25 cm from the completely
closed position) to inform the driver
that correct operation has been
restored.
Important notes
❒ The horizontal and vertical parts of
the soft top can be operated at any
speed lower than 100 and 80 km/h
respectively.
❒ The top can be operated at any
temperature in the range from
-18 to +80°C.
❒ It is recommended to have the
engine running always when
opening or closing the soft top.
❒ If required, remove the battery with
open or closed soft top, but NOT
when the soft top is moving.
❒ Do not fix a roof rack to the top and
do not travel with objects resting on
the open top.

43

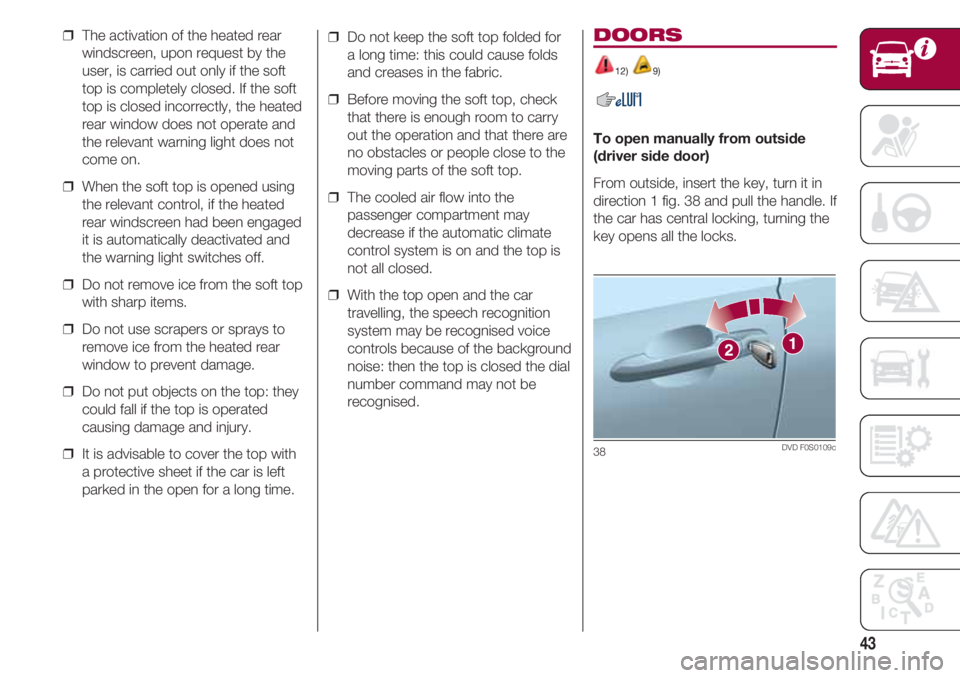

❒ The activation of the heated rear
windscreen, upon request by the
user, is carried out only if the soft
top is completely closed. If the soft
top is closed incorrectly, the heated
rear window does not operate and
the relevant warning light does not
come on.
❒ When the soft top is opened using
the relevant control, if the heated
rear windscreen had been engaged
it is automatically deactivated and
the warning light switches off.
❒ Do not remove ice from the soft top
with sharp items.
❒ Do not use scrapers or sprays to
remove ice from the heated rear
window to prevent damage.
❒ Do not put objects on the top: they
could fall if the top is operated
causing damage and injury.
❒ It is advisable to cover the top with
a protective sheet if the car is left
parked in the open for a long time.❒ Do not keep the soft top folded for
a long time: this could cause folds
and creases in the fabric.
❒ Before moving the soft top, check
that there is enough room to carry
out the operation and that there are
no obstacles or people close to the
moving parts of the soft top.
❒ The cooled air flow into the
passenger compartment may
decrease if the automatic climate
control system is on and the top is
not all closed.
❒ With the top open and the car
travelling, the speech recognition
system may be recognised voice
controls because of the background
noise: then the top is closed the dial
number command may not be
recognised.DOORS
12) 9)
To open manually from outside
(driver side door)
From outside, insert the key, turn it in
direction 1 fig. 38 and pull the handle. If
the car has central locking, turning the
key opens all the locks.
38DVD F0S0109c

KNOWING YOUR CAR
44
To open manually from outside
(passenger side door)
Pull the handle. Opening the door is
permitted only if the internal handle is in
position 1 fig. 39.
Manual locking from outside
With the driver side door wing closed,
insert the key and turn in direction
2 fig. 38.
If the car has central locking, turning
the key simultaneously closes all the
locks.
The passenger side door can only be
locked from inside, by bringing the
handle to position 2 fig. 39 (red area
A visible).
39DVD F0S0110c
Locking/unlocking from inside
Operate the handles on the door
panels fig. 39:
– position 1: door unlocked.
– position 2: door unlocked.
If the car features central locking,
operating the driver or passenger side
handle lock/unlocks all the doors.
With remote control
Press the ;button: door locking.
Press the :button: door unlocking.ELECTRIC
WINDOWS
10)
These operate when the ignition key is
turned to MAR and for about 2 minutes
after turning the key to STOP or
removing it.
The electric window control buttons
fig. 40 are located beside the gear
lever.
A Opening/closing of the left window.
B Opening/closing of the right window.
Hold the button raised for a few
seconds to wind the window up
automatically or hold is pressed to wind
the window down automatically (with
the key at MAR only).
40DVDF0S177c

45

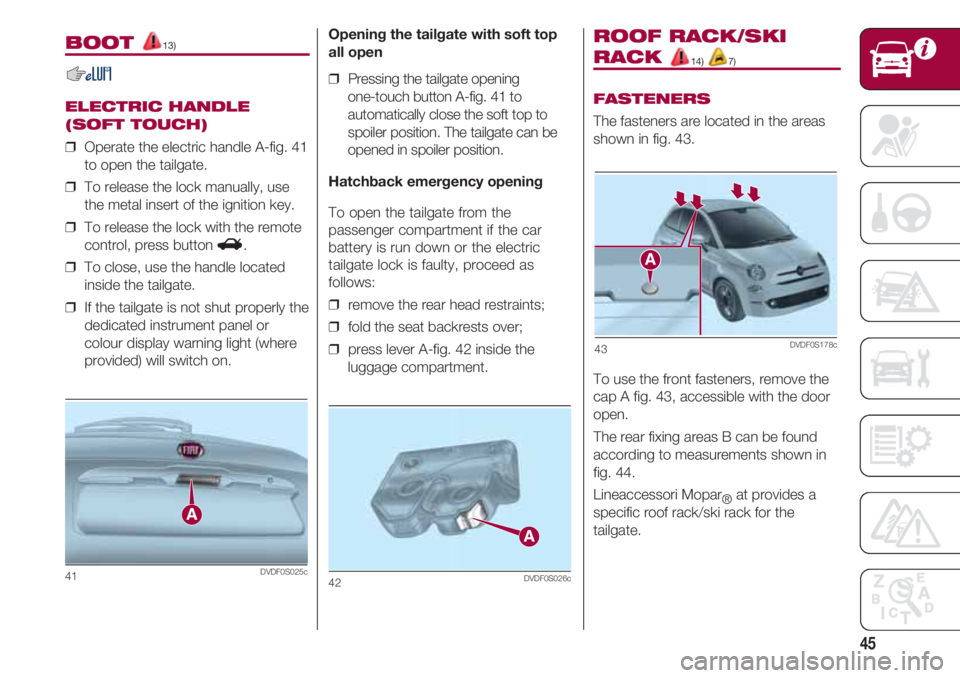

BOOT 13)
ELECTRIC HANDLE
(SOFT TOUCH)
❒ Operate the electric handle A-fig. 41
to open the tailgate.
❒ To release the lock manually, use
the metal insert of the ignition key.
❒ To release the lock with the remote
control, press button R.
❒ To close, use the handle located
inside the tailgate.
❒ If the tailgate is not shut properly the
dedicated instrument panel or
colour display warning light (where
provided) will switch on.
41DVDF0S025c
Opening the tailgate with soft top
all open
❒ Pressing the tailgate opening
one-touch button A-fig. 41 to
automatically close the soft top to
spoiler position. The tailgate can be
opened in spoiler position.
Hatchback emergency opening
To open the tailgate from the
passenger compartment if the car
battery is run down or the electric
tailgate lock is faulty, proceed as
follows:
❒ remove the rear head restraints;
❒ fold the seat backrests over;
❒ press lever A-fig. 42 inside the
luggage compartment.
42DVDF0S026c
ROOF RACK/SKI
RACK 14) 7)
FASTENERS
The fasteners are located in the areas
shown in fig. 43.
To use the front fasteners, remove the
cap A fig. 43, accessible with the door
open.
The rear fixing areas B can be found
according to measurements shown in
fig. 44.
Lineaccessori Mopar
®at provides a
specific roof rack/ski rack for the
tailgate.
43DVDF0S178c

KNOWING YOUR CAR
46

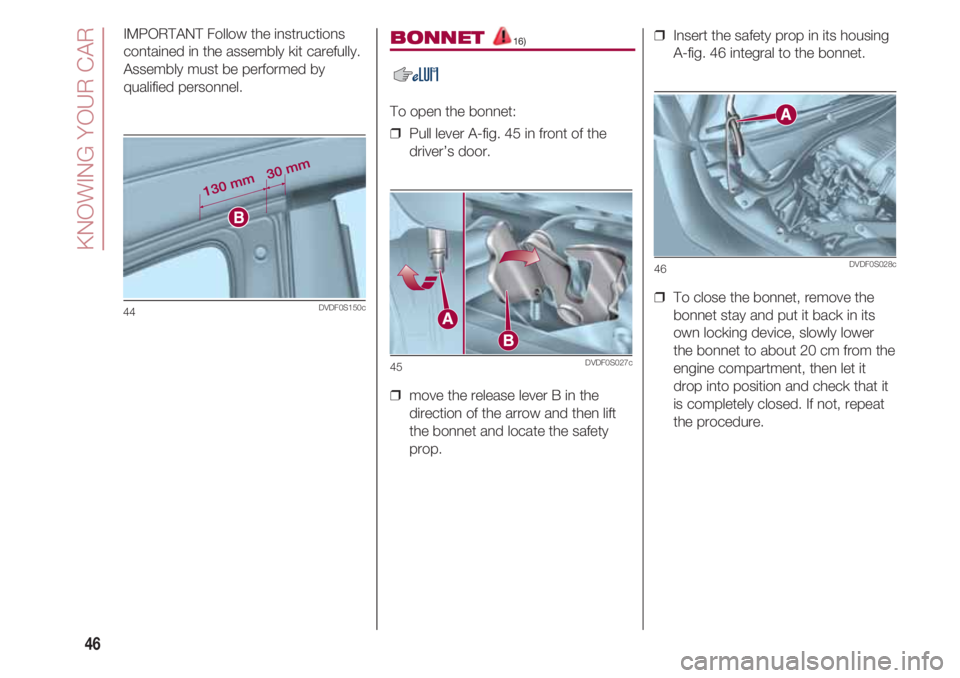

IMPORTANT Follow the instructions
contained in the assembly kit carefully.
Assembly must be performed by
qualified personnel.
44DVDF0S150c
BONNET 16)
To open the bonnet:
❒ Pull lever A-fig. 45 in front of the
driver’s door.
❒ move the release lever B in the
direction of the arrow and then lift
the bonnet and locate the safety
prop.
45DVDF0S027c
❒ Insert the safety prop in its housing
A-fig. 46 integral to the bonnet.
❒ To close the bonnet, remove the
bonnet stay and put it back in its
own locking device, slowly lower
the bonnet to about 20 cm from the
engine compartment, then let it
drop into position and check that it
is completely closed. If not, repeat
the procedure.
46DVDF0S028c

47

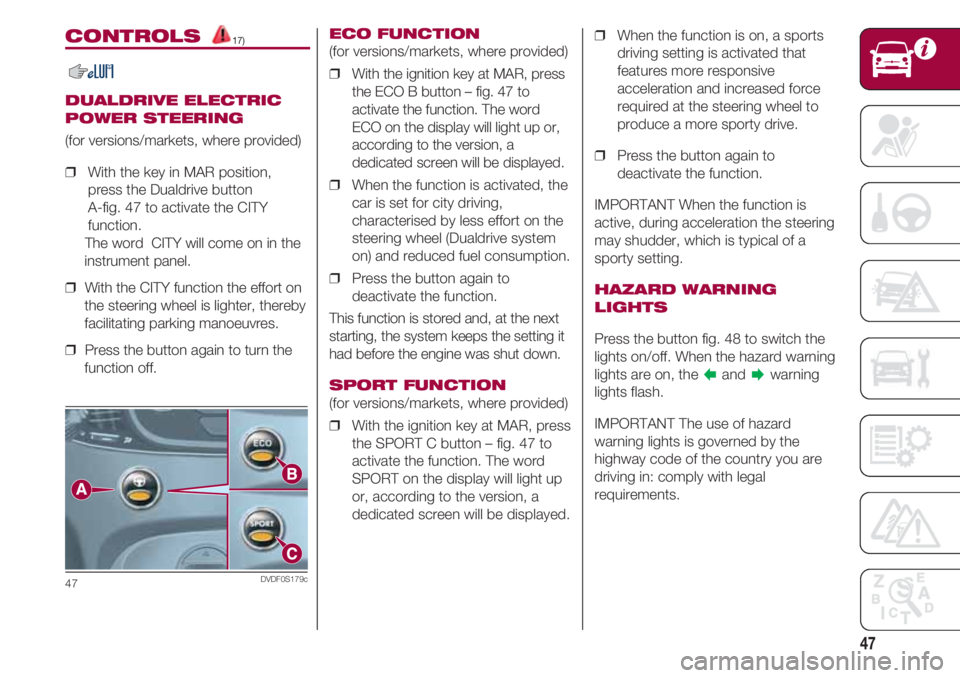

CONTROLS 17)
DUALDRIVE ELECTRIC
POWER STEERING
(for versions/markets, where provided)
❒ With the key in MAR position,
press the Dualdrive button
A-fig. 47 to activate the CITY
function.
The word CITY will come on in the
instrument panel.
❒ With the CITY function the effort on
the steering wheel is lighter, thereby
facilitating parking manoeuvres.
❒ Press the button again to turn the
function off.
47DVDF0S179c
ECO FUNCTION
(for versions/markets, where provided)
❒ With the ignition key at MAR, press
the ECO B button – fig. 47 to
activate the function. The word
ECO on the display will light up or,
according to the version, a
dedicated screen will be displayed.
❒ When the function is activated, the
car is set for city driving,
characterised by less effort on the
steering wheel (Dualdrive system
on) and reduced fuel consumption.
❒ Press the button again to
deactivate the function.
This function is stored and, at the next
starting, the system keeps the setting it
had before the engine was shut down.
SPORT FUNCTION
(for versions/markets, where provided)
❒ With the ignition key at MAR, press
the SPORT C button – fig. 47 to
activate the function. The word
SPORT on the display will light up
or, according to the version, a
dedicated screen will be displayed.❒ When the function is on, a sports
driving setting is activated that
features more responsive
acceleration and increased force
required at the steering wheel to
produce a more sporty drive.
❒ Press the button again to
deactivate the function.
IMPORTANT When the function is
active, during acceleration the steering
may shudder, which is typical of a
sporty setting.
HAZARD WARNING
LIGHTS
Press the button fig. 48 to switch the
lights on/off. When the hazard warning
lights are on, the
andwarning
lights flash.
IMPORTANT The use of hazard
warning lights is governed by the
highway code of the country you are
driving in: comply with legal
requirements.

KNOWING YOUR CAR
48

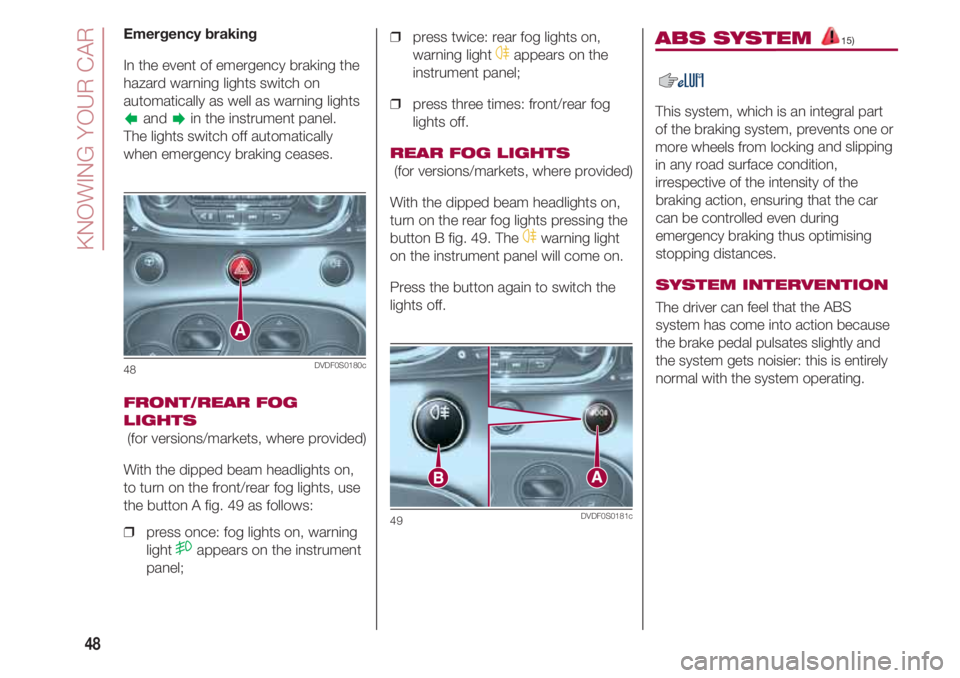

Emergency braking
In the event of emergency braking the
hazard warning lights switch on
automatically as well as warning lights
andin the instrument panel.
The lights switch off automatically
when emergency braking ceases.
FRONT/REAR FOG
LIGHTS
(for versions/markets, where provided)
With the dipped beam headlights on,
to turn on the front/rear fog lights, use
the button A fig. 49 as follows:
❒ press once: fog lights on, warning
light
5appears on the instrument
panel;
48DVDF0S0180c
❒ press twice: rear fog lights on,
warning light
4appears on the
instrument panel;
❒ press three times: front/rear fog
lights off.
REAR FOG LIGHTS
(for versions/markets, where provided)
With the dipped beam headlights on,
turn on the rear fog lights pressing the
button B fig. 49. The
4warning light
on the instrument panel will come on.
Press the button again to switch the
lights off.
49DVDF0S0181c
ABS SYSTEM 15)
This system, which is an integral part
of the braking system, prevents one or
more wheels from locking and slipping
in any road surface condition,
irrespective of the intensity of the
braking action, ensuring that the car
can be controlled even during
emergency braking thus optimising
stopping distances.
SYSTEM INTERVENTION
The driver can feel that the ABS
system has come into action because
the brake pedal pulsates slightly and
the system gets noisier: this is entirely
normal with the system operating.
