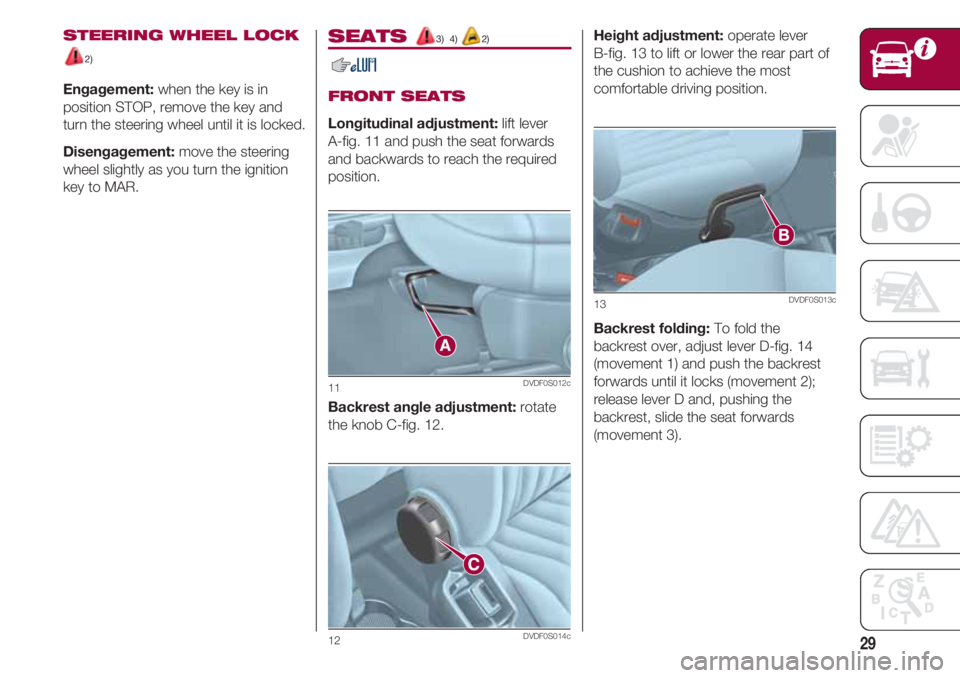

STEERING WHEEL LOCK
2)
Engagement:when the key is in
position STOP, remove the key and
turn the steering wheel until it is locked.
Disengagement:move the steering
wheel slightly as you turn the ignition
key to MAR.
Height adjustment: operate lever
B-fig. 13 to lift or lower the rear part of
the cushion to achieve the most
comfortable driving position.
Backrest folding: To fold the
backrest over, adjust lever D-fig. 14
(movement 1) and push the backrest
forwards until it locks (movement 2);
release lever D and, pushing the
backrest, slide the seat forwards
(movement 3).
13DVDF0S013c
SEATS 3) 4) 2)
FRONT SEATS
Longitudinal adjustment: lift lever
A-fig. 11 and push the seat forwards
and backwards to reach the required
position.
Backrest angle adjustment: rotate
the knob C-fig. 12.
11DVDF0S012c
12DVDF0S014c

KNOWING YOUR CAR
30

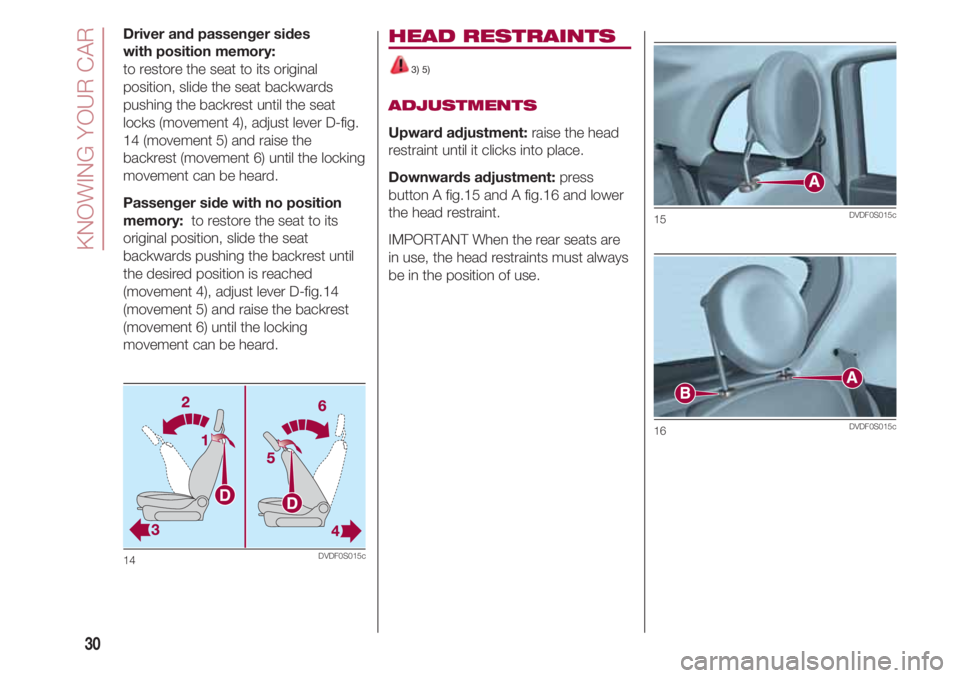

Driver and passenger sides
with position memory:
to restore the seat to its original
position, slide the seat backwards
pushing the backrest until the seat
locks (movement 4), adjust lever D-fig.
14 (movement 5) and raise the
backrest (movement 6) until the locking
movement can be heard.
Passenger side with no position
memory: to restore the seat to its
original position, slide the seat
backwards pushing the backrest until
the desired position is reached
(movement 4), adjust lever D-fig.14
(movement 5) and raise the backrest
(movement 6) until the locking
movement can be heard.
14DVDF0S015c
HEAD RESTRAINTS
3) 5)
ADJUSTMENTS
Upward adjustment:raise the head
restraint until it clicks into place.
Downwards adjustment:press
button A fig.15 and A fig.16 and lower
the head restraint.
IMPORTANT When the rear seats are
in use, the head restraints must always
be in the position of use.
15DVDF0S015c
16DVDF0S015c

31
STEERING WHEEL
2) 3)
The steering wheel angle adjustment
lever A-fig. 18 is located on the steering
column under the direction indicator
lever.
❒ Bring the lever downwards to unlock
the steering column.
❒ Adjust the steering column to the
most suitable position.
❒ Bring the lever upwards to lock it in
this position.
REAR-VIEW
MIRRORS 6)
INTERIOR MIRROR
The mirror is fitted with a safety device
that causes its release in the event of a
violent impact with the passenger.
Lever A fig. 19 can be used to move
the mirror to two different positions:
normal or antiglare.
REAR HEAD
RESTRAINTS (removal)
(for versions/markets, where provided)
Proceed as follows to remove the head
restraints:
❒ Raise lever A or B fig. 17 (both for
one-piece seat), unlock the
backrest and tilt it toward the
passenger compartment;
❒ raise the head restraints to their
maximum height;
❒ press buttons A and B fig.16 at the
side of the two supports, then
remove the head restraints by
pulling them upwards.
17DVDF0S145c
18DVDF0S173c
19DVDF0S106c

KNOWING YOUR CAR
32

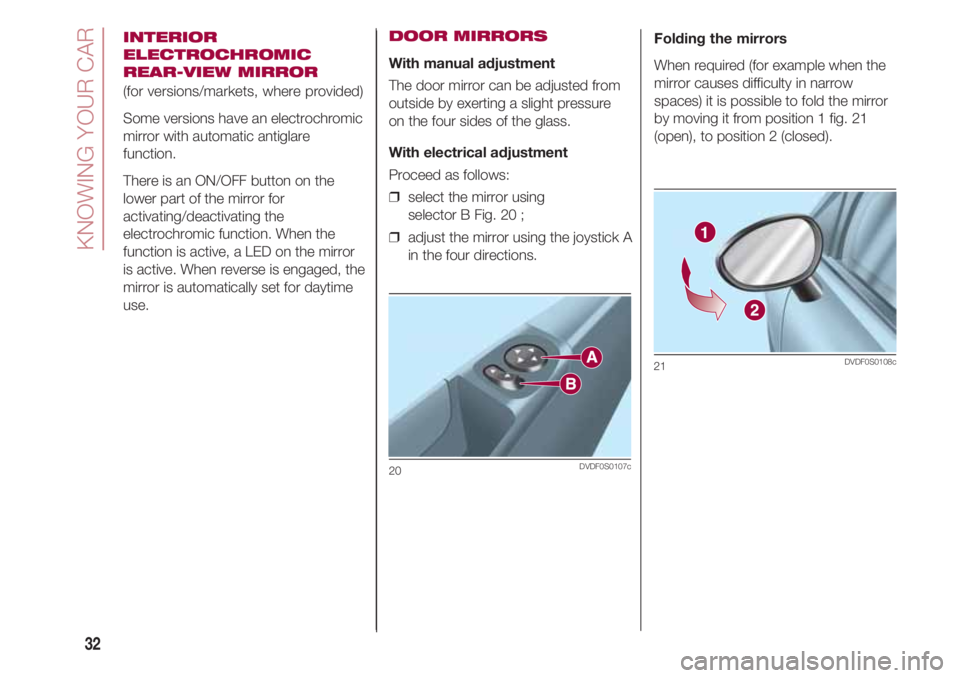

INTERIOR
ELECTROCHROMIC
REAR-VIEW MIRROR
(for versions/markets, where provided)
Some versions have an electrochromic
mirror with automatic antiglare
function.
There is an ON/OFF button on the
lower part of the mirror for
activating/deactivating the
electrochromic function. When the
function is active, a LED on the mirror
is active. When reverse is engaged, the
mirror is automatically set for daytime
use.Folding the mirrors
When required (for example when the
mirror causes difficulty in narrow
spaces) it is possible to fold the mirror
by moving it from position 1 fig. 21
(open), to position 2 (closed).
DOOR MIRRORS
With manual adjustment
The door mirror can be adjusted from
outside by exerting a slight pressure
on the four sides of the glass.
With electrical adjustment
Proceed as follows:
❒ select the mirror using
selector B Fig. 20 ;
❒ adjust the mirror using the joystick A
in the four directions.
20DVDF0S0107c
21DVDF0S0108c

33

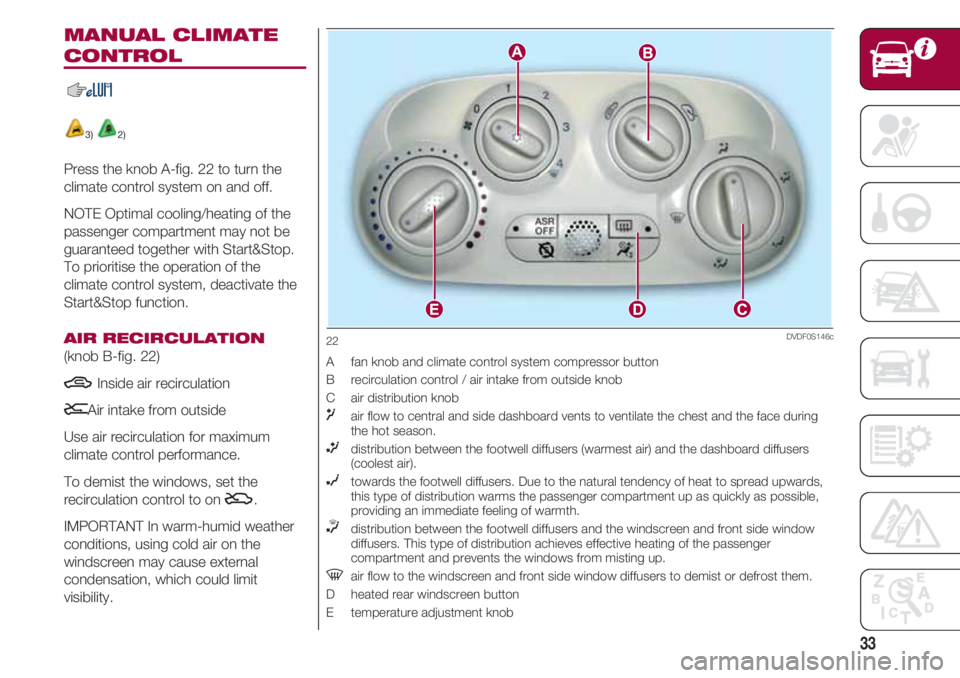

MANUAL CLIMATE
CONTROL
3) 2)
Press the knob A-fig. 22 to turn the
climate control system on and off.
NOTE Optimal cooling/heating of the
passenger compartment may not be
guaranteed together with Start&Stop.
To prioritise the operation of the
climate control system, deactivate the
Start&Stop function.
AIR RECIRCULATION
(knob B-fig. 22)
TInside air recirculation
ÚAir intake from outside
Use air recirculation for maximum
climate control performance.
To demist the windows, set the
recirculation control to on U.
IMPORTANT In warm-humid weather
conditions, using cold air on the
windscreen may cause external
condensation, which could limit
visibility. A fan knob and climate control system compressor button
B recirculation control / air intake from outside knob
C air distribution knob
μ air flow to central and side dashboard vents to ventilate the chest and the face during
the hot season.
∑distribution between the footwell diffusers (warmest air) and the dashboard diffusers
(coolest air).
∂ towards the footwell diffusers. Due to the natural tendency of heat to spread upwards,
this type of distribution warms the passenger compartment up as quickly as possible,
providing an immediate feeling of warmth.
∏distribution between the footwell diffusers and the windscreen and front side window
diffusers. This type of distribution achieves effective heating of the passenger
compartment and prevents the windows from misting up.
- air flow to the windscreen and front side window diffusers to demist or defrost them.
D heated rear windscreen button
E temperature adjustment knob
22DVDF0S146c

KNOWING YOUR CAR
34
AUTOMATIC
CLIMATE CONTROL
SYSTEM
(for versions/markets, where provided)
3) 2)
AUTOMATIC OPERATION
Press the AUTO button I-fig. 23.
Select the desired temperature by
pressing the temperature control
buttons B. The system automatically
maintains the set temperature.
NOTE The climate control system
manages the Start&Stop function to
guarantee a suitably comfortable
climate in the passenger compartment
by deactivating this function when
necessary.
AIR RECIRCULATION
(button H-fig. 23)
Use air recirculation for maximum
climate control performance.
❒ LED on button
onªª = recirculation on
❒ LED on button
off = recirculation off.
To demist the windows, deactivate the
function.
23
EF
ABC
D
HG
I
DVDF0S147c
A climate control compressor
B temperature adjustment
C fan speed adjustment
D windscreen air distribution
E passenger compartment air distribution
F heated rear window
G off
H air recirculation
I automatic operation
IMPORTANT In warm-humid weather conditions, using cold air on the windscreen may
cause external condensation, which could limit visibility.

35
With the selector switch in the AUTO
position, the side lights and dipped beam
headlights are controlled by the dusk
sensor.
MAIN BEAM
HEADLIGHTS
❒ With the ring in the 2position,
push the stalk forwards towards the
dashboard. The
1warning light on
the instrument panel will light.
❒ For vehicles with the AUTO
function: with the ring in the AUTO
position and the dipped beam
headlights on, push the stalk
forwards toward the dashboard.
❒ They are deactivated by pulling the
stalk towards the steering wheel.
Flashing
❒ You can flash the beams pulling the
stalk toward the steering wheel
(unstable position).
PARKING LIGHTS
These lights can be turned on with the
starter switch in the STOP position or
with the key removed, by moving the
left stalk ring first to the position (or
the AUTO position if the vehicle does
not have a dusk sensor) and then to
position
2.The warning light
3lights on the
instrument panel. Repeat the same
operation to switch them off.
DIRECTION INDICATORS
Bring the stalk to the (stable) position:
❒ up a: activates the right direction
indicator;
❒ down b: activates the left direction
indicator.
LANE CHANGE
FUNCTION
❒ Move the lever upwards or
downwards (unstable position) for
less than half a second and the
direction indicator will flash 3 times
to signal a lane change, then
immediately switch off
automatically.
FOLLOW ME HOME
This function allows the space
surrounding the car to be lit up for the
set period of time.
Activation
The “Follow Me Home” device is
activated by pulling the stalk fig. 25
towards the steering wheel, in addition
to the stroke end click.

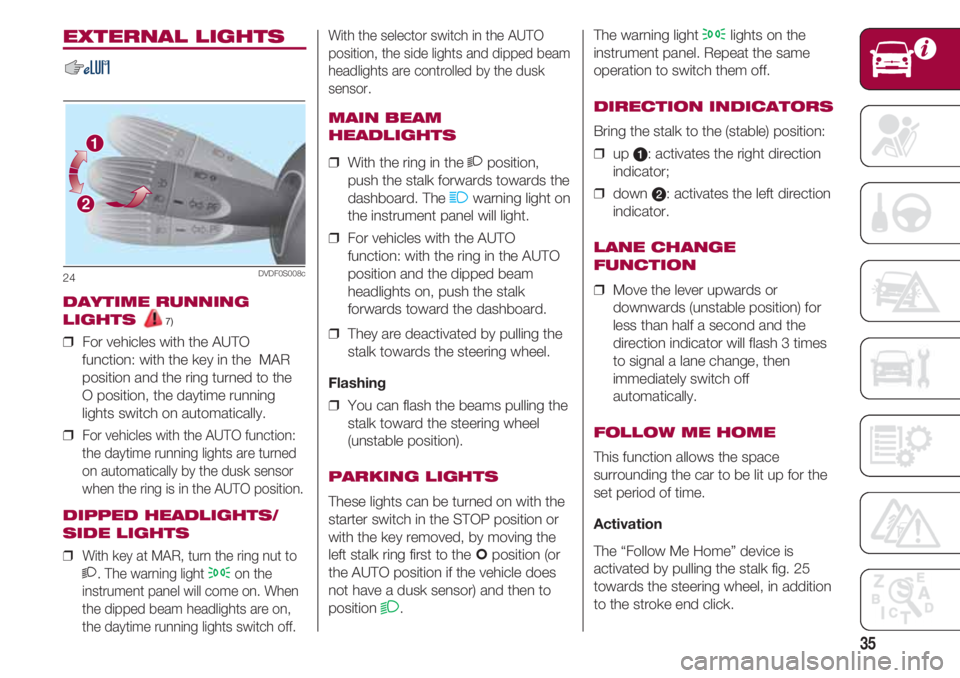

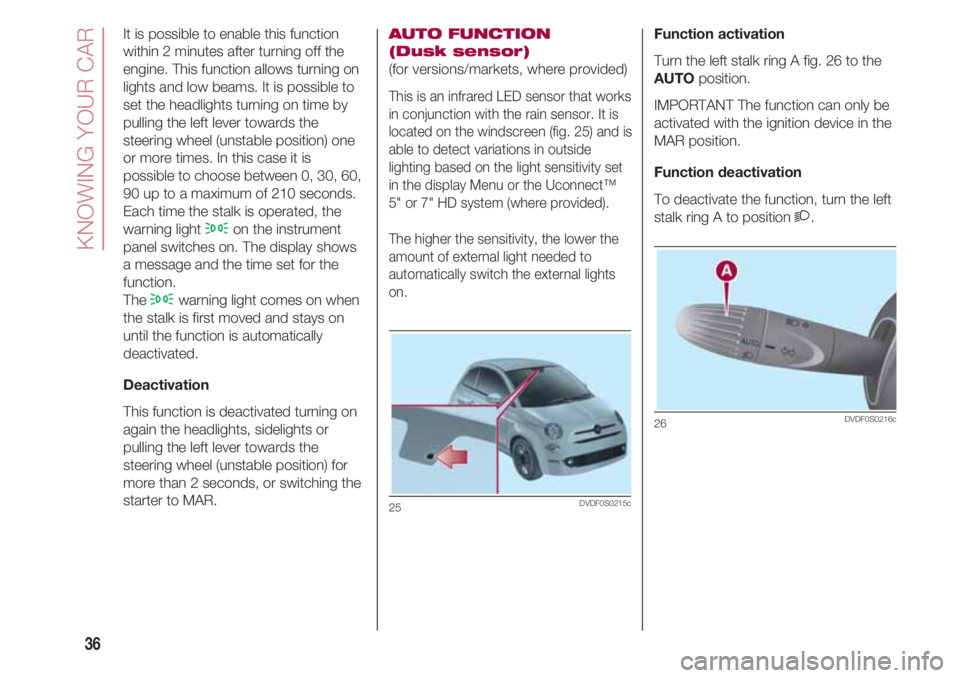

EXTERNAL LIGHTS
DAYTIME RUNNING
LIGHTS
7)
❒ For vehicles with the AUTO
function: with the key in the MAR
position and the ring turned to the
O position, the daytime running
lights switch on automatically.
❒
For vehicles with the AUTO function:
the daytime running lights are turned
on automatically by the dusk sensor
when the ring is in the AUTO position.
DIPPED HEADLIGHTS/
SIDE LIGHTS
❒ With key at MAR, turn the ring nut to
2. The warning light
3on the
instrument panel will come on. When
the dipped beam headlights are on,
the daytime running lights switch off.
24
1
2
DVDF0S008c

KNOWING YOUR CAR
36
It is possible to enable this function
within 2 minutes after turning off the
engine. This function allows turning on
lights and low beams. It is possible to
set the headlights turning on time by
pulling the left lever towards the
steering wheel (unstable position) one
or more times. In this case it is
possible to choose between 0, 30, 60,
90 up to a maximum of 210 seconds.
Each time the stalk is operated, the
warning light
3on the instrument
panel switches on. The display shows
a message and the time set for the
function.
The
3warning light comes on when
the stalk is first moved and stays on
until the function is automatically
deactivated.
Deactivation
This function is deactivated turning on
again the headlights, sidelights or
pulling the left lever towards the
steering wheel (unstable position) for
more than 2 seconds, or switching the
starter to MAR.
AUTO FUNCTION
(Dusk sensor)
(for versions/markets, where provided)
This is an infrared LED sensor that works
in conjunction with the rain sensor. It is
located on the windscreen (fig. 25) and is
able to detect variations in outside
lighting based on the light sensitivity set
in the display Menu or the Uconnect™
5" or 7" HD system (where provided).
The higher the sensitivity, the lower the
amount of external light needed to
automatically switch the external lights
on.
25DVDF0S0215c
Function activation
Turn the left stalk ring A fig. 26 to the
AUTOposition.
IMPORTANT The function can only be
activated with the ignition device in the
MAR position.
Function deactivation
To deactivate the function, turn the left
stalk ring A to position 2.
26DVDF0S0216c

37

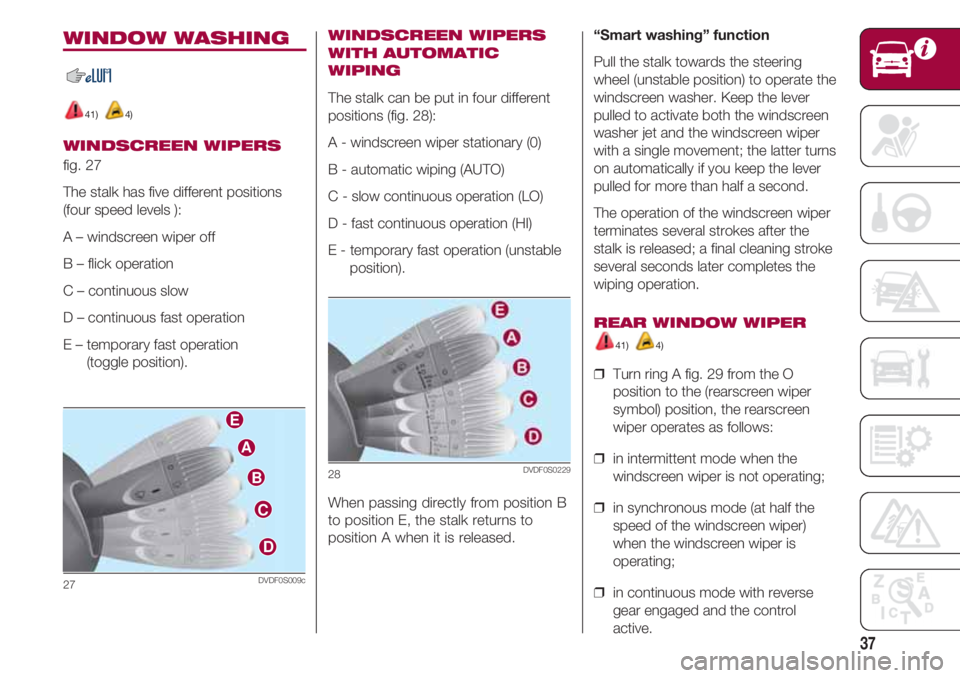

WINDOW WASHING
41) 4)
WINDSCREEN WIPERS
fig. 27
The stalk has five different positions
(four speed levels ):
A – windscreen wiper off
B – flick operation
C – continuous slow
D – continuous fast operation
E – temporary fast operation
(toggle position).

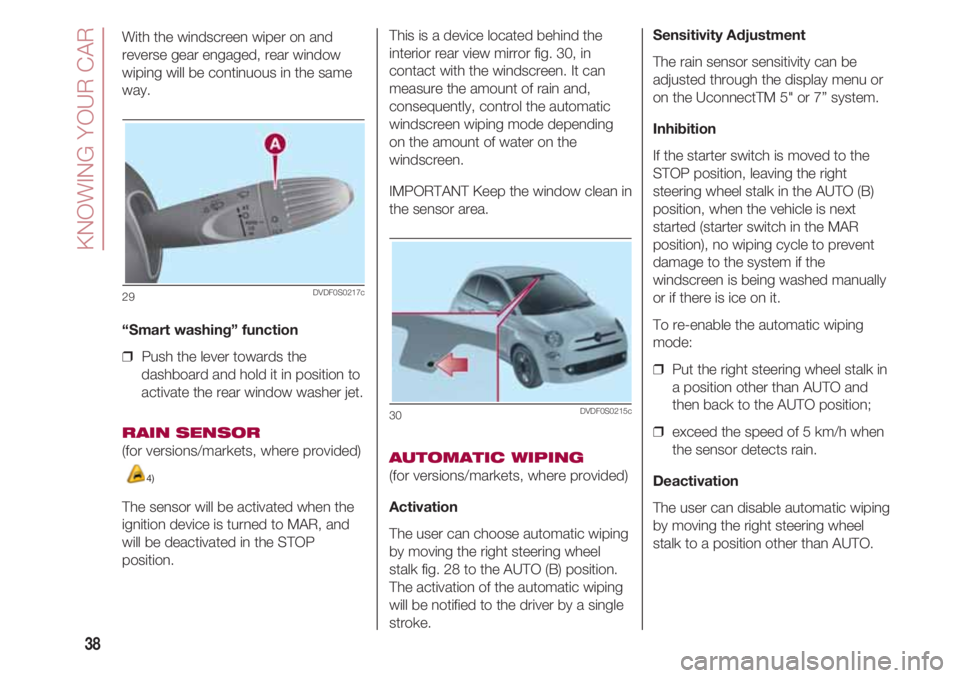

WINDSCREEN WIPERS
WITH AUTOMATIC
WIPING
The stalk can be put in four different
positions (fig. 28):
A - windscreen wiper stationary (0)
B - automatic wiping (AUTO)
C - slow continuous operation (LO)
D - fast continuous operation (HI)
E - temporary fast operation (unstable
position).
When passing directly from position B
to position E, the stalk returns to
position A when it is released.
28DVDF0S0229
“Smart washing” function
Pull the stalk towards the steering
wheel (unstable position) to operate the
windscreen washer. Keep the lever
pulled to activate both the windscreen
washer jet and the windscreen wiper
with a single movement; the latter turns
on automatically if you keep the lever
pulled for more than half a second.
The operation of the windscreen wiper
terminates several strokes after the
stalk is released; a final cleaning stroke
several seconds later completes the
wiping operation.
REAR WINDOW WIPER
41) 4)
❒ Turn ring A fig. 29 from the O
position to the (rearscreen wiper
symbol) position, the rearscreen
wiper operates as follows:
❒ in intermittent mode when the
windscreen wiper is not operating;
❒ in synchronous mode (at half the
speed of the windscreen wiper)
when the windscreen wiper is
operating;
❒ in continuous mode with reverse
gear engaged and the control
active.
27
E
A
B
C
D
DVDF0S009c

KNOWING YOUR CAR
38
With the windscreen wiper on and
reverse gear engaged, rear window
wiping will be continuous in the same
way.
“Smart washing” function
❒ Push the lever towards the
dashboard and hold it in position to
activate the rear window washer jet.
RAIN SENSOR
(for versions/markets, where provided)
4)
The sensor will be activated when the
ignition device is turned to MAR, and
will be deactivated in the STOP
position.
29DVDF0S0217c
This is a device located behind the
interior rear view mirror fig. 30, in
contact with the windscreen. It can
measure the amount of rain and,
consequently, control the automatic
windscreen wiping mode depending
on the amount of water on the
windscreen.
IMPORTANT Keep the window clean in
the sensor area.
AUTOMATIC WIPING
(for versions/markets, where provided)
Activation
The user can choose automatic wiping
by moving the right steering wheel
stalk fig. 28 to the AUTO (B) position.
The activation of the automatic wiping
will be notified to the driver by a single
stroke.
30DVDF0S0215c
Sensitivity Adjustment
The rain sensor sensitivity can be
adjusted through the display menu or
on the UconnectTM 5" or 7” system.
Inhibition
If the starter switch is moved to the
STOP position, leaving the right
steering wheel stalk in the AUTO (B)
position, when the vehicle is next
started (starter switch in the MAR
position), no wiping cycle to prevent
damage to the system if the
windscreen is being washed manually
or if there is ice on it.
To re-enable the automatic wiping
mode:
❒ Put the right steering wheel stalk in
a position other than AUTO and
then back to the AUTO position;
❒ exceed the speed of 5 km/h when
the sensor detects rain.
Deactivation
The user can disable automatic wiping
by moving the right steering wheel
stalk to a position other than AUTO.
