FIAT 500 2018 Owner handbook (in English)

19

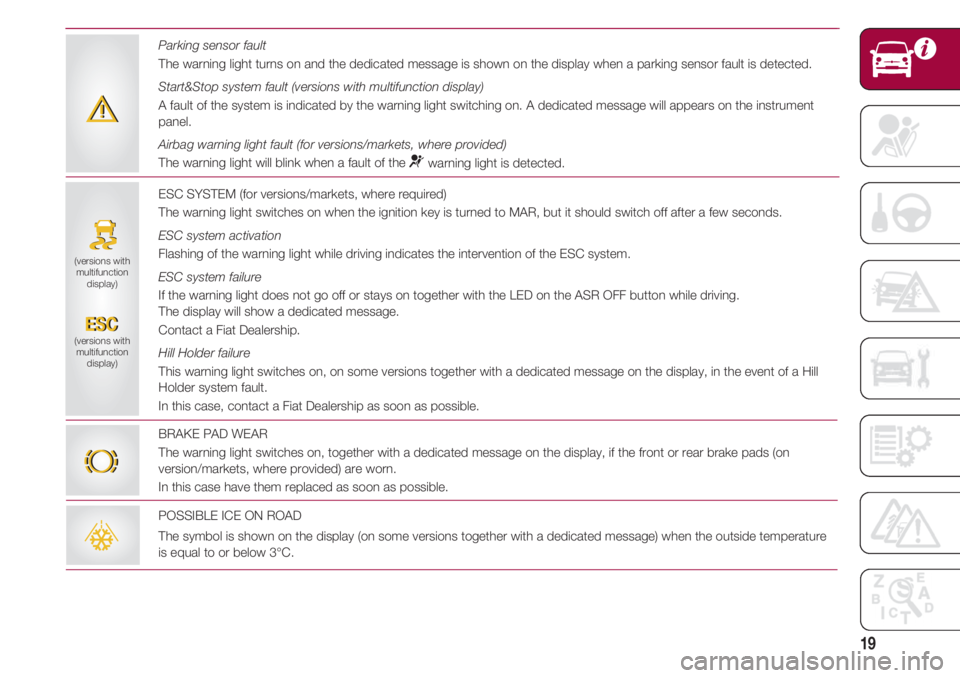

ESC SYSTEM (for versions/markets, where required)
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few seconds.
ESC system activation
Flashing of the warning light while driving indicates the intervention of the ESC system.
ESC system failure
If the warning light does not go off or stays on together with the LED on the ASR OFF button while driving.
The display will show a dedicated message.
Contact a Fiat Dealership.
Hill Holder failure
This warning light switches on, on some versions together with a dedicated message on the display, in the event of a Hill
Holder system fault.
In this case, contact a Fiat Dealership as soon as possible. Parking sensor fault
The warning light turns on and the dedicated message is shown on the display when a parking sensor fault is detected.
Start&Stop system fault (versions with multifunction display)
A fault of the system is indicated by the warning light switching on. A dedicated message will appears on the instrument
panel.
Airbag warning light fault (for versions/markets, where provided)
The warning light will blink when a fault of the
¬warning light is detected.
ESCESC
BRAKE PAD WEAR
The warning light switches on, together with a dedicated message on the display, if the front or rear brake pads (on
version/markets, where provided) are worn.
In this case have them replaced as soon as possible.
dd
POSSIBLE ICE ON ROAD
The symbol is shown on the display (on some versions together with a dedicated message) when the outside temperature
is equal to or below 3°C.
èè
(versions with
multifunction
display)
(versions with
multifunction
display)

KNOWING YOUR CAR
20
FUEL CUT-OFF SYSTEM FAULT (colour display)
The display will show the symbol and a dedicated message if the fuel cut-off system is faulty. Contact a Fiat Dealership.
FUEL CUT-OFF SYSTEM (colour display)
The colour display will show the symbol and a dedicated message if the fuel cut-off system intervenes.
For the fuel cut-off system re-activation procedure, see the “Fuel cut-off system” paragraph, in the
“In an emergency” chapter.
ss
EXTERIOR LIGHT FAULT (colour display)
The display will show a symbol and dedicated message if a fault is detected in one of the following lights: daytime running
lights (DRLs) - side lights - direction indicators -rear fog light - number plate lights.
The fault may be caused by a blown bulb, a blown protection fuse or an interruption of the electrical connection.
It is advisable to contact a Fiat Dealership.
BB

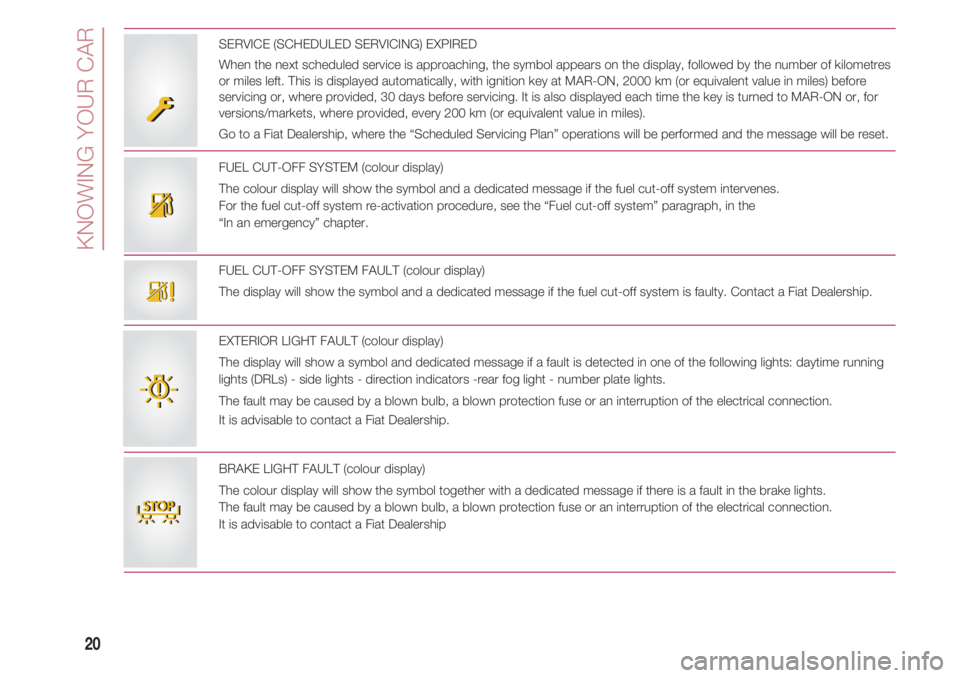

SERVICE (SCHEDULED SERVICING) EXPIRED
When the next scheduled service is approaching, the symbol appears on the display, followed by the number of kilometres
or miles left. This is displayed automatically, with ignition key at MAR-ON, 2000 km (or equivalent value in miles) before
servicing or, where provided, 30 days before servicing. It is also displayed each time the key is turned to MAR-ON or, for
versions/markets, where provided, every 200 km (or equivalent value in miles).
Go to a Fiat Dealership, where the “Scheduled Servicing Plan” operations will be performed and the message will be reset.
BRAKE LIGHT FAULT (colour display)
The colour display will show the symbol together with a dedicated message if there is a fault in the brake lights.
The fault may be caused by a blown bulb, a blown protection fuse or an interruption of the electrical connection.
It is advisable to contact a Fiat Dealership
TT

21

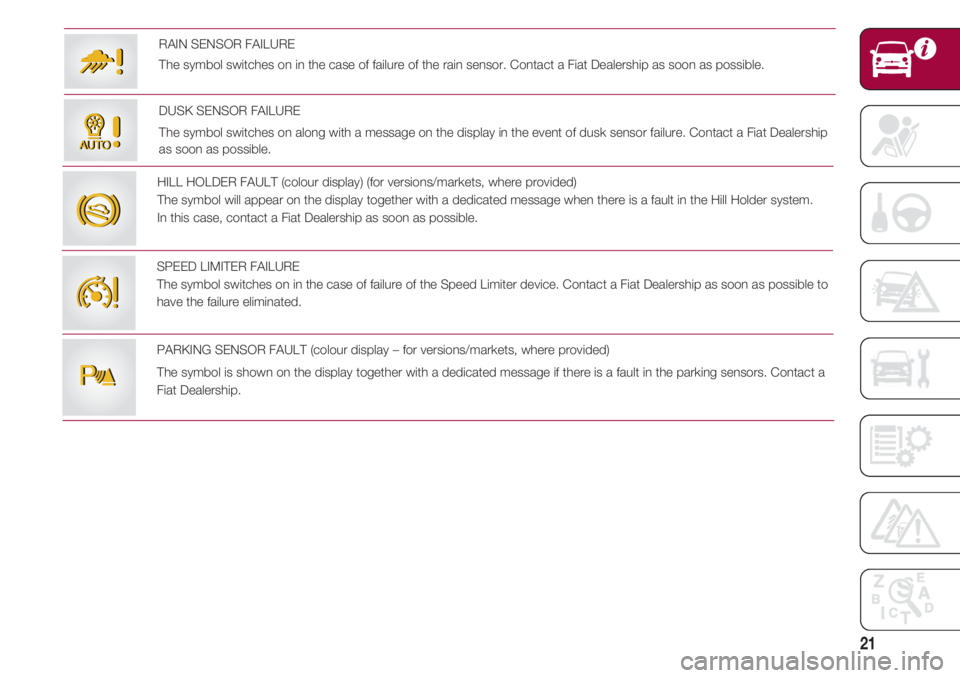

PARKING SENSOR FAULT (colour display – for versions/markets, where provided)
The symbol is shown on the display together with a dedicated message if there is a fault in the parking sensors. Contact a
Fiat Dealership.
HILL HOLDER FAULT (colour display) (for versions/markets, where provided)
The symbol will appear on the display together with a dedicated message when there is a fault in the Hill Holder system.
In this case, contact a Fiat Dealership as soon as possible.
**
DUSK SENSOR FAILURE
The symbol switches on along with a message on the display in the event of dusk sensor failure. Contact a Fiat Dealership
as soon as possible.
RAIN SENSOR FAILURE
The symbol switches on in the case of failure of the rain sensor. Contact a Fiat Dealership as soon as possible.
SPEED LIMITER FAILURE
The symbol switches on in the case of failure of the Speed Limiter device. Contact a Fiat Dealership as soon as possible to
have the failure eliminated.

KNOWING YOUR CAR
22

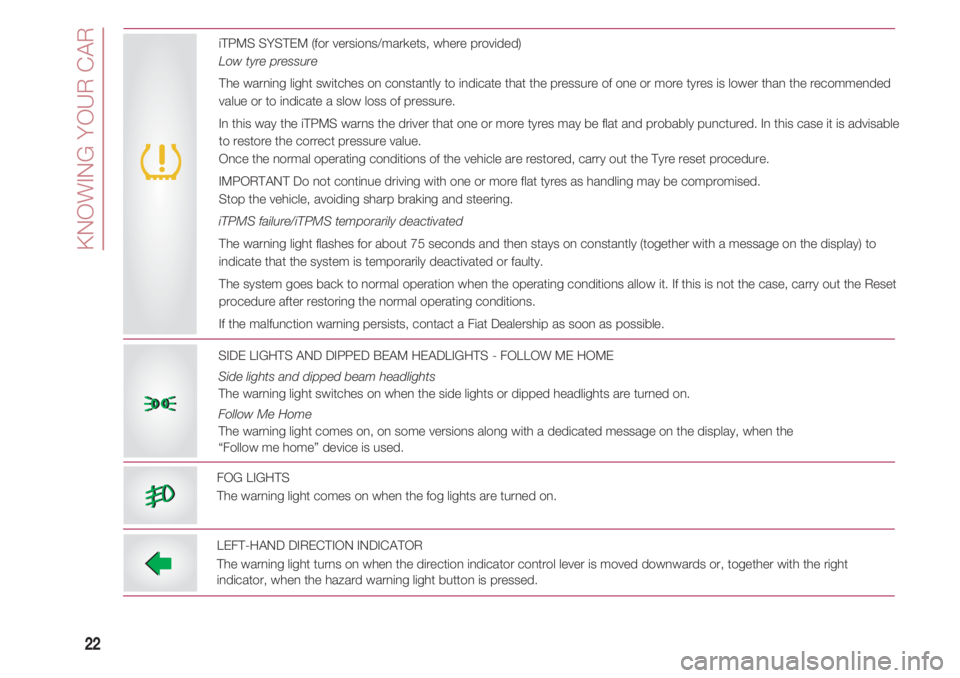

SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS - FOLLOW ME HOME
Side lights and dipped beam headlights
The warning light switches on when the side lights or dipped headlights are turned on.
Follow Me Home
The warning light comes on, on some versions along with a dedicated message on the display, when the
“Follow me home” device is used.
33
iTPMS SYSTEM (for versions/markets, where provided)
Low tyre pressure
The warning light switches on constantly to indicate that the pressure of one or more tyres is lower than the recommended
value or to indicate a slow loss of pressure.
In this way the iTPMS warns the driver that one or more tyres may be flat and probably punctured. In this case it is advisable
to restore the correct pressure value.
Once the normal operating conditions of the vehicle are restored, carry out the Tyre reset procedure.
IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised.
Stop the vehicle, avoiding sharp braking and steering.
iTPMS failure/iTPMS temporarily deactivated
The warning light flashes for about 75 seconds and then stays on constantly (together with a message on the display) to
indicate that the system is temporarily deactivated or faulty.
The system goes back to normal operation when the operating conditions allow it. If this is not the case, carry out the Reset
procedure after restoring the normal operating conditions.
If the malfunction warning persists, contact a Fiat Dealership as soon as possible.
n
FOG LIGHTS
The warning light comes on when the fog lights are turned on.
LEFT-HAND DIRECTION INDICATOR
The warning light turns on when the direction indicator control lever is moved downwards or, together with the right
indicator, when the hazard warning light button is pressed.
55
FR

23

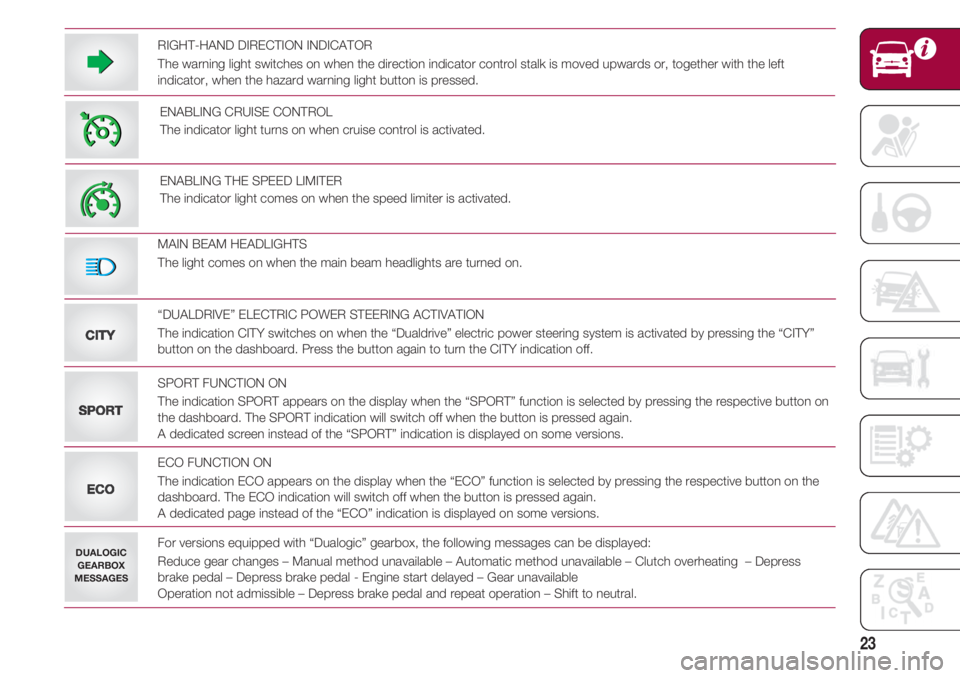

RIGHT-HAND DIRECTION INDICATOR
The warning light switches on when the direction indicator control stalk is moved upwards or, together with the left
indicator, when the hazard warning light button is pressed.
“DUALDRIVE” ELECTRIC POWER STEERING ACTIVATION
The indication CITY switches on when the “Dualdrive” electric power steering system is activated by pressing the “CITY”
button on the dashboard. Press the button again to turn the CITY indication off. CITY
SPORT
ECO
DUALOGIC
GEARBOX
MESSAGES
11
MAIN BEAM HEADLIGHTS
The light comes on when the main beam headlights are turned on.
SPORT FUNCTION ON
The indication SPORT appears on the display when the “SPORT” function is selected by pressing the respective button on
the dashboard. The SPORT indication will switch off when the button is pressed again.
A dedicated screen instead of the “SPORT” indication is displayed on some versions.
ECO FUNCTION ON
The indication ECO appears on the display when the “ECO” function is selected by pressing the respective button on the
dashboard. The ECO indication will switch off when the button is pressed again.
A dedicated page instead of the “ECO” indication is displayed on some versions.
For versions equipped with “Dualogic” gearbox, the following messages can be displayed:
Reduce gear changes – Manual method unavailable – Automatic method unavailable – Clutch overheating – Depress
brake pedal – Depress brake pedal - Engine start delayed – Gear unavailable
Operation not admissible – Depress brake pedal and repeat operation – Shift to neutral.
DE
ENABLING CRUISE CONTROL
The indicator light turns on when cruise control is activated.
ENABLING THE SPEED LIMITER
The indicator light comes on when the speed limiter is activated.

KNOWING YOUR CAR
24

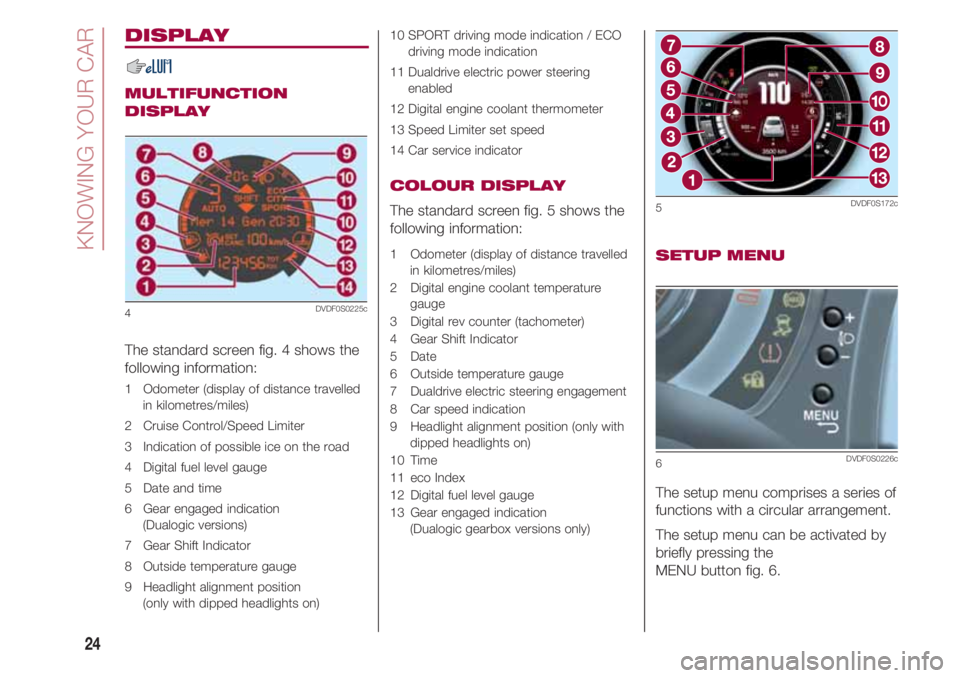

DISPLAY
MULTIFUNCTION
DISPLAY
The standard screen fig. 4 shows the
following information:
1 Odometer (display of distance travelled
in kilometres/miles)
2 Cruise Control/Speed Limiter
3 Indication of possible ice on the road
4 Digital fuel level gauge
5 Date and time
6 Gear engaged indication
(Dualogic versions)
7 Gear Shift Indicator
8 Outside temperature gauge
9 Headlight alignment position
(only with dipped headlights on)
4DVDF0S0225c
10 SPORT driving mode indication / ECO
driving mode indication
11 Dualdrive electric power steering
enabled
12 Digital engine coolant thermometer
13 Speed Limiter set speed
14 Car service indicator
COLOUR DISPLAY
The standard screen fig. 5 shows the
following information:
1 Odometer (display of distance travelled
in kilometres/miles)
2 Digital engine coolant temperature
gauge
3 Digital rev counter (tachometer)
4 Gear Shift Indicator
5 Date
6 Outside temperature gauge
7 Dualdrive electric steering engagement
8 Car speed indication
9 Headlight alignment position (only with
dipped headlights on)
10 Time
11 eco Index
12 Digital fuel level gauge
13 Gear engaged indication
(Dualogic gearbox versions only)SETUP MENU
5DVDF0S172c
6DVDF0S0226c
The setup menu comprises a series of
functions with a circular arrangement.
The setup menu can be activated by
briefly pressing the
MENU button fig. 6.

25
It is possible to move along the setup
menu list by pressing the
+ or – buttons once. Operating
modes are different according to the
characteristics of the option selected.
The menu comprises the following
functions:
❒ DIMMER
❒ SPEED BUZZER
❒ TRIP B ACTIVATION/DATA
❒ SET TIME
❒ SET DATE
❒ AUTOCLOSE
❒ UNITS
❒ LANGUAGE
❒ BUZZER VOLUME
❒ BUTTON VOLUME
❒ SEAT BELT BUZZER
❒ SERVICE
❒ AIRBAG/PASSENGER BAG
❒ DAY LIGHTS
❒ ITPMS RESET
❒ RADIO REPETITION
(for markets/versions, where
provided)
❒ SEE PHONE (for markets/versions,
where provided)
❒ SEE NAVIGATION
(for markets/versions, where
provided)
❒ EXIT MENUTRIP COMPUTER
The Trip computer is used to display
information on car operation when the
key is turned to MAR.
This function includes two separate
trips, namely “Trip A”
and “Trip B”.
Both functions can be reset (reset
means start of a new journey).
“Trip A” may be used to display values
relating to: range (for versions/markets,
where provided), travel distance,
average fuel consumption (for
versions/markets, where provided),
current consumption (for
versions/markets, where provided),
average speed, travel time.
“Best average consumption": in ECO
mode, displays a screen summarising
the best average consumption (where
provided). The icon indicates the
best performance. This information can
be reset by resetting Trip A.
“Trip B” may be used to display the
following values to be displayed: range,
travel distance B, average fuel
consumption B
(for versions/markets, where provided),
average speed B,
travel time B.
SET TIME (SETTING THE
CLOCK)
The time is set through the
multifunction display.
❒ Press the MENU button; the
following two submenus are shown
on the display: “Time” and
“Format”.
❒ Press the + or – button to move
between the two submenus.
❒ Select the required option and
press the MENU button.
❒ When you select the “Clock”
submenu, pressing the MENU
button briefly makes the “hours”
flash on the display.
❒ Press the button + or – to carry out
the adjustment.
❒ Having set the time, briefly press
the MENU button: the
“minutes” will flash on the display.
Set the minutes
using the same procedure as for
the hours.
❒ Having set the time, press and hold
down the MENU button.
–
–
–
–
–

KNOWING YOUR CAR
26
DEACTIVATING FRONT
PASSENGER AIRBAG
AND SIDE BAG
(for versions/markets, where provided)
This function allows the passenger side
airbag to be activated/deactivated.
Proceed as follows:
❒ briefly press MENU
Nbutton and,
after displaying the message
(Passenger bag: Off)
(to deactivate) or the message
(Passenger Bag: On) (to activate) by
pressing the + and – buttons, press
the MENU
Nbutton again;
❒ the confirmation request message is
displayed;
❒ press buttons + or – to select (Yes)
(to confirm activation/deactivation)
or (No) (to abort);
❒ briefly press MENU
Nto confirm
setting and go back to the menu
screen or hold the button down to
go back to the standard screen
without saving.With Passenger’s protection not
active, the LED “on the instrument
panel lights up fixed.
SERVICE
(SCHEDULED
SERVICING)
This function allows you to display the
information about km/mileage intervals
or, for versions/markets, where
provided, time intervals for car
servicing.
To consult the information, proceed as
follows:
– briefly press the MENU
Nbutton:
the display shows when servicing is
due in kilometres/miles or days (where
provided) according to the previous
setting (see paragraph “Units of
measurement”);
– briefly press the MENU
Nbutton to
go back to the menu screen or press
the button for long to go back to the
standard screen.
IMPORTANT The “Scheduled Servicing
Plan” includes car maintenance at fixed
intervals (refer to the “Maintenance and
care” chapter).This is displayed automatically, with
ignition key at MAR-ON, 2000 km (or
equivalent value in miles) before
servicing or, where provided, 30 days
before servicing. It is also displayed
each time the key is turned to MAR-
ON or, for versions/markets, where
provided, every 200 km (or equivalent
value in miles). Below this threshold
servicing indications are more frequent.
The display will be in km or miles
according to the unit of measurement
set. When the following scheduled
servicing is approaching, the word
“Service” will appear on the display,
followed by the number of
kilometres/miles or days (where
provided) left, when the key is turned to
MAR. Go to a Fiat Dealership, where the
“Scheduled Servicing Plan” operations
will be performed and the message will
be reset.
When the service interval is reached
and for about 1000 km/600 mi or 30
days, a service due message is
displayed.

27

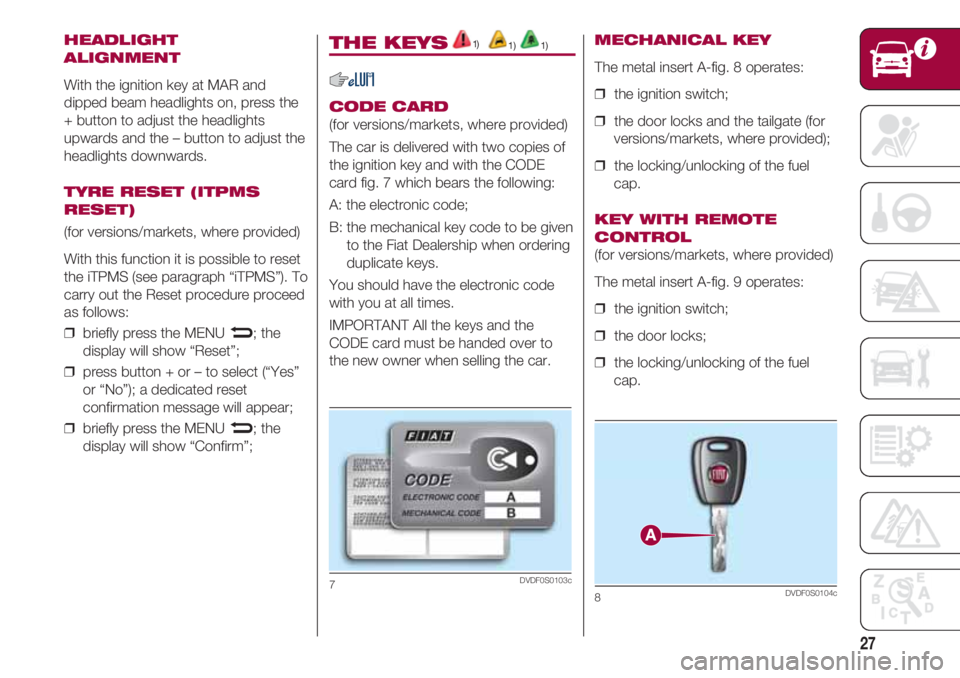

HEADLIGHT
ALIGNMENT
With the ignition key at MAR and
dipped beam headlights on, press the
+ button to adjust the headlights
upwards and the – button to adjust the
headlights downwards.
TYRE RESET (ITPMS
RESET)
(for versions/markets, where provided)
With this function it is possible to reset
the iTPMS (see paragraph “iTPMS”). To
carry out the Reset procedure proceed
as follows:
❒ briefly press the MENU
N; the
display will show “Reset”;
❒ press button + or – to select (“Yes”
or “No”); a dedicated reset
confirmation message will appear;
❒ briefly press the MENU
N; the
display will show “Confirm”;
THE KEYS1)
1) 1)
CODE CARD
(for versions/markets, where provided)
The car is delivered with two copies of
the ignition key and with the CODE
card fig. 7 which bears the following:
A: the electronic code;
B: the mechanical key code to be given
to the Fiat Dealership when ordering
duplicate keys.
You should have the electronic code
with you at all times.
IMPORTANT All the keys and the
CODE card must be handed over to
the new owner when selling the car.
MECHANICAL KEY
The metal insert A-fig. 8 operates:
❒ the ignition switch;
❒ the door locks and the tailgate (for
versions/markets, where provided);
❒ the locking/unlocking of the fuel
cap.
KEY WITH REMOTE
CONTROL
(for versions/markets, where provided)
The metal insert A-fig. 9 operates:
❒ the ignition switch;
❒ the door locks;
❒ the locking/unlocking of the fuel
cap.
7DVDF0S0103c
8DVDF0S0104c

KNOWING YOUR CAR
28

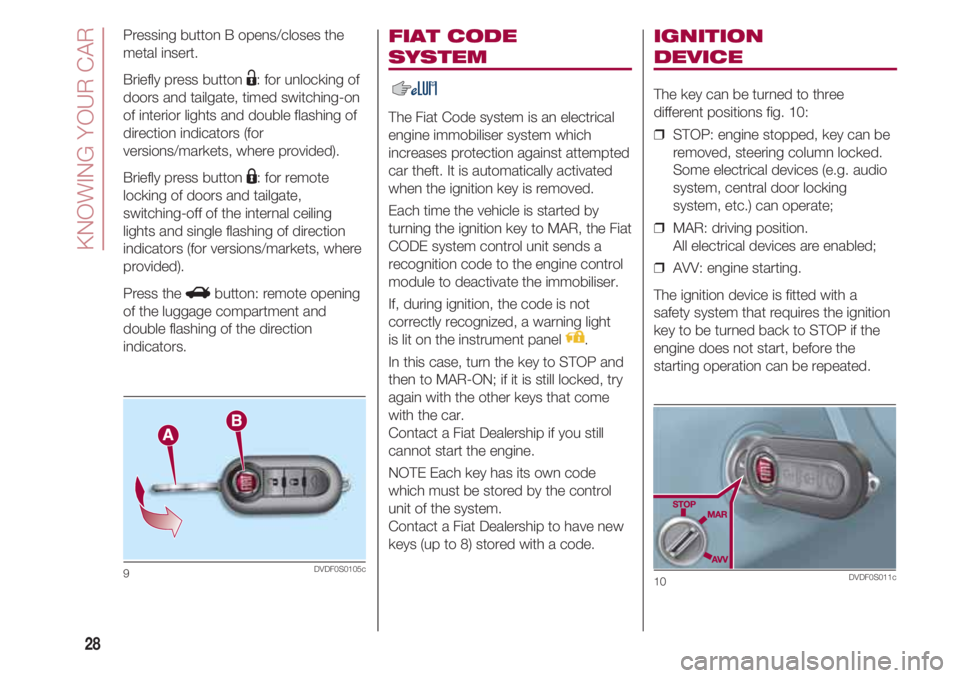

FIAT CODE
SYSTEM
The Fiat Code system is an electrical
engine immobiliser system which
increases protection against attempted
car theft. It is automatically activated
when the ignition key is removed.
Each time the vehicle is started by
turning the ignition key to MAR, the Fiat
CODE system control unit sends a
recognition code to the engine control
module to deactivate the immobiliser.
If, during ignition, the code is not
correctly recognized, a warning light
is lit on the instrument panel .
In this case, turn the key to STOP and
then to MAR-ON; if it is still locked, try
again with the other keys that come
with the car.
Contact a Fiat Dealership if you still
cannot start the engine.
NOTE Each key has its own code
which must be stored by the control
unit of the system.
Contact a Fiat Dealership to have new
keys (up to 8) stored with a code.
IGNITION
DEVICE
The key can be turned to three
different positions fig. 10:
❒ STOP: engine stopped, key can be
removed, steering column locked.
Some electrical devices (e.g. audio
system, central door locking
system, etc.) can operate;
❒ MAR: driving position.
All electrical devices are enabled;
❒ AVV: engine starting.
The ignition device is fitted with a
safety system that requires the ignition
key to be turned back to STOP if the
engine does not start, before the
starting operation can be repeated.
10DVDF0S011c
Pressing button B opens/closes the
metal insert.
Briefly press button
Ë: for unlocking of
doors and tailgate, timed switching-on
of interior lights and double flashing of
direction indicators (for
versions/markets, where provided).
Briefly press button
Á: for remote
locking of doors and tailgate,
switching-off of the internal ceiling
lights and single flashing of direction
indicators (for versions/markets, where
provided).
Press the Rbutton: remote opening
of the luggage compartment and
double flashing of the direction
indicators.
9DVDF0S0105c
