HEADLIGHTS
HEADLIGHT BEAM AIMING
The correct direction of the headlights is essential for
the comfort and safety of the driver and other road
users. To ensure the best visibility when travelling with
the headlights on, the headlight alignment must be
correct. Contact a Fiat Dealership to have the
headlights properly adjusted.
HEADLIGHT ALIGNMENT CORRECTOR
This device works with the ignition key in the MAR-ON
position and the dipped headlights on. The vehicle tilts
backwards when it is laden, raising the beam. The beams
must therefore be aimed again in this case. IMPORTANT Follow the instructions contained in the
assembly kit carefully. Assembly must be performed by
qualified personnel.
Respect the regulations in force
concerning maximum clearance.
Distribute the load evenly and when
driving, bear in mind the increased
sensitivity of the vehicle to side wind.
WARNING
Never exceed the permitted weight (see
“Technical data” section).
F0N0067mfig. 134
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 113

114
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

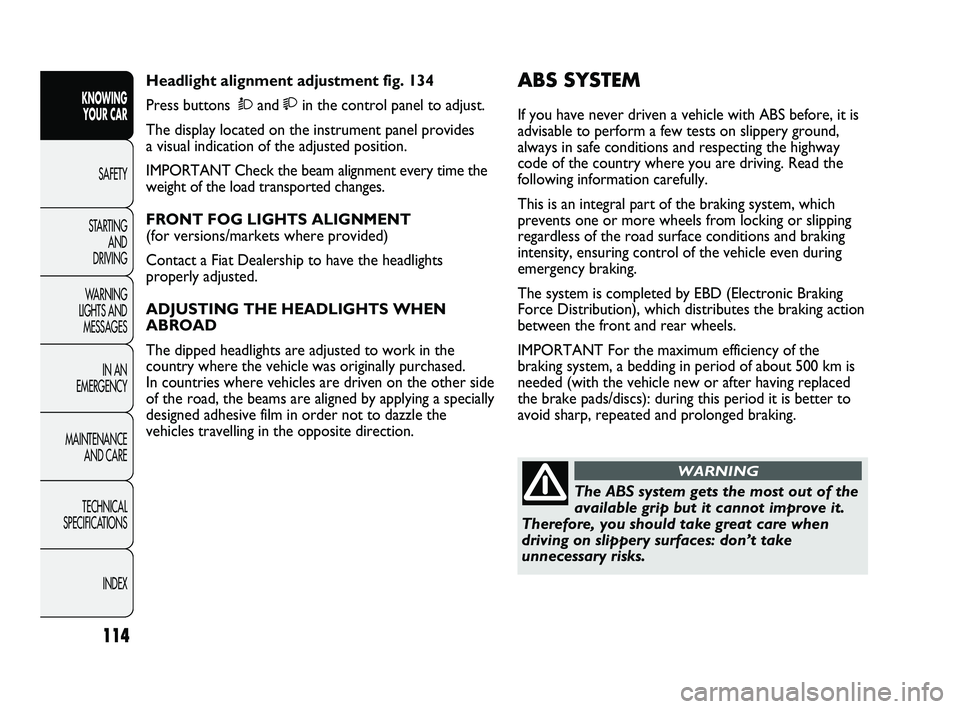

ABS SYSTEM
If you have never driven a vehicle with ABS before, it is
advisable to perform a few tests on slippery ground,
always in safe conditions and respecting the highway
code of the country where you are driving. Read the
following information carefully.
This is an integral part of the braking system, which
prevents one or more wheels from locking or slipping
regardless of the road surface conditions and braking
intensity, ensuring control of the vehicle even during
emergency braking.
The system is completed by EBD (Electronic Braking
Force Distribution), which distributes the braking action
between the front and rear wheels.
IMPORTANT For the maximum efficiency of the
braking system, a bedding in period of about 500 km is
needed (with the vehicle new or after having replaced
the brake pads/discs): during this period it is better to
avoid sharp, repeated and prolonged braking. Headlight alignment adjustment fig. 134
Press buttons Òand in the control panel to adjust.
The display located on the instrument panel provides
a visual indication of the adjusted position.
IMPORTANT Check the beam alignment every time the
weight of the load transported changes.
FRONT FOG LIGHTS ALIGNMENT
(for versions/markets where provided)
Contact a Fiat Dealership to have the headlights
properly adjusted.
ADJUSTING THE HEADLIGHTS WHEN
ABROAD
The dipped headlights are adjusted to work in the
country where the vehicle was originally purchased.
In countries where vehicles are driven on the other side
of the road, the beams are aligned by applying a specially
designed adhesive film in order not to dazzle the
vehicles travelling in the opposite direction.
The ABS system gets the most out of the
available grip but it cannot improve it.
Therefore, you should take great care when
driving on slippery surfaces: don’t take
unnecessary risks.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 114

115
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

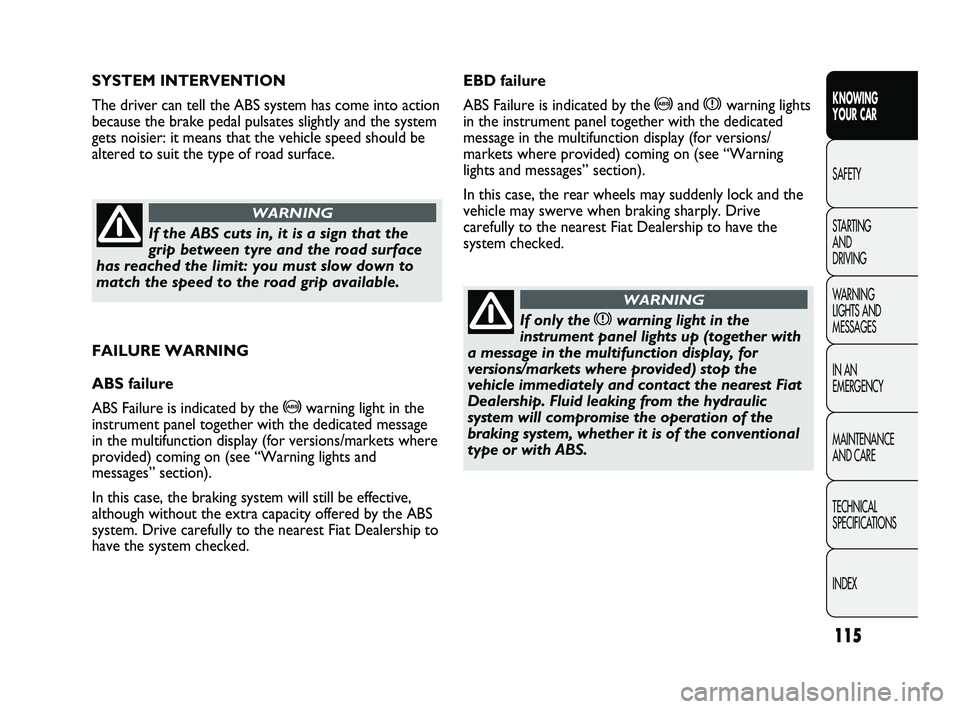

FAILURE WARNING
ABS failure
ABS Failure is indicated by the
>warning light in the
instrument panel together with the dedicated message
in the multifunction display (for versions/markets where
provided) coming on (see “Warning lights and
messages” section).
In this case, the braking system will still be effective,
although without the extra capacity offered by the ABS
system. Drive carefully to the nearest Fiat Dealership to
have the system checked. SYSTEM INTERVENTION
The driver can tell the ABS system has come into action
because the brake pedal pulsates slightly and the system
gets noisier: it means that the vehicle speed should be
altered to suit the type of road surface.
If the ABS cuts in, it is a sign that the
grip between tyre and the road surface
has reached the limit: you must slow down to
match the speed to the road grip available.
WARNING
EBD failure
ABS Failure is indicated by the
>and xwarning lights
in the instrument panel together with the dedicated
message in the multifunction display (for versions/
markets where provided) coming on (see “Warning
lights and messages” section).
In this case, the rear wheels may suddenly lock and the
vehicle may swerve when braking sharply. Drive
carefully to the nearest Fiat Dealership to have the
system checked.
If only the xwarning light in the
instrument panel lights up (together with
a message in the multifunction display, for
versions/markets where provided) stop the
vehicle immediately and contact the nearest Fiat
Dealership. Fluid leaking from the hydraulic
system will compromise the operation of the
braking system, whether it is of the conventional
type or with ABS.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 115

116
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
ESP SYSTEM
(Electronic Stability Program)
(for versions/markets where provided)
This is an electronic system that controls vehicle
stability in the event of tyre grip loss, helping to maintain
directional control.
The ESP system is therefore particularly useful when
grip conditions of road surfaces change.
The MSR system (adjustment of the engine braking
torque during gear changes) and the HBA system
(automatic increase in the braking pressure during
emergency braking) are present with ESP, ASR and Hill
Holder systems (for versions/markets where provided).
SYSTEM INTERVENTION
This is signalled by the flashing of warning light
áin the
instrument panel, to inform the driver that the vehicle is
in critical stability and grip conditions.
SYSTEM ACTIVATION
The ESP system is automatically activated when the
vehicle is started and cannot be de-activated. BRAKE ASSIST (emergency braking assistance
integrated in ESP)
(for versions/markets where provided)
This system (which cannot be deactivated) recognises
emergency braking conditions according to the speed of
operation of the brake pedal and provides an additional
hydraulic braking pressure to support that provided by
the driver. This allows faster and more powerful
operation of the braking system.
The Brake Assist is deactivated on versions equipped
with ESP, in the event of an ESP system failure (indicated
by warning light
áswitching on together with the
message in the multifunction display, for
versions/markets where provided).
When the ABS intervenes and you notice
the brake pedal pulsating, do not be
afraid to keep the pedal pushed down. This will
help you to stop in the shortest distance
possible, depending on the road conditions.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 116

117
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
❒downhill: vehicle stationary on a road with a gradient
higher than 5%, engine running, clutch and brake
pedal pressed and reverse gear engaged.
At pickup the
ESPsystem control unit will maintain the
braking pressure at the wheels until the necessary torque
for starting is reached or, in any case, for a maximum of
2 seconds in order to move easily from the brake pedal
to the accelerator pedal. When two seconds have
elapsed, without starting, the system is automatically
deactivated, gradually releasing the braking pressure.
During this release stage, the typical brake
disengagement noise indicating that the vehicle is going
to move imminently will be heard.
Failure warning
The
áwarning light in the instrument panel will come
on in the event of a failure (see “Warning lights and
messages” section).
IMPORTANT The Hill Holder system is not a parking
brake; therefore, never leave the vehicle without having
engaged the handbrake, turned the engine off and

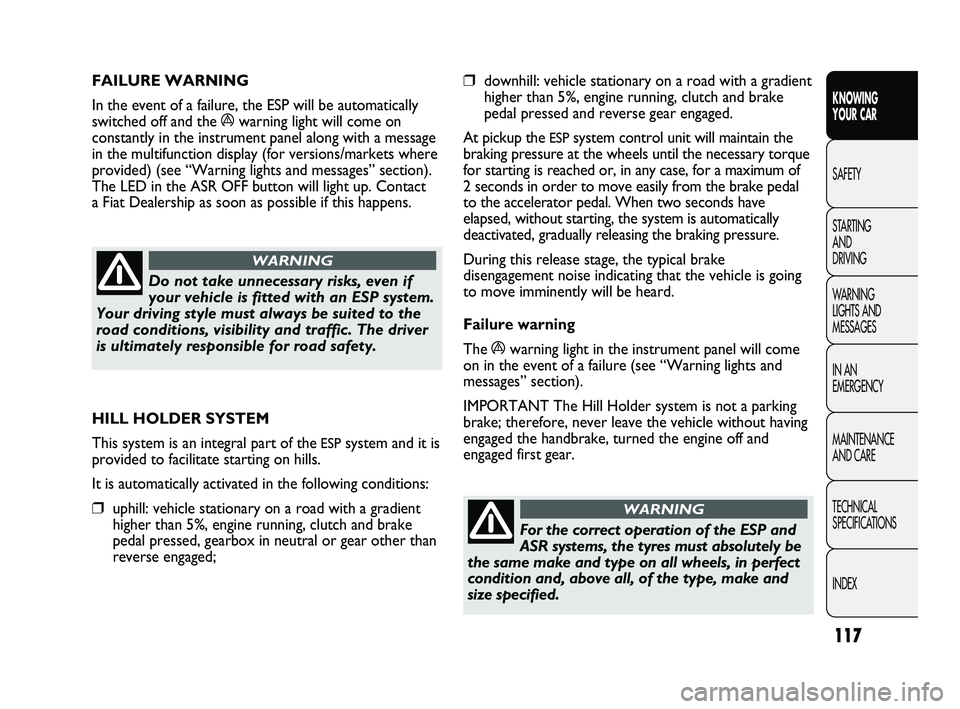

engaged first gear. FAILURE WARNING
In the event of a failure, the ESP will be automatically
switched off and the áwarning light will come on
constantly in the instrument panel along with a message
in the multifunction display (for versions/markets where
provided) (see “Warning lights and messages” section).
The LED in the ASR OFF button will light up. Contact
a Fiat Dealership as soon as possible if this happens.
Do not take unnecessary risks, even if
your vehicle is fitted with an ESP system.
Your driving style must always be suited to the
road conditions, visibility and traffic. The driver
is ultimately responsible for road safety.
WARNING
HILL HOLDER SYSTEM
This system is an integral part of the
ESPsystem and it is
provided to facilitate starting on hills.
It is automatically activated in the following conditions:
❒uphill: vehicle stationary on a road with a gradient
higher than 5%, engine running, clutch and brake
pedal pressed, gearbox in neutral or gear other than
reverse engaged;
For the correct operation of the ESP and
ASR systems, the tyres must absolutely be
the same make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 117

118
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

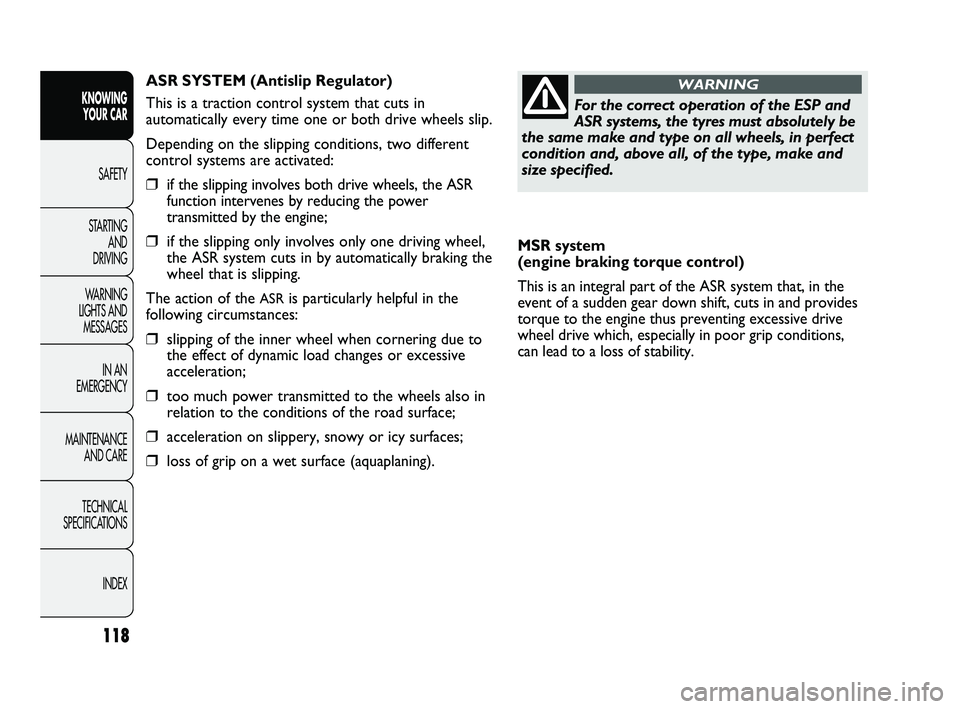

MSR system
(engine braking torque control)
This is an integral part of the ASR system that, in the
event of a sudden gear down shift, cuts in and provides
torque to the engine thus preventing excessive drive
wheel drive which, especially in poor grip conditions,
can lead to a loss of stability. ASR SYSTEM (Antislip Regulator)
This is a traction control system that cuts in
automatically every time one or both drive wheels slip.
Depending on the slipping conditions, two different
control systems are activated:
❒if the slipping involves both drive wheels, the ASR
function intervenes by reducing the power
transmitted by the engine;
❒if the slipping only involves only one driving wheel,
the ASR system cuts in by automatically braking the
wheel that is slipping.
The action of the
ASRis particularly helpful in the
following circumstances:
❒slipping of the inner wheel when cornering due to
the effect of dynamic load changes or excessive
acceleration;
❒too much power transmitted to the wheels also in
relation to the conditions of the road surface;
❒acceleration on slippery, snowy or icy surfaces;
❒loss of grip on a wet surface (aquaplaning).
For the correct operation of the ESP and
ASR systems, the tyres must absolutely be
the same make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 118

119
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

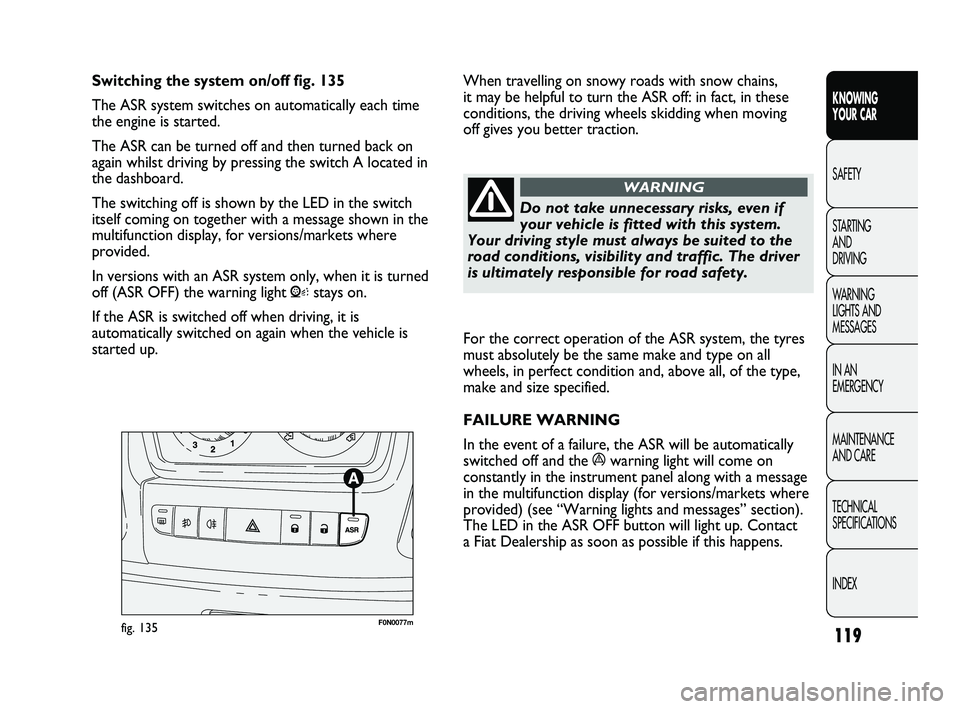

For the correct operation of the ASR system, the tyres
must absolutely be the same make and type on all
wheels, in perfect condition and, above all, of the type,
make and size specified.
FAILURE WARNING
In the event of a failure, the ASR will be automatically
switched off and the áwarning light will come on
constantly in the instrument panel along with a message
in the multifunction display (for versions/markets where
provided) (see “Warning lights and messages” section).
The LED in the ASR OFF button will light up. Contact
a Fiat Dealership as soon as possible if this happens. Switching the system on/off fig. 135
The ASR system switches on automatically each time
the engine is started.
The ASR can be turned off and then turned back on
again whilst driving by pressing the switch A located in
the dashboard.
The switching off is shown by the LED in the switch
itself coming on together with a message shown in the
multifunction display, for versions/markets where
provided.
In versions with an ASR system only, when it is turned
off (ASR OFF) the warning light
Vstays on.
If the ASR is switched off when driving, it is
automatically switched on again when the vehicle is
started up.
F0N0077mfig. 135
Do not take unnecessary risks, even if
your vehicle is fitted with this system.
Your driving style must always be suited to the
road conditions, visibility and traffic. The driver
is ultimately responsible for road safety.
WARNING
When travelling on snowy roads with snow chains,
it may be helpful to turn the ASR off: in fact, in these
conditions, the driving wheels skidding when moving
off gives you better traction.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 119

120
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

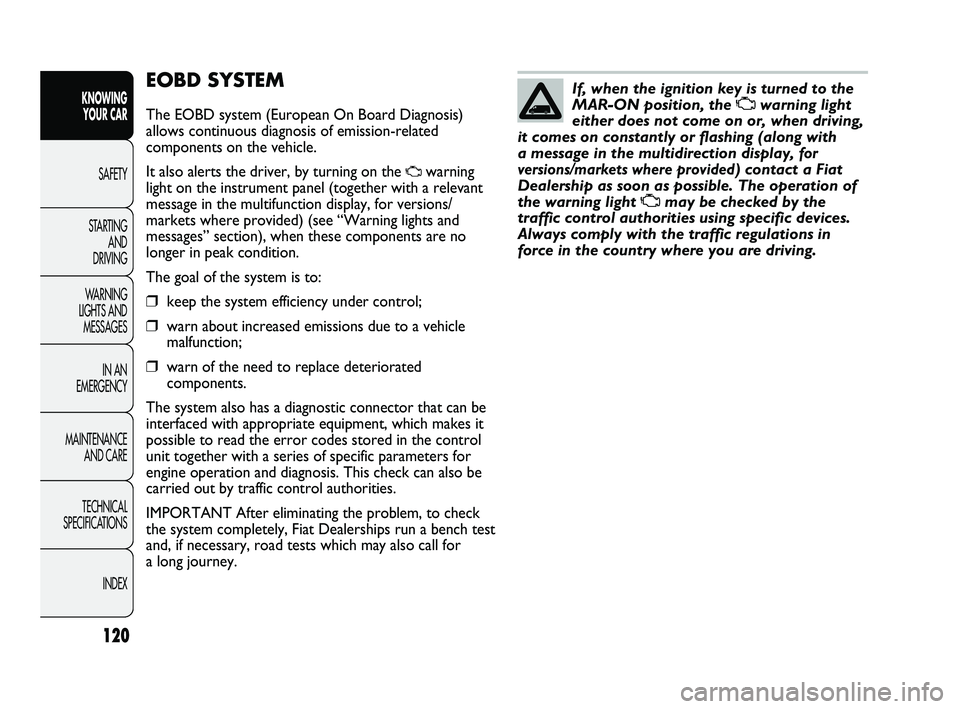

EOBD SYSTEM
The EOBD system (European On Board Diagnosis)
allows continuous diagnosis of emission-related
components on the vehicle.
It also alerts the driver, by turning on the
Uwarning
light on the instrument panel (together with a relevant
message in the multifunction display, for versions/
markets where provided) (see “Warning lights and
messages” section), when these components are no
longer in peak condition.
The goal of the system is to:
❒keep the system efficiency under control;
❒warn about increased emissions due to a vehicle
malfunction;
❒warn of the need to replace deteriorated
components.
The system also has a diagnostic connector that can be
interfaced with appropriate equipment, which makes it
possible to read the error codes stored in the control
unit together with a series of specific parameters for
engine operation and diagnosis. This check can also be
carried out by traffic control authorities.
IMPORTANT After eliminating the problem, to check
the system completely, Fiat Dealerships run a bench test
and, if necessary, road tests which may also call for
a long journey.
If, when the ignition key is turned to the
MAR-ON position, the Uwarning light
either does not come on or, when driving,
it comes on constantly or flashing (along with
a message in the multidirection display,
for
versions/markets where provided
) contact a Fiat
Dealership as soon as possible. The operation of
the warning light Umay be checked by the
traffic control authorities using specific devices.
Always comply with the traffic regulations in
force in the country where you are driving.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 120

121
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0119mfig. 136
Detection distances
Central action range: 140 cm ±10 cm
Side action range: 60 cm ±20 cm
If several obstacles are detected by the sensors, only the
nearest one is considered.
FAILURE WARNING
Any parking sensor failures will be indicated when
engaging reverse by the
twarning light in the instrument
panel together with the message in the multifunction
display coming on for versions/markets where provided
(see “Warning lights and messages” section).
PARKING SENSORS
(for versions/markets where provided)
The parking sensors are located in the rear bumper,
fig. 136 and their function is to inform the driver,
through an intermittent buzzer, about the presence of
obstacles behind the vehicle.
ACTIVATION
The sensors are automatically activated when the
reverse gear is engaged.
As the obstacle behind the vehicle gets closer to the
bumper, the beeping becomes more frequent.
WARNING BUZZER
When reverse gear is engaged an intermittent beeping is
automatically activated.
The acoustic signal:
❒increases as the distance between the vehicle and
the obstacle decreases;
❒becomes continuous when the distance between the
vehicle and the obstacle is less than 30 cm and stops
immediately if the distance increases;
❒remains constant if the distance remains unchanged;
if this situation concerns the side sensors, the
buzzer will stop after about 3 seconds to avoid,
for example, warning indications in the event of
manoeuvres along walls.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 121

122
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
OPERATION WITH TRAILER
Parking sensor operation is automatically disabled when
the electric cable plug of the trailer is fitted into the
vehicle tow hook socket.
The sensors are automatically enabled again when the
trailer cable plug is removed.
IMPORTANT If you wish to leave the tow hook fitted
without towing a trailer, it is advisable to contact a Fiat
Dealership for the relevant system update operations
because the tow hook could be detected as an obstacle
by the central sensors.
When using special washing equipment such as high
pressure jets or steam cleaning, clean the sensors very
quickly keeping the jet more than 10 cm away.
The driver always has ultimate
responsibility for parking and other
dangerous manoeuvres. While manoeuvring,
always make sure that no-one is in the area
concerned (especially children) or animals.
The parking sensors are designed to assist
drivers: in any case, you must always pay the
utmost attention during potentially dangerous
manoeuvres, even when carried out at low
speed.
WARNING
For correct operation, sensors must
always be clean from mud, dirt, snow or
ice. Be careful not to scratch or damage
the sensors while cleaning them. Avoid using dry,
rough or hard cloths. The sensors should be
washed with clean water, possibly with some car
shampoo.
GENERAL WARNINGS
❒When parking, take the utmost care over obstacles
that may be above or below the sensors.
❒Objects close to the vehicle, in certain
circumstances are not detected and could therefore
cause damage to the vehicle or be damaged.
The following conditions may influence the performance
of the parking sensor system:
❒Reduced sensor sensitivity and a reduction in the
parking assistance system performance could be due
to the presence on the surface of the sensor of: ice,
snow, mud, thick paint.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 122
