technical specifications FIAT DUCATO 2010 Owner handbook (in English)

103
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0059mfig. 117F0N0801mfig. 116

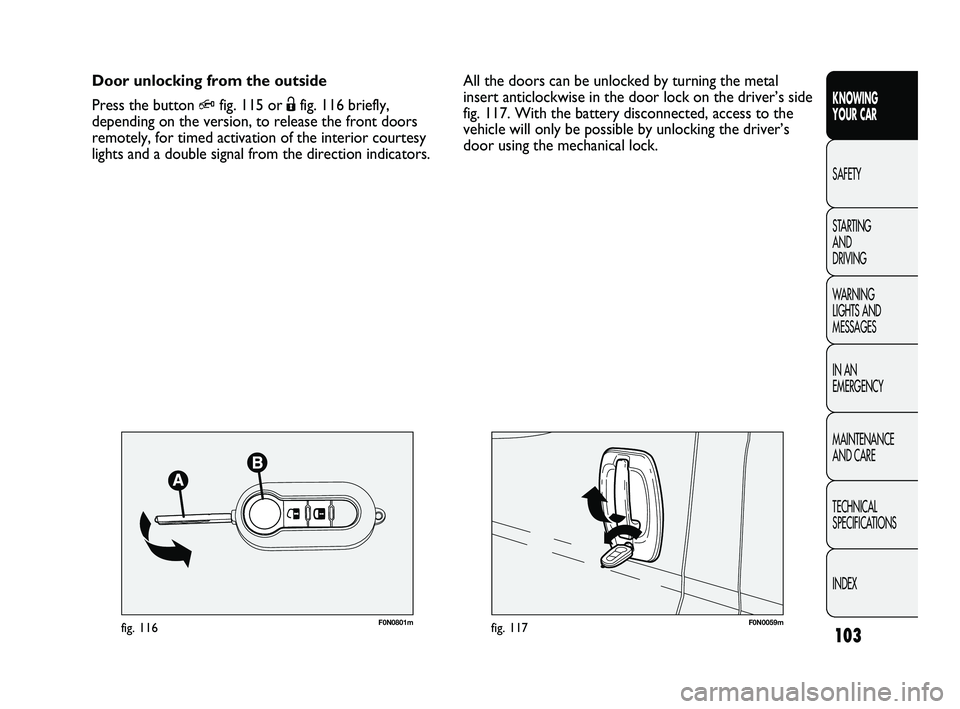

All the doors can be unlocked by turning the metal
insert anticlockwise in the door lock on the driver’s side
fig. 117. With the battery disconnected, access to the
vehicle will only be possible by unlocking the driver’s
door using the mechanical lock. Door unlocking from the outside
Press the button
Qfig. 115 or Ëfig. 116 briefly,
depending on the version, to release the front doors
remotely, for timed activation of the interior courtesy
lights and a double signal from the direction indicators.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 103

104
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0047mfig. 118F0N0132mfig. 119

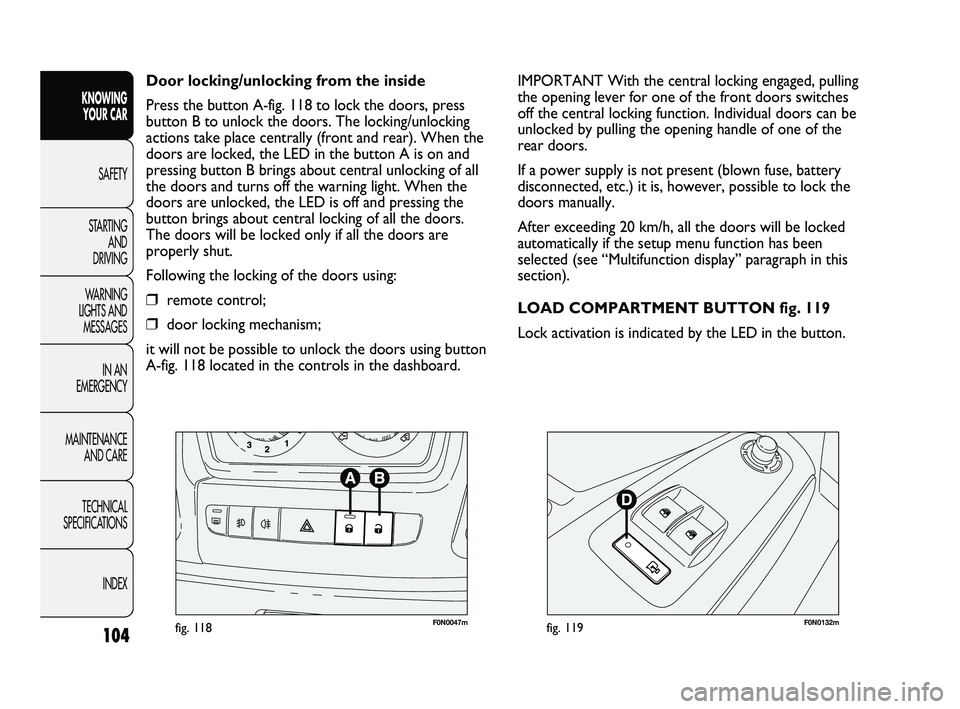

IMPORTANT With the central locking engaged, pulling
the opening lever for one of the front doors switches
off the central locking function. Individual doors can be
unlocked by pulling the opening handle of one of the
rear doors.
If a power supply is not present (blown fuse, battery
disconnected, etc.) it is, however, possible to lock the
doors manually.
After exceeding 20 km/h, all the doors will be locked
automatically if the setup menu function has been
selected (see “Multifunction display” paragraph in this
section).
LOAD COMPARTMENT BUTTON fig. 119
Lock activation is indicated by the LED in the button. Door locking/unlocking from the inside
Press the button A-fig. 118 to lock the doors, press
button B to unlock the doors. The locking/unlocking
actions take place centrally (front and rear). When the
doors are locked, the LED in the button A is on and
pressing button B brings about central unlocking of all
the doors and turns off the warning light. When the
doors are unlocked, the LED is off and pressing the
button brings about central locking of all the doors.
The doors will be locked only if all the doors are
properly shut.
Following the locking of the doors using:
❒remote control;
❒door locking mechanism;
it will not be possible to unlock the doors using button
A-fig. 118 located in the controls in the dashboard.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 104

105
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
The LED comes on in the following cases:
❒after each door lock command generated by the
button D or by button
Áin the dashboard;
❒when the instrument panel is activated;
❒upon opening of one of the front doors;
❒when the door is locked at 20 km/h (if activated
from the menu).
The lock is turned off when one of the load
compartment doors is opened or on a door release
request (load compartment or centralised) or an
unlocking request from the remote control/door catch.
DEAD LOCK
(for versions/markets where provided)
This safety device inhibits the operation of:
❒interior handles;
❒locking/unlocking buttons A-B fig. 118;
thereby preventing the opening of the doors from inside
the passenger compartment if there has been a break-in
attempt (e.g. a window has been broken).
The dead lock device therefore offers the best possible
protection against break in attempts. We recommend
engaging it whenever the vehicle is parked and left
unattended.
Once the dead lock system is engaged it
is impossible to open the doors from
inside the vehicle. Therefore, before engaging
the system check that there is no one left inside.
If the remote control battery is flat, the system
can only be disengaged by using the metal insert
in either of the door locks as described
previously: in this case the device only remains
on for the rear doors.
WARNING
Device activation
The dead lock device is automatically activated on every
door when pressing the remote control button
Ábriefly
twice, fig. 115.
Device activation is indicated by 3 flashes of the
direction indicators and the flashing of the LED on
button A-fig. 118 on the dashboard.
If one of the doors is not perfectly shut, the dead lock
device will not be activated, thus preventing a person
getting into the car through the open door and, on
shutting it, remaining stuck inside the passenger
compartment.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 105

106
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

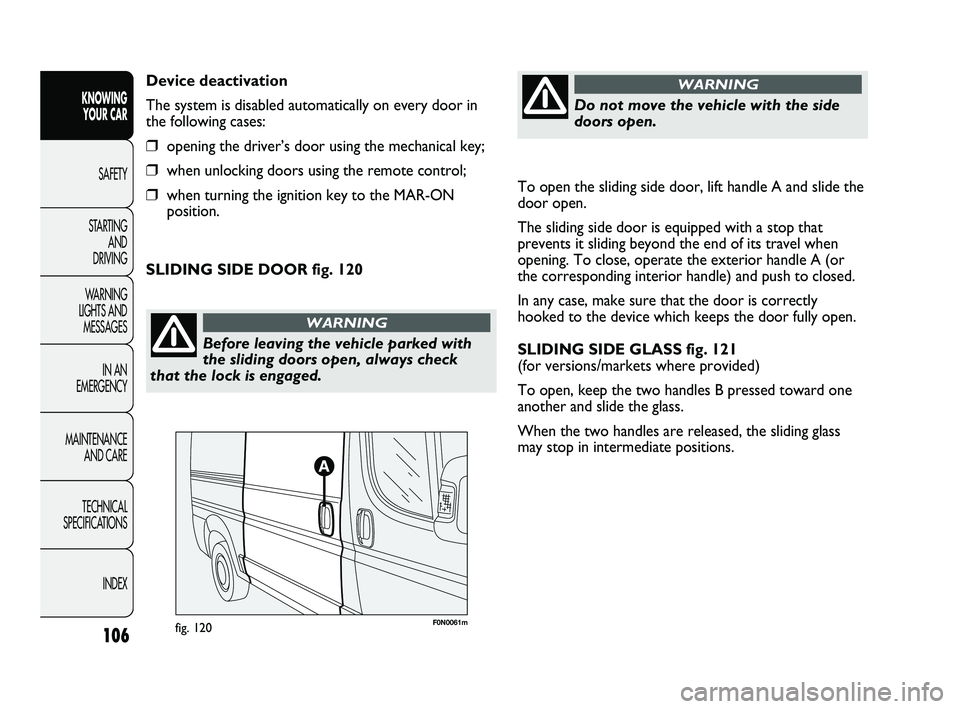

INDEXTo open the sliding side door, lift handle A and slide the
door open.
The sliding side door is equipped with a stop that
prevents it sliding beyond the end of its travel when
opening. To close, operate the exterior handle A (or
the corresponding interior handle) and push to closed.
In any case, make sure that the door is correctly
hooked to the device which keeps the door fully open.
SLIDING SIDE GLASS fig. 121
(for versions/markets where provided)
To open, keep the two handles B pressed toward one
another and slide the glass.
When the two handles are released, the sliding glass
may stop in intermediate positions. Device deactivation
The system is disabled automatically on every door in
the following cases:
❒opening the driver’s door using the mechanical key;
❒when unlocking doors using the remote control;
❒when turning the ignition key to the MAR-ON
position.
Before leaving the vehicle parked with
the sliding doors open, always check
that the lock is engaged.
WARNING
Do not move the vehicle with the side
doors open.
WARNING
SLIDING SIDE DOOR fig. 120
F0N0061mfig. 120
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 106

107
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0240mfig. 121F0N0176mfig. 122

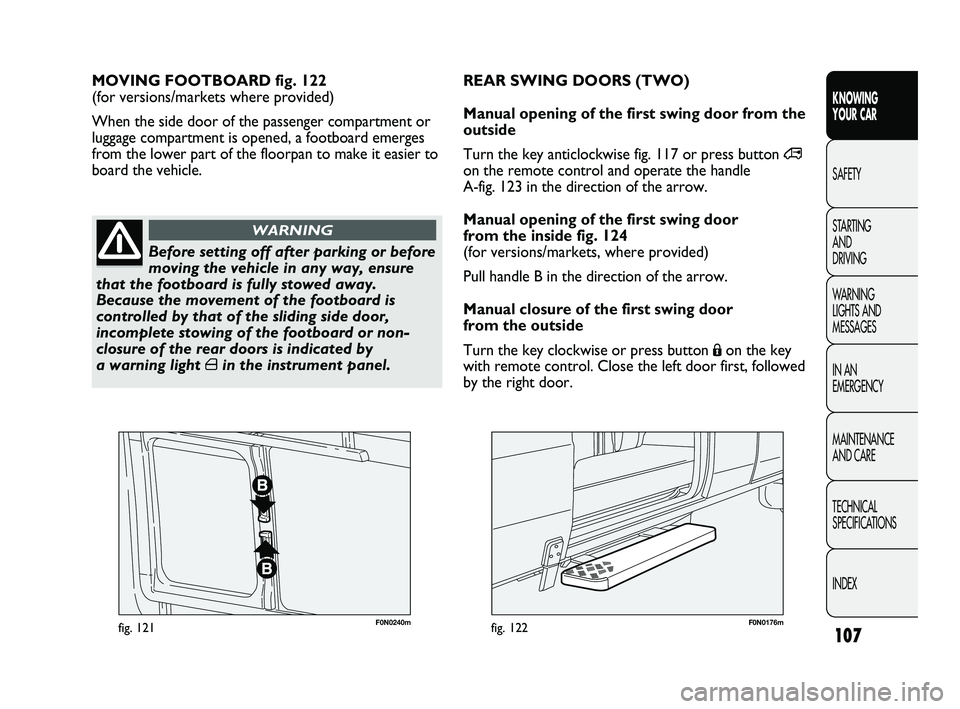

MOVING FOOTBOARD fig. 122
(for versions/markets where provided)
When the side door of the passenger compartment or
luggage compartment is opened, a footboard emerges
from the lower part of the floorpan to make it easier to
board the vehicle.
Before setting off after parking or before
moving the vehicle in any way, ensure
that the footboard is fully stowed away.
Because the movement of the footboard is
controlled by that of the sliding side door,
incomplete stowing of the footboard or non-
closure of the rear doors is indicated by
a warning light
´in the instrument panel.
WARNING
REAR SWING DOORS (TWO)
Manual opening of the first swing door from the
outside
Turn the key anticlockwise fig. 117 or press button
∞
on the remote control and operate the handle
A-fig. 123 in the direction of the arrow.
Manual opening of the first swing door
from the inside fig. 124
(for versions/markets, where provided)
Pull handle B in the direction of the arrow.
Manual closure of the first swing door
from the outside
Turn the key clockwise or press button
Áon the key
with remote control. Close the left door first, followed
by the right door.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 107

108
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0130mfig. 124
F0N0129mfig. 123
F0N0132mfig. 126
F0N0131mfig. 125

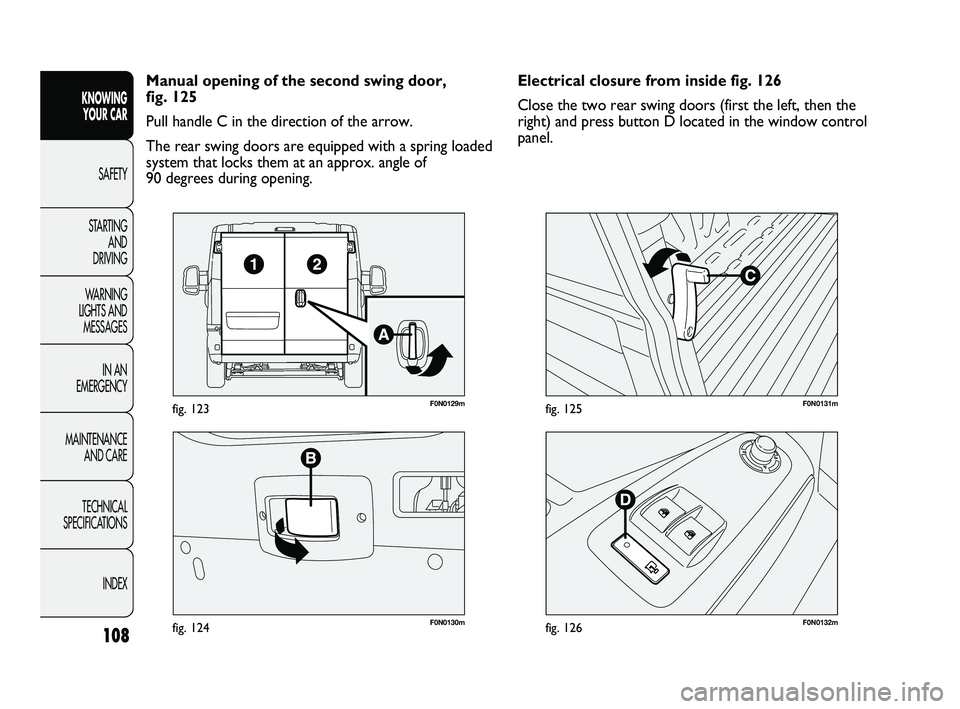

Electrical closure from inside fig. 126
Close the two rear swing doors (first the left, then the
right) and press button D located in the window control
panel. Manual opening of the second swing door,
fig. 125
Pull handle C in the direction of the arrow.
The rear swing doors are equipped with a spring loaded
system that locks them at an approx. angle of
90 degrees during opening.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 108

109
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0188mfig. 127F0N0062mfig. 128

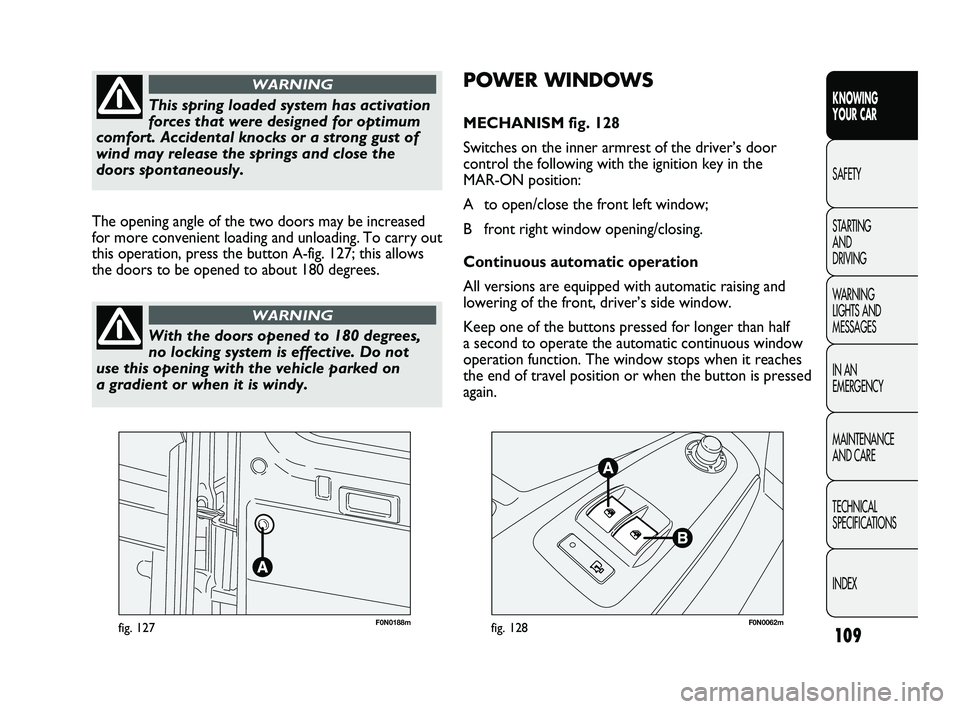

POWER WINDOWS
MECHANISM fig. 128
Switches on the inner armrest of the driver’s door
control the following with the ignition key in the
MAR-ON position:
A to open/close the front left window;
B front right window opening/closing.
Continuous automatic operation
All versions are equipped with automatic raising and
lowering of the front, driver’s side window.
Keep one of the buttons pressed for longer than half
a second to operate the automatic continuous window
operation function. The window stops when it reaches
the end of travel position or when the button is pressed
again. The opening angle of the two doors may be increased
for more convenient loading and unloading. To carry out
this operation, press the button A-fig. 127; this allows
the doors to be opened to about 180 degrees.
This spring loaded system has activation
forces that were designed for optimum
comfort. Accidental knocks or a strong gust of
wind may release the springs and close the
doors spontaneously.
WARNING
With the doors opened to 180 degrees,
no locking system is effective. Do not
use this opening with the vehicle parked on
a gradient or when it is windy.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 109

110
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0063mfig. 129

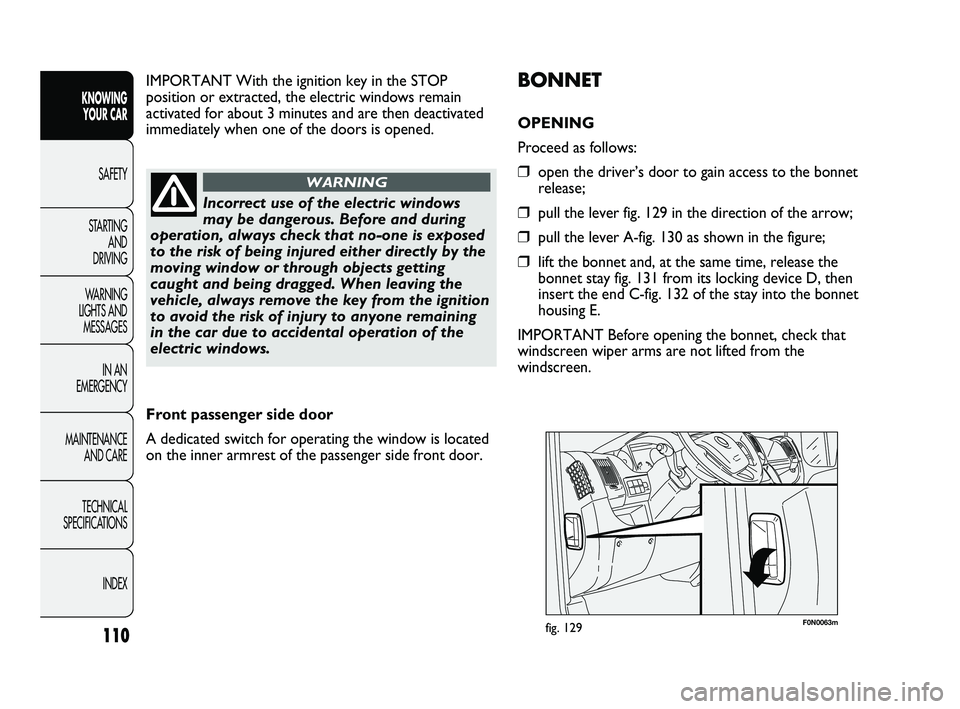

BONNET
OPENING
Proceed as follows:
❒open the driver’s door to gain access to the bonnet
release;

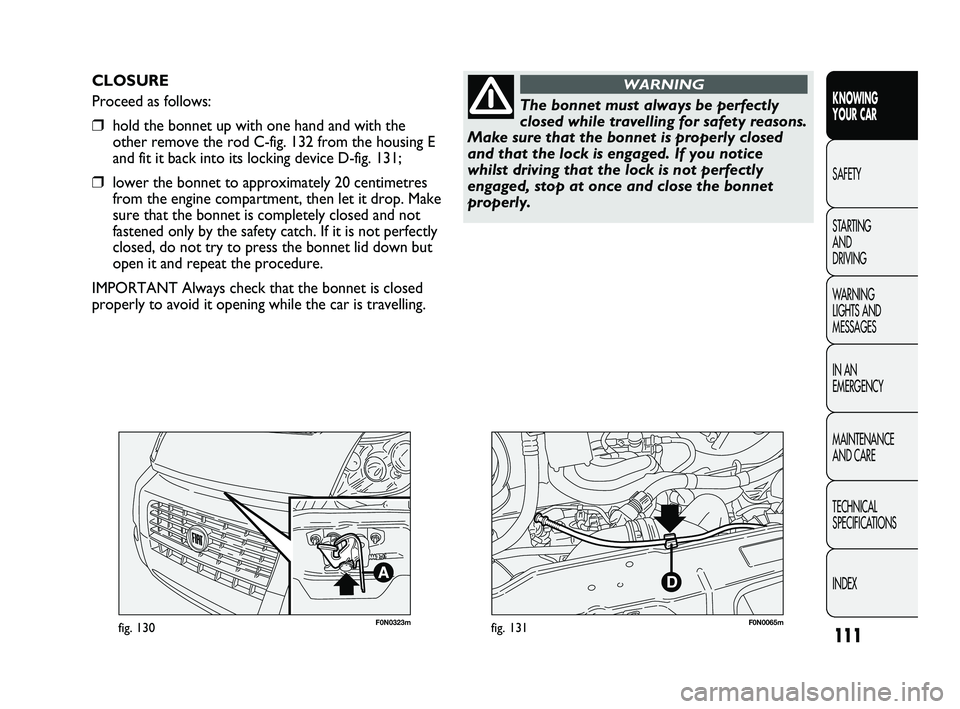

❒pull the lever fig. 129 in the direction of the arrow;
❒pull the lever A-fig. 130 as shown in the figure;
❒lift the bonnet and, at the same time, release the
bonnet stay fig. 131 from its locking device D, then
insert the end C-fig. 132 of the stay into the bonnet
housing E.
IMPORTANT Before opening the bonnet, check that
windscreen wiper arms are not lifted from the
windscreen. IMPORTANT With the ignition key in the STOP
position or extracted, the electric windows remain
activated for about 3 minutes and are then deactivated
immediately when one of the doors is opened.
Incorrect use of the electric windows
may be dangerous. Before and during
operation, always check that no-one is exposed
to the risk of being injured either directly by the
moving window or through objects getting
caught and being dragged. When leaving the
vehicle, always remove the key from the ignition
to avoid the risk of injury to anyone remaining
in the car due to accidental operation of the
electric windows.
WARNING
Front passenger side door
A dedicated switch for operating the window is located
on the inner armrest of the passenger side front door.
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 110

111
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0323mfig. 130F0N0065mfig. 131
CLOSURE
Proceed as follows:
❒hold the bonnet up with one hand and with the
other remove the rod C-fig. 132 from the housing E
and fit it back into its locking device D-fig. 131;
❒lower the bonnet to approximately 20 centimetres
from the engine compartment, then let it drop. Make
sure that the bonnet is completely closed and not
fastened only by the safety catch. If it is not perfectly
closed, do not try to press the bonnet lid down but
open it and repeat the procedure.
IMPORTANT Always check that the bonnet is closed
properly to avoid it opening while the car is travelling.
The bonnet must always be perfectly
closed while travelling for safety reasons.
Make sure that the bonnet is properly closed
and that the lock is engaged. If you notice
whilst driving that the lock is not perfectly
engaged, stop at once and close the bonnet
properly.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 111

112
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0066mfig. 132F0N0138mfig. 133

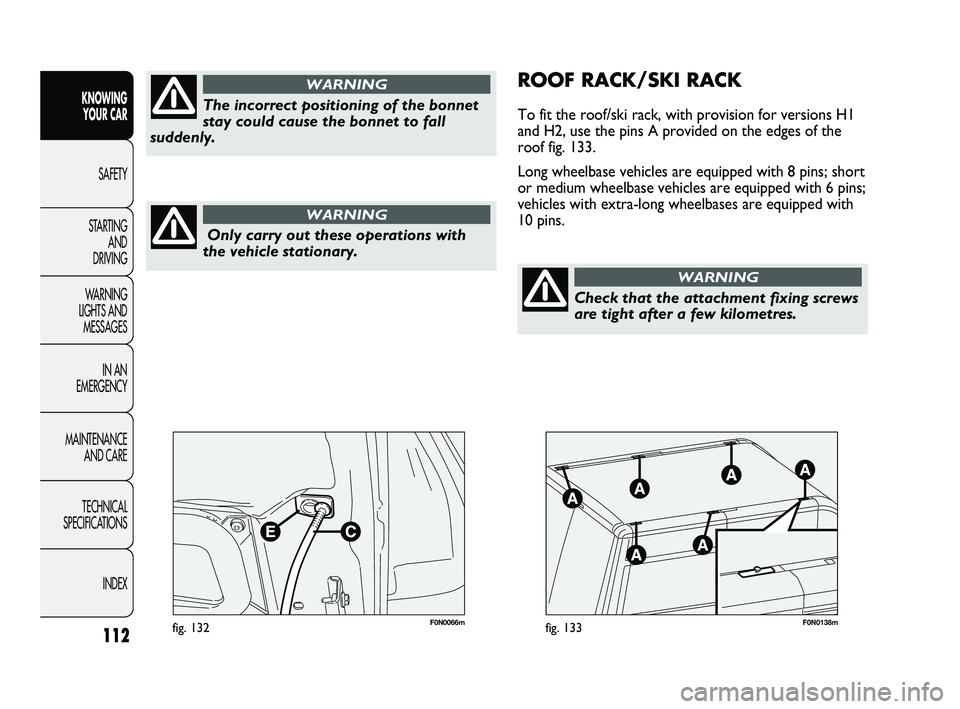

ROOF RACK/SKI RACK
To fit the roof/ski rack, with provision for versions H1
and H2, use the pins A provided on the edges of the
roof fig. 133.
Long wheelbase vehicles are equipped with 8 pins; short
or medium wheelbase vehicles are equipped with 6 pins;
vehicles with extra-long wheelbases are equipped with
10 pins.
Only carry out these operations with
the vehicle stationary.
WARNING
The incorrect positioning of the bonnet
stay could cause the bonnet to fall
suddenly.
WARNING
Check that the attachment fixing screws
are tight after a few kilometres.
WARNING
037-128 DUCATO LUM EN 7ed 6/21/10 2:11 PM Page 112
