FIAT DUCATO BASE CAMPER 2018 Owner handbook (in English)

2.3 150 ECOJET
VersionF.C.(*)CO2emissions
Combined
Light 1700 141
Maxi 1700 143
Tempo Libero 1700 143
Light 1810 146
Maxi 1810 148
Tempo Libero 1810 148
Light 1930 151
Maxi 1930 153
Tempo Libero 1930 153
Light 2040 156
Maxi 2040 158
Tempo Libero 2040 158
Light 2150 161
Maxi 2150 163
Tempo Libero 2150 163
Light
-
Maxi
-
Tempo Libero2270 (I) 166
2270 (II) 168
2270 (III) 168
Light M1 2040 144
Light M1 2150 147
(*) Flywheel class
259

VersionF.C.(*)CO2emissions
Combined
Maxi M1 2150 148
Light M1 2270 (I) 152
Maxi M1 2270 (I) 153
(*) Flywheel class
260
TECHNICAL DATA

2.3 130 Multijet 2
VersionF.C.(*)CO2emissions
Combined
Light 1700 151
Maxi 1700 153
Tempo Libero 1700 153
Light 1810 156
Maxi 1810 158
Tempo Libero 1810 158
Light 1930 161
Maxi 1930 163
Tempo Libero 1930 163
Light 2040 166
Maxi 2040 168
Tempo Libero 2040 168
Light 2150 171
Maxi 2150 173
Tempo Libero 2150 173
Light
-
Maxi
-
Tempo Libero2270 (I) 177
2270 (II) 178
2270 (III) 178
(*) Flywheel class
261

2.3 130 Multijet 2 with Adblue
VersionF.C.(*)CO2emissions
Combined
Light 2040 156
Light 2150 159
Maxi 2150 162
Light 2270 164
Maxi 2270 170
(*) Flywheel class
262
TECHNICAL DATA

2.3 150 Multijet 2 / 180 Multijet 2 Power
VersionF.C.(*)CO2emissions
Combined
Light 1700 150
Maxi 1700 152
Tempo Libero 1700 152
Light 1810 155
Maxi 1810 157
Tempo Libero 1810 157
Light 1930 160
Maxi 1930 162
Tempo Libero 1930 162
Light 2040 165
Maxi 2040 167
Tempo Libero 2040 167
Light 2150 170
Maxi 2150 172
Tempo Libero 2150 172
Light
-
Maxi
-
Tempo Libero2270 (I) 175
2270 (II) 177
2270 (III) 177
(*) Flywheel class
263

3.0 140 Natural Power
VersionF.C.(*)CO2emissions
Combined
Light
– 234 Maxi
Tempo Libero
(*) Flywheel class
264
TECHNICAL DATA

MULTIMEDIA
This chapter describes the main
functions of the Uconnect™ 3” Radio,
Uconnect™ 5" Radio and Uconnect™
5" Radio Nav infotainment systems
that can be fitted on the vehicle.RADIO.............................................266
TIPS, CONTROLS AND GENERAL
INFORMATION ................................266
UCONNECT 3” RADIO ....................269
OPERATION ....................................274
UCONNECT 5” RADIO –
UCONNECT 5” RADIO NAV ............278
OPERATION ....................................283
265

RADIO
(for versions/markets, where provided)
For radio operation, consult the
Supplement attached to this Owner
Handbook.
SETUP
(for versions/markets, where provided)
The system consists of:
radio supply leads;
front speaker connection cables;
aerial supply lead;

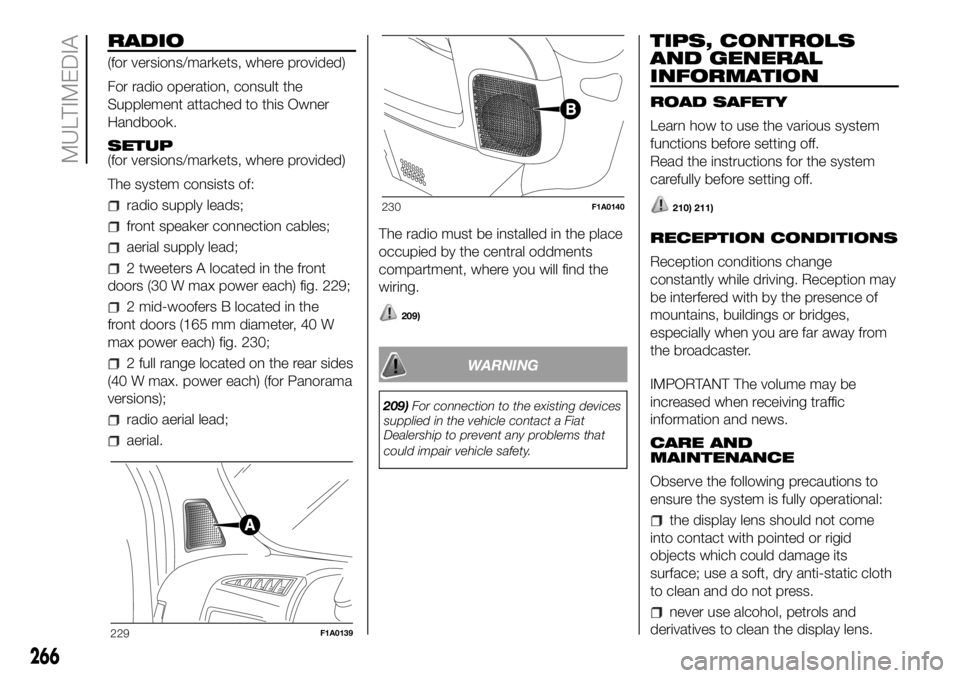

2 tweeters A located in the front
doors (30 W max power each) fig. 229;
2 mid-woofers B located in the
front doors (165 mm diameter, 40 W
max power each) fig. 230;
2 full range located on the rear sides
(40 W max. power each) (for Panorama
versions);
radio aerial lead;
aerial.The radio must be installed in the place
occupied by the central oddments
compartment, where you will find the
wiring.
209)
WARNING
209)For connection to the existing devices
supplied in the vehicle contact a Fiat
Dealership to prevent any problems that
could impair vehicle safety.
TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
210) 211)
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic
information and news.
CARE AND
MAINTENANCE
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come
into contact with pointed or rigid
objects which could damage its
surface; use a soft, dry anti-static cloth
to clean and do not press.
never use alcohol, petrols and
derivatives to clean the display lens.
229F1A0139
230F1A0140
266
MULTIMEDIA

prevent any liquid from entering the
system: this could damage it beyond
repair.
62) 63)
ANTITHEFT PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the
same or if the electronic control unit
(Body Computer) is replaced, the
system will ask the user to enter the
secret code according to the procedure
described in the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will
show "Please enter Anti-Theft Code"
followed by the screen showing a
keypad to enter the secret code.
The secret code is made up of four
digits from 0 to 9.Uconnect™3” Radio:
The secret code is made up of four
digits, from 0 to 9: to insert the code,
turn the "BROWSE ENTER" right knob
and press to confirm.
Uconnect™5” Radio –Uconnect™
5” Radio NAV
The secret code is made up of four
digits, from 1 to 9: to insert the first
number of the code press the
corresponding key on the display. Enter
the other code digits in the same way.
After inserting the fourth digit, move the
cursor to "OK" and press the
"BROWSE/ENTER" right knob: the
system will start to operate.
If an incorrect code is entered, the
system displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". After the text has
disappeared it is possible to start the
code entering procedure again.
Vehicle radio passport
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.In the case of loss of the radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.
IMPORTANT Keep the vehicle radio
passport in a safe place so that you
can give the information to the relevant
authorities if the system is stolen.
IMPORTANT NOTES
Look at the screen only and when it is
necessary and safe. If you need to look
at the screen for a long time, pull over
to a safe place so as not to be
distracted while driving.
Immediately stop using the system in
the event of a fault. Otherwise the
system might be damaged. Contact a
Fiat Dealership as soon as possible
to have the system repaired.
WARNING
210)Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be
damaged.
211)If the volume is too loud this can be
dangerous. Adjust the volume so that
you can still hear background noises (e.g.
horns, ambulances, police vehicles, etc.).
267

WARNING
62)Only clean the front panel and the
display lens with a soft, clean, dry,
anti-static cloth. Cleaning and polishing
products may damage the surface. Never
use alcohol, petrols and derivatives.
63)Do not use the display as a base for
supports with suction pads or adhesives
for external navigators or smartphones
or similar devices.
268
