FIAT DUCATO BASE CAMPER 2018 Owner handbook (in English)

ENGINE
General information2.0 115 Multijet 2
Type code250A2000
CycleDiesel
Number and position of cylinders 4 in line
Piston bore and stroke (mm)83 × 90.4
Total displacement (cm³)1956
Compression ratio16.5 : 1
Maximum power (EC) (kW)85
Maximum power (EEC) (HP)115
Corresponding engine speed (rpm) 4000
Maximum torque (EC) (Nm)290
Corresponding engine speed (rpm) 1750
FuelDiesel for motor vehicles (EN 590 Specification)
219

General
information2.3 150 ECOJET 2.3 130 Multijet 22.3 130 Multijet 2
with AdBlue2.3 150 Multijet 22.3 180 Multijet 2
Power
Type code F1AGL411 F1AGL411D F1AGL411M F1AGL411C F1AGL411B
Cycle Diesel Diesel Diesel Diesel Diesel
Number and position
of cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and
stroke (mm)88×94 88×94 88×94 88×94 88×94
Total displacement
(cm³)2287 2287 2287 2287 2287
Compression ratio 16.2 : 1 16.2 : 1 16.2 : 1 16.2 : 1 16.2 : 1
Maximum power
(EC) (kW)110 96 96 110 130
Maximum power
(EEC) (HP)150 130 130 150 177
Corresponding
engine speed (rpm)3600 3600 3600 3600 3500
Maximum torque
(EC) (Nm)380 320 320 380 400
Corresponding
engine speed (rpm)1500 1800 1800 1500 1500
Fuel Diesel for motor vehicles (EN 590 Specification)
220
TECHNICAL DATA

General information 3.0 140 Natural Power
Type codeF1CFA401A
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 95.8 × 104
Total displacement (cm³)2999
Compression ratio12.5 ± 0.5:1
Maximum power (EC) (kW)100
Maximum power (EEC) (HP)136
Corresponding engine speed (rpm) 3500
Maximum torque (EC) (Nm)350
Corresponding engine speed (rpm) 1500
PlugsChampion RC7BYC – NGK IFRF-D
FuelMethane
221

STEERING SYSTEM
Versions Kerb-to-kerb turning circle (m) Type
Short wheelbase11.06
For Standard versions: rack and pinion hydraulic
power steering
For ECOJET versions: rack and pinion
electrohydraulic power steering Medium wheelbase12.46
Medium-long wheelbase13.54
Long wheelbase14.28
Extra-long wheelbase15.3
222
TECHNICAL DATA

WHEELS
RIMS AND TYRES
Alloy or pressed steel rims. Tubeless
radial carcass tyres.
All approved tyres are listed in the
Vehicle Registration Document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the Registration
Document, take the information from
the latter. To ensure driving safety, make
sure that all the wheels are fitted with
tyres of the same make and type.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheels toe-in measured between
rims: -1 ±1 mm.
The values refer to the vehicle in
running order.
223

RIMS AND TYRES PROVIDED
2.0 115 Multijet 2
Versions Wheels Tyres provided Winter tyres
LIGHT 15”(*)6 Jx15-68 215/70 R15 C (109/107 S) 225/70 R15 C (112/110 S) 225/70 R15 C (112/110 R) M+S
LIGHT (TEMPO
LIBERO) 15”
(**)6 Jx15-68 215/70 R15 CP (109 Q) – 225/70 R15 C (112/110 R) M+S
LIGHT 16”
(*)6 Jx16-68 215/75 R16 C (116/114 R) 225/75 R16 C (118/116 R) 225/75 R16 C (116/114 R) M+S
LIGHT (TEMPO
LIBERO) 16”
(***)6 Jx16-68 225/75 R16 CP (116 Q) – 225/75 R16 C (116/114 R) M+S
(*) 3000 / 3300 / 3500 kg GVW
(**) 3000 / 3300 / 3500 / 3650 kg GVW
(***) 3000 / 3500 kg GVW
224
TECHNICAL DATA

RIMS AND TYRES PROVIDED
2.3 130 Multijet 2 – 130 Multijet 2 with AdBlue – 150 ECOJET – 150 Multijet 2 – 180 Multijet 2 Power – 3.0 140
Natural Power
Versions Wheels Tyres provided Winter tyres
LIGHT 15”(*)6 Jx15-68 215/70 R15 C (109/107 S) 225/70 R15 C (112/110 S) 225/70 R15 C (112/110 R) M+S
LIGHT (TEMPO
LIBERO) 15”
(**)6 Jx15-68 215/70 R15 CP (109 Q) – 225/70 R15 C (112/110 R) M+S
LIGHT 16”
(*)6 Jx16-68 215/75 R16 C (116/114 R) 225/75 R16 C (118/116 R) 225/75 R16 C (116/114 R) M+S
LIGHT (TEMPO
LIBERO) 16”
(***)6 Jx16-68 225/75 R16 CP (116 Q) – 225/75 R16 C (116/114 R) M+S
MAXI6 Jx16-68
215/75 R16 C (116/114 R)
(°)225/75 R16 C (118/116 R) 225/75 R16 C (116/114 R) M+S
MAXI TEMPO
LIBERO
(****)
(*****)6 Jx16-68 225/75 R16 CP (116 Q) – 225/75 R16 C (116/114 R) M+S
(*) 3000 / 3300 / 3500 kg GVW
(**)3000 / 3300 / 3500 / 3650 kg GVW
(***) 3000 / 3500 / 3650 kg GVW
(°) 3500 / 4000 kg GVW excluding 4250 kg GVW
(****) 3500 / 4000 / 4250 kg GVW
(*****) GVW 4400 kg
.
If using M+S winter tyres with speed index lower than “S” for 15" wheels and “R” for 16" wheels, respect the max. vehicle
speed indicated in the table: Maximum speed index.
IMPORTANT Only use the tyres indicated on the vehicle Registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always
advisable to use Camping tyres.
225

COLD TYRE INFLATION PRESSURE (bar)
Tyres provided Use Front Rear
215/70 R153000 GVW
(*)with basic tyres, except
PANORAMA4.0 4.0
3300 GVW
(*)/ 3500 GVW(*)with basic
tyres4.1 4.5
215/70 R15 PANORAMA with basic tyres 4.1 4.5
225/70 R153000 GVW
(*)with oversized tyres,
except PANORAMA4.0 4.0
3300 GVW
(*)/ 3500 GVW(*)with
oversized tyres4.1 4.5
225/70 R15 C M+S class C tyres on Camping vehicle 4.3 4.8
225/70 R15 PANORAMA with oversized tyres 4.1 4.5
215/70 R15 CP Vehicles with Camping tyres 5.0 5.5
215/75 R16 For all versions/trim levels 4.5 5.0
225/75 R16For all versions/trim levels excluding the
lines below4.5 5.0
225/75 R16 C M+S class C tyres on Camping vehicle 5.2 5.2
225/75 R16 CP Vehicles with Camping tyres 5.5 5.5
225/75 R16 C4400 GVW Maxi Range
(*)except
Camping4.7 5.5
225/75 R16 CP4400 GVW Maxi Range
(*)with Camping
tyres (for versions/markets, where
provided)5.5 5.5
(*)Gross vehicle weight
The pressure value can be up to +1.0 bar more than the recommended one when the tyres are warm. However, recheck that
the value is correct with the tyre cold.
226
TECHNICAL DATA

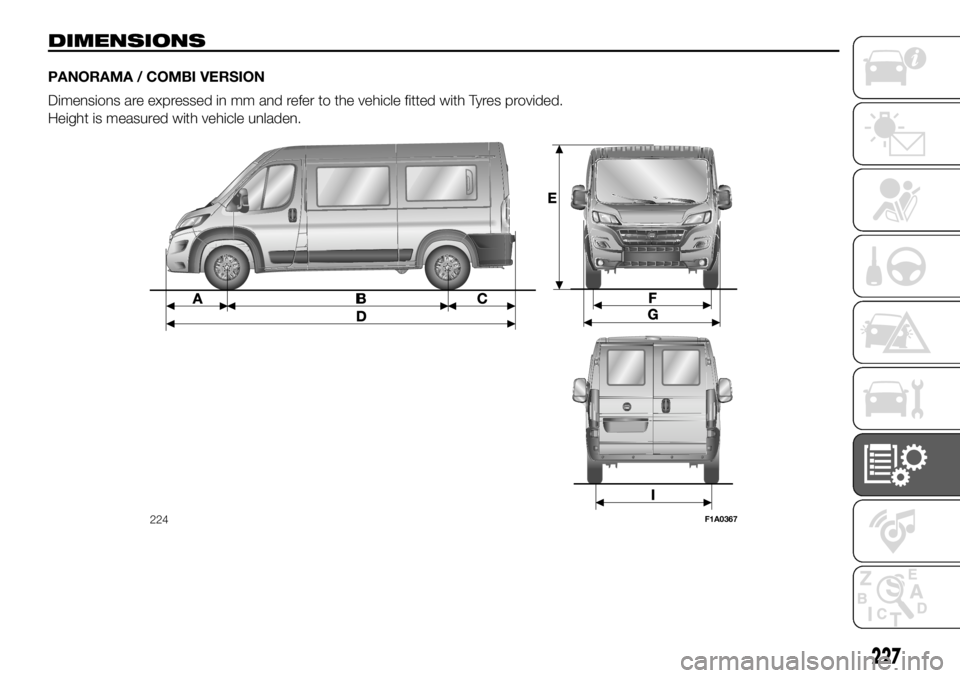

DIMENSIONS
PANORAMA / COMBI VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with Tyres provided.
Height is measured with vehicle unladen.
224F1A0367
227

COMBI - PANORAMA
CH1 MH2 LH2
A948 948 948
B3000 3450 4035
C1015 1015
1015 - 1380
(*)
D4963 5413
5998 - 6363(*)
E2254 2524 2524
F1810 1810 1810
G2050 2050 2050
I1790 1790 1790
(*) MINIBUS version, 16 + 1 seats
The sizes vary according to the various versions within the limits indicated above
228
