technical data FIAT FIORINO 2017 Owner handbook (in English)

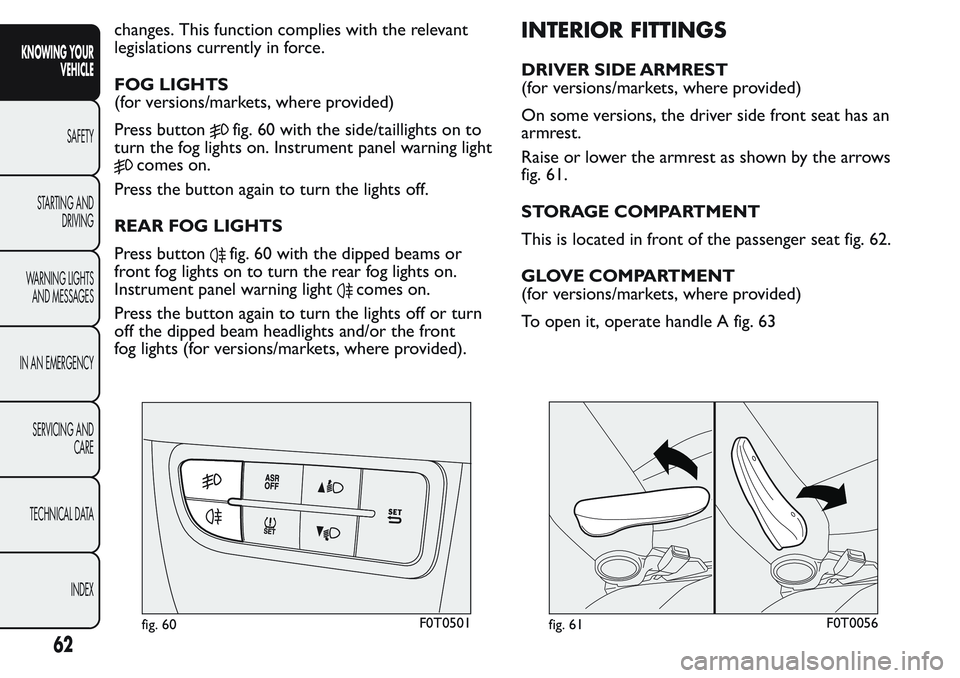

changes. This function complies with the relevant
legislations currently in force.
FOG LIGHTS
(for versions/markets, where provided)
Press button
fig. 60 with the side/taillights on to
turn the fog lights on. Instrument panel warning light
comes on.
Press the button again to turn the lights off.
REAR FOG LIGHTS
Press button
fig. 60 with the dipped beams or
front fog lights on to turn the rear fog lights on.
Instrument panel warning light
comes on.
Press the button again to turn the lights off or turn
off the dipped beam headlights and/or the front
fog lights (for versions/markets, where provided).
INTERIOR FITTINGS
DRIVER SIDE ARMREST
(for versions/markets, where provided)
On some versions, the driver side front seat has an
armrest.
Raise or lower the armrest as shown by the arrows
fig. 61.
STORAGE COMPARTMENT
This is located in front of the passenger seat fig. 62.
GLOVE COMPARTMENT
(for versions/markets, where provided)
To open it, operate handle A fig. 63
fig. 60F0T0501fig. 61F0T0056
62
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

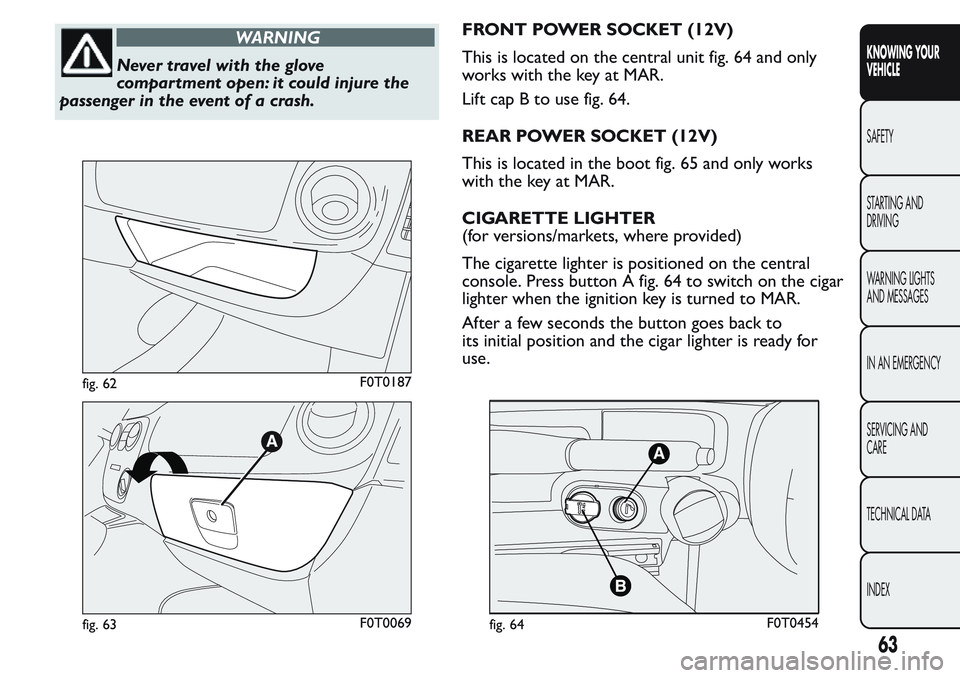

WARNING
Never travel with the glove
compartment open: it could injure the
passenger in the event of a crash.FRONT POWER SOCKET (12V)
This is located on the central unit fig. 64 and only
works with the key at MAR.
Lift cap B to use fig. 64.
REAR POWER SOCKET (12V)
This is located in the boot fig. 65 and only works
with the key at MAR.
CIGARETTE LIGHTER
(for versions/markets, where provided)
The cigarette lighter is positioned on the central
console. Press button A fig. 64 to switch on the cigar
lighter when the ignition key is turned to MAR.
After a few seconds the button goes back to
its initial position and the cigar lighter is ready for
use.
fig. 62F0T0187
fig. 63F0T0069fig. 64F0T0454
63
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

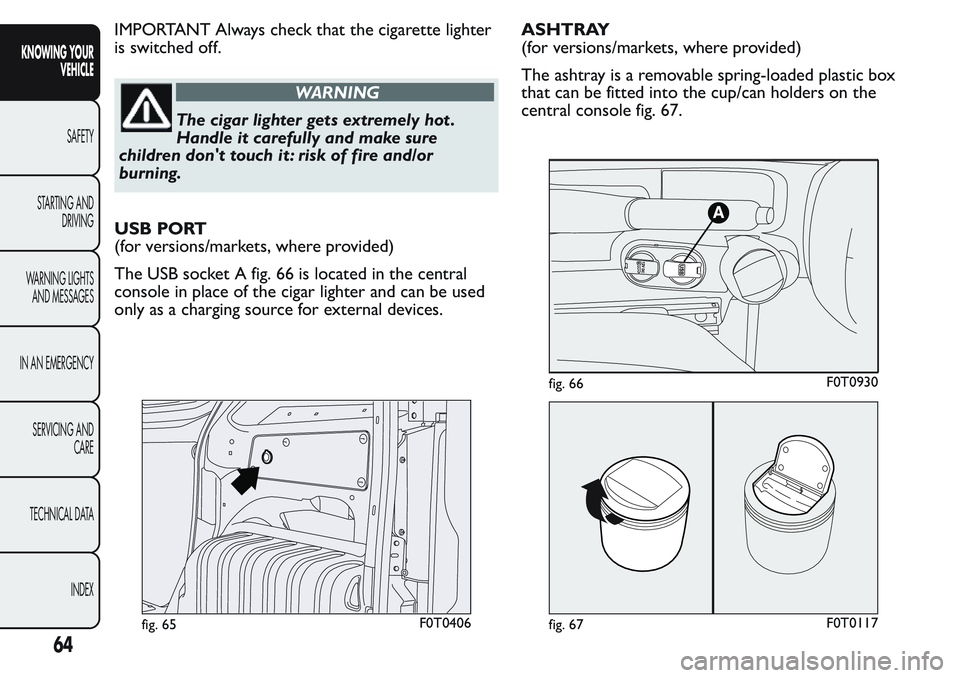

IMPORTANT Always check that the cigarette lighter
is switched off.
WARNING
The cigar lighter gets extremely hot .
Handle it carefully and make sure
children don't touch it : risk of fire and/or
burning.
USB PORT
(for versions/markets, where provided)
The USB socket A fig. 66 is located in the central
console in place of the cigar lighter and can be used
only as a charging source for external devices.ASHTRAY
(for versions/markets, where provided)
The ashtray is a removable spring-loaded plastic box
that can be fitted into the cup/can holders on the
central console fig. 67.
fig. 65F0T0406
fig. 66F0T0930
fig. 67F0T0117
64
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

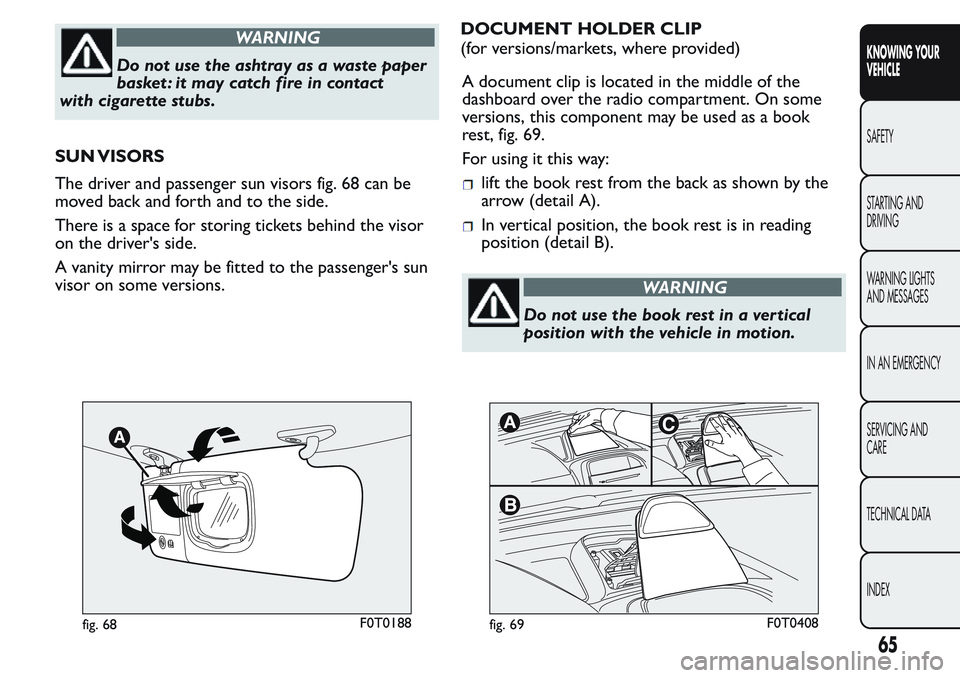

WARNING
Do not use the ashtray as a waste paper
basket : it may catch fire in contact
with cigarette stubs.
SUN VISORS
The driver and passenger sun visors fig. 68 can be
moved back and forth and to the side.
There is a space for storing tickets behind the visor
on the driver's side.
A vanity mirror may be fitted to the passenger's sun
visor on some versions.DOCUMENT HOLDER CLIP
(for versions/markets, where provided)
A document clip is located in the middle of the
dashboard over the radio compartment. On some
versions, this component may be used as a book
rest, fig. 69.
For using it this way:
lift the book rest from the back as shown by the
arrow (detail A).
In vertical position, the book rest is in reading
position (detail B).
WARNING
Do not use the book rest in a ver tical
position with the vehicle in motion.
fig. 68F0T0188fig. 69F0T0408
65
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

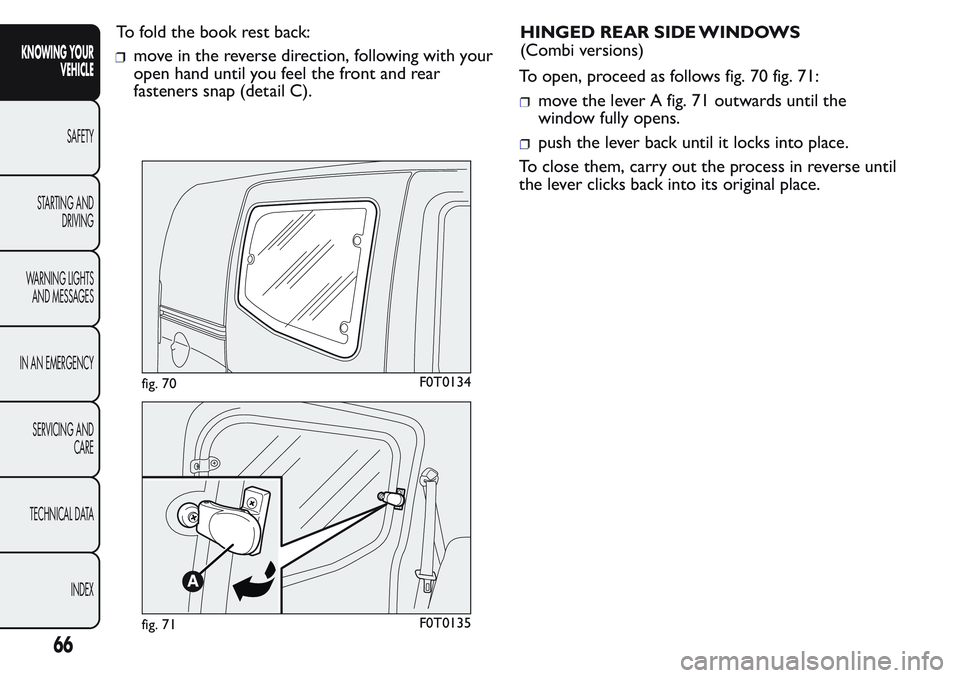

move in the reverse direction, following with your
open hand until you feel the front and rear
fasteners snap (detail C).HINGED REAR SIDE WINDOWS
(Combi versions)
To open, proceed as follows fig. 70 fig. 71:
move the lever A fig. 71 outwards until the
window fully opens.
push the lever back until it locks into place.
To close them, carry out the process in reverse until
the lever clicks back into its original place.
fig. 70F0T0134
fig. 71F0T0135
66
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
To fold the book rest back:

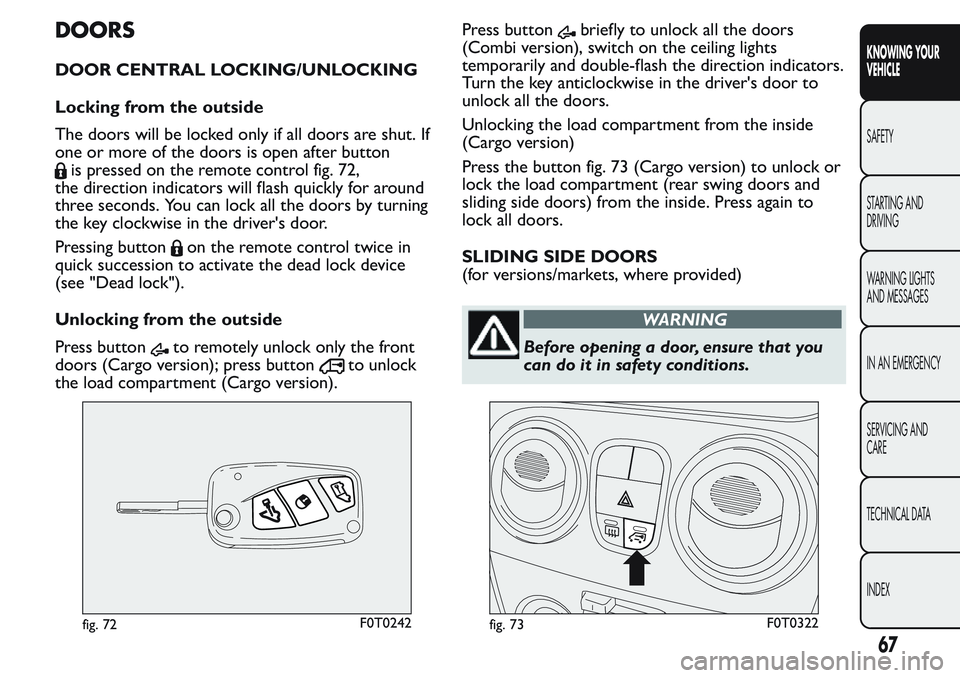

DOORS
DOOR CENTRAL LOCKING/UNLOCKING
Locking from the outside
The doors will be locked only if all doors are shut. If
one or more of the doors is open after button
is pressed on the remote control fig. 72,
the direction indicators will flash quickly for around
three seconds. You can lock all the doors by turning
the key clockwise in the driver's door.
Pressing button
on the remote control twice in
quick succession to activate the dead lock device
(see "Dead lock").
Unlocking from the outside
Press button
to remotely unlock only the front
doors (Cargo version); press button
to unlock
the load compartment (Cargo version).Press button
briefly to unlock all the doors
(Combi version), switch on the ceiling lights
temporarily and double-flash the direction indicators.
Turn the key anticlockwise in the driver's door to
unlock all the doors.
Unlocking the load compartment from the inside
(Cargo version)
Press the button fig. 73 (Cargo version) to unlock or
lock the load compartment (rear swing doors and
sliding side doors) from the inside. Press again to
lock all doors.
SLIDING SIDE DOORS
(for versions/markets, where provided)
WARNING
Before opening a door, ensure that you
can do it in safety conditions.
fig. 72F0T0242fig. 73F0T0322
67
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

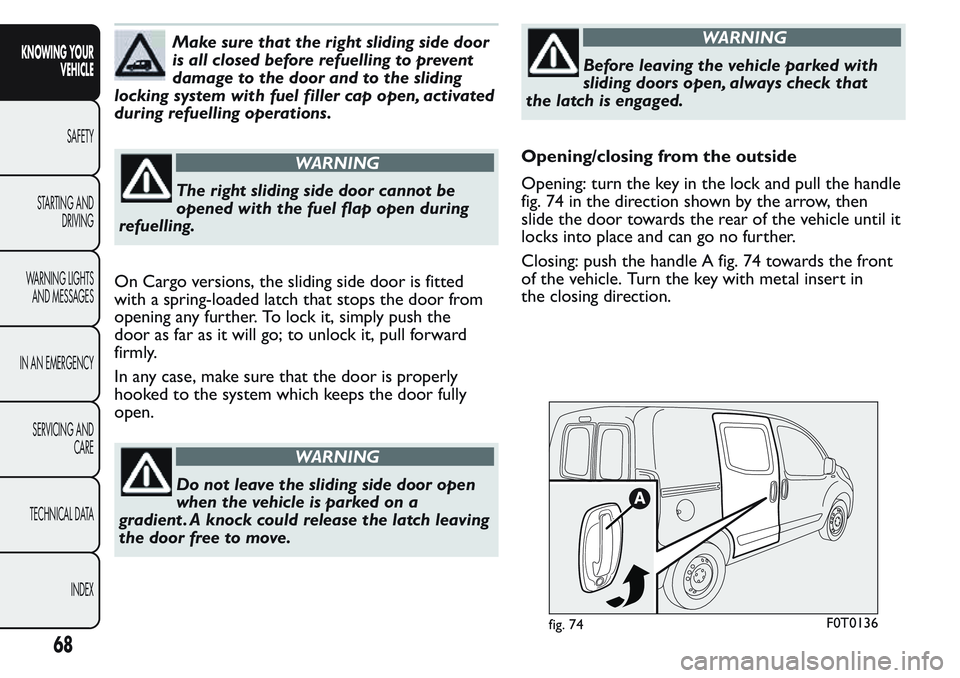

Make sure that the right sliding side door
is all closed before refuelling to prevent
damage to the door and to the sliding
locking system with fuel filler cap open, activated
during refuelling operations.
WARNING
The right sliding side door cannot be
opened with the fuel flap open during
refuelling.
On Cargo versions, the sliding side door is fitted
with a spring-loaded latch that stops the door from
opening any further. To lock it, simply push the
door as far as it will go; to unlock it, pull forward
firmly.
In any case, make sure that the door is properly
hooked to the system which keeps the door fully
open.
WARNING
Do not leave the sliding side door open
when the vehicle is parked on a
gradient . A knock could release the latch leaving
the door free to move.
WARNING
Before leaving the vehicle parked with
sliding doors open, always check that
the latch is engaged.
Opening/closing from the outside
Opening: turn the key in the lock and pull the handle
fig. 74 in the direction shown by the arrow, then
slide the door towards the rear of the vehicle until it
locks into place and can go no further.
Closing: push the handle A fig. 74 towards the front
of the vehicle. Turn the key with metal insert in
the closing direction.
fig. 74F0T0136
68
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

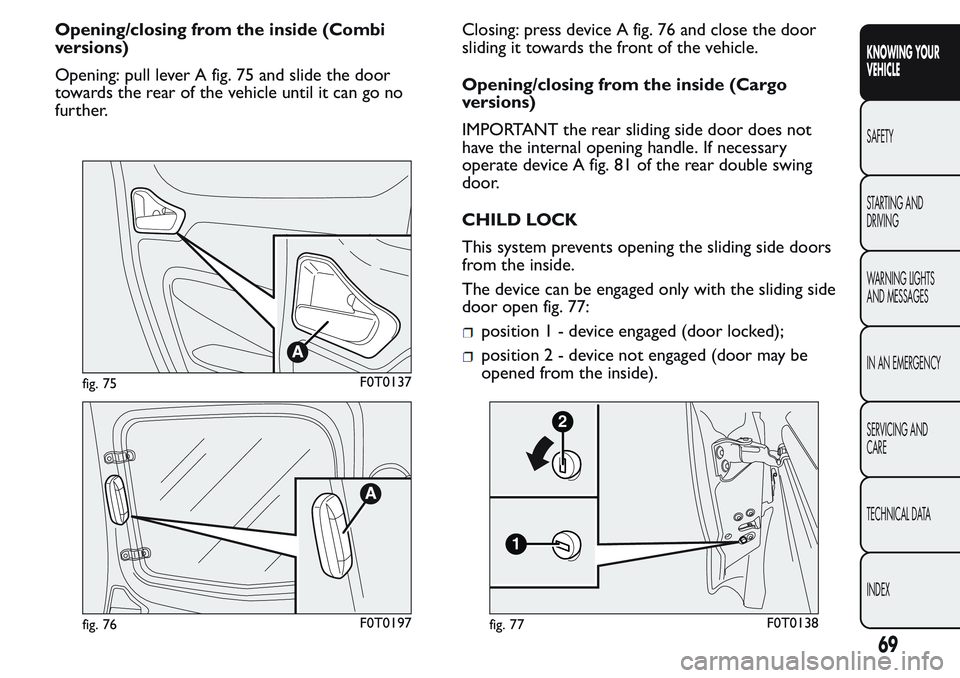

Opening/closing from the inside (Combi
versions)
Opening: pull lever A fig. 75 and slide the door
towards the rear of the vehicle until it can go no
further.Closing: press device A fig. 76 and close the door
sliding it towards the front of the vehicle.
Opening/closing from the inside (Cargo
versions)
IMPORTANT the rear sliding side door does not
have the internal opening handle. If necessary
operate device A fig. 81 of the rear double swing
door.
CHILD LOCK
This system prevents opening the sliding side doors
from the inside.
The device can be engaged only with the sliding side
door open fig. 77:
position1-device engaged (door locked);
position2-device not engaged (door may be
opened from the inside).
fig. 75F0T0137
fig. 76F0T0197
1
2
fig. 77F0T0138
69
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

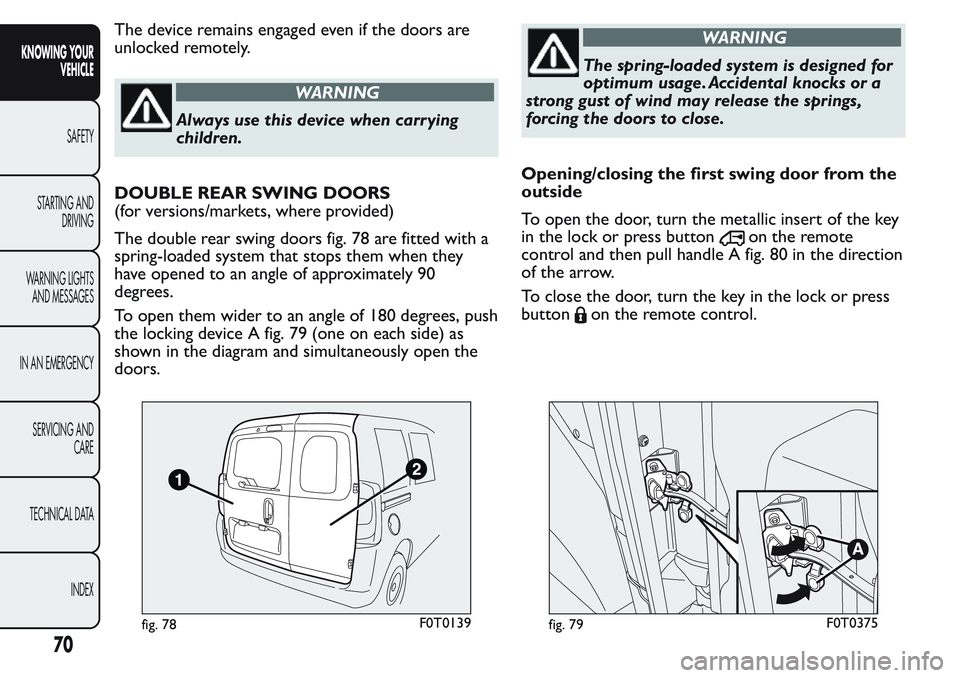

The device remains engaged even if the doors are
unlocked remotely.
WARNING
Always use this device when carr ying
children.
DOUBLE REAR SWING DOORS
(for versions/markets, where provided)
The double rear swing doors fig. 78 are fitted with a
spring-loaded system that stops them when they
have opened to an angle of approximately 90
degrees.
To open them wider to an angle of 180 degrees, push
the locking device A fig. 79 (one on each side) as
shown in the diagram and simultaneously open the
doors.
WARNING
The spring-loaded system is designed for
optimum usage. Accidental knocks or a
strong gust of wind may release the springs,
forcing the doors to close.
Opening/closing the first swing door from the
outside
To open the door, turn the metallic insert of the key
in the lock or press button
on the remote
control and then pull handle A fig. 80 in the direction
of the arrow.
To close the door, turn the key in the lock or press
button
on the remote control.
fig. 78F0T0139fig. 79F0T0375
70
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

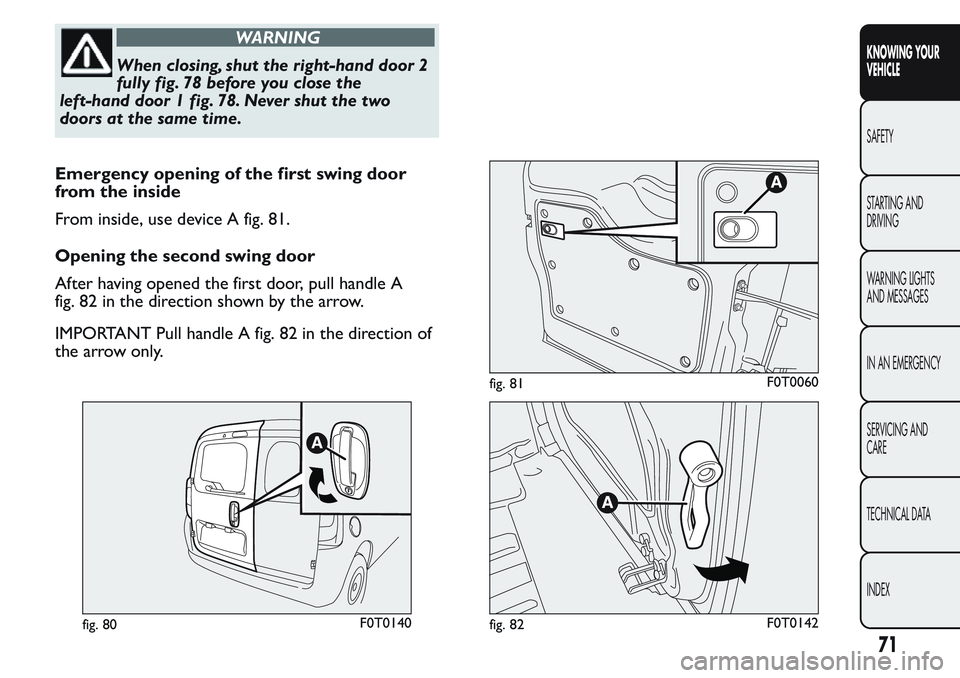

WARNING
When closing, shut the right-hand door 2
fully fig. 78 before you close the
left-hand door 1 fig. 78. Never shut the two
doors at the same time.
Emergency opening of the first swing door
from the inside
From inside, use device A fig. 81.
Opening the second swing door
After having opened the first door, pull handle A
fig. 82 in the direction shown by the arrow.
IMPORTANT Pull handle A fig. 82 in the direction of
the arrow only.
fig. 80F0T0140
fig. 81F0T0060
fig. 82F0T0142
