FIAT FULLBACK 2017 Owner handbook (in English)

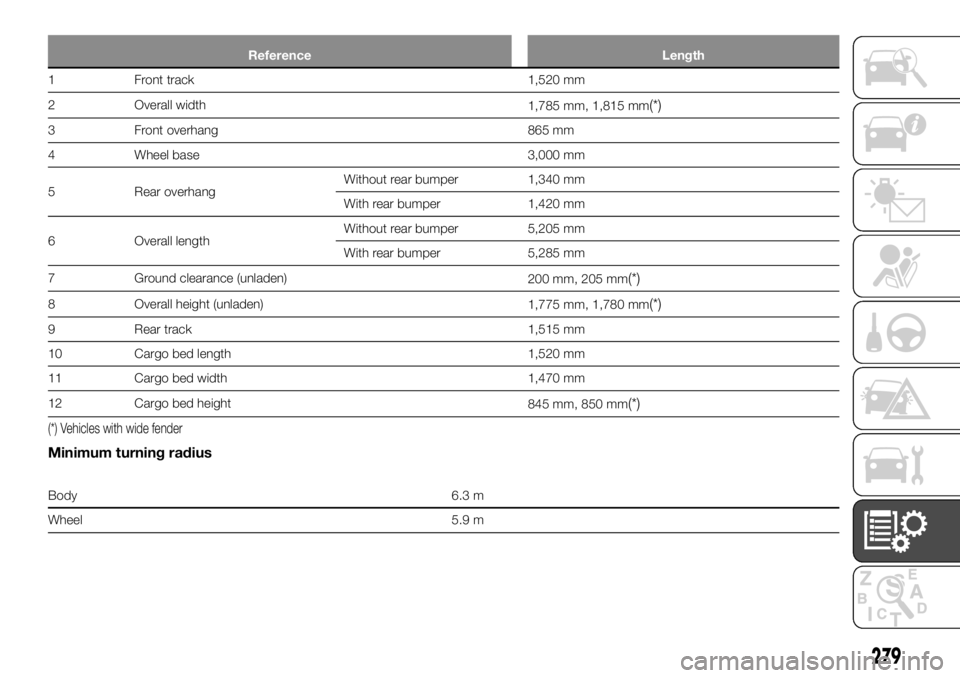

Reference Length
1 Front track 1,520 mm
2 Overall width
1,785 mm, 1,815 mm
(*)
3 Front overhang 865 mm
4 Wheel base 3,000 mm
5 Rear overhangWithout rear bumper 1,340 mm
With rear bumper 1,420 mm
6 Overall lengthWithout rear bumper 5,205 mm
With rear bumper 5,285 mm
7 Ground clearance (unladen)
200 mm, 205 mm
(*)
8 Overall height (unladen)
1,775 mm, 1,780 mm(*)
9 Rear track 1,515 mm
10 Cargo bed length 1,520 mm
11 Cargo bed width 1,470 mm
12 Cargo bed height
845 mm, 850 mm
(*)
(*) Vehicles with wide fender
Minimum turning radius
Body 6.3 m
Wheel 5.9 m
279

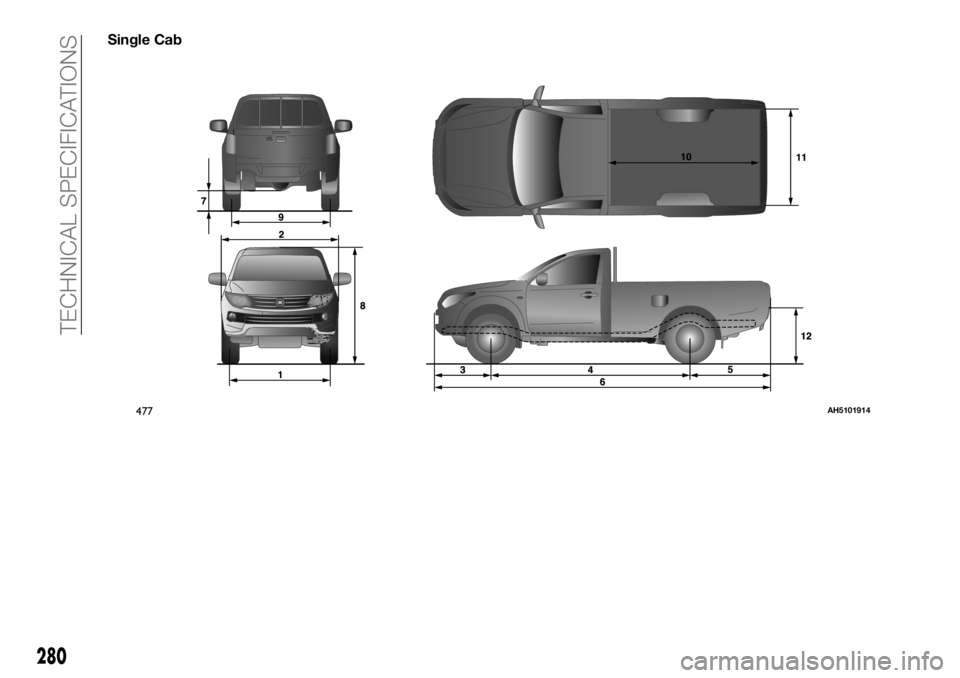

Single Cab
477AH5101914
280
TECHNICAL SPECIFICATIONS

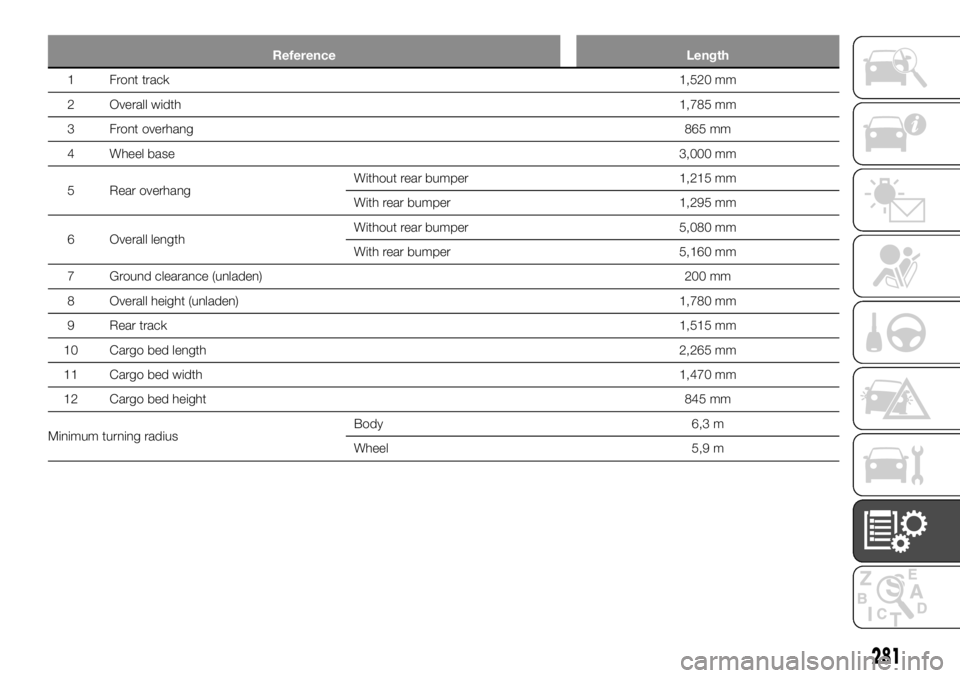

Reference Length
1 Front track1,520 mm
2 Overall width1,785 mm
3 Front overhang865 mm
4 Wheel base3,000 mm
5 Rear overhangWithout rear bumper 1,215 mm
With rear bumper 1,295 mm
6 Overall lengthWithout rear bumper 5,080 mm
With rear bumper 5,160 mm
7 Ground clearance (unladen)200 mm
8 Overall height (unladen)1,780 mm
9 Rear track1,515 mm
10 Cargo bed length2,265 mm
11 Cargo bed width1,470 mm
12 Cargo bed height845 mm
Minimum turning radiusBody 6,3 m
Wheel 5,9 m
281

VEHICLE PERFORMANCE
Single cab
Maximum speed 169 km/h
Club cab
Vehicles without wide fender Vehicles with wide fender
Maximum speed 169 km/h 179 km/h
Double cab
Vehicles without wide
fenderVehicles with wide fender
M/T A/T
Maximum speed 169 km/h174 km/h
179 km/h173 km/h
177 km/h(1)
(1)Vehicles with high power engine
282
TECHNICAL SPECIFICATIONS

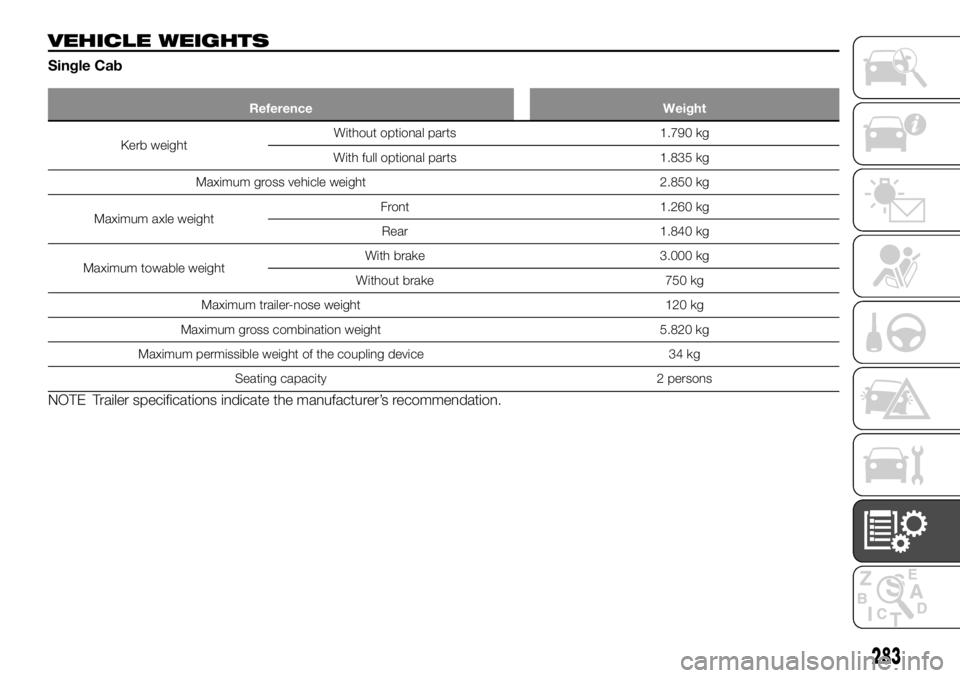

VEHICLE WEIGHTS
Single Cab
Reference Weight
Kerb weightWithout optional parts 1.790 kg
With full optional parts 1.835 kg
Maximum gross vehicle weight 2.850 kg
Maximum axle weightFront 1.260 kg
Rear 1.840 kg
Maximum towable weightWith brake 3.000 kg
Without brake 750 kg
Maximum trailer-nose weight 120 kg
Maximum gross combination weight 5.820 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity 2 persons
NOTE Trailer specifications indicate the manufacturer’s recommendation.
283

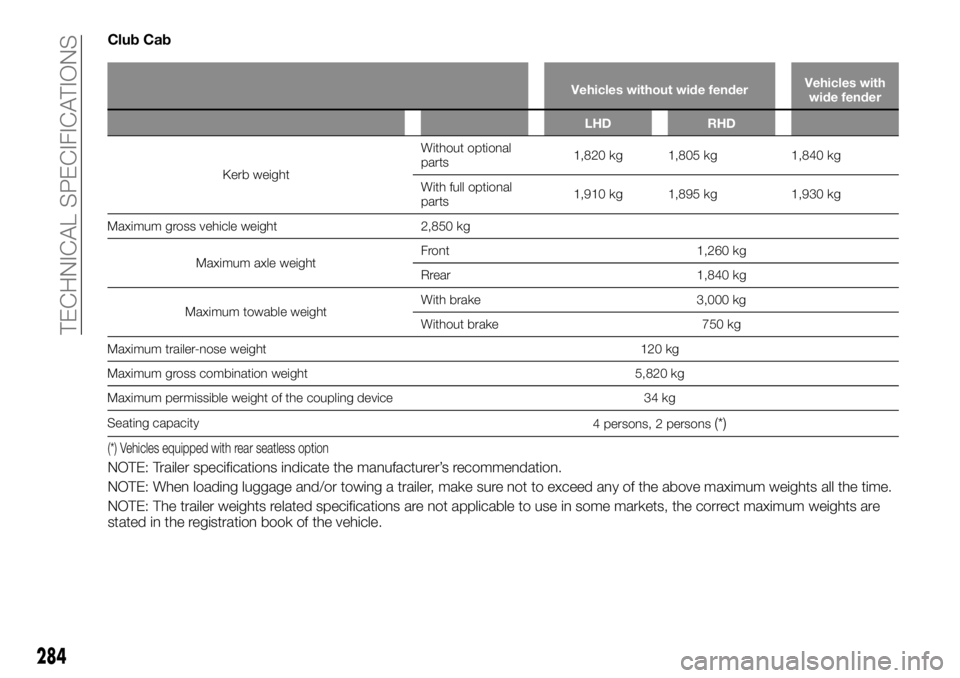

Club Cab
Vehicles without wide fenderVehicles with
wide fender
LHD RHD
Kerb weightWithout optional
parts1,820 kg 1,805 kg 1,840 kg
With full optional
parts1,910 kg 1,895 kg 1,930 kg
Maximum gross vehicle weight 2,850 kg
Maximum axle weightFront 1,260 kg
Rrear 1,840 kg
Maximum towable weightWith brake 3,000 kg
Without brake 750 kg
Maximum trailer-nose weight 120 kg
Maximum gross combination weight 5,820 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity
4 persons, 2 persons
(*)
(*) Vehicles equipped with rear seatless option
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
284
TECHNICAL SPECIFICATIONS

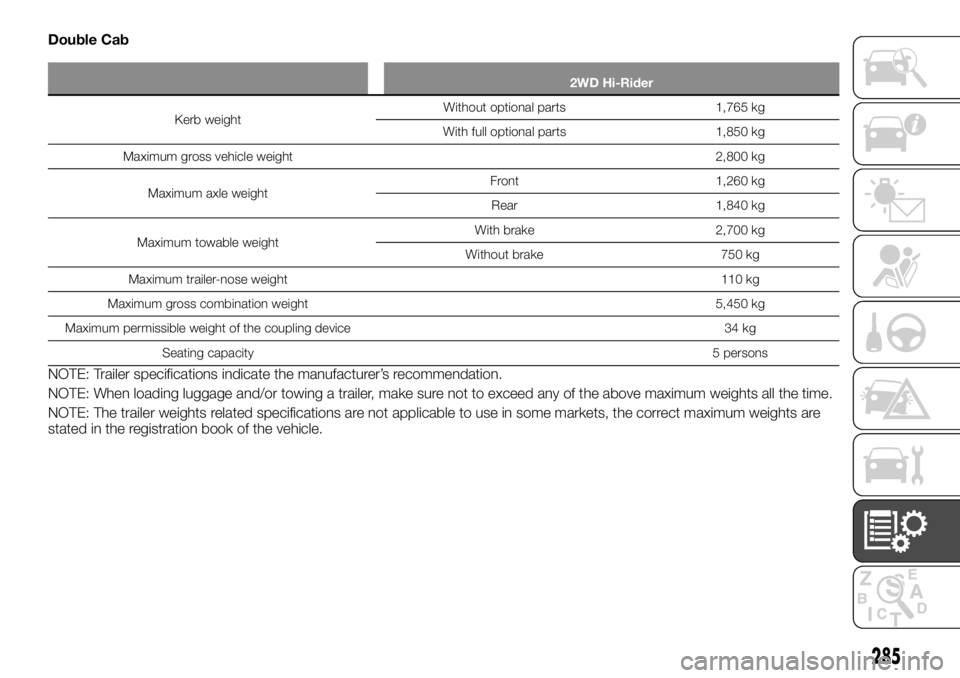

Double Cab
2WD Hi-Rider
Kerb weightWithout optional parts 1,765 kg
With full optional parts 1,850 kg
Maximum gross vehicle weight2,800 kg
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 2,700 kg
Without brake 750 kg
Maximum trailer-nose weight110 kg
Maximum gross combination weight 5,450 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
285

Diesel engine 2.4 (4N15) 4WD
M/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts1,870 kg
1,840 kg
(*2)1,875 kg
1,855 kg(*2)1,860 kg
1,855 kg(*1)
With full optional parts1,960 kg
1,915 kg(*2)
1,955 kg
1,950 kg(*1)1,950 kg(*2)
1,950 kg
1,960 kg(*1)
Maximum gross vehicle weight2,900 kg
2,850 kg(*2)2,905 kg
2,850 kg(*2)2,905 kg
2,900 kg(*1)
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight5,950 kg
5,900 kg
(*2)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity 5 persons
(*2) Versions for specific markets
(*1) Vehicles with the Start&Stop
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
286
TECHNICAL SPECIFICATIONS

Diesel engine 2.4 (4N15) 4WD
A/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts 1,870 kg1,875 kg
1,855 kg
(*2)1,860 kg
With full optional parts 1,960 kg1,955 kg
1,955 kg
(*2)1,950 kg
Maximum gross vehicle weight 2,900 kg2,910 kg
2,850 kg
(*2)2,910 kg
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight 5,950 kg5,950 kg
5,900 kg
(*2)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity 5 persons
(*2) Versions for specific markets
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
287

ELECTRICAL SYSTEM
Except for vehicles with the Start&Stop system
Vehicles with the
Start&Stop system
All vehiclesVehicles for Specific
Markets
Voltage12V
Battery Type (JIS)95D31L – 80Ah
115D31L – 84Ah
(*)115D31L – 84Ah T-105 – 86Ah
Alternator capacity
95 A, 130 A
(*)130 A
95 A, 130 A(*)
(*) Optional
NOTE The vehicles equipped with Start&Stop have a dedicated Start&Stop battery type. Use of a different battery could cause
the battery to run down quickly or Start&Stop system not to operate normally. Please contact a Fiat Dealership when replacing
the battery.
288
