FIAT IDEA 2007 1.G User Guide

10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Opening the tailgate from the outside
The tailgate can be opened from the outside by pressing and keeping
pressed the remote control button
R. Tailgate opening will obtain
double direction indicators flashing; tailgate closing is indicated by one
flashing.
IMPORTANT The remote control system frequency can be disturbed by
significant radio transmissions outside the car (e.g: mobile phones, HAM
radio systems, etc.) that could cause remote control malfunctioning.
F0H0016m
F0H0100m
Locking doors from the inside
With doors closed, press button (A) or (B) set in the middle of the
dashboard to respectively lock or unlock doors.
IMPORTANT Door locking from inside will not cut-in if one door is not
prefectly closed or there is a system failure.
If the cause of the failure is removed, the device will start working
properly.
If the inside locking button is pressed accidentally, when getting out of the car only the doors used
will unlock whereas the tailgate will stay locked.To realign the system, press the lock / unlock
button again.

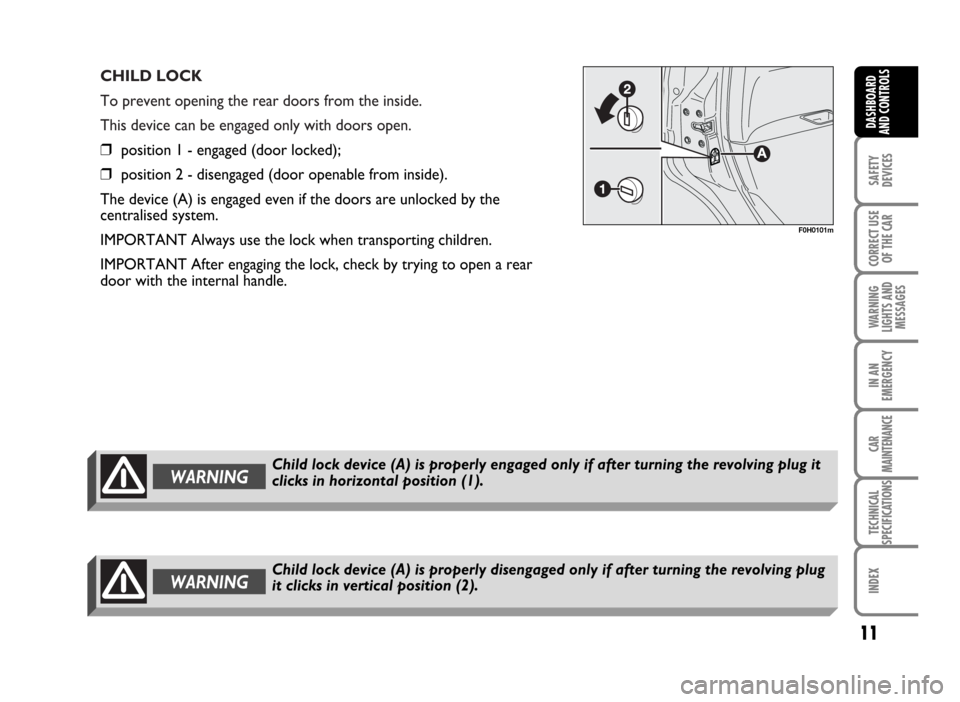

CHILD LOCK
To prevent opening the rear doors from the inside.
This device can be engaged only with doors open.
❒position 1 - engaged (door locked);
❒position 2 - disengaged (door openable from inside).
The device (A) is engaged even if the doors are unlocked by the
centralised system.
IMPORTANT Always use the lock when transporting children.
IMPORTANT After engaging the lock, check by trying to open a rear
door with the internal handle.
11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0101m
Child lock device (A) is properly engaged only if after turning the revolving plug it
clicks in horizontal position (1).WARNING
Child lock device (A) is properly disengaged only if after turning the revolving plug
it clicks in vertical position (2).WARNING

12
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
EMERGENCY DEVICE FOR LOCKING DOORS FROM THE
OUTSIDE
Doors are fitted with a special device enabling to lock all doors when the
electric system is failing (no current).
To lock the doors:
❒fit the ignition key into the revolving plug (B)
❒turn the device to position 1 and close the door.
To open the doors:
❒fit the ignition key into the revolving plug of the driver’s door and
turn it counterclockwise
❒open the driver’s door
❒once inside the car, open the other doors using the levers set on
door handles.
F0H0247m
Never operate the child lock device and the door handle at the same time.WARNING

13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Replacing the battery of the key with remote control
If when pressing the remote control buttons the led (F) on the key
flashes briefly only once, the battery should be replaced with an
equivalent one that can be purchased at common stores.
Battery replacement:
❒press button (A) and move the metal insert (B) to open position;
❒use a finely-tipped screwdriver to turn the screw (C);
❒pull out the battery holder (D) and replace the battery (E) making
sure that the bias is correct;
❒re-insert the battery holder (D) in the key and lock it turning the
screw (C).
Request for additional remote controls
The system can recognise up to 8 keys with incorporated remote
control. Should a new key with remote control be necessary, contact a
Fiat Dealership, taking with you the CODE card, a personal identity
document and the car’s ownership documents.
F0H0018m
Used batteries are harmful to the environment. They should be disposed of as specified by law in
the special containers provided, or take them to a Fiat Dealership, which will deal with their
disposal.

14
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE CONTROL (SPARE KEY)
(where required)
The metal insert (A) of the key is grip-retractable.
The key operates:
❒the ignition switch;
❒the driver’s door;
❒passenger side airbag deactivation switch;
❒the dead lock device (where provided);
❒cut-in of door lock device (C) when the electric system is failing (e.g.
run-down battery;
❒cut-in of child lock safety device (D) on rear doors.
Button (B) opens the metal insert (A).
To refit the metal insert (A) into the key grip:
– keep button (B) pressed
– move the metal insert (A)
– release button (B) and then turn the metal insert (A) until hearing the
click as it locks into place.F0H0014m
WARNINGButton (B) should only be pressed when the key is away from the body, in
particular from the eyes and from objects that can be spoilt (e.g. clothes). Make
sure the key can never be touched by others, especially children, who may
inadvertently press the button.
F0H0322m

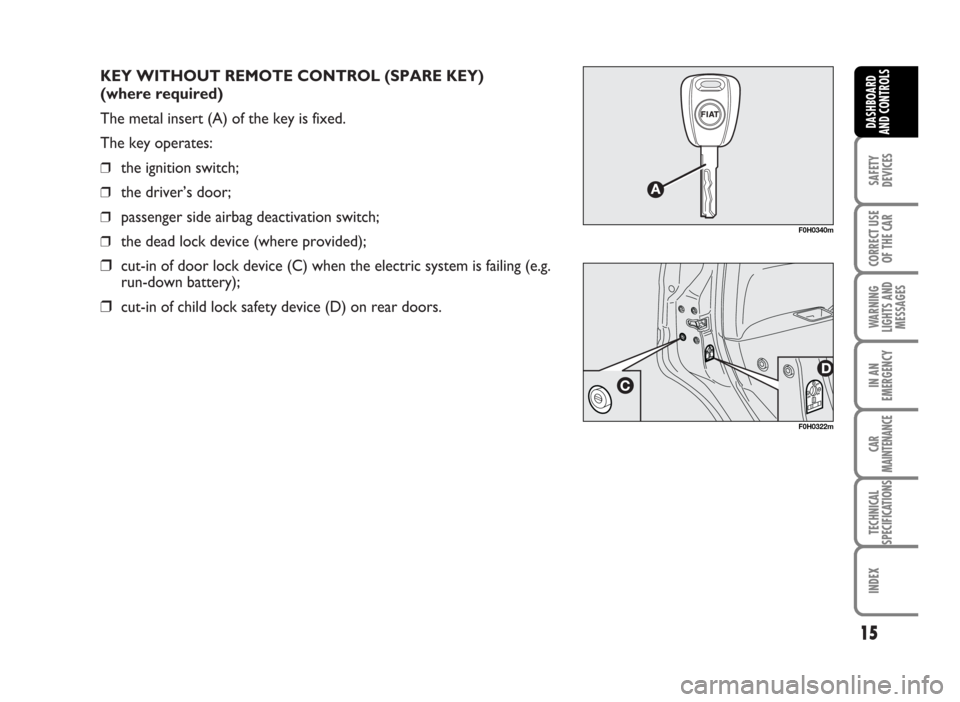

KEY WITHOUT REMOTE CONTROL (SPARE KEY)
(where required)
The metal insert (A) of the key is fixed.
The key operates:
❒the ignition switch;
❒the driver’s door;
❒passenger side airbag deactivation switch;
❒the dead lock device (where provided);
❒cut-in of door lock device (C) when the electric system is failing (e.g.
run-down battery);
❒cut-in of child lock safety device (D) on rear doors.
15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0340m
F0H0322m

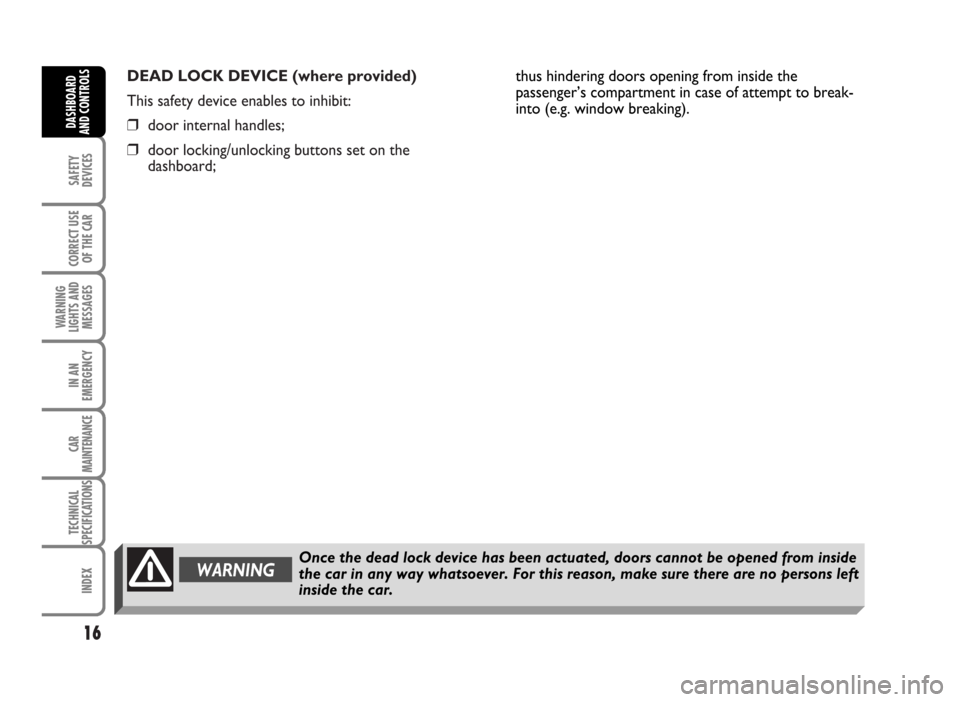

DEAD LOCK DEVICE (where provided)
This safety device enables to inhibit:
❒door internal handles;
❒door locking/unlocking buttons set on the
dashboard;
16
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Once the dead lock device has been actuated, doors cannot be opened from inside
the car in any way whatsoever. For this reason, make sure there are no persons left
inside the car.WARNING
thus hindering doors opening from inside the
passenger’s compartment in case of attempt to break-
into (e.g. window breaking).

17
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNINGIf the battery of the key with remote control is down, the dead lock device can be
activated only using the metal insert of the key in the door revolving plug as
previously described. The dead lock device guarantees the best protection against unwanted access. Therefore, it should be actuated every
time the car is parked and left unattended.

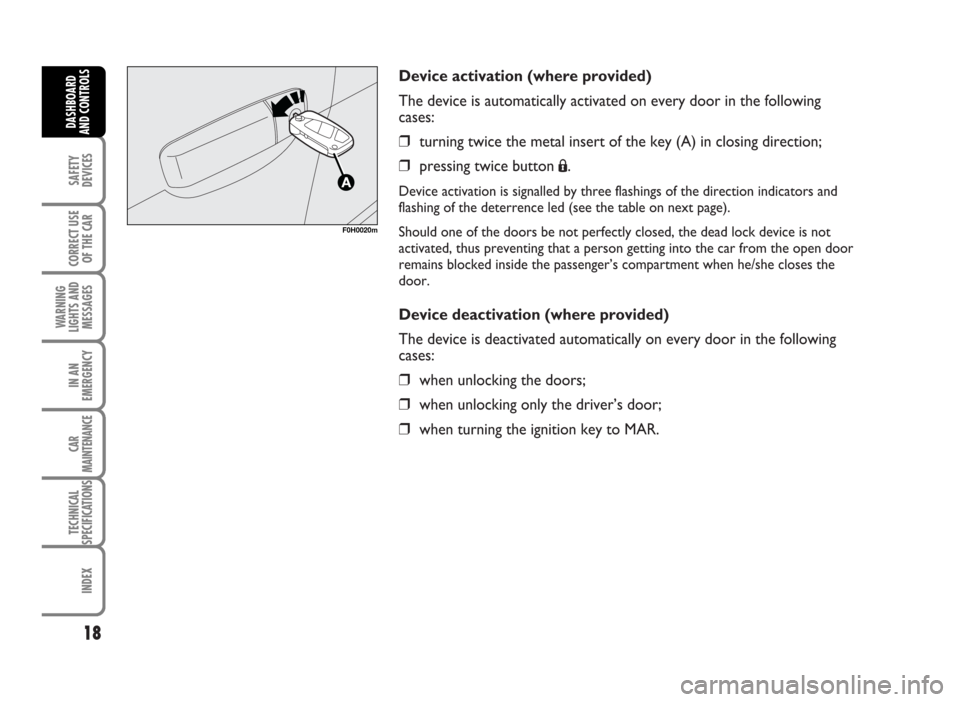

Device activation (where provided)
The device is automatically activated on every door in the following
cases:
❒turning twice the metal insert of the key (A) in closing direction;
❒pressing twice button
Á.
Device activation is signalled by three flashings of the direction indicators and
flashing of the deterrence led (see the table on next page).
Should one of the doors be not perfectly closed, the dead lock device is not
activated, thus preventing that a person getting into the car from the open door
remains blocked inside the passenger’s compartment when he/she closes the
door.
Device deactivation (where provided)
The device is deactivated automatically on every door in the following
cases:
❒when unlocking the doors;
❒when unlocking only the driver’s door;
❒when turning the ignition key to MAR.
18
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0020m

The main functions that can be activated with the keys (with or without remote control) are the following:
Type of
key
Spare key
without
remote control
Main key
with remote
control
Direction
indicators
flashing (only
with key with
remote control)
Deterrence led
Pressing the pushbutton Ëenables fuel lid to be opened.
19
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDoor opening
Key turning
counterclockwise
(driver’s side)
Key turning
counterclockwise
(driver’s side)
Pressing briefly
button
Ë
Two flashings
Turning off Door locking
from the outside
Key turning
clockwise
(driver’s side)
Key turning
clockwise
(driver’s side)
Pressing briefly
button
Á
One flashing
Turned on fixed
for approx. 3 seconds, fol-
lowed by deterrence
led flashingDead lock
(where provided)
Double key rotation
in closing
direction
(clockwise)
Double key rotation
in closing direction
(clockwise)
Double pressing
on button
Á
Three flashings
Double flashing and then de-
terrence
led flashingBoot
opening
Prolonged pressing (> 2 sec-
onds) on button
R
Two flashings
Deterrence led
flashing
