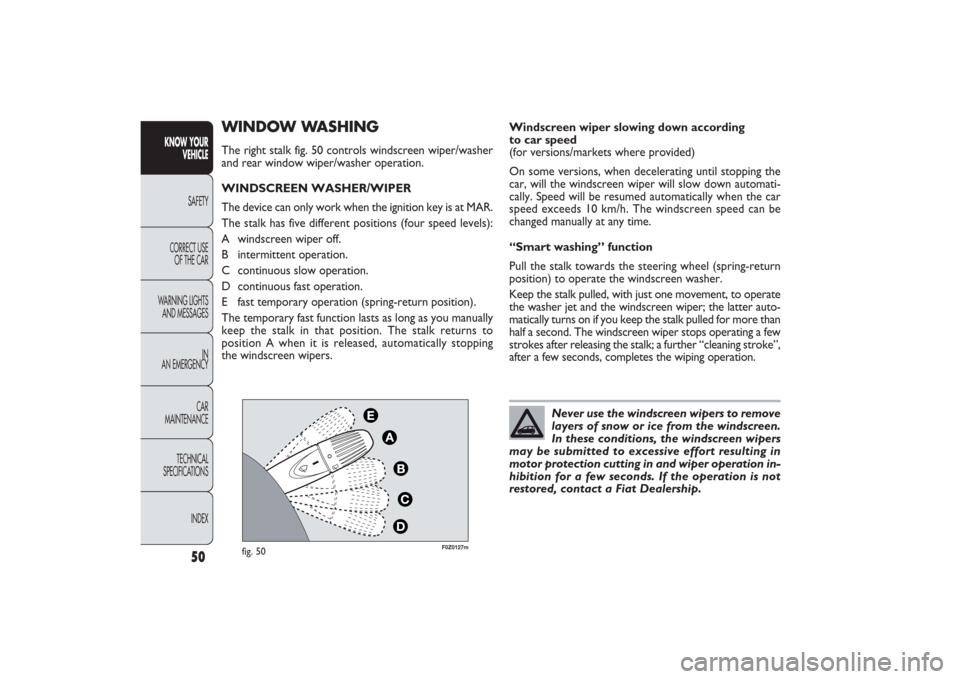

WINDOW WASHINGThe right stalk fig. 50 controls windscreen wiper/washer
and rear window wiper/washer operation.
WINDSCREEN WASHER/WIPER
The device can only work when the ignition key is at MAR.
The stalk has five different positions (four speed levels):
A windscreen wiper off.
B intermittent operation.
C continuous slow operation.
D continuous fast operation.
E fast temporary operation (spring-return position).
The temporary fast function lasts as long as you manually
keep the stalk in that position. The stalk returns to
position A when it is released, automatically stopping
the windscreen wipers.
50
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Windscreen wiper slowing down according
to car speed
(for versions/markets where provided)
On some versions, when decelerating until stopping the
car, will the windscreen wiper will slow down automati-
cally. Speed will be resumed automatically when the car
speed exceeds 10 km/h. The windscreen speed can be
changed manually at any time.
“Smart washing” function
Pull the stalk towards the steering wheel (spring-return
position) to operate the windscreen washer.
Keep the stalk pulled, with just one movement, to operate
the washer jet and the windscreen wiper; the latter auto-
matically turns on if you keep the stalk pulled for more than
half a second. The windscreen wiper stops operating a few
strokes after releasing the stalk; a further “cleaning stroke”,
after a few seconds, completes the wiping operation.
Never use the windscreen wipers to remove
layers of snow or ice from the windscreen.
In these conditions, the windscreen wipers
may be submitted to excessive effort resulting in
motor protection cutting in and wiper operation in-
hibition for a few seconds. If the operation is not
restored, contact a Fiat Dealership.
031-064 PANDA EN 7-10-2009 13:43 Pagina 50

51KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
REAR WINDOW WASHER/WIPER
The device can only work when the ignition key is at MAR.
Turn the knurled ring to
'
to operate the rear window
wiper.
With the windscreen wiper on, turn the knurled ring to
'
to turn on the rear window wiper. In this case the wiper
works (in the different positions) timed with the wind-
screen wiper, but at half speed.
With the windscreen wiper on, engaging reverse gear will
automatically turn the rear window wiper on, in continu-
ous slow operation.
Operation stops by disengaging reverse.
“Smart washing” function
Pushing the stalk towards the dashboard (spring-return
position) will activate the rear window washer.
Keep the stalk pressed, with just one movement, to op-
erate the rear window washer jet and the rear window
wiper itself; the latter automatically turns on if you keep
the stalk pressed for more than half a second.
The rear window wiper stops operating a few strokes af-
ter releasing the stalk; a further “cleaning stroke”, after
a few seconds, completes the wiping operation.
Do not use the rear window wiper to re-
move layers of snow or ice from the wind-
screen. In these conditions, the rear window
wipers may be submitted to excessive effort result-
ing in motor protection cutting in and wiper oper-
ation inhibition for a few seconds. If the operation
is not restored, contact a Fiat Dealership.
031-064 PANDA EN 7-10-2009 13:43 Pagina 51

F0Z0032m
fig. 51
Ceiling light timing (lens central position)
Three different switching-on modes are provided:❒
when opening one door a three-minute timing will start,
to be repeated each time one door is opened;
❒
approximately 10-second timing will start when re-
moving the ignition key within two minutes from turn-
ing the engine off;
❒
approximately 10-second timing will start when open-
ing the doors (by both remote control or key into
driver’s door lock).
Two switching-off modes are provided:
❒
when closing all doors, the 3-minute timing will go
off and a 10-second one will start. This timing will
go off when turning the key to MAR;
❒
when locking the doors (by both remote control or key
into driver’s door lock), the ceiling light goes off.
On Emotion and Dynamic versions, the ceiling light will
switch on and off gradually; the ceiling light will switch off
automatically 15 minutes after turning the engine off.

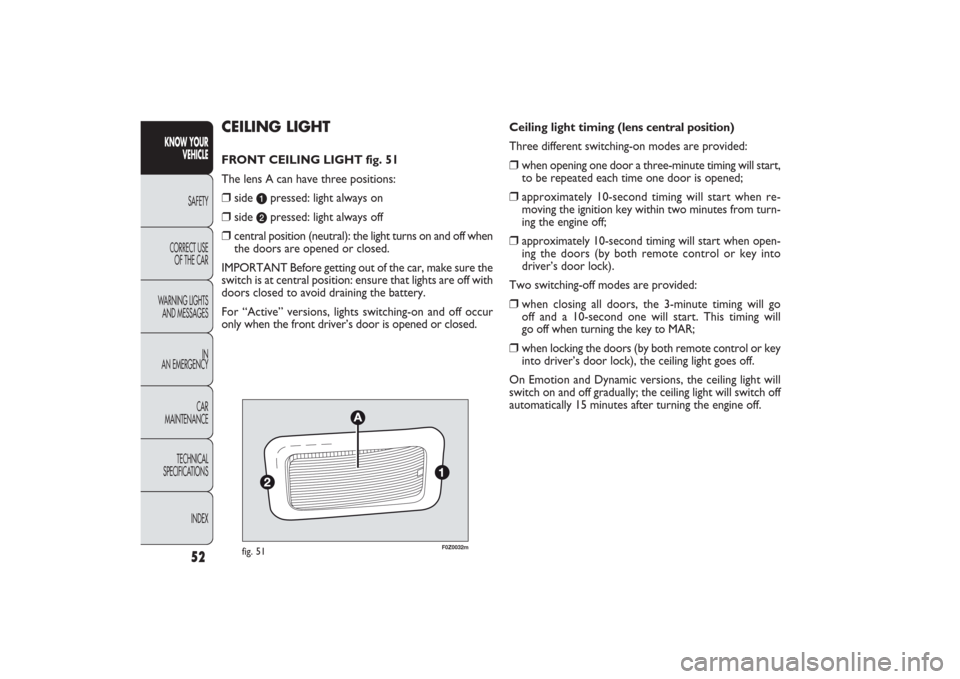

CEILING LIGHTFRONT CEILING LIGHT fig. 51
The lens A can have three positions:❒
side
a
pressed: light always on
❒
side
b
pressed: light always off
❒
central position (neutral): the light turns on and off when
the doors are opened or closed.
IMPORTANT Before getting out of the car, make sure the
switch is at central position: ensure that lights are off with
doors closed to avoid draining the battery.
For “Active” versions, lights switching-on and off occur
only when the front driver’s door is opened or closed.
52
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
031-064 PANDA EN 7-10-2009 13:43 Pagina 52

53KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0230m
fig. 52
F0Z0020m
fig. 53

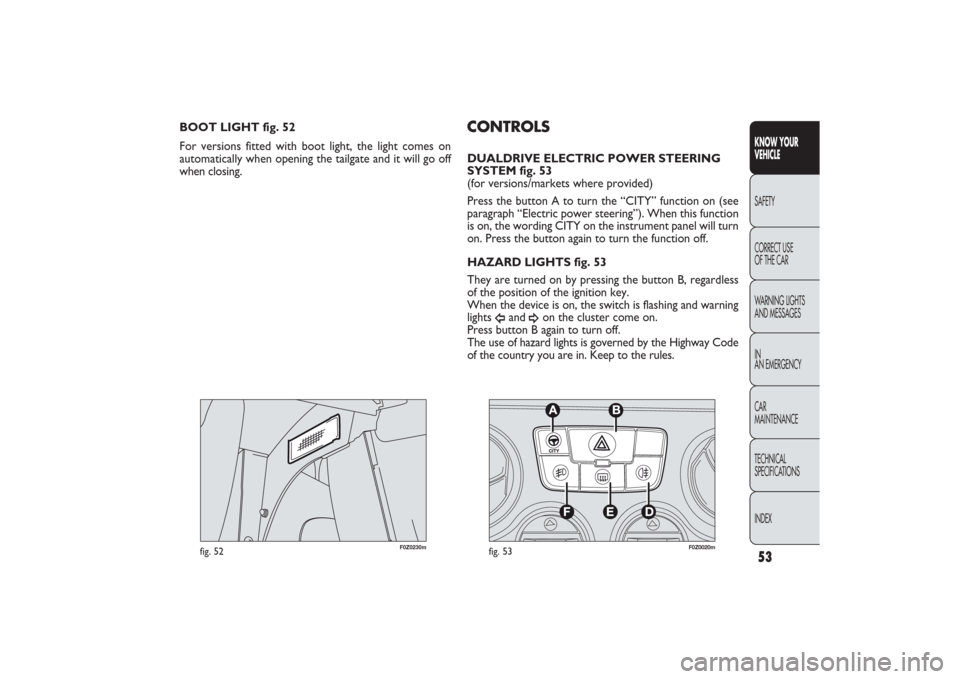

CONTROLSDUALDRIVE ELECTRIC POWER STEERING
SYSTEM fig. 53
(for versions/markets where provided)
Press the button A to turn the “CITY” function on (see
paragraph “Electric power steering”). When this function
is on, the wording CITY on the instrument panel will turn
on. Press the button again to turn the function off.
HAZARD LIGHTS fig. 53
They are turned on by pressing the button B, regardless
of the position of the ignition key.
When the device is on, the switch is flashing and warning
lights
Î
and
¥
on the cluster come on.
Press button B again to turn off.
The use of hazard lights is governed by the Highway Code
of the country you are in. Keep to the rules. BOOT LIGHT fig. 52
For versions fitted with boot light, the light comes on
automatically when opening the tailgate and it will go off
when closing.
031-064 PANDA EN 7-10-2009 13:43 Pagina 53

F0Z0028m
fig. 54

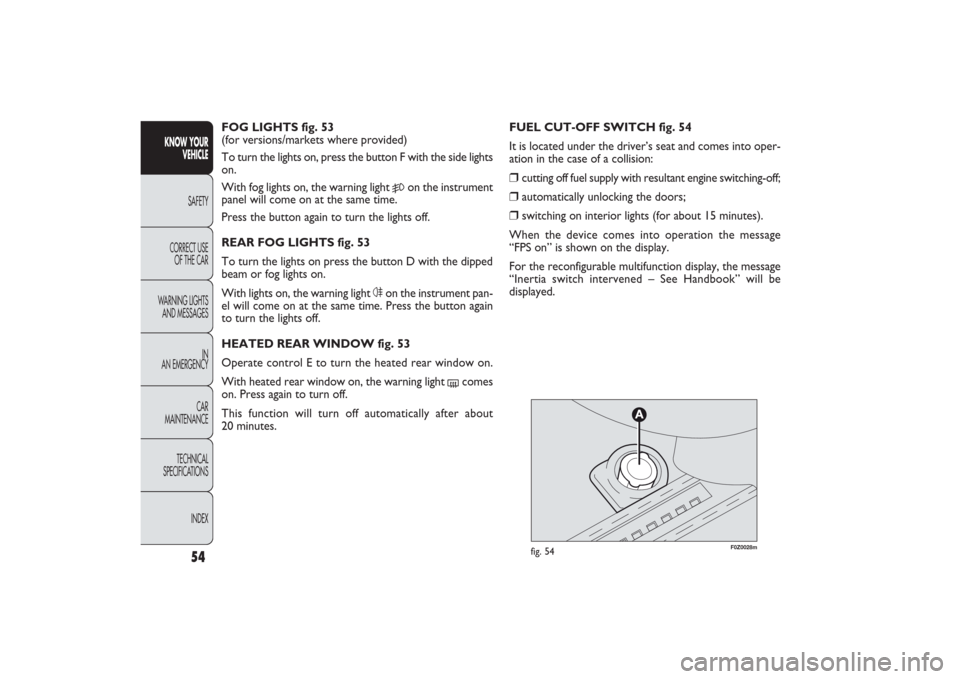

FUEL CUT-OFF SWITCH fig. 54
It is located under the driver’s seat and comes into oper-
ation in the case of a collision:❒
cutting off fuel supply with resultant engine switching-off;
❒
automatically unlocking the doors;
❒
switching on interior lights (for about 15 minutes).
When the device comes into operation the message
“FPS on” is shown on the display.
For the reconfigurable multifunction display, the message
“Inertia switch intervened – See Handbook” will be
displayed. FOG LIGHTS fig. 53
(for versions/markets where provided)
To turn the lights on, press the button F with the side lights
on.
With fog lights on, the warning light
5
on the instrument
panel will come on at the same time.
Press the button again to turn the lights off.
REAR FOG LIGHTS fig. 53
To turn the lights on press the button D with the dipped
beam or fog lights on.
With lights on, the warning light 4on the instrument pan-
el will come on at the same time. Press the button again
to turn the lights off.
HEATED REAR WINDOW fig. 53
Operate control E to turn the heated rear window on.
With heated rear window on, the warning light
(
comes
on. Press again to turn off.
This function will turn off automatically after about
20 minutes.
54
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
031-064 PANDA EN 7-10-2009 13:43 Pagina 54

55KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0223m
fig. 55
Carefully inspect the car for fuel leakages, e.g. in the en-
gine compartment, under the car or near the fuel tank.
If no fuel leaks are found and the car can be started again,
press the button A to reset the fuel system and the lights.
After a collision, turn the ignition key to STOP to pre-
vent battery running down.
If, after a collision, you smell fuel or see
leaks from the fuel system, do not reset the
switches to avoid fire risk.
WARNING

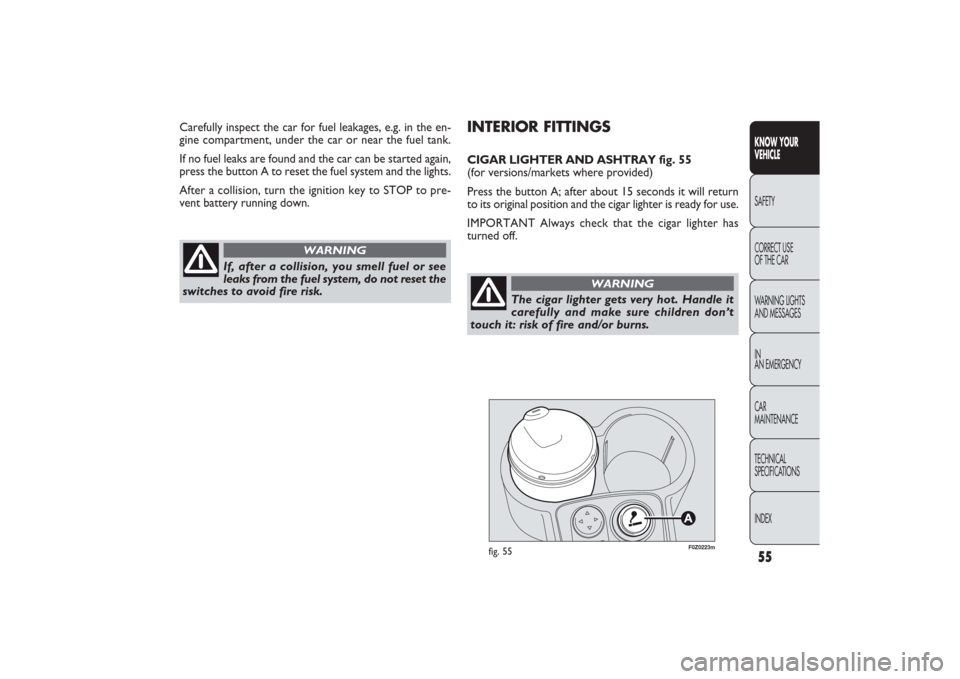

INTERIOR FITTINGSCIGAR LIGHTER AND ASHTRAY fig. 55
(for versions/markets where provided)
Press the button A; after about 15 seconds it will return
to its original position and the cigar lighter is ready for use.
IMPORTANT Always check that the cigar lighter has
turned off.
The cigar lighter gets very hot. Handle it
carefully and make sure children don’t
touch it: risk of fire and/or burns.
WARNING
031-064 PANDA EN 7-10-2009 13:43 Pagina 55

F0Z0069m
fig. 56
F0Z0035m
fig. 57
GLOVEBOX ON PASSENGER’S SIDE
DASHBOARD fig. 57
Open the glovebox as indicated by the arrow.
On the dashboard, above the glovebox, there is an
oddment compartment for small objects.
On some versions, the glovebox has been replaced with
an open oddment compartment. The ashtray can be removed and can be placed into the
glass holder to be used also by rear passengers.
Do not use the ashtray as waste paper basket: it might
set on fire in contact with cigarette stubs.
SUN VISORS fig. 56
They are located at the sides of the driving rear view
mirror.
They can be adjusted forwards and sideways.
A courtesy mirror is applied to the back of the passenger’s
side sun visor, while a pocket is applied to the back of
the driver’s side sun visor. On certain versions the cour-
tesy mirror is fitted also on the driver’s sun visor.
56
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Do not travel with the gloveboxes open: risk
of passenger’s injury in case of accident.
WARNING
031-064 PANDA EN 7-10-2009 13:43 Pagina 56

57KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0273m
fig. 58
F0Z0065m
fig. 60
˙
˙˙˙
F0Z0038m
fig. 59
GLASS/BOTTLE HOLDER
The central tunnel has two recesses fig. 59 for glasses, cups
or cans.
At the back there is a rear recess fig. 60 to house a glass. ODDMENT COMPARTMENT UNDER

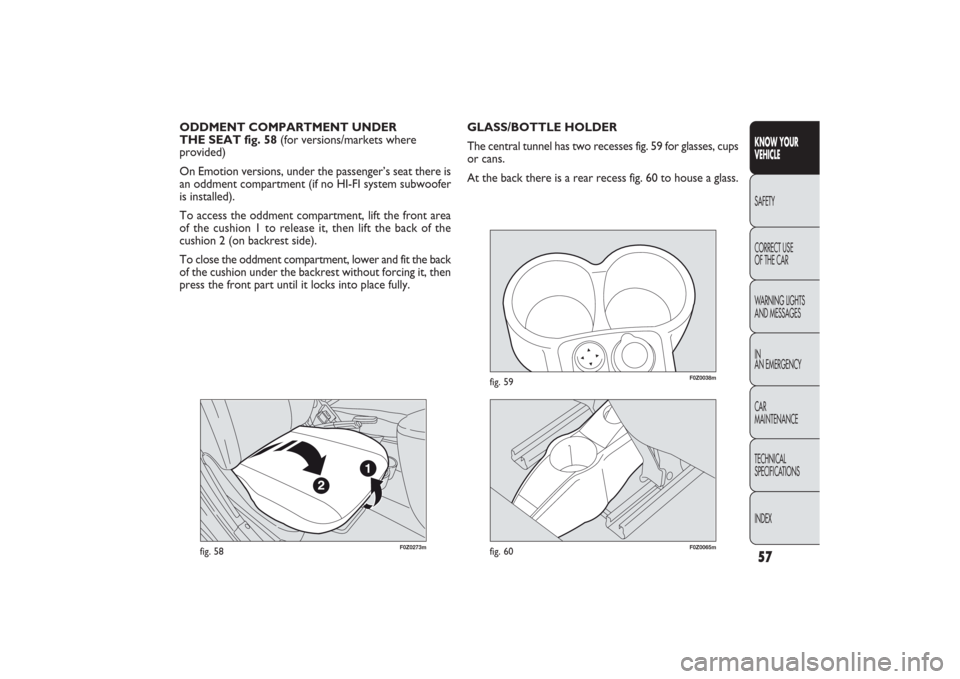

THE SEAT fig. 58 (for versions/markets where
provided)
On Emotion versions, under the passenger’s seat there is
an oddment compartment (if no HI-FI system subwoofer
is installed).
To access the oddment compartment, lift the front area
of the cushion 1 to release it, then lift the back of the
cushion 2 (on backrest side).
To close the oddment compartment, lower and fit the back
of the cushion under the backrest without forcing it, then
press the front part until it locks into place fully.
031-064 PANDA EN 7-10-2009 13:43 Pagina 57

F0Z0130m
fig. 61
F0Z0198m
fig. 62
CURRENT SOCKET fig. 61
(for versions/markets where provided)

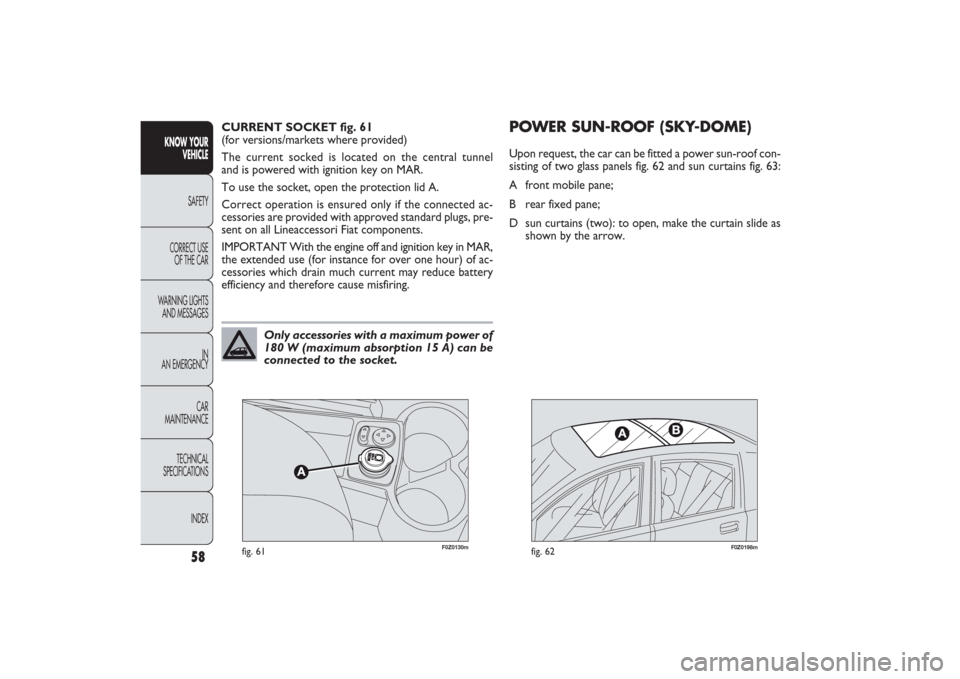

The current socked is located on the central tunnel
and is powered with ignition key on MAR.
To use the socket, open the protection lid A.
Correct operation is ensured only if the connected ac-
cessories are provided with approved standard plugs, pre-
sent on all Lineaccessori Fiat components.
IMPORTANT With the engine off and ignition key in MAR,
the extended use (for instance for over one hour) of ac-
cessories which drain much current may reduce battery
efficiency and therefore cause misfiring.
58
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Only accessories with a maximum power of
180 W (maximum absorption 15 A) can be
connected to the socket.
POWER SUN-ROOF (SKY-DOME)Upon request, the car can be fitted a power sun-roof con-
sisting of two glass panels fig. 62 and sun curtains fig. 63:
A front mobile pane;
B rear fixed pane;
D sun curtains (two): to open, make the curtain slide as
shown by the arrow.
031-064 PANDA EN 7-10-2009 13:43 Pagina 58

59
F0Z0199m
fig. 63
F0Z0019m
fig. 64

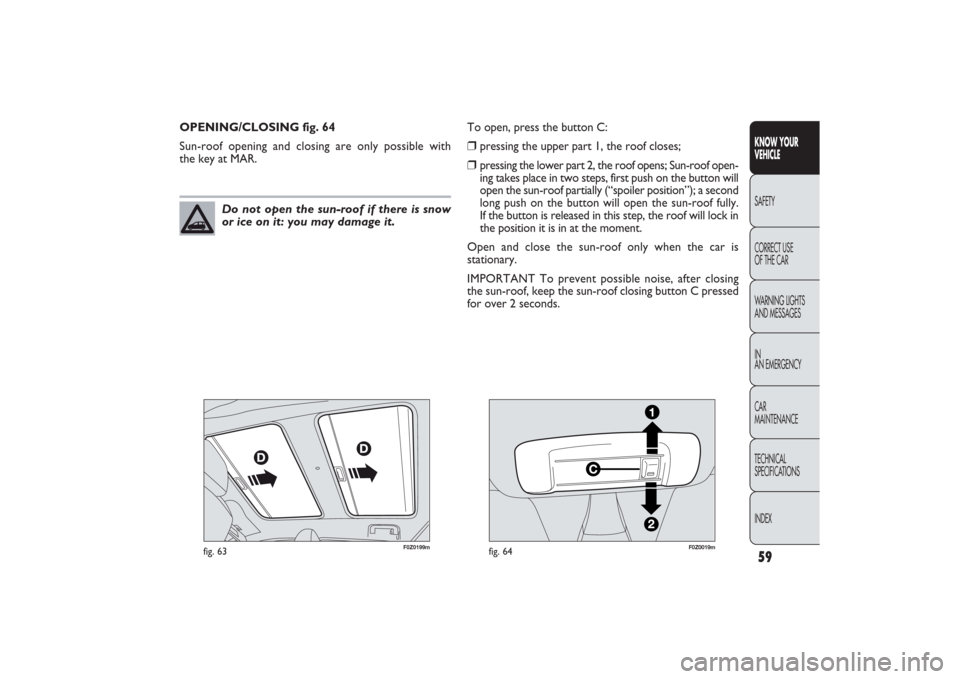

OPENING/CLOSING fig. 64
Sun-roof opening and closing are only possible with
the key at MAR.
KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Do not open the sun-roof if there is snow
or ice on it: you may damage it.
To open, press the button C:❒
pressing the upper part 1, the roof closes;
❒
pressing the lower part 2, the roof opens; Sun-roof open-
ing takes place in two steps, first push on the button will
open the sun-roof partially (“spoiler position”); a second
long push on the button will open the sun-roof fully.
If the button is released in this step, the roof will lock in
the position it is in at the moment.
Open and close the sun-roof only when the car is
stationary.
IMPORTANT To prevent possible noise, after closing
the sun-roof, keep the sun-roof closing button C pressed
for over 2 seconds.
031-064 PANDA EN 7-10-2009 13:43 Pagina 59
