FIAT PANDA 2009 169 / 2.G Manual Online

F0Z0145m
fig. 90
F0Z0162m
fig. 91
When the CITY function is on, the steering wheel effort
is lighter and thus parking operations are easier: there-
fore this function is particularly useful for driving in city
centres.
FAILURE INDICATIONS fig. 92
Possible power steering system failures are indicated by
the
g
warning light on the instrument panel – together
with the dedicated message in the reconfigurable multi-
function display (for versions/markets, where provided)
– coming on (see “Warning lights and messages” chapter).
In the event of electric power steering system failure,
the car can be driven with mechanical steering.
IMPORTANT In some circumstances, factors independent
of the electric power steering could cause the warning light
g
on the instrument panel to come on.

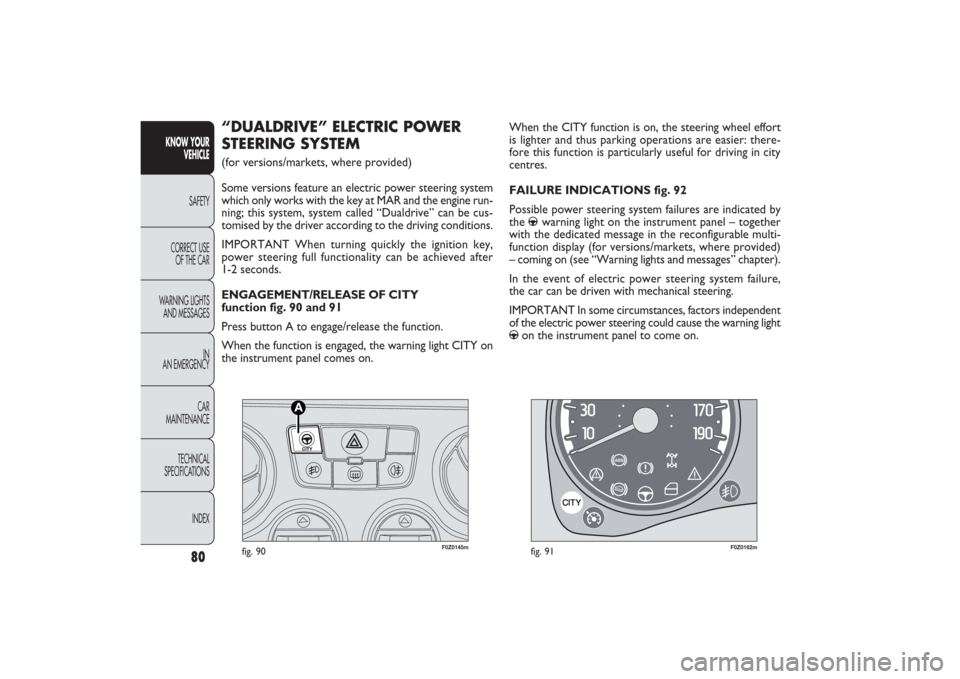

“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM (for versions/markets, where provided)
Some versions feature an electric power steering system
which only works with the key at MAR and the engine run-
ning; this system, system called “Dualdrive” can be cus-
tomised by the driver according to the driving conditions.
IMPORTANT When turning quickly the ignition key,
power steering full functionality can be achieved after
1-2 seconds.
ENGAGEMENT/RELEASE OF CITY
function fig. 90 and 91
Press button A to engage/release the function.
When the function is engaged, the warning light CITY on
the instrument panel comes on.
80
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 80

F0Z0163m
fig. 92

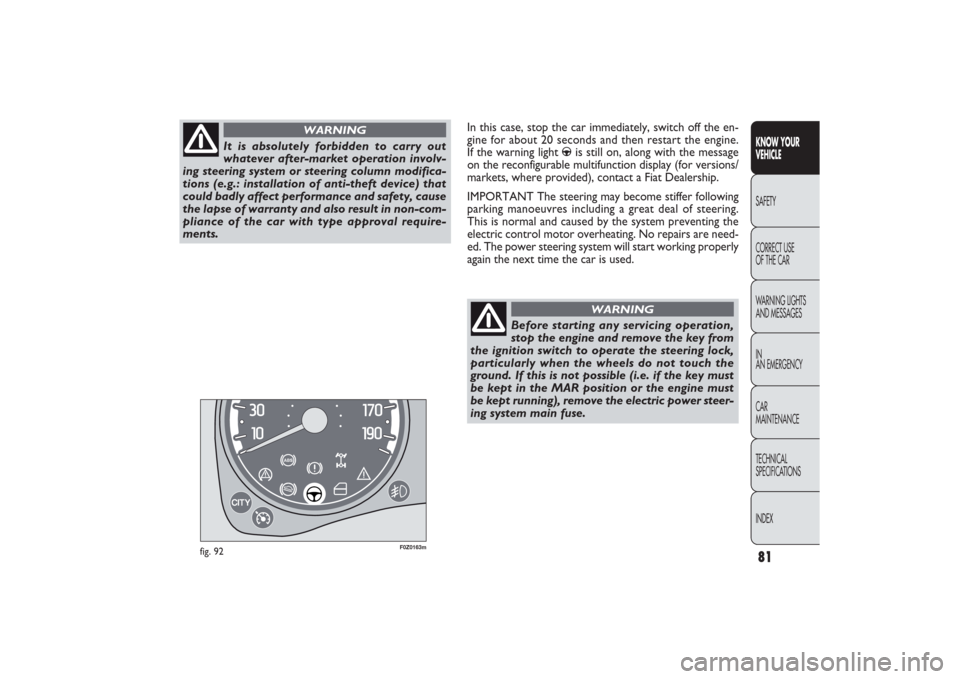

It is absolutely forbidden to carry out
whatever after-market operation involv-
ing steering system or steering column modifica-
tions (e.g.: installation of anti-theft device) that
could badly affect performance and safety, cause
the lapse of warranty and also result in non-com-
pliance of the car with type approval require-
ments.
WARNING
Before starting any servicing operation,
stop the engine and remove the key from
the ignition switch to operate the steering lock,
particularly when the wheels do not touch the
ground. If this is not possible (i.e. if the key must
be kept in the MAR position or the engine must
be kept running), remove the electric power steer-
ing system main fuse.
WARNING
In this case, stop the car immediately, switch off the en-
gine for about 20 seconds and then restart the engine.
If the warning light
g
is still on, along with the message
on the reconfigurable multifunction display (for versions/
markets, where provided), contact a Fiat Dealership.
IMPORTANT The steering may become stiffer following
parking manoeuvres including a great deal of steering.
This is normal and caused by the system preventing the
electric control motor overheating. No repairs are need-
ed. The power steering system will start working properly
again the next time the car is used.
81KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 81

F0Z0692m
fig. 93
The beep frequency:❒
becomes louder as the distance between car and ob-
stacle decreases;
❒
becomes continuous when the distance between the
car and the obstacle is less that 30 cm and stops im-
mediately if the distance increases;
❒
is constant if the distance is unchanged.
Detection distances
Central operating radius 120 cm
Side operating radius 60 cm
If several obstacles are detected by the sensors, only the
nearest one is considered.
FAILURE WARNING
In the event of parking sensor failures, the driver is warned
when engaging reverse by a three-second beep.
OPERATION WITH TRAILER
Sensor operation is automatically deactivated when the trail-
er electric cable plug is fitted in the car tow hook socket.
The sensors are automatically reactivated when the trail-
er cable plug is removed.

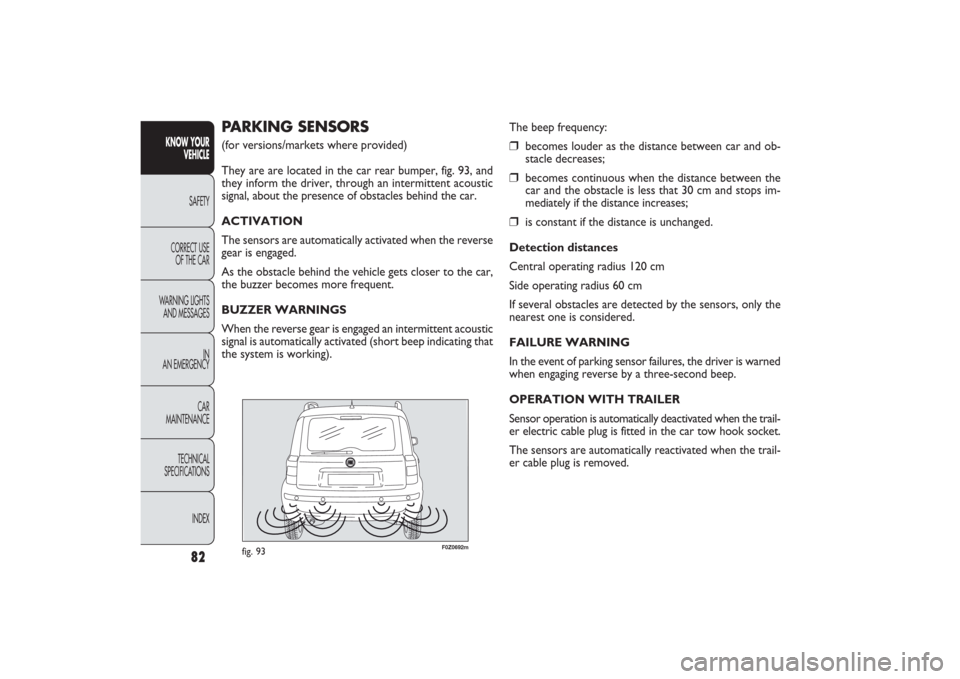

PARKING SENSORS (for versions/markets where provided)
They are are located in the car rear bumper, fig. 93, and
they inform the driver, through an intermittent acoustic
signal, about the presence of obstacles behind the car.
ACTIVATION
The sensors are automatically activated when the reverse
gear is engaged.
As the obstacle behind the vehicle gets closer to the car,
the buzzer becomes more frequent.
BUZZER WARNINGS
When the reverse gear is engaged an intermittent acoustic
signal is automatically activated (short beep indicating that
the system is working).
82
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 82

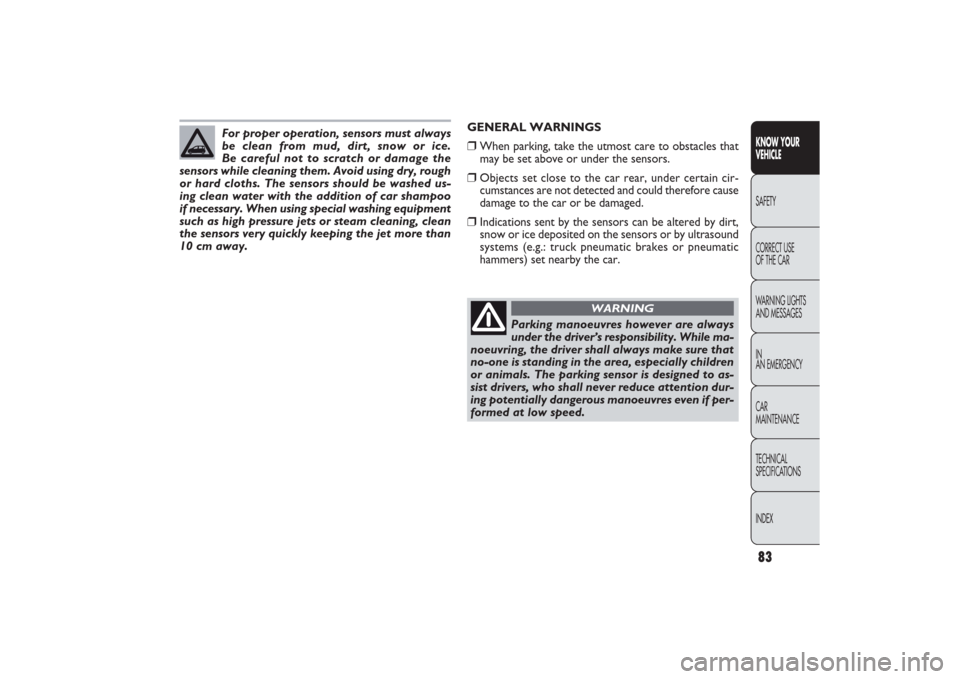

GENERAL WARNINGS❒
When parking, take the utmost care to obstacles that
may be set above or under the sensors.
❒
Objects set close to the car rear, under certain cir-
cumstances are not detected and could therefore cause
damage to the car or be damaged.
❒
Indications sent by the sensors can be altered by dirt,
snow or ice deposited on the sensors or by ultrasound
systems (e.g.: truck pneumatic brakes or pneumatic
hammers) set nearby the car.
For proper operation, sensors must always
be clean from mud, dirt, snow or ice.
Be careful not to scratch or damage the
sensors while cleaning them. Avoid using dry, rough
or hard cloths. The sensors should be washed us-
ing clean water with the addition of car shampoo
if necessary. When using special washing equipment
such as high pressure jets or steam cleaning, clean
the sensors very quickly keeping the jet more than
10 cm away.
Parking manoeuvres however are always
under the driver’s responsibility. While ma-
noeuvring, the driver shall always make sure that
no-one is standing in the area, especially children
or animals. The parking sensor is designed to as-
sist drivers, who shall never reduce attention dur-
ing potentially dangerous manoeuvres even if per-
formed at low speed.
WARNING
83KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 83

F0Z0071m
fig. 94

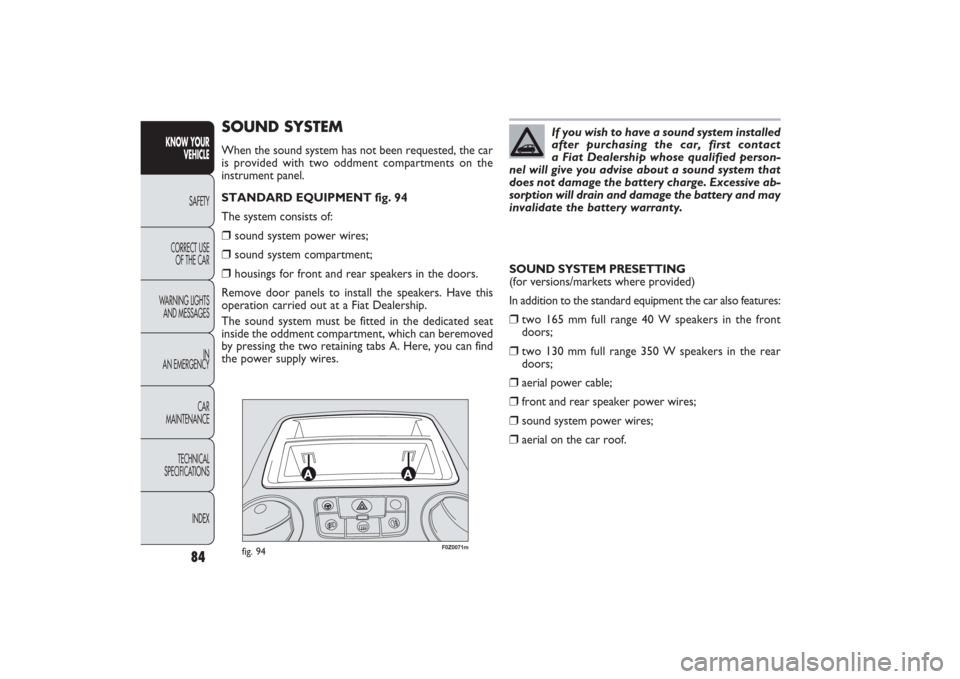

SOUND SYSTEMWhen the sound system has not been requested, the car
is provided with two oddment compartments on the
instrument panel.
STANDARD EQUIPMENT fig. 94
The system consists of:❒
sound system power wires;
❒
sound system compartment;
❒
housings for front and rear speakers in the doors.
Remove door panels to install the speakers. Have this
operation carried out at a Fiat Dealership.
The sound system must be fitted in the dedicated seat
inside the oddment compartment, which can beremoved
by pressing the two retaining tabs A. Here, you can find
the power supply wires.SOUND SYSTEM PRESETTING
(for versions/markets where provided)
In addition to the standard equipment the car also features:
❒
two 165 mm full range 40 W speakers in the front
doors;
❒
two 130 mm full range 350 W speakers in the rear
doors;
❒
aerial power cable;
❒
front and rear speaker power wires;
❒
sound system power wires;
❒
aerial on the car roof.
If you wish to have a sound system installed
after purchasing the car, first contact
a Fiat Dealership whose qualified person-
nel will give you advise about a sound system that
does not damage the battery charge. Excessive ab-
sorption will drain and damage the battery and may
invalidate the battery warranty.
84
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 84

F0Z0073m
fig. 95

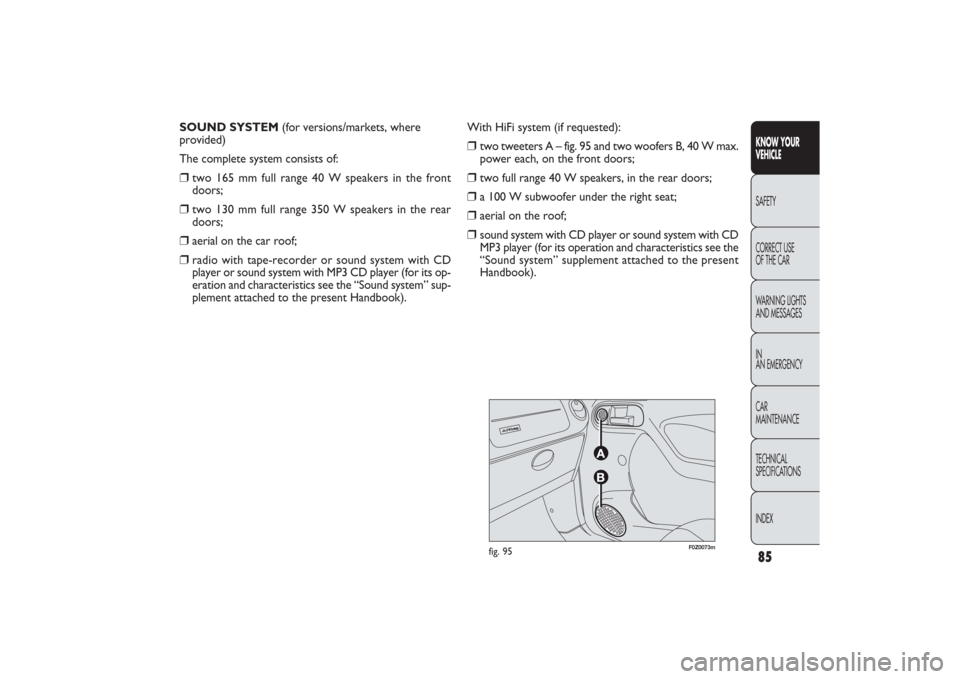

With HiFi system (if requested):❒
two tweeters A – fig. 95 and two woofers B, 40 W max.
power each, on the front doors;
❒
two full range 40 W speakers, in the rear doors;
❒
a 100 W subwoofer under the right seat;
❒
aerial on the roof;
❒
sound system with CD player or sound system with CD
MP3 player (for its operation and characteristics see the
“Sound system” supplement attached to the present
Handbook). SOUND SYSTEM (for versions/markets, where
provided)
The complete system consists of:
❒
two 165 mm full range 40 W speakers in the front
doors;
❒
two 130 mm full range 350 W speakers in the rear
doors;
❒
aerial on the car roof;
❒
radio with tape-recorder or sound system with CD
player or sound system with MP3 CD player (for its op-
eration and characteristics see the “Sound system” sup-
plement attached to the present Handbook).
85KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 85

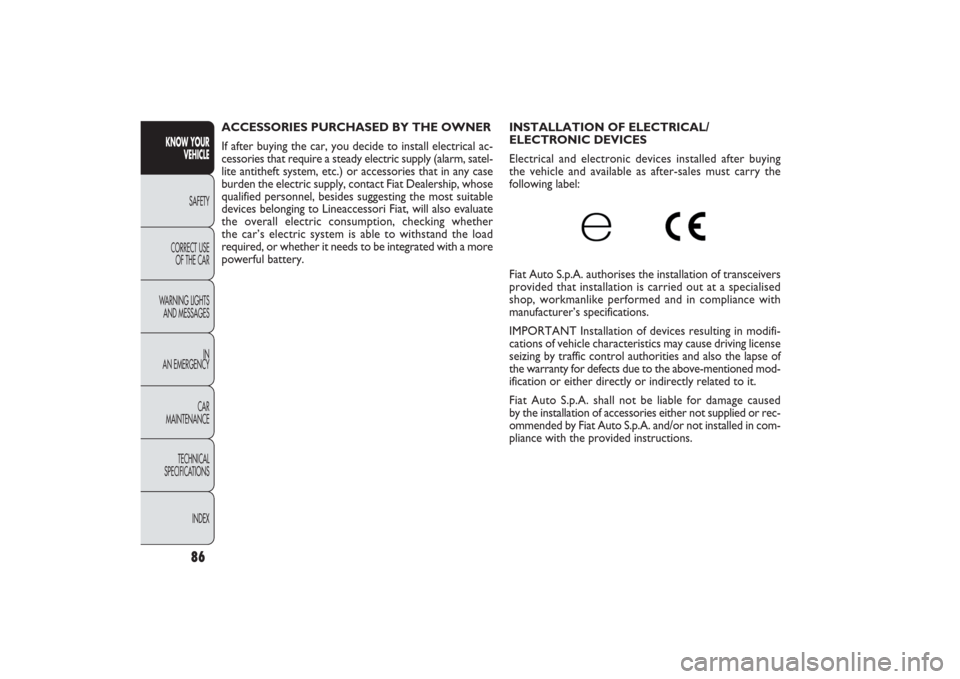

INSTALLATION OF ELECTRICAL/
ELECTRONIC DEVICES
Electrical and electronic devices installed after buying
the vehicle and available as after-sales must carry the
following label:
Fiat Auto S.p.A. authorises the installation of transceivers
provided that installation is carried out at a specialised
shop, workmanlike performed and in compliance with
manufacturer’s specifications.
IMPORTANT Installation of devices resulting in modifi-
cations of vehicle characteristics may cause driving license
seizing by traffic control authorities and also the lapse of
the warranty for defects due to the above-mentioned mod-
ification or either directly or indirectly related to it.
Fiat Auto S.p.A. shall not be liable for damage caused
by the installation of accessories either not supplied or rec-
ommended by Fiat Auto S.p.A. and/or not installed in com-
pliance with the provided instructions. ACCESSORIES PURCHASED BY THE OWNER
If after buying the car, you decide to install electrical ac-
cessories that require a steady electric supply (alarm, satel-
lite antitheft system, etc.) or accessories that in any case
burden the electric supply, contact Fiat Dealership, whose
qualified personnel, besides suggesting the most suitable
devices belonging to Lineaccessori Fiat, will also evaluate
the overall electric consumption, checking whether
the car’s electric system is able to withstand the load
required, or whether it needs to be integrated with a more
powerful battery.
86
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 86

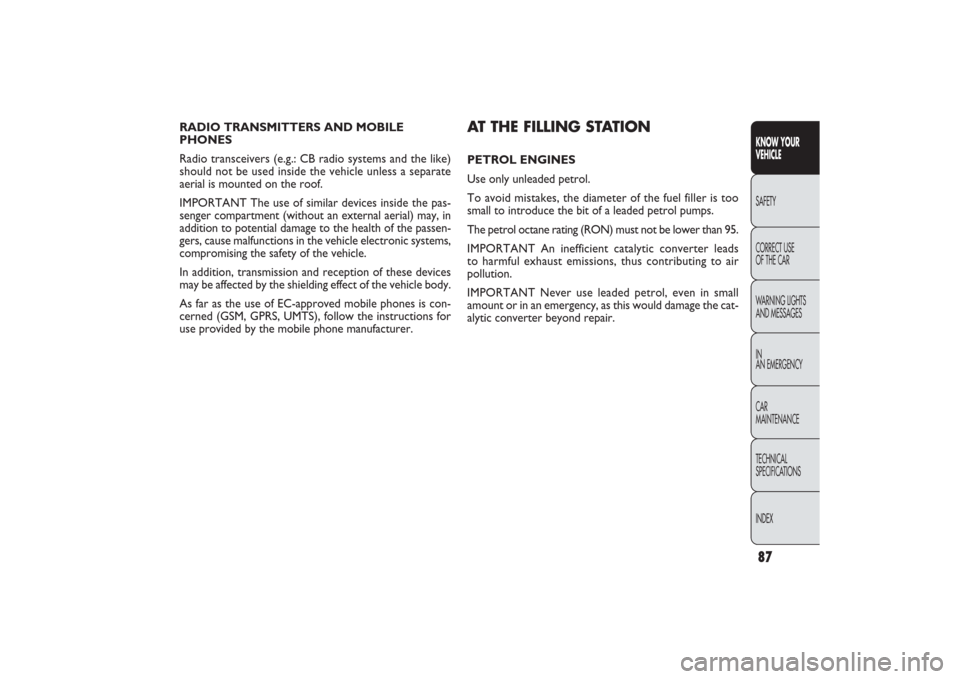

RADIO TRANSMITTERS AND MOBILE
PHONES
Radio transceivers (e.g.: CB radio systems and the like)
should not be used inside the vehicle unless a separate
aerial is mounted on the roof.
IMPORTANT The use of similar devices inside the pas-
senger compartment (without an external aerial) may, in
addition to potential damage to the health of the passen-
gers, cause malfunctions in the vehicle electronic systems,
compromising the safety of the vehicle.
In addition, transmission and reception of these devices
may be affected by the shielding effect of the vehicle body.
As far as the use of EC-approved mobile phones is con-
cerned (GSM, GPRS, UMTS), follow the instructions for
use provided by the mobile phone manufacturer.
AT THE FILLING STATIONPETROL ENGINES
Use only unleaded petrol.
To avoid mistakes, the diameter of the fuel filler is too
small to introduce the bit of a leaded petrol pumps.
The petrol octane rating (RON) must not be lower than 95.
IMPORTANT An inefficient catalytic converter leads
to harmful exhaust emissions, thus contributing to air
pollution.
IMPORTANT Never use leaded petrol, even in small
amount or in an emergency, as this would damage the cat-
alytic converter beyond repair.
87KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
065-090 PANDA EN 7-10-2009 13:45 Pagina 87

88

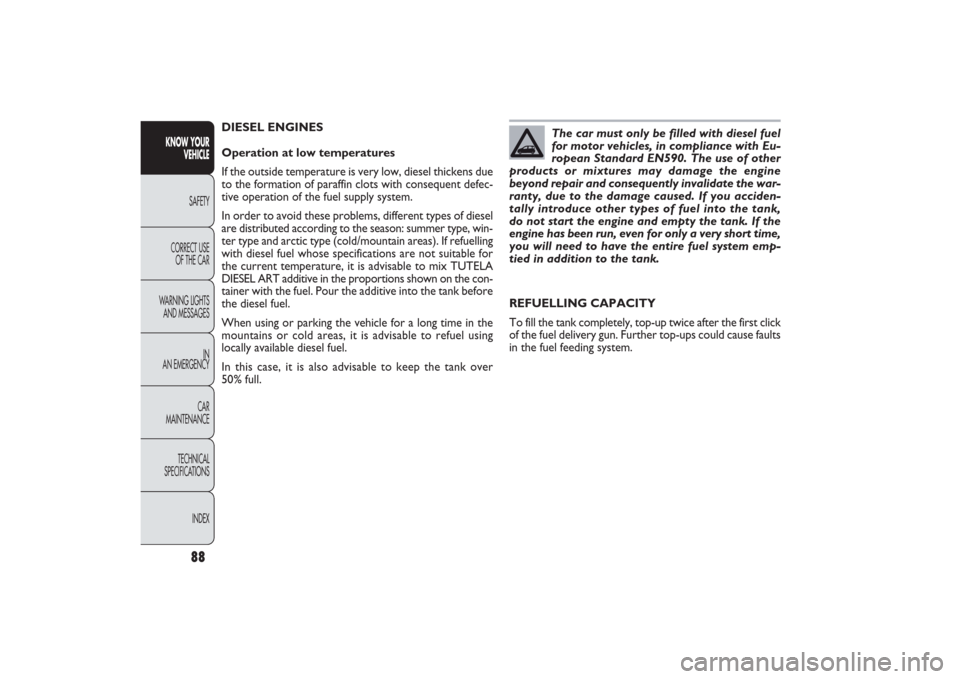

REFUELLING CAPACITY
To fill the tank completely, top-up twice after the first click
of the fuel delivery gun. Further top-ups could cause faults
in the fuel feeding system.
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The car must only be filled with diesel fuel
for motor vehicles, in compliance with Eu-
ropean Standard EN590. The use of other
products or mixtures may damage the engine
beyond repair and consequently invalidate the war-
ranty, due to the damage caused. If you acciden-
tally introduce other types of fuel into the tank,
do not start the engine and empty the tank. If the
engine has been run, even for only a very short time,
you will need to have the entire fuel system emp-
tied in addition to the tank.
DIESEL ENGINES
Operation at low temperatures
If the outside temperature is very low, diesel thickens due
to the formation of paraffin clots with consequent defec-
tive operation of the fuel supply system.
In order to avoid these problems, different types of diesel
are distributed according to the season: summer type, win-
ter type and arctic type (cold/mountain areas). If refuelling
with diesel fuel whose specifications are not suitable for
the current temperature, it is advisable to mix TUTELA
DIESEL ART additive in the proportions shown on the con-
tainer with the fuel. Pour the additive into the tank before
the diesel fuel.
When using or parking the vehicle for a long time in the
mountains or cold areas, it is advisable to refuel using
locally available diesel fuel.
In this case, it is also advisable to keep the tank over
50% full.
065-090 PANDA EN 7-10-2009 13:45 Pagina 88

89
F0Z0041m
fig. 96
F0Z0042m
fig. 97
KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Do not place naked flames or lit cigarettes
near to the fuel filler: fire risk. Keep away
from the fuel filler to avoid breathing in harmful
vapours.
WARNING

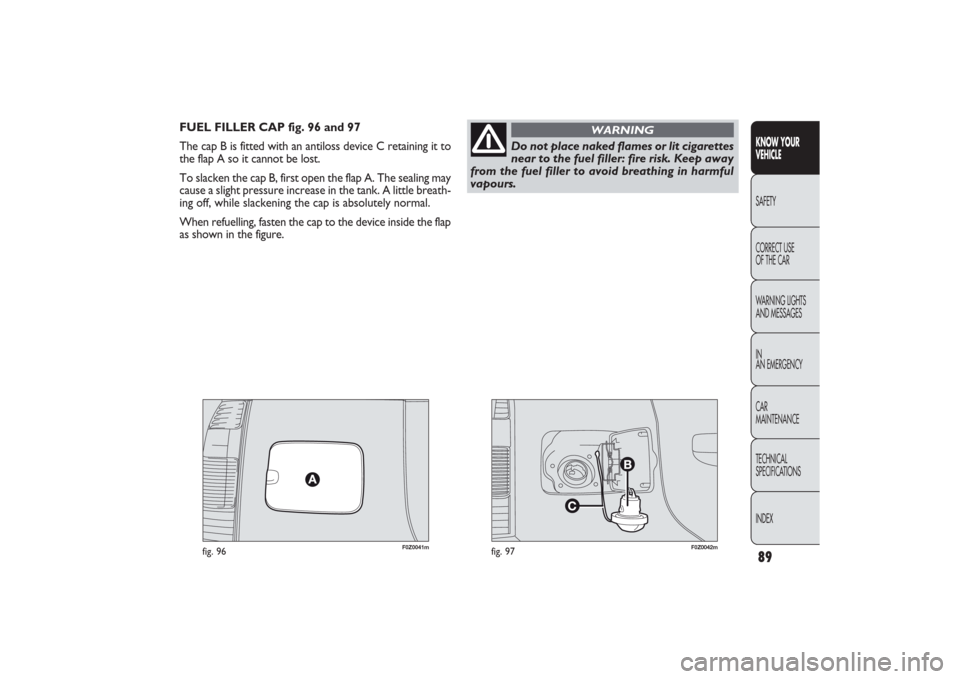

FUEL FILLER CAP fig. 96 and 97
The cap B is fitted with an antiloss device C retaining it to
the flap A so it cannot be lost.
To slacken the cap B, first open the flap A. The sealing may
cause a slight pressure increase in the tank. A little breath-
ing off, while slackening the cap is absolutely normal.
When refuelling, fasten the cap to the device inside the flap
as shown in the figure.
065-090 PANDA EN 7-10-2009 13:45 Pagina 89
