Recalling a preset station
Up to 24 stations (6 each for the FM1, FM2, FM3
and AM (MW/LW) stations) can be preset in the
Preset buttons.
Preset tuning is a function for storing stations to
Preset buttons (1 to 6) which enables you to
select a station by pressing the corresponding
preset button.
1. Press BND button#to select a band.
2. Press one of Preset buttons
!to select a
stored station.
Note:
•Press and hold Preset button !for 2 seconds or
longer to store the station currently being received
(preset memory).
Manual memory
1. Press BND button #to select a band.
2. Select left or right to tune in to a desired station
using SRCH buttons $.
3. Press and hold one of Preset buttons !for 2
seconds or longer to store the station currently
being received.
Auto store
Auto store is a function for storing up to 6 stations
that are automatically tuned in sequentially.
Notes:
•The only FM band that can store stations is FM3.
If you try to store stations in FM1 or FM2, the sta-
tions will automatically be stored in FM3.
•When the auto store is performed, the station pre-
viously stored in the memory at that position is
overwritten.
•If there are fewer than 6 stations with good recep-
tion, the stations previously stored at the remain-
ing Preset buttons are not overwritten.
•A station already stored in one of Preset buttons
cannot be stored in another Preset buttons.
1. Press BND button#to select a band (FM3 or
AM) of the desired station.
2. Press and hold AS button 0for 2 seconds or
longer. The stations with good reception are
stored automatically to Preset buttons !.
Preset scan
This function scans through each preset station
for 7 seconds sequentially.
This is useful when you want to search for a
desired station.
Note:
•Take note that if you press and hold PS button 0
for 2 seconds or longer, the auto store function
goes into effect and the unit starts storing stations.
1. Press PS button 0
2. When a station that you want to listen to is
tuned in, press PS button 0again or the cor-
responding Preset button !to stop preset
scan.
*A station that cannot be tuned in to is skipped
and the next preset station is tuned in.
Mute
Use this function to turn off the sound immediate-
ly.
Press the MUTE button ¥. The sound turns off
and “MUTE”appears on the display. Press the
MUTE button again to cancel the mute mode.
11
Radio Operations
English

●Turning AF function off
When “AF”is lit or flashing in the display, press
AF button 9. “AF”in the display goes off and AF
turns off.
●Turning AF function on
When “AF”is not lit in the display, press AF but-
ton 9again. “AF”lights in the display and AF
turns on.
If the receiving condition of a station being tuned
is getting worse, “AF”starts flashing and the unit
tries to switch to an alternative frequency. If
switching cannot be performed, the display
switches to “SEARCH”and the unit searches for
the same programme.
REG (Regional Programme) function
When REG function is on, regional station recep-
tion is optimized.
If this function is off, the unit switches in to the
regional station in the next local area when you
enter the next area while receiving the regional
station in the previous local area.
*The factory setting is “off”.
Notes:
• This function is ineffective when a national station
such as BBC 2 FM is being received.
• The on/off setting of REG is effective when AF is
on.
●Turning REG function on
When “REG”is not lit in the display, pressing and
holding AF button 9for 2 seconds or longer.
“REG”lights in the display.
●Turning REG function off
Pressing and holding AF button 9for 2 seconds
or longer again,“REG”in the display goes off.
12
RDS Operations
English
RDS mode
RDS (Radio Data System)
This unit incorporates an RDS system decoder for
use with stations broadcasting RDS data.
This system enables the radio to display the
name of the station being received (PS), and also
to automatically switch to a better frequency when
one is available while you are traveling great dis-
tances (AF switching).
It can also interrupt a CD or tape with traffic infor-
mation or the programme type broadcast by an
RDS station.
Additionally, if EON information is received, this
information enables automatic switching of other
preset stations on the same network and interrup-
tion of the station being received with traffic infor-
mation from other stations (TP). This function may
not work in some regions.
To use the RDS function, be sure to set the radio
to FM mode.
•AF:Alternative Frequencies
•PS:Programme Service Name
•PTY:Programme Type
• EON:Enhanced Other Network
•TP:Traffic Programme
*If an RDS station can no longer be received
clearly (at the current location), “AF”flashes in
the display. When reception is restored, “AF”
stops flashing.
AF function
The AF function enables the unit to maintain opti-
mum reception by switching to different frequen-
cies on the same network.
*The factory setting is“on”.
Seek tuning indication
AF indication
PTY indication
TP indication REG indication
TA indicationPreset channel indication

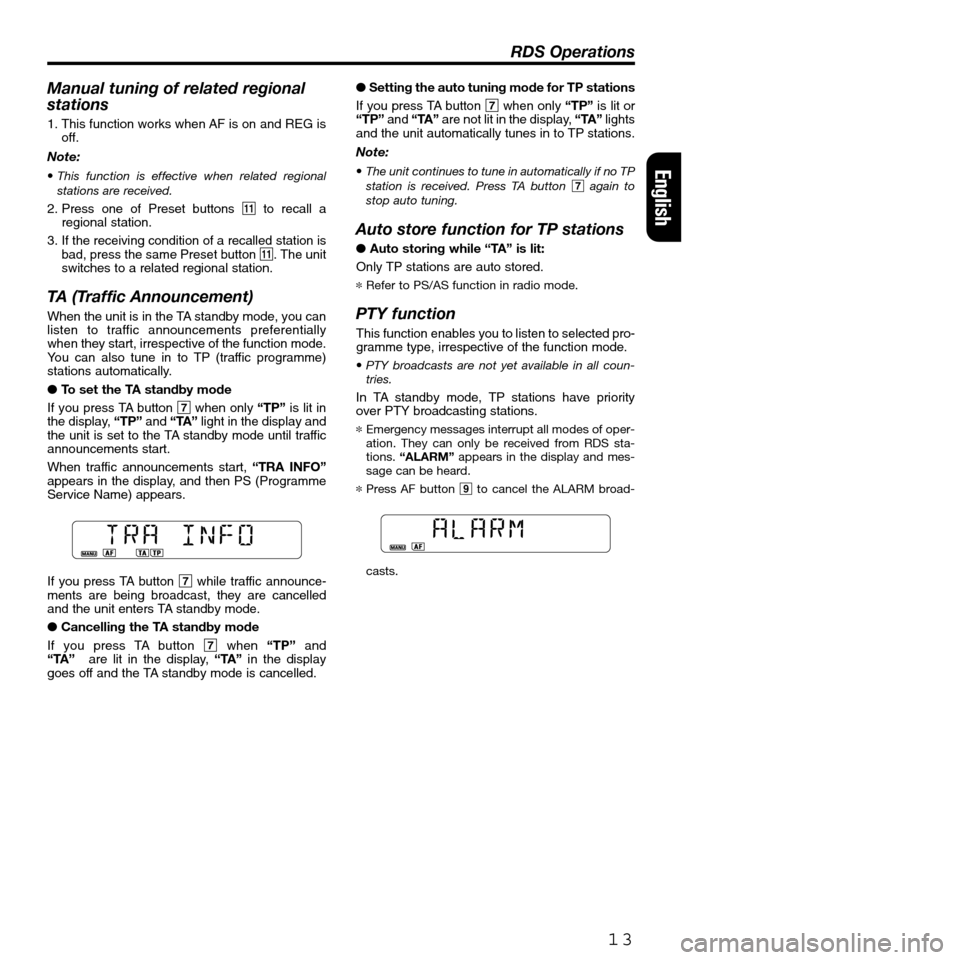

Manual tuning of related regional
stations
1. This function works when AF is on and REG is
off.
Note:
•This function is effective when related regional
stations are received.
2. Press one of Preset buttons !to recall a
regional station.
3. If the receiving condition of a recalled station is
bad, press the same Preset button !. The unit
switches to a related regional station.
TA (Traffic Announcement)
When the unit is in the TA standby mode, you can
listen to traffic announcements preferentially
when they start, irrespective of the function mode.
You can also tune in to TP (traffic programme)
stations automatically.
●To set the TA standby mode
If you press TA button 7when only “TP”is lit in
the display, “TP”and “TA”light in the display and
the unit is set to the TA standby mode until traffic
announcements start.
When traffic announcements start, “TRA INFO”
appears in the display, and then PS (Programme
Service Name) appears.
If you press TA button 7while traffic announce-
ments are being broadcast, they are cancelled
and the unit enters TA standby mode.
●Cancelling the TA standby mode
If you press TA button 7when“TP”and
“TA””are lit in the display, “TA”in the display
goes off and the TA standby mode is cancelled.●Setting the auto tuning mode for TP stations
If you press TA button 7when only “TP”is lit or
“TP”and “TA”are not lit in the display,“TA”lights
and the unit automatically tunes in to TP stations.
Note:
•The unit continues to tune in automatically if no TP
station is received. Press TA button 7again to
stop auto tuning.
Auto store function for TP stations
● Auto storing while “TA” is lit:
Only TP stations are auto stored.
*Refer to PS/AS function in radio mode.
PTY function
This function enables you to listen to selected pro-
gramme type, irrespective of the function mode.
•PTY broadcasts are not yet available in all coun-
tries.
In TA standby mode, TP stations have priority
over PTY broadcasting stations.
*Emergency messages interrupt all modes of oper-
ation. They can only be received from RDS sta-
tions. “ALARM”appears in the display and mes-
sage can be heard.
*Press AF button 9to cancel the ALARM broad-
casts.
13
RDS Operations
English

Selecting PTY
1. When you press PTY button 8,“PTY”lights
and PTY appears in the display. The unit enters
PTY select mode.
If the control is idle for 7 seconds after the PTY
select mode has been entered, the display
automatically returns to radio mode display and
the unit enters the PTY standby mode.
2. Select a PTY.
Press one of Preset buttons !to select the
desired PTY or select up or down to obtain a
desired PTY using Rotary knob %.
*The following stored already into the Preset
buttons !for your convenience.
Preset memory of PTYs
1. Press PTY button 8to enter PTY select mode.
If the control is idle for 7 seconds after the PTY
select mode has been entered, the display
automatically returns to radio mode display and
the unit enters the PTY standby mode.
2. Select up or down to obtain a desired PTY
using Rotary knob %.
The following 15 PTYs are selectable.
14
RDS Operations
English
PresetNo.
1
2
3
4
5
6
PTY
ENGLISH
NEWS
INFO
CLASSICS
SPORT
POP M
M, O, R, M(English)
(News)
(Information)
(Classic music)
(Sports)
(Popular music)
Middle of the Road Music
PTY Display
ENGLISH
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M, O, R, M
LIGHT M
CLASSICS
OTHER M
(English)
(News)
(Affairs)
(Information)
(Sports)
(Education)
(Drama)
(Culture)
(Science)
(Variety)
(Popular music)
(Rock music)
Middle of the Road Music
(Light music)
(Classic music)
(Other music)
3. Press PTY button 8again to enter standby
mode for the selected PTY.
When a selected PTY broadcast starts, the
selected PTY appears in the display.
If you press PTY button 8 during PTY broad-
casts, PTY broadcasts are temporarily can-
celled and the unit enters PTY standby mode.
●Cancelling PTY standby mode
Press and hold PTY button 8for 2 seconds or
longer to turn off“PTY”in the display.3. Press and hold one of the Preset buttons!
1 to 6 for 2 seconds or longer to put it into
memory. After PTY is stored in memory, “PTY
MEMO”appears in the display.

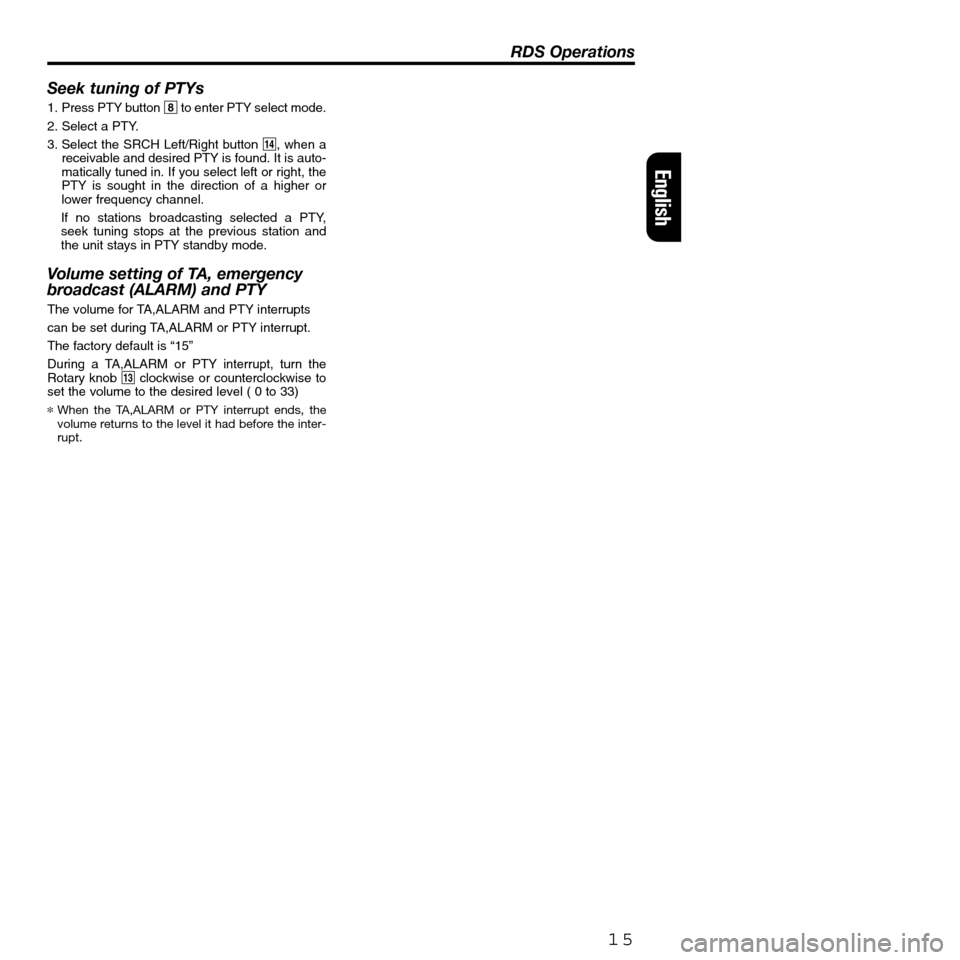

Seek tuning of PTYs
1. Press PTY button 8to enter PTY select mode.
2. Select a PTY.
3. Select the SRCH Left/Right button $, when a
receivable and desired PTY is found. It is auto-
matically tuned in. If you select left or right, the
PTY is sought in the direction of a higher or
lower frequency channel.
If no stations broadcasting selected a PTY,
seek tuning stops at the previous station and
the unit stays in PTY standby mode.
Volume setting of TA, emergency
broadcast (ALARM) and PTY
The volume for TA,ALARM and PTY interrupts
can be set during TA,ALARM or PTY interrupt.
The factory default is “15”
During a TA,ALARM or PTY interrupt, turn the
Rotary knob #clockwise or counterclockwise to
set the volume to the desired level ( 0 to 33)
*When the TA,ALARM or PTY interrupt ends, the
volume returns to the level it had before the inter-
rupt.
15
RDS Operations
English

CD mode
Loading a CD
Insert a CD into the centre of the CD insertion slot
4with the labeled side facing up.“LOADING”
appears in the display, the CD enters into the slot,
and the play starts.
Notes:
•Do not put your hand, fingers, or foreign objects
into the CD insertion slot 4.
•If a CD has already been loaded, another CD can-
not be inserted. Do not insert another one force-
fully.
•Discs not bearing the mark cannot be played
with the unit. CD-ROMs cannot be played.
•Some CDs recorded in CD-R mode may not be
usable. Even when recorded in CD-R/W mode,
some CDs not be usable.
•Single CDs (8 cm) shall be loaded without adapter
into the right side of the slot.
Listening to a CD already loaded
Press FNC button 3and select CD mode. Play
starts automatically.
If no CD is loaded, “NO DISC”appears in the dis-
play.
Pausing play
1. Press Play/pause button ¥to pause play.
“PAUS”appears in the display.
2. To resume play, press Play/pause button ¥
again.
Ejecting a CD
1. Press Eject button 5to eject CD. “EJECT”
appears in the display.
*If a CD is left in the ejected position for 15 sec-
onds, the CD is automatically reloaded (auto
reload).
*The radio mode is set automatically 4 seconds
after Eject button 5is pressed.
Note:
•Single CDs (8 cm) are not reloaded. Be sure to
remove them when ejected.
16
English
Scan indication
Reperat indicationRandom indication
CD Operations
For CD (12 cm)For single CD (8 cm)
CD insertion slot 4

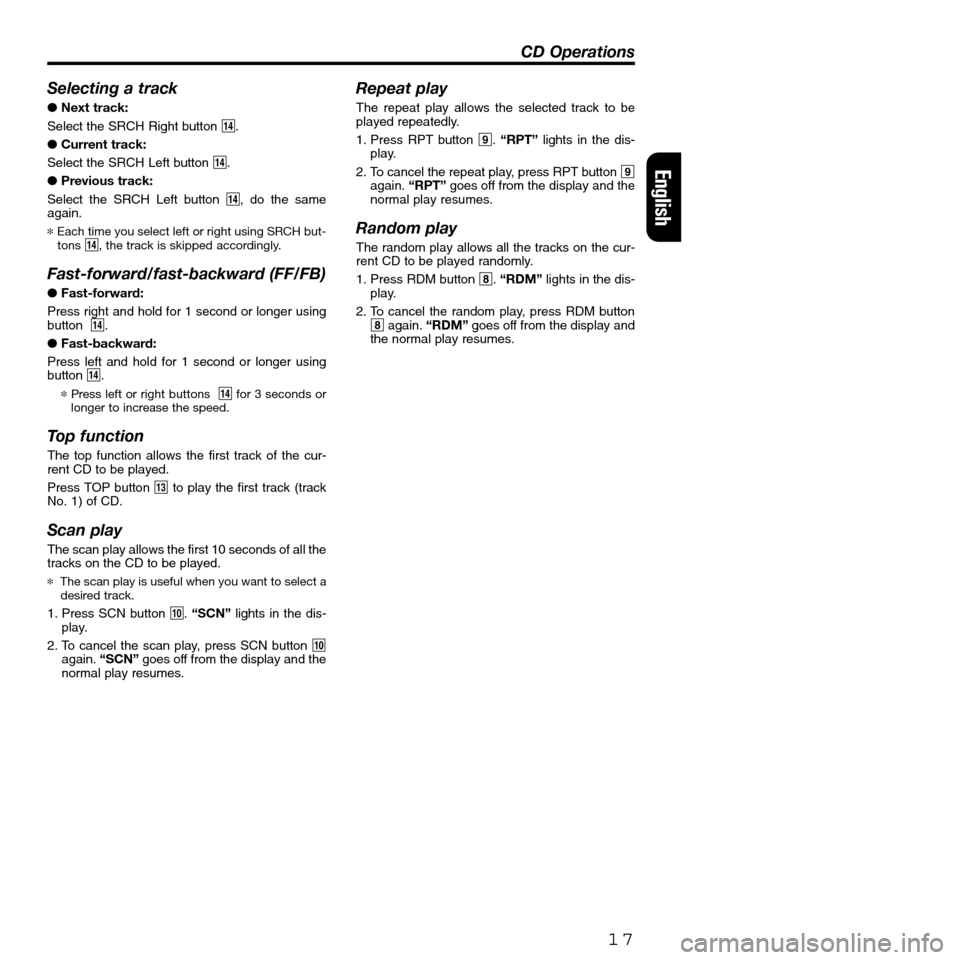

Selecting a track
●Next track:
Select the SRCH Right button $.
●Current track:
Select the SRCH Left button $.
●Previous track:
Select the SRCH Left button $, do the same
again.
*Each time you select left or right using SRCH but-
tons $, the track is skipped accordingly.
Fast-forward/fast-backward (FF/FB)
●Fast-forward:
Press right and hold for 1 second or longer using
button $.
●Fast-backward:
Press left and hold for 1 second or longer using
button $.
*Press left or right buttons $for 3 seconds or
longer to increase the speed.
Top function
The top function allows the first track of the cur-
rent CD to be played.
Press TOP button #to play the first track (track
No. 1) of CD.
Scan play
The scan play allows the first 10 seconds of all the
tracks on the CD to be played.
* The scan play is useful when you want to select a
desired track.
1. Press SCN button 0. “SCN”lights in the dis-
play.
2. To cancel the scan play, press SCN button 0
again. “SCN”goes off from the display and the
normal play resumes.
Repeat play
The repeat play allows the selected track to be
played repeatedly.
1. Press RPT button 9. “RPT”lights in the dis-
play.
2. To cancel the repeat play, press RPT button 9
again. “RPT”goes off from the display and the
normal play resumes.
Random play
The random play allows all the tracks on the cur-
rent CD to be played randomly.
1. Press RDM button 8. “RDM”lights in the dis-
play.
2. To cancel the random play, press RDM button
8again. “RDM”goes off from the display and
the normal play resumes.
17
CD Operations
English

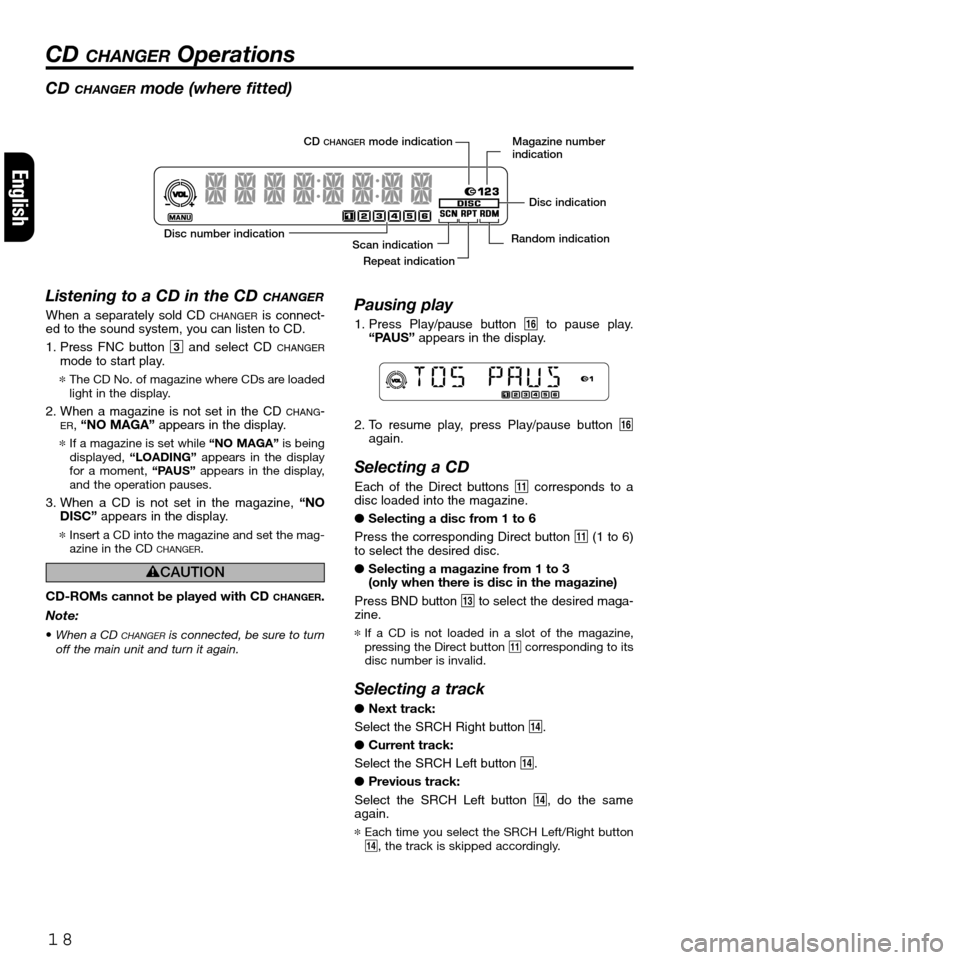

CD CHANGERmode (where fitted)
Listening to a CD in the CD
CHANGER
When a separately sold CDCHANGERis connect-
ed to the sound system, you can listen to CD.
1. Press FNC button 3and select CD
CHANGERmode to start play.
*The CD No. of magazine where CDs are loaded
light in the display.
2. When a magazine is not set in the CD CHANG-ER, “NO MAGA”appears in the display.
*If a magazine is set while “NO MAGA”is being
displayed,“LOADING”appears in the display
for a moment, “PAUS”appears in the display,
and the operation pauses.
3. When a CD is not set in the magazine, “NO
DISC”appears in the display.
*Insert a CD into the magazine and set the mag-
azine in the CD CHANGER.
CD-ROMs cannot be played with CD CHANGER.
Note:
•When a CD CHANGERis connected, be sure to turn
off the main unit and turn it again.
Pausing play
1. Press Play/pause button ¥to pause play.
“PAUS”appears in the display.
2. To resume play, press Play/pause button ¥
again.
Selecting a CD
Each of the Direct buttons !corresponds to a
disc loaded into the magazine.
●Selecting a disc from 1 to 6
Press the corresponding Direct button !(1 to 6)
to select the desired disc.
●Selecting a magazine from 1 to 3
(only when there is disc in the magazine)
Press BND button #to select the desired maga-
zine.
*If a CD is not loaded in a slot of the magazine,
pressing the Direct button !corresponding to its
disc number is invalid.
Selecting a track
●Next track:
Select the SRCH Right button $.
●Current track:
Select the SRCH Left button $.
●Previous track:
Select the SRCH Left button $, do the same
again.
*Each time you select the SRCH Left/Right button
$, the track is skipped accordingly.
18
CD CHANGEROperations
English
CD CHANGERmode indication
Random indicationDisc indication Magazine number
indication
éCAUTION
Disc number indication
Scan indication
Repeat indication

Fast-forward/fast-backward (FF/FB)
●Fast-forward:
Press and hold the SRCH Right button$for 1
second or longer.
●Fast-backward:
Press and hold the SRCH Left button $for 1 sec-
ond or longer.
* Press and hold the SRCH Left/Right button $
for 3 seconds or longer to increase the speed of
fast-forwarding or fast-backwarding.
Selecting a magazine
This function can be used only when the connect-
ed CD CHANGERcan store a multiple number of
magazines.
Every time the MAG button #is pressed, the
next magazine will be selected.
Top function
The top function allows the first track of the cur-
rent CD to be played.
Press TOP button #to play the first track (track
No. 1) of CD.
Scan play
The scan play allows the first 10 seconds of all the
tracks on the CD to be played.
* The scan play is useful when you want to select a
desired track.
1. Press SCN button 0“SCN”lights in the dis-
play.
2. To cancel the scan play, press SCN button 0
again. “SCN” goes off from the display and the
normal play resumes.
Disc scan play
The disc scan play allows the first 10 seconds of
the first tracks on all the CDs in the CD CHANGERto be played.
* The disc scan play is useful when you want to
select a desirable CD.
1. Press and hold SCN button 0for 2 seconds or
longer.“DISC”and “SCN”light in the display.
2. To cancel the disc scan play, press SCN button
0again. “DISC”and “SCN”go off from the
display and the normal play resumes.
Repeat play
The repeat play allows the selected track to be
played repeatedly.
1. Press RPT button 9.“RPT”lights in the dis-
play.
2. To cancel the repeat play, press RPT button 9
again.“RPT”goes off from the display and the
normal play resumes.
Disc repeat play
The disc repeat play allows the current CD to be
played repeatedly.
1. Press and hold RPT button 9for 2 seconds or
longer. “DISC”and “RPT”light in the display.
2. To cancel the disc repeat play, press RPT but-
ton 9again. “DISC”and “RPT”go off from
the display and the normal play resumes.
Random play
The random play allows all the tracks on the cur-
rent CD to be played randomly.
1. Press RDM button 8.“RDM”lights in the dis-
play.
2. To cancel the random play, press RDM button
8again. “RDM”goes off from the display and
the normal play resumes.
Disc random play
The disc random play allows all the tracks on all
the CDs in the CD CHANGERto be played random-
ly.
1. Press and hold RDM button 8for 2 seconds or
longer. “DISC”and “RDM” light in the display.
2. To cancel the disc random play, press RDM
button 8again.“DISC”and“RDM”go off
from the display and the normal play resumes.
Note:
•Regarding MD CHANGERS
When a MD CHANGERis used with this unit, set the
mode on the CHANGERto “A” (CD-Mode). The MDCHANGERcan then be used in the CD CHANGERmode. When used in this way, however, titles can-
not be displayed. Also, a CD CHANGERcannot be
connected concurrently with a MD CHANGER.
19
CD CHANGEROperations
English

20

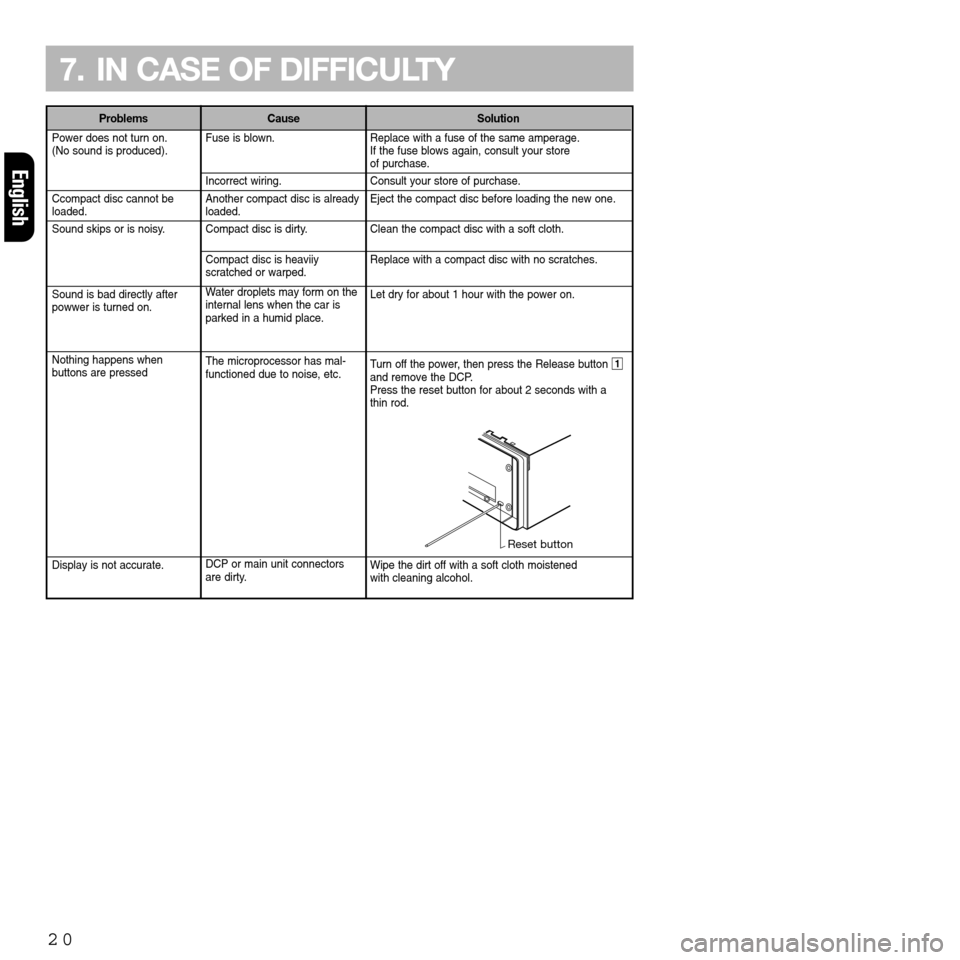

7. IN CASE OF DIFFICULTY
English
Power does not turn on.
(No sound is produced).
Ccompact disc cannot be loaded.
Sound skips or is noisy.
Sound is bad directly after
powwer is turned on.
Nothing happens when
buttons are pressed
Display is not accurate.Replace with a fuse of the same amperage.
If the fuse blows again, consult your store
of purchase.
Consult your store of purchase.
Eject the compact disc before loading the new one.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Let dry for about 1 hour with the power on.
Turn off the power, then press the Release button 1
and remove the DCP.
Press the reset button for about 2 seconds with a
thin rod.
Wipe the dirt off with a soft cloth moistened
with cleaning alcohol. Problems Cause Solution
Fuse is blown.
Incorrect wiring.
Another compact disc is already
loaded.
Compact disc is dirty.
Compact disc is heaviiy
scratched or warped.
Water droplets may form on the
internal lens when the car is
parked in a humid place.
The microprocessor has mal-
functioned due to noise, etc.
DCP or main unit connectors
are dirty.
Reset button
