FIAT STILO 2005 1.G Radio Manual

70 Nero Testo 603.46.306 Radio Stilo gb

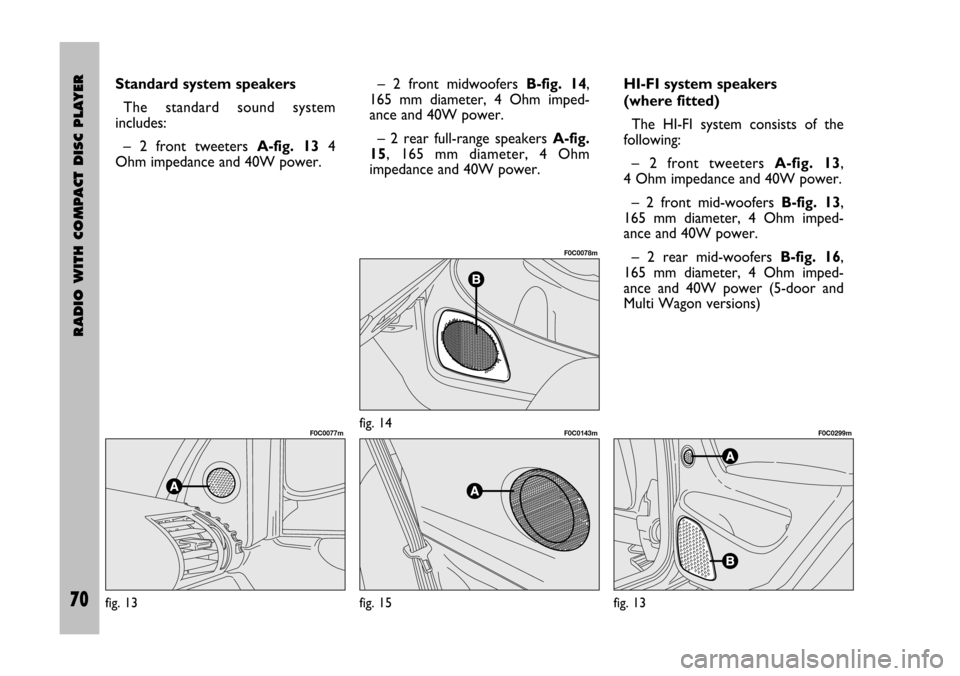

RADIO WITH COMPACT DISC PLAYER
70
– 2 front midwoofers B-fig. 14,
165 mm diameter, 4 Ohm imped-
ance and 40W power.
– 2 rear full-range speakers A-fig.
15, 165 mm diameter, 4 Ohm
impedance and 40W power.HI-FI system speakers
(where fitted)
The HI-FI system consists of the
following:
– 2 front tweeters A-fig. 13,
4 Ohm impedance and 40W power.
– 2 front mid-woofers B-fig. 13,
165 mm diameter, 4 Ohm imped-
ance and 40W power.
– 2 rear mid-woofers B-fig. 16,
165 mm diameter, 4 Ohm imped-
ance and 40W power (5-door and
Multi Wagon versions)
fig. 13
F0C0299mfig. 14
F0C0078m
fig. 15
F0C0143m
Standard system speakers
The standard sound system
includes:
– 2 front tweeters A-fig. 134
Ohm impedance and 40W power.
fig. 13
F0C0077m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 70

RADIO WITH COMPACT DISC PLAYER
71 Nero- Testo 603.46.306 Radio Stilo gb
71
– 2 rear tweeters A-fig. 16, 4 Ohm
impedance and 40W power (5-door
and Multi Wagon versions)
– 2 rear full-range speakers A-fig.
15, 165 mm diameter, 4 Ohm
impedance and 40W power (3-door
versions)
– 1 box subwoofer C-fig. 17set in
the boot, with 100W built-in amplifi-
er
Protection fuse
The radio has a 10A protection
fuse D-fig. 18.
fig. 17
F0C0135m
fig. 18
F0C0028m
Power
CONNECTIONSA-fig. 18
A1CAN B line signal
A2Amplified subwoofer pres-
ence signal
A3CAN A line signal
A4Connection to +12V switch-
ing on voltage (at car starting)
A5Radio aerial connection
A6Not connected
A7Connection to +12V (perma-
nent) supply voltage
A8Earth connection.Speakers CONNECTIONSB-fig. 18
B1Rear speaker
(right +)
B2Rear speaker
(right –)
B3Front speaker
(right +)
B4Front speaker
(right –)
B5Front speaker
(left +)
B6Front speaker
(left –)
B7Rear speaker
(left +)
B8Rear speaker
(left –)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 71

72 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
72
Additional connections
CONNECTIONSC-fig. 18
Line outputconnection preset-
ting for power amplifier (Booster) or
active speaker.
C1Positive sound input for
external TMC module
C2Negative sound input for
external TMC module
C3MUTE signal input from
external TMC module
C4Not connected
C5Not connected
C6Power amplifier switching
voltage: on/off (max. 0.3A).
PHONE INPUT
Connection presetting for hands-
free phone kit (through radio).
C7Positive sound input for
external phone presetting
C8Negative sound input for
external phone presetting
C9MUTE signal from external
phone presetting
C10Not Connected
C11Not Connected
C12Phone earth
CD CHANGER CONNECTION
C13CDC bus line
C14CD Changer data bus
C15CD Changer +12V supply
voltage
C16CD Changer switch voltage
C17CDC bus earth
C18Sound signal earth from CD
Changer
C19LH CDC sound channel
C20RH CDC sound channel
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 72

RADIO WITH CD AND MP3 PLAYER
73 Nero Testo 603.46.306 Radio Stilo gb
73
R R R R
A A A A
D D D D
I I I I
O O O O

W W W W
I I I I
T T T T
H H H H

C C C C
D D D D

A A A A
N N N N
D D D D

M M M M
P P P P
3 3 3 3

P P P P
L L L L
A A A A
Y Y Y Y
E E E E
R R R R

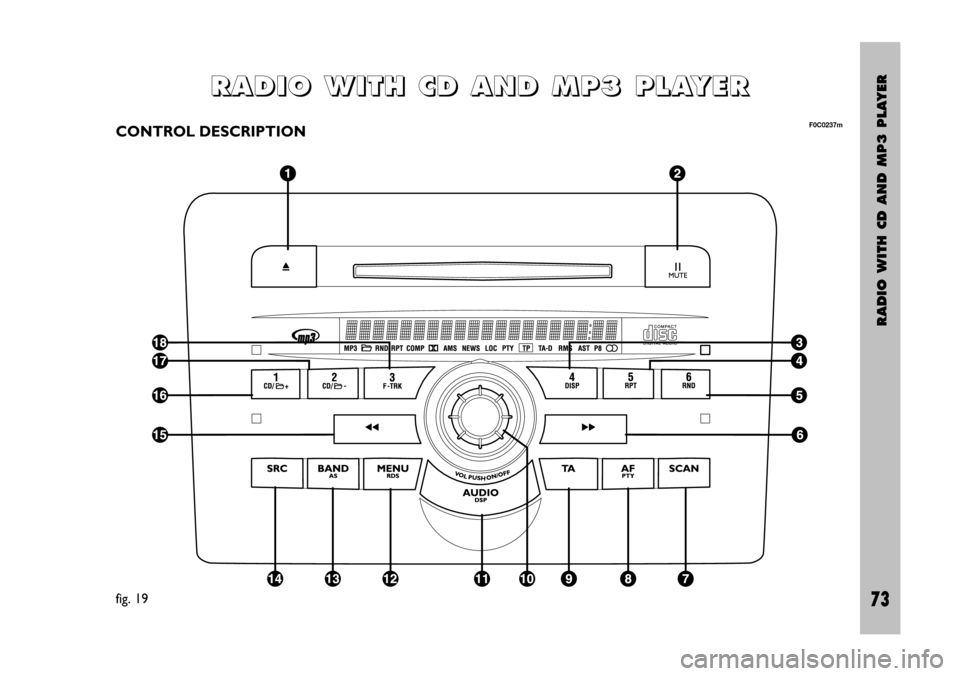

CONTROL DESCRIPTION
fig. 19
F0C0237m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 73

74 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CD AND MP3 PLAYER
74
Button RADIO Mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Buttons and front panel Function
1
2
3
4
5
6
7
8
9
10
11FM/AM: store preset station 4
PTY: store programme
FM/AM: store preset station 5
PTY:store programme
FM/AM: store preset station 6
PTY: store programme
Automatic scanning of stations tunable
on the band in use
Select programme type
PTY: displays selected programme type
Adjusting TA volume
Access to Equalizer function
˚
11 MUTE
4 DISP
5 RPT
6 RND
>>
SCAN
AF PTY
TA
VOL PUSH ON/OFF
AUDIO DSPEject
Mute
Preset station 4
Preset station 5/
track repetition
Preset station 6
Next forward
Automatic scanning
Alternative frequency/Programme Type
Traffic information
Radio ON/OFF
Volume adjustment
Sound settingsEject (CD)
Audio Mute
FM/AM/PTY:call preset station 4
FM/AM/PTY:call preset station 5
FM/AM/PTY:call preset station 6
FM: Seek + / MAN +
AM: Seek + / MAN +
PTY: Select next programme/ automatic
search (inside the programme)
Automatic scanning of stations
on the band in use
AF ON/OFF
TA ON/OFF
ON/OFF: press
volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 74

CD/MP3 Mode
Brief pressing Pressing over 2 sec.CD CHANGERMode
Brief pressing Pressing over 2 sec.
Message setting on display
Fast forward (continuous) with
display of folder number and track
number and title
Adjusting TA volume
Access to Equalizer functionEject (CD)
Playing Pause / Audio Mute
CD track repetition ON/OFF
Random CD track repetition ON/OFF
Select next track
Automatic scanning of tracks on the CD
TA ON/OFF
ON/OFF: press
Volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)Fast forward (continuous)
Adjusting TA volume
Access to Equalizer function
RADIO WITH CD AND MP3 PLAYER
75 Nero Testo 603.46.306 Radio Stilo gb
75
Eject (CD)
Playing Pause/Audio Mute
Displaying of file name, folder number and
name, singer, album, track
MP3 track repeating ON/OFF, repeating of
MP3 tracks contained in the folder or
repeating of the whole CD/MP3
MP3 random track repeating or random
repeating of MP3 tracks contained in the
folder
Select next track
Automatic scanning of tracks on the CD
TA ON/OFF
ON/OFF: press
Volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 75

76 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CD AND MP3 PLAYER
76
RADIO Mode
Brief pressing Pressing over 2 sec.Button Buttons and front panel
Letters or symbol Function
12
13
14
15
16
17
18RDS Clock display
Audio Clip Detect ON/OFF
Automatic search ON/OFF
Phone volume adjustment ON/OFF
Max. radio volume at switching on
Store automatically in preset station
group.
Exit on FMAST.P1 or AMAST.P1
FM/AM: store preset station 1
PTY: store programme
FM/AM: store preset station 2
PTY: store programme
FM/AM: store preset station 3
PTY: store programme MENU RD
BAND AS
SRC
<<
1 CD / *+
2 CD / *–
3 F-TRKMenu function
Select frequency band
Select source
Previous backward
Preset station 1
Preset station 2
Preset station 3Manual station tuning ON/OFF
NEWS ON/OFF
Function confirmation beep ON/OFF
(BEEP)
SENS DX/LO
SVC (Speed Volume)
Loudness ON/OFF
EON TA ON
CD Compression
TPM (Track Program Memory)
CD Naming
FM1,FM2,FM3,FMAST, LW,MW,AMAST
TAPE (Cassette), RADIO, CD Changer
(if connected)
FM: Seek – / MAN –
AM: Seek – / MAN –
PTY: Select next programme / automatic
search (inside the programme)
FM/AM/PTY:call preset station 1
FM/AM/PTY: call preset station 2
FM/AM/PTY: call preset station 3
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 76

RADIO WITH CD AND MP3 PLAYER
77 Nero Testo 603.46.306 Radio Stilo gb
77
CD/MP3 Mode
Brief pressing Pressing over 2 sec.CD CHANGERMode
Brief pressing Pressing over 2 sec.
RDS Clock display
Audio Clip Detect ON/OFF
Select previous track
Phone volume adjustment ON/OFF
Max. radio volume at witching on
Fast backward (continuous)NEWS ON/OFF
Function confirmation beep ON/OFF (BEEP)
SVC (SPEED VOLUME)
Loudness ON/OFF
EDN/TA ON DX/LO
Cd Compression
TPM (Track Program Memory)
Exit CD mode
Insert tuner in last band
CD, RADIO, CD Changer (if connected)
Select previous track
CD +
CD –RDS clock display
Audio Clip Detect ON/OFF
Set radio switching on mode
Phone volume adjustment ON/OFF
Max. radio volume at witching on.
Fast backward (continuous)
NEWS ON/OFF
Function confirmation beep ON/OFF (BEEP)
SVC (SPEED VOLUME)
LOUDNESS ON/OFF
EDN/TA ON
CD Compression
ON/OFF track/folder name scroll (NAME
SCROLL) or single scroll of the folder name
(ONCE)
Exit CD mode
Insert tuner in last band
CD, RADIO CD Changer (if connected)
Select previous track
Next folder selection
Previous folder selection
Quick CD track and/or folder selection
(function controlled through the button/knob
10 (VOL PUSH ON/OFF)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 77

78 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CD AND MP3 PLAYER
78
INTRODUCTION
As far as Radio, Compact Disc and
Cd Changer are concerned, please re-
fer to the chapter
RADIO WITH COM-
PACT DISC PLAYER.
As for the MP3 player, read the fol-
lowing indications.
MPEG Layer-3 audio decoding
technology licensed from Fraunhofer
IIS and Thomson multimedia.
MP3 PLAYER
Besides a normal CD reproduction,
the sound system can reproduce also
CD ROM in which compressed files
have been recorded in MP3 format. It
operates as a normal system with
Compact Disc player when a CD is in-
serted, except for the
TRACK NAM-
ING/SELECTION(TPM) and CD NAMING
(see previous chapter RADIO WITH
COMPACT DISC PLAYER
) modes, that are
deactivated.CD/MP3 reading
When a CD-ROM is inserted in the
magazine, two operations will be car-
ried out:
1)Scanning of the tracks inside the
CD for the file audio detection. The
audio tracks are the first to be de-
tected and this means that the sound
system plays only these ones. The
song name with a flashing indication
“SCAN” is shown on the display (ex.
“MIDNIGHT MOTION SCAN”).
2) Reading of the MP3 tracks to de-
termine the song and folder structure.
The indication “READING DISC” is
shown on the display at this stage. It
takes about 2 minutes to read a com-
plex MP3 structure (made of several
sessions with many folders and songs)
on a CD-ROM.
To guarantee optimum playing, use
top quality CDs duplicated at as low
as possible speed.The CD-ROM reading will be termi-
nated in the following cases:
– In case of a correct CD-ROM read-
ing and MP3 track identification. In this
case “MP3” appears on the display
and the playing starts from the first
track and the first folder (see next
paragraph
PLAY MODE).
– In case the CD-ROM reading is not
ended after 2 minutes. “CHECK
DISC” appears on the display for
about 5 seconds. In this case the sound
system changes its audio source and
goes back to TUNERmode.
– If MP3 is not found. In this case
“NO MP3 FILES” appears on the
display for about 5 seconds. The sys-
tem changes its audio source and goes
back to TUNERmode.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 78

RADIO WITH CD AND MP3 PLAYER
79 Nero Testo 603.46.306 Radio Stilo gb
79
Play mode
During a CD-ROM playing where
MP3 tracks have been recorded, the
sound system display will indicate the
song title and its playing time (ex.
“MIDNIGHT MOTION 4:37”).
The following operations can be car-
ried out while playing:
– single or continuous scroll on the
song title
– ascending or descending scroll
through the tracks in single, continu-
ous or multiple mode.
– ascending or descending scroll
through the folders (see next para-
graph
FOLDER STRUCTURE).DISP
Function enabling to change displayed
settings of the various info present on
CD (e.g.: tracks, folder, singer's name,
album title, etc.). This function is acti-
vated by pressing button 3(4 DISP)
for over 2 seconds, then use the but-
ton/knob 10(VOL PUSH ON/OFF)
to select the required display setting.
In MP3 the sound system:
– plays only the MP3 tracks
– plays the tracks in an alphabetic/nu-
merical order for any folder (ordered
according to the same way) (it is bet-
ter to place a number, for ex. “01”,
“02” or “001” “002” before each file
name)
– comes back to the beginning of the
last track each time the radio is
switched on.
During the track selection (see the
paragraph
TRACK SELECTION(FOR-
WARD/BACKWARD) the folder number,
the song number and title will be dis-
played (ex. “3/13 MIDNIGHT MO-
TION“).The sound system accumulates the
number of pressures on the preselec-
tion buttons (from 1to 6) to make
easier the selection, and it skips only
once, as it was a single request.
IMPORTANTMP3 tracks record-
ed with the variable bit speed method
may cause differences in the playing
time indicated on the display.
IMPORTANTThe CD player can
read most of the compression systems
currently on sale (e.g.: LAME, BLADE,
XING, FRAUNHOFER); however,
due to the evolution of these systems,
reading of all compression formats is
not guaranteed.
Folder structure
The sound system with MP3 player:
– recognizes only the folders con-
taining MP3 files
– if the CD-ROM MP3 files contain
several “sub-folders”, their structure
become a single-level one, that is the
“sub-folders” become main folders
(see the following example).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 79
