RADIO WITH COMPACT DISC PLAYER
50

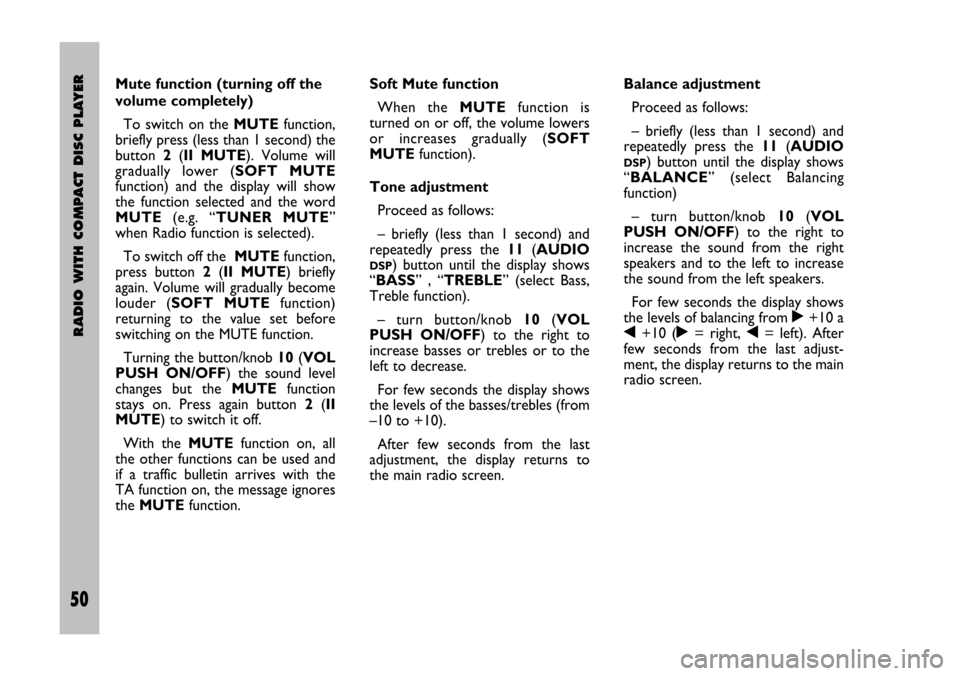

Mute function (turning off the
volume completely)
To switch on the MUTEfunction,
briefly press (less than 1 second) the
button2(II MUTE). Volume will
gradually lower (SOFT MUTE
function) and the display will show
the function selected and the word
MUTE(e.g. “TUNER MUTE”
when Radio function is selected).
To switch off the MUTEfunction,
press button 2(II MUTE) briefly
again. Volume will gradually become
louder (SOFT MUTE function)
returning to the value set before
switching on the MUTE function.
Turning the button/knob 10(VOL
PUSH ON/OFF) the sound level
changes but the MUTEfunction
stays on. Press again button 2(II
MUTE) to switch it off.
With the MUTEfunction on, all
the other functions can be used and
if a traffic bulletin arrives with the
TA function on, the message ignores
the MUTEfunction.Soft Mute function
When the MUTEfunction is
turned on or off, the volume lowers
or increases gradually (SOFT
MUTEfunction).
Tone adjustment
Proceed as follows:
– briefly (less than 1 second) and
repeatedly press the 11(AUDIO
DSP) button until the display shows
“BASS” , “TREBLE” (select Bass,
Treble function).
– turn button/knob 10(VOL
PUSH ON/OFF) to the right to
increase basses or trebles or to the
left to decrease.
For few seconds the display shows
the levels of the basses/trebles (from
–10 to +10).
After few seconds from the last
adjustment, the display returns to
the main radio screen.Balance adjustment
Proceed as follows:
– briefly (less than 1 second) and
repeatedly press the 11(AUDIO
DSP) button until the display shows
“BALANCE” (select Balancing
function)
– turn button/knob 10(VOL
PUSH ON/OFF) to the right to
increase the sound from the right
speakers and to the left to increase
the sound from the left speakers.
For few seconds the display shows
the levels of balancing from ˙+10 a
¯+10 (˙= right, ¯= left). After
few seconds from the last adjust-
ment, the display returns to the main
radio screen.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 50

RADIO WITH COMPACT DISC PLAYER
51 Nero- Testo 603.46.306 Radio Stilo gb
51

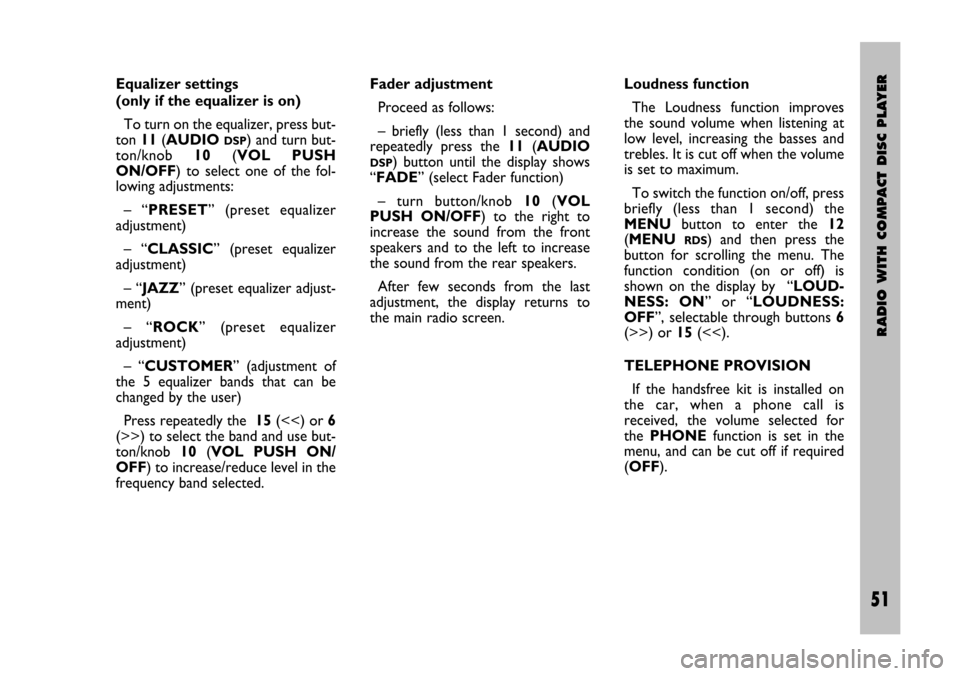

Equalizer settings
(only if the equalizer is on)
To turn on the equalizer, press but-
ton 11(AUDIO
DSP) and turn but-
ton/knob 10(VOL PUSH
ON/OFF) to select one of the fol-
lowing adjustments:
– “PRESET” (preset equalizer
adjustment)
– “CLASSIC” (preset equalizer
adjustment)
– “JAZZ” (preset equalizer adjust-
ment)
– “ROCK” (preset equalizer
adjustment)
– “CUSTOMER” (adjustment of
the 5 equalizer bands that can be
changed by the user)
Press repeatedly the 15 (<<) or 6
(>>) to select the band and use but-
ton/knob 10(VOL PUSH ON/
OFF) to increase/reduce level in the
frequency band selected.Fader adjustment
Proceed as follows:
– briefly (less than 1 second) and
repeatedly press the 11 (AUDIO
DSP) button until the display shows
“FADE” (select Fader function)
– turn button/knob 10(VOL
PUSH ON/OFF) to the right to
increase the sound from the front
speakers and to the left to increase
the sound from the rear speakers.
After few seconds from the last
adjustment, the display returns to
the main radio screen.Loudness function
The Loudness function improves
the sound volume when listening at
low level, increasing the basses and
trebles. It is cut off when the volume
is set to maximum.
To switch the function on/off, press
briefly (less than 1 second) the
MENUbutton to enter the 12
(MENU
RDS) and then press the
button for scrolling the menu. The
function condition (on or off) is
shown on the display by “LOUD-
NESS: ON” or “LOUDNESS:
OFF”, selectable through buttons 6
(>>) or 15 (<<).
TELEPHONE PROVISION
If the handsfree kit is installed on
the car, when a phone call is
received, the volume selected for
the PHONEfunction is set in the
menu, and can be cut off if required
(OFF).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 51

52 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
52
RADIO (Tuner) fig. 9
When the set is turned on the last
function selected before turning off
is played (Radio, Compact Disc or
CD Changer).
To select the Radio source while
listening to a Compact Disc, press
briefly (less than 1 second) and
repeatedly the 14(SRC) button
until this function is selected.
If in the radio source, press briefly
(less than 1 second) and repeatedly
the 13(BAND
AS) button to select
the required reception band.
Every time the button 13(BAND
AS) is pressed, the following bands
are selected in sequence: “FM1”,
FM2”, “FM3”, “FM4AST”, “LW”,
“MW” and “AMAST”
The FMband is divided into sec-
tions: FM1, FM2, FM3and
FMAST. The FMAST section is
reserved to the stations stored auto-
matically with the AutoSTorefunc-
tion.The “FMAST” section is reserved
to the stations stored automatically
with the AutoSTorefunction.
The AMband is divided into sec-
tions: MW, LWand AMAST. The
AMASTsection is reserved to the
stations stored automatically with
the AutoSTorefunction.
The radio is always ready to
receive stations in the RDS mode
(Radio Data System).
Presetting buttons
The buttons with symbols from 1
to 6 (“3”, “4”, “5”, “16”, “17, “18”)
make it possible to set the following
presettings:
– 24 in the FM band( 6 in FM 1, 6 in
FM 2, 6 in FM 3, 6 in FMAST)
– 6 in the LW band
– 6 in the MW band
– 6 in the AMAST bandTo call a preset station, choose the
required frequency band and then
press briefly (less than 1 second) the
corresponding preset button (from 1
to 6). The display will show the
name, the frequency and the preset-
ting number.
Storing the last station heard
The radio automatically keeps in
storage the last station heard for
each reception band, which is then
tuned when the radio is turned on or
the reception band is changed.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 52

RADIO WITH COMPACT DISC PLAYER
53 Nero- Testo 603.46.306 Radio Stilo gb
53

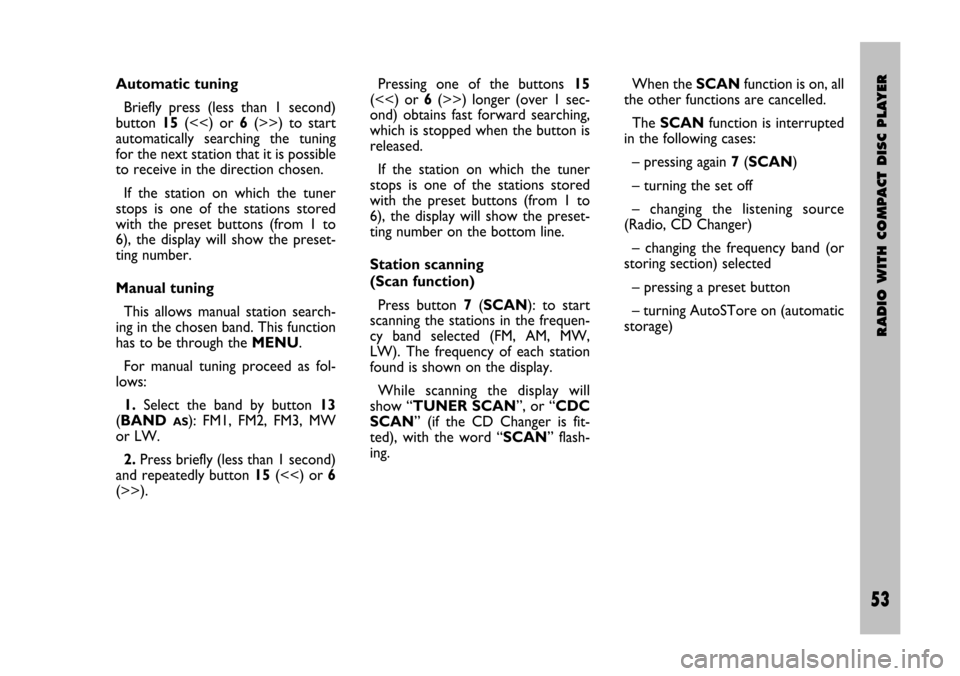

Automatic tuning
Briefly press (less than 1 second)
button 15(<<) or 6(>>) to start
automatically searching the tuning
for the next station that it is possible
to receive in the direction chosen.
If the station on which the tuner
stops is one of the stations stored
with the preset buttons (from 1 to
6), the display will show the preset-
ting number.
Manual tuning
This allows manual station search-
ing in the chosen band. This function
has to be through the MENU.
For manual tuning proceed as fol-
lows:
1.Select the band by button 13
(BAND
AS): FM1, FM2, FM3, MW
or LW.
2.Press briefly (less than 1 second)
and repeatedly button 15(<<) or 6
(>>).Pressing one of the buttons 15
(<<) or 6(>>) longer (over 1 sec-
ond) obtains fast forward searching,
which is stopped when the button is
released.
If the station on which the tuner
stops is one of the stations stored
with the preset buttons (from 1 to
6), the display will show the preset-
ting number on the bottom line.
Station scanning
(Scan function)
Press button 7 (SCAN): to start
scanning the stations in the frequen-
cy band selected (FM, AM, MW,
LW). The frequency of each station
found is shown on the display.
While scanning the display will
show “TUNER SCAN”, or “CDC
SCAN” (if the CD Changer is fit-
ted), with the word “SCAN” flash-
ing.When the SCANfunction is on, all
the other functions are cancelled.
The SCANfunction is interrupted
in the following cases:
– pressing again 7(SCAN)
– turning the set off
– changing the listening source
(Radio, CD Changer)
– changing the frequency band (or
storing section) selected
– pressing a preset button
– turning AutoSTore on (automatic
storage)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 53

54 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
54
Scanning preset stations
Press the 7 (SCAN)button for at
least 2 seconds to start scanning the
preset stations in the present fre-
quency band;
– FM:FM 1, FM 2, …., FM II 1, FM
II 2,… FM III 1, FM III 2,… FMAST 1,
FMAST 2,….
– AM:MW 1, MW 2, …. MW 6,
LW 1, LW 2, …. LW 6, AMAST 1,
AMAST 2,…
Each preset station will be heard
for few seconds and its frequency
shown on the display.
The preset station SCANfunction
is interrupted in the following cases:
– pressing again 7(SCAN)
– turning the set off
– pressing a preset button
– turning AutoSTore on (automatic
storage)
– changing the listening source
(Radio, CD Changer)
– changing the FM level or frequen-
cy band selectedManual station storage
The station being heard can be
stored in the range selected with
buttons numbered from 1 to 6.
Keep one of these buttons (from 1
to 6) pressed. After storage, the dis-
play shows the number of the button
with which the station has been
stored and a confirmation beep
sounds.
AutoSTore function
(automatic station storage)
To switch on the AutoSTore func-
tion, keep the13(BAND
AS) but-
ton pressed. With this function the
radio automatically stores the sta-
tions with the strongest signal in
decreasing order of intensity of the
FMAST frequency band.
IMPORTANT Activating the
AutoSTore function cancels the sta-
tions stored previously in the
FMAST band.During automatic storage the dis-
play shows “TUNER FMAST” or
“TUNER AMAST” if in the
TUNER mode (Radio) with FM or
AM frequency bands. To interrupt
the storage process, press the 13
(BAND
AS) button again: the radio
will automatically tune to the station
heard before activation of the
AutoSTorefunction.
Listening to stored stations
Proceed as follows:
– select the required frequency
band and the storing section (FM1,
FM2, FM3, FMAST, MW, LW,
AMAST);
– briefly press (less than 1 second)
one of the six station storage but-
tons.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 54

RADIO WITH COMPACT DISC PLAYER
55 Nero- Testo 603.46.306 Radio Stilo gb
55
The display will show the station
name (if any) and frequency, and on
the bottom line of the display will be
shown “Pn” where ncorresponds
to the active presetting number.
In bands FM1, FM2 and FM3 if
reception is poor and the AF alter-
native frequency search function is
active, the station with the strongest
signal that is broadcasting the same
programme will be sought automati-
cally.
AF function
(alternative frequency search)
To turn on/off the alternative fre-
quency search function (AF func-
tion), press briefly (less than 1 sec-
ond) the 8(AF PTY) button. The
name RDS (if available) stays on the
display and if the AF function has
been turned on the message AF
SWITCHING: ONis displayed.
– “AF SWITCHING: ON”=
alternative frequency search on
– “AF SWITCHING: OFF” =
alternative frequency search off.When the signal of the RDS station
tuned weakens, the following two
cases may occur:
– With “AF SWITCHING:ON”
the RDS system activates automatic
tuning of the optimum frequency of
the station chosen, with the stations
enabled, therefore the radio is auto-
matically tuned to the station with
the strongest signal that is broadcast-
ing the same programme. During the
journey it will thus be possible to
continue listening to the station cho-
sen without having to change the fre-
quency when changing area. Of
course, the station being listened to
must be receivable in the area the car
is crossing.
– With “AF SWITCHING: OFF”
the radio will not tune the strongest
station automatically and it will have
to be found manually using the tuner
buttons.TA function
(traffic information)
Certain stations in the FM band (in
FM1, FM2, FM3 and FMAST storing
sections) are enabled to also broad-
cast information about traffic condi-
tions. When listening to traffic infor-
mation the display shows “TRAF-
FIC INFO” and the current station
(e.g. station name) alternately.
To turn the TA (traffic information)
function on/off, briefly press (less
than 1 second) the 9(TA) button. If
the function is on the display shows
“TA-ON”.
With the TAfunction on, at the
start of the traffic bulletin the radio
stops temporarily the current sta-
tion or the CD in order to broadcast
traffic information. This is possible
only if the current station selected
and the station broadcasting traffic
information are connected for the
EONfunction.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 55

56 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
56
Program Type function (PTY)
(selecting a type of programme)
Many radio stations offer, in the FM
range (FM1, FM2, FM3), the type of
programme (PTY) service. For
example, stations broadcasting infor-
mation/news will display “NEWS”
as PTY code.
With the PTY function, a search fil-
ter is activated that enables tuning
only on the stations broadcasting
programmes with preset PTY code
(e.g. “POP”).
To turn on the PTY function, keep
button 8(AF
PTY) pressed.
The types of programmes offered
by a radio station can change accord-
ing to broadcasting:
NEWS News and magazine
AFFAIRS Politics and news
INFO Special information
programmes
SPORT Sport programmes
EDUCATE Education
DRAMA Radio dramas and
literatureCULTURE Culture and
religion
SCIENCE Science
VARIED Variety
POP M Pop music (hits)
ROCK M Rock music
EASY M Easy music
LIGHT M Light classic music
CLASSICS Classic music
OTHER M Other music
(e.g. folk)
WEATHER Weather report
FINANCE Finance news
CHILDREN Child’s programmes
SOCIALSocial information
RELIGION Religion and philos-
ophy
PHONE IN Listener’s calls (other
than “
PHONE IN” func-
tion active only with
handsfree kit connec-
tion for cell phone)TRAVELTourist’s
information
LEISURE Free time and
hobbies
JAZZ Jazz
COUNTRY Country music
NATION M National
broadcasting
OLDIES Golden Oldies
FOLK M Folk music
DOCUMENT Special reports
Automatic PTY select
To select a type of programme
through this function select a pro-
gramme type in the stored list and
then start the automatic search as
described in the following para-
graphs.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 56

RADIO WITH COMPACT DISC PLAYER
57 Nero- Testo 603.46.306 Radio Stilo gb
57

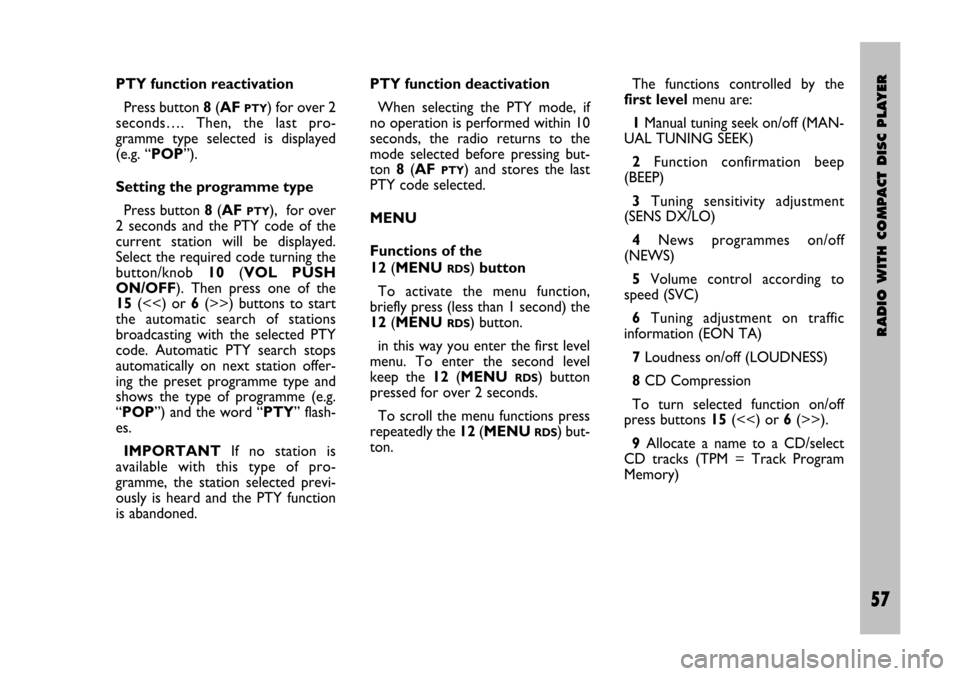

PTY function reactivation
Press button8(AF
PTY) for over 2
seconds…. Then, the last pro-
gramme type selected is displayed
(e.g. “POP”).
Setting the programme type
Press button 8(AF
PTY), for over
2 seconds and the PTY code of the
current station will be displayed.
Select the required code turning the
button/knob 10(VOL PUSH
ON/OFF). Then press one of the
15(<<) or 6(>>) buttons to start
the automatic search of stations
broadcasting with the selected PTY
code. Automatic PTY search stops
automatically on next station offer-
ing the preset programme type and
shows the type of programme (e.g.
“POP”) and the word “PTY” flash-
es.
IMPORTANTIf no station is
available with this type of pro-
gramme, the station selected previ-
ously is heard and the PTY function
is abandoned.PTY function deactivation
When selecting the PTY mode, if
no operation is performed within 10
seconds, the radio returns to the
mode selected before pressing but-
ton 8 (AF
PTY) and stores the last
PTY code selected.
MENU
Functions of the
12(MENU
RDS)button
To activate the menu function,
briefly press (less than 1 second) the
12(MENU
RDS) button.
in this way you enter the first level
menu. To enter the second level
keep the 12(MENU
RDS) button
pressed for over 2 seconds.
To scroll the menu functions press
repeatedly the 12(MENU
RDS) but-
ton.The functions controlled by the
first levelmenu are:
1Manual tuning seek on/off (MAN-
UAL TUNING SEEK)
2Function confirmation beep
(BEEP)
3Tuning sensitivity adjustment
(SENS DX/LO)
4News programmes on/off
(NEWS)
5Volume control according to
speed (SVC)
6Tuning adjustment on traffic
information (EON TA)
7Loudness on/off (LOUDNESS)
8CD Compression
To turn selected function on/off
press buttons15(<<) or6(>>).
9Allocate a name to a CD/select
CD tracks (TPM = Track Program
Memory)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 57

58 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
58
The functions controlled by the
second levelmenu are:
1Current RDS station time display
(if any)
2audio distortion clipper on/off
(AUDIO CLIP DETECT)
3Max. volume setting at switching
on (MAX VOLUME)
4Phone volume adjustment func-
tion (PHONE)
5AUTO setting selection through
which radio on/off depends on
engine starting/stopping.
To turn the selected function on/off
press button/knob 10(VOL PUSH
ON/OFF).
NOTEWhen passing to next set-
ting item, the previous set one is
stored.
ADJUSTMENTS
First level menu functions
1 - manual tuning seek on/off
(TUNING SEEK)
This function enables to search
manually (MANUAL) or automatical-
ly (AUTO) the stored stations.To switch from manual to automat-
ic press buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “TUNING SEEK: AUTO”:
automatic seek on
– “TUNING SEEK: MANUAL”:
manual seek on.
2 - function confirmation beep
(BEEP)
System is fitted with the BEEP
function (the display shows
“ROGER BEEP-ON”).
This function confirms button
pressing by a sound indication
(BEEP).
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “ROGER BEEP: ON” = func-
tion on
– “ROGER BEEP: OFF” = func-
tion off.3 - tuner sensitivity adjustment
(SENS DX/LO)
With this function it is possible to
change the sensitivity of automatic
station searching. When low sensi-
tivity is set “SENSITIVITY:
LOCAL” only stations with excel-
lent reception are sought; when high
sensitivity is set “SENSITIVITY:
DISTANT” all stations are sought.
Therefore, if the car is in an area
with a considerable number of sta-
tions and you want to choose only
those with a strong signal, set to low
sensitivity “SENSITIVITY:
LOCAL”.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “SENSITIVITY: LOCAL” =
low sensitivity
– “SENSITIVITY: DISTANT” =
high sensitivity.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 58

RADIO WITH COMPACT DISC PLAYER
59 Nero- Testo 603.46.306 Radio Stilo gb
59

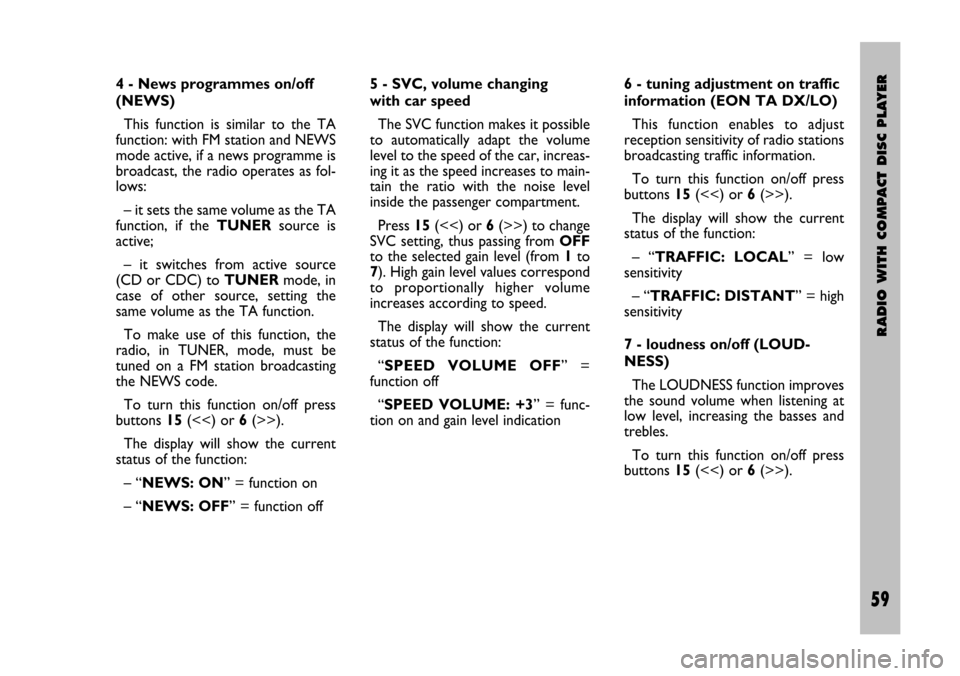

4 - News programmes on/off
(NEWS)
This function is similar to the TA
function: with FM station and NEWS
mode active, if a news programme is
broadcast, the radio operates as fol-
lows:
– it sets the same volume as the TA
function, if the TUNERsource is
active;
– it switches from active source
(CD or CDC) to TUNERmode, in
case of other source, setting the
same volume as the TA function.
To make use of this function, the
radio, in TUNER, mode, must be
tuned on a FM station broadcasting
the NEWS code.
To turn this function on/off press
buttons 15 (<<) or 6 (>>).
The display will show the current
status of the function:
– “NEWS: ON” = function on
– “NEWS: OFF” = function off5 - SVC, volume changing
with car speed
The SVC function makes it possible
to automatically adapt the volume
level to the speed of the car, increas-
ing it as the speed increases to main-
tain the ratio with the noise level
inside the passenger compartment.
Press 15(<<) or 6(>>) to change
SVC setting, thus passing from OFF
to the selected gain level (from 1to
7). High gain level values correspond
to proportionally higher volume
increases according to speed.
The display will show the current
status of the function:
“SPEED VOLUME OFF” =
function off
“SPEED VOLUME: +3” = func-
tion on and gain level indication6 - tuning adjustment on traffic
information (EON TA DX/LO)
This function enables to adjust
reception sensitivity of radio stations
broadcasting traffic information.
To turn this function on/off press
buttons 15 (<<) or 6 (>>).
The display will show the current
status of the function:
– “TRAFFIC: LOCAL” = low
sensitivity
– “TRAFFIC: DISTANT” = high
sensitivity
7 - loudness on/off (LOUD-
NESS)
The LOUDNESS function improves
the sound volume when listening at
low level, increasing the basses and
trebles.
To turn this function on/off press
buttons 15(<<) or 6(>>).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 59
