FIAT STILO 2005 1.G Radio Manual
Manufacturer: FIAT, Model Year: 2005, Model line: STILO, Model: FIAT STILO 2005 1.GPages: 86, PDF Size: 1.15 MB
Page 81 of 86
80 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CD AND MP3 PLAYER
80
Example: With a CD with the fol-
lowing structure:
+- MP3 collection – Volume n.1
*- Celine Dion
*- Falling into you
|- It’s all coming back to
me now.mp3
|- Because you loved
me.mp3
*- Incognito
|- Incognito.mp3
|- Lolita.mp3
|- Delivre-Moi.mp3
*- Prodigy
*- Experience
|- Jericho.mp3
|- Wind it now.mp3
|- Out of space.mp3*- The fat of the land
*- Favourite songs
|- Breathe.mp3
|- Firestarter.mp3
The sound system recognizes all the
folders and will move from one of the
following folders to the others:
*– Falling into you
*– Incognito
*– Experience
*– Favourite songs
The *symbol indicates that the sys-
tem is displaying the folder name. At
each request of ascending or de-
scending scroll through the folders,
the folder name and number are dis-
played (with a max. length of 15-18
types, according to the folder num-
ber).When “ON” or “ONCE” are cho-
sen with 12 (MENU
RDS) (see para-
graph
TRACK FOLDER NAME SCROLL), the
complete folder name is scrolled in the
folder display mode, before returning
to the cut folder.
Next/previous folder selection
Press 16(1 CD / *+) for a short
time (less than 1 second) to select the
songs contained in the next folder.
Press 17(2 CD / *–) for a short
time (less than 1 second) to select the
songs contained in the previous fold-
er.
The name and number of the
next/previous folder are shown on the
display (ex. “9 MISC COLLEC-
TION”).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 80
Page 82 of 86
RADIO WITH CD AND MP3 PLAYER
81 Nero Testo 603.46.306 Radio Stilo gb
81
Track repeat
(Folder Repeat mode)
When 4(5
RPT) is pressed for a
short time (less than 1 second), the
song repeating mode changes through
following pressures on the key, on the
display appears: “CD REPEAT
TRACK”- > “CD REPEAT FOLD-
ER” - > “CD REPEAT DISC” - >
“CD REPEAT OFF”.
The following functions are associat-
ed to these notices:
“CD REPEAT TRACK”: repeats
the current track
“CD REPEAT FOLDER”: repeats
the tracks in the selected folder
“CD REPEAT DISC”: repeats the
whole MP3 CD
“CD REPEAT OFF”: deactivates
the track repeating mode.
The mode is deactivated each time
the audio source is changed.RaNDom repeating mode
(Folder Repeating)
Press 5(6 RND) for a short time (less
than 1 second) to play a random se-
lection of the tracks contained in the
Compact Disc: the following notices
appear on the display by pressing it
further on: “CD RANDOM FOLD-
ER”- > “CD RANDOM DISC” - >
“CD RANDOM OFF”.
The following functions are associat-
ed to these notices:
“CD RANDOM FOLDER”: plays
a random selection of the tracks con-
tained in the chosen folder.
“CD RANDOM DISC”: plays a
random selection of the tracks con-
tained in the MP3 CD.
“CD RANDOM OFF”: deactivates
the random repeating mode.
The mode is deactivated each time
the audio source is changed.Folder name and number
display
To activate this function, press. 3(4
DISP) for a short time (less than 1 sec-
ond).
When 3(4
DISP) is pressed again (or
after 5 seconds), the previous display
will be shown.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 81
Page 83 of 86
82 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CD AND MP3 PLAYER
82
Track selection
(Forward/backward)
Press 6(>>) for a short time (less
than 1 second) to play the next track
and 15(<<) to play the previous one.
It is possible to seek manually the
next track by pressing 6(>>) again.
The folder number, the song number
and title followed by “TK SEEK” will
be shown on the display (ex. “3/13
TK SEEK +6”).
In the same way, it is possible to seek
again the previous track by pressing 15
(<<). In this case the folder number,
the track number and title will be
shown on the display, followed by
“TK SEEK” (ex. “3/13 TK SEEK
–4).Keep the button pressed to select
the songs in a continuous way. The
folder number and the track title and
number will be shown on the display
(ex. “3/13 MIDNIGHT MO-
TION”).
If the track playing started more than
3 seconds before, it can be played
again from the beginning by pressing
15(<<). In this case, if you want to re-
produce the last song, press 15(<<)
two times consecutively.
FAST TRACK SELECTION
(Forward/backward)
Briefly press (less than 1 second) the
button/knob 18(3 F-TRK) to enter
the fast selection mode. The sound
system display will show the message
“Fy TRx FASTTRACK” (yindi-
cates the folder number, xindicates
the track number).
To select the required track, turn the
button/knob 10(VOL PUSH
ON/OFF) and then press it briefly
(less than 1 second) to confirm: re-
quired track playback will start.Track/folder name scroll
(NAME/SCROLL function)
It is possible to activate for only one
time/deactivate the complete folder
name scroll by pressing for a short
time (less than 1 second) 12(MENU
RDS).
According to the different cases the
following will be displayed:
“NAME SCROLL: ON” = contin-
uous scroll of the song/folder com-
plete names
“NAME SCROLL: ONCE” = sin-
gle scroll of the complete folder name
and 15/16 types display afterwards
“NAME SCROLL: OFF” = fixed
visualization of the first 15/16 types of
the track/folder name.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 82
Page 84 of 86
83 Nero- Testo 603.46.306 Radio Stilo gb

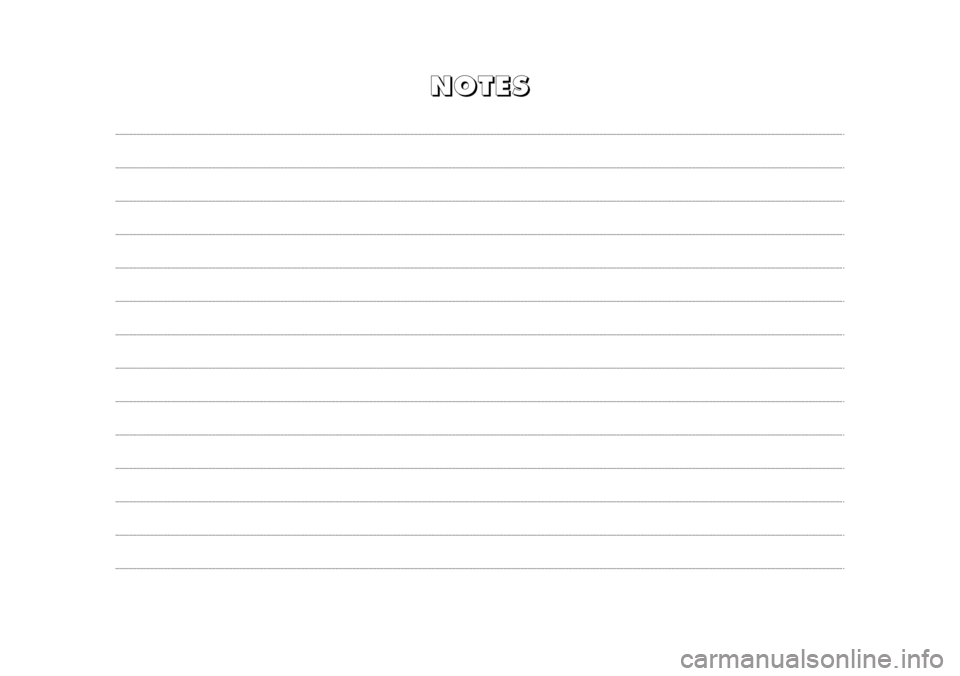

N N N N
O O O O
T T T T
E E E E
S S S S
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 83
Page 85 of 86
84 Nero Testo 603.46.306 Radio Stilo gb

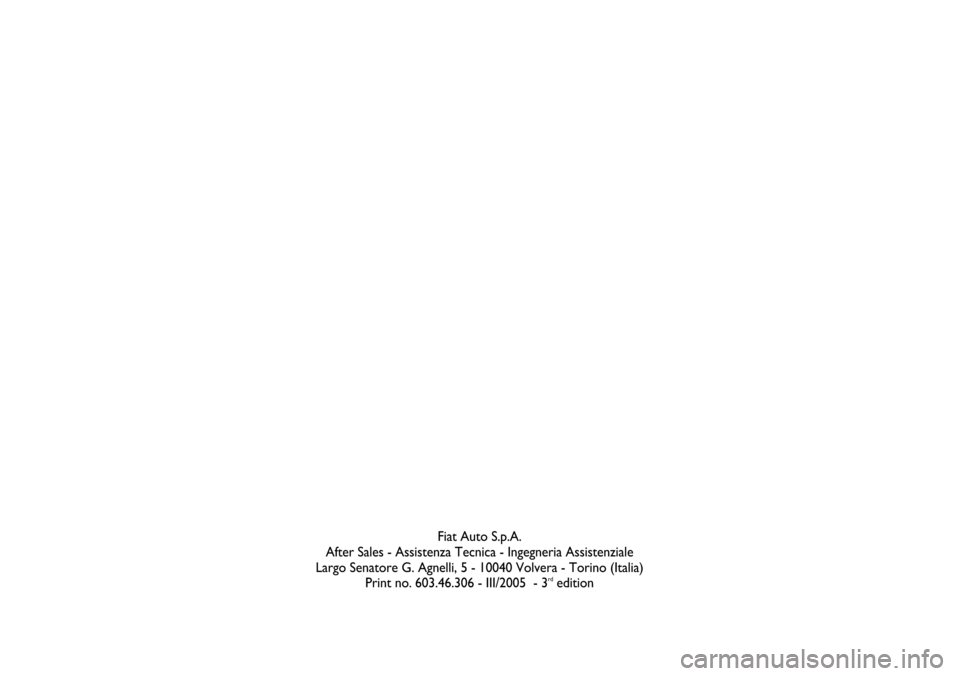

Fiat Auto S.p.A.
After Sales - Assistenza Tecnica - Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.46.306 - III/2005 - 3
rdedition
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 84
