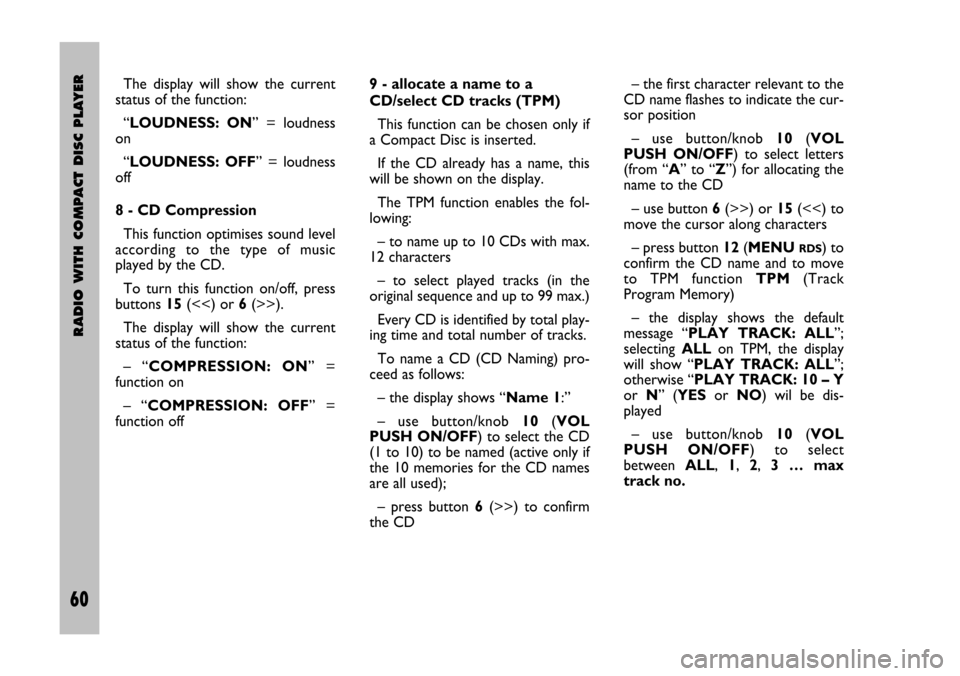

60 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
60
The display will show the current
status of the function:
“LOUDNESS: ON” = loudness
on
“LOUDNESS: OFF” = loudness
off
8 - CD Compression
This function optimises sound level
according to the type of music
played by the CD.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “COMPRESSION: ON” =
function on
– “COMPRESSION: OFF” =
function off9 - allocate a name to a
CD/select CD tracks (TPM)
This function can be chosen only if
a Compact Disc is inserted.
If the CD already has a name, this
will be shown on the display.
The TPM function enables the fol-
lowing:
– to name up to 10 CDs with max.
12 characters
– to select played tracks (in the
original sequence and up to 99 max.)
Every CD is identified by total play-
ing time and total number of tracks.
To name a CD (CD Naming) pro-
ceed as follows:
– the display shows “Name 1:”
– use button/knob 10(VOL
PUSH ON/OFF) to select the CD
(1 to 10) to be named (active only if
the 10 memories for the CD names
are all used);
– press button 6(>>) to confirm
the CD– the first character relevant to the
CD name flashes to indicate the cur-
sor position
– use button/knob 10 (VOL
PUSH ON/OFF) to select letters
(from “A” to “Z”) for allocating the
name to the CD
– use button 6(>>) or 15(<<) to
move the cursor along characters
– press button 12(MENU
RDS) to
confirm the CD name and to move
to TPM function TPM (Track
Program Memory)
– the display shows the default
message “PLAY TRACK: ALL”;
selecting ALLon TPM, the display
will show “PLAY TRACK: ALL”;
otherwise “PLAY TRACK: 10 – Y
or N” (YESor NO) wil be dis-
played
– use button/knob 10(VOL
PUSH ON/OFF) to select
between ALL, 1, 2, 3… max
track no.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 60

RADIO WITH COMPACT DISC PLAYER

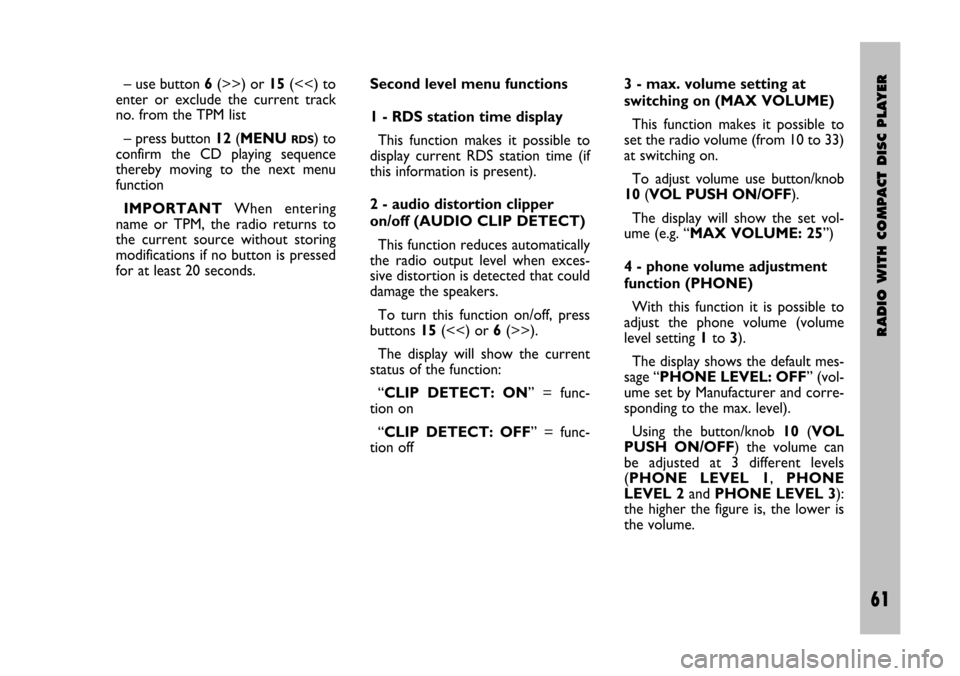

61 Nero- Testo 603.46.306 Radio Stilo gb
61
– use button 6(>>) or 15(<<) to
enter or exclude the current track
no. from the TPM list
– press button 12(MENU
RDS) to
confirm the CD playing sequence
thereby moving to the next menu
function
IMPORTANTWhen entering
name or TPM, the radio returns to
the current source without storing
modifications if no button is pressed
for at least 20 seconds.Second level menu functions
1 - RDS station time display
This function makes it possible to
display current RDS station time (if
this information is present).
2 - audio distortion clipper
on/off (AUDIO CLIP DETECT)
This function reduces automatically
the radio output level when exces-
sive distortion is detected that could
damage the speakers.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
“CLIP DETECT: ON” = func-
tion on
“CLIP DETECT: OFF” = func-
tion off3 - max. volume setting at
switching on (MAX VOLUME)
This function makes it possible to
set the radio volume (from 10 to 33)
at switching on.
To adjust volume use button/knob
10(VOL PUSH ON/OFF).
The display will show the set vol-
ume (e.g. “MAX VOLUME: 25”)
4 - phone volume adjustment
function (PHONE)
With this function it is possible to
adjust the phone volume (volume
level setting 1to 3).
The display shows the default mes-
sage “PHONE LEVEL: OFF” (vol-
ume set by Manufacturer and corre-
sponding to the max. level).
Using the button/knob 10(VOL
PUSH ON/OFF) the volume can
be adjusted at 3 different levels
(PHONE LEVEL 1, PHONE
LEVEL 2and PHONE LEVEL 3):
the higher the figure is, the lower is
the volume.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 61

62 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
62
5 - AUTO function setting
With this function it is possible to
set radio turning on/off depending on
car ignition/stopping or independent
radio turning on/off.
With this function on (radio is set
to switch off when the car is
switched off), it is however possible
to switch on the radio.
With this function off, when
switching off the car the radio stays
on.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “AUTO: ON” = function on
– “AUTO: OFF” = function offCOMPACT DISC PLAYER
fig. 9
You radio is fitted with a Compact
Disc player for sound CDs.
Compact Disc insertion and ejec-
tion are facilitated by a powered
mechanism.
Selecting the Compact
Disc player
To turn on the Compact Disc play-
er integrated in the set, when a CD
is already inserted, turn the set on
pressing button/knob 10(VOL
PUSH ON/OFF), then briefly (less
than 1 second) and repeatedly press
button 14(SRC) to select the “CD”
mode.
Inserting a CD, also with the device
off, the CD player is turned on. Inserting/ejecting a CD
To insert the CD set it gently in
place to activate the powered load-
ing system, which will position it cor-
rectly.
Press 1(˚) with the device on to
operate the powered CD eject sys-
tem.
Display information
When the CD player is working,
the display shows information which
has the following meaning:
“CD”: shows the CD mode
“TRACK 12”: shows the number
of the track on the CD
“11.04”: shows the time elapsed
since the start of the track
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 62

RADIO WITH COMPACT DISC PLAYER
63 Nero- Testo 603.46.306 Radio Stilo gb
63
Select track (forward/
backward)
Press briefly (less than 1 second)
the 6(>>) button to play the next
track on the CD and 15(<<) to play
the previous one.
To select tracks continuously, keep
the button pressed.
If playing the track started more
than 3 seconds ago, pressing 15
(<<) the track is played again from
the start. In this case of wanting to
play the previous trac, press button
15(<<) twice consecutively.
Fast forward/backward
Keep the 6(>>) button pressed to
move the track selected fast forward
and keep the 15(<<) button
pressed to move it fast backward.
Fast forward/backward is stopped
when the button is released.FAST TRACK SELECTION
(forward/backward)
Briefly press (less than 1 second)
the button/knob 18(3 F-TRK) to
enter the fast selection mode. The
sound system display will show the
message “TRx FASTTRACK” (x
indicates the track number).
To select the required track, turn
the button/knob 10(VOL PUSH
ON/OFF) and then press it briefly
(less than 1 second) to confirm:
required track playback will start.
Pause function
To pause the CD player, briefly
press the 2(II MUTE) button. The
display will show “CD PAUSE”.
To listen to the track again, press
button 2(II MUTE) again.Scanning tracks on the CD
(Scan Function)
With this function it is possible to
listen to all the tracks contained in
the CD selected.
Keep the 7(SCAN) button
pressed to play the first 10 seconds
of every track on the CD.
The scanning sequence is the fol-
lowing:
– from the track played up to the
last one on the CD
– from the first track up to the one
played until the start of scanning.
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing again 7(SCAN)
– changing the sound source
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 63

64 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
64
CD CHANGER (Multiple
Compact Disc Player) USE
(if connected)
The radio is preset for compatible
compact disc player fig. 11(available
at Lineaccessori Fiat).
For installation and
connection of the CD
changer apply only to
Fiat Dealership.Track Repeat function
Briefly press (less than 1 second) the
preset button 4(5
RPT): the display
shows “CD REPEAT TRACK”.
Press the preset button 4(5
RPT)
again to turn off the repeat function:
the display shows “CD REPEAT
OFF”.
Changing the sound source, the
function is turned off.
To guarantee optimum playing, use
original CDs. If using R/RW CDs,
use top quality CDs duplicated at as
low as possible speed.
Random track playing
(RaNDom function)
To start the random playing of
tracks on the Compact Disc, press
briefly (less than 1 second) button 5
(6
RND). A new track will be played
and the display will show “CD
RANDOM TRACK”. Press the preset button 5(6
RND)
again to turn off the repeat function:
the display shows “CD RANDOM
OFF”.
When the random function is on,
all the tracks on the CD are played
in random sequence.
Changing the sound source, the
function is turned off.
TPM function (CD playing
sequence storage)
With the TPMfunction (Track
Program Memory) it is possible to
store the sequence for playing tracks
of a CD, to be able to play them
later in the sequence set.
To store CD track playing
sequence, refer to
ALLOCATE A NAME
TO A CD
/SELECT CD TRACKS(TPM)on
previous pages.
fig. 11
F0C0261m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 64

RADIO WITH COMPACT DISC PLAYER
65 Nero- Testo 603.46.306 Radio Stilo gb
65
CD CHANGER (Multiple
Compact Disc Player)
(if connected)
Selecting the CD Changer
To turn on the CD Changer, turn
on the set, then press briefly (less
than 1 second) and repeatedly the
14(SRC) button to select the
“CDC” source (CD Changer).
Possible error messages
If the loader does not contain any
Compact Discs, the display will show
“NO CD”. If at least one CD is
found, it will be played.
If the CD played is illegible, the
next CD will be selected; if there are
no other CDs or if they are also
illegible, the display will show “NO
CD” until the listening source is
changed. Lineaccessori Fiat CD Changer is
fitted with a proper loader for 5
compact discs.Operation
To play the Compact Discs in the
CD Changer, select “CDC” pressing
briefly and repeatedly button 14
(SRC).
When listening to a Compact Disc
for the first time after putting it in
the CD loader, playing starts from
the first track on the first disc avail-
able in the loader.
While playing the display shows the
number of the track being heard (e.g.
“TRACK 12” = twelfth track), the
playing time elapsed from the start of
the track (e.g. “11:10” = 11 minutes
and 10 seconds) and the number of
the Compact Disc selected (e.g.
“CDC3” = third CD) depending on
the function selected in the menu.
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 65

66 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
66
Choosing the CD
Press 16(1
CD+) to select the next
CD and17(2
CD–) to select the pre-
vious one.
If the loader does not contain a disc
in the position selected, the display
shows“NO CD”, and the next disc
is played automatically.Select track (forward/backward)
Briefly press6(>>) to play the
next track on the Compact Disc
being listened to.
Briefly press (less than 1 second)
button 15(<<) to play the previous
track on the Compact Disc being lis-
tened to.
Fast forward/backward
Keep the 6(>>) button pressed to
move the track selected fast forward
and keep the 15(<<) button
pressed to move it fast backward.
Fast forward/backward is stopped
when the button is released.Scanning tracks on the CD
(Scan function)
With this function it is possible to
listen to all the tracks contained in
the CD selected.
Keep the 7(SCAN) button
pressed to play the first 10 seconds
of every track on the CD. While
playing the display will alternately
show the CD function chosen (CD
name, time and number) and the
word “SCAN” (e.g. “CDC3
SCAN TK12 0.04”)
If the SCANfunction is on, the
REPEATand MIXfunctions are
turned off.
The scanning sequence is the fol-
lowing:
– from the track played up to the
last one on the CD
– from the first track up to the one
played until the start of scanning.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 66

RADIO WITH COMPACT DISC PLAYER
67 Nero- Testo 603.46.306 Radio Stilo gb
67
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing 7(SCAN) again to con-
tinue listening to the track being
played
– pressing 6(>>) or 15(<<)
thereby moving to the next or previ-
ous track
– pressing a preset button
– changing the sound source
– pressing 12(MENU
RDS).
If the SCANfunction is not inter-
rupted, at the end it will continue
playing the track played before scan-
ning was started.
Pause function
To pause the CD player, press
briefly (less than 1 second) the 2(II)
button. The display shows “CDC
MUTE”.
To listen to the track again, press
button 2(II) again.
The pause function is automatically
cancelled changing the listening
source.Track Repeat function
Briefly press (less than 1 second)
the preset button 4(5
RPT) to listen
repeatedly to the last track played:
the display shows “CDC REPEAT
TRACK”.
Press the preset button 4(5
RPT)
again to turn off the repeat function:
the display shows “CD REPEAT
OFF”.
Changing the sound source, the
function is turned off.
IMPORTANTWhen the repeat
function is turned on, the SCAN
and MIXfunctions are turned off.Random track playing
(RaNDom function)
To start random playing of tracks
on the Compact Disc selected, press
the preset button 5(6
RND). A new
track will be played and the display
will show “CDC RANDOM
DISK”. To start random playing of
all the CDs contained in the CD
Changer, press a second time 5(6
RND); the display will show “CDC
RANDOM PACK”. Press 5(6
RND) a third time to urn the function
off: the display will show “CDC
RANDOM OFF”.
Stopping and ejecting the CD
Press 1(˚) or 14(SRC) to return
to the radio mode.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 67

Waiting time passes keeping the
radio on. When turning the radio
on/off, counting restarts from the
start of the current attempt.
The waiting time is over when the
display shows the figure and the
dashes of the next attempt (e.g. 2 - -
- ).
Vain attempts Waiting
(on display) time (approx.)
1 1 minute
2 2 minutes
3 4 minutes
4 8 minutes
5 16 minutes
6 30 minutes
7 1 hour
8 2 hours
9 4 hours
10 8 hours
11 16 hours
12 24 hours
68 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
68
SECRET CODING
Entering radio’s secret code
Entry of the secret code is required
to allow the radio to work after the
first connection to the car electric
system different from the original
one.
Connecting the radio to the car
supply, the display shows “RADIO
M - CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1 to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 3) to enter the
secret code digits (from 0to 9).
To confirm the required digit press
4(5
RPT).Waiting times
If a wrong code is entered, the next
attempts to enter the code are
spaced by the following waiting
times. During these intervals the
radio can be connected or discon-
nected but not switched on.
During the waiting time the radio
shall not be on.
It shall however be connected with
+12V permanent voltage. The wait-
ing time is over when the display
shows the figure and the dashes of
the next attempt (e.g. 2 - - -).
The following table shows the
times between one attempt and the
other.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 68

RADIO WITH COMPACT DISC PLAYER
69 Nero- Testo 603.46.306 Radio Stilo gb
69
Entering the secret code
of the CD Changer
Should the control code between
the radio and the CD Changer be
not recognised, to reset CD
Changer proper operation the four-
digit secret code must be entered
manually.
When entering the secret code,
the display shows: “CDC M --
CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes and is different for each
CD Changer.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1 to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 3) to enter the
secret code digits (from 0to 9).TECHNICAL INFORMATION
Aerial fig. 12
The car is fitted with an aerial
located on the roof. You are recom-
mended to slacken and remove the
aerial from the roof to avoid damag-
ing it when washing the car in auto-
matic systems.
Radio power
– 4 x 35W (with standard sound
system comprising 2 tweeters + 2
front woofers and 2 rear full-range
speakers)
fig. 12
F0C0298m
To confirm the required digit press
4(5
RPT).
If the code has been entered prop-
erly, the radio and the CD Changer
start to work regularly.
Otherwise try to enter the secret
code a second and even a third time
if required. After the third negative
attempt, the radio sets in “stand-by”
for approx. 1 hour before enabling
other three attempts.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 69
