FIAT STILO 2005 1.G Radio Manual

40 Nero Testo 603.46.306 Radio Stilo gb

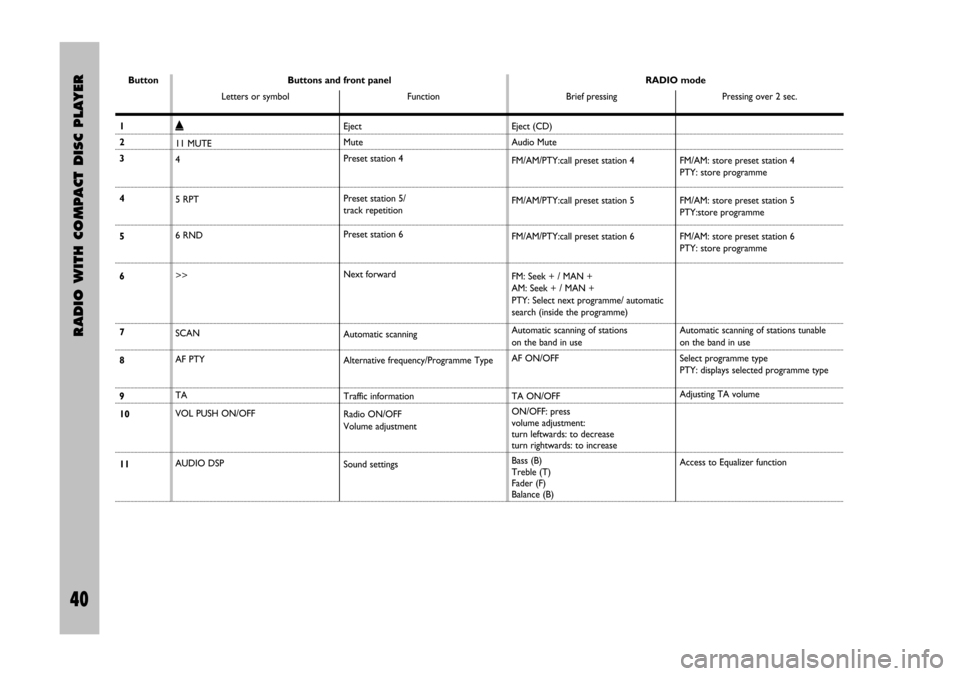

RADIO WITH COMPACT DISC PLAYER
40
ButtonRADIO mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Letters or symbol Function
1
2
3
4
5
6
7
8
9
10
11Eject (CD)
Audio Mute
FM/AM/PTY:call preset station 4
FM/AM/PTY:call preset station 5
FM/AM/PTY:call preset station 6
FM: Seek + / MAN +
AM: Seek + / MAN +
PTY: Select next programme/ automatic
search (inside the programme)
Automatic scanning of stations
on the band in use
AF ON/OFF
TA ON/OFF
ON/OFF: press
volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)FM/AM: store preset station 4
PTY: store programme
FM/AM: store preset station 5
PTY:store programme
FM/AM: store preset station 6
PTY: store programme
Automatic scanning of stations tunable
on the band in use
Select programme type
PTY: displays selected programme type
Adjusting TA volume
Access to Equalizer function ˚
11 MUTE
4
5 RPT
6 RND
>>
SCAN
AF PTY
TA
VOL PUSH ON/OFF
AUDIO DSPEject
Mute
Preset station 4
Preset station 5/
track repetition
Preset station 6
Next forward
Automatic scanning
Alternative frequency/Programme Type
Traffic information
Radio ON/OFF
Volume adjustment
Sound settings
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 40

RADIO WITH COMPACT DISC PLAYER
41 Nero- Testo 603.46.306 Radio Stilo gb
41

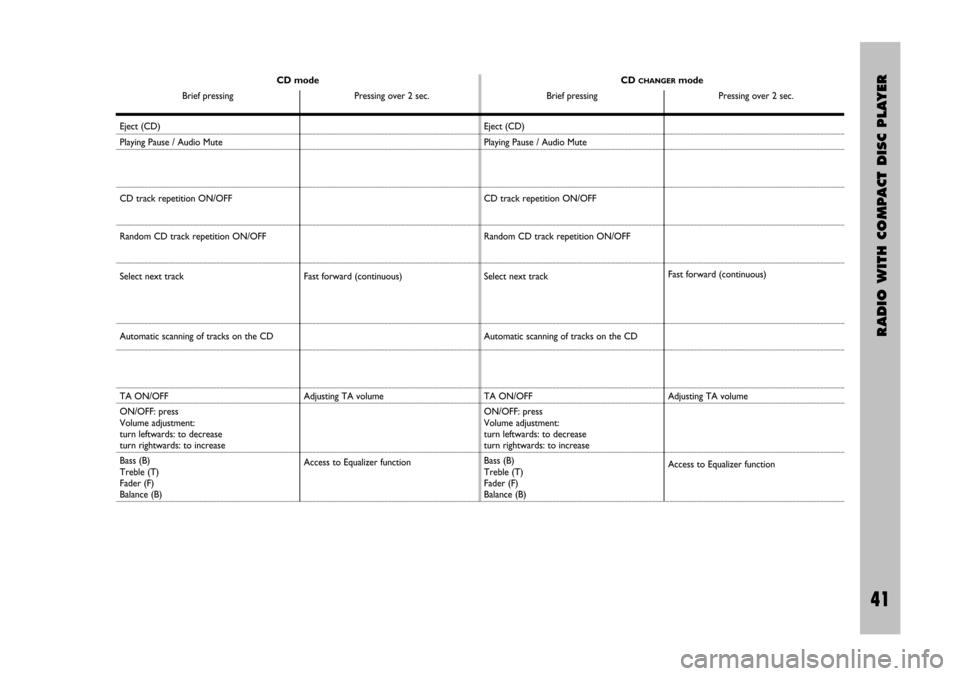

CD mode
Brief pressing Pressing over 2 sec.CD CHANGERmode
Brief pressing Pressing over 2 sec.
Eject (CD)
Playing Pause / Audio Mute
CD track repetition ON/OFF
Random CD track repetition ON/OFF
Select next track
Automatic scanning of tracks on the CD
TA ON/OFF
ON/OFF: press
Volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)Eject (CD)
Playing Pause / Audio Mute
CD track repetition ON/OFF
Random CD track repetition ON/OFF
Select next track
Automatic scanning of tracks on the CD
TA ON/OFF
ON/OFF: press
Volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B) Fast forward (continuous)
Adjusting TA volume
Access to Equalizer function Fast forward (continuous)
Adjusting TA volume
Access to Equalizer function
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 41

42 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
42
ButtonRADIO mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Letters or symbol Function
12
13
14
15
16
17
18Menu function
Select frequency band
Select source
Previous backward
Preset station 1
Preset station 2
Preset station 3Manual station tuning ON/OFF
NEWS ON/OFF
Function confirmation beep ON/OFF
(BEEP)
SENS DX/LO
SVC (Speed Volume)
Loudness ON/OFF
EON TA ON
CD Compression
TPM (Track Program Memory)
CD Naming
FM1,FM2,FM3,FMAST, LW,MW,AMAST
TAPE (Cassette), RADIO, CD Changer
(if connected)
FM: Seek – / MAN –
AM: Seek – / MAN –
PTY: Select next programme / automatic
search (inside the programme)
FM/AM/PTY:call preset station 1
FM/AM/PTY: call preset station 2
FM/AM/PTY: call preset station 3RDS Clock display
Audio Clip Detect ON/OFF
Automatic search ON/OFF
Phone volume adjustment ON/OFF
Max. radio volume at switching on
Store automatically in preset station
group.
Exit on FMAST.P1 or AMAST.P1
FM/AM: store preset station 1
PTY: store programme
FM/AM: store preset station 2
PTY: store programme
FM/AM: store preset station 3
PTY: store programme RDS MENU
BAND AS
SRC
<<
1 CD+
2 CD–
3 F-TRK
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 42

RADIO WITH COMPACT DISC PLAYER
43 Nero- Testo 603.46.306 Radio Stilo gb
43
CD mode
Brief pressing Pressing over 2 sec.CD CHANGERmode
Brief pressing Pressing over 2 sec.
NEWS ON/OFF
Function confirmation beep ON/OFF (BEEP)
SVC (SPEED VOLUME)
Loudness ON/OFF
EON TA ON
CD Compression
CD Naming
TPM (Track Program Memory)
Exit CD mode
Insert tuner in last band
CD, RADIO, CD Changer (if connected)
Select previous track
Quick CD track selection (function controlled
through the button/knob 10 VOL PUSH
ON/OFF)RDS Clock display
Audio Clip Detect ON/OFF
Set radio switching on mode
Phone volume adjustment ON/OFF
Max. radio volume at witching on
Audio Clip Detect ON/OFFNEWS ON/OFF
Function confirmation beep ON/OFF (BEEP)
SVC (SPEED VOLUME)
Loudness ON/OFF
EON TA DX/LO ON
CD Compression
TPM (Track Program Memory)
Exit CD mode
Insert tuner in last band
CD, RADIO, CD Changer (if connected)
Select previous track
CD +
CD –RDS Clock display
Audio Clip Detect ON/OFF
Set radio switching on mode
Phone volume adjustment ON/OFF
Max. radio volume at witching on
Fast backward (continuous)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 43

44 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
44

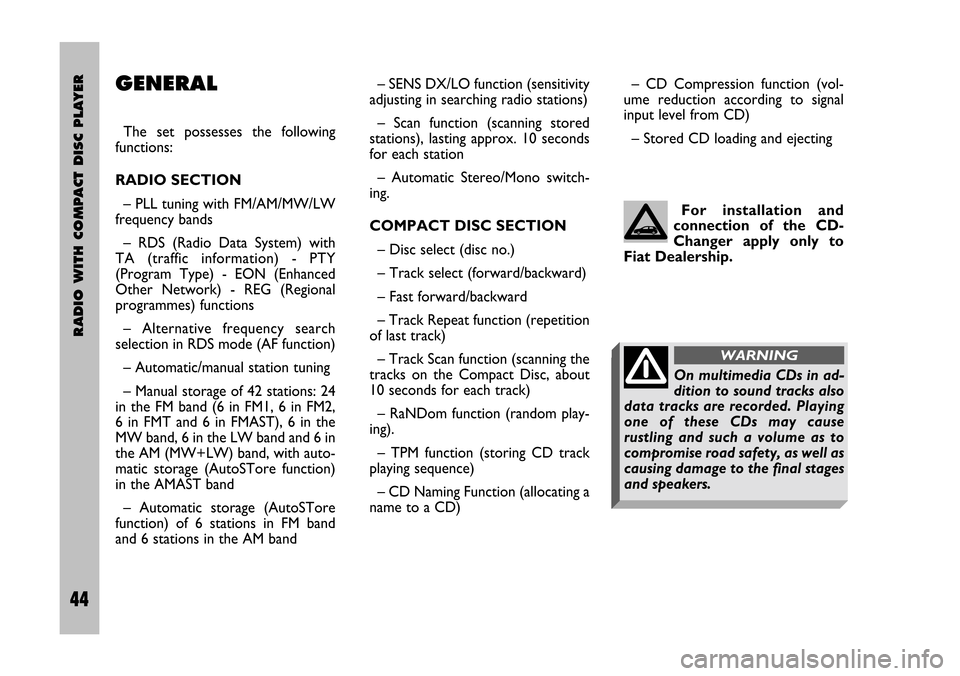

GENERAL
The set possesses the following
functions:
RADIO SECTION
– PLL tuning with FM/AM/MW/LW
frequency bands
– RDS (Radio Data System) with
TA (traffic information) - PTY
(Program Type) - EON (Enhanced
Other Network) - REG (Regional
programmes) functions
– Alternative frequency search
selection in RDS mode (AF function)
– Automatic/manual station tuning
– Manual storage of 42 stations: 24
in the FM band (6 in FM1, 6 in FM2,
6 in FMT and 6 in FMAST), 6 in the
MW band, 6 in the LW band and 6 in
the AM (MW+LW) band, with auto-
matic storage (AutoSTore function)
in the AMAST band
– Automatic storage (AutoSTore
function) of 6 stations in FM band
and 6 stations in the AM band– SENS DX/LO function (sensitivity
adjusting in searching radio stations)
– Scan function (scanning stored
stations), lasting approx. 10 seconds
for each station
– Automatic Stereo/Mono switch-
ing.
COMPACT DISC SECTION
– Disc select (disc no.)
– Track select (forward/backward)
– Fast forward/backward
– Track Repeat function (repetition
of last track)
– Track Scan function (scanning the
tracks on the Compact Disc, about
10 seconds for each track)
– RaNDom function (random play-
ing).
– TPM function (storing CD track
playing sequence)
– CD Naming Function (allocating a
name to a CD)For installation and
connection of the CD-
Changer apply only to
Fiat Dealership.
– CD Compression function (vol-
ume reduction according to signal
input level from CD)
– Stored CD loading and ejecting
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 44

RADIO WITH COMPACT DISC PLAYER
45 Nero- Testo 603.46.306 Radio Stilo gb
45

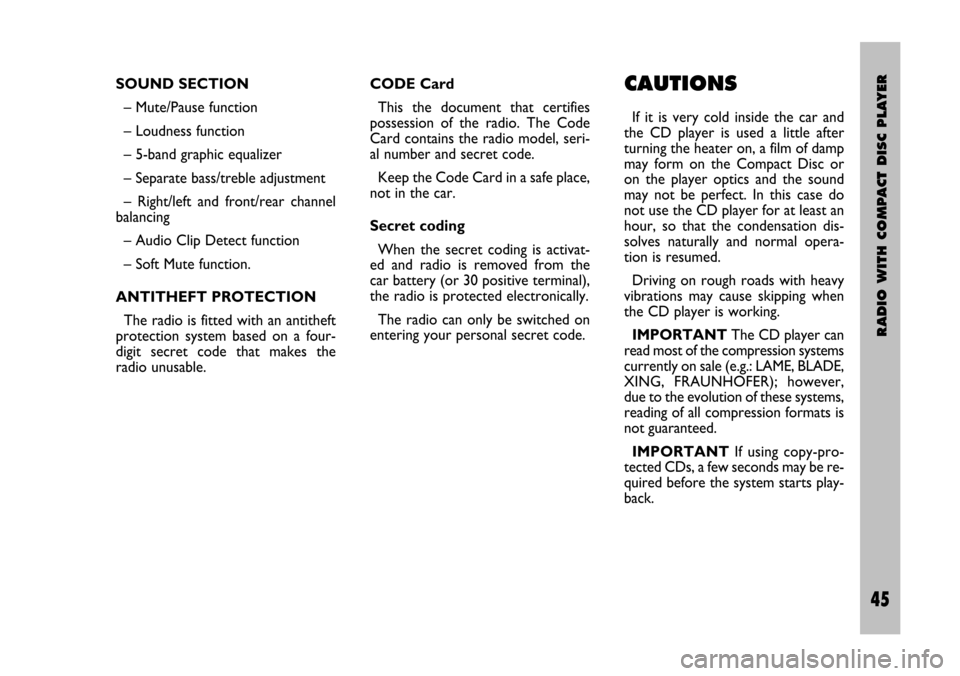

CODE Card
This the document that certifies
possession of the radio. The Code
Card contains the radio model, seri-
al number and secret code.
Keep the Code Card in a safe place,
not in the car.
Secret coding
When the secret coding is activat-
ed and radio is removed from the
car battery (or 30 positive terminal),
the radio is protected electronically.
The radio can only be switched on
entering your personal secret code. SOUND SECTION
– Mute/Pause function
– Loudness function
– 5-band graphic equalizer
– Separate bass/treble adjustment
– Right/left and front/rear channel
balancing
– Audio Clip Detect function
– Soft Mute function.
ANTITHEFT PROTECTION
The radio is fitted with an antitheft
protection system based on a four-
digit secret code that makes the
radio unusable.CAUTIONS
If it is very cold inside the car and
the CD player is used a little after
turning the heater on, a film of damp
may form on the Compact Disc or
on the player optics and the sound
may not be perfect. In this case do
not use the CD player for at least an
hour, so that the condensation dis-
solves naturally and normal opera-
tion is resumed.
Driving on rough roads with heavy
vibrations may cause skipping when
the CD player is working.
IMPORTANTThe CD player can
read most of the compression systems
currently on sale (e.g.: LAME, BLADE,
XING, FRAUNHOFER); however,
due to the evolution of these systems,
reading of all compression formats is
not guaranteed.
IMPORTANTIf using copy-pro-
tected CDs, a few seconds may be re-
quired before the system starts play-
back.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 45

46 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
46

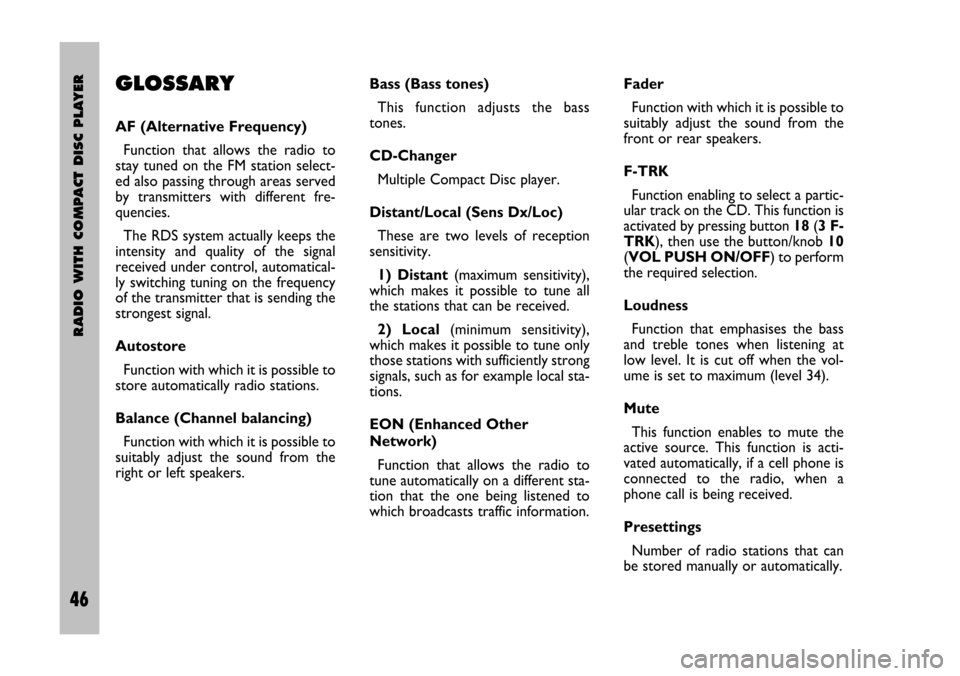

GLOSSARY
AF (Alternative Frequency)
Function that allows the radio to
stay tuned on the FM station select-
ed also passing through areas served
by transmitters with different fre-
quencies.
The RDS system actually keeps the
intensity and quality of the signal
received under control, automatical-
ly switching tuning on the frequency
of the transmitter that is sending the
strongest signal.
Autostore
Function with which it is possible to
store automatically radio stations.
Balance (Channel balancing)
Function with which it is possible to
suitably adjust the sound from the
right or left speakers.Bass (Bass tones)
This function adjusts the bass
tones.
CD-Changer
Multiple Compact Disc player.
Distant/Local (Sens Dx/Loc)
These are two levels of reception
sensitivity.
1) Distant(maximum sensitivity),
which makes it possible to tune all
the stations that can be received.
2) Local(minimum sensitivity),
which makes it possible to tune only
those stations with sufficiently strong
signals, such as for example local sta-
tions.
EON (Enhanced Other
Network)
Function that allows the radio to
tune automatically on a different sta-
tion that the one being listened to
which broadcasts traffic information.Fader
Function with which it is possible to
suitably adjust the sound from the
front or rear speakers.
F-TRK
Function enabling to select a partic-
ular track on the CD. This function is
activated by pressing button 18(3 F-
TRK), then use the button/knob 10
(VOL PUSH ON/OFF) to perform
the required selection.
Loudness
Function that emphasises the bass
and treble tones when listening at
low level. It is cut off when the vol-
ume is set to maximum (level 34).
Mute
This function enables to mute the
active source. This function is acti-
vated automatically, if a cell phone is
connected to the radio, when a
phone call is being received.
Presettings
Number of radio stations that can
be stored manually or automatically.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 46

RADIO WITH COMPACT DISC PLAYER
47 Nero- Testo 603.46.306 Radio Stilo gb
47

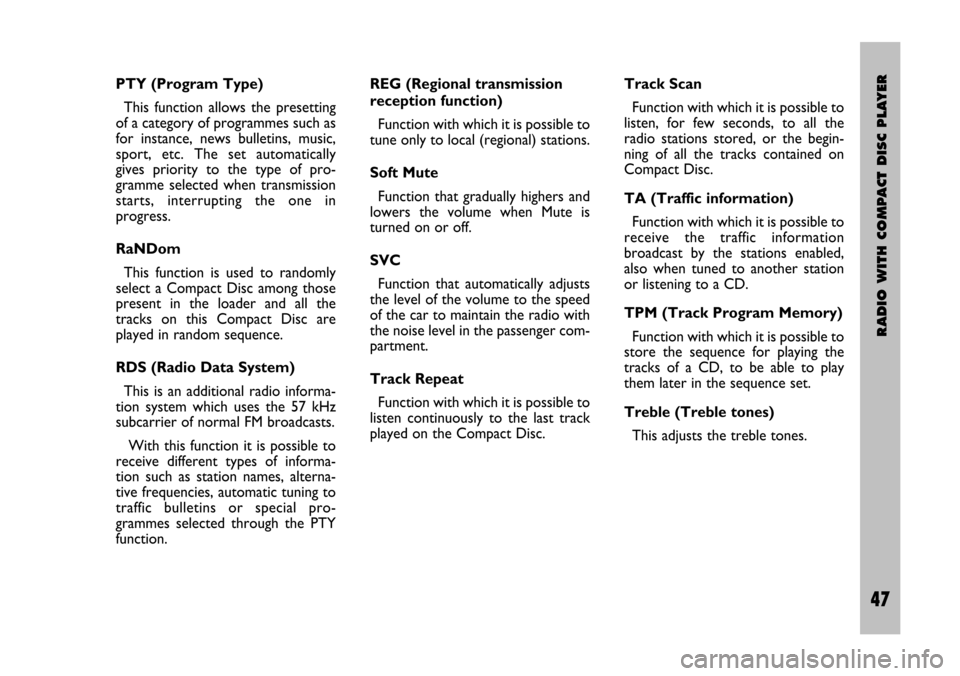

PTY (Program Type)
This function allows the presetting
of a category of programmes such as
for instance, news bulletins, music,
sport, etc. The set automatically
gives priority to the type of pro-
gramme selected when transmission
starts, interrupting the one in
progress.
RaNDom
This function is used to randomly
select a Compact Disc among those
present in the loader and all the
tracks on this Compact Disc are
played in random sequence.
RDS (Radio Data System)
This is an additional radio informa-
tion system which uses the 57 kHz
subcarrier of normal FM broadcasts.
With this function it is possible to
receive different types of informa-
tion such as station names, alterna-
tive frequencies, automatic tuning to
traffic bulletins or special pro-
grammes selected through the PTY
function.REG (Regional transmission
reception function)
Function with which it is possible to
tune only to local (regional) stations.
Soft Mute
Function that gradually highers and
lowers the volume when Mute is
turned on or off.
SVC
Function that automatically adjusts
the level of the volume to the speed
of the car to maintain the radio with
the noise level in the passenger com-
partment.
Track Repeat
Function with which it is possible to
listen continuously to the last track
played on the Compact Disc.Track Scan
Function with which it is possible to
listen, for few seconds, to all the
radio stations stored, or the begin-
ning of all the tracks contained on
Compact Disc.
TA (Traffic information)
Function with which it is possible to
receive the traffic information
broadcast by the stations enabled,
also when tuned to another station
or listening to a CD.
TPM (Track Program Memory)
Function with which it is possible to
store the sequence for playing the
tracks of a CD, to be able to play
them later in the sequence set.
Treble (Treble tones)
This adjusts the treble tones.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 47

48 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
48

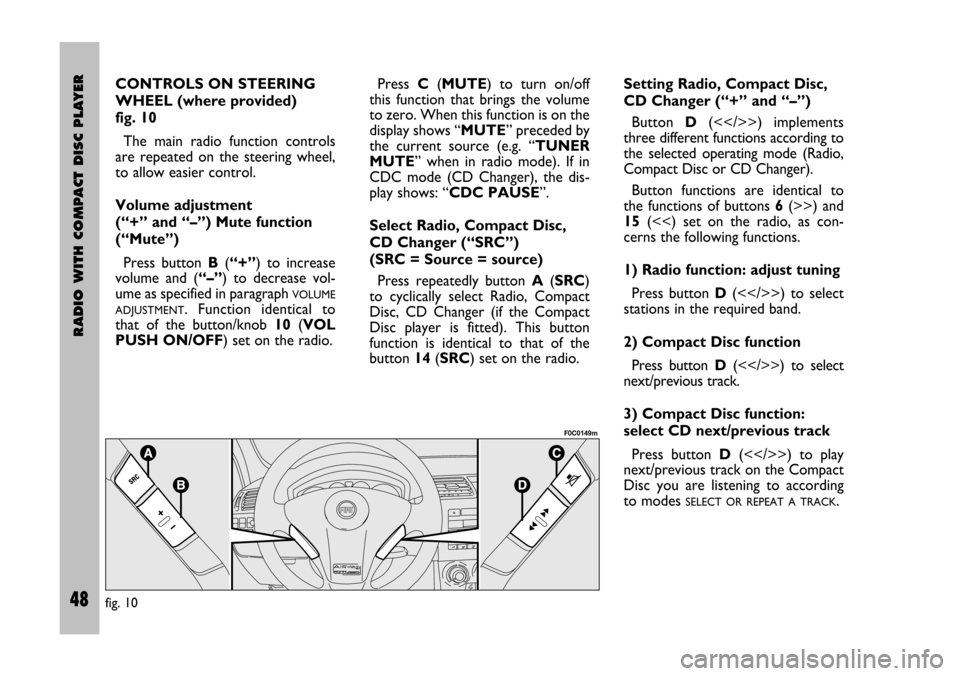

CONTROLS ON STEERING
WHEEL (where provided)
fig. 10
The main radio function controls
are repeated on the steering wheel,
to allow easier control.
Volume adjustment
(“+” and “–”) Mute function
(“Mute”)
Press button B(“+”) to increase
volume and (“–”) to decrease vol-
ume as specified in paragraph
VOLUME
ADJUSTMENT
. Function identical to
that of the button/knob 10(VOL
PUSH ON/OFF) set on the radio.
fig. 10
F0C0149m
Press C(MUTE) to turn on/off
this function that brings the volume
to zero. When this function is on the
display shows “MUTE” preceded by
the current source (e.g. “TUNER
MUTE” when in radio mode). If in
CDC mode (CD Changer), the dis-
play shows: “CDC PAUSE”.
Select Radio, Compact Disc,
CD Changer (“SRC”)
(SRC = Source = source)
Press repeatedly button A(SRC)
to cyclically select Radio, Compact
Disc, CD Changer (if the Compact
Disc player is fitted). This button
function is identical to that of the
button 14(SRC) set on the radio.Setting Radio, Compact Disc,
CD Changer (“+” and “–”)
Button D(<>) implements
three different functions according to
the selected operating mode (Radio,
Compact Disc or CD Changer).
Button functions are identical to
the functions of buttons 6(>>) and
15(<<) set on the radio, as con-
cerns the following functions.
1) Radio function: adjust tuning
Press button D(<>) to select
stations in the required band.
2) Compact Disc function
Press button D(<>) to select
next/previous track.
3) Compact Disc function:
select CD next/previous track
Press button D(<>) to play
next/previous track on the Compact
Disc you are listening to according
to modes
SELECT OR REPEAT A TRACK.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 48

RADIO WITH COMPACT DISC PLAYER
49 Nero- Testo 603.46.306 Radio Stilo gb
49

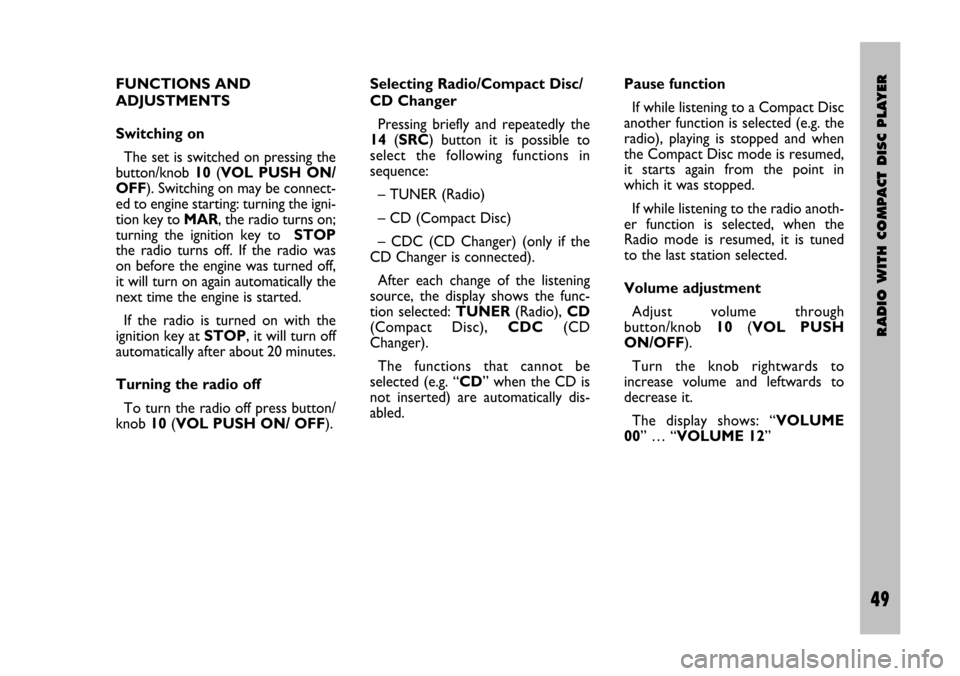

FUNCTIONS AND
ADJUSTMENTS
Switching on
The set is switched on pressing the
button/knob 10(VOL PUSH ON/
OFF). Switching on may be connect-
ed to engine starting: turning the igni-
tion key toMAR, the radio turns on;
turning the ignition key to STOP
the radio turns off. If the radio was
on before the engine was turned off,
it will turn on again automatically the
next time the engine is started.
If the radio is turned on with the
ignition key at STOP, it will turn off
automatically after about 20 minutes.
Turning the radio off
To turn the radio off press button/
knob 10(VOL PUSH ON/ OFF).Pause function
If while listening to a Compact Disc
another function is selected (e.g. the
radio), playing is stopped and when
the Compact Disc mode is resumed,
it starts again from the point in
which it was stopped.
If while listening to the radio anoth-
er function is selected, when the
Radio mode is resumed, it is tuned
to the last station selected.
Volume adjustment
Adjust volume through
button/knob 10(VOL PUSH
ON/OFF).
Turn the knob rightwards to
increase volume and leftwards to
decrease it.
The display shows: “VOLUME
00” … “VOLUME 12” Selecting Radio/Compact Disc/
CD Changer
Pressing briefly and repeatedly the
14(SRC) button it is possible to
select the following functions in
sequence:
– TUNER (Radio)
– CD (Compact Disc)
– CDC (CD Changer) (only if the
CD Changer is connected).
After each change of the listening
source, the display shows the func-
tion selected: TUNER(Radio), CD
(Compact Disc), CDC(CD
Changer).
The functions that cannot be
selected (e.g. “CD” when the CD is
not inserted) are automatically dis-
abled.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 49
