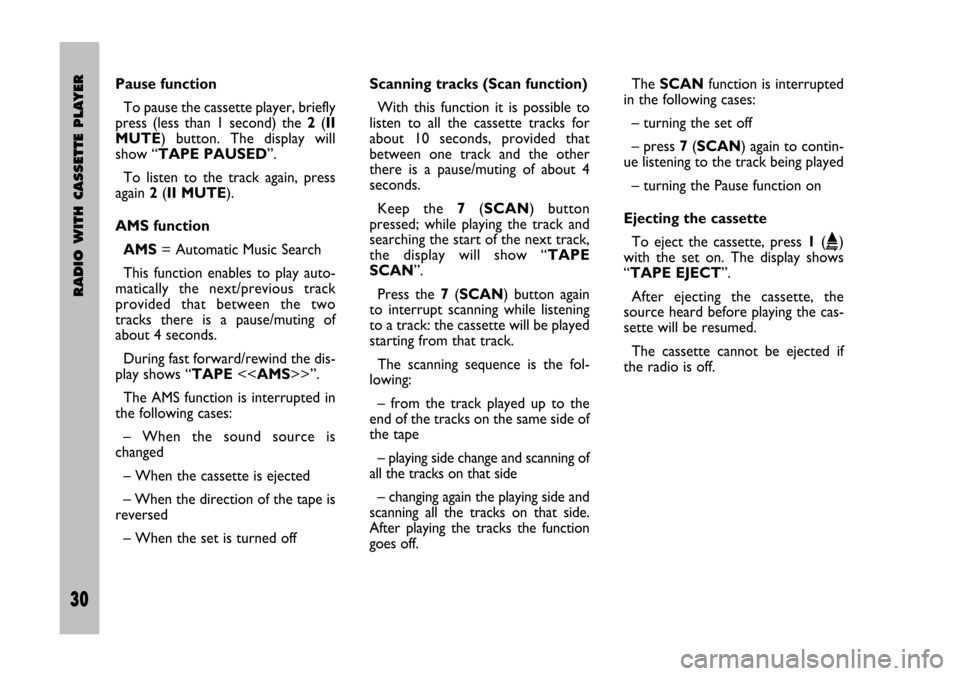

Scanning tracks (Scan function)
With this function it is possible to
listen to all the cassette tracks for
about 10 seconds, provided that
between one track and the other
there is a pause/muting of about 4
seconds.
Keep the 7(SCAN) button
pressed; while playing the track and
searching the start of the next track,
the display will show “TAPE
SCAN”.
Press the 7(SCAN) button again
to interrupt scanning while listening
to a track: the cassette will be played
starting from that track.
The scanning sequence is the fol-
lowing:
– from the track played up to the
end of the tracks on the same side of
the tape
– playing side change and scanning of
all the tracks on that side
– changing again the playing side and
scanning all the tracks on that side.
After playing the tracks the function
goes off.The SCANfunction is interrupted
in the following cases:
– turning the set off
– press 7(SCAN) again to contin-
ue listening to the track being played
– turning the Pause function on
Ejecting the cassette
To eject the cassette, press 1(Ä
)
with the set on. The display shows
“TAPE EJECT”.
After ejecting the cassette, the
source heard before playing the cas-
sette will be resumed.
The cassette cannot be ejected if
the radio is off. Pause function
To pause the cassette player, briefly
press (less than 1 second) the 2(II
MUTE) button. The display will
show “TAPE PAUSED”.
To listen to the track again, press
again 2(II MUTE).
AMS function
AMS= Automatic Music Search
This function enables to play auto-
matically the next/previous track
provided that between the two
tracks there is a pause/muting of
about 4 seconds.
During fast forward/rewind the dis-
play shows “TAPE <>”.
The AMS function is interrupted in
the following cases:
– When the sound source is
changed
– When the cassette is ejected
– When the direction of the tape is
reversed
– When the set is turned off
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 30

RADIO WITH CASSETTE PLAYER
31 Nero- Testo 603.46.306 Radio Stilo gb
31
CD CHANGER (Multiple
Compact Disc Player)
(if connected)
The radio is preset for compatible
compact disc player Fig. 3 (available
at Lineaccessori Fiat).Lineaccessori Fiat CD Changer is
fitted with a proper loader for 5
compact discs.Selecting the CD Changer
To turn on the CD Changer, turn
on the set, then press briefly (less
than 1 second) and repeatedly the
14(SRC) button to select the
“CDC” (CD Changer) source.
Possible error messages
If the loader does not contain any
Compact Discs, the display will show
“NO CD”. If at least one CD is
found, it will be played.
If the CD played is illegible, the
next CD will be selected; if there are
no other CDs or if they are also
illegible, the display will show “NO
CD” until the listening source is
changed. For installation and
connection of the CD
changer apply only to
Fiat Dealership.
fig. 3
F0C0261m
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 31

32 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
32
Choosing the CD
Press 16(1
CD+) to select the next
CD and 17(2
CD–) to select the
previous CD.
If the loader does not contain a disc
in the position selected, the display
shows “NO CD”, and the next disc
is played automatically.
Select track (forward/backward)
Briefly press 6(>>) to play the
next track on the Compact Disc
being listened to.
Briefly press (less than 1 second)
button 15(<<) within 3 seconds
from the start of the track to play
the previous track on the Compact
Disc being listened to. If the button
is pressed after 3 seconds from the
start of the track, the current track
is played again from the beginning.Fast forward/backward
Keep the 6(>>) button pressed to
move the track selected fast forward
and keep the 15(<<) button
pressed to move it fast backward.
Fast forward/backward is stopped
when the button is released.
Scanning tracks on the CD
(Scan Function)
With this function it is possible to
listen to all the tracks contained in
the CD selected.
Keep the 7(SCAN) button
pressed to play the first 10 seconds
of every track on the CD. While
playing the display will alternately
show the CD function chosen (CD
name, time and number) and the
word “SCAN” (e.g. “CDC3
SCAN TK12 0.04”)
If the SCANfunction is on, the
REPEATandMIXfunctions are
turned off. Operation
To play the Compact Discs in the
CD Changer, select “CDC” pressing
briefly and repeatedly button14
(SRC).
When listening to a Compact Disc
for the first time after putting it in
the CD loader, playing starts from
the first track on the first disc avail-
able in the loader.
While playing the display shows the
number of the track being heard (e.g.
“TRACK 12” = twelfth track), the
playing time elapsed from the start of
the track (e.g. “11:10” = 11 minutes
and 10 seconds) and the number of
the Compact Disc selected (e.g.
“CDC3” = third CD) depending on
the function selected in the menu.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 32

RADIO WITH CASSETTE PLAYER
33 Nero- Testo 603.46.306 Radio Stilo gb
33
The scanning sequence is the fol-
lowing:
– from the track played up to the
last one on the CD
– from the first track up to the one
played until the start of scanning.
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing 7 (SCAN) again to con-
tinue listening to the track being
played
– pressing 6(>>) or 15(<<)
thereby moving to the next or previ-
ous track
– pressing a preset button
– changing the sound source
– pressing the 12(MENU
RDS)
button.
If the SCANfunction is not inter-
rupted, at the end it will continue
playing the track played before scan-
ning was started.Pause function
To pause the CD player, press
briefly (less than 1 second) the 2(II
MUTE). The display will show
“CDC PAUSE”.
To listen to the track again, press
button 2(II MUTE) again.
The pause function is automatically
cancelled changing the listening
source.Track Repeat function
Briefly press (less than 1 second)
the preset button 4(5
RPT) to listen
repeatedly to the last track played:
the display shows “CDC REPEAT
TRACK”.
Press the preset button 4(5
RPT) a
second time to listen again to the
CD being played: the display shows
“CDC REPEAT DISK”.
Press the preset button 4(5
RPT) a
third time to listen to all the CDs
contained in the CD Changer: the
display shows “CDC REPEAT
PACK”.
Press the preset button 4(5
RPT) a
fourth time to turn the function off:
the display shows “CDC REPEAT
OFF”.
Changing the sound source, the
function is turned off.
IMPORTANTWhen the repeat
function is turned on, the SCAN
and MIXfunctions are turned off.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 33

34 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
34
Random track playing
(RaNDom function)
To start random playing of tracks
on the Compact Disc selected, press
the preset button 5(6
RND). A new
track will be played and the display
will show “CDC RANDOM
DISK”. To start random playing of
all the CDs contained in the CD
Changer, press a second time 5(6
RND); the display will show “CDC
RANDOM PACK”. Press 5(6
RND) a third time to urn the function
off: the display will show “CDC
RANDOM OFF”.
Changing the sound source, the
function is turned off.Stopping and ejecting the CD
Press 1(Ä
) or 14(SRC) button to
return to the radio mode.SECRET CODING
Entering radio’s secret code
Entry of the secret code is required
to allow the radio to work after the
first connection to the car electric
system different from the original
one.
Connecting the radio to the car
supply, the display shows “RADIO
M - CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 3) to enter the
secret code digits (from 0to 9).
To confirm the required digit press
4(5
RPT).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 34

RADIO WITH CASSETTE PLAYER
35 Nero- Testo 603.46.306 Radio Stilo gb
35
Vain attempts Waiting
(on display) time (approx.)
1 1 minute
2 2 minutes
3 4 minutes
4 8 minutes
5 16 minutes
6 30 minutes
7 1 hour
8 2 hours
9 4 hours
10 8 hours
11 16 hours
12 24 hours
Entering the secret code
of the CD Changer
Should the control code between
the radio and the CD Changer be
not recognised, to reset CD
Changer proper operation the four-
digit secret code must be entered
manually.
When entering the secret code,
the display shows: “CDC M --
CODE ----”.
The secret code comprises four fig-
ures, each corresponding to one of
the dashes and is different for each
CD Changer.
To enter the first digit of the code,
press the corresponding button of
the preset stations (from 1to 4).
Press repeatedly the preset buttons
1-4(16, 17, 18and 19) to enter the
secret code digits (from 0to 9). Waiting times
If a wrong code is entered, the next
attempts to enter the code are
spaced by the following waiting
times.
During the waiting time the radio
shall not be on.
It shall however be connected with
+12V permanent voltage. The wait-
ing time is over when the display
shows the figure and the dashes of
the next attempt (e.g. 2 - - - ).
The following table shows the
times between one attempt and the
other.
Waiting time passes keeping the
radio on. When turning the radio
on/off, counting restarts from the
start of the current attempt.
The waiting time is over when the
display shows the figure and the
dashes of the next attempt (e.g. 2 -
- - )
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 35

36 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
36
TECHNICAL INFORMATION
Aerial fig. 4
The car is fitted with an aerial
located on the roof. You are recom-
mended to slacken and remove the
aerial from the roof to avoid damag-
ing it when washing the car in auto-
matic systems.
– 4 x 35W (with standard sound
system comprising 2 tweeters + 2
front woofers and 2 rear full-range
speakers)Standard system speakers fig. 5
The standard sound system
includes:
– 2 front tweeters A-fig. 5, 4 Ohm
impedance and 40W power.
fig. 4
F0C0298mfig. 5
F0C0077m
fig. 6
F0C0078m
To confirm the required digit press
4(5
RPT).
If the code has been entered prop-
erly, the radio and the CD Changer
start to work regularly.
Otherwise try to enter the secret
code a second and even a third time
if required. After the third negative
attempt, the radio sets in “stand-by”
for approx. 1 hour before enabling
other three attempts.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 36

RADIO WITH CASSETTE PLAYER
37 Nero- Testo 603.46.306 Radio Stilo gb
37
Protection fuse
The radio has a 10A protection
fuse D-fig. 8.
Power
CONNECTIONSA-fig. 8
A1CAN B line signal
A2Not Connected
A3CAN A line signal
A4Connection to +12V switch-
ing on voltage (at car starting)
A5Radio aerial connection
A6Not connected
A7Connection to +12V (perma-
nent) supply voltage
A8Earth connection.Speakers
CONNECTIONSB-fig. 8
B1Rear speaker
(right +)
B2Rear speaker
(right –)
B3Front speaker
(right +)
B4Front speaker
(right –)
B5Front speaker
(left +)
B6Front speaker
(left –)
B7Rear speaker
(left +)
B8Rear speaker
(left –) – 2 front midwoofers B-fig. 6, 165
mm diameter, 4 Ohm impedance and
40W power.
– 2 rear full-range A-fig. 7, 165
mm diameter, 4 Ohm impedance and
40W power.
The radio with cassette player
doesn’t support the HI-FI sound sys-
tem.
fig. 7
F0C0143m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 37

fig. 8
F0C0028m
38 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
38
PHONE INPUT
Connection presetting for hands-
free phone kit (through radio).
C7Positive sound input for
external phone presetting
C8Negative sound input for
external phone presetting
C9MUTE signal from external
phone presetting
C10Not connected
C11Not connected
C12Phone earth
CD CHANGER CONNECTION
C13CDC bus line
C14CD Changer data bus
C15CD Changer +12V supply
voltage
C16CD Changer switch voltage
C17CDC bus earth
C18Sound signal earth from CD
Changer
C19LH CDC sound channel
C20RH CDC sound channel Additional connections CONNECTIONSC-fig. 8
Line outputconnection preset-
ting for power amplifier (Booster) or
active speaker.
C1Positive sound input for
external TMC module
C2Negative sound input for
external TMC module
C3MUTE signal input from
external TMC module
C4Not connected
C5Not connected
C6Not connected
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 38

RADIO WITH COMPACT DISC PLAYER
39 Nero- Testo 603.46.306 Radio Stilo gb
39
R R R R
A A A A
D D D D
I I I I
O O O O

W W W W
I I I I
T T T T
H H H H

C C C C
O O O O
M M M M
P P P P
A A A A
C C C C
T T T T

D D D D
I I I I
S S S S
C C C C

P P P P
L L L L
A A A A
Y Y Y Y
E E E E
R R R R

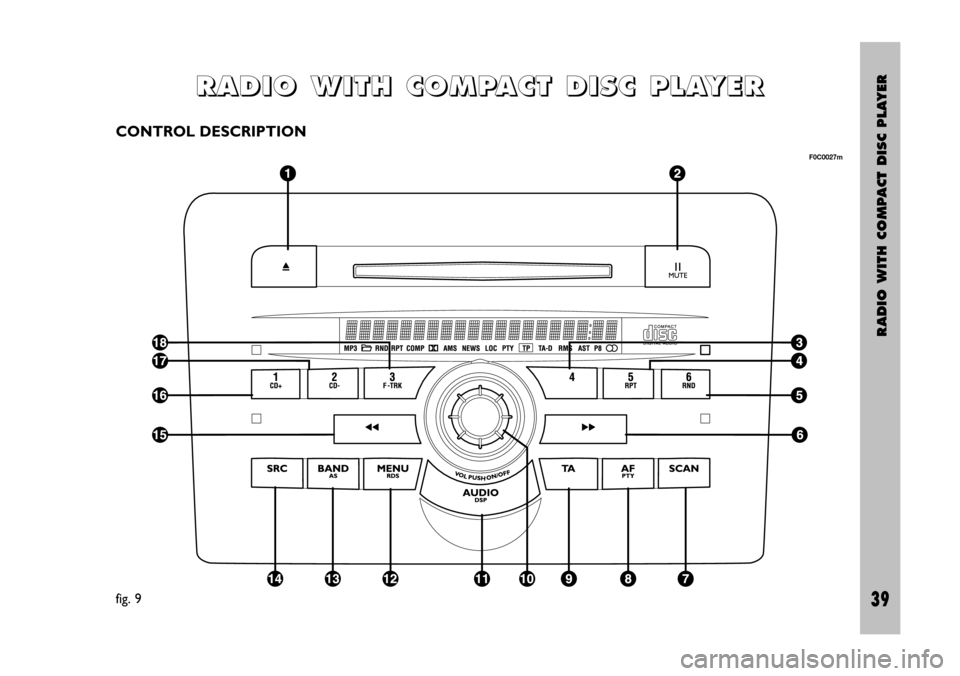

CONTROL DESCRIPTION
fig. 9
F0C0027m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 39
