FIAT TEMPRA 1988 Service And Repair Manual

€
w
«-im
0—ft'
im
a

I

F
?s
a
Tr ; s
3 ru
-g^Ntl a
1111
OHI'
€
ir-^J
• i 5
K
-.Jg -•M
-•5 1 * ».
R
i
r-i x 5 % eh -- s
-o-
-CD-
i-.
ri--B-*-
:|»5
fl
«
iiii
OHt.
TIT
J
TTTT
Diagram 12: Models: GT-SXL Petrol
-
Direction Indicators and Warning Light
-
Hazard Flashers and Warning Light
-
Rear
Fog Lights and Warning Light
-
Reversing Lights
-
Brake Lights
NB
-
SX Versions do not have items 34, 314 and 313.

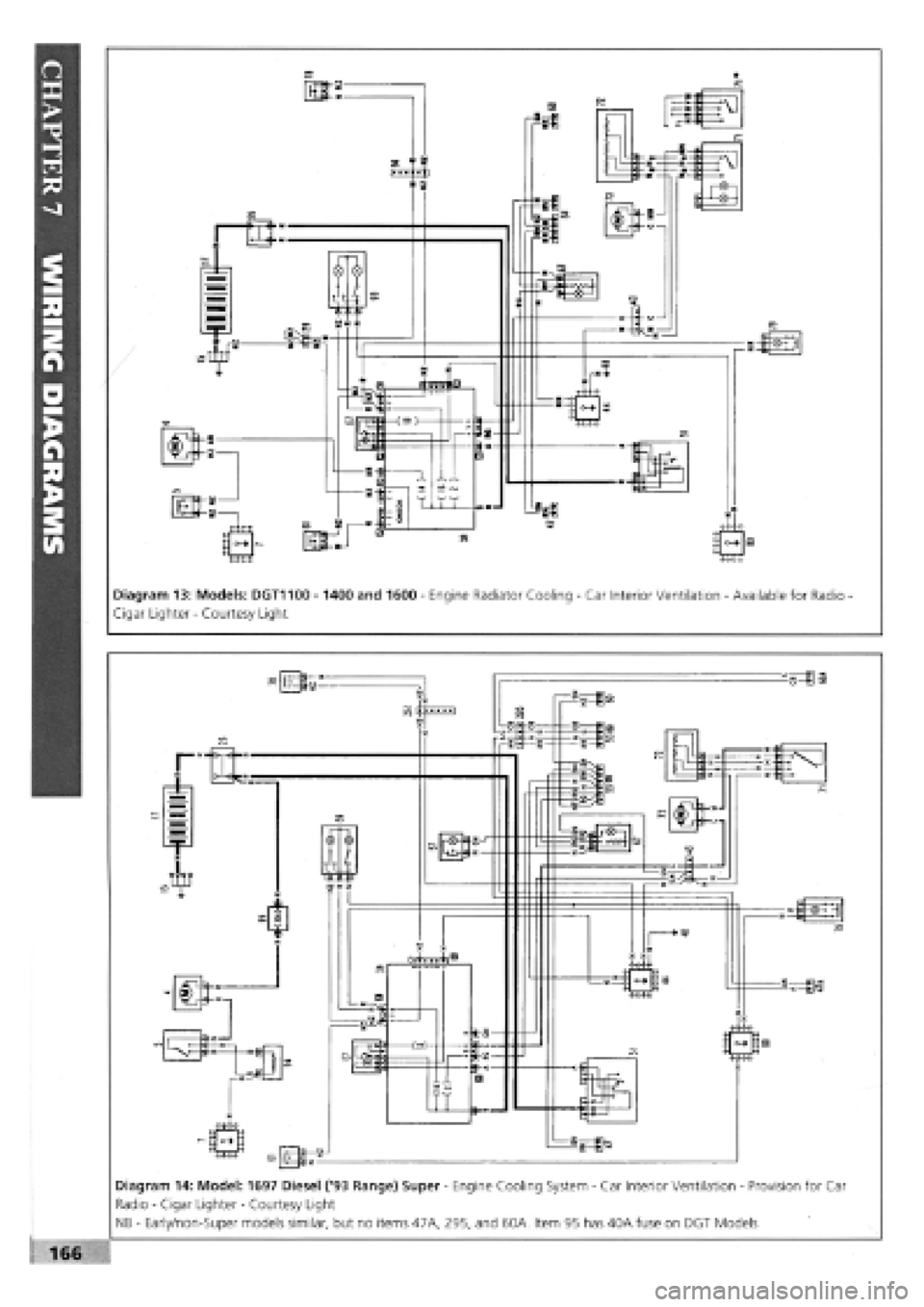

Diagram 13: Models: DGT1100
-
1400 and 1600
-
Engine Radiator Cooling
-
Car Interior Ventilation
-
Available for Radio -
Cigar Lighter
-
Courtesy Light
Diagram 14: Model: 1697 Diesel ('93 Range) Super
-
Engine Cooling System
-
Car Interior Ventilation
-
Provision for Car
Radio
-
Cigar Lighter
-
Courtesy Light
NB
-
Early/non-Super models similar, but no items 47A, 295, and 60A. Item 95 has 40A fuse on DGT Models

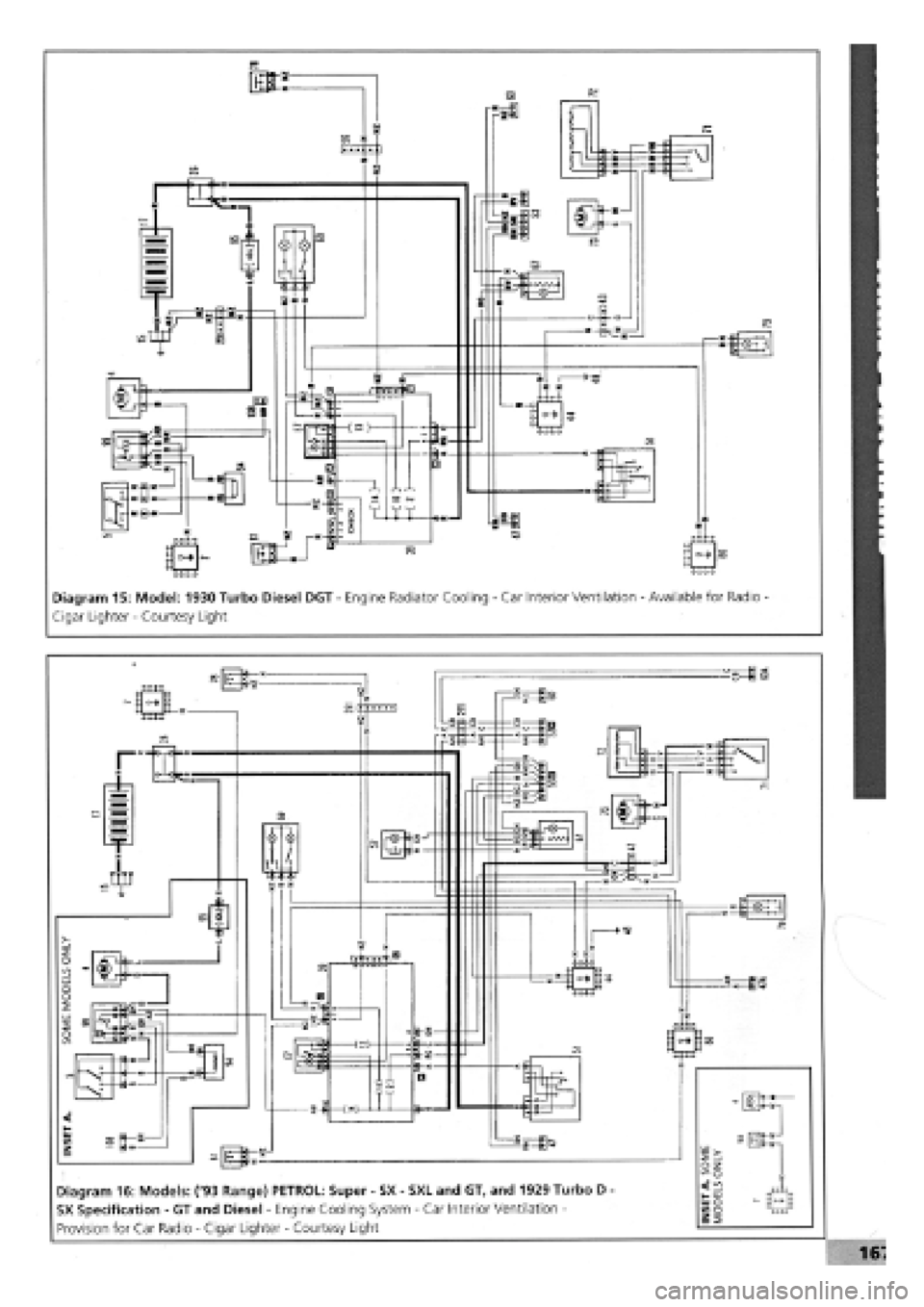

Diagram 15: Model: 1930 Turbo Diesel DGT
-
Engine Radiator Cooling
-
Car Interior Ventilation
-
Available for Radio -
Cigar Lighter
-
Courtesy Light

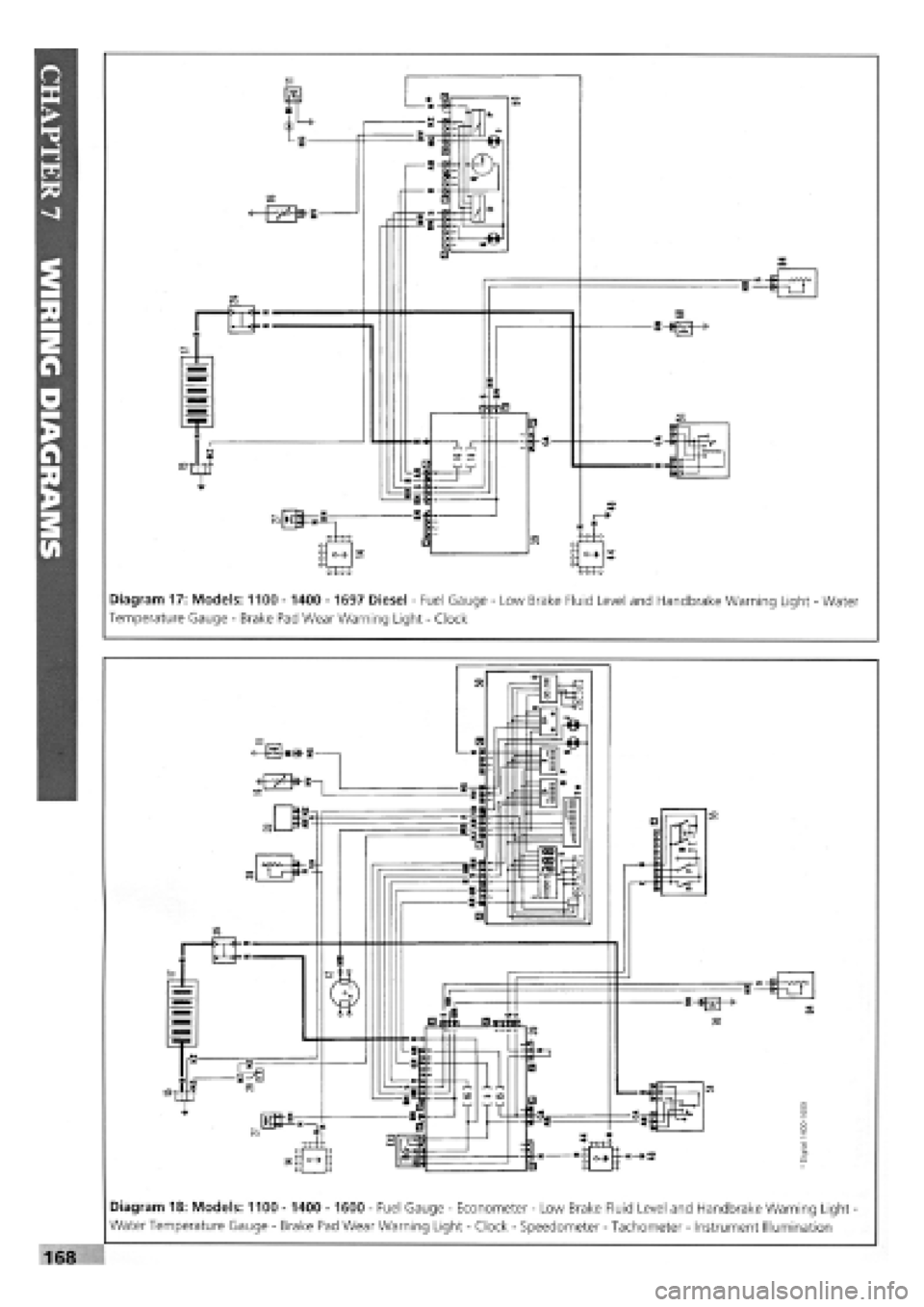

Diagram 17: Models: 1100 -1400
-
1697 Diesel - Fuel Gauge
-
Low Brake Fluid Level and Handbrake Warning Light
-
Water
Temperature Gauge
-
Brake Pad Wear Warning Light
-
Clock
|2n
tnj
•Pf
rrfl,
•5P
-if-•
-Is uu
—
—o— £ —•
i-^-Hi-
a
ZJ
ml
Diagram 18: Models: 1100
-
1400
-
1600
-
Fuel Gauge
-
Econometer
-
Low Brake Fluid Level and Handbrake Warning Light
Water Temperature Gauge
-
Brake Pad Wear Warning Light
-
Clock
-
Speedometer
-
Tachometer
-
Instrument Illumination

Diagram 19: Models: ('93 Range)
-
GT
-
SX and SXL (Petrol)
-
Fuel Level Gauge
-
Low Brake Fluid Level and Handbrake
Warning Light
-
Water Temperature Gauge
-
Excessive Brake Pad Wear Warning Light
-
Clock
-
Speedometer
-
Rev. Counter
-

Instrument Panel Lighting
.2'55 £
a>
>> Z. CM Ol— £ro c
k. <"
.2 2 c
Sis
8°a> - c Q. C rtj «_ z o
'»-
ra
~z_
2>7
Diagram 20: Models: S
-
SX
-
SXL and GT (with EEC STAGE 2 Engines)
-
Fuel Level Gauge and Reserve Warning Light
Low Brake Fluid Level and Handbrake On Warning Light
-
Water Temperature Gauge
-
Brake Pad Wear Warning Light -
Analogue Clock
-
Electronic Rev. Counter

Diagram 21: Model: 1697 Diesel DGT
-
Fuel Gauge
-
Low Brake Fluid Level and Handbrake Warning Light
-
Water
Temperature Gauge
-
Brake Pad Wear Warning Light
-
Clock
-
Speedometer
-
Instrument Illumination
i
V—*

•u |
j* ta—
At
6 S
m
IS a
Diagram 22: Model: ('93 Range) 1929 Diesel SX
-
Fuel Level Gauge
-
Low Brake Fluid Level and Handbrake Warning Light
-
Water
Temperature Gauge
-
Excessive Brake Pad Wear Warning Light
-
Clock
-
Speedometer Rev. Counter
-
Instrument Panel Lighting

Diagram 23: Model: 1930 Turbo Diesel DGT
-
Fuel Gauge
-
Low Brake Fluid and Handbrake Warning Light
-
Turbocharging
Pressure Gauge
-
Water Temperature Gauge
-
Brake Pad Wear Warning Light
-
Clock
-
Instrument Illumination
Diagram 24: Model: General
-
Horn
-
Heated Rear Window
-
Windscreen Wiper
-
Rear Window Wiper
-
Windscreen/Rear
Window Washer Pump
NB
-
If your non-DGT vehicle has only one horn, ignore Item 3A

T&T
M M EVfgjl
L
rK

£E J—j$51

4a:
CE*
TTT'
XT
4
-SJ
T
21
4-5-

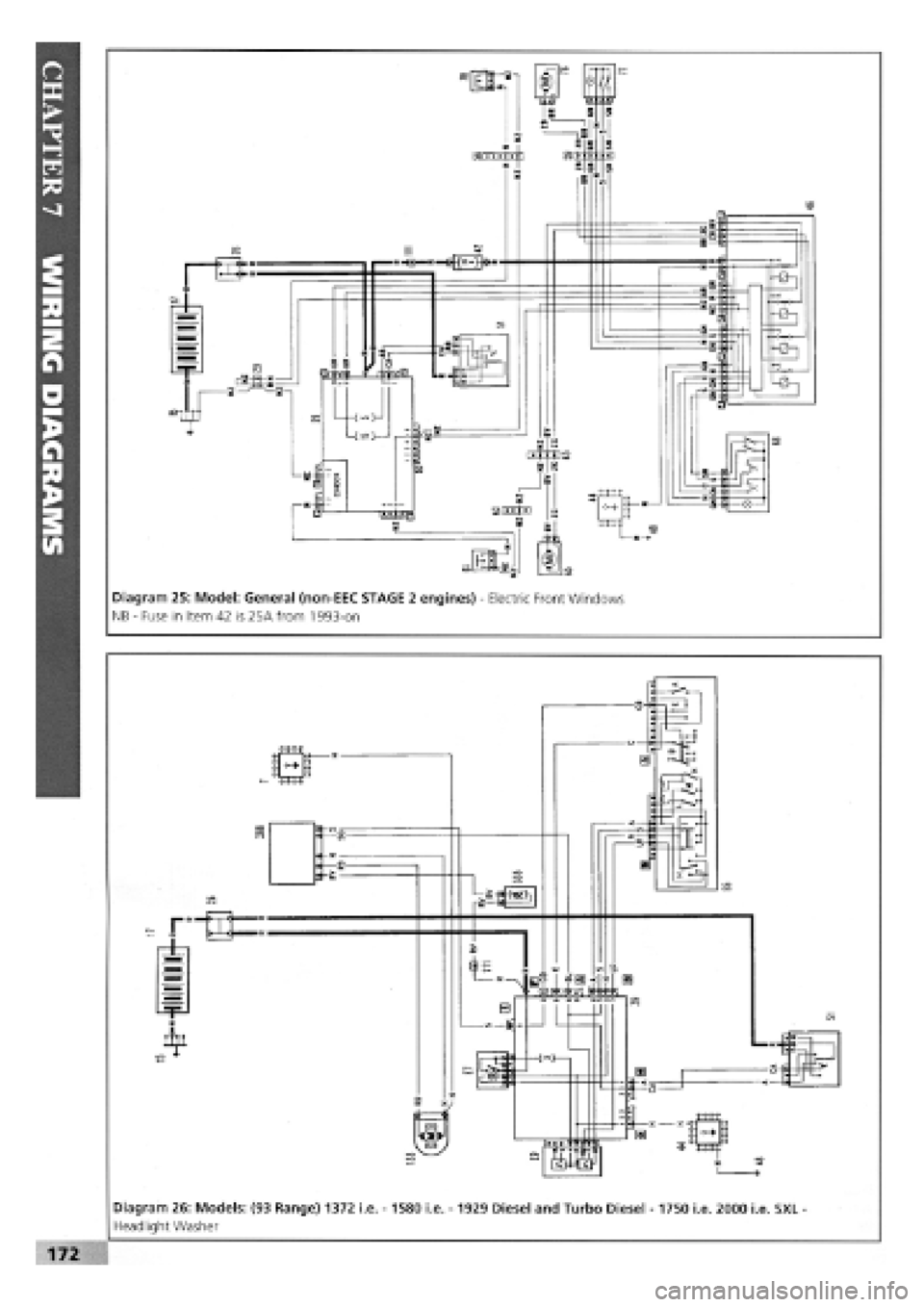

Diagram 25: Model: General (non-EEC STAGE 2 engines)
-
Electric Front Windows
NB
-
Fuse in Item 42 is 25A from 1993-on
Diagram 26: Models: (93 Range) 1372 i.e. - 1580 i.e.
-
1929 Diesel and Turbo Diesel
-
1750 i.e. 2000 i.e. SXL
-

Headlight Washer

JT
[•a-—a
H
•——
I rx
ll>
[o
&
H ::r
=m=
a
—
TTTT
cHf
vwww = —(!•
Diagram 27: Model: All with EEC STAGE 2 engines
-
Electric Windows
£
tij! IT
TTTT
o>
_r«-«J
n
TTTT
(He
wTTX
B
B JpL iftt frt S'?:
II
J
-C"IH
•TTTT, I: o+
-5—f»
03
£ ® o r^ Wco "*• T-
§-s '•P o O 0) fg
8" Hg ra-c: 'v. as
Diagram 28: Models: SX
-
SXL
-
GT
-
2000 16V (with EEC STAGE 2 Engines)
-
Headlight Washer
173

i kg
U>5 &S
s 'J
—g-

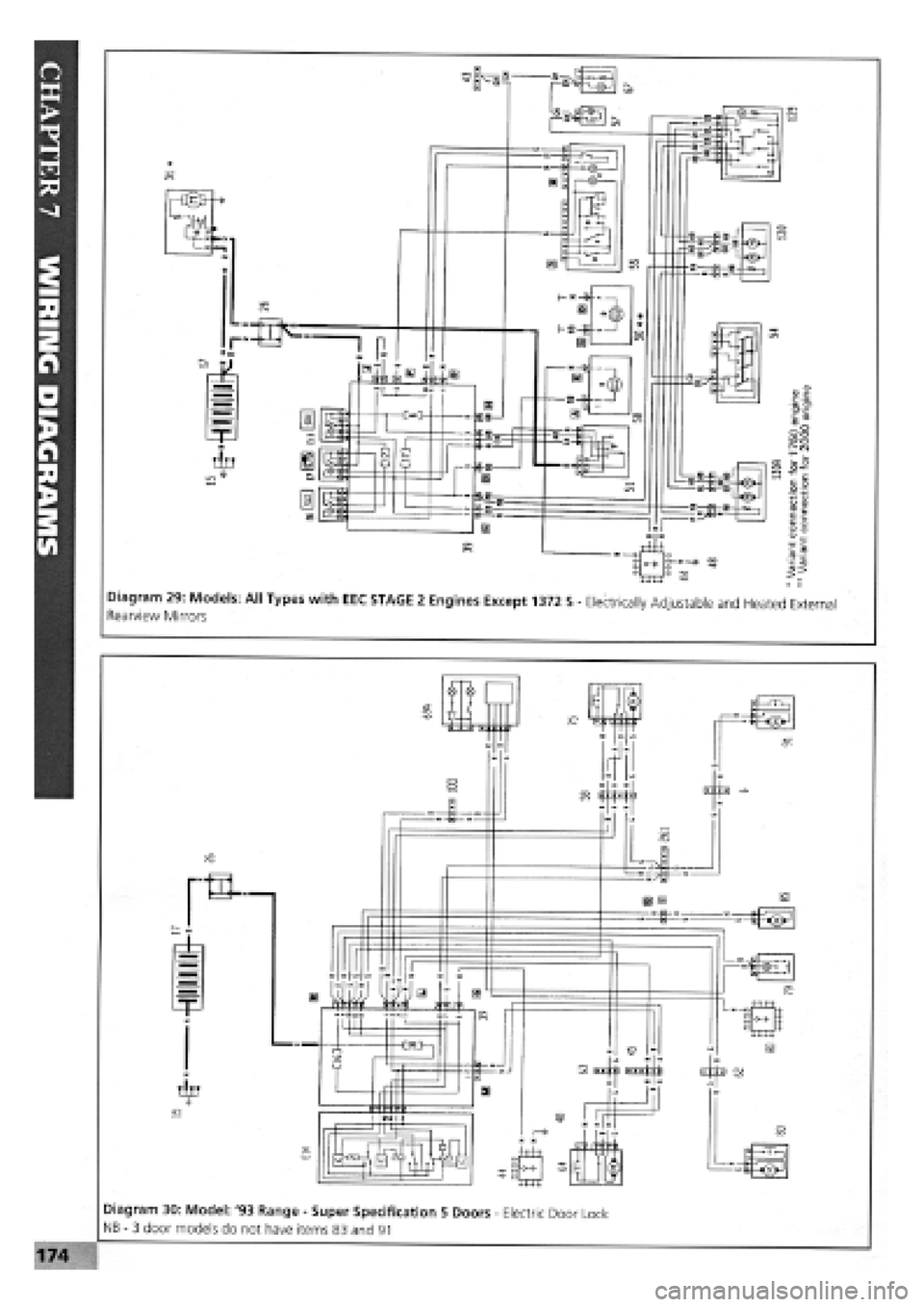

Diagram 29: Models: All Types with EEC STAGE 2 Engines Except 1372 S
-
Electrically Adjustable and Heated External Rearview Mirrors
Diagram 30: Model: '93 Range
-
Super Specification 5 Doors
-
Electric Door Lock
NB
-
3 door models do not have items 83 and 91
