Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Ignition, electric powerassisted steering, instrumentcluster, passive anti-theftsystem, anti-lock brakingsystem
10 A13
Powertrain control module,transmission selector lever,fuel pump7.5 A14
Audio system, instrumentcluster7.5 A15
Heated windscreen7.5 A16
Not used-17
Not used-18
Data link connector15 A19
Multi function display, clock,internal scanner, heatingvents, air conditioning panel20 A20
Audio system, navigation,bluetooth15 A21
Instrument cluster7.5 A22
Trailer module7.5 A23
Sync module antenna7.5 A24
Not used-25
Front wiper, left-hand side30 A26
Front wiper, right-hand side30 A27
Circuits switchedRelay
IgnitionR1
129Fuses

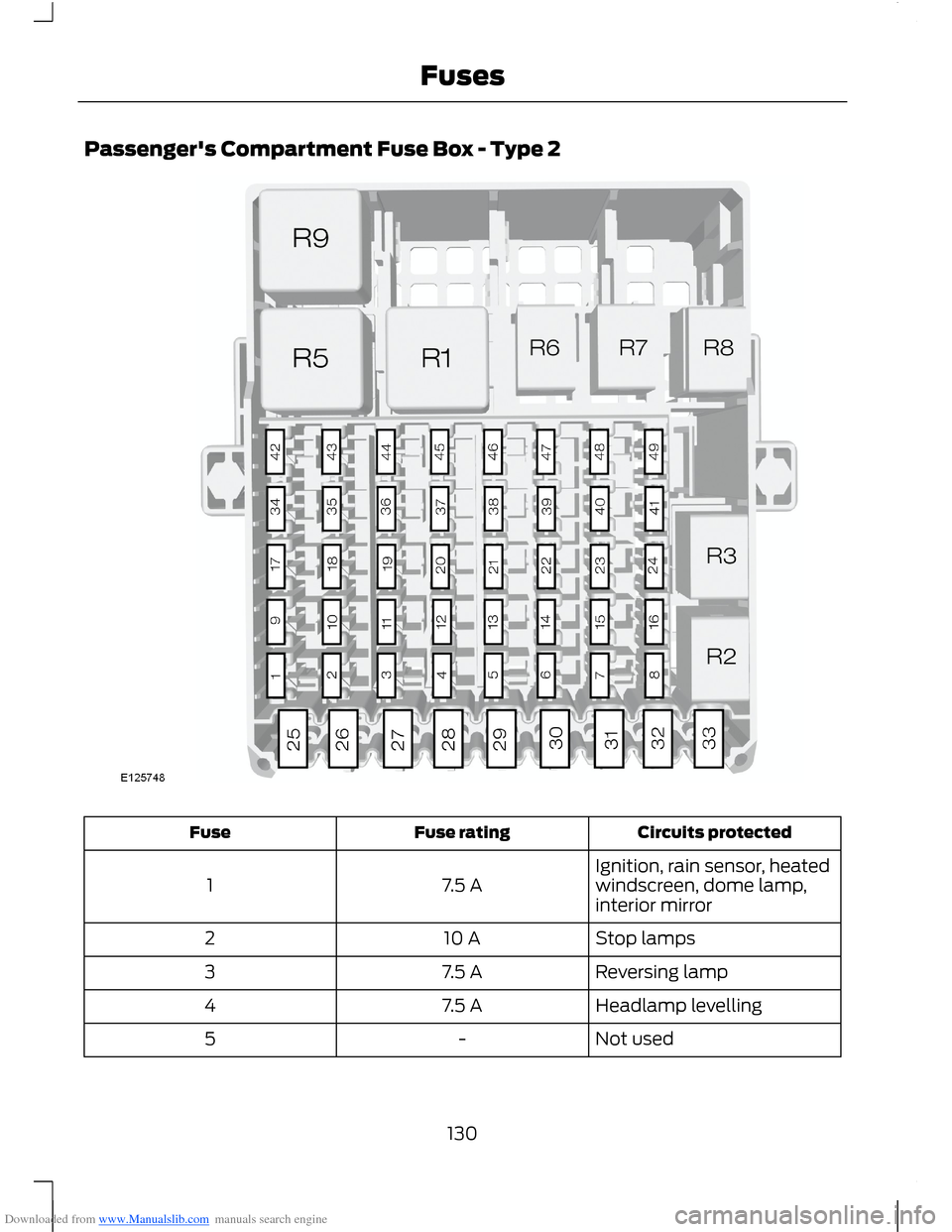

Downloaded from www.Manualslib.com manuals search engine Passenger's Compartment Fuse Box - Type 2
Circuits protectedFuse ratingFuse
Ignition, rain sensor, heatedwindscreen, dome lamp,interior mirror7.5 A1
Stop lamps10 A2
Reversing lamp7.5 A3
Headlamp levelling7.5 A4
Not used-5
130Fuses

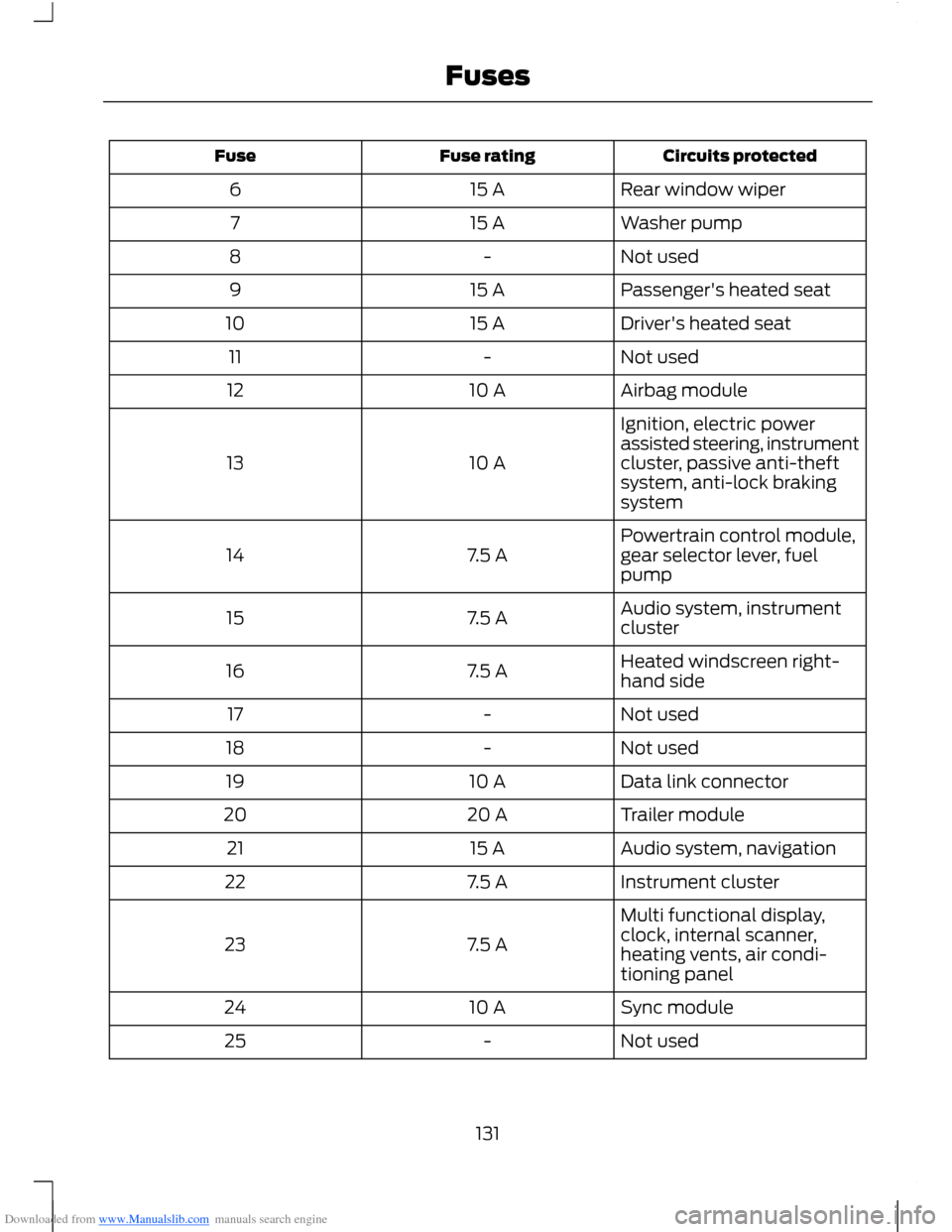

Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Rear window wiper15 A6
Washer pump15 A7
Not used-8
Passenger's heated seat15 A9
Driver's heated seat15 A10
Not used-11
Airbag module10 A12
Ignition, electric powerassisted steering, instrumentcluster, passive anti-theftsystem, anti-lock brakingsystem
10 A13
Powertrain control module,gear selector lever, fuelpump7.5 A14
Audio system, instrumentcluster7.5 A15
Heated windscreen right-hand side7.5 A16
Not used-17
Not used-18
Data link connector10 A19
Trailer module20 A20
Audio system, navigation15 A21
Instrument cluster7.5 A22
Multi functional display,clock, internal scanner,heating vents, air condi-tioning panel
7.5 A23
Sync module10 A24
Not used-25
131Fuses

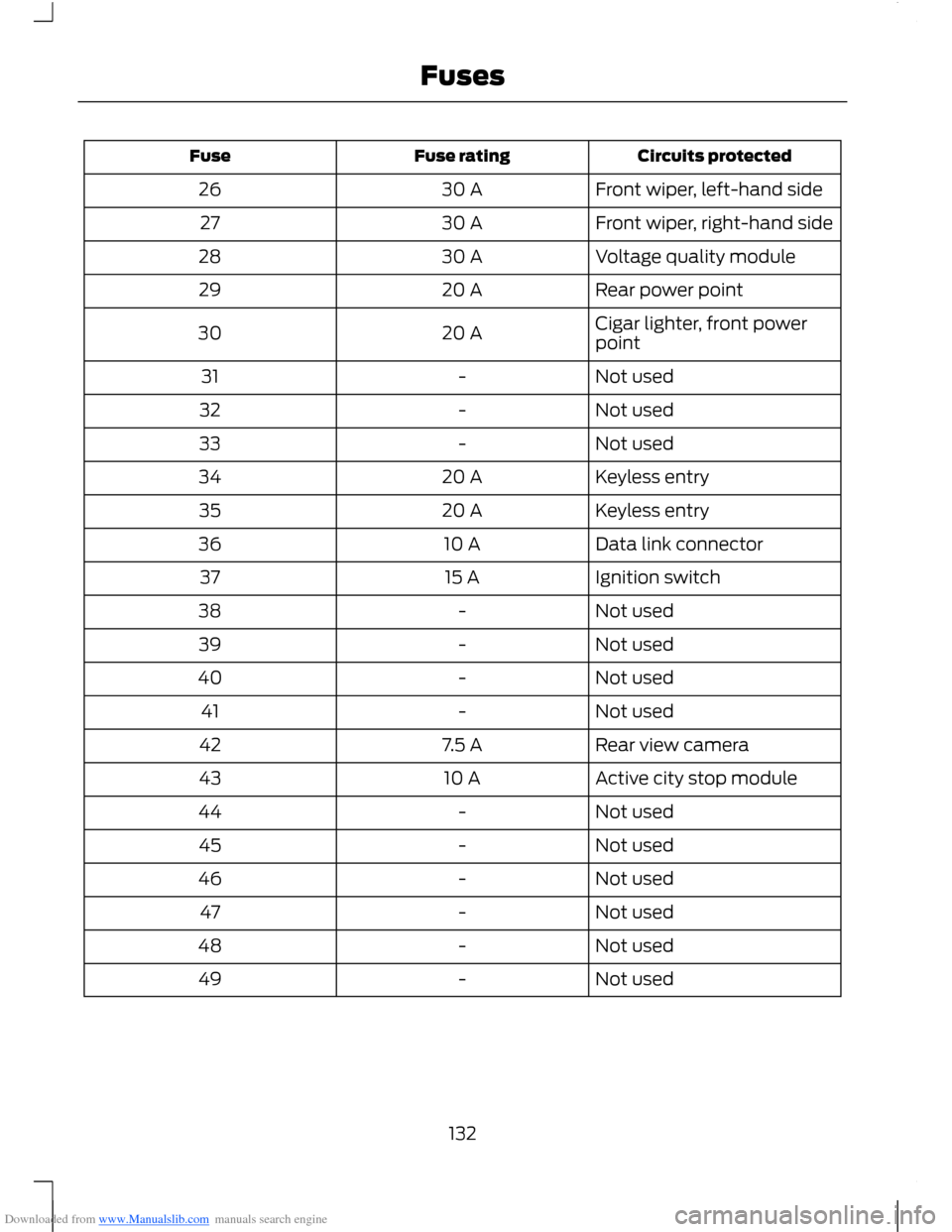

Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Front wiper, left-hand side30 A26
Front wiper, right-hand side30 A27
Voltage quality module30 A28
Rear power point20 A29
Cigar lighter, front powerpoint20 A30
Not used-31
Not used-32
Not used-33
Keyless entry20 A34
Keyless entry20 A35
Data link connector10 A36
Ignition switch15 A37
Not used-38
Not used-39
Not used-40
Not used-41
Rear view camera7.5 A42
Active city stop module10 A43
Not used-44
Not used-45
Not used-46
Not used-47
Not used-48
Not used-49
132Fuses

Downloaded from www.Manualslib.com manuals search engine Circuits switchedRelay
IgnitionR1
Cigar lighterR2
Not usedR3
Active city stop relayR4
Not usedR5
Keyless entry (accessory)R6
Keyless entry (ignition)R7
Battery saver relayR8
Heated windscreen left-hand sideR9
Heated windscreen right-hand sideR10
Not usedR11
Not usedR12
CHANGING A FUSE
WARNINGS
Do not modify the electrical systemof your vehicle in any way. Haverepairs to the electrical system andthe replacement of relays and high currentfuses carried out by an authorised dealer.
Switch the ignition and all electricalequipment off before touching orattempting to change a fuse.
Fit a replacement fuse with the samerating as the one you have removed.
Note:You can identify a blown fuse by abreak in the filament.
Note:All fuses, except high current fuses,are a push fit.
133Fuses

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network of Fordauthorised repairers that are there to helpyou with their professional servicingexpertise. Authorised repairers are bestqualified to service your vehicle properlyand expertly, with a wide range of highlyspecialised tools.
In addition to regular servicing, werecommend that you carry out thefollowing checks.
WARNINGS
Switch the ignition off beforetouching or attempting adjustmentof any kind.
Do not touch the electronic ignitionsystem parts after you have switchedthe ignition on or when the engine isrunning. The system operates at highvoltage.
Keep your hands and clothing clearof the engine cooling fan. Undercertain conditions, the fan maycontinue to run for several minutes afteryou have switched the engine off.
Make sure that you fit filler capssecurely after carrying outmaintenance checks.
Daily Checks
•Exterior lamps.
•Interior lamps.
•Warning lamps and indicators.
Check When Refuelling
•Engine oil level. See Engine Oil Check(page 139).
•Brake fluid level. See Brake andClutch Fluid Check (page 141).
•Washer fluid level. See Washer FluidCheck (page 141).
•Tyre pressures (when cold). SeeTechnical Specifications (page 164).
•Tyre condition. See Wheels and Tyres(page 155).
Monthly Checks
•Engine coolant level (engine cold). SeeEngine Coolant Check (page 140).
•Pipes, hoses and reservoirs for leaks.
•Air conditioning operation.
•Parking brake operation.
•Horn operation.
•Tightness of wheel nuts. SeeTechnical Specifications (page 164).
OPENING AND CLOSING THE
BONNET
Opening the Bonnet
1.Pull the bonnet release handle.
134Maintenance

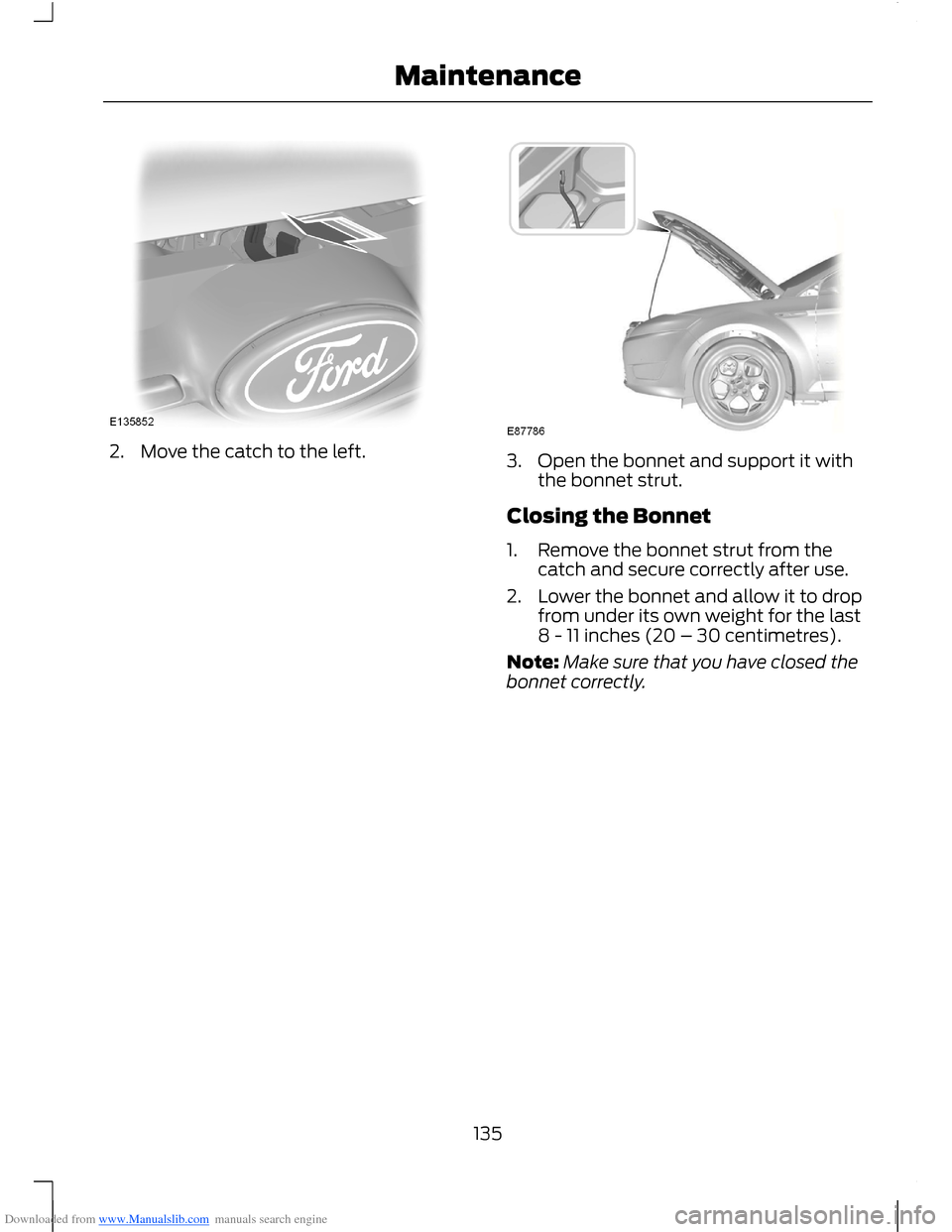

Downloaded from www.Manualslib.com manuals search engine 2.Move the catch to the left.3.Open the bonnet and support it withthe bonnet strut.
Closing the Bonnet
1.Remove the bonnet strut from thecatch and secure correctly after use.
2.Lower the bonnet and allow it to dropfrom under its own weight for the last8 - 11 inches (20 – 30 centimetres).
Note:Make sure that you have closed thebonnet correctly.
135Maintenance

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.0L ECOBOOST
(74KW/100PS)/1.0L ECOBOOST (90KW/120PS)
Engine coolant reservoir*: See Engine Coolant Check (page 140).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 141).B
Engine oil filler cap*: See Engine Oil Check (page 139).C
Battery: See Changing the 12V Battery (page 141).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 141).E
Engine compartment fuse box. See Fuses (page 124).F
Windscreen and rear window washer fluid reservoir: See Washer Fluid Check(page 141).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 139).I
* The filler caps and the engine oil dipstick are coloured for easy identification.
136Maintenance

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.4L DURATEC-16V
(66KW/90PS)/1.6L DURATEC-16V TI-VCT (77KW/105PS) -
SIGMA
Engine coolant reservoir*: See Engine Coolant Check (page 140).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 141).B
Engine oil filler cap*: See Engine Oil Check (page 139).C
Battery: See Changing the 12V Battery (page 141).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 141).E
Engine compartment fuse box. See Fuses (page 124).F
Windscreen and rear window washer fluid reservoir: See Washer Fluid Check(page 141).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 139).I
* The filler caps and the engine oil dipstick are coloured for easy identification.
137Maintenance

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.5L DURATORQ-TDCI
(55KW/75PS)/1.6L DURATORQ-TDCI (70KW/95PS) (T3)
Engine coolant reservoir*: See Engine Coolant Check (page 140).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 141).B
Engine oil filler cap*: See Engine Oil Check (page 139).C
Battery: See Changing the 12V Battery (page 141).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 141).E
Engine compartment fuse box. See Fuses (page 124).F
Windscreen and rear window washer fluid reservoir: See Washer Fluid Check(page 141).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 139).I
* The filler caps and the engine oil dipstick are coloured for easy identification.
138Maintenance
