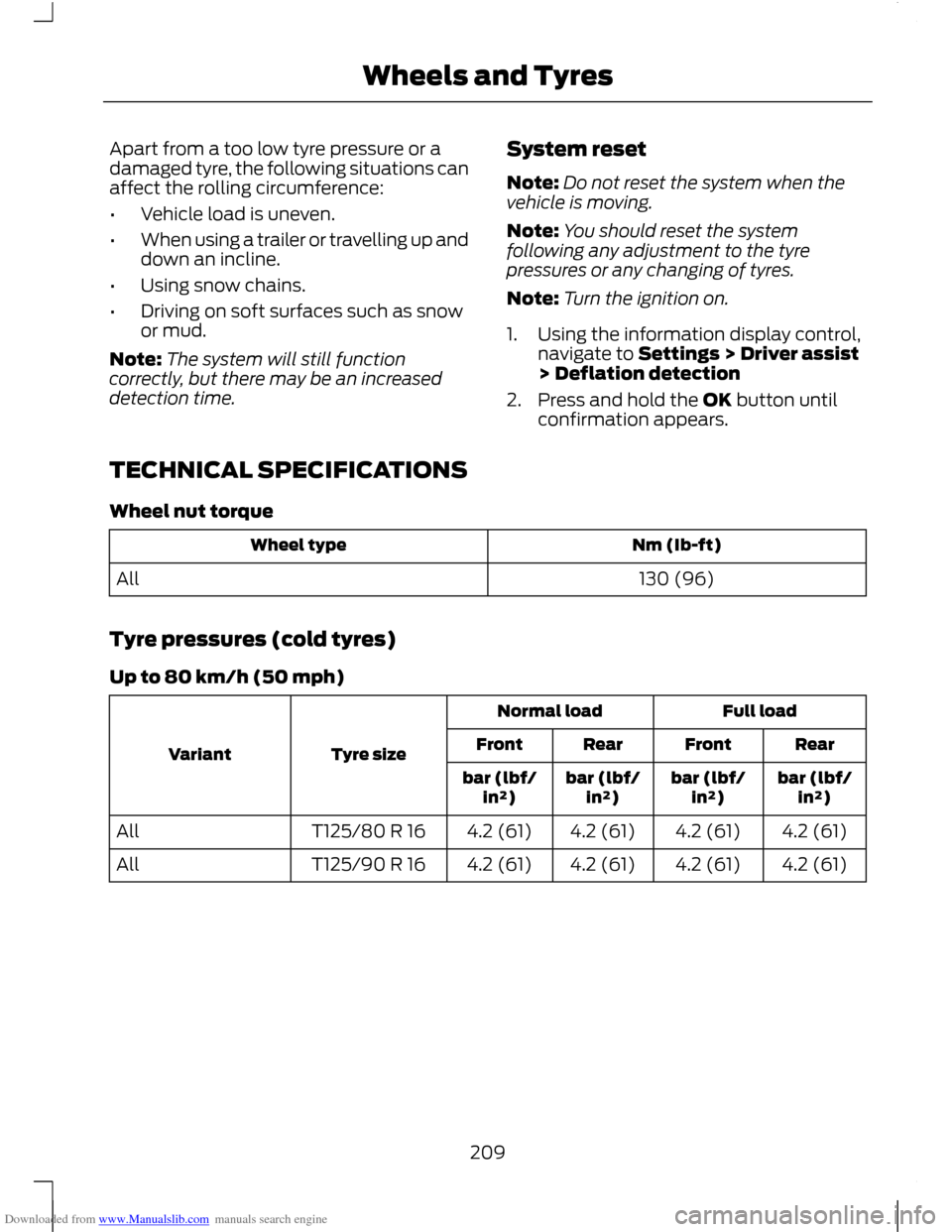

Downloaded from www.Manualslib.com manuals search engine Apart from a too low tyre pressure or a
damaged tyre, the following situations can
affect the rolling circumference:
•
Vehicle load is uneven.
• When using a trailer or travelling up and
down an incline.
• Using snow chains.
• Driving on soft surfaces such as snow
or mud.
Note: The system will still function
correctly, but there may be an increased
detection time. System reset
Note:
Do not reset the system when the
vehicle is moving.
Note: You should reset the system
following any adjustment to the tyre
pressures or any changing of tyres.
Note: Turn the ignition on.
1. Using the information display control, navigate to Settings > Driver assist
> Deflation detection
2. Press and hold the OK button until confirmation appears.
TECHNICAL SPECIFICATIONS
Wheel nut torque Nm (Ib-ft)
Wheel type
130 (96)
All
Tyre pressures (cold tyres)
Up to 80 km/h (50 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (lbf/in²)
bar (lbf/
in²)
bar (lbf/
in²)
bar (lbf/
in²)
4.2 (61)
4.2 (61)
4.2 (61)
4.2 (61)
T125/80 R 16
All
4.2 (61)
4.2 (61)
4.2 (61)
4.2 (61)
T125/90 R 16
All
209
Wheels and Tyres

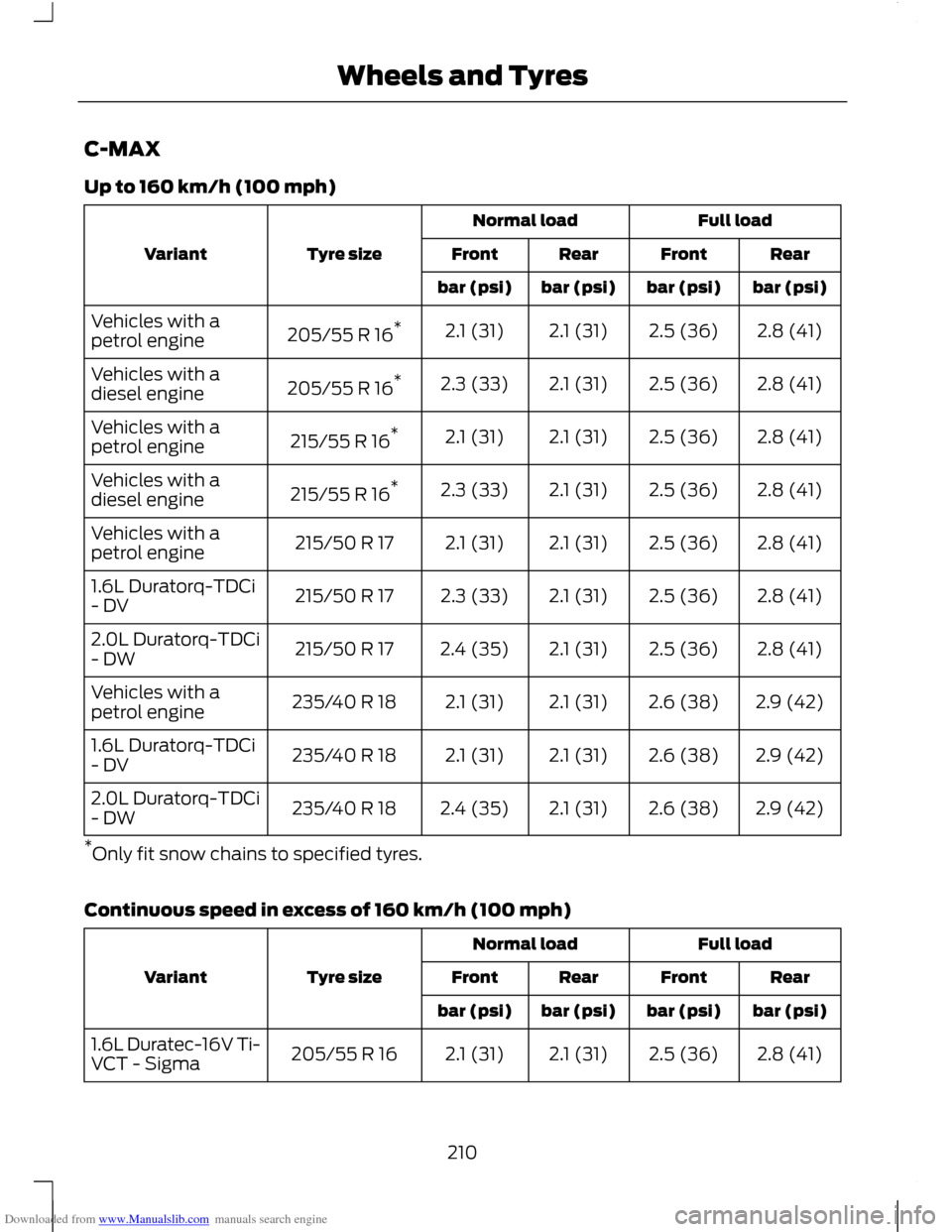

Downloaded from www.Manualslib.com manuals search engine C-MAX
Up to 160 km/h (100 mph)
Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
205/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
205/55 R 16 *
Vehicles with a
diesel engine
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
215/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
215/55 R 16 *
Vehicles with a
diesel engine
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
215/50 R 17
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
2.8 (41)
2.5 (36)
2.1 (31)
2.4 (35)
215/50 R 17
2.0L Duratorq-TDCi
- DW
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
Vehicles with a
petrol engine
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.6 (38)
2.1 (31)
2.4 (35)
235/40 R 18
2.0L Duratorq-TDCi
- DW
* Only fit snow chains to specified tyres.
Continuous speed in excess of 160 km/h (100 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
205/55 R 16
1.6L Duratec-16V Ti-
VCT - Sigma
210
Wheels and Tyres

Downloaded from www.Manualslib.com manuals search engine Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
205/55 R 16
1.6L EcoBoost -
Sigma
2.8 (41)
2.5 (36)
2.1 (31)
2.3 (33)
205/55 R 16
1.6L Duratorq-TDCi
- DV
2.8 (41)
2.5 (36)
2.1 (31)
2.1 (31)
215/55 R 16
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.1 (31)
2.4 (35)
215/55 R 16
Vehicles with a
diesel engine
2.8 (41)
2.6 (38)
2.1 (31)
2.2 (32)
215/50 R 17
Vehicles with a
petrol engine
2.8 (41)
2.6 (38)
2.1 (31)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
2.8 (41)
2.6 (38)
2.1 (31)
2.4 (35)
215/50 R 17
2.0L Duratorq-TDCi
- DW
2.9 (42)
2.6 (38)
2.1 (31)
2.2 (32)
235/40 R 18
Vehicles with a
petrol engine
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.6 (38)
2.1 (31)
2.4 (35)
235/40 R 18
2.0L Duratorq-TDCi
- DW

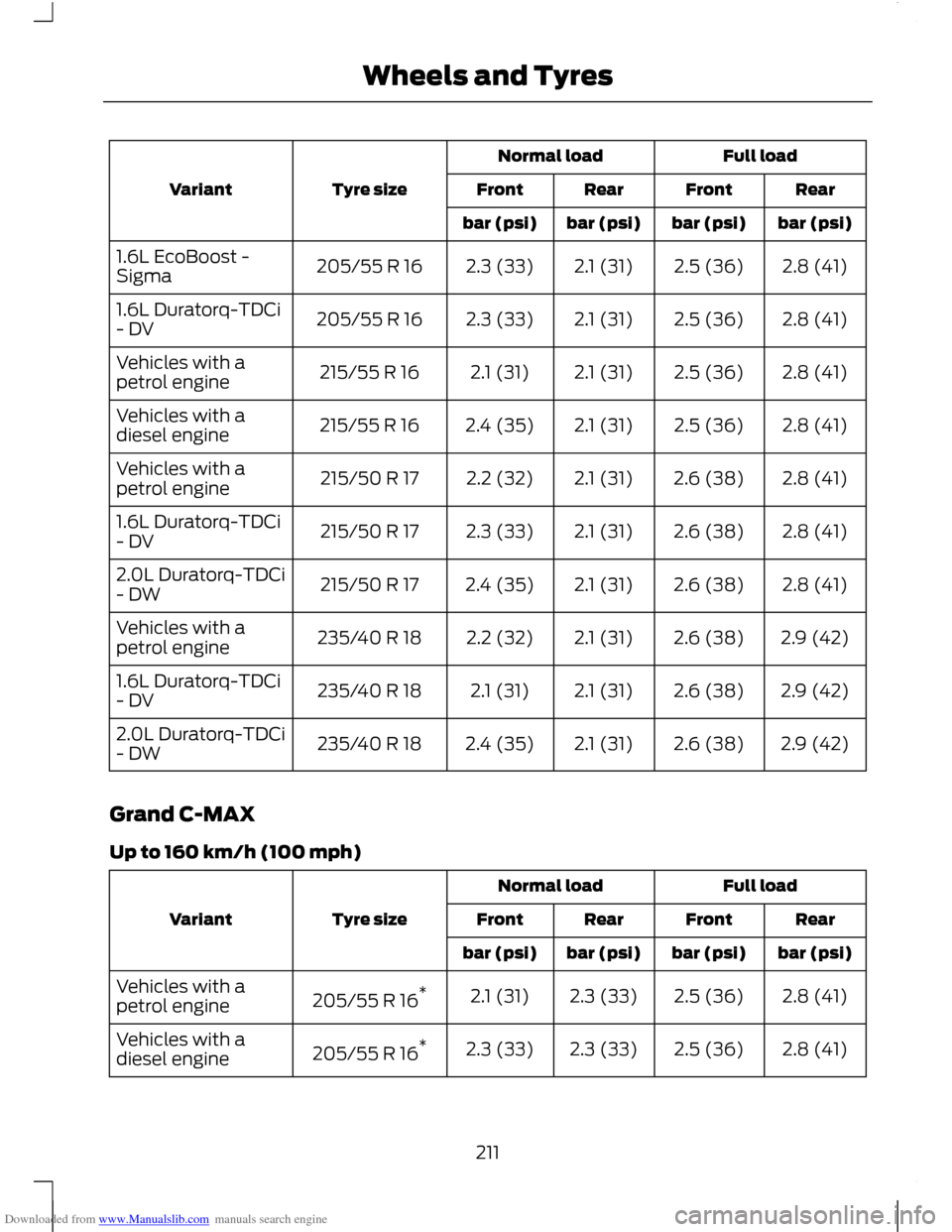

Grand C-MAX
Up to 160 km/h (100 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.3 (33)
2.1 (31)
205/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.3 (33)
2.3 (33)
205/55 R 16 *
Vehicles with a
diesel engine
211
Wheels and Tyres

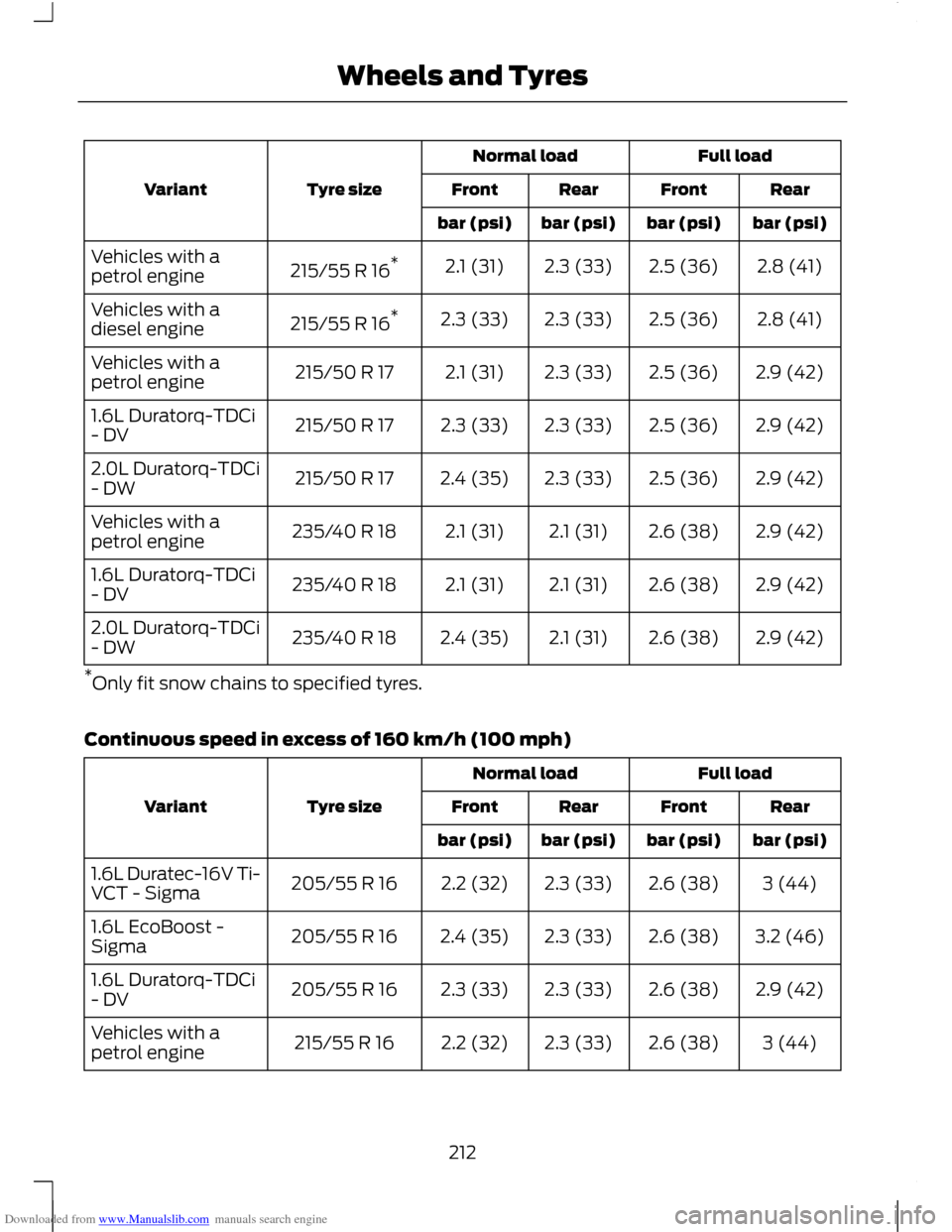

Downloaded from www.Manualslib.com manuals search engine Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
2.8 (41)
2.5 (36)
2.3 (33)
2.1 (31)
215/55 R 16 *
Vehicles with a
petrol engine
2.8 (41)
2.5 (36)
2.3 (33)
2.3 (33)
215/55 R 16 *
Vehicles with a
diesel engine
2.9 (42)
2.5 (36)
2.3 (33)
2.1 (31)
215/50 R 17
Vehicles with a
petrol engine
2.9 (42)
2.5 (36)
2.3 (33)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.5 (36)
2.3 (33)
2.4 (35)
215/50 R 17
2.0L Duratorq-TDCi
- DW
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
Vehicles with a
petrol engine
2.9 (42)
2.6 (38)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
2.9 (42)
2.6 (38)
2.1 (31)
2.4 (35)
235/40 R 18
2.0L Duratorq-TDCi
- DW
* Only fit snow chains to specified tyres.
Continuous speed in excess of 160 km/h (100 mph) Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
3 (44)
2.6 (38)
2.3 (33)
2.2 (32)
205/55 R 16
1.6L Duratec-16V Ti-
VCT - Sigma
3.2 (46)
2.6 (38)
2.3 (33)
2.4 (35)
205/55 R 16
1.6L EcoBoost -
Sigma
2.9 (42)
2.6 (38)
2.3 (33)
2.3 (33)
205/55 R 16
1.6L Duratorq-TDCi
- DV
3 (44)
2.6 (38)
2.3 (33)
2.2 (32)
215/55 R 16
Vehicles with a
petrol engine
212
Wheels and Tyres

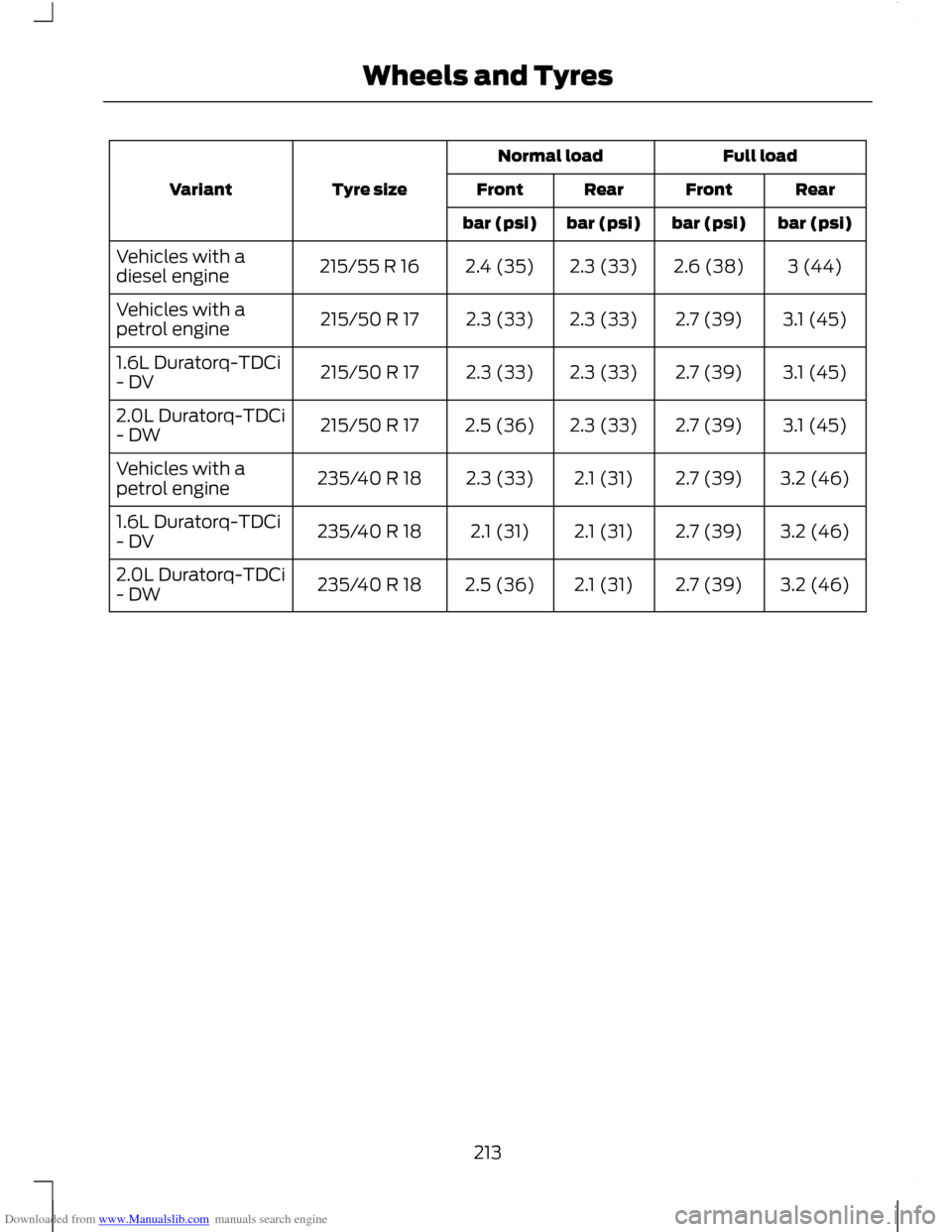

Downloaded from www.Manualslib.com manuals search engine Full load
Normal load
Tyre size
Variant Rear
Front
Rear
Front
bar (psi)
bar (psi)
bar (psi)
bar (psi)
3 (44)
2.6 (38)
2.3 (33)
2.4 (35)
215/55 R 16
Vehicles with a
diesel engine
3.1 (45)
2.7 (39)
2.3 (33)
2.3 (33)
215/50 R 17
Vehicles with a
petrol engine
3.1 (45)
2.7 (39)
2.3 (33)
2.3 (33)
215/50 R 17
1.6L Duratorq-TDCi
- DV
3.1 (45)
2.7 (39)
2.3 (33)
2.5 (36)
215/50 R 17
2.0L Duratorq-TDCi
- DW
3.2 (46)
2.7 (39)
2.1 (31)
2.3 (33)
235/40 R 18
Vehicles with a
petrol engine
3.2 (46)
2.7 (39)
2.1 (31)
2.1 (31)
235/40 R 18
1.6L Duratorq-TDCi
- DV
3.2 (46)
2.7 (39)
2.1 (31)
2.5 (36)
235/40 R 18
2.0L Duratorq-TDCi
- DW
213
Wheels and Tyres

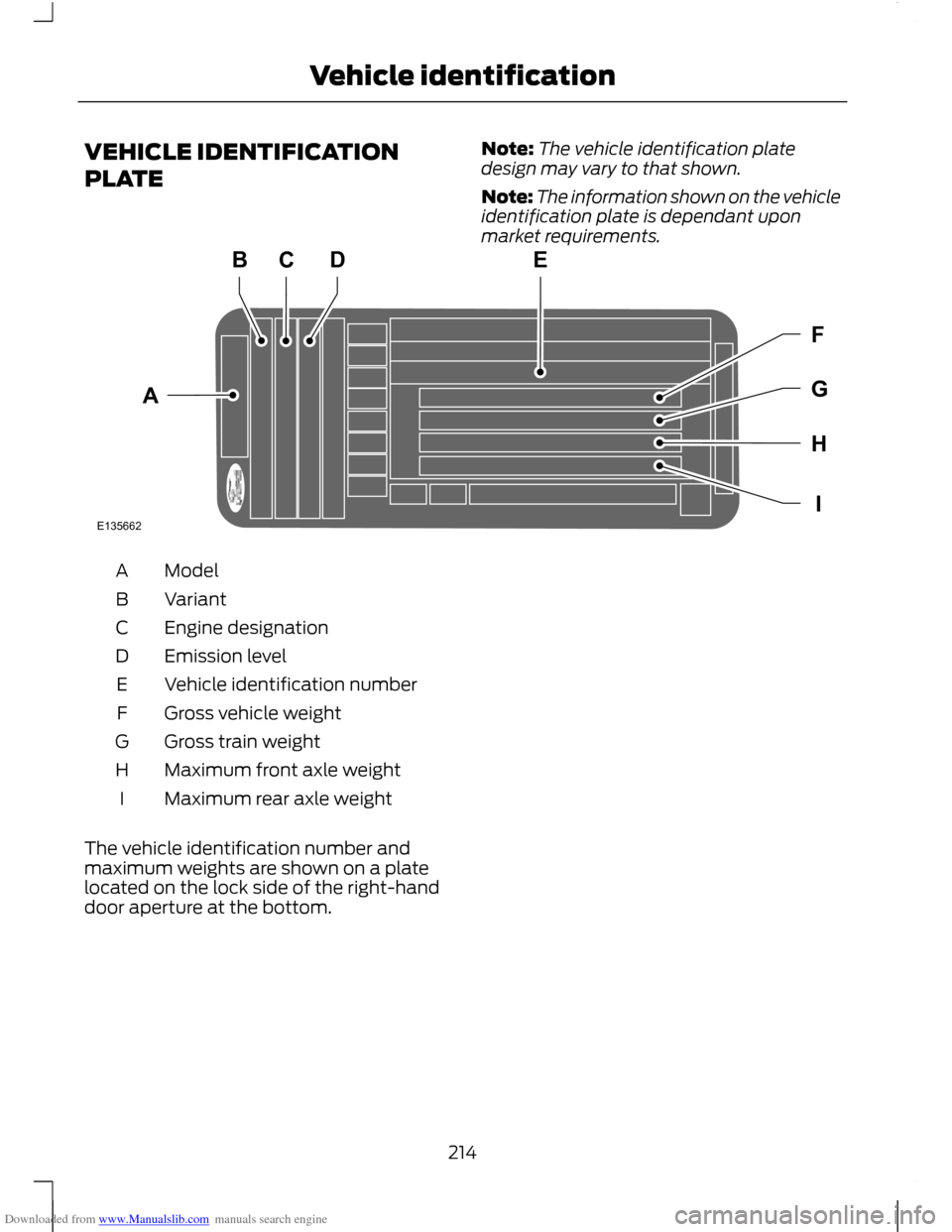

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION
PLATE
Note:
The vehicle identification plate
design may vary to that shown.
Note: The information shown on the vehicle
identification plate is dependant upon
market requirements. Model
A
Variant
B
Engine designation
C
Emission level
D
Vehicle identification number
E
Gross vehicle weight
F
Gross train weight
G
Maximum front axle weight
H
Maximum rear axle weight
I
The vehicle identification number and
maximum weights are shown on a plate
located on the lock side of the right-hand
door aperture at the bottom.
214
Vehicle identificationE135662BCEDFGHIA

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
stamped into the floor panel on the
right-hand side, beside the front seat. It is
also shown on the left-hand side of the
instrument panel.
215
Vehicle identificationE87496

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle dimensions
C-MAX
Dimension in mm (inches)
Dimension description
4380 (172.4)
Maximum length
2067 (81.4)
Overall width including exterior mirrors
1595 - 1626 (62.8 - 64)
Overall height - EC kerb weight
2648 (104.2)
Wheelbase
1544 - 1559 (60.8 - 61.4)
Front track
1554 - 1569 (61.2 - 61.8)
Rear track
Grand C-MAX Dimension in mm (inches)
Dimension description
4520 (177.9)
Maximum length
2067 (81.4)
Overall width including exterior mirrors
1653 - 1684 (65 - 66.3)
Overall height - EC kerb weight without roof bars
1667 - 1698 (65.6 - 66.8)
Overall height - EC kerb weight including roof bars
2788 (109.8)
Wheelbase
1544 - 1559 (60.8 - 61.4)
Front track
1554 - 1569 (61.2 - 61.8)
Rear track
216
Capacities and Specifications

Downloaded from www.Manualslib.com manuals search engine Towing equipment dimensions
217
Capacities and SpecificationsABGFECDE130084

Downloaded from www.Manualslib.com manuals search engine Dimension in mm (inches)
Dimension description
Item
111 (4.4)
Bumper – end of tow ball
A
4 (0.1)
Attachment point – centre of tow ball (C-
MAX)
B
5 (0.2)
Attachment point – centre of tow ball
(Grand C-MAX)
B
925 (36.4)
Wheel centre – centre of tow ball
C
518 (20.4)
Centre of tow ball – side member
D
1036 (40.8)
Distance between side members
E
426 (16.8)
Centre of tow ball – centre 1. attachment
point
F
726 (28.6)
Centre of tow ball – centre 2. attachment
point
G
