FORD C MAX 2011 2.G Owners Manual

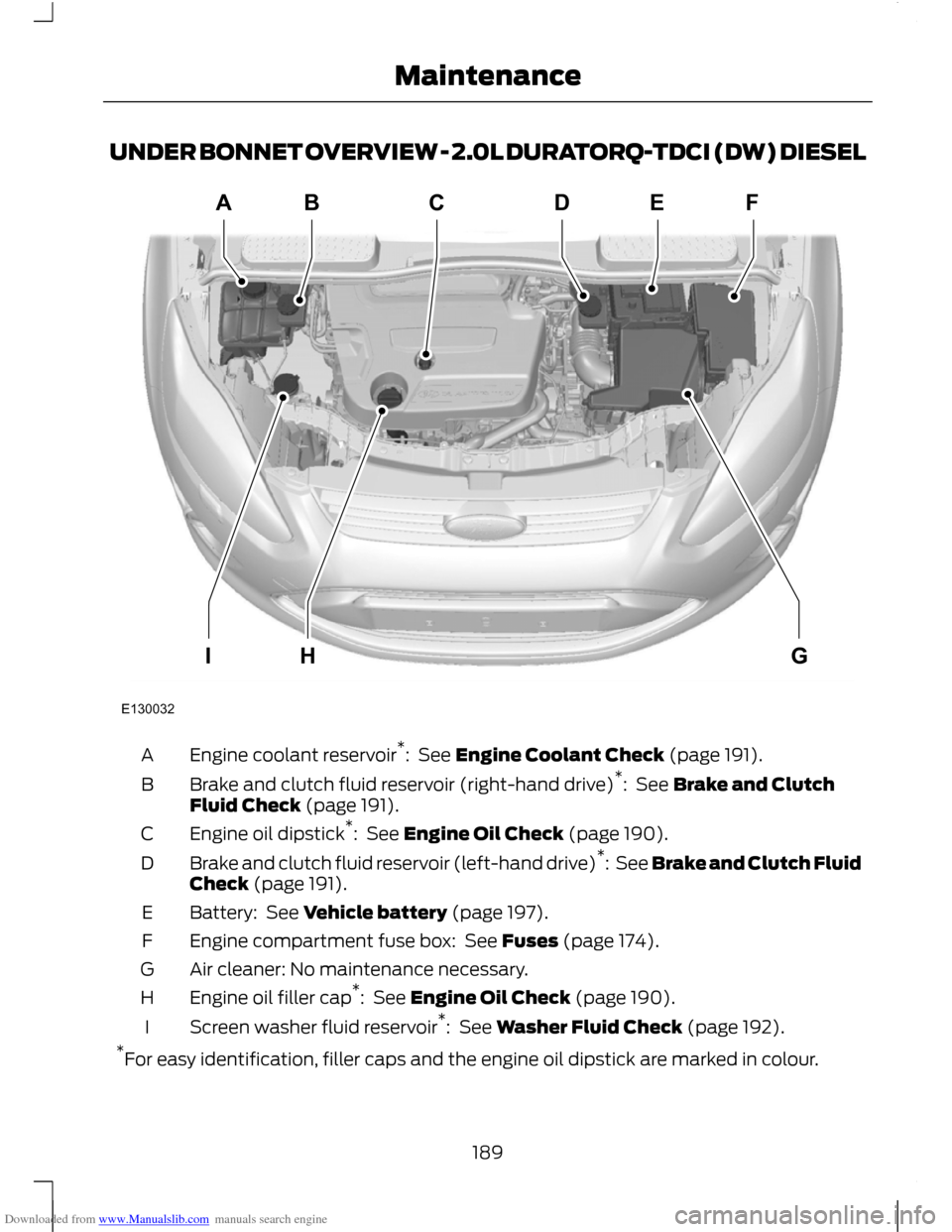

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 2.0L DURATORQ-TDCI (DW) DIESEL
Engine coolant reservoir
*
: See Engine Coolant Check (page 191).
A
Brake and clutch fluid reservoir (right-hand drive) *
: See Brake and Clutch
Fluid Check (page 191).
B
Engine oil dipstick *
: See Engine Oil Check (page 190).
C
Brake and clutch fluid reservoir (left-hand drive) *
: See Brake and Clutch Fluid
Check (page 191).
D
Battery: See Vehicle battery (page 197).
E
Engine compartment fuse box: See Fuses (page 174).
F
Air cleaner: No maintenance necessary.
G
Engine oil filler cap *
: See Engine Oil Check (page 190).
H
Screen washer fluid reservoir *
: See Washer Fluid Check (page 192).
I
* For easy identification, filler caps and the engine oil dipstick are marked in colour.
189
MaintenanceE130032ABCDEFGHI

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.6L
DURATEC-16V TI-VCT (SIGMA)
MINA
MAX
B
ENGINE OIL DIPSTICK - 1.6L
DURATORQ-TDCI (DV)
DIESEL/2.0L DURATORQ-TDCI
(DW) DIESEL MINA
MAX
B
ENGINE OIL CHECK CAUTION
Do not use oil additives or other
engine treatments. Under certain
conditions, they could damage the
engine. Note:
The oil consumption of new engines
reaches its normal level after approximately
5000 kilometres (3000 miles).
Checking the oil level CAUTION
Make sure that the level is between
the MIN and the MAX marks.
Note:
Check the level before starting the
engine.
Note: Make sure that your vehicle is on level
ground.
Note: Oil expands when it is hot. The level
may therefore extend a few millimetres
beyond the MAX mark.
Remove the dipstick and wipe it with a
clean, lint free cloth. Replace the dipstick
and remove it again to check the oil level.
If the level is at the MIN mark, top up
immediately.
Topping up WARNINGS
Only top up when the engine is cold.
If the engine is hot, wait 10 minutes
for the engine to cool down.
Do not remove the filler cap when
the engine is running.
Remove the filler cap.
CAUTION
Do not top up further than the MAX
mark.
Top up with fluid that meets the Ford
specification. See Technical
Specifications (page 192).
Replace the filler cap. Turn it until you feel
a strong resistance.
190
MaintenanceE95540BA E95543BA

Downloaded from www.Manualslib.com manuals search engine ENGINE COOLANT CHECK
Checking the coolant level
WARNING
Do not allow the fluid to touch your
skin or eyes. If this happens, rinse the
affected areas immediately with
plenty of water and contact your doctor. CAUTION
Make sure that the level is between
the MIN and the MAX marks.
Note:
Coolant expands when it is hot. The
level may therefore extend beyond the MAX
mark.
If the level is at the MIN mark, top up
immediately.
Topping up WARNINGS
Only top up when the engine is cold.
If the engine is hot, wait 10 minutes
for the engine to cool down.
Do not remove the filler cap when
the engine is running.
Do not remove the filler cap when
the engine is hot. Wait for the engine
to cool down.
Undiluted coolant is flammable and
may ignite if spilt on a hot exhaust.
CAUTIONS
In an emergency, you can add just
water to the cooling system to reach
a vehicle service station. Have the
system checked by a properly trained
technician as soon as possible. CAUTIONS
Prolonged use of incorrect dilution of
the coolant can cause engine damage
from corrosion, overheating or
freezing. Unscrew the cap slowly. Any pressure will
escape slowly as you unscrew the cap.
CAUTION
Do not top up further than the MAX
mark.
Top up with a 50/50 mixture of coolant
and water using fluid that meets the Ford
specification. See Technical
Specifications (page 192).
BRAKE AND CLUTCH FLUID
CHECK
WARNINGS
Use of any fluid other than the
recommended brake fluid may
reduce brake efficiency and not meet
Ford's performance standards. Do not allow the fluid to touch your
skin or eyes. If this happens, rinse the
affected areas immediately with
plenty of water and contact your doctor. If the level is at the MIN mark, have
the system checked by a properly
trained technician as soon as
possible. Note:
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.
Note: The brake and the clutch systems are
supplied from the same reservoir.
191
Maintenance

Downloaded from www.Manualslib.com manuals search engine Top up with fluid that meets the Ford
specification. See Technical
Specifications (page 192).
WASHER FLUID CHECK
Note:
The front and rear washer systems
are supplied from the same reservoir. When topping up, use a mixture of washer
fluid and water to help prevent freezing in
cold weather and improve the cleaning
capability. We recommend that you use
only high quality washer fluid.
For information on fluid dilution, refer to
the product instructions.
TECHNICAL SPECIFICATIONS
Vehicle fluids CAUTION
Do not use fluids which do not meet the specifications or requirements defined. Use
of unsuitable fluids may lead to damage which is not covered by your Warranty.
Recommended fluid
Specification
Item
Castrol or Ford Engine Oil
WSS-M2C913-C
Engine oil - petrol and diesel
engines
Castrol Engine Oil
WSS-M2C925-B
Alternative engine oil -
petrol engines only
Motorcraft SuperPlus Anti-
freeze
WSS-M97B44-D
Antifreeze
Motorcraft or Ford DOT 4 LV
High Performance Brake
Fluid
WSS-M6C65-A2 or ISO
4925 Class 6
Brake fluid
Your engine has been designed to be used with Castrol and Ford Engine Oil, which gives
a fuel economy benefit whilst maintaining the durability of your engine.
For petrol engines only, Ford and Castrol have developed a low friction SAE-5W-20 oil
which offers further fuel economy benefits over the standard SAE-5W-30 oil. If this oil
is not available, we recommend that you service with oil to specification WSS-M2C913-C.
Topping up the oil: If you are unable to find an oil that meets the specification defined
by WSS-M2C913-C or WSS-M2C925-B (petrol engines only), you must use SAE 5W-30
that meets the specification defined by ACEA A5/B5.
Using topping up oils other than the one specified can result in longer engine cranking
periods, reduced engine performance, reduced fuel economy and increased emission
levels.
Castrol engine oil recommended.
192
Maintenance

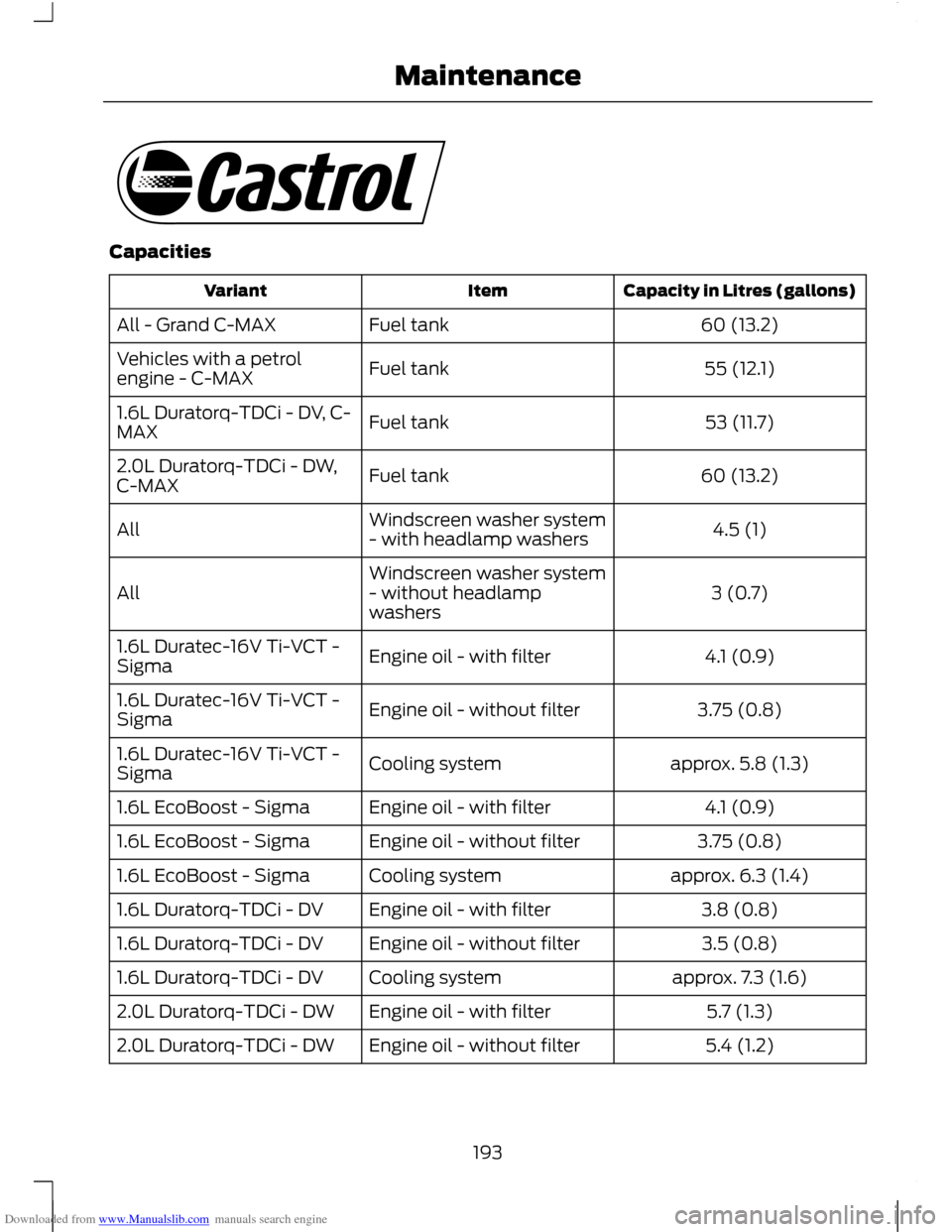

Downloaded from www.Manualslib.com manuals search engine Capacities
Capacity in Litres (gallons)
Item
Variant
60 (13.2)
Fuel tank
All - Grand C-MAX
55 (12.1)
Fuel tank
Vehicles with a petrol
engine - C-MAX
53 (11.7)
Fuel tank
1.6L Duratorq-TDCi - DV, C-
MAX
60 (13.2)
Fuel tank
2.0L Duratorq-TDCi - DW,
C-MAX
4.5 (1)
Windscreen washer system
- with headlamp washers
All
3 (0.7)
Windscreen washer system
- without headlamp
washers
All
4.1 (0.9)
Engine oil - with filter
1.6L Duratec-16V Ti-VCT -
Sigma
3.75 (0.8)
Engine oil - without filter
1.6L Duratec-16V Ti-VCT -
Sigma
approx. 5.8 (1.3)
Cooling system
1.6L Duratec-16V Ti-VCT -
Sigma
4.1 (0.9)
Engine oil - with filter
1.6L EcoBoost - Sigma
3.75 (0.8)
Engine oil - without filter
1.6L EcoBoost - Sigma
approx. 6.3 (1.4)
Cooling system
1.6L EcoBoost - Sigma
3.8 (0.8)
Engine oil - with filter
1.6L Duratorq-TDCi - DV
3.5 (0.8)
Engine oil - without filter
1.6L Duratorq-TDCi - DV
approx. 7.3 (1.6)
Cooling system
1.6L Duratorq-TDCi - DV
5.7 (1.3)
Engine oil - with filter
2.0L Duratorq-TDCi - DW
5.4 (1.2)
Engine oil - without filter
2.0L Duratorq-TDCi - DW
193
MaintenanceE115472

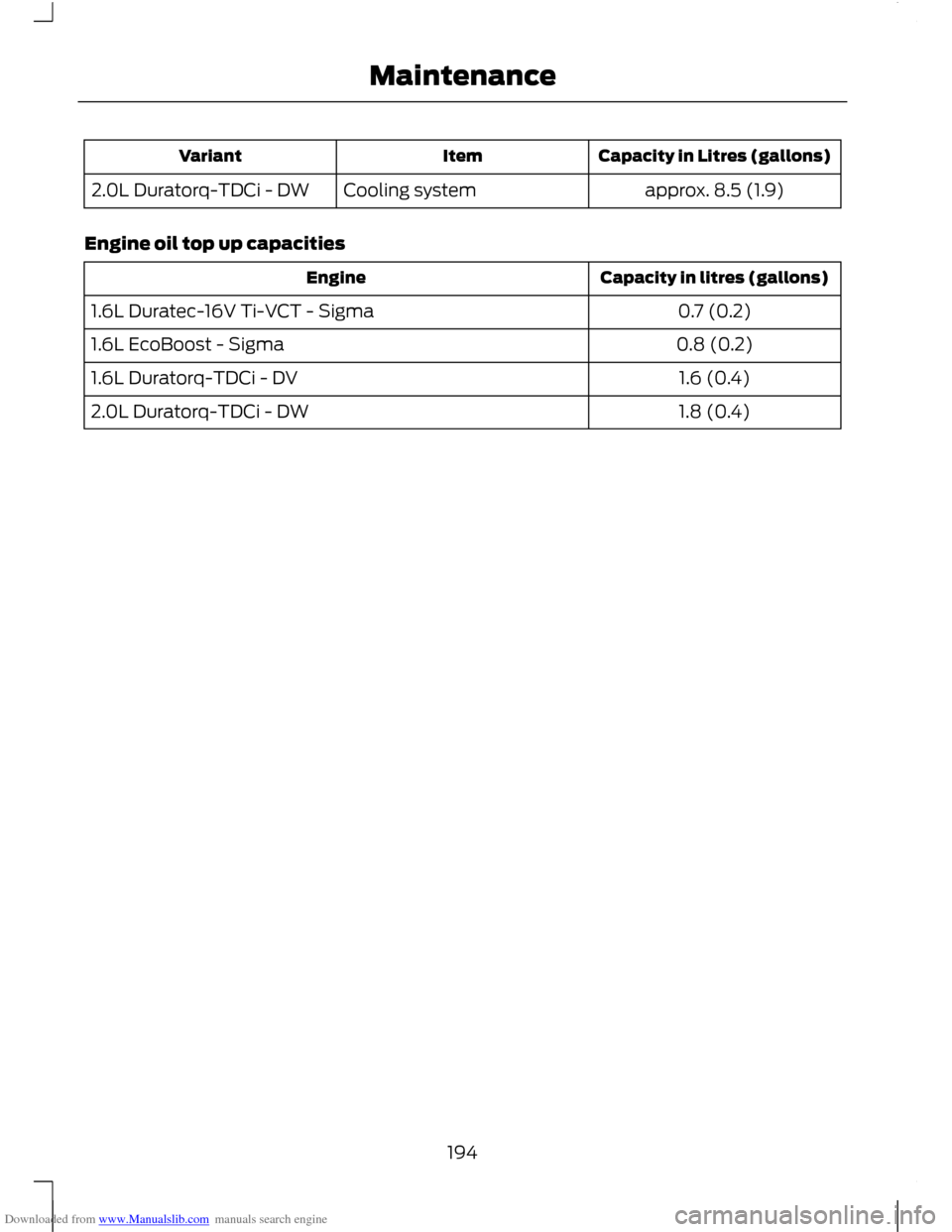

Downloaded from www.Manualslib.com manuals search engine Capacity in Litres (gallons)
Item
Variant
approx. 8.5 (1.9)
Cooling system
2.0L Duratorq-TDCi - DW
Engine oil top up capacities Capacity in litres (gallons)
Engine
0.7 (0.2)
1.6L Duratec-16V Ti-VCT - Sigma
0.8 (0.2)
1.6L EcoBoost - Sigma
1.6 (0.4)
1.6L Duratorq-TDCi - DV
1.8 (0.4)
2.0L Duratorq-TDCi - DW
194
Maintenance

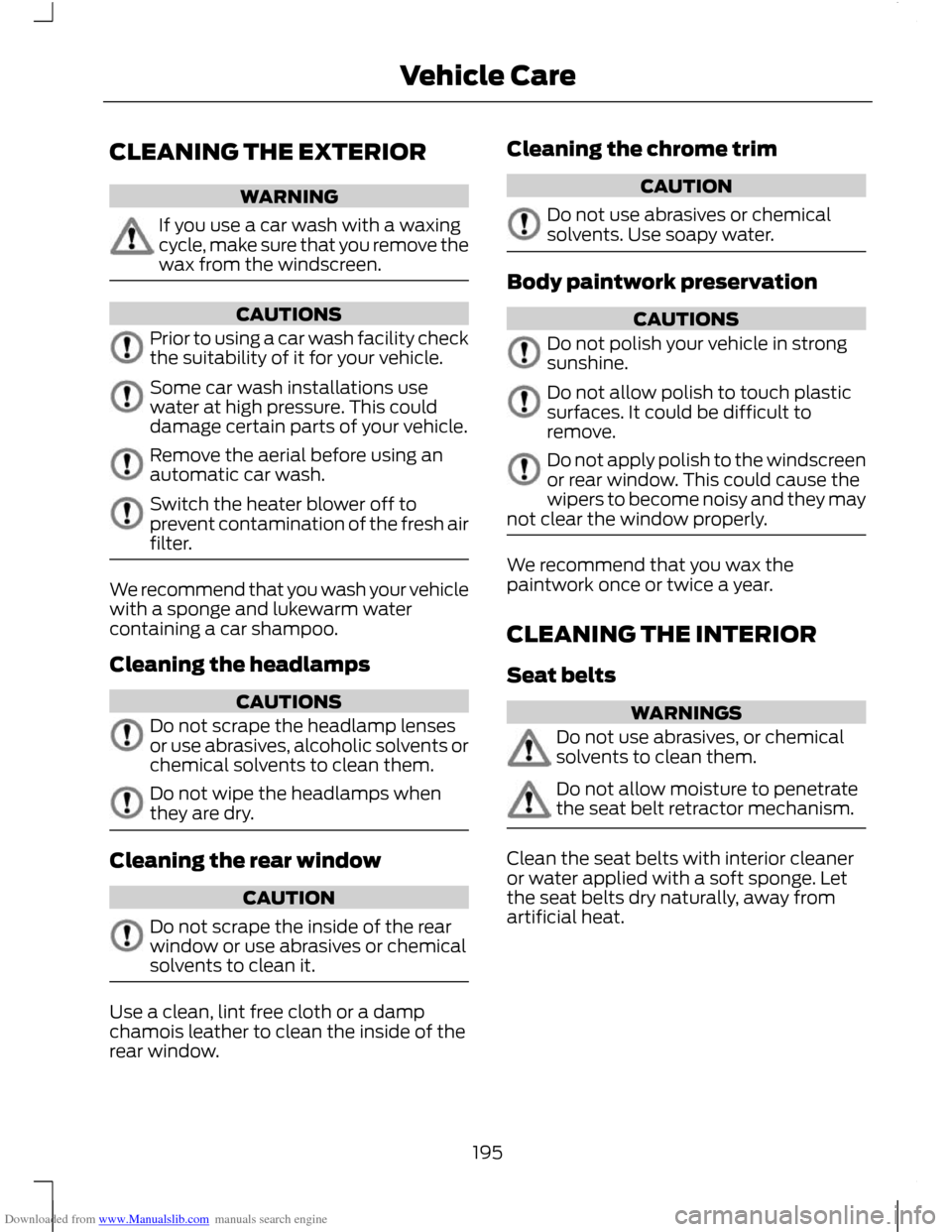

Downloaded from www.Manualslib.com manuals search engine CLEANING THE EXTERIOR
WARNING
If you use a car wash with a waxing
cycle, make sure that you remove the
wax from the windscreen.
CAUTIONS
Prior to using a car wash facility check
the suitability of it for your vehicle.
Some car wash installations use
water at high pressure. This could
damage certain parts of your vehicle.
Remove the aerial before using an
automatic car wash.
Switch the heater blower off to
prevent contamination of the fresh air
filter.
We recommend that you wash your vehicle
with a sponge and lukewarm water
containing a car shampoo.
Cleaning the headlamps
CAUTIONS
Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.
Do not wipe the headlamps when
they are dry.
Cleaning the rear window
CAUTION
Do not scrape the inside of the rear
window or use abrasives or chemical
solvents to clean it.
Use a clean, lint free cloth or a damp
chamois leather to clean the inside of the
rear window. Cleaning the chrome trim CAUTION
Do not use abrasives or chemical
solvents. Use soapy water.
Body paintwork preservation
CAUTIONS
Do not polish your vehicle in strong
sunshine.
Do not allow polish to touch plastic
surfaces. It could be difficult to
remove.
Do not apply polish to the windscreen
or rear window. This could cause the
wipers to become noisy and they may
not clear the window properly. We recommend that you wax the
paintwork once or twice a year.
CLEANING THE INTERIOR
Seat belts
WARNINGS
Do not use abrasives, or chemical
solvents to clean them.
Do not allow moisture to penetrate
the seat belt retractor mechanism.
Clean the seat belts with interior cleaner
or water applied with a soft sponge. Let
the seat belts dry naturally, away from
artificial heat.
195
Vehicle Care

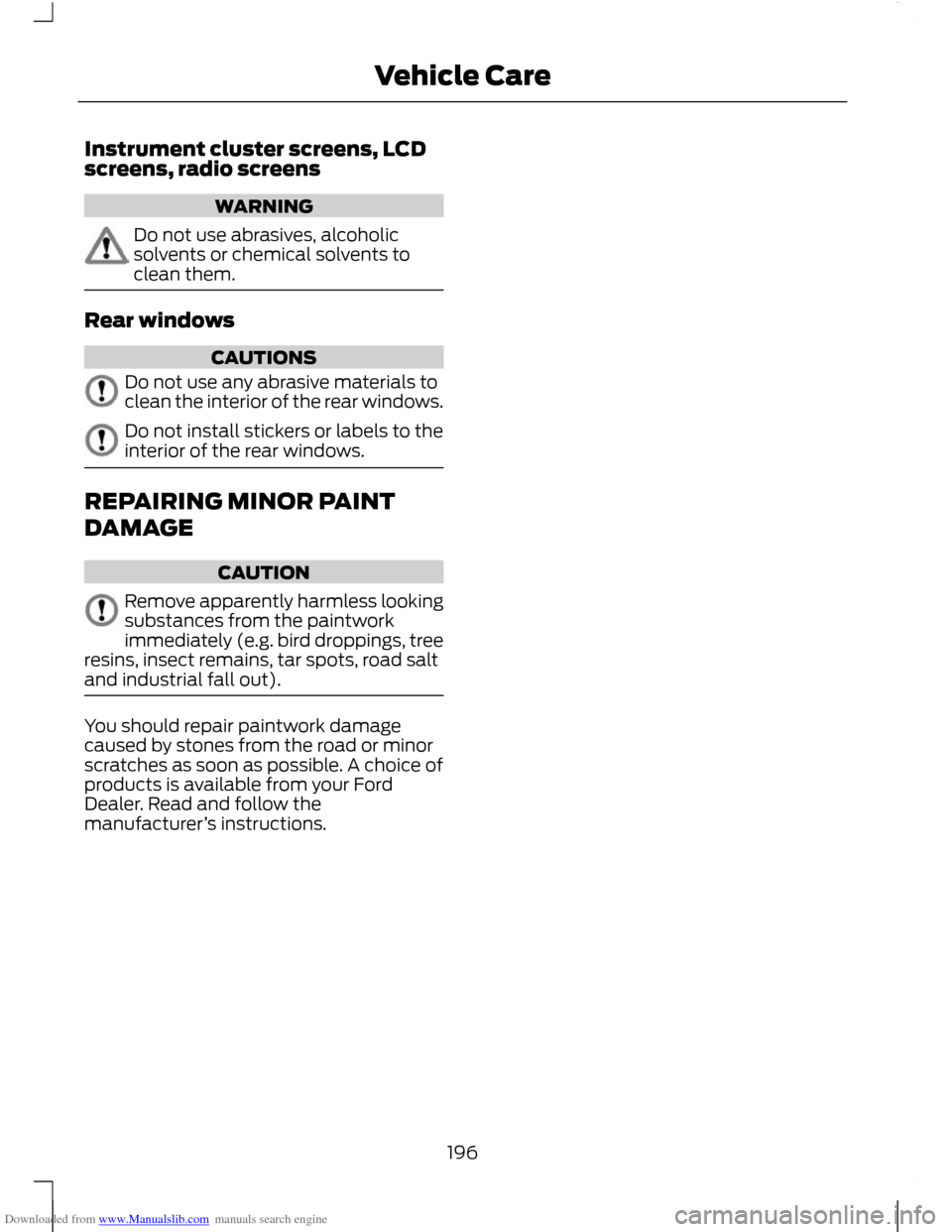

Downloaded from www.Manualslib.com manuals search engine Instrument cluster screens, LCD
screens, radio screens
WARNING
Do not use abrasives, alcoholic
solvents or chemical solvents to
clean them.
Rear windows
CAUTIONS
Do not use any abrasive materials to
clean the interior of the rear windows.
Do not install stickers or labels to the
interior of the rear windows.
REPAIRING MINOR PAINT
DAMAGE
CAUTION
Remove apparently harmless looking
substances from the paintwork
immediately (e.g. bird droppings, tree
resins, insect remains, tar spots, road salt
and industrial fall out). You should repair paintwork damage
caused by stones from the road or minor
scratches as soon as possible. A choice of
products is available from your Ford
Dealer. Read and follow the
manufacturer
’s instructions.
196
Vehicle Care

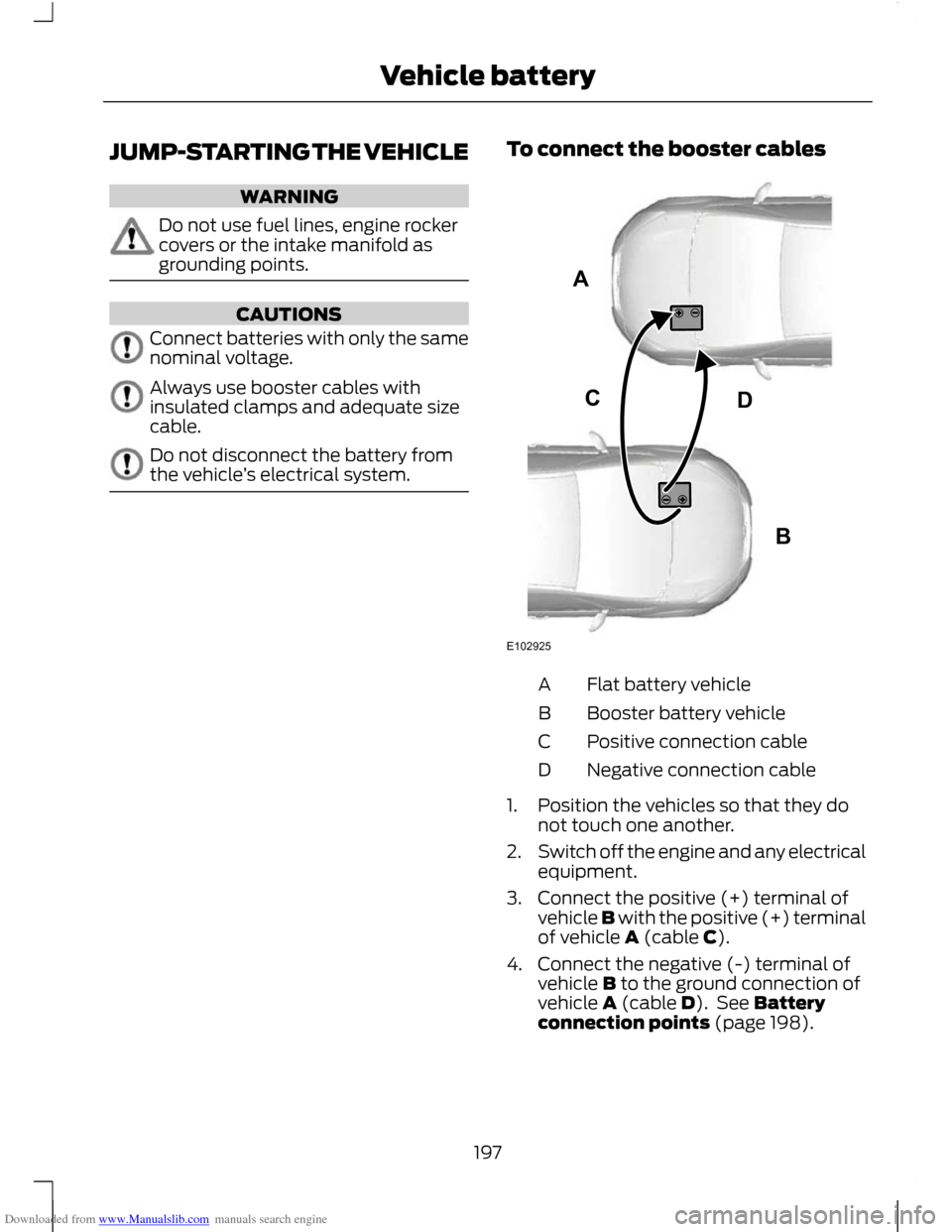

Downloaded from www.Manualslib.com manuals search engine JUMP-STARTING THE VEHICLE
WARNING
Do not use fuel lines, engine rocker
covers or the intake manifold as
grounding points.
CAUTIONS
Connect batteries with only the same
nominal voltage.
Always use booster cables with
insulated clamps and adequate size
cable.
Do not disconnect the battery from
the vehicle
’s electrical system. To connect the booster cables
Flat battery vehicle
A
Booster battery vehicle
B
Positive connection cable
C
Negative connection cable
D
1. Position the vehicles so that they do not touch one another.
2. Switch off the engine and any electrical
equipment.
3. Connect the positive (+) terminal of vehicle B with the positive (+) terminal
of vehicle A (cable C).
4. Connect the negative (-) terminal of vehicle B to the ground connection of
vehicle A (cable D). See Battery
connection points (page 198).
197
Vehicle batteryABCDE102925

Downloaded from www.Manualslib.com manuals search engine CAUTIONS
Do not connect to the negative (–)
terminal of the flat battery.
Make sure that the cables are clear of
any moving parts and fuel delivery
system parts.
To start the engine
1. Run the engine of vehicle B at
moderately high speed.
2. Start the engine of vehicle A.
3. Run both vehicles for a minimum of three minutes before disconnecting the
cables. CAUTION
Do not switch on the headlamps when
disconnecting the cables. The peak
voltage could blow the bulbs.
Disconnect the cables in the reverse order.
CHANGING THE VEHICLE
BATTERY
CAUTION
For vehicles with Start-stop the
battery requirement is different. It
must be replaced by one of exactly
the same specification as the original. Note:
Where applicable, the audio system
must be reprogrammed with the keycode.
The battery is located in the engine
compartment. See Maintenance (page
185). BATTERY CONNECTION
POINTS CAUTION
Do not connect to the negative (–)
terminal of the flat battery.
The ground connection point is located to
the right of the battery near the engine
compartment fuse box.
198
Vehicle batteryE130431
