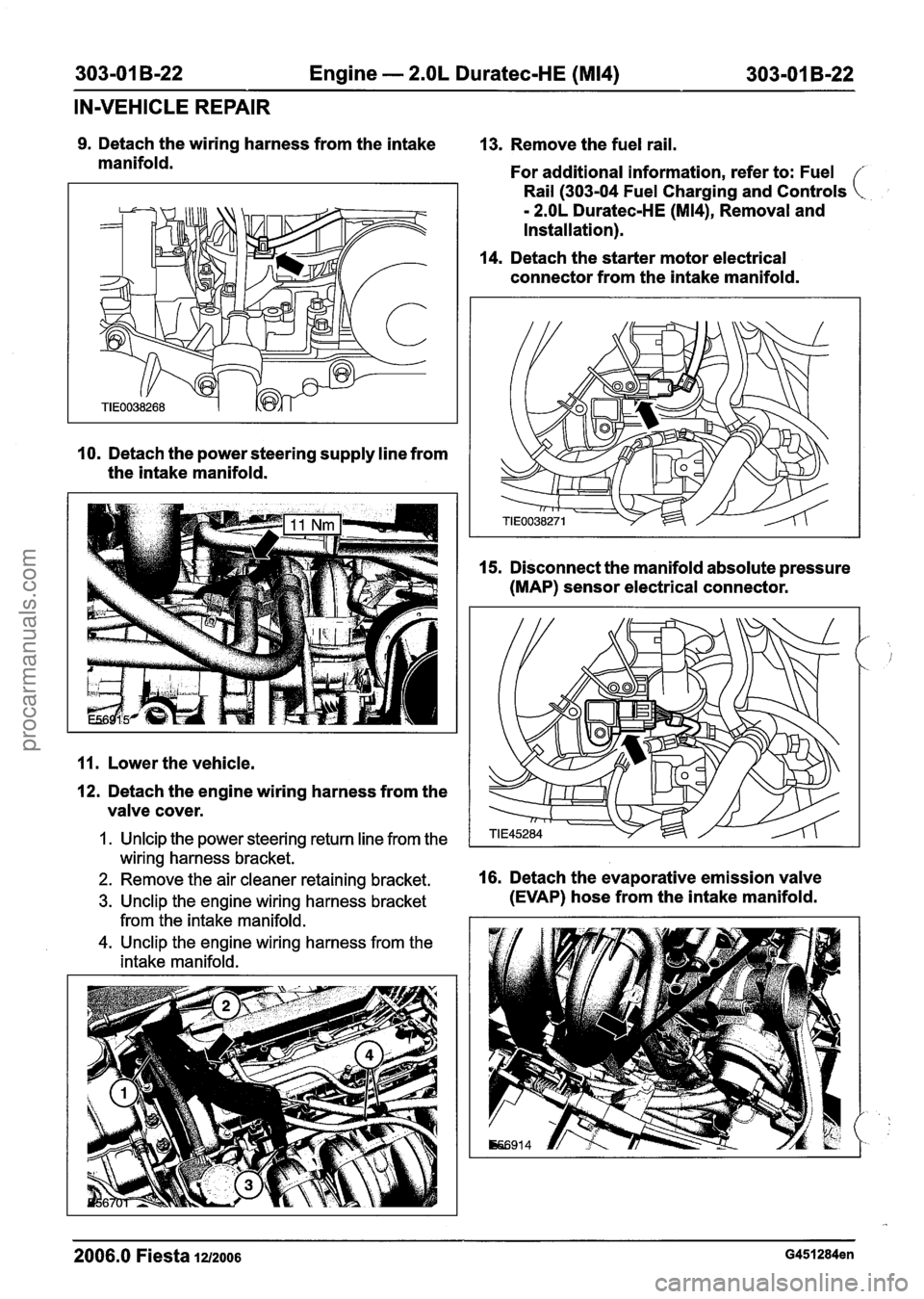

303-01 8-22 Engine - 2.OL Duratec-HE (M14) 303-01 B-22
IN-VEHICLE REPAIR
9. Detach the wiring harness from the intake
13. Remove the fuel rail.
manifold. For additional information, refer to: Fuel
Rail (303-04 Fuel Charging and Controls
- 2.OL Duratec-HE (M14), Removal and
Installation).
14. Detach the starter motor electrical
connector from the intake manifold.
10. Detach the power steering supply line from
the intake manifold.
15. Disconnect the manifold absolute pressure
(MAP) sensor electrical connector.
,.
.. 1
11. Lower the vehicle.
12. Detach the engine wiring harness from the
valve cover.
1. Unlcip the power steering return line from the
wiring harness bracket.
2. Remove the air cleaner retaining bracket.
16. Detach the evaporative emission valve
3. Unclip the engine wiring harness bracket (EVAP) hose from the intake manifold.
from the intake manifold.
4. Unclip the engine wiring harness from the
intake manifold.
2006.0 Fiesta 12/2006 G451284en
procarmanuals.com

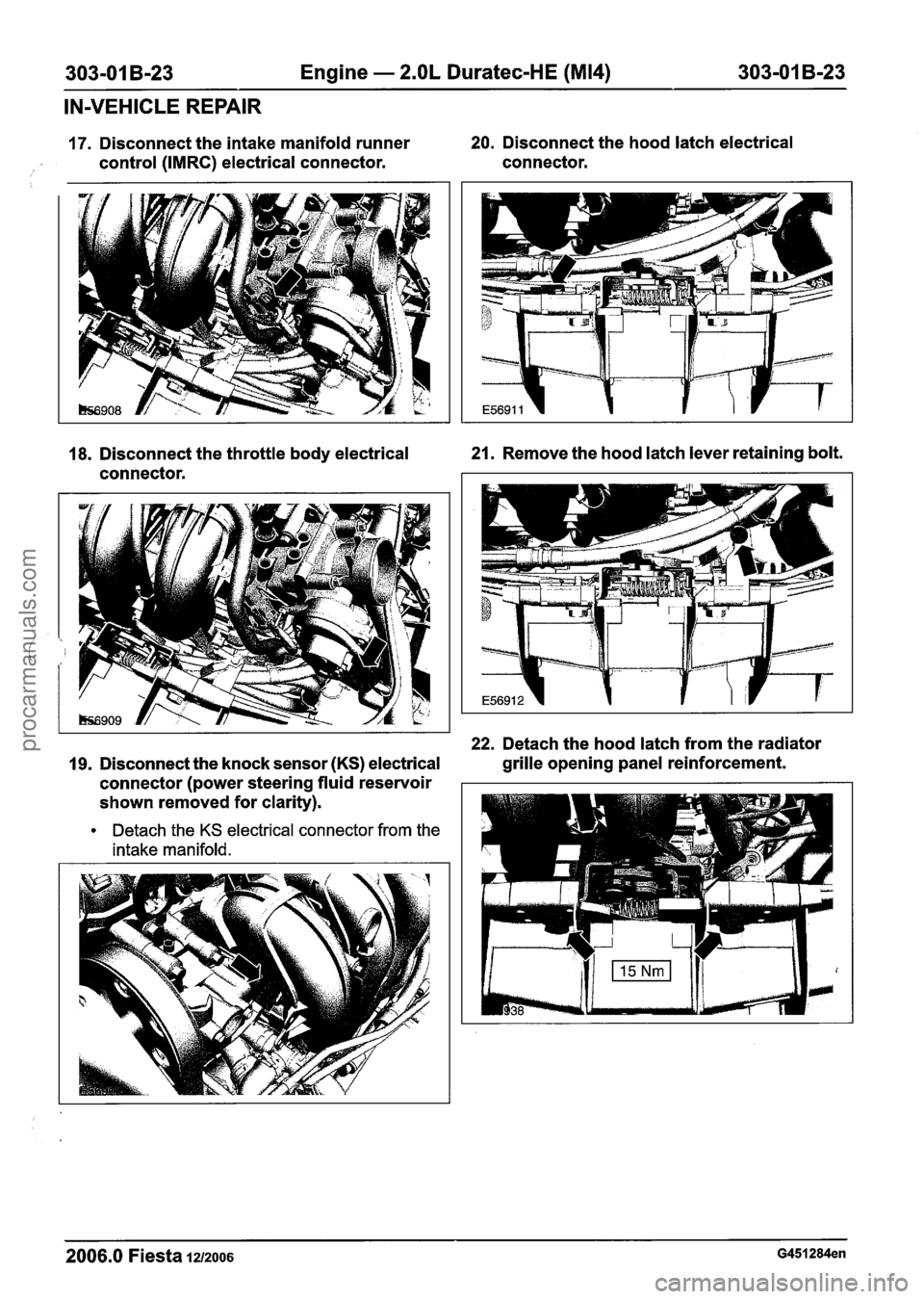

303-01 B-23 Engine - 2.OL Duratec-HE (M14) 303-01 B-23
IN-VEHICLE REPAIR
17. Disconnect the intake manifold runner 20. Disconnect the hood latch electrical
control (IMRC) electrical connector. connector.
18. Disconnect the throttle body electrical 21. Remove the hood latch lever retaining bolt.
connector.
22. Detach the hood latch from the radiator
19. Disconnect the knock sensor (KS) electrical grille
opening panel reinforcement.
connector (power steering fluid reservoir
shown removed for clarity).
Detach the KS electrical connector from the
intake manifold.
2006.0 Fiesta 1212006 G451284en
procarmanuals.com

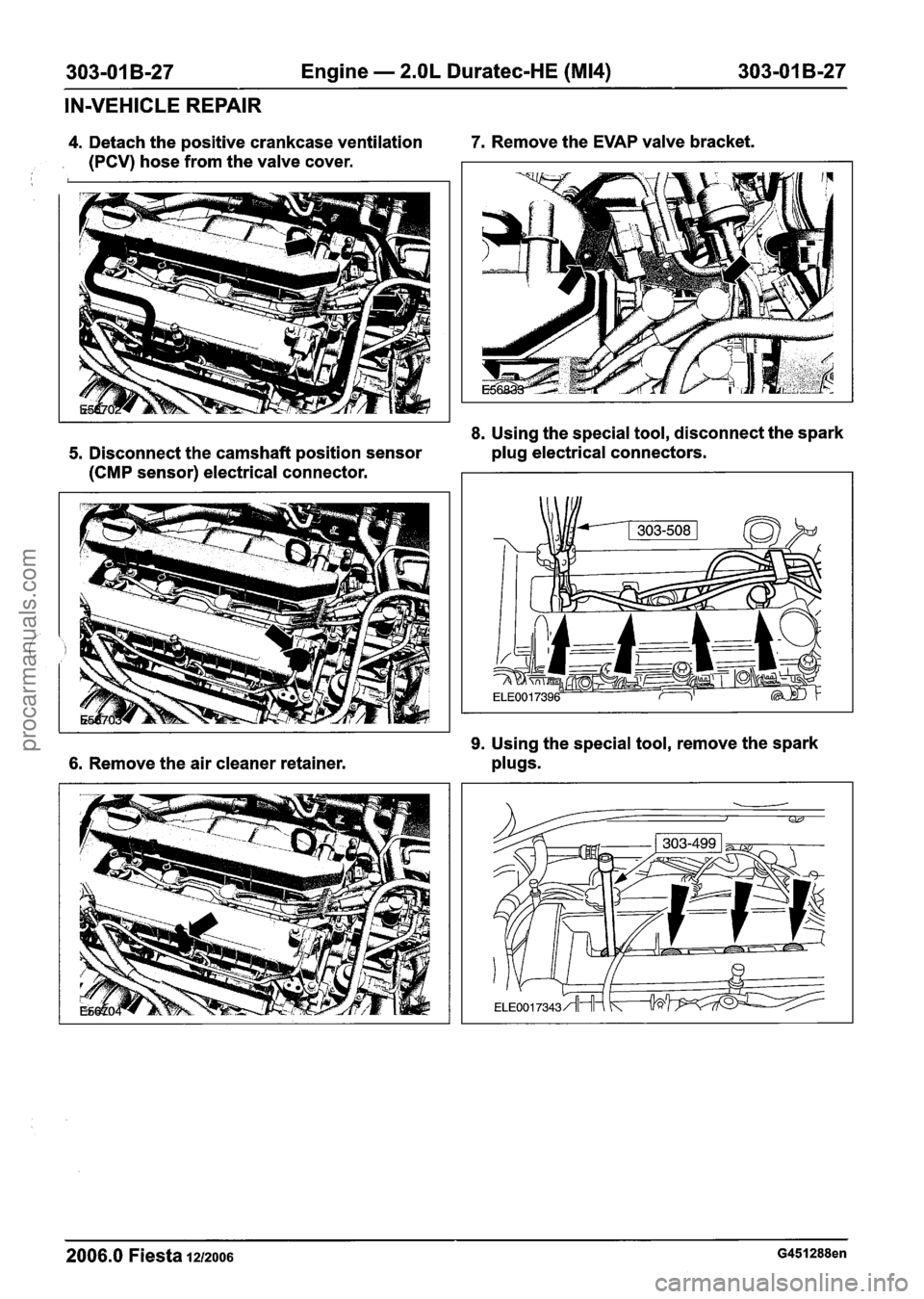

303-01 B-27 Engine - 2.OL Duratec-HE (M14) 303-01 B-27
IN-VEHICLE REPAIR
4. Detach the positive crankcase ventilation 7. Remove the EVAP valve bracket.
(PCV) hose from the valve cover.
8. Using the special tool, disconnect the spark
5. Disconnect the camshaft position sensor plug electrical
connectors.
(CMP sensor) electrical connector.
6. Remove the air cleaner retainer.
9. Using the special tool, remove the spark
plugs.
2006.0 Fiesta 1212006 G451288en
procarmanuals.com

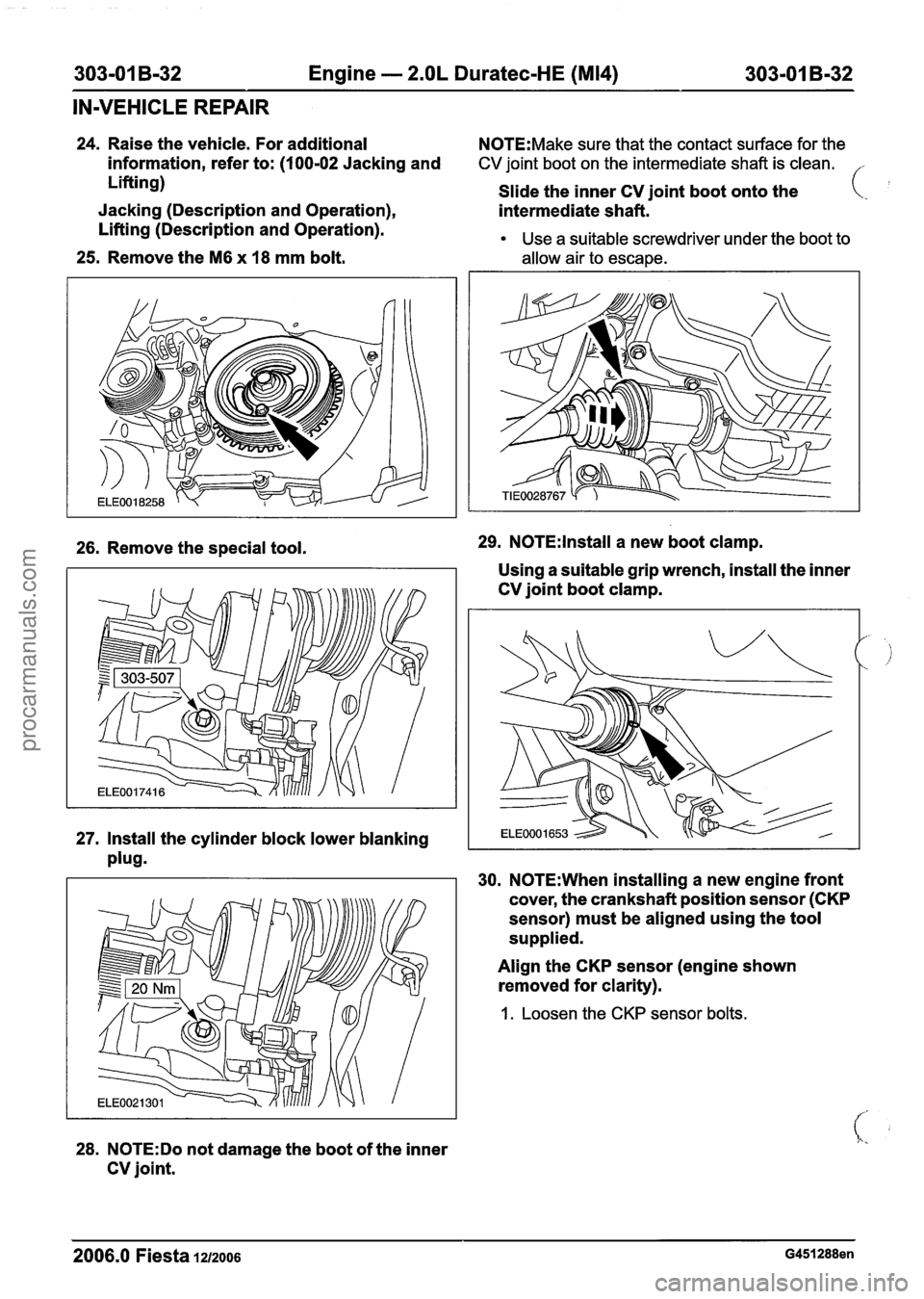

303-01 B-32 Engine - 2.OL Duratec-HE (M14) 303-01 B-32
IN-VEHICLE REPAIR
24. Raise the vehicle. For additional N0TE:Make sure that the contact surface for the
information, refer to: (100-02 Jacking and CV joint boot on the intermediate shaft is clean. ,
Lifting)
Slide the inner CV joint boot onto the
Jacking (Description and Operation),
intermediate shaft. (..
Lifting (Description and Operation). Use a suitable screwdriver under the boot to
25. Remove the M6 x 18 mm bolt. allow air to escape.
26. Remove the special tool. 29. N0TE:lnstall a
new boot clamp.
Using a suitable grip wrench, install the inner
CV joint boot clamp.
27. Install the cylinder block lower blanking
plug.
30. N0TE:When installing a new engine front
cover, the crankshaft position sensor
(CKP
sensor) must be aligned using the tool
supplied.
28.
N0TE:Do not damage the boot of the inner
CV joint. Align
the
CKP sensor (engine shown
removed for clarity).
1. Loosen the CKP sensor bolts.
2006.0 Fiesta 1212006 G451288en
procarmanuals.com

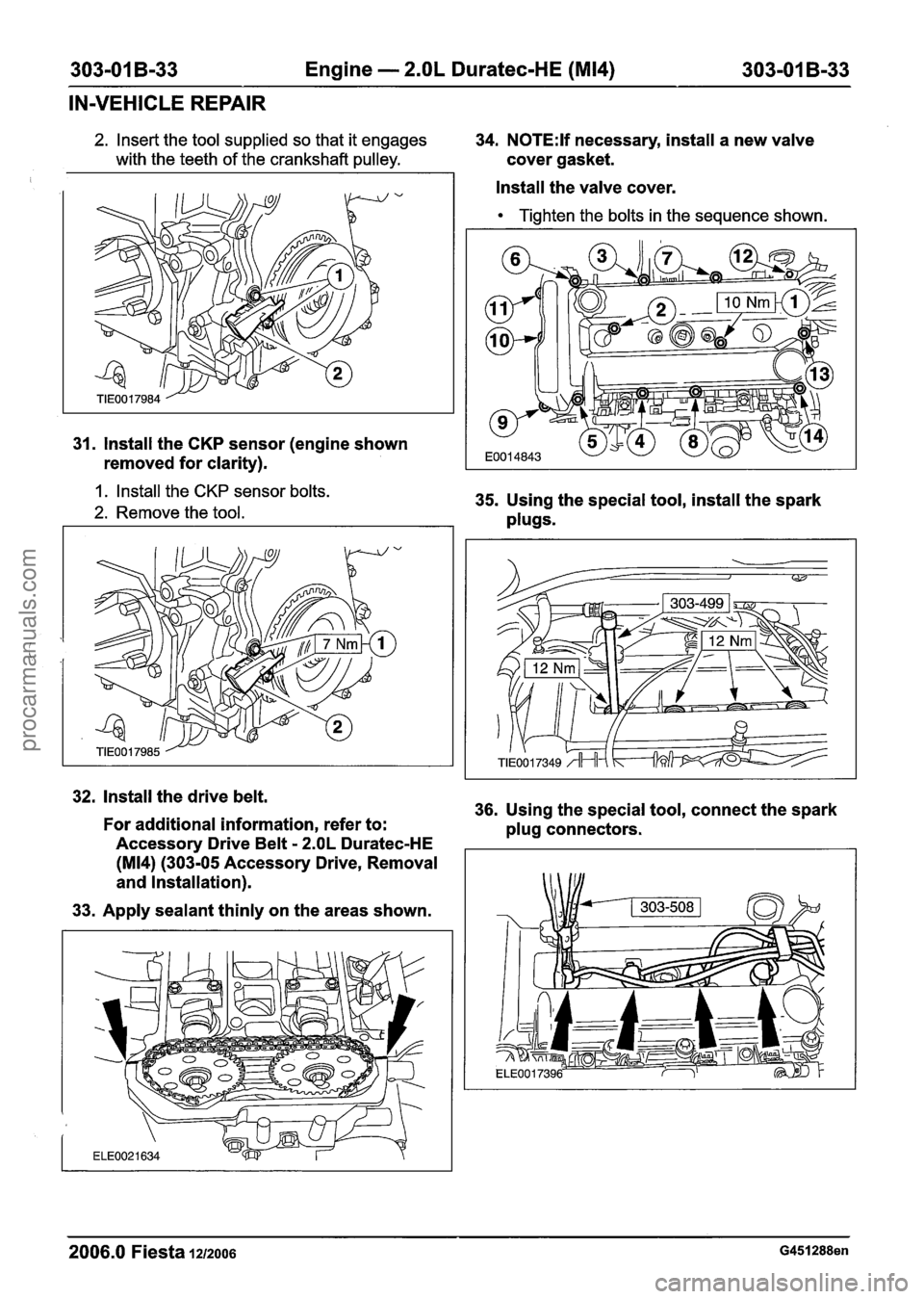

303-01 B-33 Engine - 2.OL Duratec-HE (M14) 303-01 B-33
IN-VEHICLE REPAIR
2. Insert the tool supplied so that it engages 34. N0TE:lf necessary, install a new valve
with the teeth of the crankshaft pulley. cover gasket.
31. Install the CKP sensor (engine shown
removed for clarity).
1. Install the CKP sensor bolts.
2. Remove the tool.
Install the valve cover.
Tighten the bolts in the sequence shown.
35. Using the special tool, install the spark
plugs.
. Install the drive belt.
36. Using the special tool, connect the spark
For additional information, refer to:
plug connectors.
Accessory Drive Belt
- 2.OL Duratec-HE
(M14) (303-05 Accessory Drive, Removal
and Installation).
33. Apply sealant thinly on the areas shown.
-- - -- -
2006.0 Fiesta 1212006 G451288en
procarmanuals.com

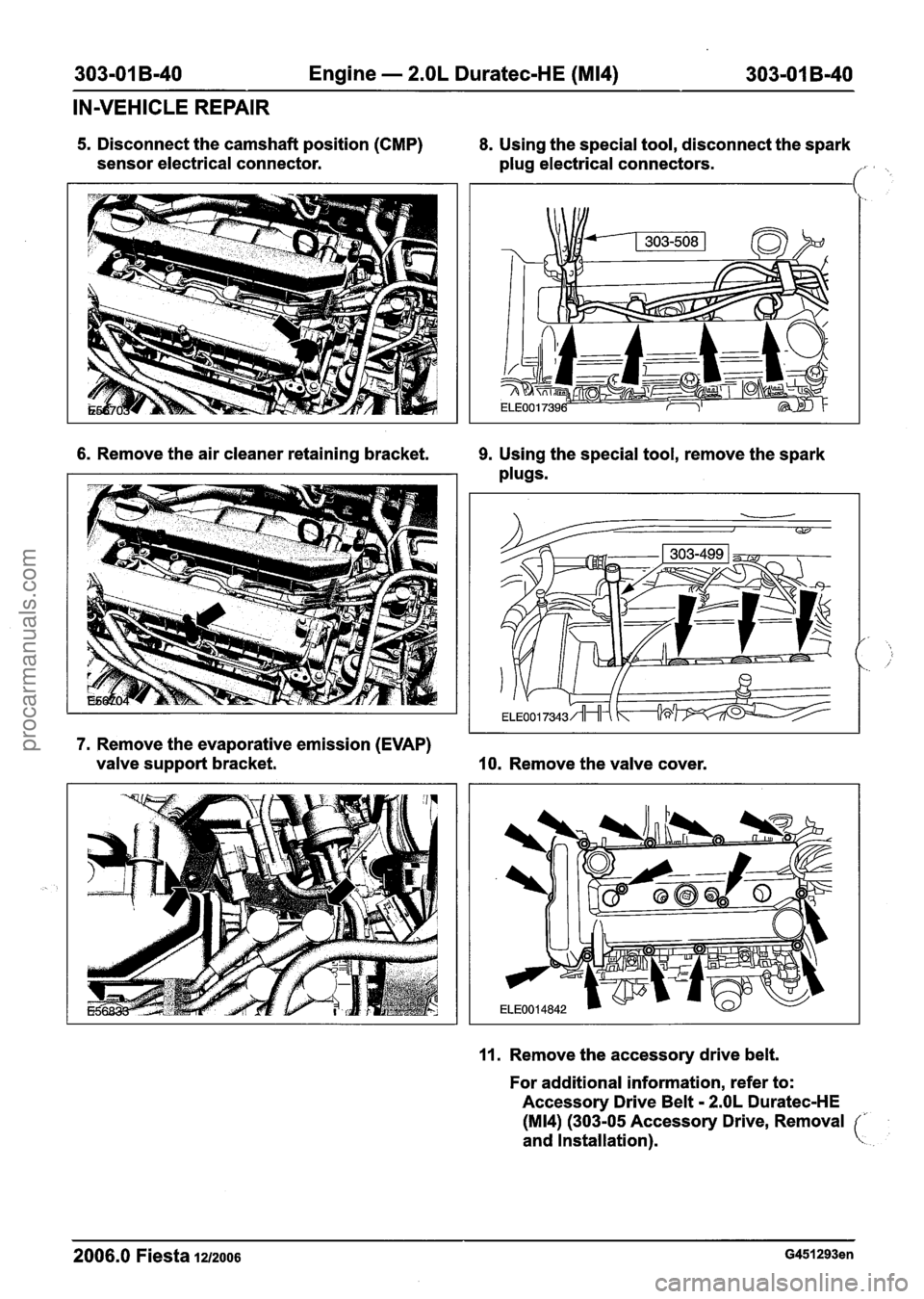

303-01 B-40 Engine - 2.OL Duratec-HE (M14) 303-01 B-40
IN-VEHICLE
REPAIR
5. Disconnect the camshaft position (CMP) 8. Using the special tool, disconnect the spark
sensor electrical connector.
plug electrical connectors.
1.
6. Remove the air cleaner retaining bracket. 9. Using the special tool, remove the spark
plugs.
7. Remove the evaporative emission (EVAP)
valve support bracket.
10. Remove the valve cover.
11. Remove the accessory drive belt.
For additional information, refer to:
Accessory Drive Belt
- 2.OL Duratec-HE
(M14) (303-05 Accessory Drive, Removal
and Installation).
c
2006.0 Fiesta la2006 G451293en
procarmanuals.com

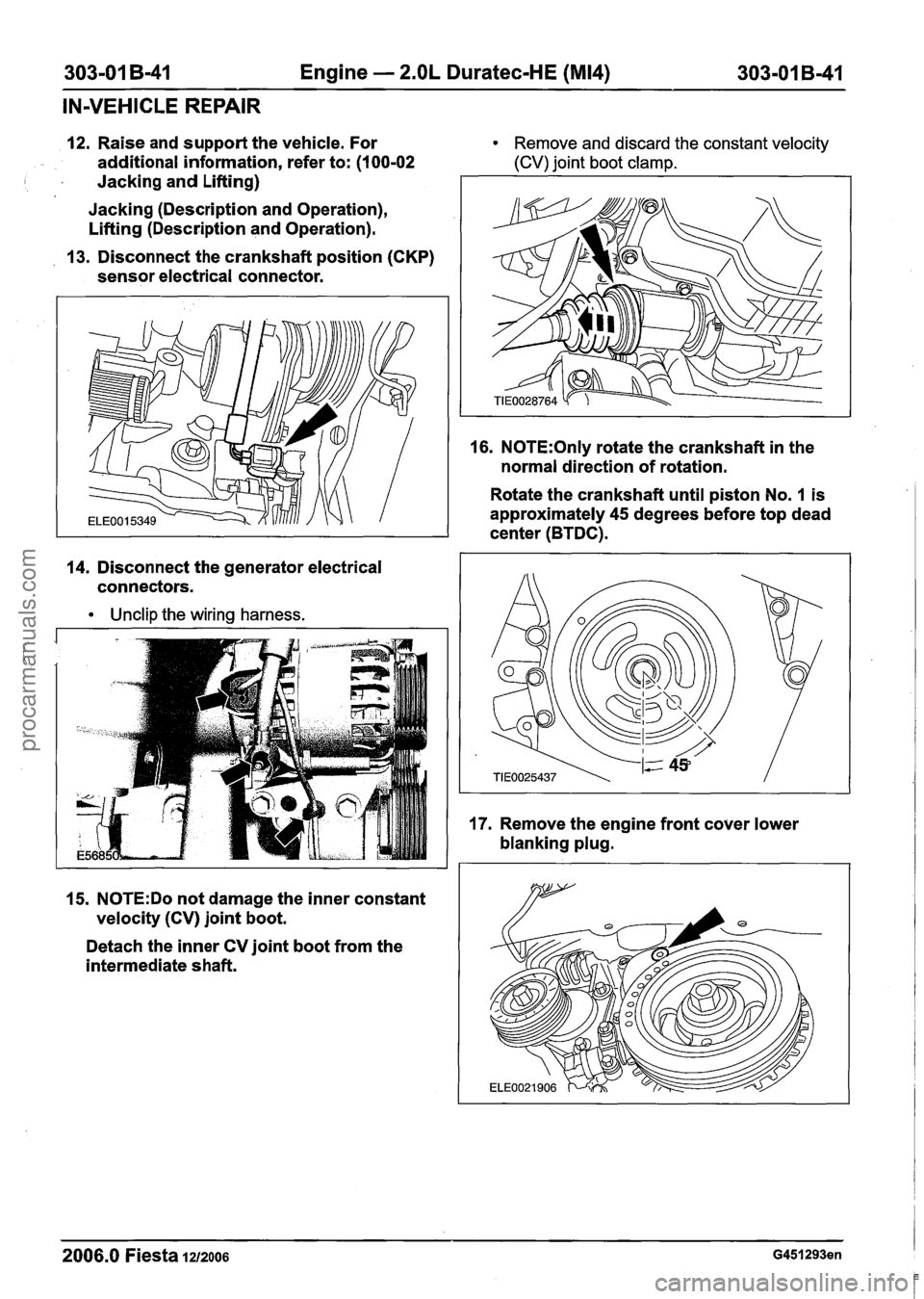

303-01 B-41 Engine - 2.OL Duratec-HE (M14) 303-01 B-41
IN-VEHICLE REPAIR
12. Raise and support the vehicle. For Remove and discard the constant velocity
additional information, refer to: (1 00-02 (CV) joint boot clamp.
I Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
13. Disconnect the crankshaft position (CKP)
sensor electrical connector.
14. Disconnect the generator electrical
connectors.
Unclip the wiring harness.
16. N0TE:Only rotate the crankshaft in the
normal direction of rotation.
Rotate the crankshaft until piston No.
1 is
approximately 45 degrees before top dead
center (BTDC).
15.
N0TE:Do not damage the inner constant
velocity (CV) joint boot.
Detach the inner CV joint boot from the
intermediate shaft.
2006.0 Fiesta 1212006 G451293en
procarmanuals.com

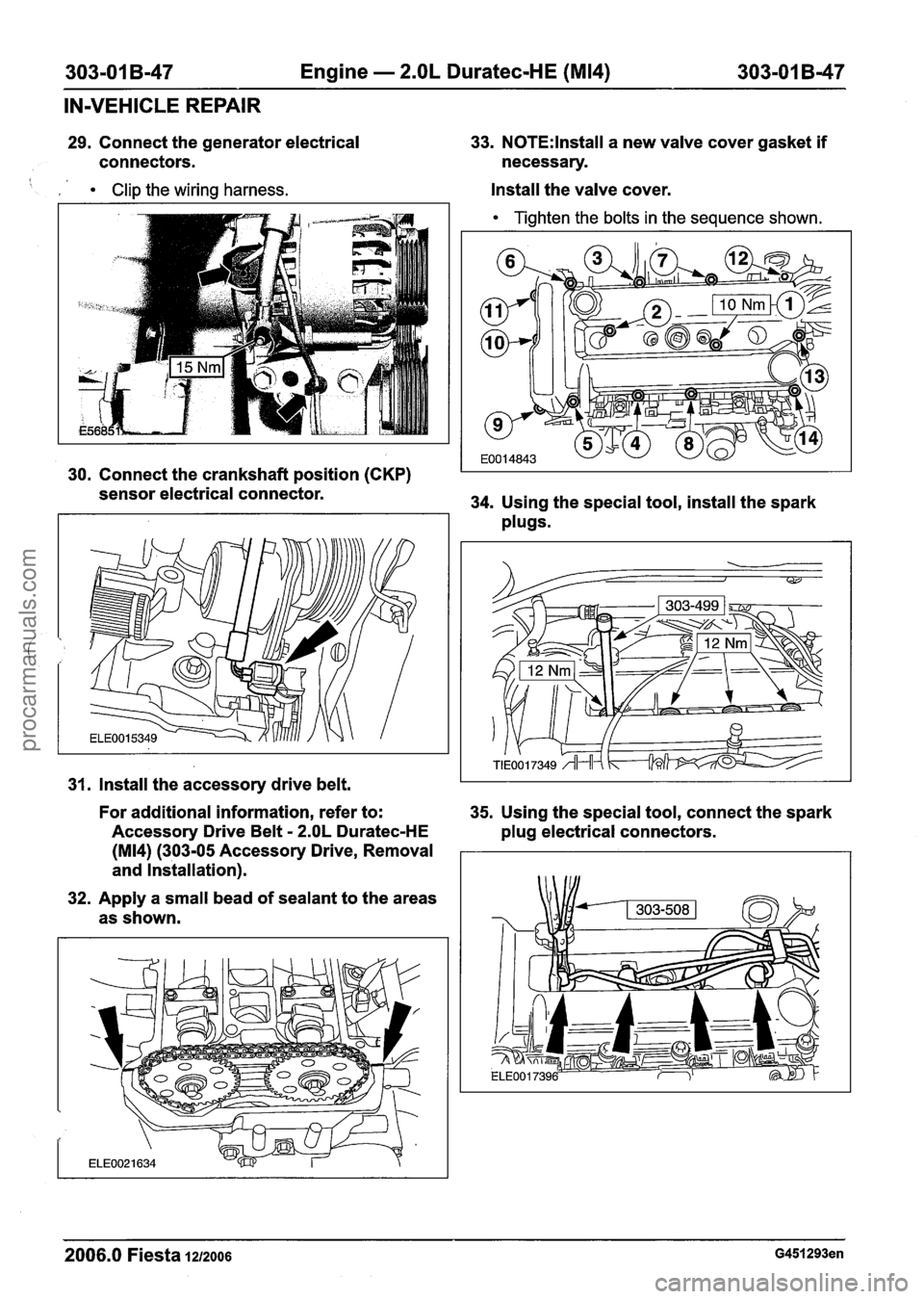

303-01 B-47 Engine - 2.OL Duratec-HE (M14) 303-01 B-47
IN-VEHICLE REPAIR
29. Connect the generator electrical
connectors.
Clip the wiring harness.
33. N0TE:lnstall a new valve cover gasket if
necessary.
Install the valve cover.
Tighten the bolts in the sequence shown.
I I
30. Connect the crankshaft position (CKP) I I
sensor electrical connector.
34. Using the special tool, install the spark
plugs.
31. Install the accessory drive belt.
For additional information, refer to:
35. Using the special tool, connect the spark
Accessory Drive Belt
- 2.OL Duratec-HE
plug electrical connectors.
(M14) (303-05 Accessory Drive, Removal
and Installation).
32. Apply a small bead of sealant to the areas
as shown.
2006.0 Fiesta 1212006 G451293en
procarmanuals.com

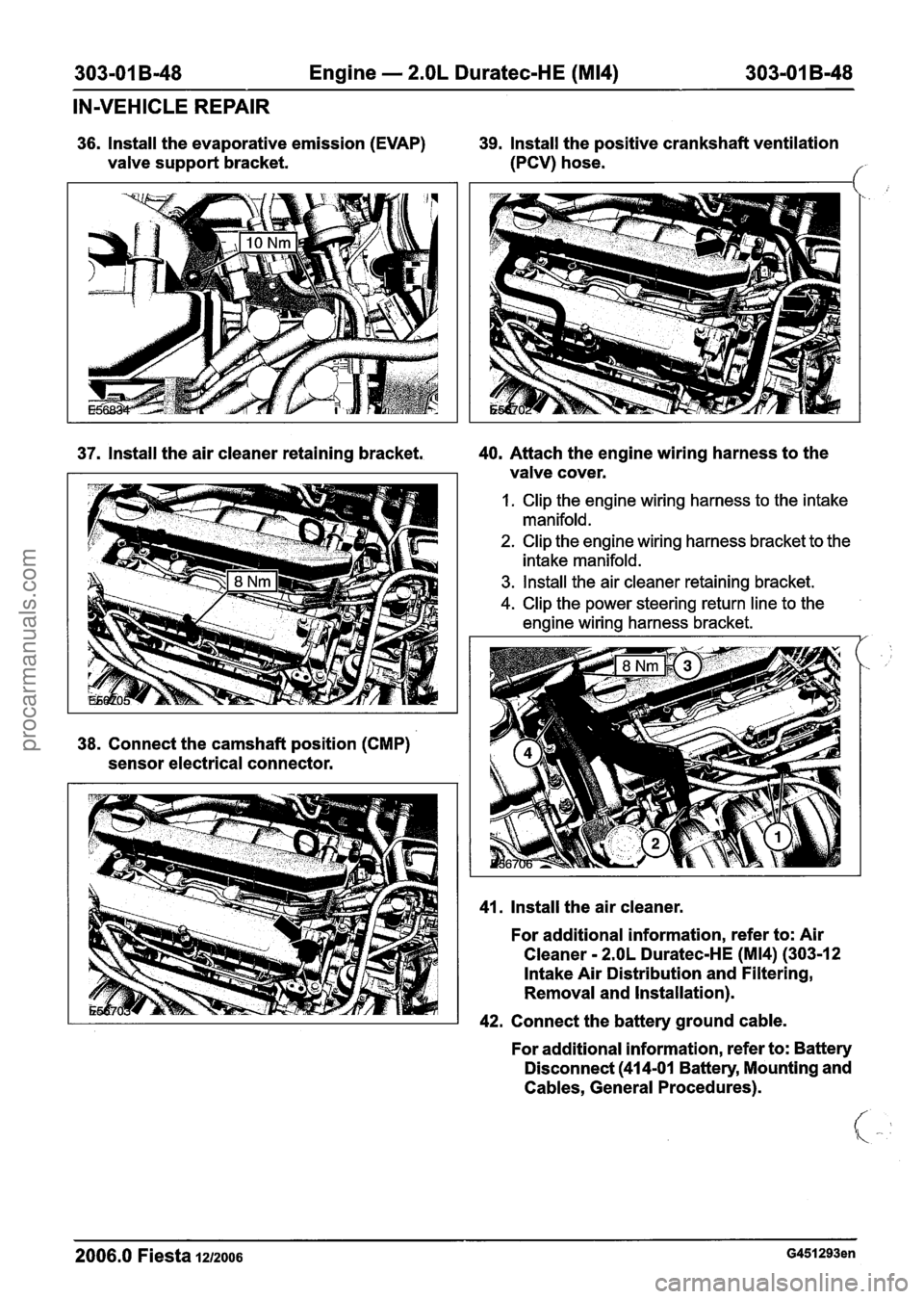

303-01 B-48 Engine - 2.OL Duratec-HE (M14) 303-01 B-48
IN-VEHICLE REPAIR
36. lnstall the evaporative emission (EVAP)
valve support bracket.
37. lnstall the air cleaner retaining bracket.
38. Connect the camshaft position (CMP)
sensor electrical connector.
39. lnstall the positive crankshaft ventilation
(PCV) hose.
f
40. Attach the engine wiring harness to the
valve cover.
I. Clip the engine wiring harness to the intake
manifold.
2. Clip the engine wiring harness bracket to the
intake manifold.
3. lnstall the air cleaner retaining bracket.
4. Clip the power steering return line to the
engine wiring harness bracket.
41. lnstall the air cleaner.
For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (30312
Intake Air Distribution and Filtering,
Removal and Installation).
42. Connect the battery ground cable.
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
2006.0 Fiesta 1212006 G451293en
procarmanuals.com

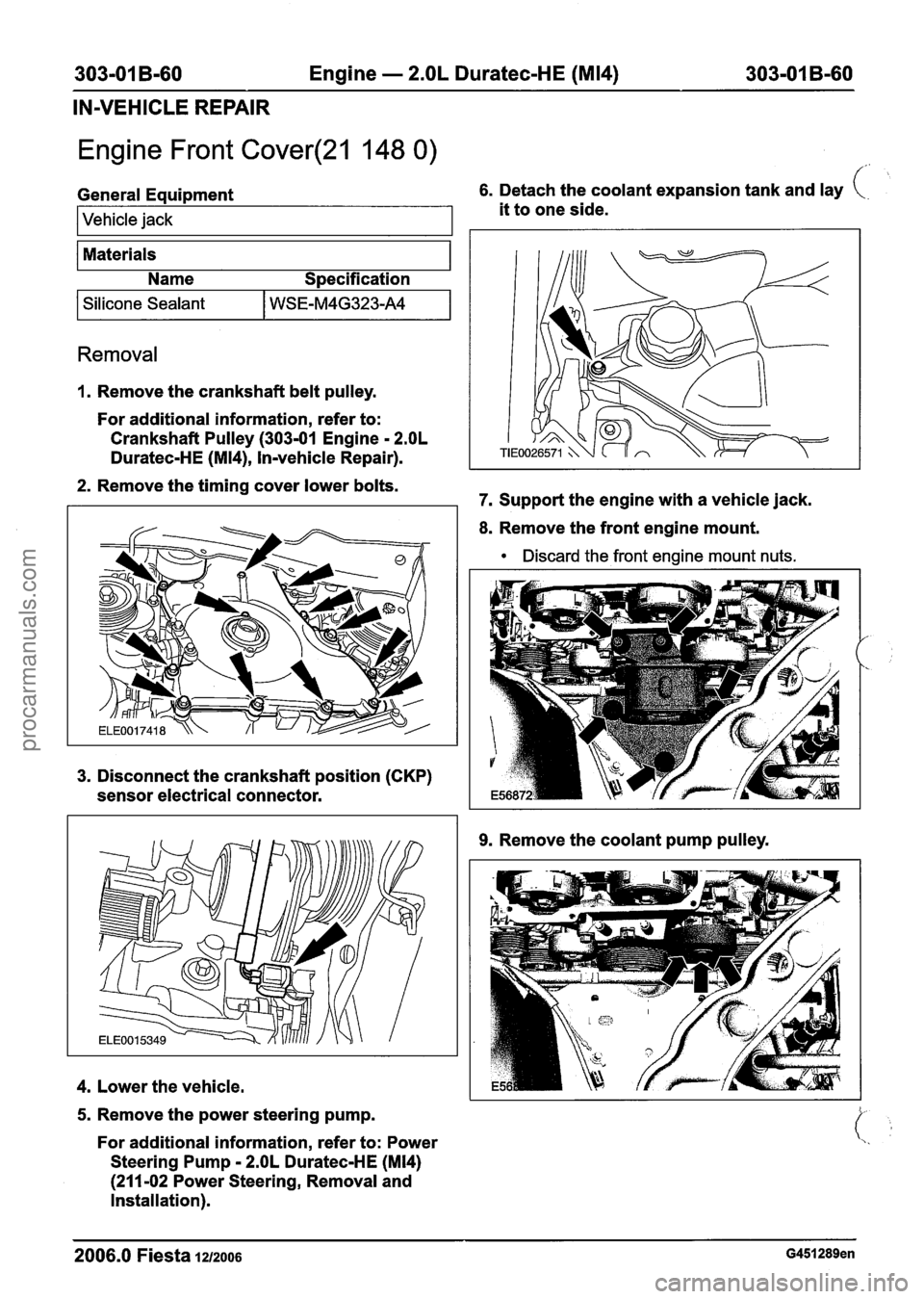

303-01 B-60 Engine - 2.OL Duratec-HE (M14) 303-01 B-60
IN-VEHICLE REPAIR
Engine Front Cover(21 148 0)
f'
General Equipment 6. Detach the coolant expansion tank and lay
I Vehicle jack it to one side.
Materials Name Specification
I Silicone Sealant I WSE-M4G323-A4 I
Removal
1. Remove the crankshaft belt pulley.
For additional information, refer to:
Crankshaft Pulley (303-01 Engine
- 2.OL
Duratec-HE (M14), Invehicle Repair).
2. Remove the timing cover lower bolts.
7. Support the engine with
a vehicle jack.
8. Remove the front engine mount.
Discard the front engine mount nuts.
3. Disconnect the crankshaft position (CKP)
sensor electrical connector.
4. Lower the vehicle.
5. Remove the power steering pump.
For additional information, refer to: Power
Steering Pump
- 2.OL Duratec-HE (M14)
(211 -02 Power Steering, Removal and
Installation).
9. Remove the coolant pump pulley.
2006.0 Fiesta 121~0o6 G451289en
